The Siablo CF is designed with the focus on Gravel, utilizing a brand new Carbon frame with, the CF is a lightweight bike that exceeds the broad demands put on the gravel category. Designed with current trends and future insight the Siablo CF is an extremely versatile bike, capable of fitting up to 700x42c tyres or 650b road plus should you want the extra comfort. Rack mounts, BB PF30, and hydraulic disc brakes mean that the CF is practical and performs well in all weather conditions.

At a Glance

Carbon Gravel Frame, Internal Cable Routing, Tapered HT, 142mm Thru-axle
Carbon Fork, 12mm Thru-axle, Disc mount, Bottle & Rack mounts
Shimano GRX 12-Speed Rear Derailleur
Shimano GRX Hydraulic Disc brakes
Surface Custom Gravel Wheelset, 700c alloy
Maxxis Rambler 700x40c tyres, Silkshield
Weight: from 8.82 kg

TECH HIGHLIGHTS

DROPPED ASYMMETRIC CHAINSTAY

The non-drive chainstay has 10% increased area to increase strength and better distribute braking forces.To accommodate a wide range of chainring sizes, the drive side chainstay is dropped to increase clearance. Rectangular chainstay profile tapers down toward the dropout, for absolute stiffness at the bottom bracket, while allowing a degree of dampening at the dropout.

CARBON USED – TYPE AND BENEFITS

The structure is mainly composited of T700 UD carbon fibre. Offering equilibrium in stiffness to strength ratio. UD carbon fibre has absolute strength in the direction of the fibre. Strategically controlling the fibre lay-up, produces a matrix that is stiff where desired and strong where necessary, with minimum weight addition. The frame is finished in a 3K Twill weave for a robust composite surface that can withstand any demands exerted by the rider.

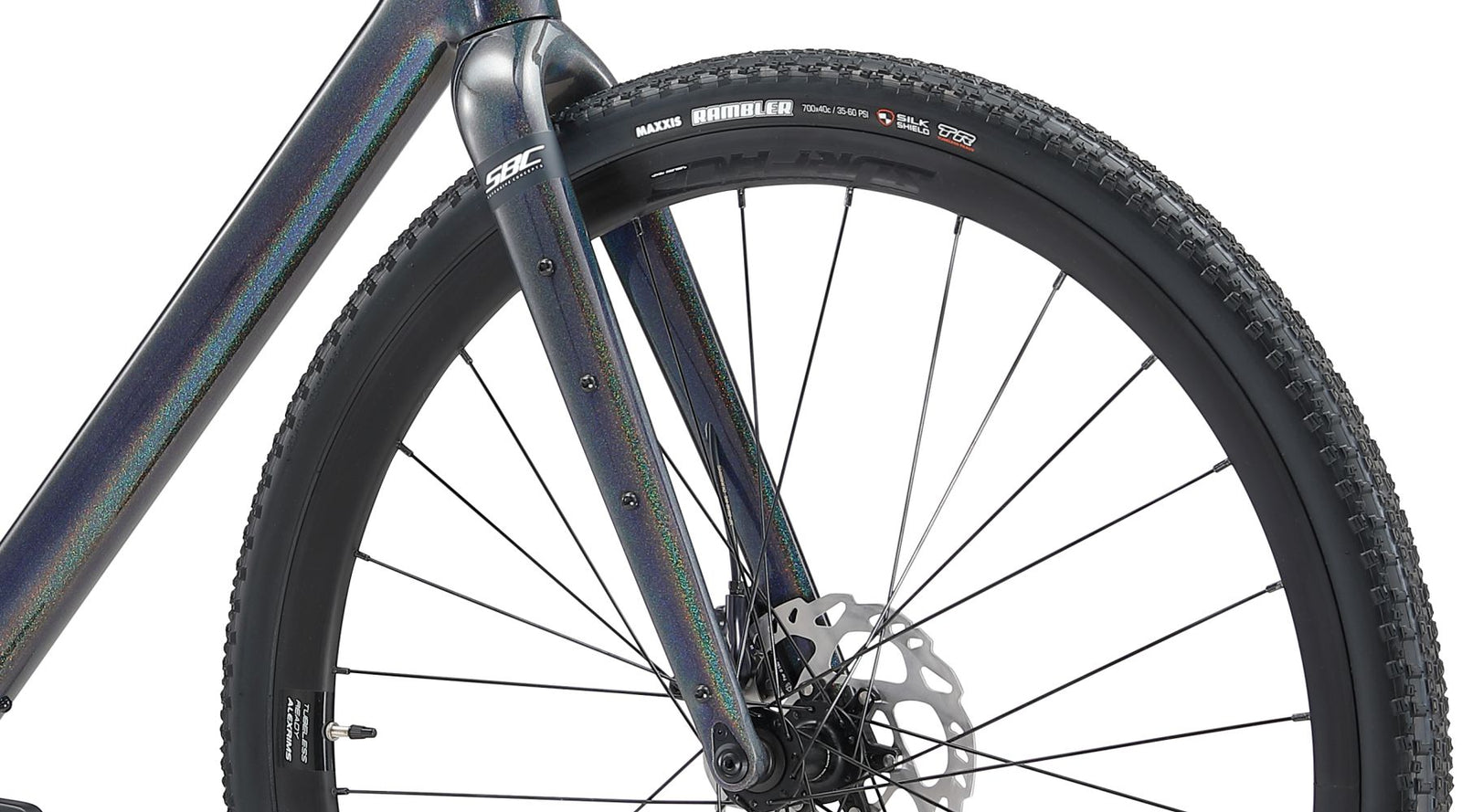

SBC FORK

The SBC Fork has all-round performance, while retaining absolute functionality. Equipped with fender mounts to protect both rider and components from unwanted debris spray in wet conditions. Fitted with bottle bosses on both stanchions, it greatly increases hydration capacity of the frameset. The bosses also double up as pannier mounts to increase load capacity of the Siablo CF.

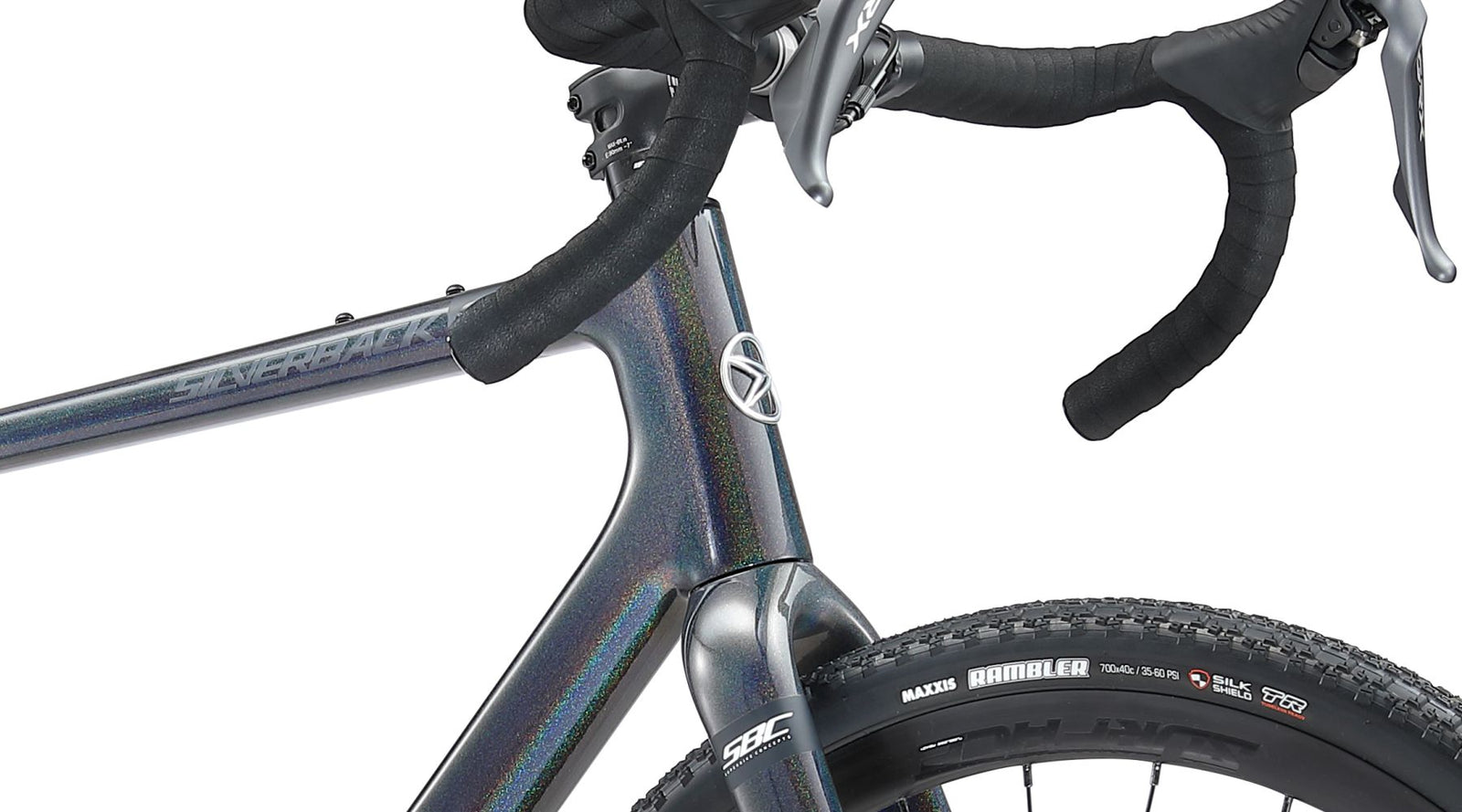

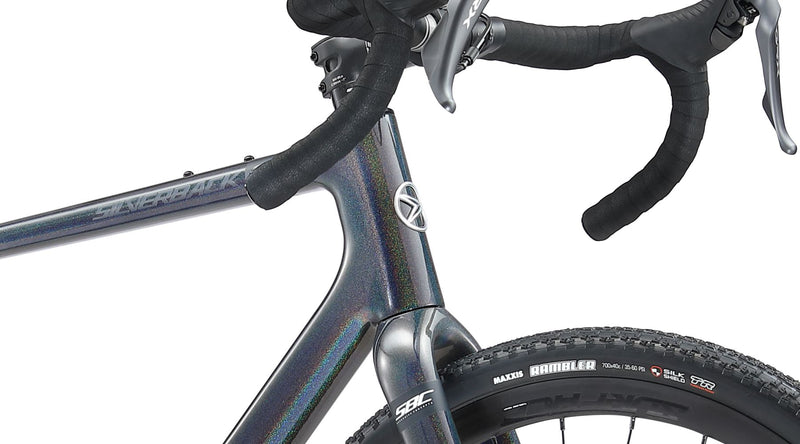

DI2 COMPATIBILITY AND INTERNAL ROUTING

All cable routing on the frameset is internal, including the fork. Cables are out of the way, resulting in a sleek look that protects cables from debris ingression. With three cable entry ports, the frame supports the brake hose, rear and front gear cable, or dropper post in 1X configurations. If mechanical shifting is not up to your standard, rest assured that the frame is compatible with Di2 and AXS electronic groupset.

DROPPED ASYMMETRIC CHAINSTAY

The non-drive chainstay has increased area to increase strength and better distribute braking forces. To accommodate a wide range of chainring sizes, the drive side chainstay is dropped to increase clearance. Rectangular chainstay profile tapers down toward the dropout, for absolute stiffness at the bottom bracket, while allowing a degree of dampening at the dropout.

FLARED HANDLEBARS

The flare on the drop allows for a more natural interface between hand and handlebar. The 16° flare increases clearance between the hoods and wrist, when riding in the drops, allowing for adequate clearance to navigate the bike through demanding terrain.

GRAVEL FOCUSED GEOMETRY

The wheelbase of the frameset is semi-short to retain a race capable bike, with good weight distribution under load. A slack head angle makes for a terrain capable front end that will roll challenging obstructions. The steeper seat angle aids in ascending more efficiently, with better power transfer at variable gradient increase.

THRU AXLE DROPOUTS

Thru-axles effectively bolt the wheel to the frame or fork. By comparison, QR systems only slot in place, and compress the dropout to retain the wheel. The increased strength and stiffness of thru-axles can be attributed to both the increase in effective engagement area and the fixing mechanism to the dropout. The thru-axle system is significantly safer, with fewer point for potential failure.

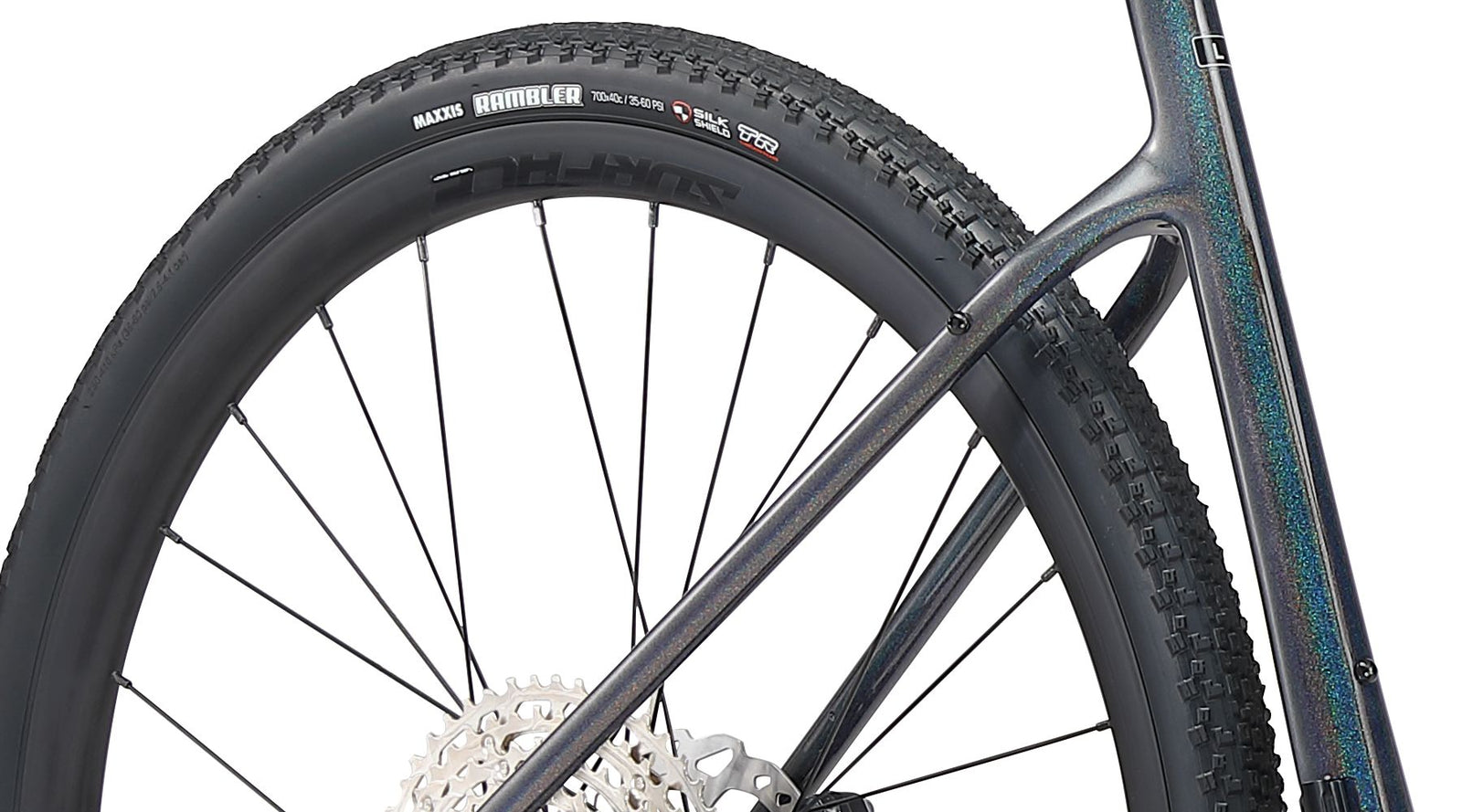

WHEEL COMPATIBILITY + WHEEL CLEARANCE

The frameset is compatible with both 700C large volume tyres and 650B tyres.It is designed to fit a maximum size 700 x 50C and 650B x 2.0” tyre. For long distance riding, over moderate to easy terrain; 700C tyres are recommended. While for shorter, demanding terrains, 650B tyres will be the best option.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Full Carbon Frame, Internal Cable Routing, Flat-mount Disc Brake Mounts. Supports 700C and 650B Wheelsize, including Internal Routed Dropper Post Compatible.

Headset

Siablo CF Headset, for Internal Cable Routing. IS52/28.6 IS52/40

Frame Axle Spacing

142x12mm

Axle Specification

172x12mm P1.0

Hanger Type

HANGER 40

FORK

Fork

700C Full Carbon Fork, 100x12mm Hub Spacing, for Internal Cable Routing, waterbottle and pannier mounts

WHEELS

Wheelset

SURFACE Custom Wheelset

Hubs

F: Shimano HB-RS470 Front Hub, 28H, 100mm OLD for 12mm Thru Type Axle (w/o Lock Ring)
R: Shimano FH-TC500-MS-B Freehub, Center Lock, 12 speed, 12mm thru-axle, 32H, OLD: 142mm

Rims

F: SURFACE Alloy Rim, 21mm Internal Width, 30mm Depth, 28H
R: SURFACE Alloy Rim, 21mm Internal Width, 30mm Depth, 28H

Tyres

Maxxis Rambler 700Cx40C, 60TPI, Silkshield, Tubeless Ready

Max Tyre Size

50C or 2.0"

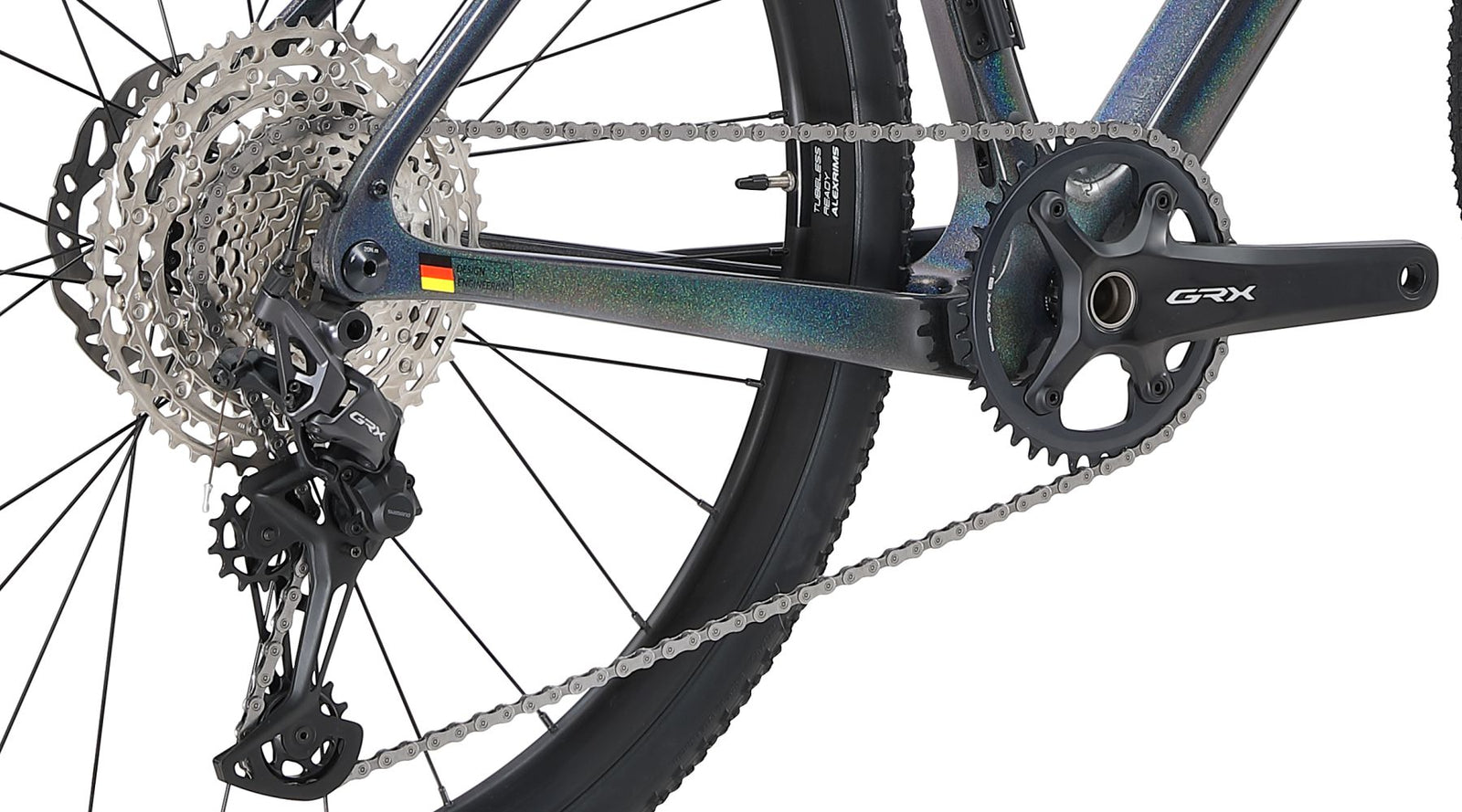

DRIVETRAIN

Crankset

Shimano GRX FC-RX820-1, 12-Speed, 40T

Max Chainring Size

50/34T or 46T

Bottom Bracket & Type

Shimano SM-BBR60, BSA68

Shifter(s)

Shimano GRX ST-RX820

Rear Derailleur

Shimano GRX RD-RX822, 12-Speed, 10-51T, Direct Attachment

Cassette

Shimano Deore CS-M6200, 12speed Hyperglide+, 10-51T

Chain

Shimno Deore CN-M6100 Chain, 12 Speed

BRAKES

Brakes

Shimano GRX BR-RX820 Hydraulic Disc, Resin Pad

Rotors

Shimano SM-RT70 160mm, Centre-Lock

COCKPIT

Grips

Surface Handlebar Wrap, Suede Black, Plug with Expander Bolt

Handlebar

SURFACE Alloy Handlebar, Ø 31.8mm, Reach: 77mm, Drop: 128mm, Flare: 16°

Stem

SURFACE Alloy Stem, 31.8mm, Rise ±7°

Saddle

SURFACE Saddle, Steel Rails

Seat Post

SURFACE Alloy, Ø 27.2mm

Seatpost Clamp

SURFACE Alloy

Pedals

Not Included

WEIGHT

Bike Weight

9.5 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider

Owner's Manuals

Technical Manuals & Setup Guides

Access the complete documentation for your bike:

English Manual Guide – [Download]
German Manual Guide – [Download]

FAQ.

What type of terrain is the Siablo CF suitable for?

The Siablo CF is best suited to gravel and asphalt roads.
What is the maximum tyre clearance of the Siablo CF?

The Siablo CF has a maximum tyre clearance of 50C.
Can I fit 27.5" / 650b wheels to the Siablo CF?

Yes, the maximum clearance is 2.0".
What is the low gear capacity for the rear derailleur?

The derailleur low gear capacity is 42T.
What type of brakes does the Siablo CF have?

The Siablo CF has hydraulic disc brakes.
Can I fit fenders or a rack to the Siablo CF?

Yes, the Siablo CF have mounts suitable for fenders and a rear rack. There are also pannier mounts on the fork.
What is the weight limit on this bike?

The weight limit is 120 kg. That includes the weight of the bicycle.

OTHER MODELS IN THE SERIES

€1.999

SE:SERIES GR CF 11

Gravel | Performance | Full Carbon

Carbon Fork
700C x 40C Wheels
1x11 Speed SRAM
9.5kg

€2.499

SIABLO CF GRX (NEW GEN)

Gravel | Performance | Full Carbon

Carbon Fork
700C x 40C Wheels
1x12 Speed Shimano
9.5kg

€1.499

SE:SERIES GR AL 11

Gravel | Fitness | Alloy

Alloy Fork
700C x 40C Wheels
1x11 Speed Shimano
12.2kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XXS	XS	S	M	L
	Rider height(cm)	142-152	150-160	160-168	168-178	178-188
	Rider inseam(cm)	66-69	69-72	72-76	76-80	80-85
A	Seat tube c/t	450	490	520	540	560
B	Seat tube angle	74	73	73	72.5	72.5
C	Head tube angle	70	71	71	71	71
D	Top Tube	517	537	551	571	588
E	Reach	365	370	379	388	397
F	Chainstay length	435	435	435	435	435
G	bb height	294	294	294	294	294
H	head tube length	110	125	140	160	185
I	stack	529	548	562	581	604
J	standover	765	796	818	837	858
K	Wheelbase	1021	1023	1036	1052	1069
