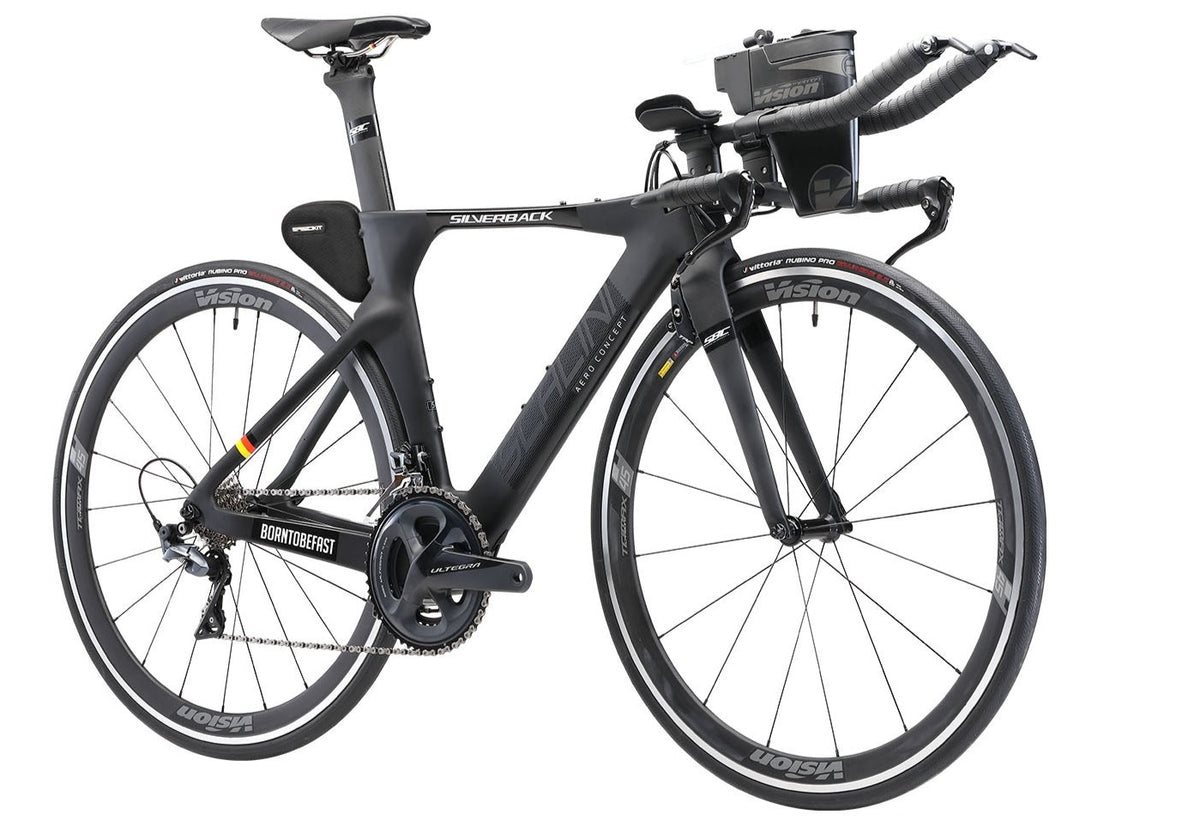

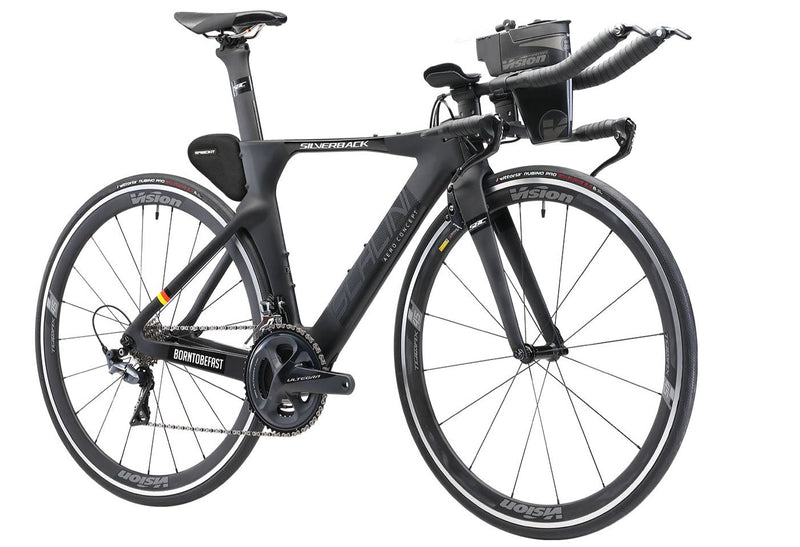

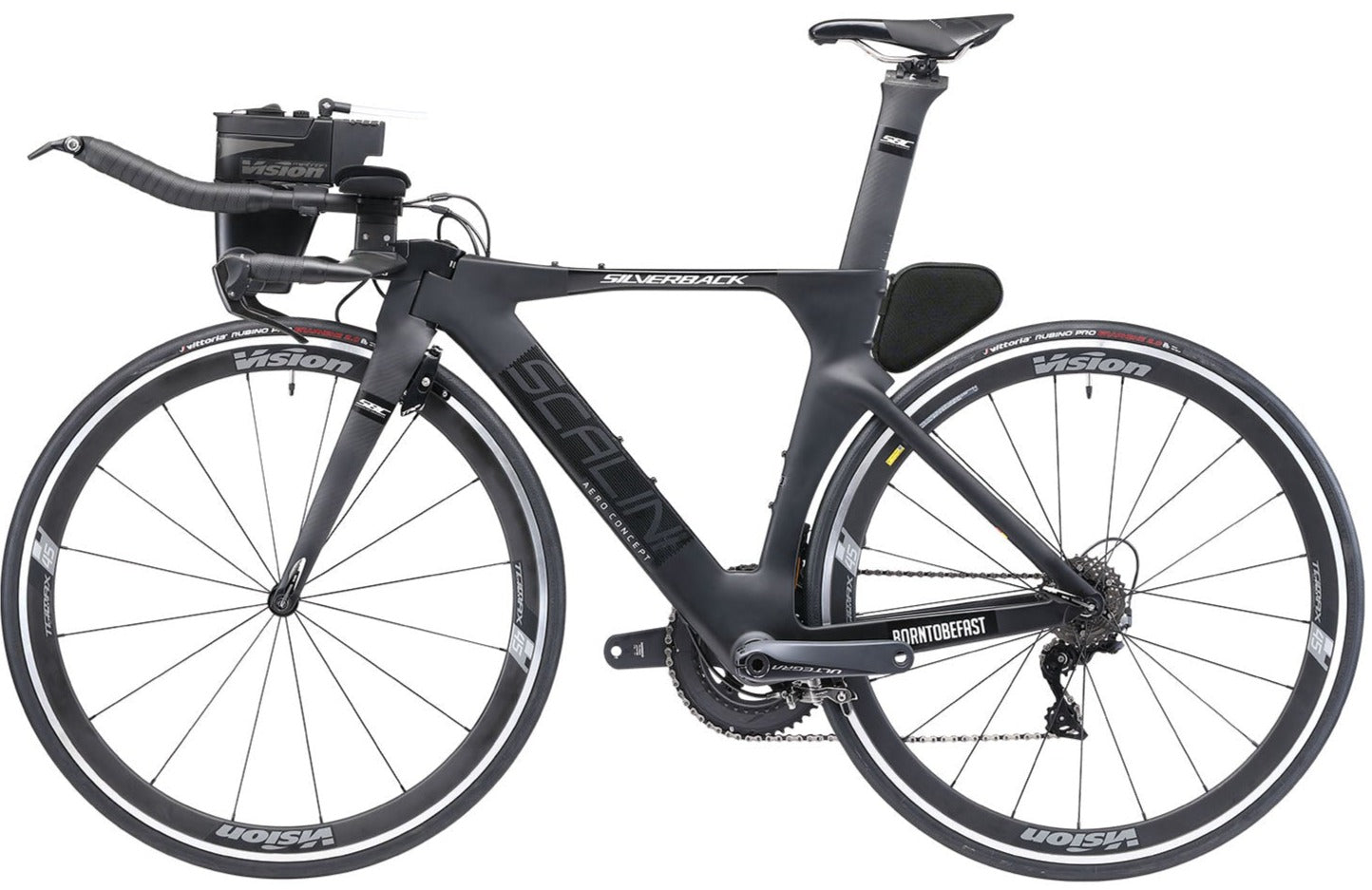

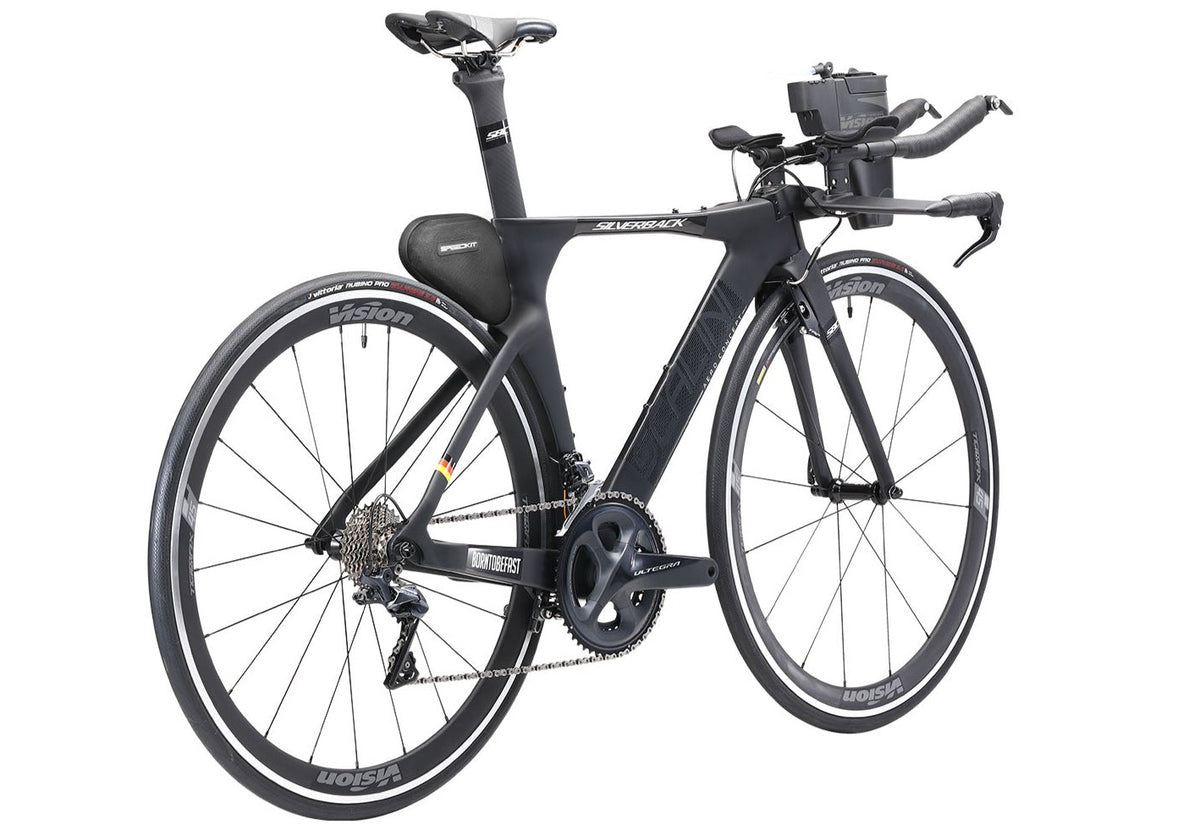

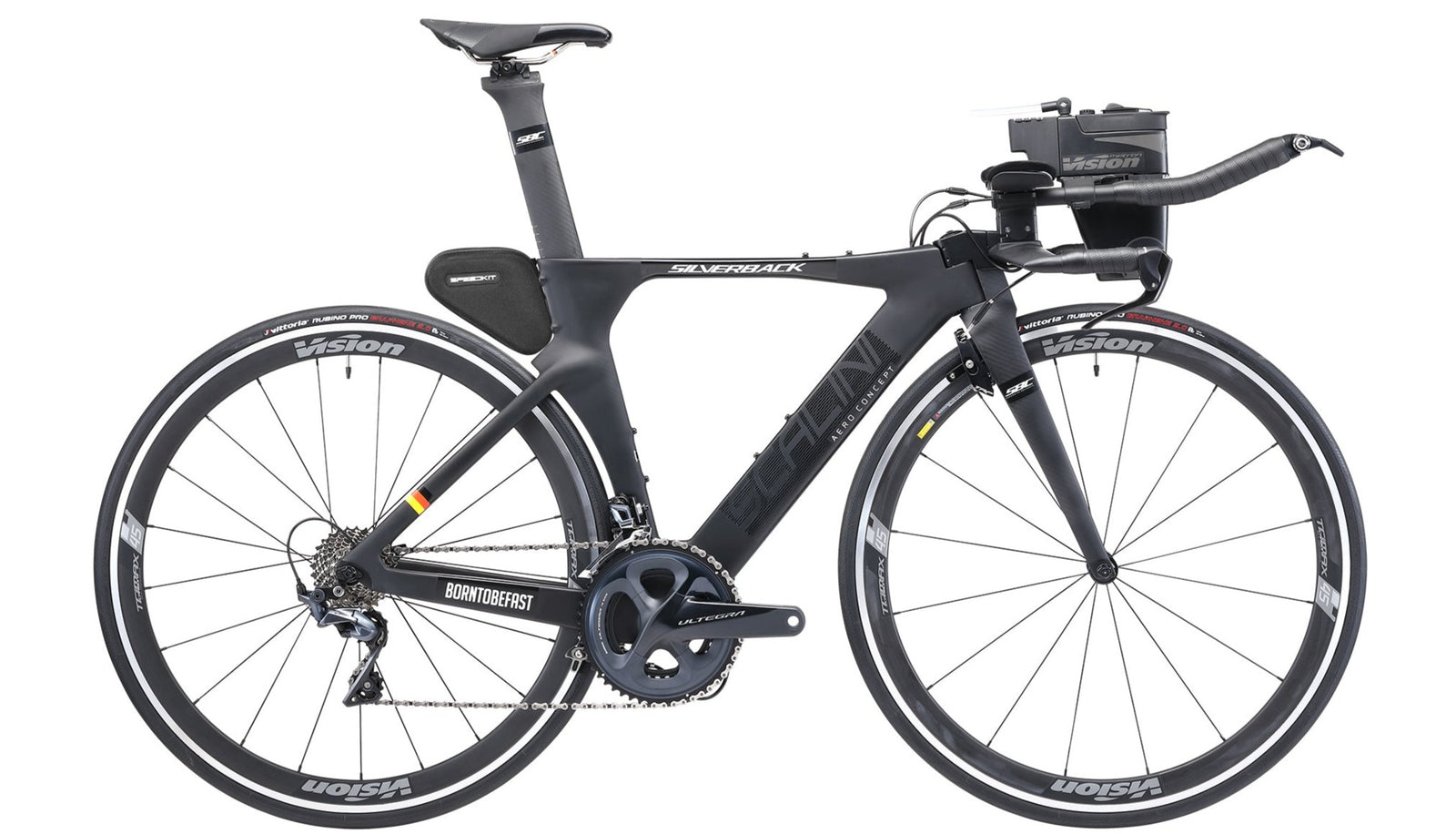

Scalini TT Ultegra

Road | Time Trial | Carbon | 700C

KEY FEATURES

Silverback Time Trial Carbon, 700c, Full guided internal routing
700c Full UD Carbon with 3K Twill finish, Carbon Steerer, 43mm Offset
Shimano 105 CS-R7000, 11spd, 11-28t
Surface carbon components
Vision TriMAX Semi-deep section 45mm rims
Vittoria Rubino Pro 700 x 25c tyres
TRP Aero V-Brake F, Shimano Ultegra R brakes
Weight: 8.83kg (Size:50cm)

What is the warranty on this frame?

3 Years

How is a Time Trial bicycle different from a Road bicycle?

The most noticeable difference is in the handlebar. A Time Trial bicycle uses a base bar, with extension bars for the rider to get into a more aerodynamic riding position. Whereas a Road bicycle uses a conventional drop handlebar.

Is there a geometry difference between a Time Trial bicycle and a Road bicycle?

A Time Trial bike typically has a shorter wheelbase to put the rider closer over the front wheel.

What is the maximum tyre clearance on the Scalini?

The Scalini has a maximum tyre clearance of 700C x 26C

What type of handlebar is fitted to the Scalini?

The Scalini is fitted with a Carbon Fibre base bar and extension bars with elbow rests.

Can I use any brake calipers on the Scalini?

No, the Scalini uses a very specific front brake from TRP TTV-F (TTV06F)-02. The recommended rear brake is TRP T851.

OVERVIEW
WHY IT'S BEST
SPECIFICATIONS
GEOMETRY & SIZE CHART
REVIEWS
DOWNLOAD PDF

STREAMLINE INTEGRATED STOPWATCH BEATER.

From leading to trailing edge, the Scalini advances smooth airflow through the unseen barrier. Tipping the scale in the favour of the time trial specialist. Reduced frontal area and streamline integration, are at the heart of what gives the Scalini its advantage. Modular design allows for ease of disassembly and a complete tailored spectrum. Enabled with 11-Speed Ultegra/Dura-Ace, paired with BB86, it provides the optimum platform for light gear control and efficient power transfer. The Scalini is designed to meet the highest demand for Triathletes and Time-trialists alike. In a discipline of marginal gains, the design is outright optimized around performance. When it comes to breaking through the air barrier, we have left no stone unturned addressing Form, Surface and Interference Aerodynamic challenges.

FRAME CONSTRUCTION.

Constructed through expanded polystyrene (EPS) moulding. Preform moulding allows precise, uniform (wrinkle-free) and repeatable execution of the lay-up schedule. Uniform fibres increase strength reducing irregularities.

INTERFERENCE.

A leading edge fairing design on the seat tube, controls the airflow around the rear wheel, reducing the interference drag on the rear wheel. The integrated stem reduces interference drag between the frame and the stem, compared to traditional applications.

DESIGNER NOTES.

AERO TUBING PROFILE

CARBON FIBER FRAME

INTEGRATED SEATCLAMP

DI2 READY

CRANK POWER METER COMPATIBLE

VISION AERO BOTTLE

CARBON RIGID FORK

WHY IT'S BEST.

The cable routing on the Scalini is designed to make packing easier, as well as positioning the cables in a place that is aerodynamically favourable.
A Vision Integrated hydration solution is considered in the design process - making sure that the resulting aero profiles positively influence aerodynamics and ease of use while riding.
Behind the saddle, Scalini features and integrated storage solution. Stash your essentials out of the way in a purposefully designed storage box.
Scalini comes standard with Artisan hand built Vision wheels. The utmost care and attention to detail goes into building these high quality deep dish wheels.
Scalini more than just looks the part. This platform has been meticulously engineered and designed to offer the right tool for the job.
Scalini geometry is holistically designed and tuned for racing the clock. Highly adjustable setup to increase performance, and further boost aero efficiency of the bike and rider as a unit, and to meet the demands of multisport racing or training.

ENGINEERING NOTES.

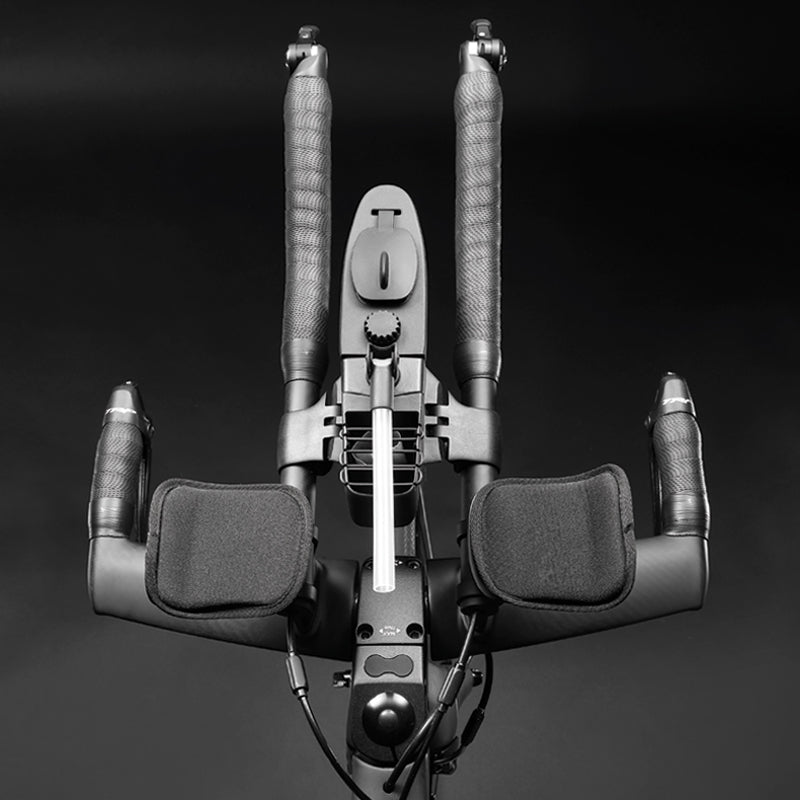

ADJUSTABLE COCKPIT

Tilt adjustment for extension bars, 10 ° adjustment. Spring-loaded quick-release on the brake lever Carbon Fibre brake lever blade Stack adjustment of stem and extension bars with spacers.

ARTISAN HAND BUILT WHEELS

Scalini features Hand built Vision wheels. Vision sealed cartridge alloy hubs with aero bladed spokes on Vision TriMAX Semi-deep section 45mm rims.

CONSTRUCTION

Constructed through expanded polystyrene (EPS) moulding. Preform moulding allows precise, uniform (wrinkle-free) and repeatable execution of the lay-up schedule. Uniform fibers increase strength reducing irregularities.

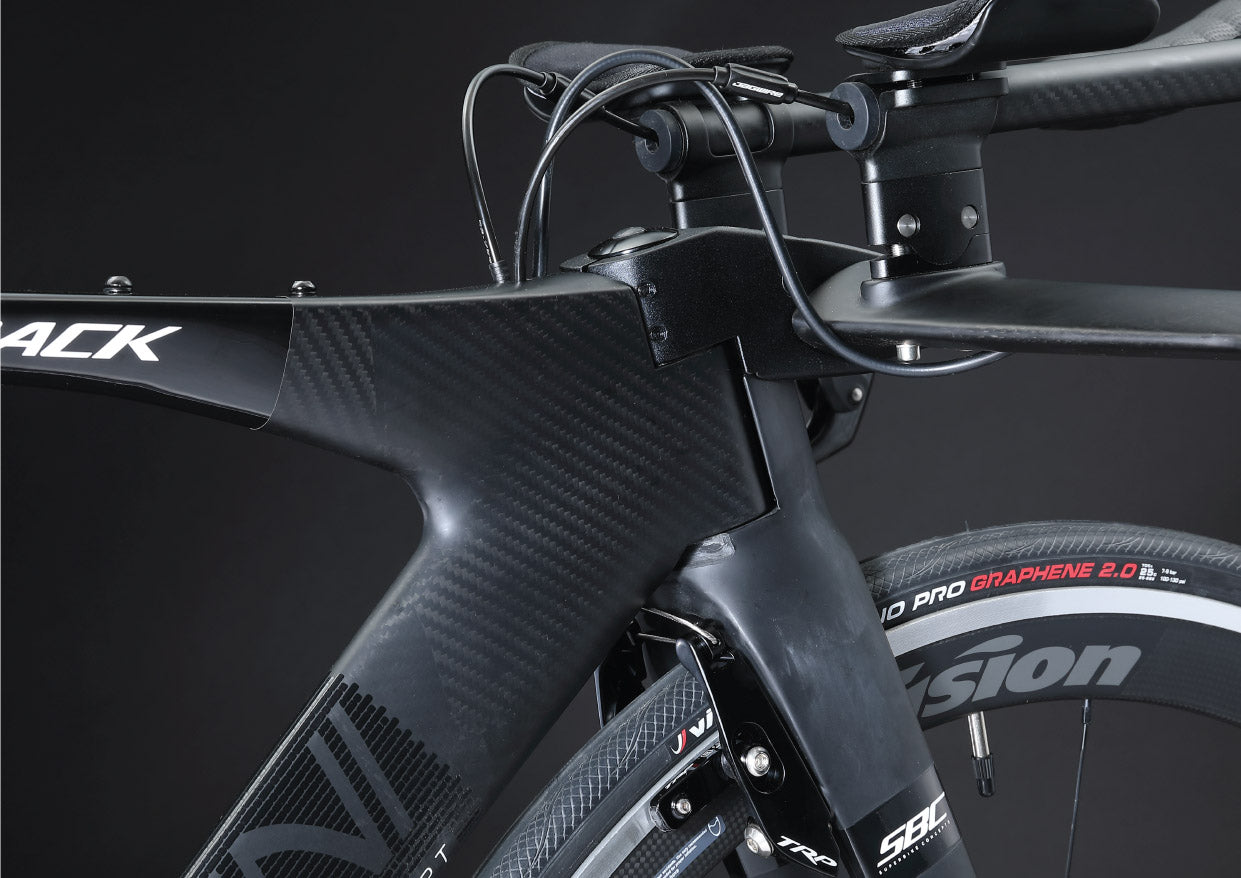

FORM

Scalini has an external fork steerer. Instead of the traditional rounded head tube, an external head tube allows for the frame leading edge to be far more streamlined. Resulting in a smaller frontal area, a more streamlined profile, and ultimately decreased Form Drag on the leading edge. The stem is integrated into the top tube, further reducing the frontal area Form drag. The handlebar clamp is further streamlined, to reduce exposed area.

GEOMETRY

The longer wheelbase in conjunction with the super low stack height and steeper seat tube means the Scalini TT geometry places the rider in a more aerodynamic position, improving the combined aerodynamic efficiency of the bike and rider as a unit.

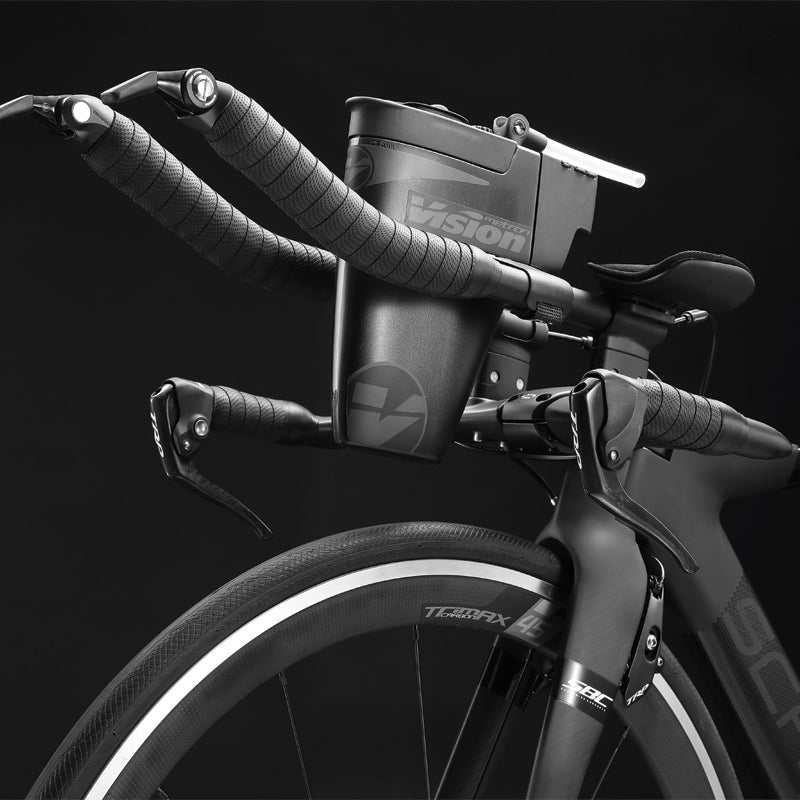

INCLUDED HYDRATION AND STORAGE SOLUTIONS

The Scalini features an integrated on-board Vision Metron hydration system and allocation for a Speedkit storage bag behind the seatmast. The Metron system features an articulated, collapsible straw attachment that enables the rider to easily take a drink at various angles, improving accessibility and convenience. *not available on the Frameset option.

INTEGRATED AERO DIRECT MOUNT BRAKES

The front brake caliper is tucked behind the fork, to reduce the interference drag the component will typically generate, mounted on the front. Trailing edge integration The rear brake caliper is tucked under the bottom bracket, to reduce the interference drag the component will typically generate, mounted on the seat stays. Trailing edge integration.

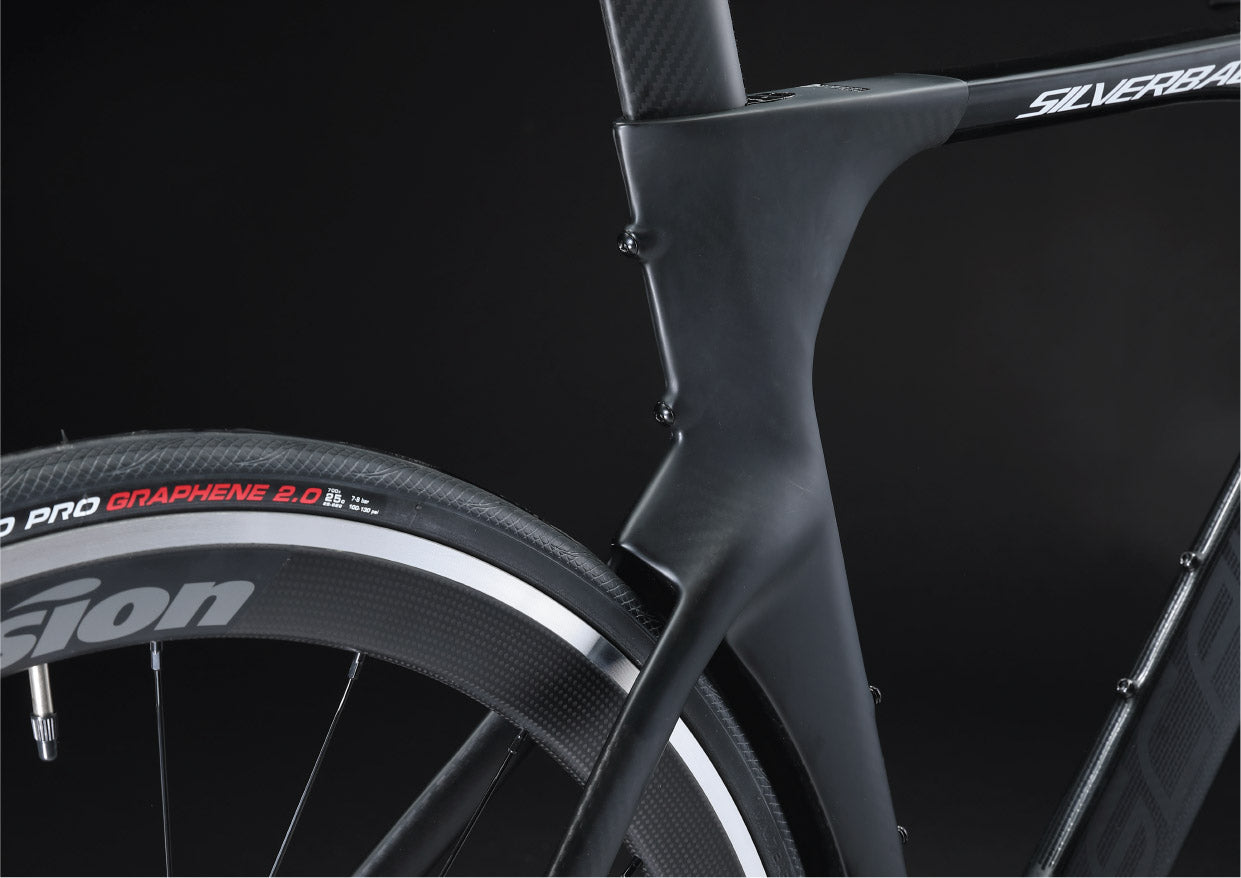

INTEGRATED SEATCLAMP

Seatclamp hidden inside the frame. This provides aerodynamic advantages and shaves some weight over a standard external seatclamp.

INTERFERENCE

A leading edge fairing design on the seat tube, controls the airflow around the rear wheel, reducing the interference drag on the rear wheel. The integrated stem reduces interference drag between the frame and the stem, compared to traditional applications.

PACKING OPTIMIZED CABLE ROUTING

Semi-internal housing allows for relative ease of disassembly for packing. In-line barrel adjusters allow for small and accurate adjustment of cable tension.

SPECIFICATIONS.

DRIVETRAIN

Crankset	Shimano FC-R8000 52 x 36t
Cassette	Shimano CS-R7000, 105, 11spd, 11-28t
Rear Der	Shimano FD-R8000 Ultegra 11spd, Shadow
Front Der	Shimano FD-R8000 Ultegra
Shifters	Shimano Dura-Ace Bar-end type shifters
Bottom Bracket	BB 386EVO Road

SUSPENSION

Fork	700c Full UD Carbon, Carbon Steerer, 43mm Offset

WHEELS

Hubs	Vision Sealed Cartridge alloy hubs, 2 bearings front, 4 bearings rear, 10/11spd, Aero bladed spokes
Rims	Vision TriMAX Semi-deep section 45mm rim, Artisan hand built
Tyres	Vittoria Rubino Pro 700 x 25c, Kevlar Bead, Foldable

COCKPIT

Seatpost	Surface Carbon Fiber, 350mm L
Saddle	Surface TT, Cr-Mo Rail
Handlebar	Surface Carbon Fiber 31.8mm, 130mm Reach, 15mm Drop, 400mm W
Stem	Surface Alloy, 0mm rise

FRAME

Frame

Silverback Time Trial Carbon, 700c, Full guided internal routing.

BRAKES

Brake set

TRP TTV-F Front and TRP T851 Rear

WEIGHT

Weight	8.83kg (Size:50cm)
Weight Limit	120kg - combined weight of bike and rider (including all kit).

EXTRAS

Hydration	Vision Metron hydration system
Storage	Speedkit storage bag behind seatmast

Disclaimer: Due to the nature of bike manufacturing, specification, finishes and price may be subject to change without prior written notification.

Disclaimer: Due to Covid-related scheduling and component availability challenges, bike specifications are subject to change without notice. Specifications may not be exactly what is shown in the photo.

FIND YOUR FIT

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XXS	XS	S	M	L	XL
	Rider height(cm)	144-154	152-164	164-172	170-178	176-185	183-193
	Rider inseam(cm)	65-70	69-74	74-78	77-81	80-84	83-87
A	Seat tube c/t	413	453	493	533	563	593
B	Seat tube angle	75	75	74.5	74	73.5	73
C	Head tube angle	70.5	71.5	72	73.25	73.25	73.5
D	Top Tube	500	510	525	545	560	580
E	Reach	367	373	380	392	396	405
F	Chainstay length	405	405	405	405	408	408
G	bb height	270	270	270	272	272	272
H	head tube length	100	115	125	135	150	170
I	stack	494	511	522	535	551	571
J	standover	762	779	790	803	819	839
K	Wheelbase	972	974	980	976	989	1001
