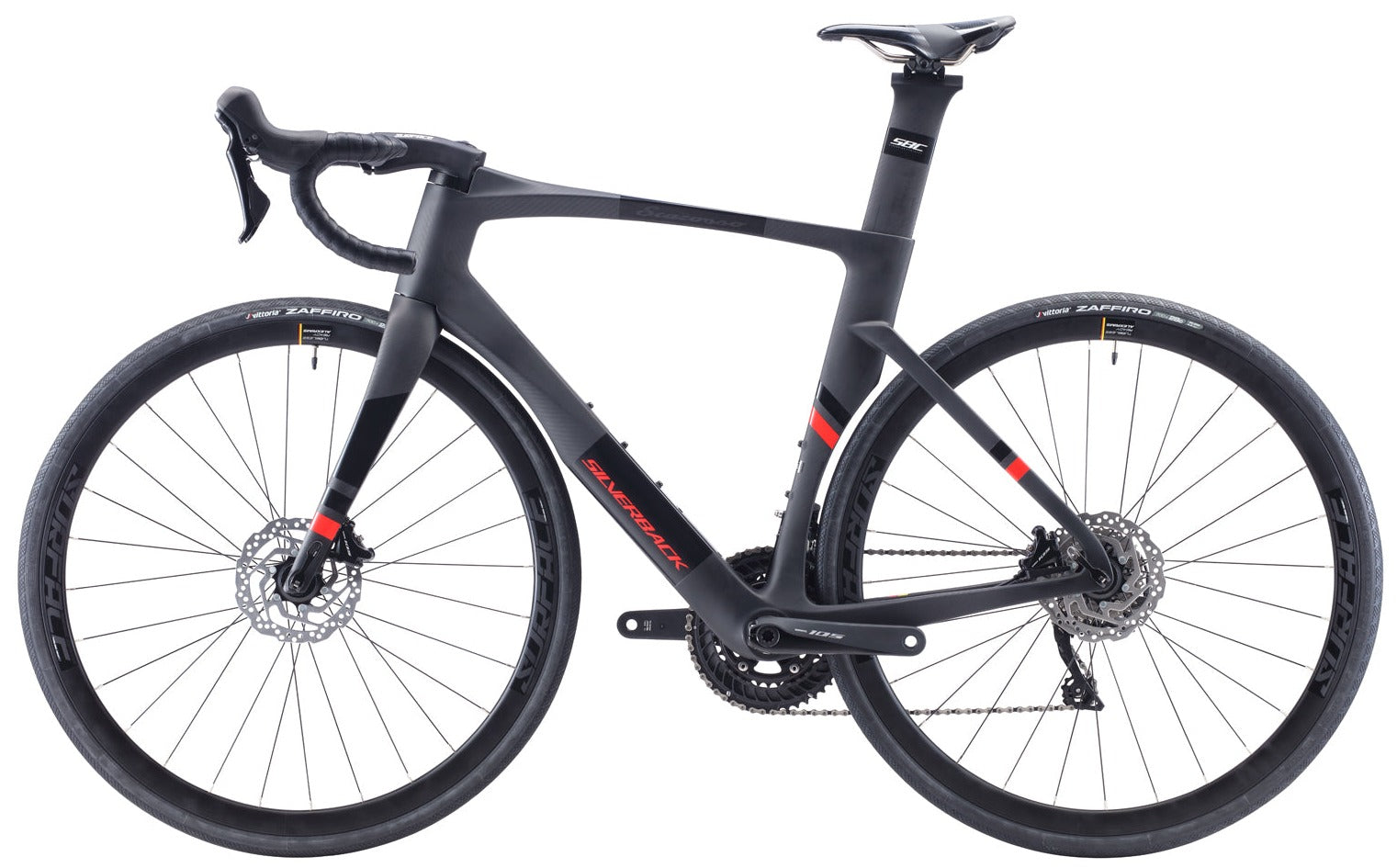

Silverback Biks Scarosso 105 with Surface Carbon Wheels 6

Silverback Biks Scarosso 105 with Surface Carbon Wheels 7

Silverback Biks Scarosso 105 with Surface Carbon Wheels 8

Silverback Biks Scarosso 105 with Surface Carbon Wheels 9

Scarosso 105, Surface Carbon Wheels €3.499,00

SPEC SIZE & GEO COMPARE CUSTOMIZE BOOK A DEMO

Scarosso 105, Surface Carbon Wheels

Name: Scarosso 105, Surface Carbon Wheels
Brand: Silverback
SKU: 6097000430901
Price: 3499.0 EUR
Availability: InStock
Rating: 4.88 (8 reviews)

€3.499

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.88 8 reviews

Size:

Color: Raw Carbon With Red

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 1872622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Bravo Gel Glove - Glove - Giro - Black - Small - - Speedlab

Spectrum Touring 30 and Star Beam Light Set

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-21

Scarosso 105, Surface Carbon Wheels

€3.499,00

Add to cart

Fast Lines. Faster Miles.

The Scarosso questions aerodynamic conventions, and the demands of a modern racing bike. The frame and fork are design and engineered around the rider, with an emphasize on performance, aerodynamics, capability and comfort. These factors are holistically integrated to offer a complete streamline weapon. Scarosso is every bit capable, as it is fast. With tyre clearance up to 32C, it caters for a wide range of rider applications. Speed is only as good as it can be controlled, which is why disc-brakes are the obvious performance solution to enable the Scarosso with all-weather capability that is powerful yet consistent and predictable. The Scarosso is set apart from the competition by its leading-edge; attributed to the Scarosso AID (Aerodynamic-Identity) Fork. CFD Analysis indicate turbulence regions present at the chainwheel, caused by the cadence of the rider, resulting in parasitic drag.

At a Glance

Carbon Scarosso Aerodynamic road Frame, Asymmetric design, Disc brake only
Scarosso Carbon Rigid fork, Passive Aerodynamic Control, Matte with 3K Twill finish
Shimano 105 R7000 11spd groupset
Shimano 105 R7020 hydraulic disc brakes
Surface Carbon drop handlebar
Surface Carbon deep dish 700C wheels
Vittoria Rubino Pro 28C tyres
Weight: 8.7 kg

TECH HIGHLIGHTS

SUPERIOR AERODYNAMIC CHARACTERISTICS

The Scarosso is set apart from the competition by its leading-edge; attributed to the Scarosso AID (Aerodynamic-Identity) Fork. CFD Analysis indicate turbulence regions present at the chainwheel, caused by the cadence of the rider, resulting in parasitic drag.

PROPRIETARY FRAME CONSTRUCTION / MATERIAL

Scarosso is manufactured in a tailored process and layup schedule. Constructed through expanded polystyrene (EPS) moulding. Preform moulding allows precise, uniform (wrinkle-free) and repeatable execution of the lay-up schedule. Uniform fibers increase strength reducing irregularities. The result is a fast and lightweight race machine that offers best-in-class performance.

GEOMETRY

Scarosso geometry places the rider in the optimal position for power transfer to the pedals while riding in the most aero efficient posture. This position is then ergonomically enhanced and fine tuned for a good balance of aerodynamic efficiency, comfort and performance.

DRIVETRAIN COMPATIBILITY: WIRELESS AND WIRED COMPATIBLE FRAME

Sram AXS, Shimano Di2 and Campagnolo EPS compatible

SURFACE AERO CARBON HANDLEBAR

The Aero Drop Handlebar is designed complementary to aerodynamics of the Scarosso frameset.

Downforce inducing profile handlebar tops.

Compact bend for palm comfort in the drops. Light UD carbon structure, with 3K Twill Weave surface finish.

Full- or Semi- Integrated brake, gear and electric cable routing.

The handlebar has a reach of 82mm and drop of 124mm

Drops are flared at 3.5° for improved wrist ergonomics promoting comfort over prolonged periods.

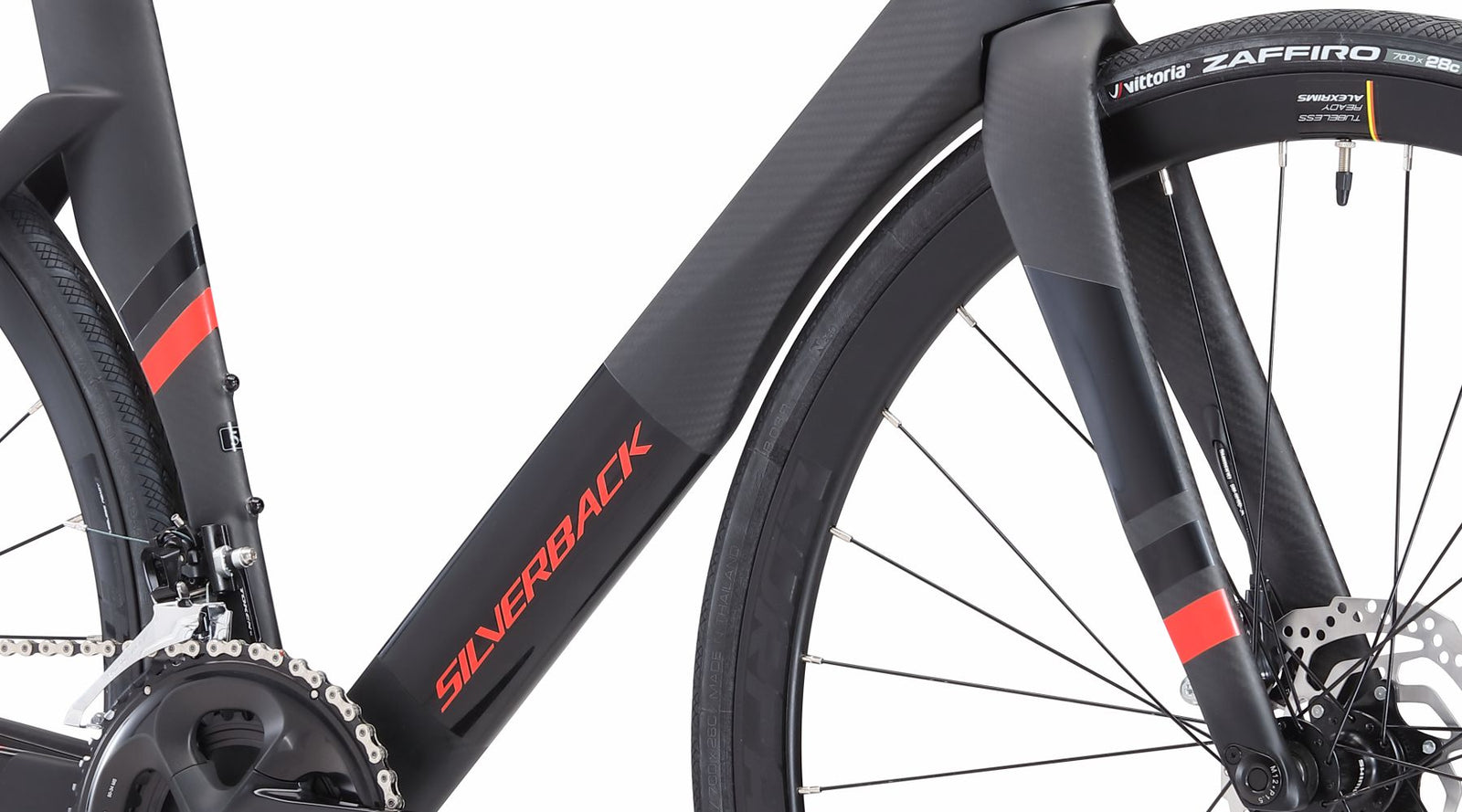

SCAROSSO AID FORK

Scarosso AID Fork reduces parasitic drag by implementing the Tubercle Effect, a phenomenon where ‘bumps’ are placed on the leading edge of an aerofoil to improve the aerodynamic flow.

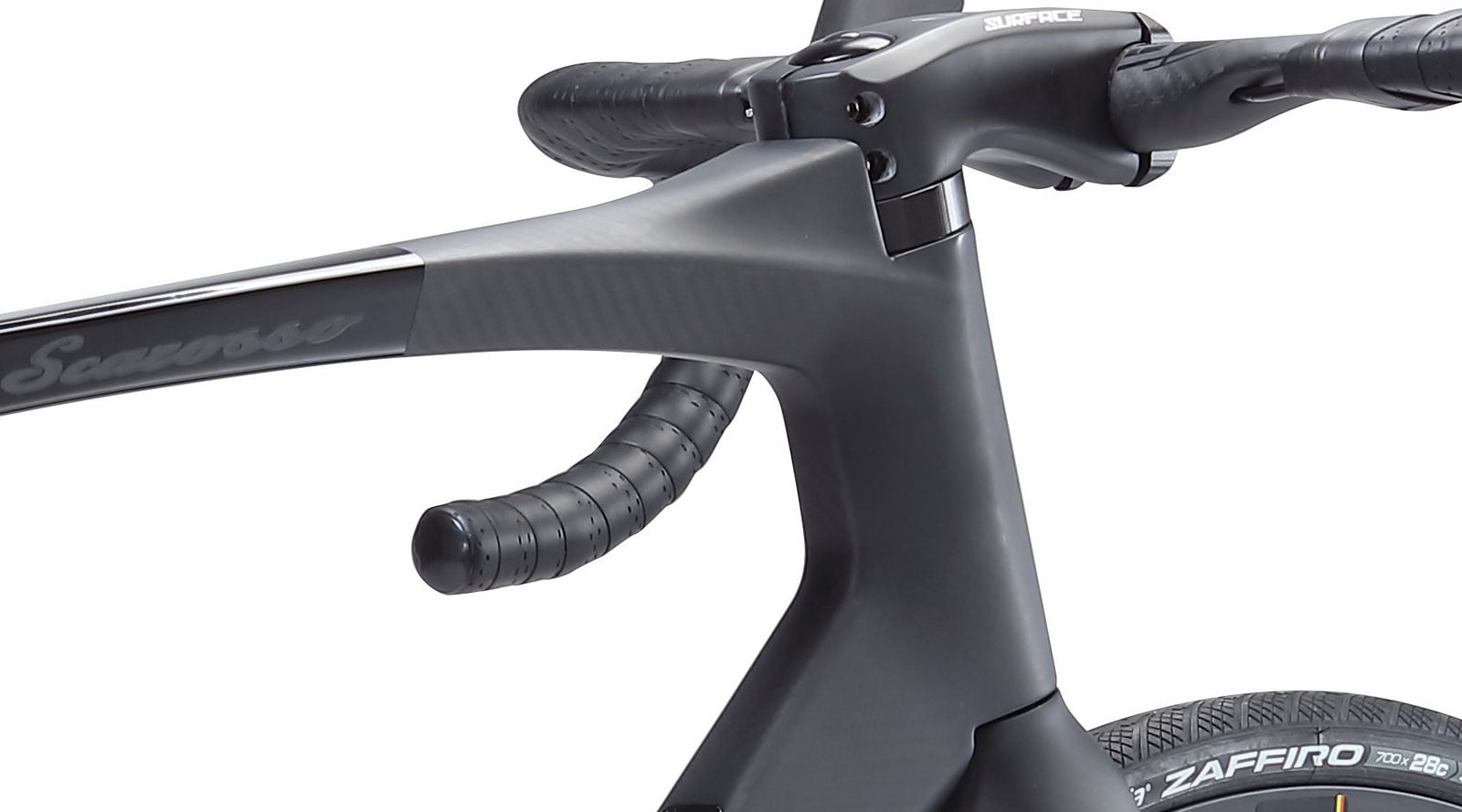

STREAMLINE INTEGRATED COMPONENTS:

Scarosso design and engineering focused on reducing the interference drag, present between the frame and components. The cable routing is fully internal, only exposed at the exit of the respective component. The stem is recessed into the top tube, inducing the minimum air disturbance. Aerodynamic advances include the top tube and down tube aerocurves, that guide the airflow over the profiles. The front and rear wheel are tucked close to the frame, to induce smooth air transition between components.

WHEELS AND BRAKES

This Scarosso is fitted with a quality Surface Carbon 40mm deep dish carbon wheels built on DT Swiss 240 hubs. Surface wheels are lightweight and crosswind control compliant, the Surface Elite 40 D is made from 3K Twill weave Toray carbon Fiber, delivering an impact resistant, stress dissipating wheel that is very stiff.

Vittoria Rubino Pro 700 x 28C provides excellent grip and super low rolling resistance as well as doing a great job of stopping you when you pull the Shimano ST-R8020 Hydraulic disc brakes.

THRU AXLE DROPOUTS

Front and rear thru axle dropouts makes wheel removal very quick and greatly stiffens up the frame and fork for both improved steering and power transfer to the rear wheel.

The thread on both front and rear dropouts are interchangeable.

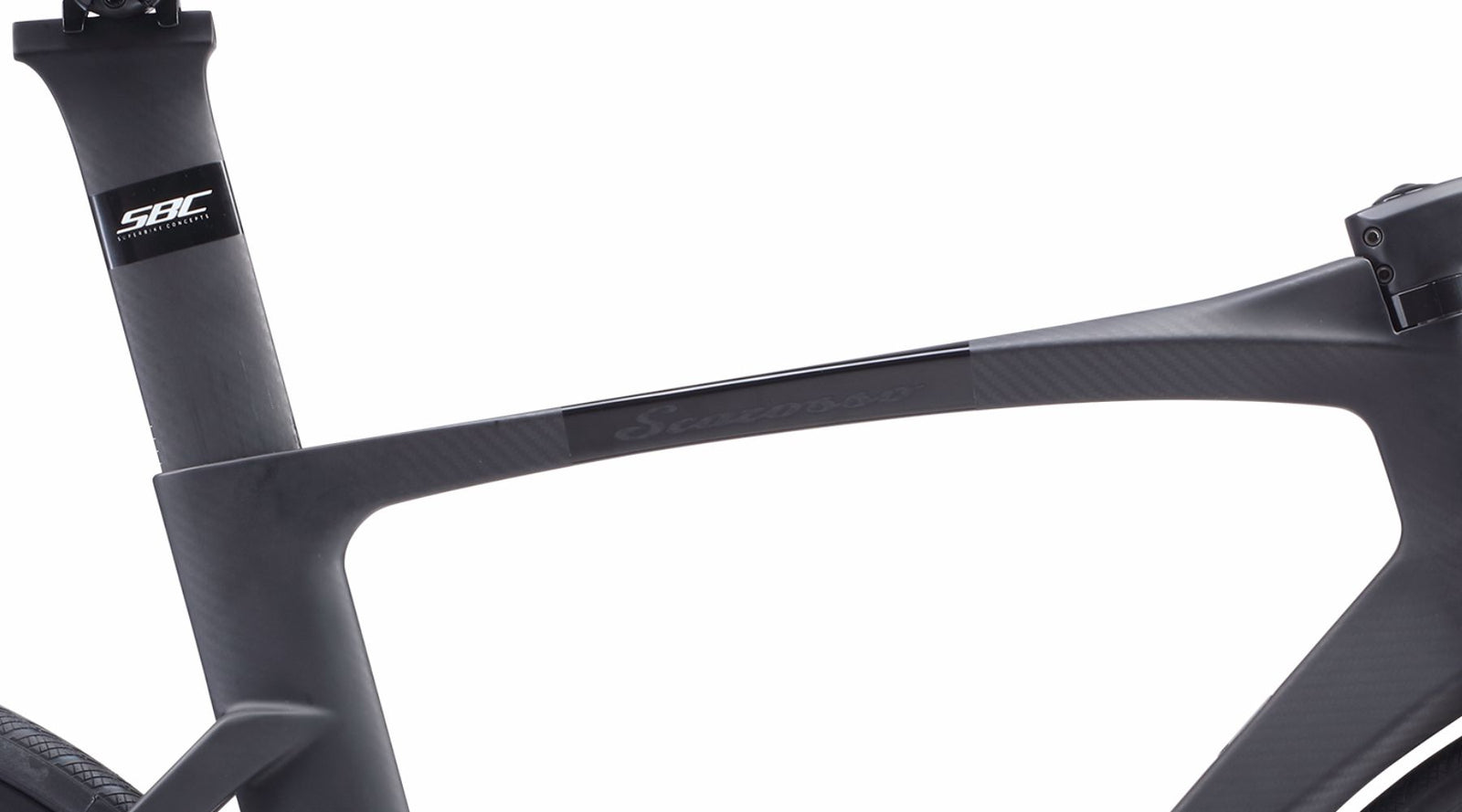

SBC CARBON SEATPOST AND INTEGRATED SEATCLAMP

Scarosso's seatpost is a thing of beauty. This highly-aero mast is securely locked in place with an integrated seatclamp.

UCI ACCREDITED FRAME AND FORK

SILV-SCAR-RD

Scarosso is UCI approved and accredited.

"all new models of frames and forks used by licence holders in road (RD), time trial (TT), track (TR) and cyclo-cross (CX) events must be approved on the basis of the Approval Protocol for Frames and Forks available from the UCI website. Approval by the UCI certifies that the new equipment meets the shape requirements set out in the UCI regulation.

The use of approved models is permitted in competition from the date of approval. The use of approved frames and forks remains subject to Article 1.3.007"

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Scarosso Carbon road Frame, Passive Aerodynamic Control, Matte with 3K Twill finish, 100x12mm Front and 142x12mm Rear

Headset

SURFACE Sealed Bearings, ZS56/40 Top and Bottom

Fork

Scarosso AID Passive Aerodynamic Control, Matte 3K Twill Finish, 100x12mm

Frame Axle Spacing

142x12mm

Axle Specification

172x12mm P1.5

Hanger Type

HANGER 21

WHEELS

Wheelset

Surface 700 C carbon aero wheels

Hubs

DT Swiss, Centrelock, Thru-axle front and rear

Rims

Surface Carbon 40mm,700C F:20H, R:24H

Tyres

Vittoria Rubino Pro 28c

Max Tyre Size

32C

DRIVETRAIN

Crankset

Shimano 105 FC-R7000, Double, 11spd, Hollowtech, 50/34t, 175mm

Max Chainring Size

53/39T

Bottom Bracket & Type

PF BB30

Shifter(s)

Shimano 105 R7020, 11spd

Front Derailleur

Shimano 105 FD-R7000F, 11spd

Rear Derailleur

Shimano 105 RD-R7000, 11spd

Cassette

Shimano 105 CS-R7000-10 11spd, 11-30t

Chain

Shimano CN-HG601 11spd

BRAKES

Brakes

Shimano ST-R7020, Hydraulic Disc Brake with BR-R7070 Disc Brake lever

Rotors

F: Shimano RT10 160mm

R: Shimano RT10 160mm

COCKPIT

Tape

Surface Seude tape, Plug with Expander Bolt

Handlebar

SURFACE 3K Twill Carbon, 31.8mm Clamp, 124mm Drop, 82mm Reach, 4° Flare

Stem

SURFACE UD Carbon, Full Control System Integration, 75/90/105/120mm, 6.5° Rise

Saddle

SURFACE aero saddle

Seat Post

SURFACE 3K Twill Carbon, 360mm

Pedals

Not Incl.

WEIGHT

Bike Weight

8.7 kg

Rider Weight Limit

120kg - combined weight of bike and rider (including all kit).

Owner's Manuals

Technical Manuals & Setup Guides

Access the complete documentation for your bike:

English Manual Guide – [Download]
German Manual Guide – [Download]

FAQ.

Can I mount a pannier rack on my Scarosso?

No, Scarosso is a thoroughbred, and not a hybrid commuter.
What size will fit my 1.8m tall build?

See the 'Find your fit' tab for size guides. If unsure, contact us with your dimensions and we will suggest the right bike for you. Alternatively, make an appointment with SL and come see us for a proper fit.
I am a lady, will this be a good ladies bike?

Yes, use our size guide to help you choose the best bike size for you.
Can I run this as a "moonlight" gravel grinder if I have a second wheelset with gravel tyres on it?

Theorecically, if your tyre sizes fit - yes. Would we recommend it - nope. The frame is designed for road, and the clearances between front tyre and DT as well as rear tyre and ST are all meant to be tight - meaning if any stones or mud gets in there, it will damage your frame. And warranty would be void.

OTHER MODELS IN THE SERIES

€1.999

SE:SERIES GR CF 11

Gravel | Performance | Full Carbon

Carbon Fork
700C x 40C Wheels
1x11 Speed SRAM
9.5kg

€3.499

SCAROSSO 105, SURFACE CARBON WHEELS

Road | Aero Road | Carbon

Carbon Fork
700 x 28C wheels
1x11 Speed Shimano
8.7kg

€4.999

S-ELECTRO SUPERFAST (RAINBOW PEARL)

Road | E road | Carbon

700C x 35C Wheels
1x11 Speed Shimano
FSA Hub Motor
42Nm Torque
250Wh Battery
12.7kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	154-162	162-172	172-180	180-192
	Rider inseam(cm)	70-73	73-78	78-82	82-87
A	Seat tube c/t	487	507	527	547
B	Seat tube angle	74	73.5	73	73
C	Head tube angle	73	73	73.5	73.5
D	Top Tube	537	547	565	582
E	Reach	387	387	395	400
F	Chainstay length	405	405	405	405
G	bb height	267	267	267	267
H	head tube length	120	140	160	190
I	stack	525	544.2	565	593.8
J	standover	762	782	801	825
K	Wheelbase	970	975	985	1000
