SE:Series Fat Deluxe

Name: SE:Series Fat Deluxe
Brand: Silverback
SKU: 6097000452161
Price: 999.0 EUR
Availability: InStock

€999

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.9 8 reviews

Size:

Color: Spring Lime / Olive Green

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Speedkit Fender - for fat bikes, fixed up to 26x4,5"

Seat Clamp - Black - Seat clamps - bike - cycling - SBC - - - - Speedlab

SBC Seat Clamp 34,9 - Black, Bolt

Chain Lock Cosa Nostra Plus LO-C21 - Lock - bike - cycling - XLC - - - - Speedlab

XLC Chain Lock Cosa Nostra Plus LO-C21

Traveller Edge - Storage - SKS - - - - Speedlab

SKS Traveller Edge

B2BF high performance premium grips - SBC - Lime

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-19

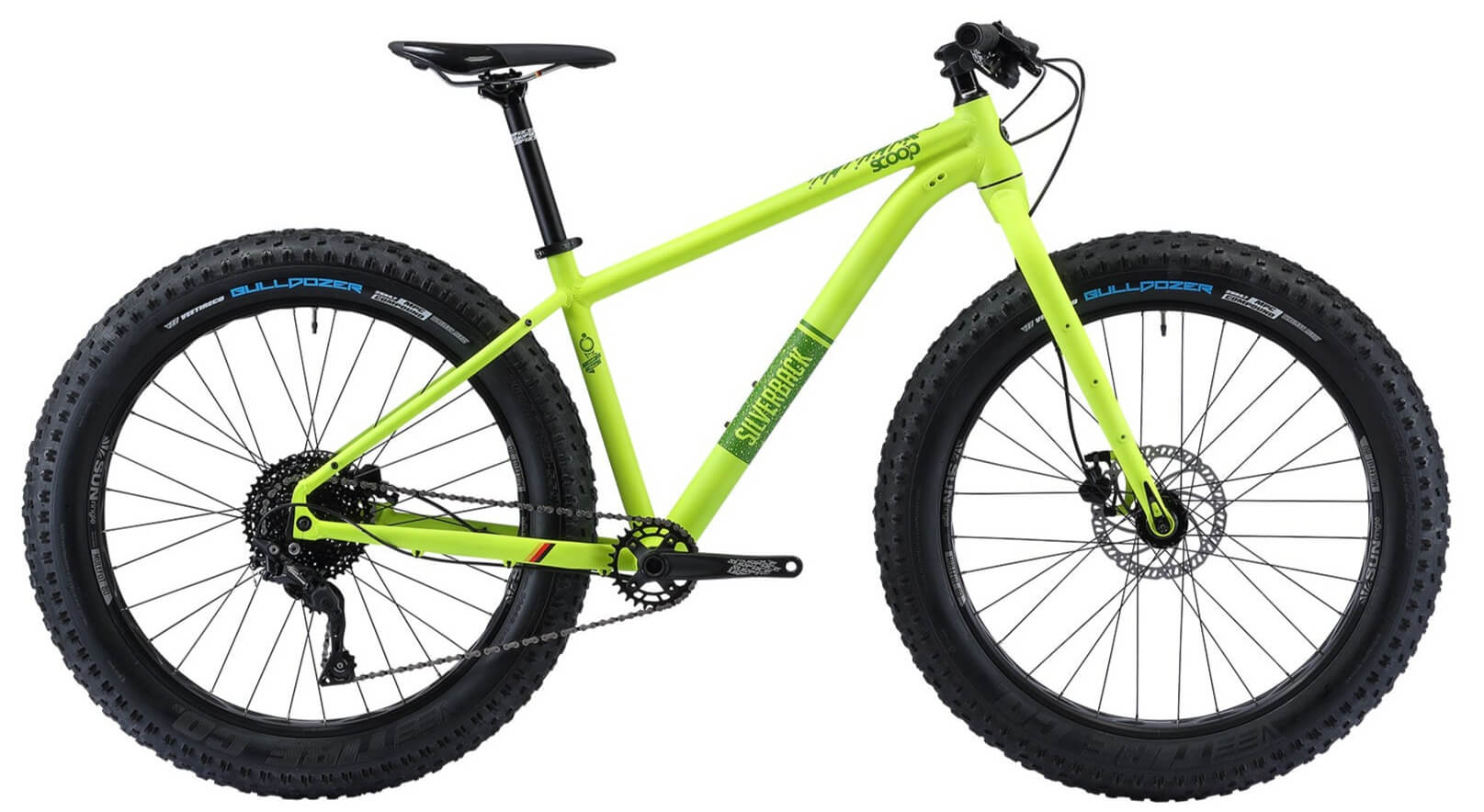

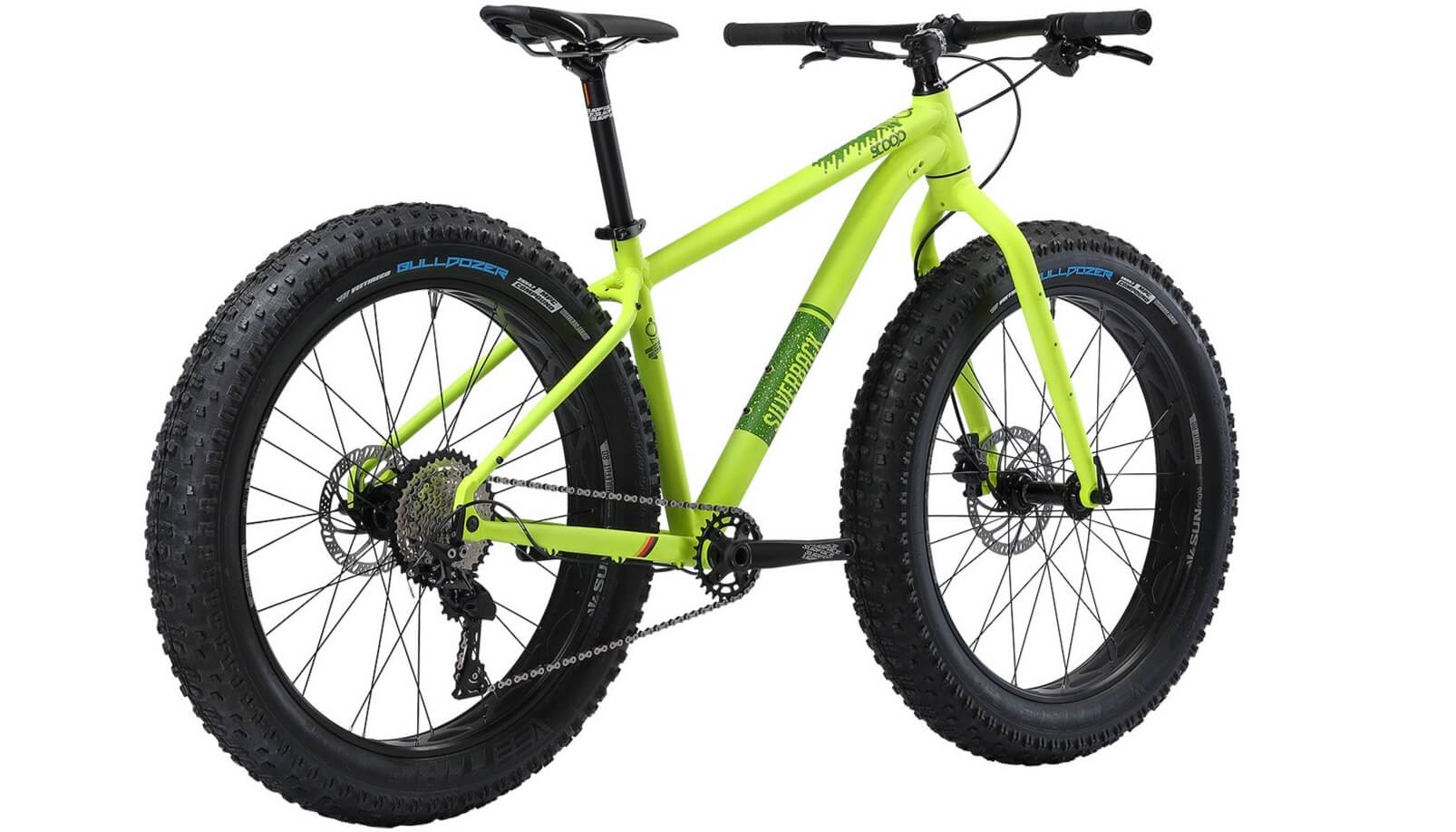

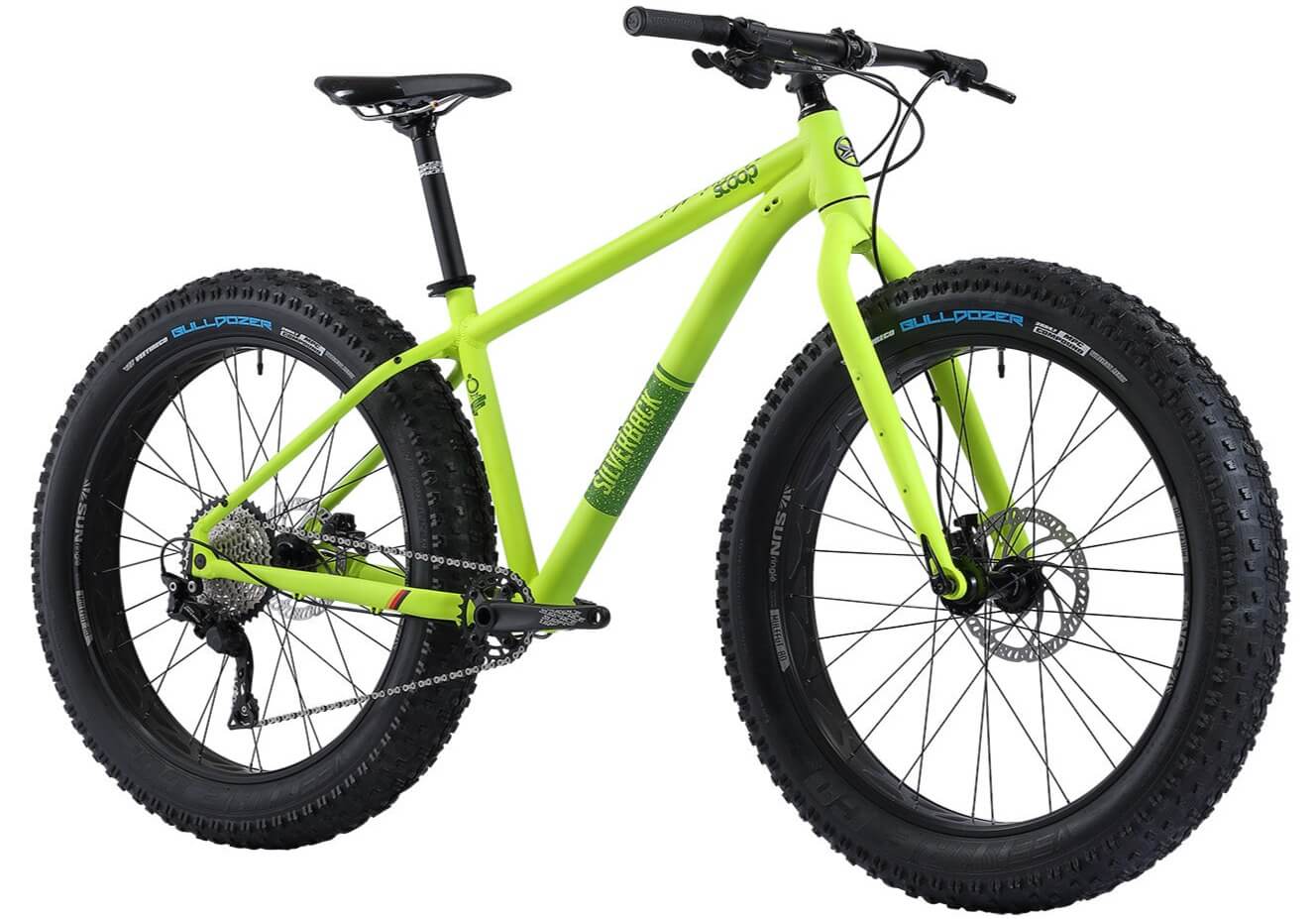

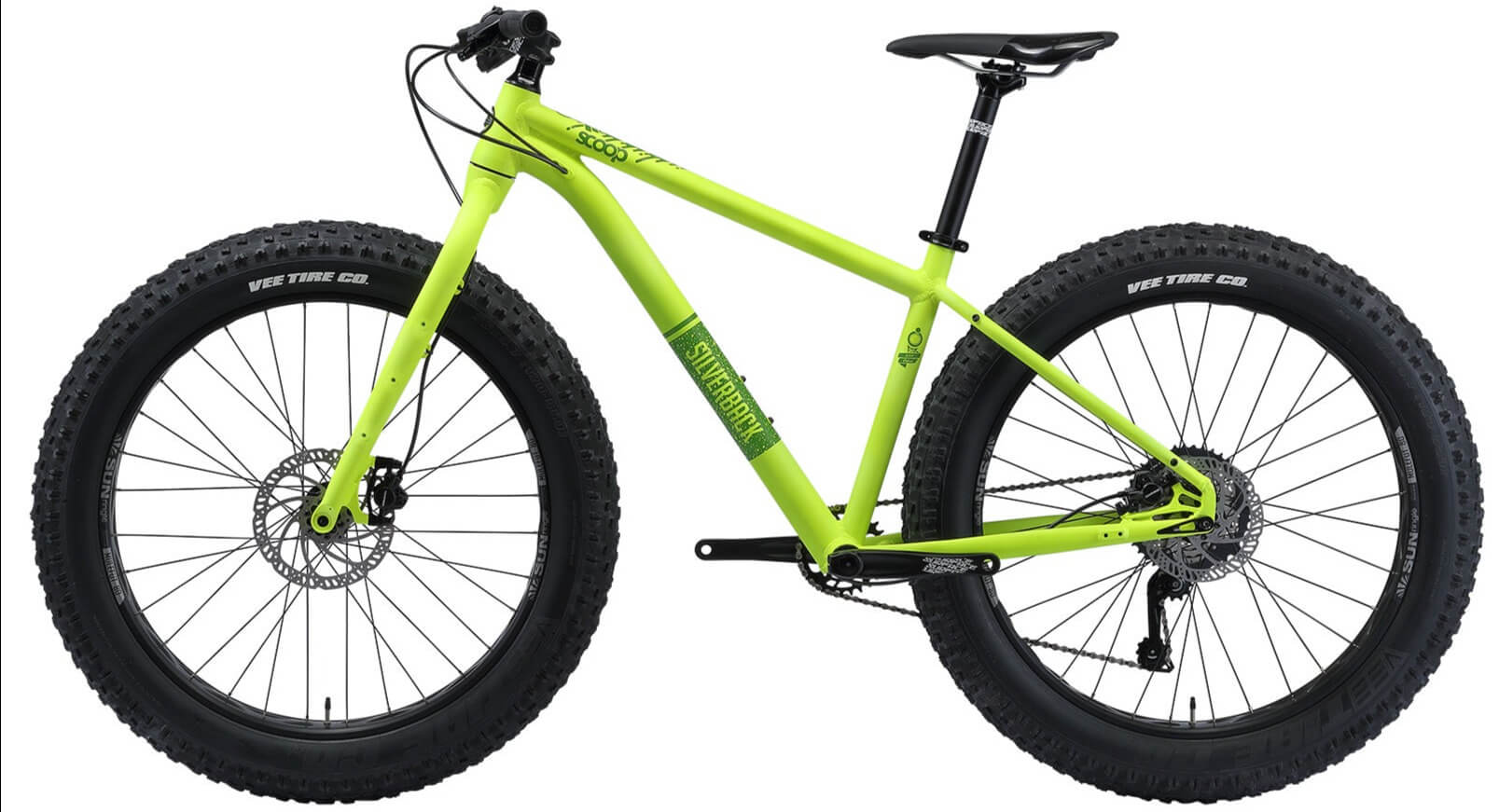

SE:Series Fat Deluxe

€999,00

Add to cart

At a Glance

6061 Alloy Fatbike specific 26" frame, tapered headset, Thru Axle
Shimano Deore 10-spd Shadow Plus rear derailleur
Silverback 1x crankset, 28t chainring
SBC Alloy rigid fork, 26"
SUNRingle MuleFut 80SL tubeless wheelset
VEE Tire Bulldozer 26x4.7" TR tyres
Silverback alloy components
Shimano Deore Hydraulic disc brakes
Weight: 15.24kg

TECH HIGHLIGHTS

IF TOURING IS YOUR GAME, SE:SERIES FAT DELUXE IS YOUR PERFECT PARTNER.

The SE-Series Fat Deluxe features a 1 x 10 Shimano drivetrain, Surface crankset and an SBC rigid alloy fork. If you're doing a lot of touring, the Deluxe is the bike for you. Simplistic maintenance and reliable parts means this bike is the perfect partner for adventures.

ALLOY RIGID FORK

The colour matched alloy rigid fork is specifically designed to suit the go-anywhere capability and attitude of the SE-Series Fat series of bikes. Accommodating Fat tyres, the fork has a thru axle for maximum stiffness.

SUNRINGLE MULEFUT 80 TUBELESS WHEELSET

The SUNRingle Mulefut wheelset is pre taped and tubeless ready. Easy to set up and super strong, whilst being surprisingly light for the size.

FAT WHEELS

SE-Series Fat is designed to run FAT 26" tyres with plenty of mud clearance. Bigger tyres can increase contact area and thus ride comfort, control and grip. SE-Series Fat wheels are pre-taped and tubeless ready.

scoop-deluxe-engineering-notes-disc-brakes-speedlab

HYDRAULIC DISC BRAKES

SE-Series Fat Deluxe comes with hydraulic disc brakes. Disc brakes offer dependable all weather performance over rim brakes.

scoop-deluxe-engineering-notes-hydro-formed-frame-speedlab

HYDRO-FORMED 6061 ALLOY FRAME

SE-Series Fat features a brand new frame focused on the sport adventure market. The frame tubes are hydro-formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use. Geometry has been updated to make for bike that handles better over rough terrain, making for a very easy bike to ride.

scoop-deluxe-engineering-notes-rack-and-fender-speedlab

RACK, FENDER AND KICKSTAND MOUNTS

There is an integrated kickstand mount in the left rear chainstay. The addition of a kickstand is neat and uncomplicated. We suggest using the Speedkit kickstand for e-bikes and fatbikes. The disc Brake caliper mounted inside rear triangle to protect it from environmental damage, while also acting like a brace, improving strength around the dropout and kickstand mount. The frame features mounting points for a rear fender and pannier racks. SE-Series Fat can easily be set up as an adventure or touring bike.

scoop-deluxe-engineering-notes-alloy-rigid-fork-speedlab

SBC ALLOY RIGID FORK

The SE-Series Fat Deluxe features a thru axle SBC Alloy rigid fork. Matched colour and alloy tubing profiles. The fat wheels provide bump absorption so that even though a rigid fork, the bike does not feel harsh. A rigid fork is also virtually maintenance free, so great for peace of mind, remote adventures.

scoop-deluxe-engineering-notes-selective-internally-routed-speedlab

INTERNAL CABLE ROUTING

Internal routed cables with full length cable housings keeps the cockpit clean and neat. This also ensures that cables are out of harm's way, and requires less maintenance due to less dirt ingression into the cables.

SHORT CHAINSTAYS

Short chainstays coupled with updated geometry means that the SE-Series Fat is more nimble through corners, yet retains overall stability.

TAPERED HEADTUBE

A Tapered headtube increases front-end stiffness and directly influences steering feel and precision. This also means that the Stride range is compatible with all modern forks, if you would want to upgrade your suspension.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

26" Butted 6061 Aluminium, Tapered 1-1/8"-1.5" headtube, 197mm x 12mm Thru Axle Dropouts, 120mm BB width

Headset

Sealed Bearing ZS44/28.6 ZS56/40

Frame Axle Spacing

197x12mm

Axle Specification

224x12mm P1.5

Hanger Type

HANGER 19

SUSPENSION

Fork

SBC Alloy, 26" Rigid, 150x15mm Thru Axle

WHEELS

Wheelset

SUNRingle

Hubs

F: SUNRingle SRC, 15x150mm, 6-bolt disc, 32H
R: SUNRingle SRC, 12x197mm, 6-bolt disc, 32H

Rims

SUNringle Mulefut 80SL, 26"x80mm, Tubeless Ready

Tyres

VEE Tire Bulldozer 26"x4.7", Foldable, Tubeless Ready, 120TPI

Max Tyre Size

4.8"

DRIVETRAIN

Crankset

Surface Forged Alloy Crankset, 175mm crank, 28T chainring

Max Chainring Size

32T

Bottom Bracket & Type

BSA120

Shifter(s)

Shimano SL-M4100-R Deore, Rapidfire Plus, 10-Speed

Front Derailleur

N/A

Rear Derailleur

Shimano RD-M5120 Deore, Shadow Plus, Direct attachment, Long Cage, 10-speed

Cassette

Shimano CS-M4100-10 Deore, 11-46T, 10-Speed

Chain

KMC 114 Links

BRAKES

Brakes

Shimano BL-4100 Hydraulic Disc

Rotors

F: Shimano SM-RT26, 180mm, 6-bolt
R: Shimano SM-RT26, 160mm, 6-bolt

COCKPIT

Grips

SBC 144mm

Handlebar

Alloy, Ø31.8mm, Backsweep:9°, Rise 5mm; 720mm

Stem

Alloy, Ø31.8mm, Rise 6°, with stainless steel bolts; 60mm

Saddle

Silverback Ergo

Seat Post

Alloy Ø30.9mm

Seatpost Clamp

Alloy Ø34.9mm

Pedals

One Piece Alloy

WEIGHT

Bike Weight

15,24 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

What is the weight limit on this bike?

120kg
Would I be able to put a suspension fork on this bike if I wanted to?

Yes, the tapered headtube can fit most modern forks.
What material is the fork made of?

Alluminium 6061
Can the fork fit a fender?

No
Can I fit a kickstand?

Yes
Can I fit a suspension fork to my fatbike - and what is the maximum travel fork I can add?

Yes you can. We recommend the Rockshox Bluto with 100mm of travel.

OTHER MODELS IN THE SERIES

€899

SE:SERIES FAT DELIGHT

Hardtail | Fat Bike | Alloy

Alloy Fork
26" x 4.7" Wheels
1x9 Speed Microshift
15.55kg

€999

SE:SERIES FAT DELUXE

Hardtail | Fat Bike | Alloy

Alloy Fork
26" x 4.7" Wheels
1x10 Speed Shimano
15.24kg

€1.199 €1.399

SE:SERIES FAT ADVENTURE

Hardtail | Fat Bike | Alloy

Alloy Fork
26" x 4.7" Wheels
1x11 Speed Shimano
15.62kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type	S	M	L	XL
	Rider height(cm)	158-170	170-180	178-188	188-200
	Rider inseam(cm)	72-77	77-82	81-85	85-91
a	Seat tube c/t	380	430	480	530
b	Seat tube angle	73	73	73	73
c	Head tube angle	69.5	69.5	69.5	69.5
d	Top Tube	570	600	622	645
e	Reach	388	418	439	457
f	Chainstay length	450	450	450	450
g	bb height	318	318	318	318
h	head tube length	110	110	115	130
i	stack	595	595	600	614
j	standover	762	778	802	832
k	Wheelbase	1090	1120	1142	1166
