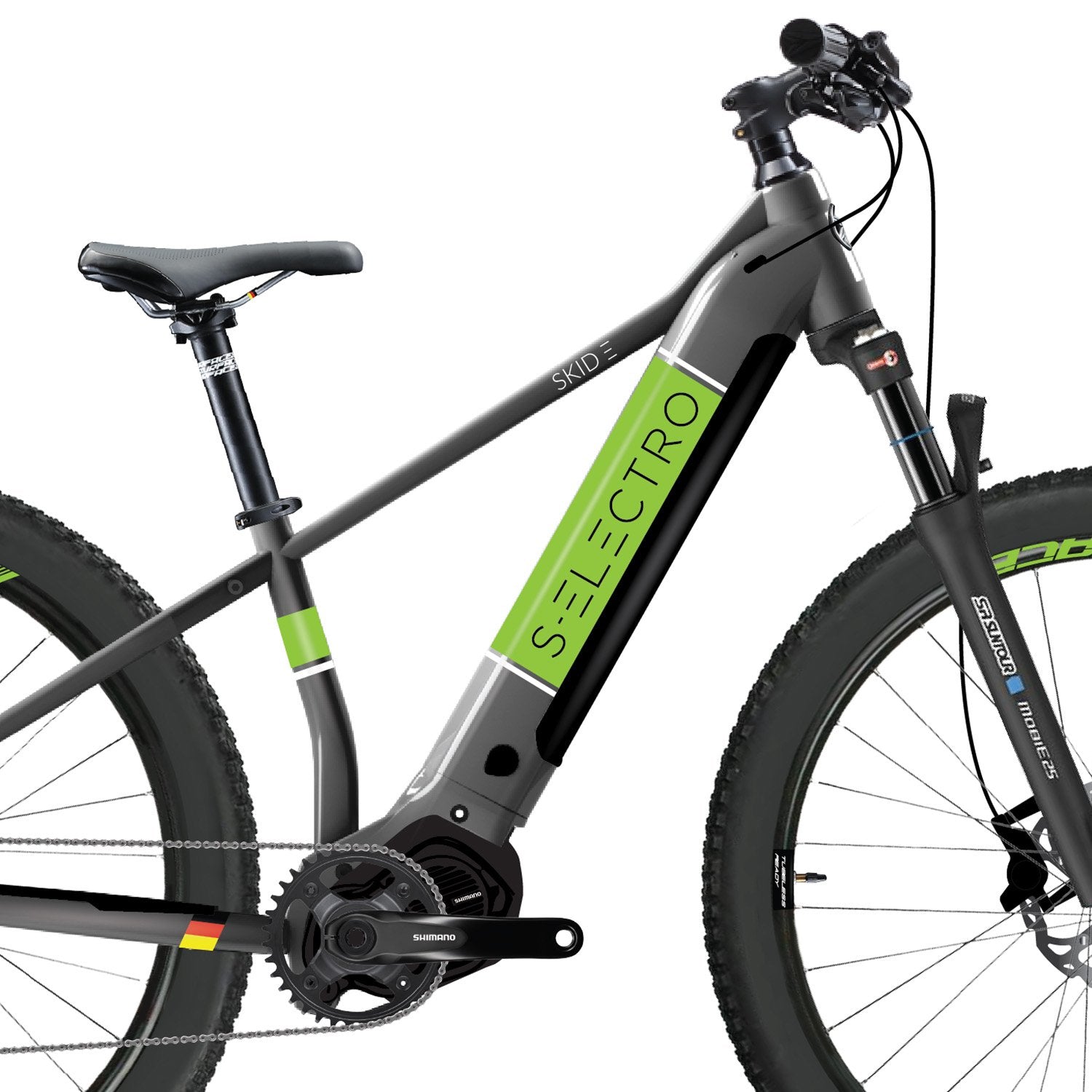

S-Electro Stride Electric 27.5 9 SPEED 6

S-Electro Stride Electric 27.5 9 SPEED 7

S-Electro Stride Electric 27.5 9 SPEED 9

S-Electro Stride Electric 27.5 9 SPEED €1.999,00

SPEC SIZE & GEO COMPARE CUSTOMIZE BOOK A DEMO

S-Electro Stride Electric 27.5 9 SPEED

Name: S-Electro Stride Electric 27.5 9 SPEED
Brand: S-Electro
Price: 1999.0 EUR
Availability: InStock
Rating: 5.00 (3 reviews)

€1.999

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

5.00 3 reviews

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 1872622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Space Sam Boys Helmet, Matt Grey/Lime

Silverback Casual Cap

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-11

S-Electro Stride Electric 27.5 9 SPEED

€1.999,00

Add to cart

Ushering in the next generation of tech savvy bike riders, the S-Electro Stride Electric 27.5 9 SPEED is a sophisticated, yet intuitive electric assisted kids platform. The Skid 27.5 is designed to offer the same benefits that our adult eBikes offer, to older kids, namely electric pedal assist, BIC build quality and advanced riding dynamics.

At a Glance

6061 Alloy Stride Electric integrated eBike frame
Hyrdo formed dual purpose (26/27.5") integrated hardtail ebike frame
Suntour 120mm travel fork
Shimano E5000 motor
504Wh battery
Shimano Deore wide range drivetrain
Surface Alloy components
Shimano MT200 hydraulic disc brakes, 180mm rotors
Surface 27.5" Symmetrical, Tubeless Ready, Alloy Rims
Kenda 27.5x2.25" tyres

TECH HIGHLIGHTS

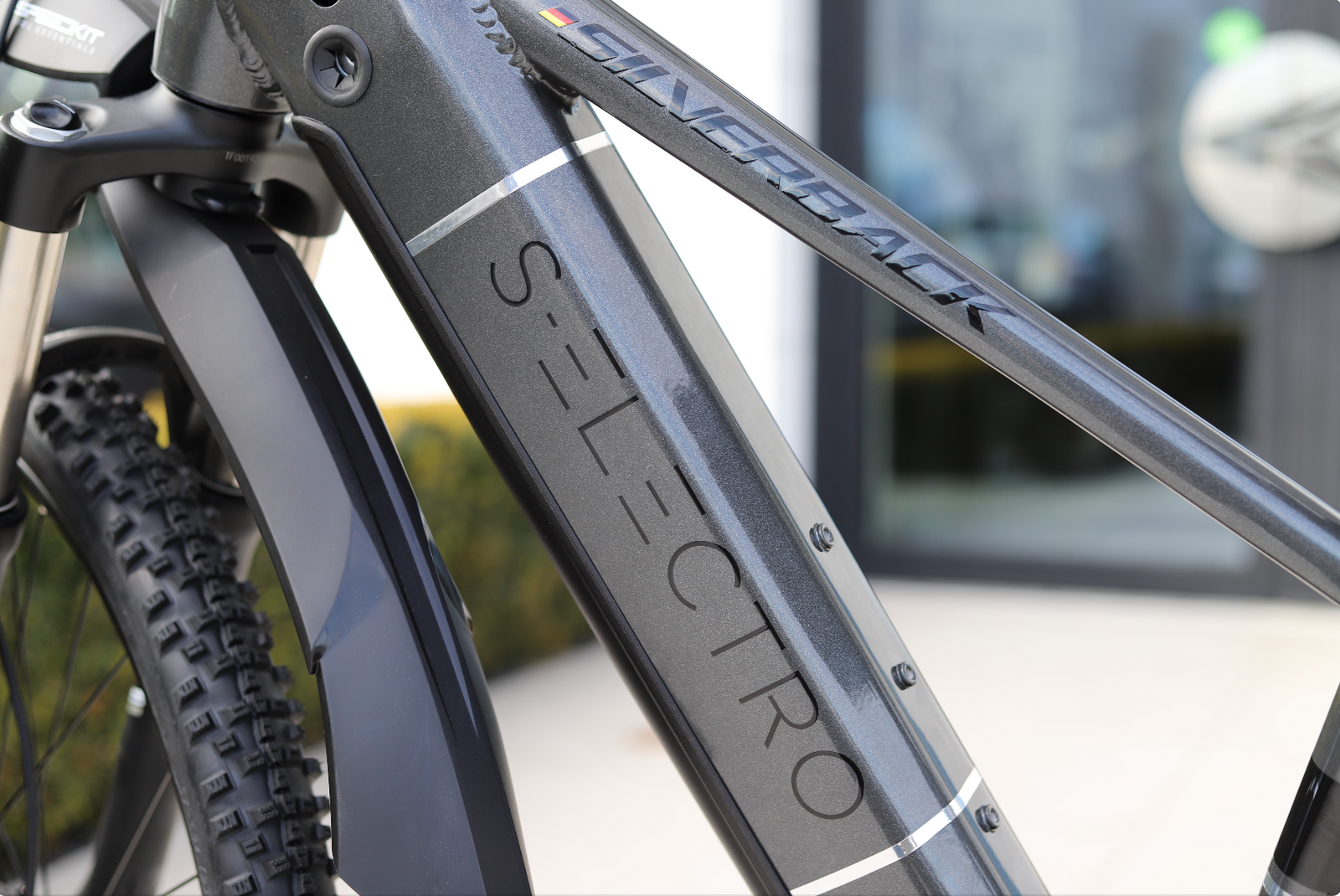

FRAME DESIGN

S-Electro Stride Electric frame is manufactured from hydroformed 6061 alloy for a light and strong frame capable of dealing with the added weight and internal forces of an electric drive system. Hydro forming produces lightweight complex tube profiles that are stronger than comparative round tubing. The sidewalls can also be thinner, resulting in an overall lighter bike build, essential when building a kids bike.

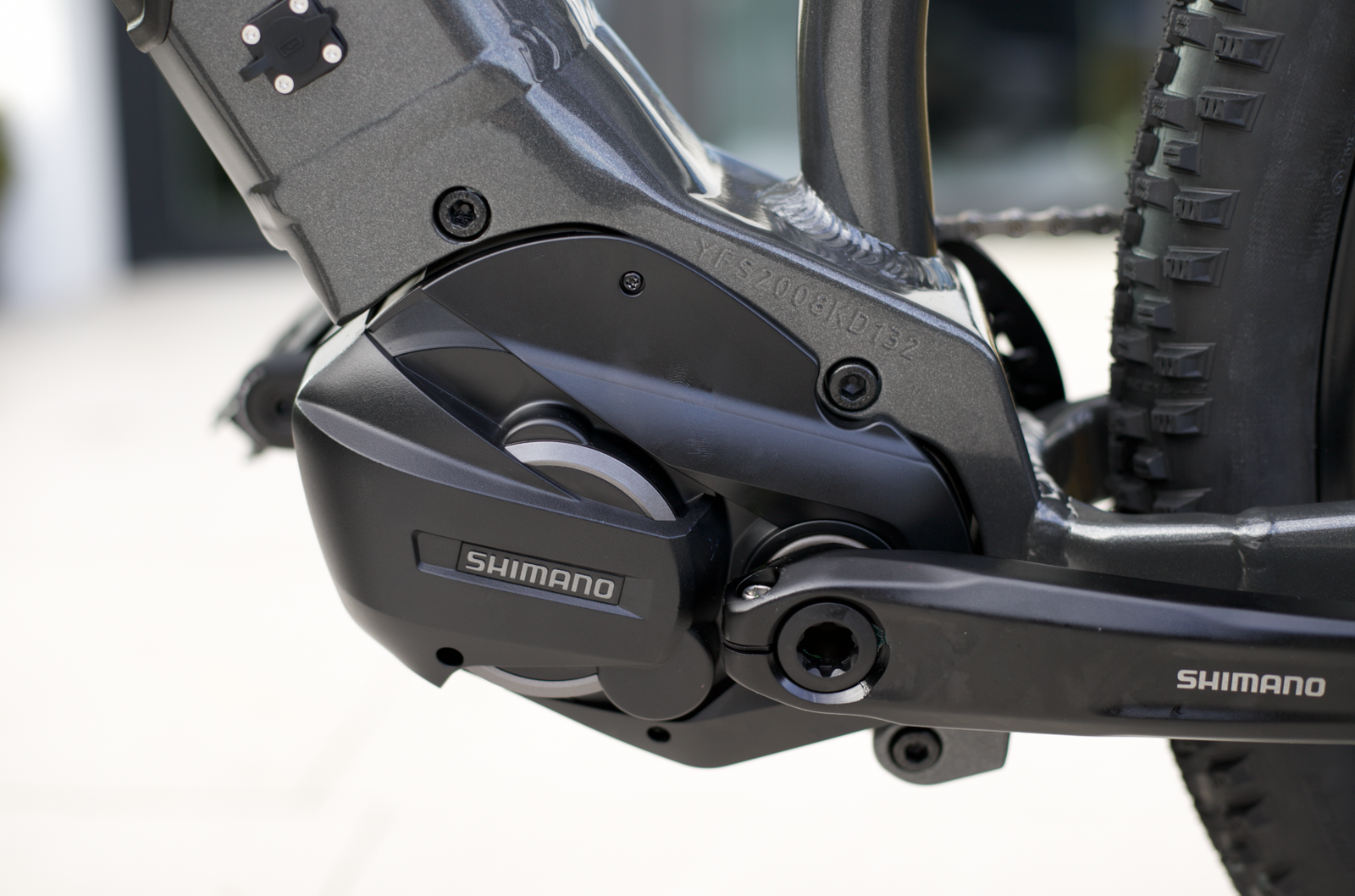

ELECTRIC SYSTEM

The S-Electro Stride Electric has plenty of power, running on the Shimano Steps E5000 motor. The Stride Electric, due to its light weight and payload, with the included 504Wh internal battery, has massive range. Lighter payloads puts less strain on the electric system and so batteries last longer than for heavier riders. The battery recharges to 80% in under 3 hours, and should give 50 - 100km of range depending on the assist use and the terrain the bike is used on. The on-bar display is also easy to use, and offers all essential information at the click of the controls.

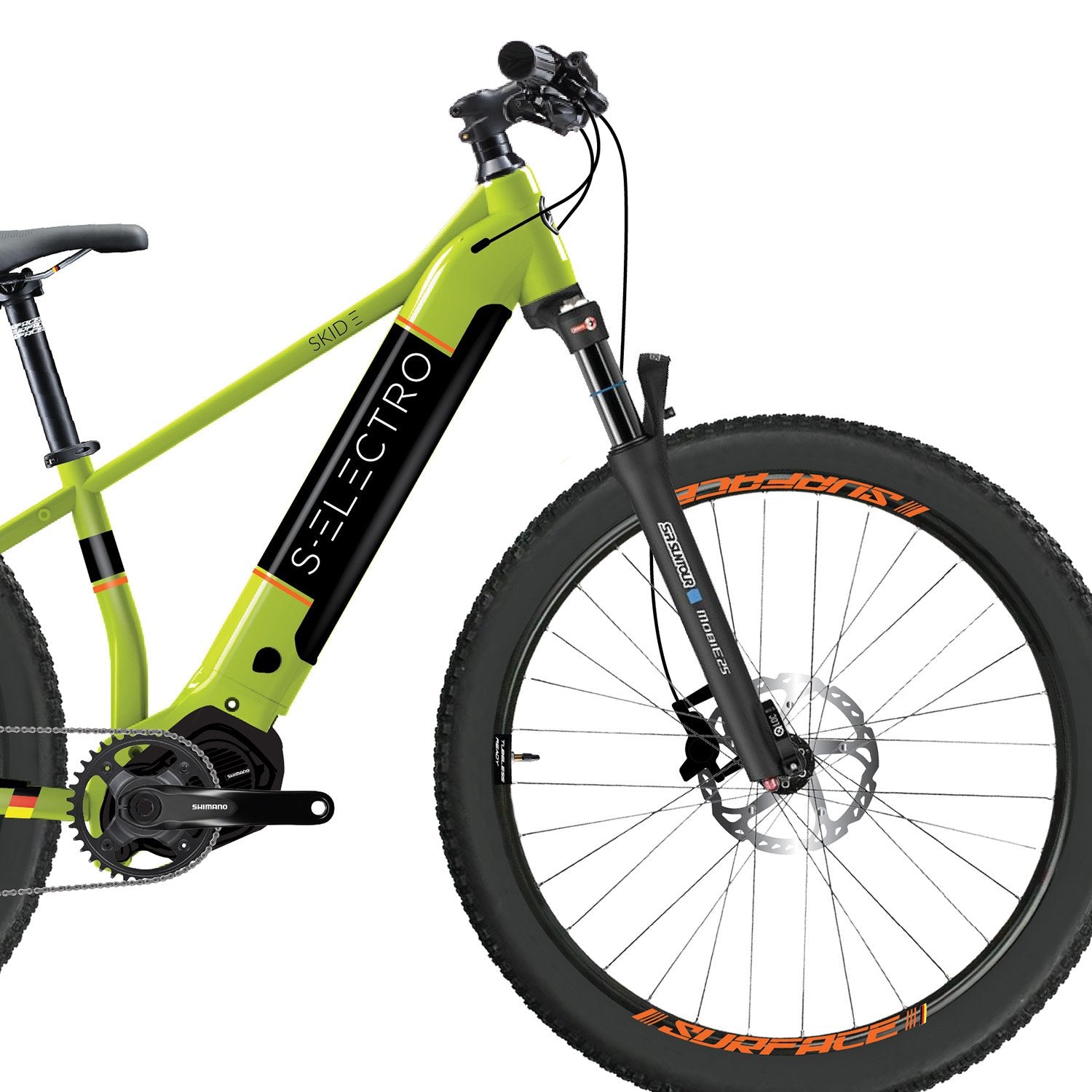

SUSPENSION FORK

A Rockshox Judy Silver TK BOOST suspension fork with 120mm of travel is easy to set up for young riders, and is sensitive enough to react to rider and terrain influences if setup correctly. This makes it great on a light rider's bike!

ONE FRAME FOR ALL

The S-Electro Stride Electric frame design is dual purpose, being used on both the 26" and the 27.5" versions, with all the right characteristics when built in either of these sizes. The geometry is designed to inspire confidence with young riders, promoting balance.

SURFACE TUBELESS READY WHEELS

Factory pre-taped Surface 27.5" alloy tubeless ready wheels makes setting up your youngster's bike as tubeless quick and painless - just add sealant and valves and inflate.

SURFACE TUBELESS READY WHEELS

Factory pre-taped Surface 27.5" alloy tubeless ready wheels makes setting up your youngster's bike as tubeless quick and painless - just add sealant and valves and inflate.

SHORT CRANK ARMS (165MM)

Shorter legs and lower BB's require shorter crank arms, and so the Stride Electric is fitted with 165mm crank arms to accommodate young legs and to keep pedal strikes at bay.

selectro-skid-engineering-note-drivetrain

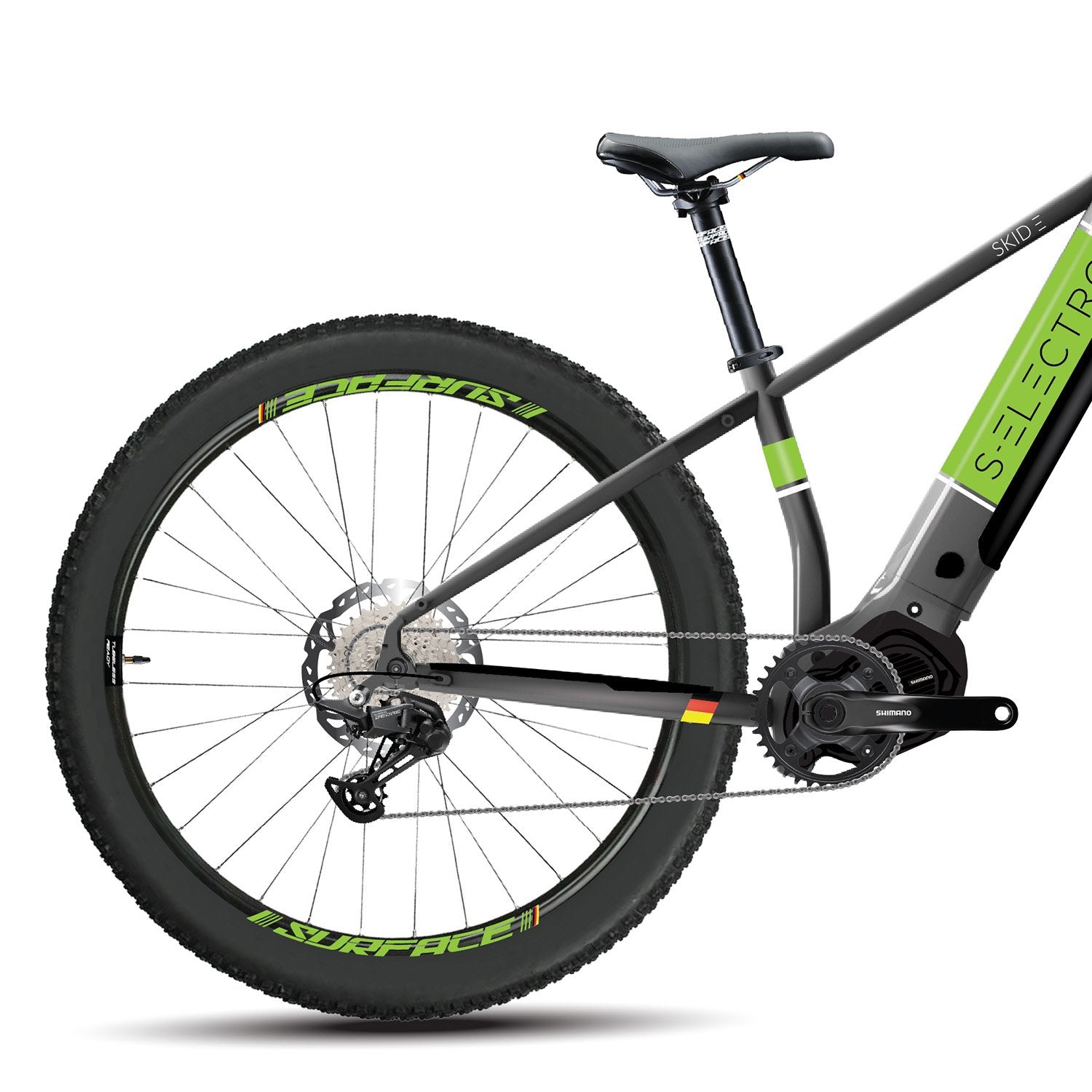

GROUPSET

A purpose chosen Shimano 9 spd groupset offers plenty of gear options and along with the electric assistance, is an excellent choice for all terrain and fitness levels.

selectro-skid-engineering-note-control-parts

SURFACE ALLOY CONTROL PARTS

The S-Electro Stride Electric is fitted with quality, durable Surface alloy control parts.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Alloy 6061 integrated e-bike hardtail frame

Headset

TOKEN TK1566RE E-Box Headset (ZS56/28.6 l ZS56/30)

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm P1.5

Hanger Type

Hanger 11

E-BIKE

Motor

Shimano E5000

Battery

Darfon 504Wh

Charger

Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use

Display

Shimano E5000

SUSPENSION

Fork

Suntour fork

Fork Travel

120mm

WHEELS

Wheelset

Surface 275 tubeless ready wheels

Hubs

Front Hub: Shimano MT410-B, 110mm Boost, 32H, 15mm Thru-axle
Rear Hub: Shimano MT400-B, 148mm Boost, 32H, 12mm Thru-axle

Rims

Surface Tubeless ready, 32mm Internal Width

Tyres

Kenda 27.5x2.25"

Max Tyre Size

2.6"

DRIVETRAIN

Crankset

Shimano CE5010 Crankarm, 165mm

Max Chainring Size

34T

Shifter(s)

Alvio 3100 9 speed shifter

Rear Derailleur

Alivio RD3100 9 speed

Cassette

Shimano Alivio CS-HG400 9 speed Cassette 11-32t

Chain

KMC 9 speed

BRAKES

Brakes

Shimano MT200, Resin Pads

Rotors

Shimano RT10 180mm

COCKPIT

Grips

SBC Lockon Grip

Handlebar

Surface Alloy Handlebar, Dia:31.8mm, Backsweep: 5°, Rise: 5mm

Stem

Surface High-Rise Stem; Length: 45,

Saddle

Surface E-Bike saddle

Seat Post

Surface Aluminium, Black L: 300

Seatpost Clamp

Surface Alloy w/Steel Bolt

Pedals

Not Included, accessories: light, fenders, bag are not included in the price

WEIGHT

Bike Weight

21,9 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

Can I add a dropper post to my Stride Electric?

Yes, you can, the frame is dropper post ready.
Can I put 26 x 2.5" wheels and tyres on my Stride Electric?

Theoretically Yes, that should be a good fit. Ideally check before you buy as we have not tested this ourselves.
Can my child ride his Stride Electric without the battery in the frame - will this damage the bike?

Yes, the bike can ride without the battery. No it will not damage the bike.
Can I put my older 150mm fork on my son's Stride Electric?

No, unfortunately the geometry will not support that. The frame is also not tested for the stresses associated with a long travel enduro fork.
Where can I find the E-bike manual?
Click HERE to view.
Where can I find serial number of the E bike?
The frame number is located on the of the frame around the motor area.
Can I customize my Shimano display to another language or change other settings?
Yes, you need to download E TUBE app and configure the settings. SEE HERE
Can I upgrade the length of my suspension on my bike?
The suspension length is normally determined by the frame design, it should not be changed.

OTHER MODELS IN THE SERIES

€499

SPYKE 26 (GEN4)

Hardtail | Youth Trail | Alloy

100mm Travel
26" x 2.35" Wheels
1x7 Speed Shimano
13.82kg

€1.999

S-ELECTRO STRIDE ELECTRIC 27.5 9 SPEED

Hardtail | E Kids | Alloy

120mm Travel
27.5" x 2.25" Wheels
1x9 Speed Shimano
E5000 Shimano Motor
40Nm Torque
504Wh Battery
21.9kg

€899

SE:SERIES TRAIL 26D

Dual Suspension | Youth Trail | Alloy

120/120mm Travel
26" x 2.25" Wheels
1x8 Speed Shimano
15.5kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	26"	27.5"
	Rider height(cm)	140-160	145-165
	Rider inseam(cm)	60-70	65-75
A	Seat tube c/t	370	370
B	Seat tube angle	76	76
C	Head tube angle	67	67
D	Top Tube	520	520
E	Reach	357	357
F	Chainstay length	432	432
G	bb height	285	315
H	head tube length	140	140
I	stack	617	647
J	standover	705	735
K	Wheelbase	1083	1083
