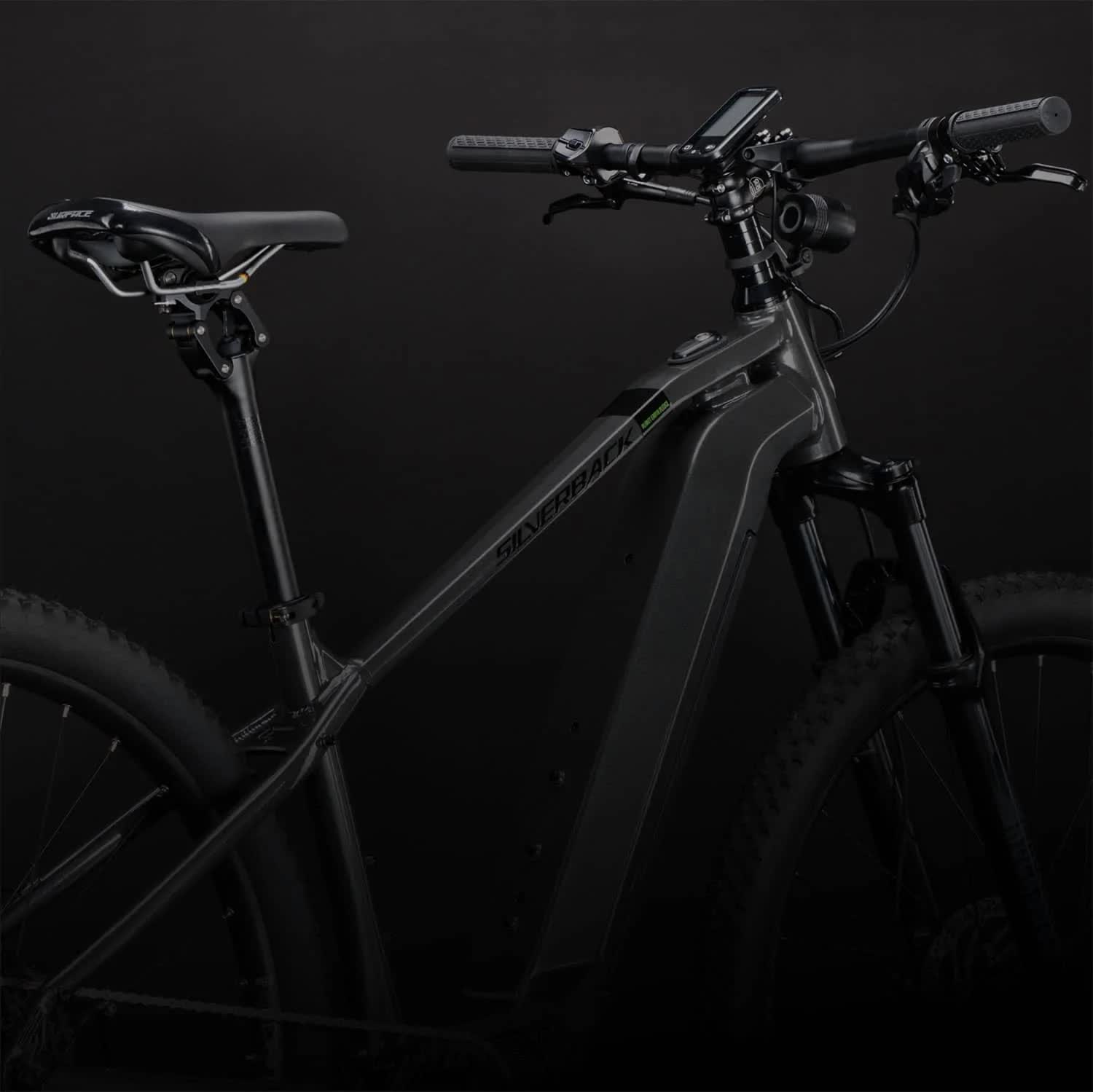

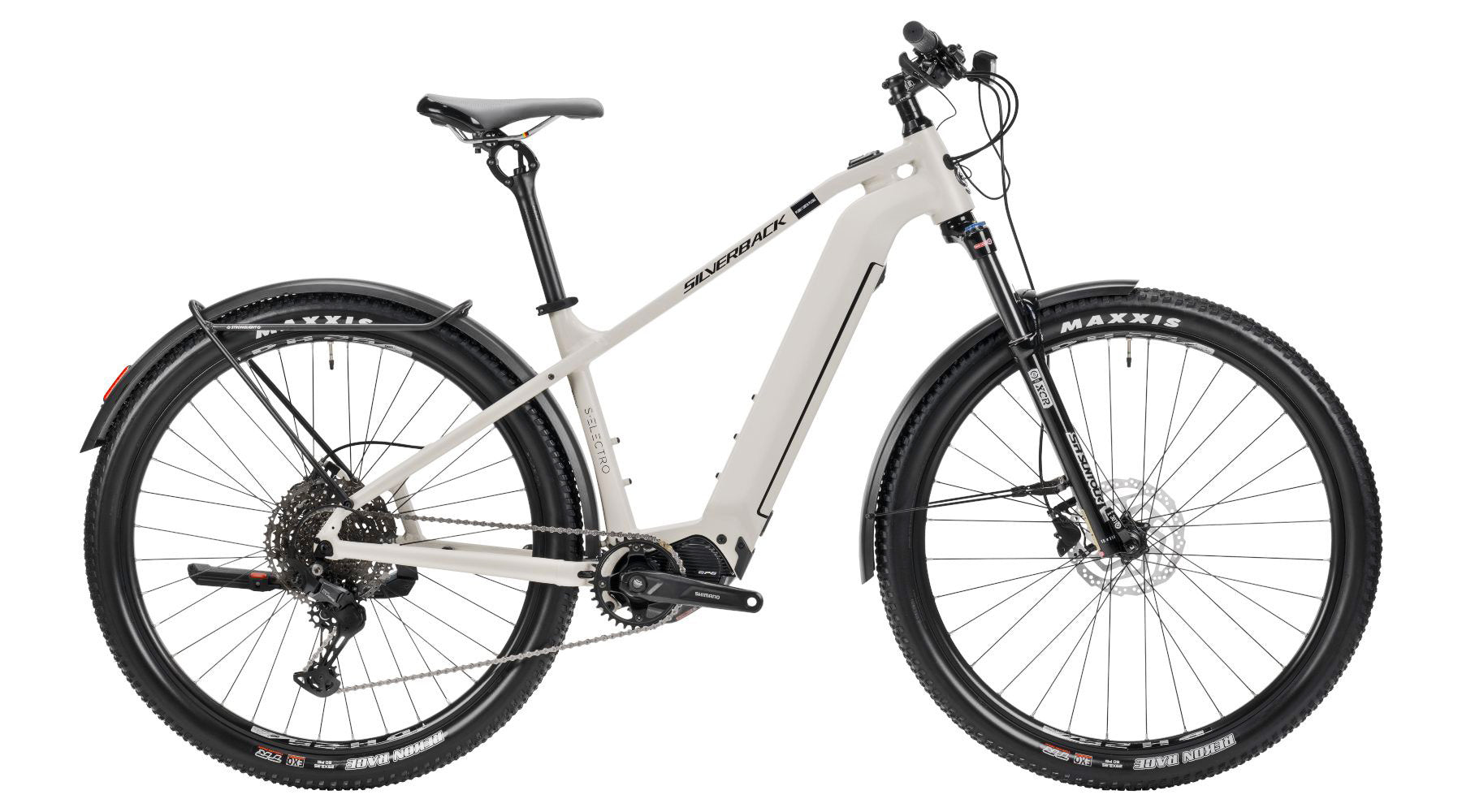

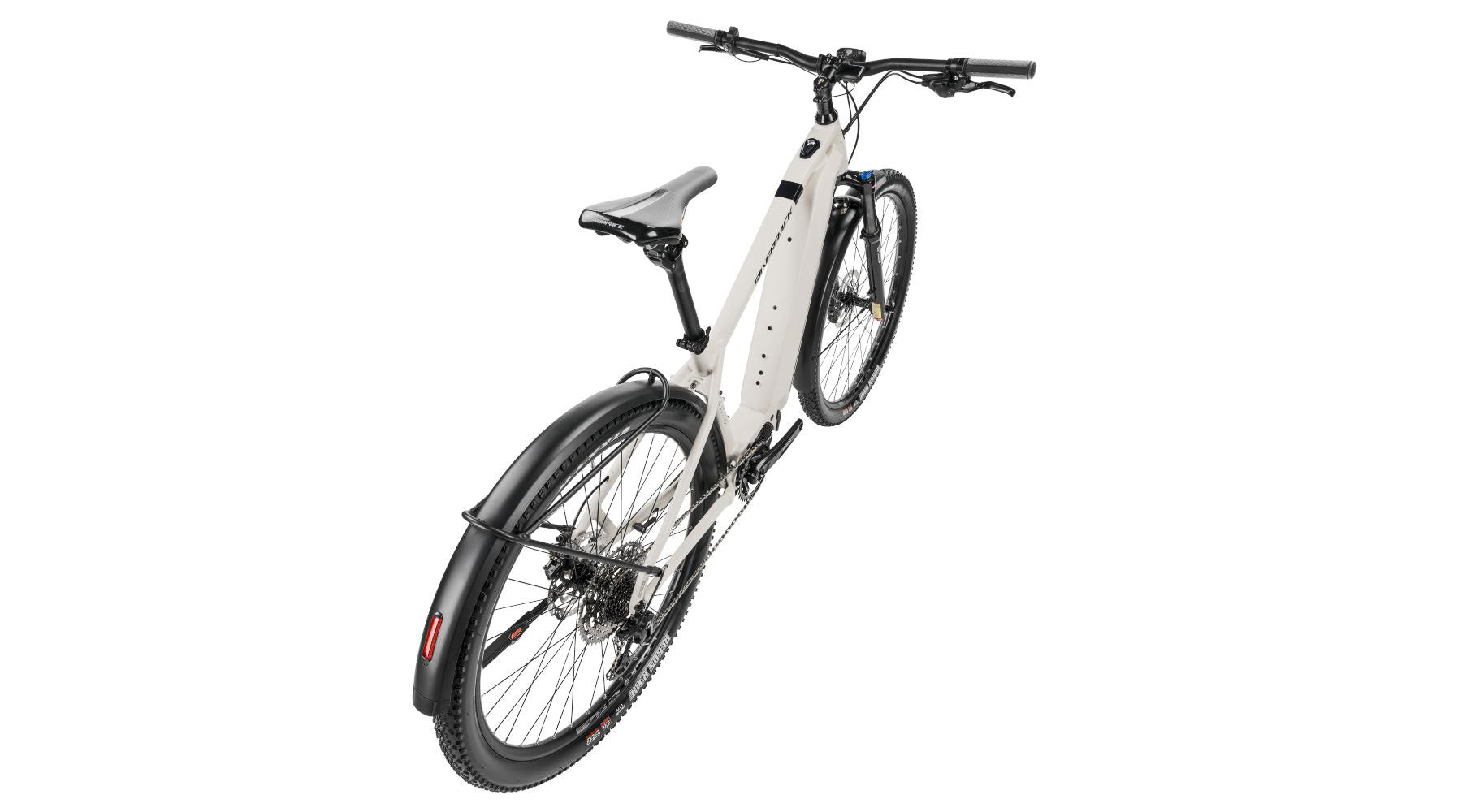

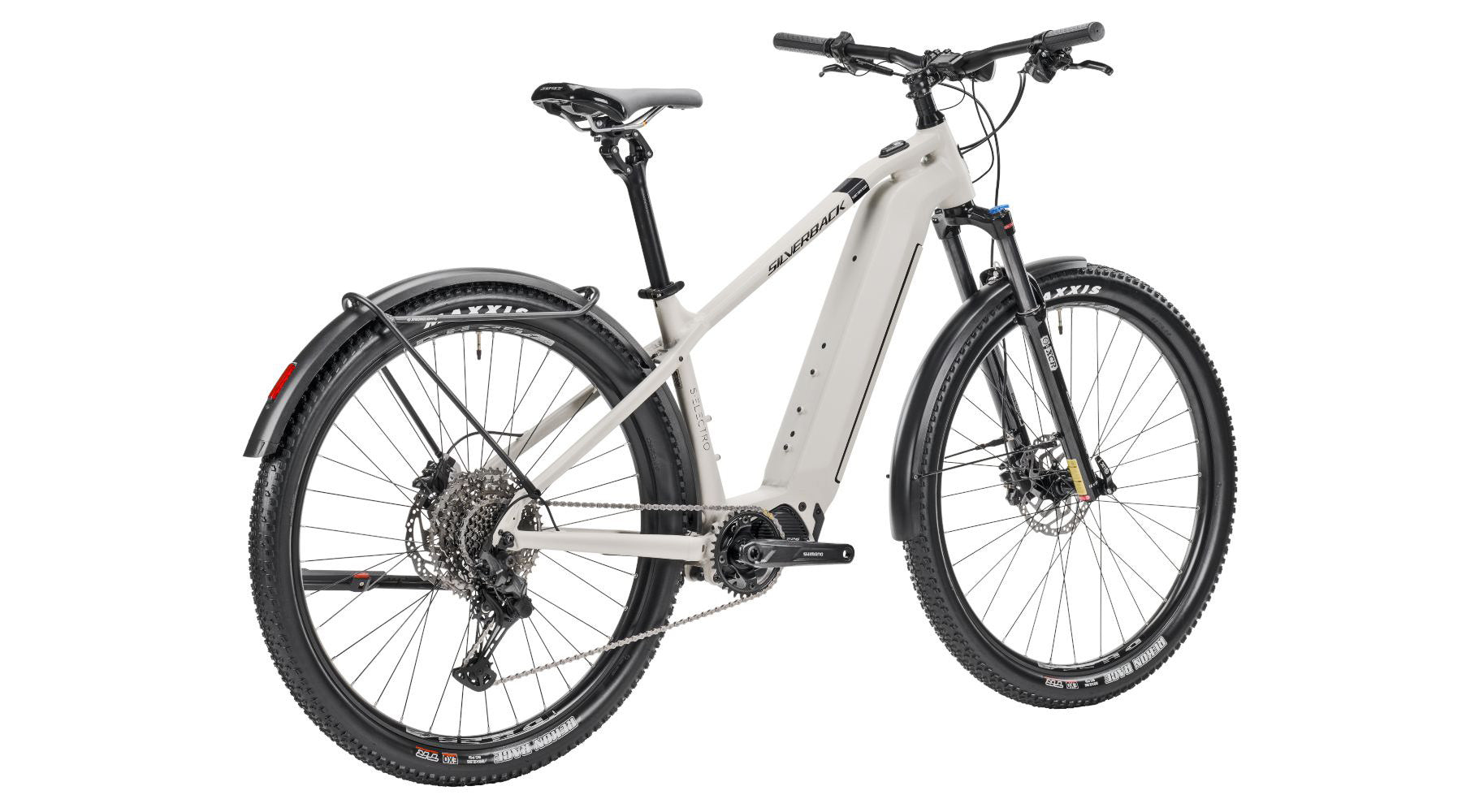

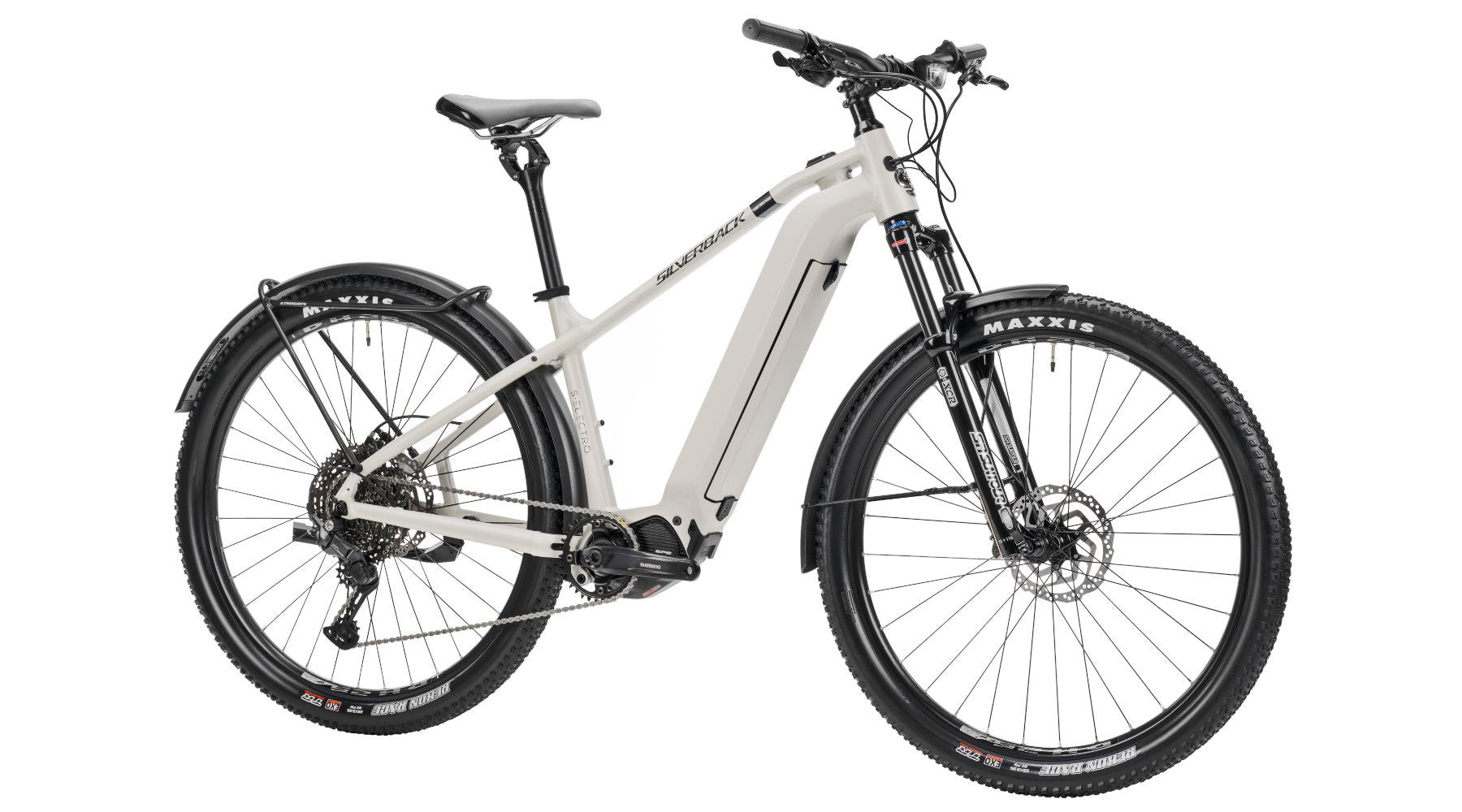

    S-Electro Diamond Comp
    Hardtail | E Adventure | Alloy | 29" | 120mm Fork | 21.5kg
    €3.899,00

    Price incl. VAT excl. Local Import Taxes & Shipping Costs.

    Size
      files/Graphite-Silver-Lime.png

      KEY FEATURES

      • 6061 Hydro-formed diamond e-bike frame
      • Rockshox Recon Gold RL, 120mm, Solo-Air suspension fork
      • Shimano EP8 motor
      • Darfon 720Wh high capacity battery
      • SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width wheels
      • Maxxis Forekaster 29x2.35", 120TPi, EXO, Tubeless tyres
      • Shimano Deore M5100 11sp rear derailleur
      • Surface alloy components
      • Weight: 21.5kg
      • OVERVIEW
      • WHY IT'S BEST
      • SPECIFICATIONS
      • GEOMETRY & SIZING
      • REVIEW & FAQ
      • DOWNLOAD PDF
      • ride vast distances assisted, without the need for recharge on the way.

        S-Electro Diamond Comp is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Diamond Comp unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.
         S-Electro Elite Comp lightweight alloy

        Hydro formed double butted integrated alloy frame

        Diamond Comp features a double butted hydro-formed alloy frame with integrated motor mount and internal battery. This means that the frame can have thinner walls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing. Hydro forming is the process of forcing tubing into a negative mold with internal pressurized oil and or water.

        S-Electro Elite Comp e-bike

        Drive system, power and display.

        S-Electro Diamond Comp is designed around a Shimano Steps 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Elite unrivalled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.

      • WHY IT’S BEST.

        1. Electric assisted bikes can help people get into or back into riding.
        2. The 720Wh battery offers massive range - less charging, more riding

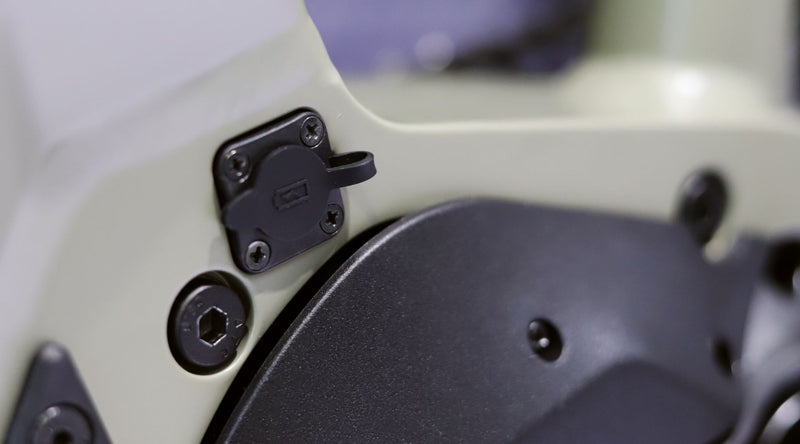

        3. Removable battery makes charging easier - whether you have an outlet close by or not.
        4. Geometry is comfort orientated, but also makes for confident handling.
        5. The Fox Rhythm fork is easy to set up and a great quality fork that does an excellent job at smoothing out bumpy terrain.
        6. Even available in a size Small means that absolutely anyone can get into eBiking!

        ENGINEERING NOTES.

         S-Electro Elite Comp smart button

        SMART CONTROL LED BUTTON

        The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour.

         S-Electro Elite Comp wheels

        HIGHER VOLUME TYRE COMPATIBILITY

        Diamond Comp is designed to accommodate tyres of up to 29" x 2.6". Higher volume tyres means more grip and more comfort without the added weight of plus tyres.

        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-elite-comp-engineering-note-geometry.jpg?v=1597238182

        GEOMETRY

        Geometry on the S-Electro Diamond Comp is designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This makes the Diamond Comp the ideal commuting or touring companion. The frame also has a low standover, making it great for both male and female riders.

         S-Electro Elite Comp short chainstay

        SHORT CHAINSTAYS

        Shorter chainstays means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

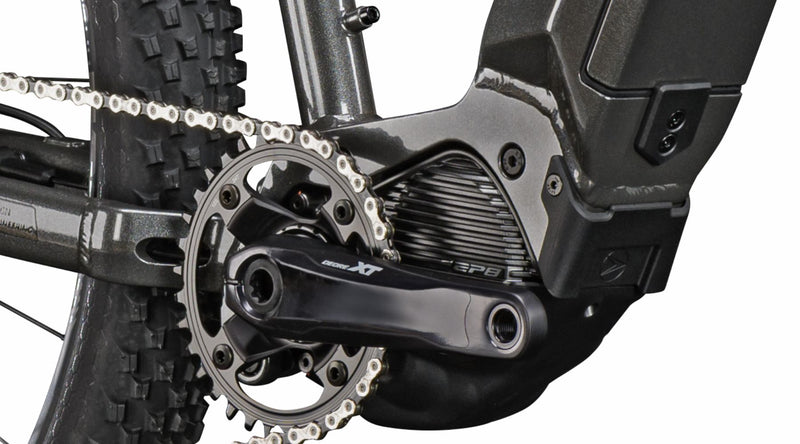

         S-Electro Elite Comp integrated motor

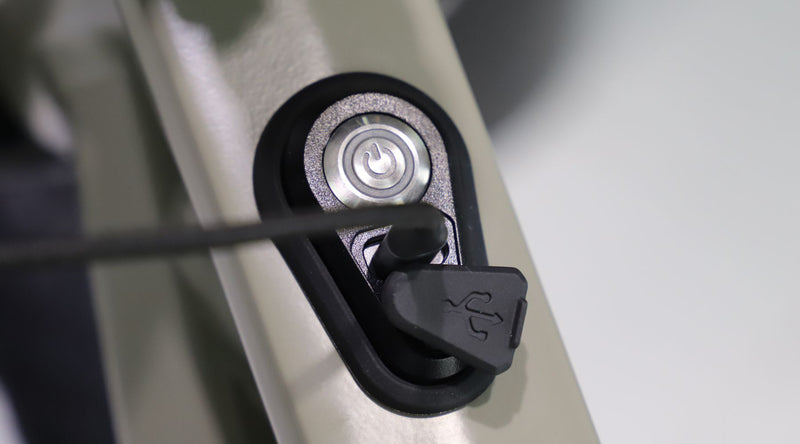

        POWER & MODES

        Conveniently located on the top tube, simply press the Power-ON button to engage the Shimano EP8 motor. Press repeatedly to change modes: Eco, Trail & Boost. You can also charge your smartphone, lights or other devices using the integrated USB-C socket.

         S-Electro Elite Comp dropper seat post

        DROPPER POST COMPATIBILITY

        The bike is internal routed dropper post compatible and easy to set up. Dropper posts increase riding clearance on technical sections, but could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome.

      • SPECIFICATIONS.

        FRAMESET

        Frame

        Aluminium E - MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. The geometry is designed for an all day easy trail ride or a commute to your preferred destination. This frame has tyre clearance for 29 x 2,6" tyres. Sizes range from S - XL

        Headset

        Token TK035A-15 Sealed Bearing

        Frame Axle Spacing

        148x12mm

        Axle Specification

        181x12mm P1.75

        Hanger Type

        Hanger 03

        E-BIKE

        Motor

        Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque

        Battery

        Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight

        Charger

        Darfon Smart Plus, 100-240V, 4A, EU use

        Display

        Shimano SC-EN600, 31.8mm

        Switch

        Shimano SW-EM800, Left

        SUSPENSION

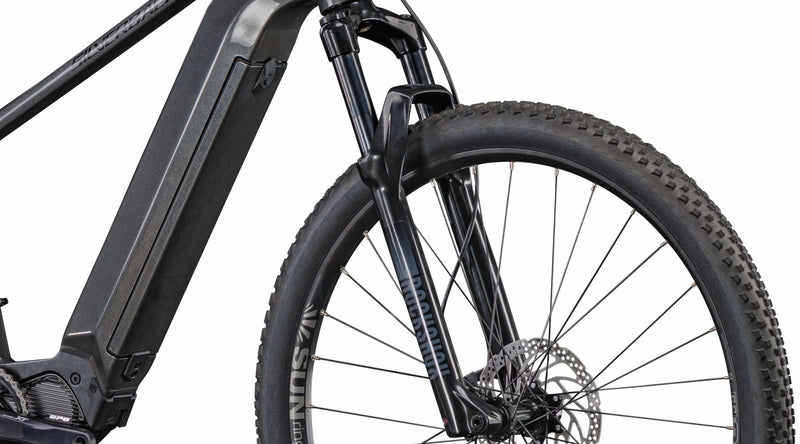

        Fork

        RockShox Recon Gold RL Crown Adjust 29", 15X110mm, Solo Air 120mm

        Fork Travel

        120mm

        WHEELS

        Wheelset

        SUNringlé Custom Wheelset

        Hubs

        F: Shimano HB-MT410-B Front Hub, 32H, 15mm Thru-Axle, 110mm OLD

        R: Shimano FH-MT400-B Freehub, 32H, 8-11 Speed, 12mm Thur-Axle, Center Lock 148mm OLD

        Rims

        F: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width

        R: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width

        Tyres

        F: Maxxis Forekaster 29x2.35", 120TPi, EXO, Tubeless

        R: Maxxis Forekaster 29x2.35", 120TPi, EXO, Tubeless

        Max Tyre Size

        2.6"

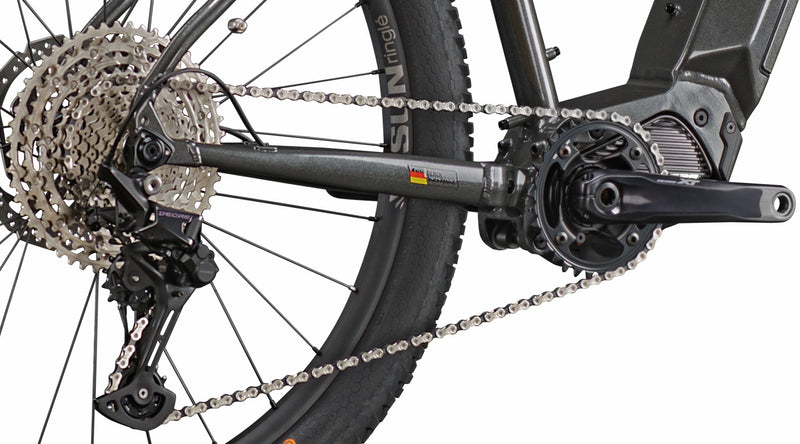

        DRIVETRAIN

        Crankset

        Shimano FC-EM600

        Max Chainring Size

        38T

        Shifter(s)

        R: Sram SX Eagle Shifter

        Rear Derailleur

        Sram SX Eagle, 50T Max

        Cassette

        Sram SX Eagle, 11-50T

        Chain

        Sram SX Eagle, 12 Speed

        BRAKES

        Brakes

        F: Shimano BL-MT200(L) with BR-MT200(F) Altus Disc

        R: Shimano MT200 Rear Hydraulic Disc Brake, Resin Pads

        Rotors

        F: Shimano SM-RT10 180mm

        R: Shimano SM-RT10 180mm

        COCKPIT

        Grips

        SBC Lockon Grip

        Handlebar

        SURFACE Alloy, Dia:31.8mm, Backsweep:9°, Rise 5mm

        Stem

        SURFACE High-Rise

        Saddle

        SURFACE, Cromo Rails

        Seat Post

        SURFACE Alloy

        Seatpost Clamp

        SURFACE Alloy

        WEIGHT

        Bike Weight

        21.5kg (M size, no pedals)

        RIDER WEIGHT LIMIT

        120kg - combined weight of bike and rider (including all kit).

        Disclaimer: Due to Covid-related scheduling and component availability challenges, bike specifications are subject to change without notice. Specifications may not be exactly what is shown in the photo.

      • FIND YOUR FIT

        Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

        GEOMETRY.

        map type(mm unless specified) S M L XL
        Rider height(cm) 154-170 170-180 178-190 185-210
        Rider inseam(cm) 70-77 77-82 81-86 84-95
        A Seat tube c/t 390 430 465 500
        B Seat tube angle 74 74 74 74
        C Head tube angle 68 68 68 68
        D Top Tube 599 609 630 661.5
        E Reach 410 420 440 470
        F Chainstay length 460 460 460 460
        G bb height 319.5 319.5 319.5 319.5
        H head tube length 135 135 140 145
        I stack 658.4 658.4 663 668
        J standover 803.8 837.6 801 825
        K Wheelbase 1163 1173 1185 1227
      • Customer Reviews

        Based on 3 reviews Write a review
        • FAQ

        • Can I order an extra battery for my S-Electro?

          Yes you can - get in touch and we can sort it out for you.

        • Can I chip my ebike?

          Most country laws prohibit the use of derestricting or chipping your ebike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.

        • Can I fit a throttle to my Elite?

          We don't sell throttles. You would have to check with your local authorities on their policies on pedal assist vs unassisted ebikes. Contact us directly for warranty information should you want to add a throttle. In most cases you warranty will be void if not installed by an accredited dealer.

        • Can I ride my ebike without assist?

          Yes - just pedal as you would any other bike.
