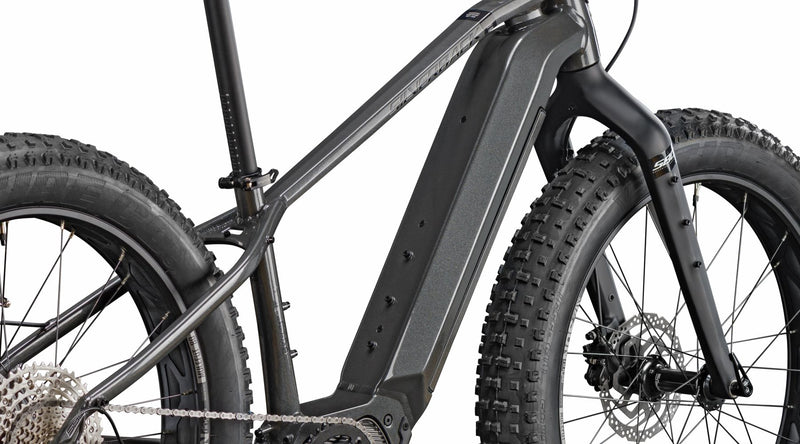

FAT features a double butted hydro-formed alloy frame with integrated motor mount, smooth weld top junctions and internal battery. This means that the frame can have thinner sidewalls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing. Hydro forming is the process of forcing tubing into a negative mold with internal pressurized oil and or water.
S-Electro FAT is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is paired to a decent sized 720Wh internal battery giving the FAT a solid range of assisted exploring. A smart control LED button located in the top tube makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to use and shows all rider info for the electric system.

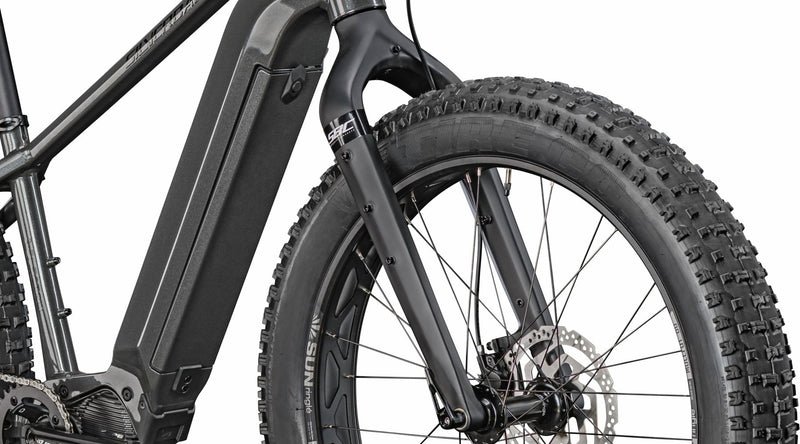

FAT Adventurer is fitted with an SBC carbon rigid FAT fork. Lightweight, stiff, and technologically advanced, the Carbon fork offers comfort over alloy forks.
The integrated motor mount used on the FAT Adventurer is 3D forged. This process makes intricate parts, relatively light and super strong. The process uses a hydraulic press, heat and molds to form metal into the required 3D shape.

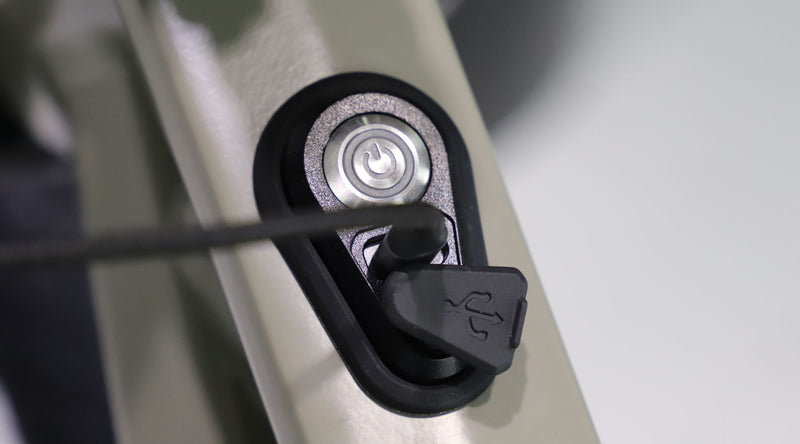

The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour.

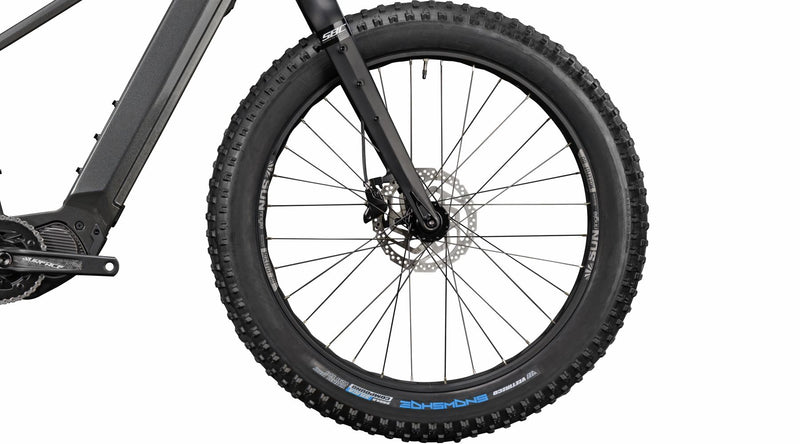

FAT Adventurer is designed to accommodate tyres of up to 26" x 4.8". Higher volume tyres mean more grip and more comfort. These massive tyres also float over snow or sand with ease.
Geometry on the Diamond FAT Adventurer is designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and the slacker head angle improves handling. This makes the Diamond FAT the ideal adventure or touring companion. The frame also has a low standover, making it great for both male and female riders.

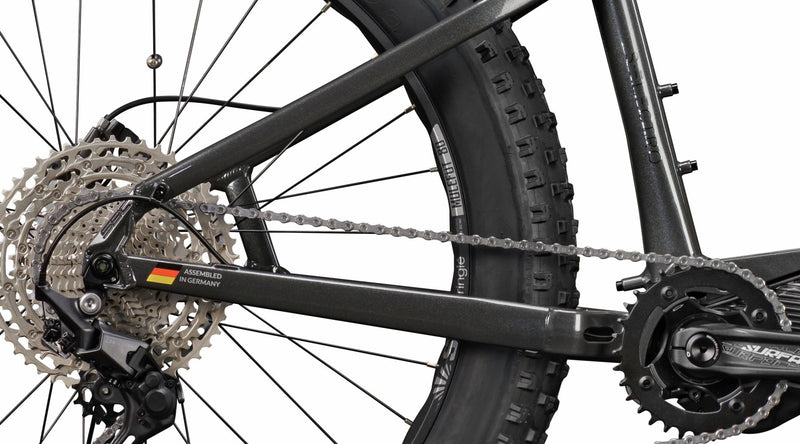

Shorter chainstays means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

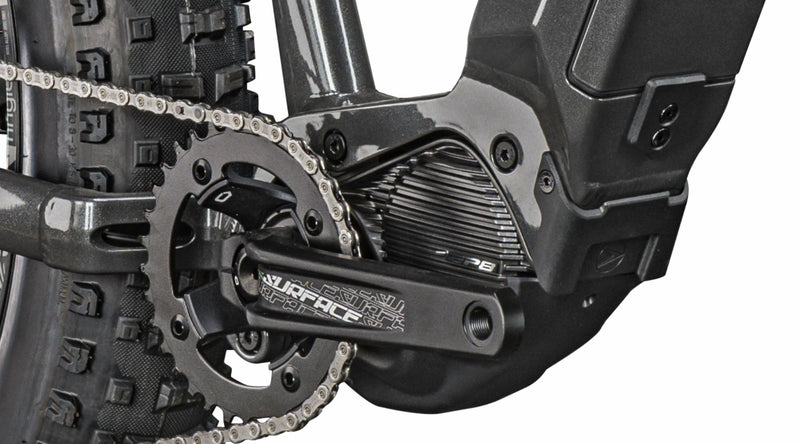

The frame is finished with a protective motor cover. This protects the motor from impact damage, and also finishes the bike really well.
The bike is internal routed dropper post compatible and easy to set up. Dropper posts increase riding clearance on technical sections, but could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome.
FAT Adventurer is fitted with an SBC carbon rigid FAT fork. Lightweight, stiff, and technologically advanced, the Carbon fork offers comfort over alloy forks.
The integrated motor mount used on the FAT Adventurer is 3D forged. This process makes intricate parts, relatively light and super strong. The process uses a hydraulic press, heat and molds to form metal into the required 3D shape.
The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour.
FAT Adventurer is designed to accommodate tyres of up to 26" x 4.8". Higher volume tyres mean more grip and more comfort. These massive tyres also float over snow or sand with ease.
Geometry on the Diamond FAT Adventurer is designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and the slacker head angle improves handling. This makes the Diamond FAT the ideal adventure or touring companion. The frame also has a low standover, making it great for both male and female riders.
Shorter chainstays means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.
The frame is finished with a protective motor cover. This protects the motor from impact damage, and also finishes the bike really well.
The bike is internal routed dropper post compatible and easy to set up. Dropper posts increase riding clearance on technical sections, but could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome.
FAT features a double butted hydro-formed alloy frame with integrated motor mount, smooth weld top junctions and internal battery. This means that the frame can have thinner sidewalls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing. Hydro forming is the process of forcing tubing into a negative mold with internal pressurized oil and or water.
S-Electro FAT is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is paired to a decent sized 720Wh internal battery giving the FAT a solid range of assisted exploring. A smart control LED button located in the top tube makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to use and shows all rider info for the electric system.
Motor | Shimano EP8 |
Battery | Darfon 720Wh |
Display | Shimano E7000 Screen Display |
Charger | Darfon 4A Smart Charger, 100-240V |
Crankset | Samox Fat Bike Cranks, 34T chainring |
Cassette | Shimano Deore M5100 11spd 11-51t |
Rear Der | Shimano Deore M5100 11spd |
Shifters | Shimano Deore M5100 11spd Rapidfire |
Chain | Shimano HG601 11spd |
Fork | SBC Carbon, 26" Rigid, 150x15mm Thru Axle |
Hubs | Front Hub: SUNringlé SRC 150x15, 6 Bolt Disc Rear Hub: SUNringlé SRC 197x12, 6 Bolt Disc |
Rims | SUNringlé Mulefüt 80SL, Tubeless Ready |
Tyres | VEE Tire Bulldozer 26x4.7", Foldable, Tubeless Ready, 72TPI |
Seatpost | Surface Alloy Post, 30.9mm |
Saddle | Surface, Black steel rail |
Handlebar | Surface Alloy Handlebar, Dia: 31.8mm, Backsweep: 9°, Rise 5mm; |
Stem | Surface Alloy Stem, Rise: 6° |
Seatclamp | Surface QR Clamp |
Frame | 6061 Hydro-formed Diamond e-fatbike frame, fully integrated battery, |
Brake set | Shimano MT200, Resin Pads, Rotors: Shimano RT26 180mm |
Disclaimer: Due to the nature of bike manufacturing, specification & finishes, component availability and price may be subject to change without prior written notification. Also images may not match final specifications due to component availability.
Yes you can - get in touch and we can sort it out for you.
Most country laws prohibit the use of derestricting or chipping your ebike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.
It is just like any other tyre for the most part. Our rims are pre taped making the process quicker and easier. With FAT tyres, a compressor or high volume air shot helps in supplying the volume of air needed to seat the big tyres.
Yes, you can - we recommend the Rockshox Bluto 100mm air suspension fork

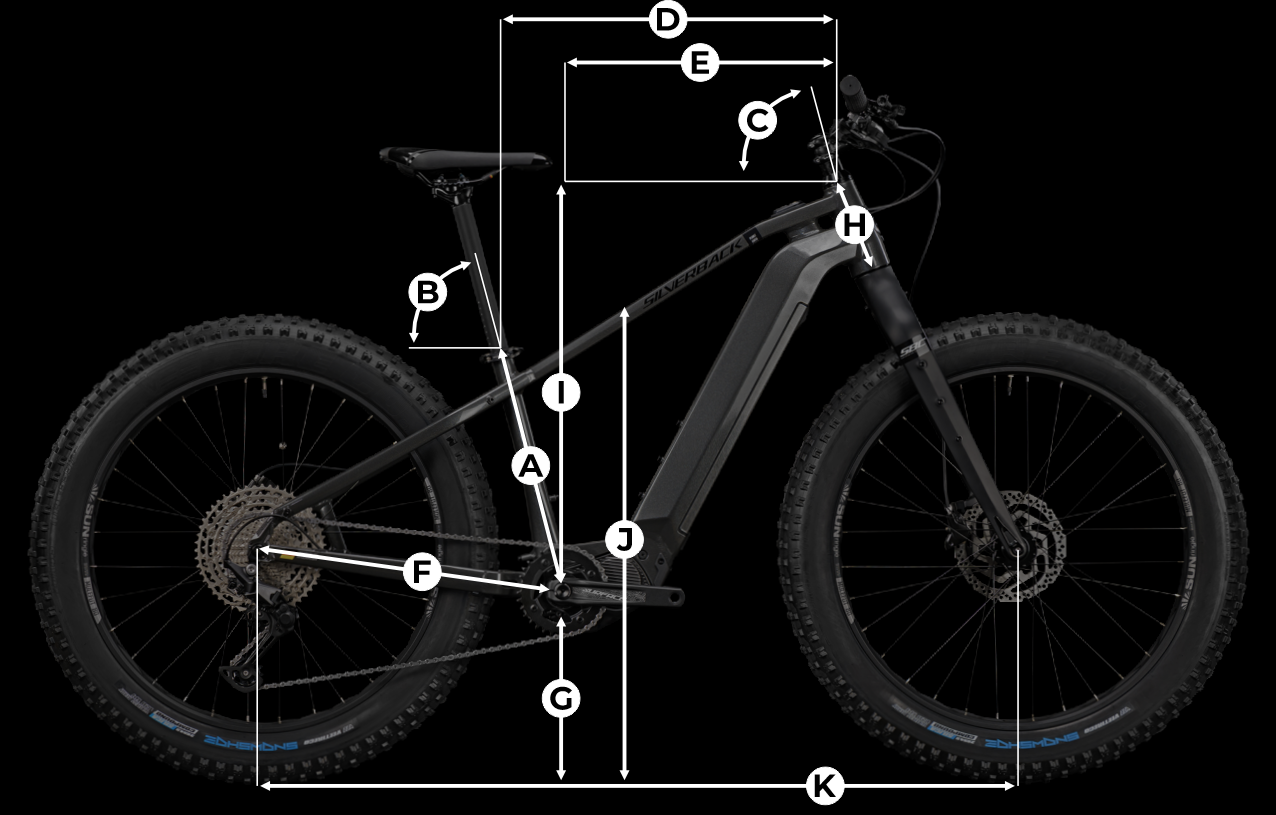

map | type(mm unless specified) | S | M | L | XL |
---|---|---|---|---|---|
Rider height(cm) | 154-170 | 170-180 | 178-190 | 185-210 | |
Rider inseam(cm) | 70-77 | 77-82 | 81-86 | 84-95 | |
A | Seat tube c/t | 390 | 430 | 465 | 500 |
B | Seat tube angle | 74 | 74 | 74 | 74 |
C | Head tube angle | 68.5 | 68.5 | 68.5 | 68.5 |
D | Top Tube | 610 | 620 | 643 | 663 |
E | Reach | 425 | 435 | 455 | 475 |
F | Chainstay length | 475 | 475 | 475 | 475 |
G | bb height | 333 | 333 | 333 | 333 |
H | head tube length | 145 | 145 | 155 | 155 |
I | stack | 646 | 646 | 656 | 656 |
J | standover | 823 | 830 | 826 | 818 |
K | Wheelbase | 1185 | 1194.4 | 1218 | 1238 |
