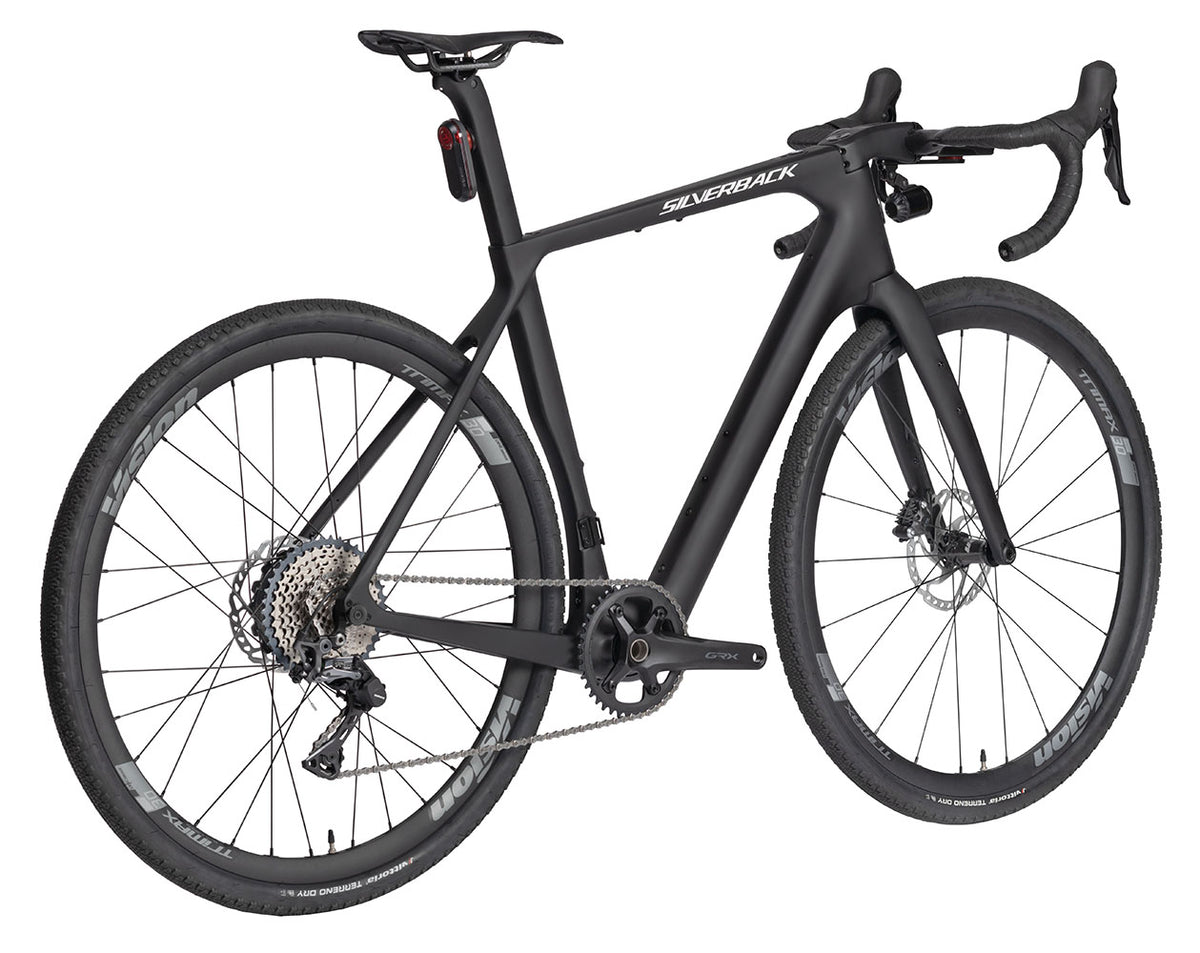

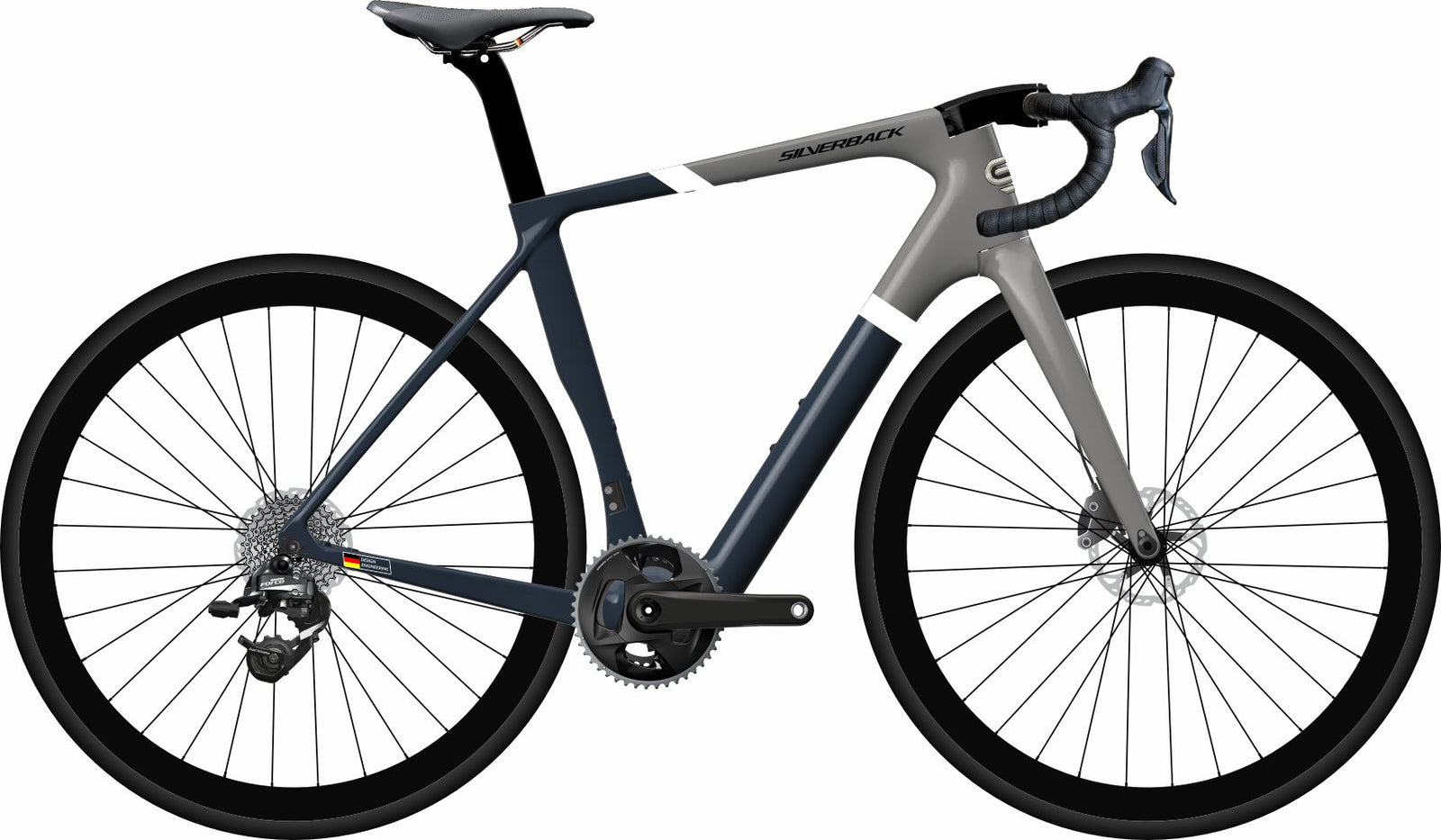

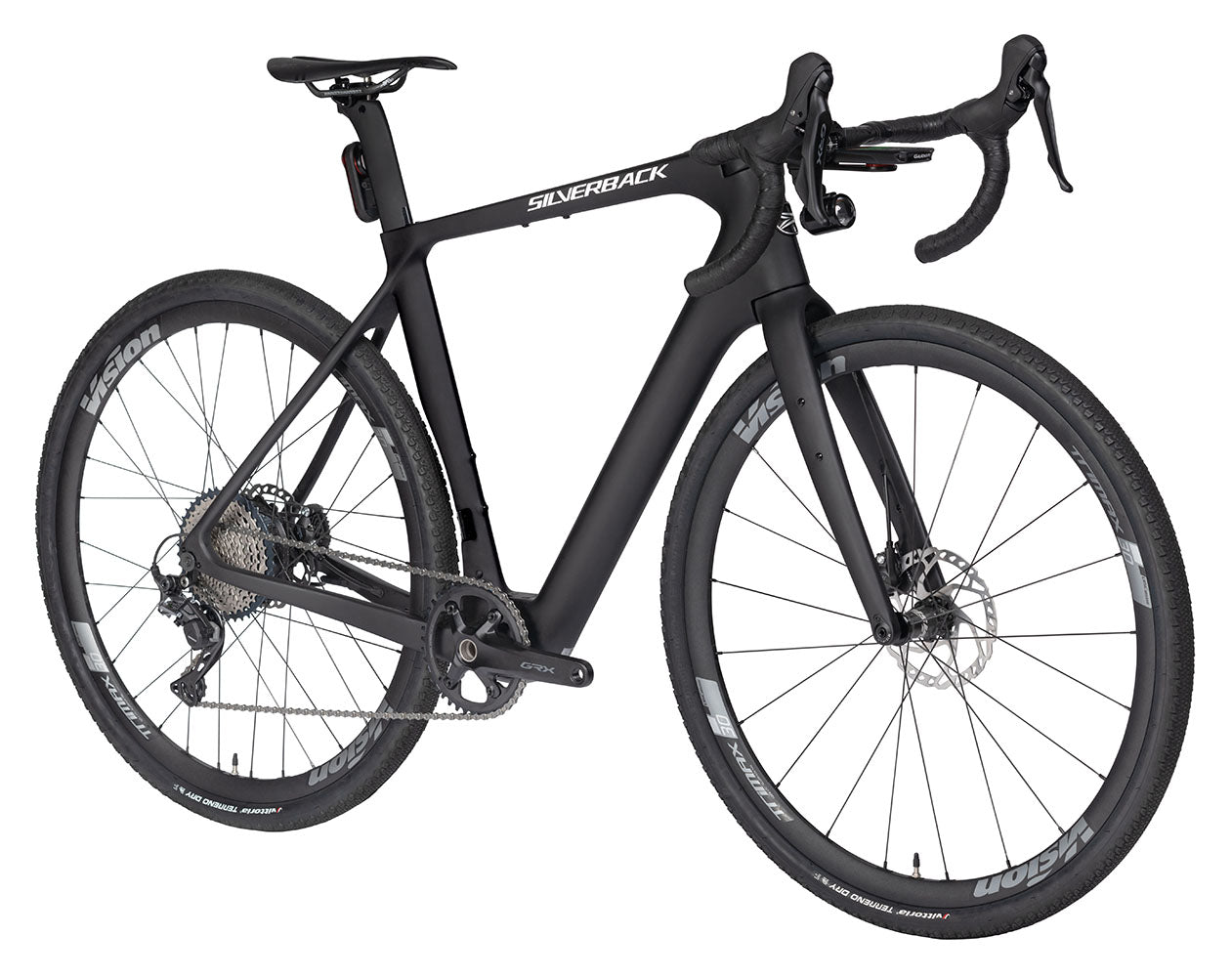

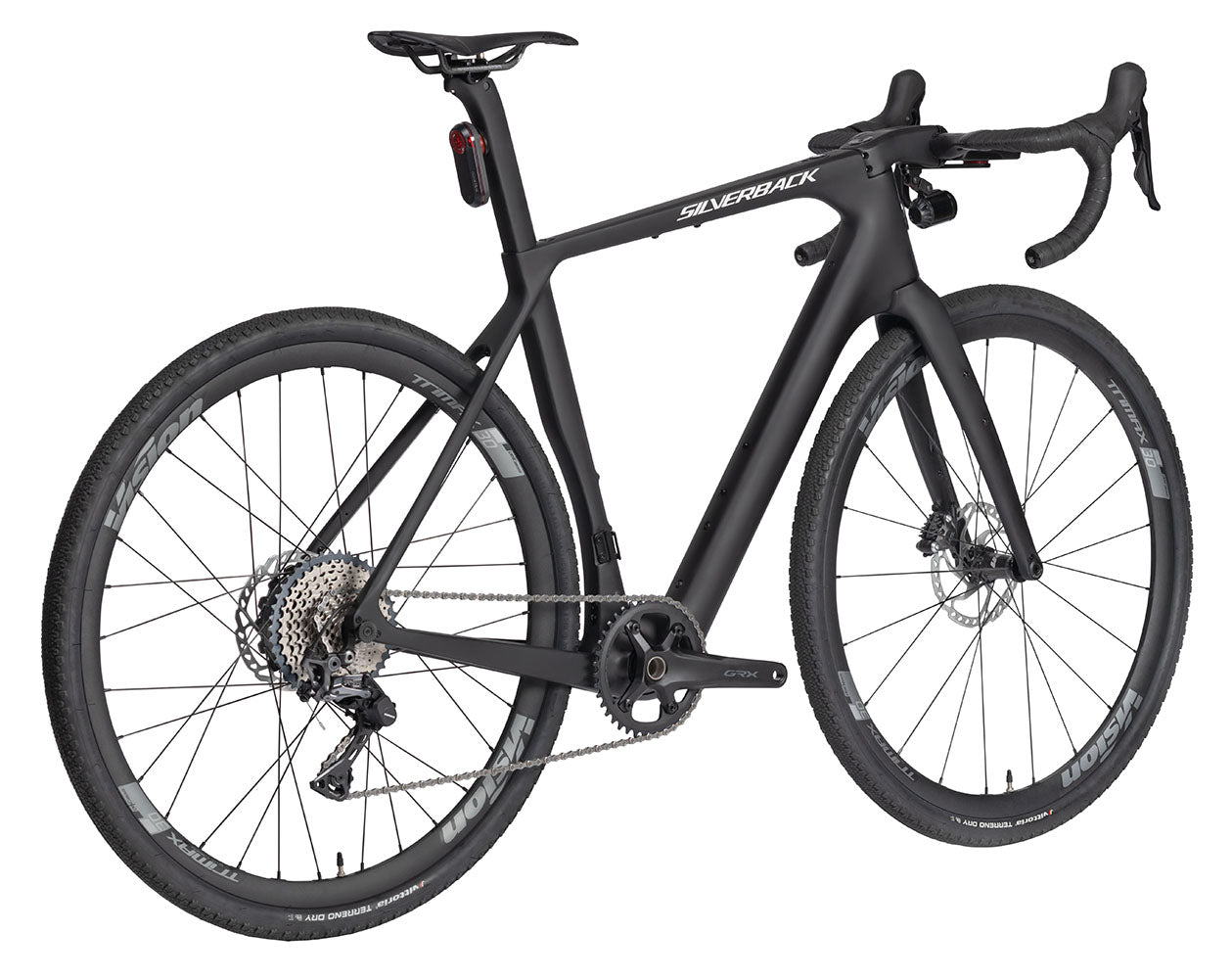

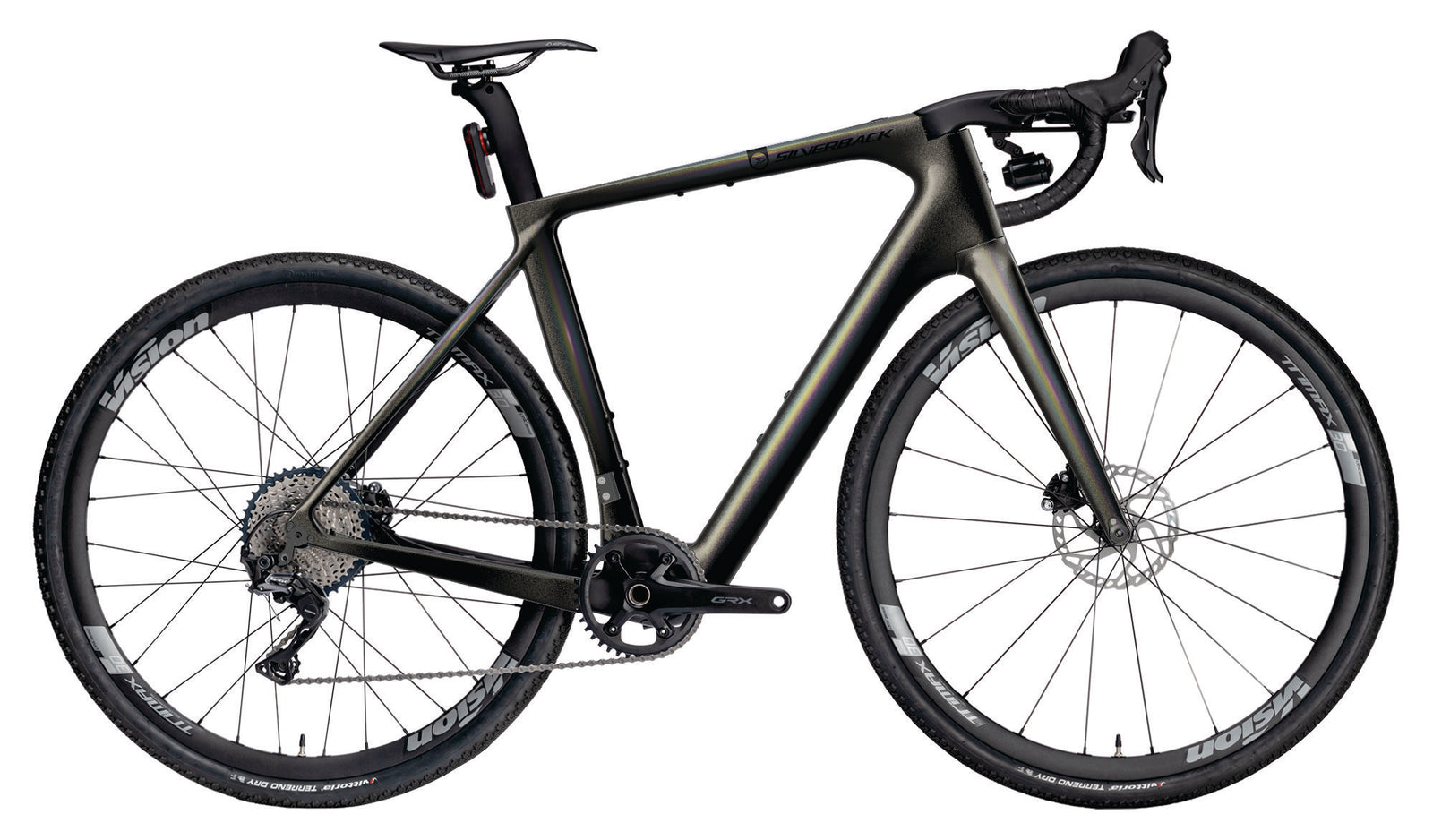

S-Electro Superfast (Rainbow Pearl)

Name: S-Electro Superfast (Rainbow Pearl)
Brand: S-Electro
SKU: 0086544002069
Price: 4999.0 EUR
Availability: InStock
Rating: 4.62 (8 reviews)

€4.999

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.62 8 reviews

Size:

Color: Rainbow Pearl

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 1872622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Supreme Bib Shorts - Cycle Kit - BornToBeFast - - - - Speedlab

B2BF Supra Bib Shorts

Space Speed 1 Road Helmet (Black)

Garmin Speed Sensor 2 AND CADENCE SENSOR 2

new lower price

Surface Bottle cage Unit with multi tool black/black

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-26

S-Electro Superfast (Rainbow Pearl)

€4.999,00

Add to cart

Ride Further. Ride Faster. Ride Free.

The gravel bike category is growing quickly as riders are enjoying the versatility of hitting light trails on the weekend, doing long distances on gravel roads, and going for long road rides during the week. For this purpose, the S-Electro Superfast is designed to be as comfortable on the road as it is on gravel. Superfast features the groundbreaking FSA System HM 1.0 250W hub motor, matched to an FSA System HM 1.0 250Wh battery with an integrated on-bike control unit.

At a Glance

Carbon S-ELECTRO Superfast integrated eBike frame
700C Carbon Fork, M12x100mm, Full Internal Cable Routing in Steerer
FSA System HM 1.0 electric drive system
Shimano GRX groupset
Surface Carbon components
Surface 700C wheelset, 21mm ID width, 30mm depth
700x35C Schwalbe G-One allround tyres
Shimano GRX hydraulic disc brakes

TECH HIGHLIGHTS

ELECTRIC SYSTEM WITH INTEGRATED LIGHTS

Superfast is fitted with the brand new groundbreaking FSA System HM 1.0 250W hub motor, matched to an FSA System HM 1.0 250Wh battery with a top-tube integrated on-bike control unit. With five assistance settings, an integrated torque sensor and two speed sensors, the system easily adapt to changing riding styles and conditions. When disengaged, the system has zero drag, for a natural free pedaling motion, and a low q-factor makes it feel like a normal bicycle. There is also a powerful app that works with the system. Superfast also has integrated lighting with a Spectrum ELITE 100 eBike headlight and a Garmin Varia™ RTL510 Radar Tail Light.

EPS MOLDED CARBON FIBER FRAME

Constructed through expanded polystyrene (EPS) moulding. Preform moulding allows precise, uniform (wrinkle-free) and repeatable execution of the lay-up schedule. Uniform fibres increase strength reducing irregularities.

GEOMETRY

S-Electro Superfast has Endurance focused geometry for all day riding comfort. The slack head angle improves steering stability on rough terrain and also at high speeds. Short chain stays for improved air flow transition between frame and rear wheel.

INTERNAL BATTERY

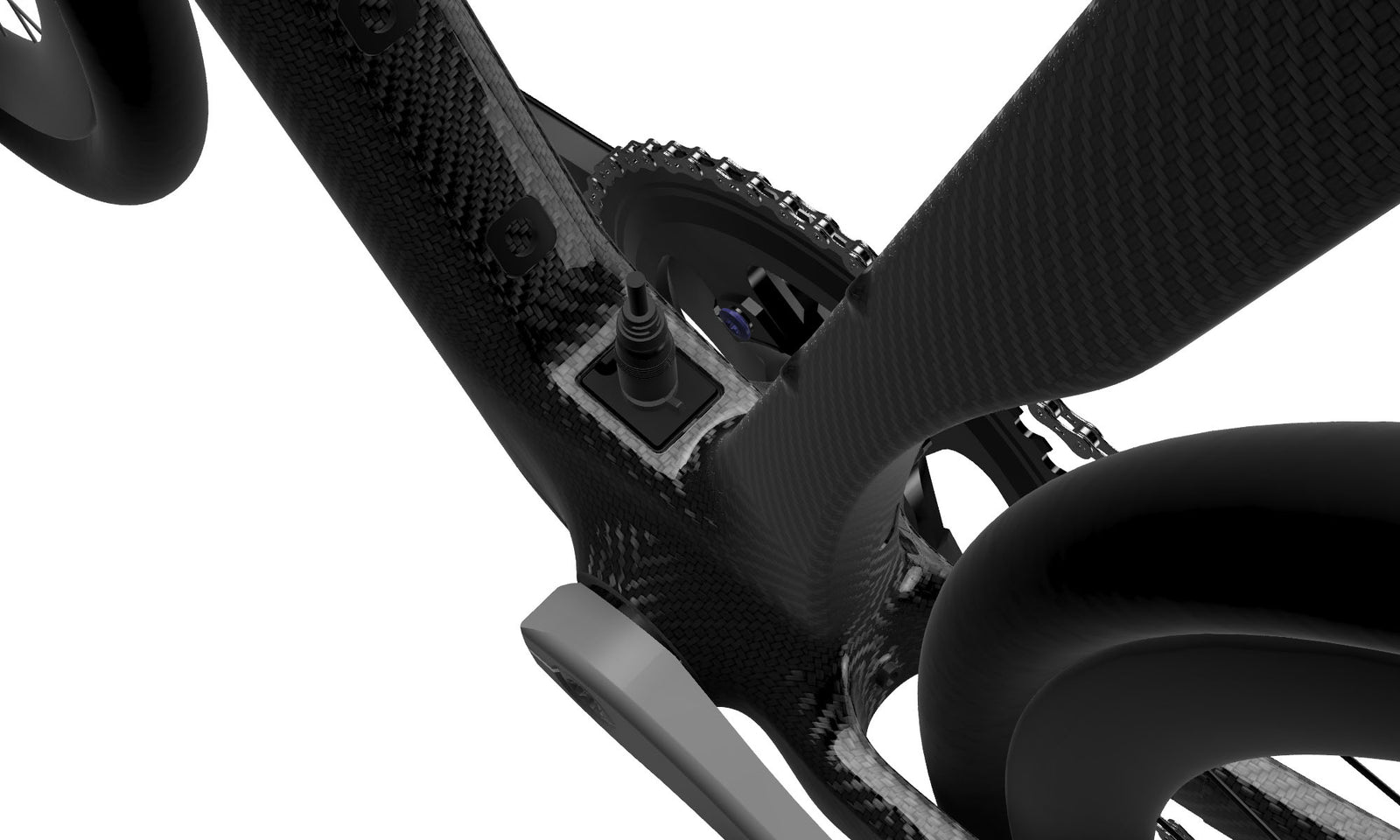

Superfast conceals a 250Wh battery in a compact down tube. The battery can be charged on the frame, but is also easily removable to charge away from the bike, or to replace. Additionally, the system can take a secondary 250Wh expansion battery in the seat tube bottle mounts, to double the range.

INTEGRATED STEM

Superfast features a top-tube integrated stem with full internal cable routing from control part to component. Computer and light mount integrated to stem faceplate.

RIGID CARBON FORK

A proprietary fully rigid carbon fork is compatible with 700C x 40C front wheels. This fork is aerodynamically optimised, offering improved airflow. Compatible with 160mm flat mount disc brakes, the cable is routed internally, further enhancing looks and aero efficiency. Fender/rack mounts are also integrated into the fork.

WHEEL COMPATIBILITY

Being a bike that can shine both on and off road, the Superfast is designed to accommodate up to 700C x 40C wheels and tyres. That means you have ample options of either road, oversize road or gravel tyres to choose from.

INTERCHANGEABLE REAR DROPOUTS

Interchangeable rear dropout - between 135x9mm or 142x12mm for conventional use means that the Superfast is extremely versatile.

COMPONENTS

Superfast is fitted with a high quality, reliable Shimano Ultegra 2 x 11 speed groupset and top end Surface carbon fiber cockpit components all round.

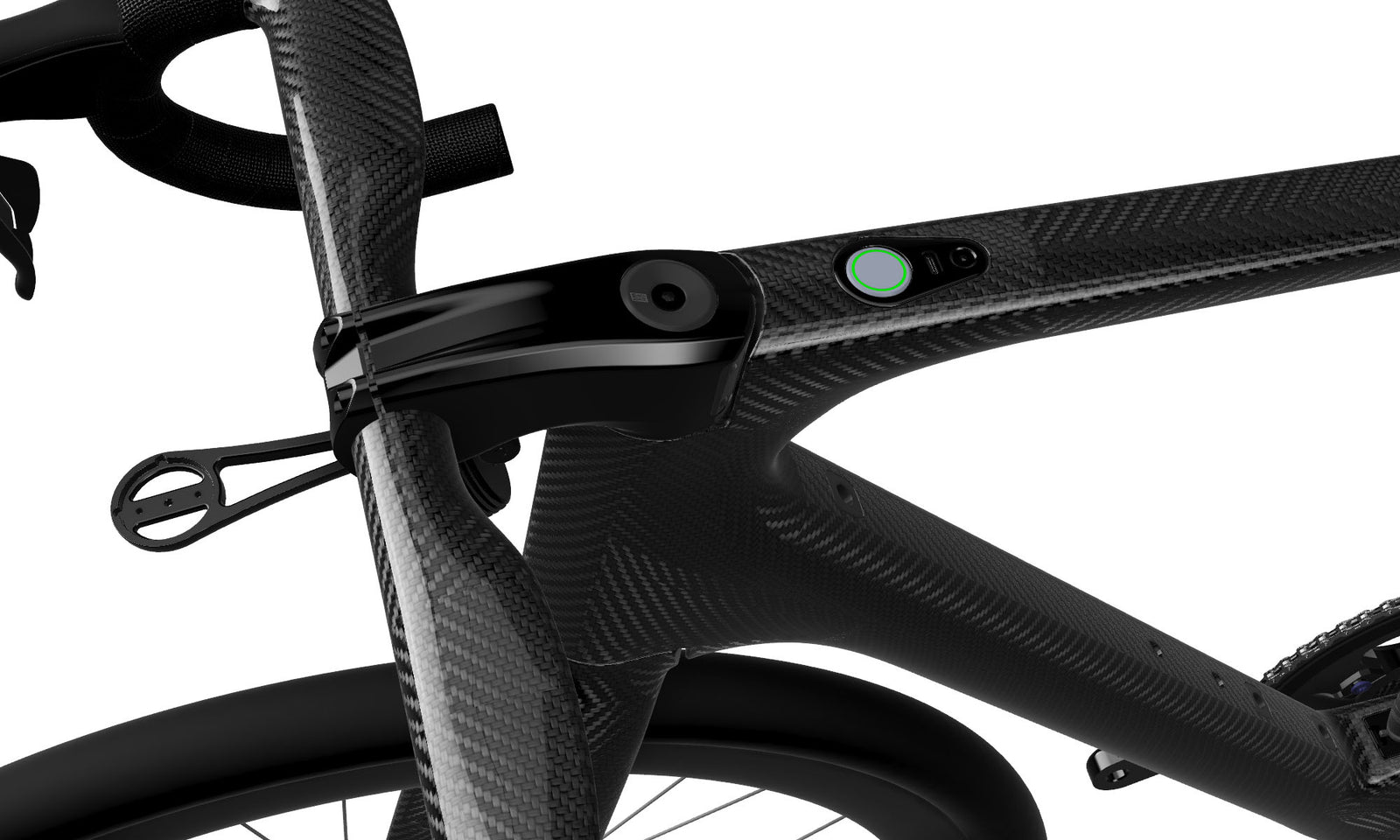

INTEGRATED TOP TUBE LED BUTTON

The LED colour changing top tube button makes changing modes intuitive and quick. And the colour means that you can see it in your peripheral vision, without having to look directly at it, meaning you can look at the trail.

LONGER RANGE

You've got the option to add additional motorized range by adding a second battery

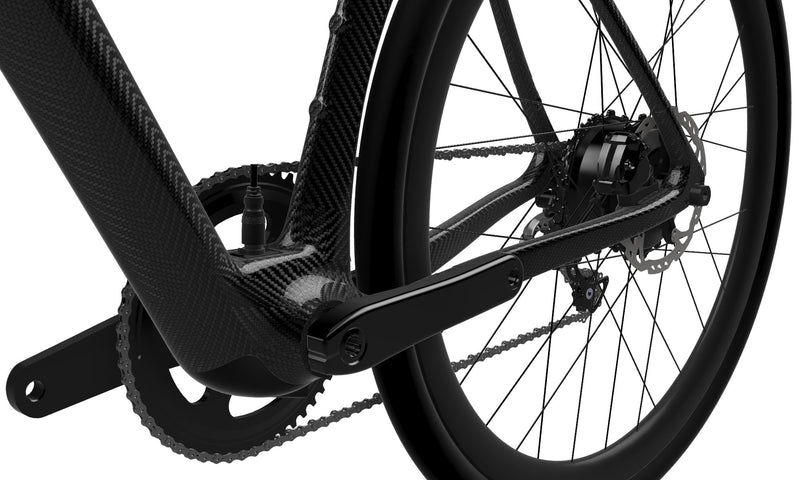

POWER WHEN & WHERE YOU NEED IT

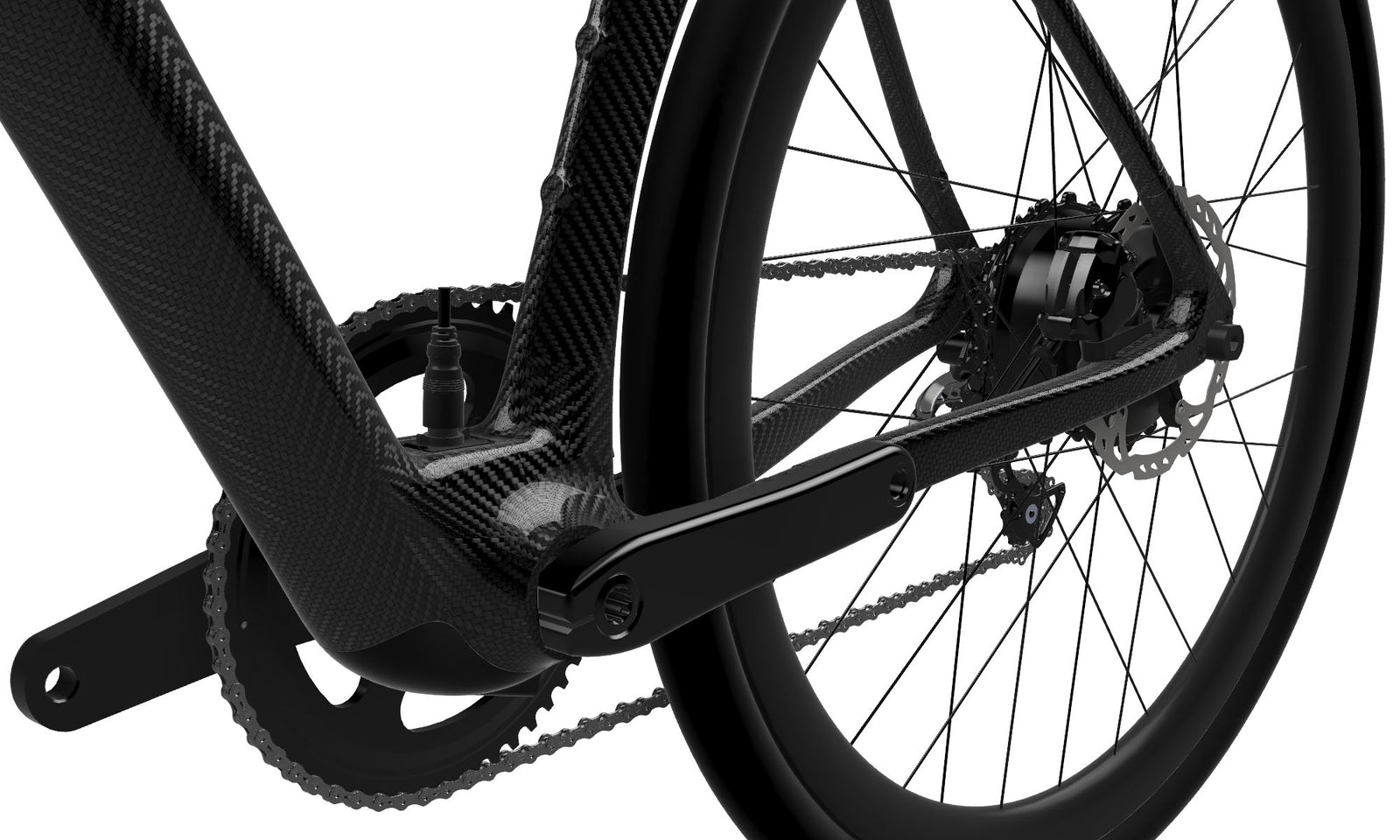

Torque is transferred directly to the drive-wheel, without additional stress and wear on the drivetrain components themselves. There is also no drag on crankset when disengaged.

LIGHTWEIGHT

The Superfast's superlight overall weight blurs the lines between conventional and motorized bicycle weights

CONNECTED WITH YOUR SYSTEM

Stay connected with Bluetooth and ANT+ Communication with 3rd party devices. Internal torque and speed sensors keep you informed of system performance. Also includes a USB-C power port for charging accessories.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Carbon Fibre Road & Gravel e-Bike frame. Aerodynamically optimized with integrated motor and Internal Battery. 700Cx40C compatible.

Headset

Semi-Integrated

Frame Axle Spacing

135x9mm

Axle Specification

200x10mm

Hanger Type

Hanger 34

E-BIKE

Motor

FSA System HM 1.0 250W Rear Hub-Motor, 32km/h, Torque: 42Nm

Battery

FSA System HM 1.0 250Wh Battery, 7Ah Li-Ion, Weight: 1.5kg

Charger

FSA System HM 1.0 Charger

Display

N/A

Switch

FSA System HM 1.0 Smart-LED Button

SUSPENSION

Fork

700C Carbon Fork, M12x100mm, Full Internal Cable Routing in Steerer

WHEELS

Wheelset

SURFACE Custom Wheelset

Hubs

Front: Shimano RD470, 100 OLD for 12mm Thru-axle, 6 Bolt, 28H
Rear: FSA System HM 1.0, 250Wh Hub Motor, 32H

Rims

Front: SURFACE, 700C, 21mm Internal Width and 30mm Deep, 28H
Rear SURFACE, 700C, 21mm Internal Width and 30mm Deep, 32H

Tyres

Schwalbe G-One Allround, 700x35C,TLE

Max Tyre Size

40C

DRIVETRAIN

Crankset

Shimano GRX 40T Chainring, Crank Length: 175mm

Max Chainring Size

53/39T

Bottom Bracket & Type

FSA PF30 to BB30, PF 30 BB386 EVO

Shifter(s)

Shimano GRX Hydraulic Brake and Shifter w/ Caliper

Front Derailleur

N/A

Rear Derailleur

Shimano GRX 11-Speed Rear Derailleur

Cassette

Shimano GRX Cassette

Chain

Shimano CN-HG701-11 11-Speed Chain w/End Pin

BRAKES

Brakes

Included in Brakeset or Shifter

Rotors

Shimano RT76 160mm, 6 bolt

COCKPIT

Grips

Surface Handlebar Wrap, Silicone, Plug with Expander Bolt

Handlebar

Surface Carbon with internal routing, Dia: 31.8mm, Reach: 77mm, Drop: 128mm, Flare 16°

Stem

Surface Carbon with internal routing,31.8mm. Rise: 6.5°

Saddle

Surface Race, Steel Rails

Seat Post

Surface Carbon, 42x29.3mm

Seatpost Clamp

Included with Frame

Pedals

Not Included

WEIGHT

Bike Weight

12.7kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

What is the maximum tyre clearance on the S-Electro Superfast?

The S-Electro Superfast has a maximum tyre clearance of 700x40C.
Can I add secondary lights onto the system?

Some lights can be added onto the electric system - but that depends on the type of light and FSA e Bike system compatibility.
I don't know the FSA system - is it any good?

Yes, we only work with quality electric drive systems from established manufacturers. FSA has a long time track record for quality and warranties to back it up.
Can I use the Superfast for touring?

Yes, the Superfast has frame bosses to fit touring accessories, as well fenders up to 36C.
Can the S-Electro Superfast fit fenders?

Yes, however the maximum tyre clearance will be influence by the fender.
Is the S-Electro Superfast suitable for gravel riding?

Yes, with the correct component specification, the S-Electro Superfast can be used for gravel riding.
Where can I find the E-bike manual?
Click HERE to view.
Where can I find serial number of the E bike?
The frame number is located on the side of the frame around the motor area.
Can I customize my Shimano display to another language or change other settings?
Yes, you need to download E TUBE app and configure the settings. SEE HERE

OTHER MODELS IN THE SERIES

€1.999

SE:SERIES GR CF 11

Gravel | Performance | Full Carbon

Carbon Fork
700C x 40C Wheels
1x11 Speed SRAM
9.5kg

€4.999

S-ELECTRO SUPERFAST (RAINBOW PEARL)

Road | E road | Carbon

700C x 35C Wheels
1x11 Speed Shimano
FSA Hub Motor
42Nm Torque
250Wh Battery
12.7kg

€1.899

SILVERRIDER GRAVEL PRO

Gravel | Alloy

Carbon Rigid Fork
700C x 50C Wheels
1x12 Speed Shimano
10.8kg Alloy wheels

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	M	L
	Rider height(cm)	160-168	168-185	185-192
	Rider inseam(cm)	72-76	76-84	84-87
A	Seat tube c/t	510	540	570
B	Seat tube angle	74	73	73
C	Head tube angle	71.5	72	72
D	Top Tube	545	567	583
E	Reach	380	390	400
F	Chainstay length	430	430	430
G	bb height	277	277	277
H	head tube length	140	160	180
I	stack	570	591	610
J	standover	800	826	850
K	Wheelbase	1019	1031	1047
