S-Electro Diamond Fat Sport

Name: S-Electro Diamond Fat Sport
Brand: S-Electro
SKU: 0086544004438
Price: 2799.0 EUR
Availability: InStock
Rating: 4.83 (6 reviews)

€2.799

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.83 6 reviews

Size:

Color: Metallic Glitter

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 1872622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

B2BF high performance premium grips - SBC - Watermelon Red

Space Spectra - LED MTB Helmet (Matte Grey)

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-3

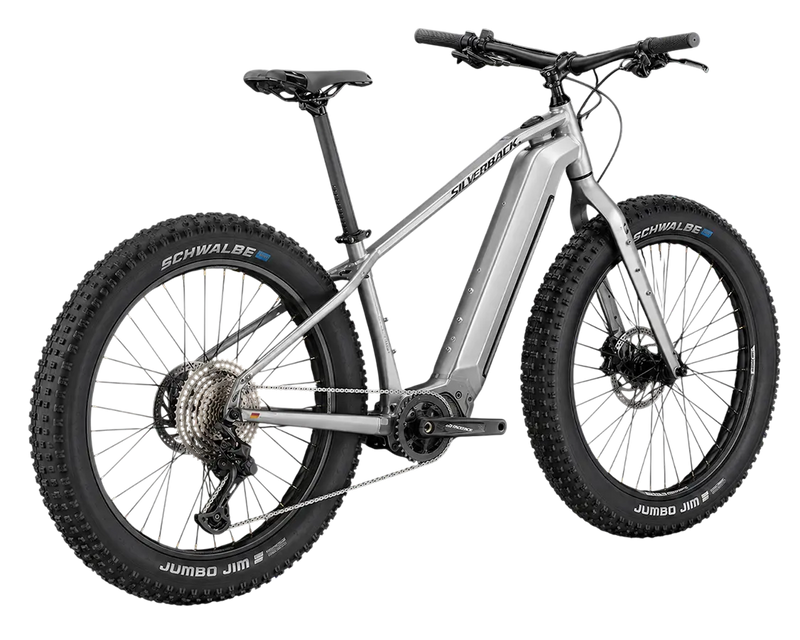

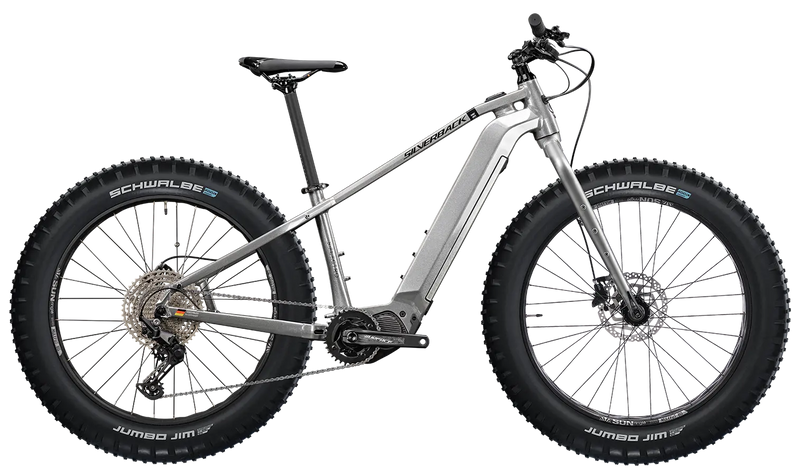

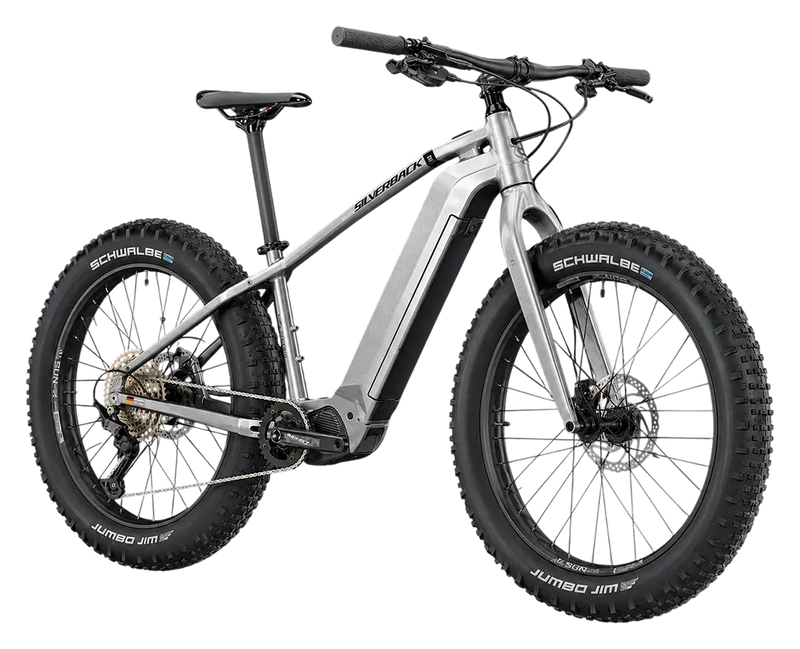

S-Electro Diamond Fat Sport

€2.799,00

Add to cart

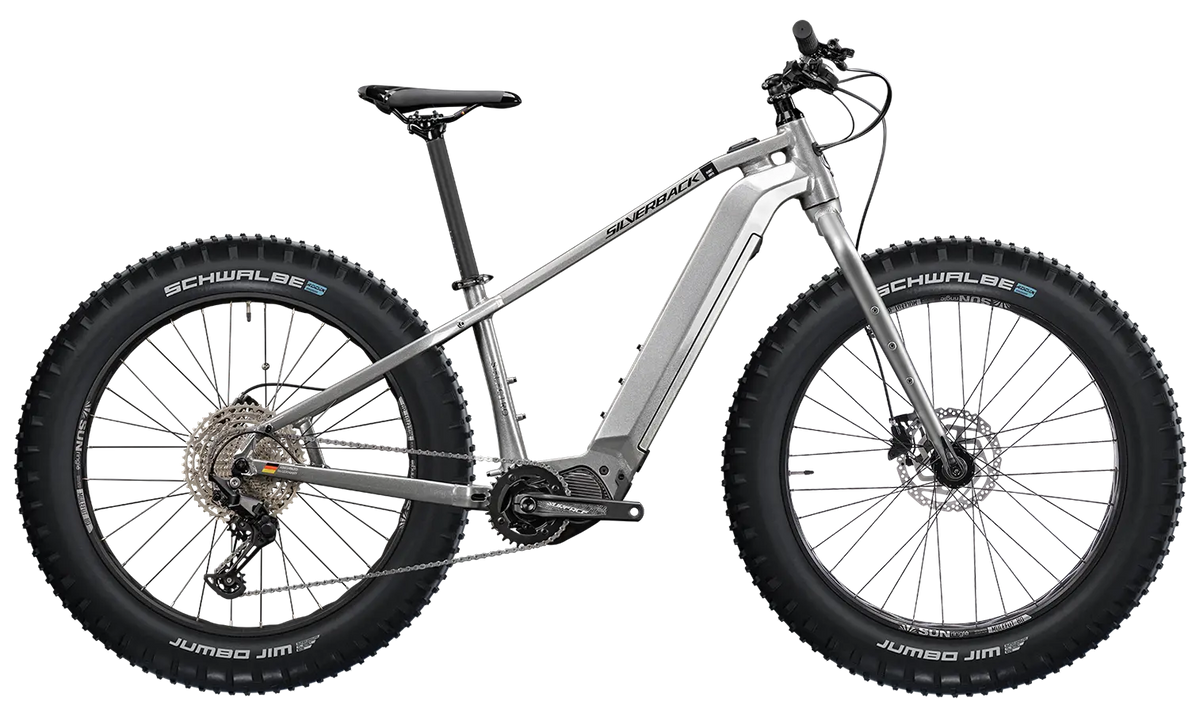

The S-Electro Diamond Fat Sport features a complex hydroformed alloy frame with a compact 504 Wh internal battery located in the downtube. The S-Electro Diamond Fat Sport is designed around all-day comfort geometry and compatible with 4.0" FAT tyres. This makes the S-Electro Diamond Fat Sport a very capable bike that loves a challenge. The battery can be charged in-place in the frame, or where power outlets aren't close by, the battery can easily be removed.

At a Glance

6061 Hydro-formed diamond e-fatbike frame
SBC alloy Rigid fat specific fork
Shimano E7000 mid-drive motor
Darfon 504Wh high-capacity battery
Shimano Hydraulic disc brakes
Shimano Deore 10 spd rear derailleur
SUNringlé Mulefüt 80SL, Tubeless Ready wheels
Surface alloy control parts

TECH HIGHLIGHTS

RIDE VAST DISTANCES ASSISTED, WITHOUT THE NEED FOR RECHARGE ON THE WAY.

S-Electro Diamond is designed around a Shimano E7000 motor with integrated torque sensor. This motor is powered by a high capacity 504Wh internal battery giving the Diamond unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.

HYDROFORMED DOUBLE BUTTED INTEGRATED ALLOY FRAME

S-Electro Diamond features a double butted hydroformed alloy frame with integrated motor mount and internal battery. Hydroforming is the process of forcing tubing into a negative mould with internal pressurized oil and or water. The frame can have thinner walls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing.

DRIVE SYSTEM, POWER AND DISPLAY.

S-Electro Diamond is designed around a Shimano Steps E7000 motor. This motor is paired to a high capacity 504Wh internal battery giving the Step an unrivalled range of pedal assistance. The Shimano LCD display is intuitive and easy to use, also indicating battery levels and shows all info needed for the electric system.

SAFETY AND COMFORT

Durable hydraulic disc brakes, possibility of integration of lighting system and a comfortable seating position offer reliability and comfort.

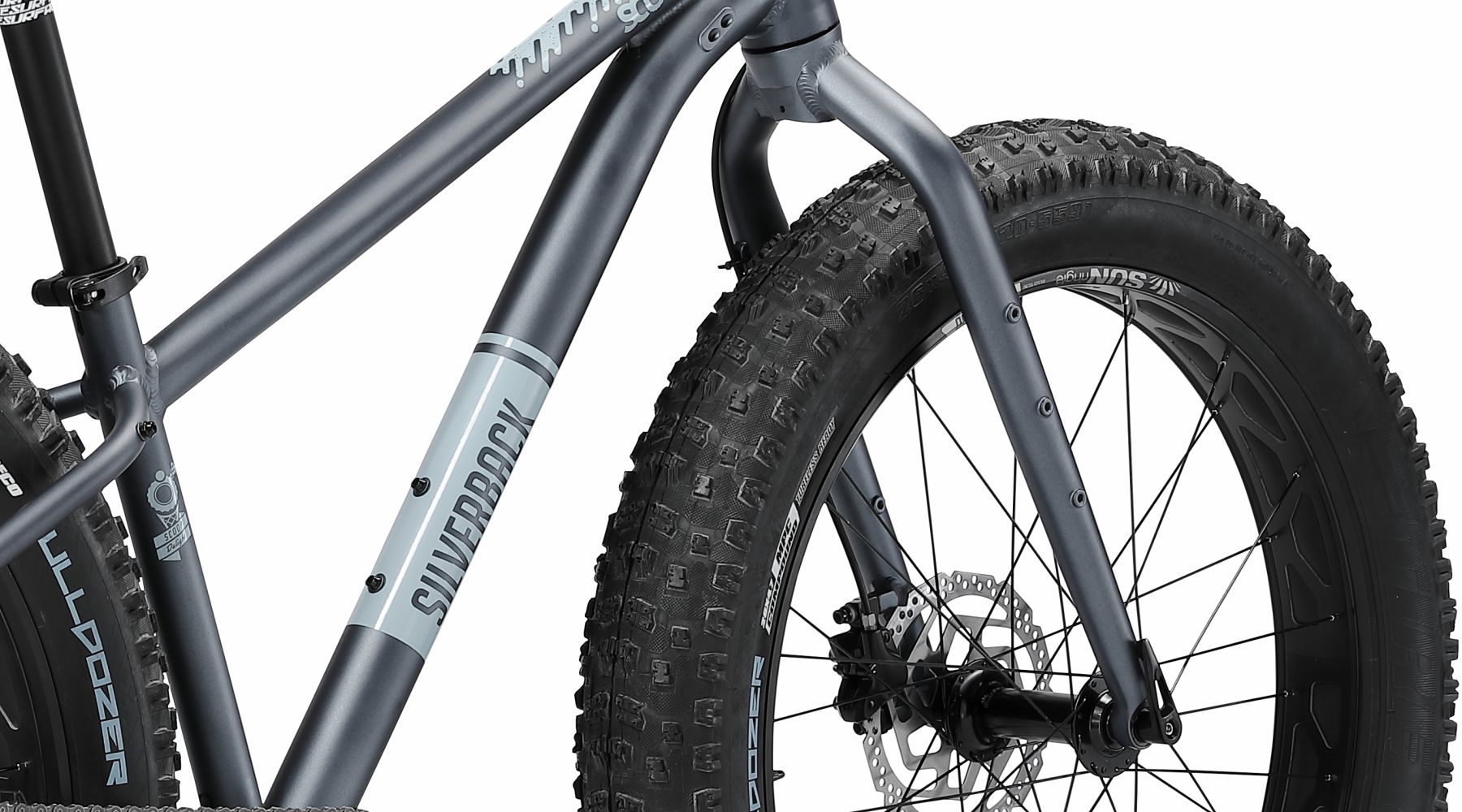

SBC ALLOY RIGID FORK

The S-Selectro Diamond Fat Sport features a thru axle Alloy rigid fork. Matchy-matchy colour and alloy tubing profiles. The fat wheels provide bump absorption so that even though a rigid fork, the bike does not feel harsh. A rigid fork is also virtually maintenance free, so great for peace of mind, remote adventures.

GEOMETRY

Geometry on the S-Electro Diamond is designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This makes the Diamond E-bike the ideal commuting or touring companion, whilst maintaining capability to take on more demanding terrain. The frame also has a low stand over, making it great for both male and female riders.

OPTIMISED CHAINSTAY LENGTH BETWEEN AGILITY AND LARGE VOLUME TYRE

Shorter chainstay means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

POWERFUL SHIMANO MOTOR

S-Electro Diamond is designed around a Shimano Steps EP7000, 65 Nm mid-drive motor. Shimano’s EP7000 motor offers excellent all-round performance which is perfect for E-MTB riding. With its smooth torque support, the ride feel is simply incredible.

504 Wh BATTERY

S-Electro Diamond is paired to a 504Wh internal battery giving the Steps an unrivalled range of pedal assistance. This battery is easy-to-charge and is designed for maximum convenience in your day-to-day riding routine. Lock up your bike worry free – the battery is key removable only. Charging is easy on or off the bike – turn the key, pop it out, and plug in the charger delivered with your bike.

DROPPER POST COMPATIBILITY

The bike is internal routed dropper post compatible and simple to set up. Dropper posts increase riding clearance on technical sections. It could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome.

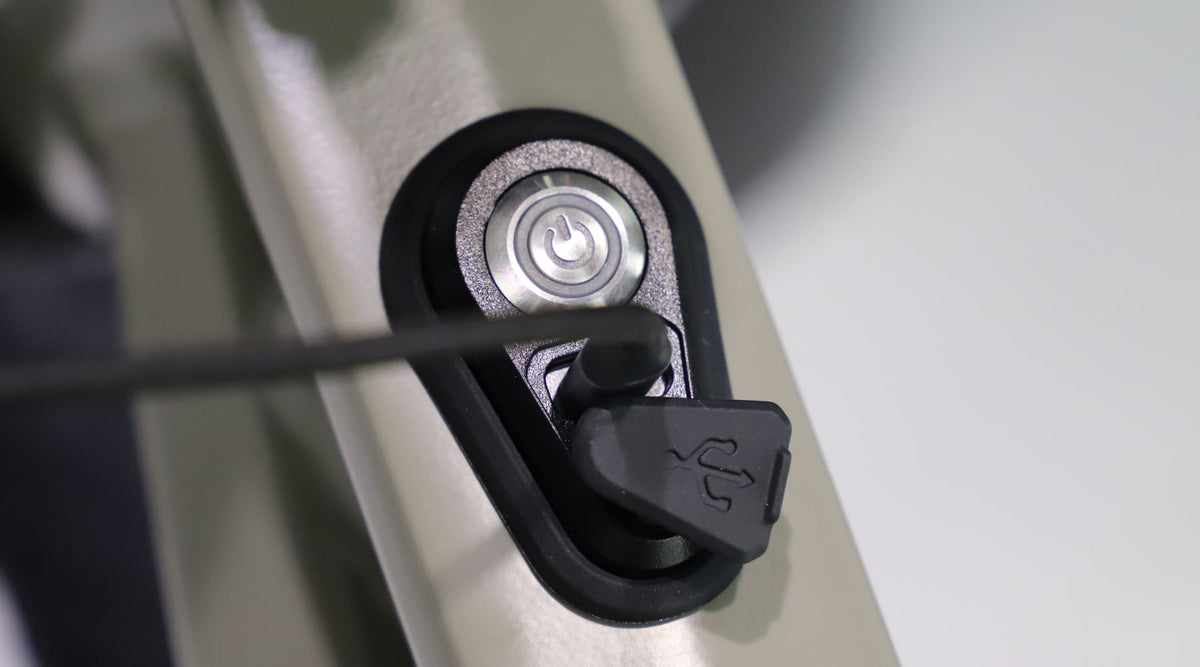

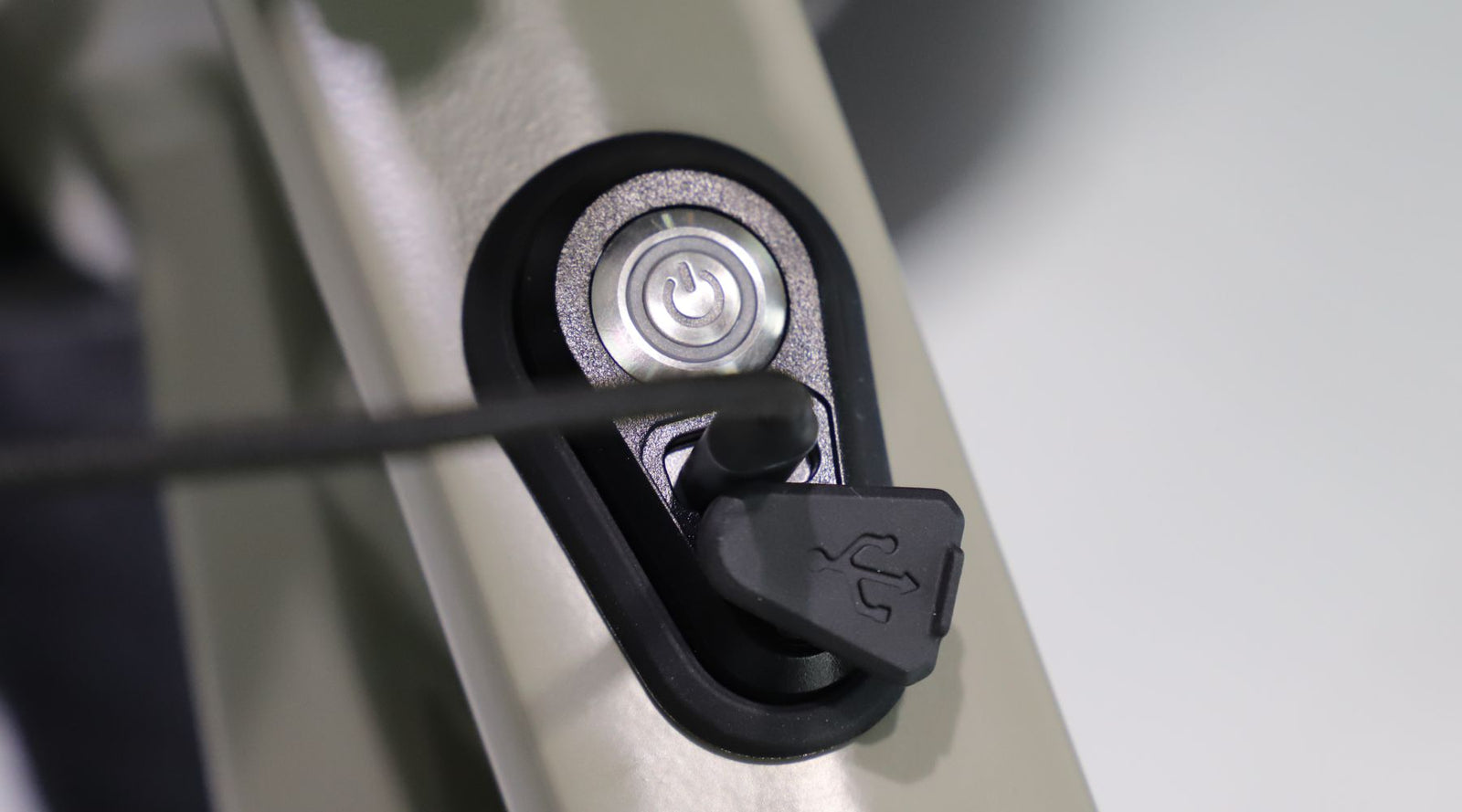

LED START BUTTON AND USB-C CHARGING PORT

The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour. A Diamond E-bike that can be connected to various smartphones with the appropriate USB-C charging cable.

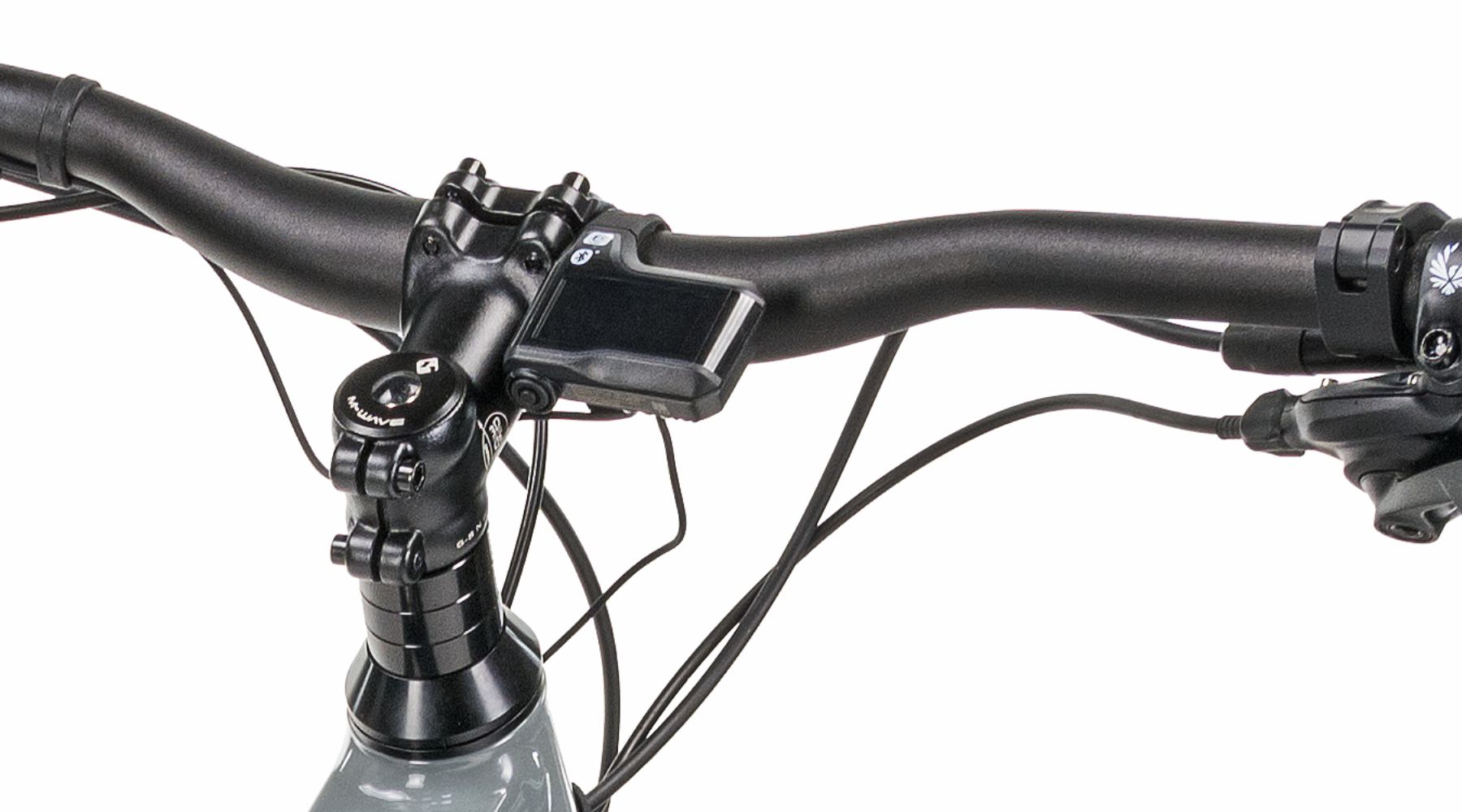

INFORMATIVE DISPLAY

Depending on S-Electro Diamond Model, a very informative display can be offered as an upgrade for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.

ADJUSTABLE STACK

Extra spacers on the fork steerer offers an upright relaxed riding position, reducing back and shoulder pressure for more comfort.

OVERSIZED COCKPIT PARTS

S-Electro Diamond models use oversized cockpit parts such as wider handelbar, stem and seat post diameter, which offer more leverage and finer control. A wider handelbar opens your chest and bring your weight forward, giving more traction on the front wheel.

SPECIALLY DEVELOPED E-BIKE ERGONOMIC SADDLE

S-Electro Diamond models offer a specially developed E-MTB saddle which is purposely suitable for use on electric bicycles in terms of function, ergonomics and durability.

FENDER AND RACK COMPATIBLE

All S-Electro Diamond models feature a fenders and rear rack with built-in pannier mounts, an optional front rack mounts on the fork (depending on the fork model). Please follow the structural weight limits listed below when adding cargo.

KICK STAND MOUNT

S-Electro Diamond has an integrated kick stand mount on the frame, you can park your E-bike bike quickly, safely and prevent annoying scratches

CHARGING PORT

S-Electro Diamond charging port features a compact, semi-integrated design for charging the frame-integrated 504Wh battery.

BATTERY CHARGER ADAPTER

This is particularly useful for charging your e-bike during the cold winter months or if you are unable to store your bike indoors. Suitable for battery chargers from the Darfon series, the Darfon adapter connects to your Darfon battery, so you can charge the battery off the bike. This part needs to be purchased separately.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Aluminium E - MTB frame, Shimano E7000 motor. The geometry is designed for the typical Fat Bike enthusiast making the ride experience feel comfortable on those long rides. This frame has tyre clearance for 26 x 4.8" tyres.

Headset

Token TK035A-15 Sealed Bearing

Frame Axle Spacing

197x12mm

Axle Specification

229x12mm P1.75

Hanger Type

Hanger 03

E-BIKE

Motor

Shimano EP7000 Drive Unit, Mid-Position, 25km/h, 60N.m Torque

Battery

Darfon 504Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight

Charger

Darfon Smart Plus, 100-240V, 4A, EU use

Display

Shimano E5000 display

Switch

integrated in Shimano E5000 Display

SUSPENSION

Fork

SBC alloy ridig fat bike fork, 150x15mm Thru Axle

WHEELS

Wheelset

Sun Ringle Mulefüt 26'' FATBike Custom Wheelset

Hubs

F: SUNringlé SRC 150x15mm, 6 Bolt
R: SUNringlé SRC 197x12mm, 6 Bolt

Rims

F: SUNringlé Mulefüt 80SL, Tubeless Ready
R: SUNringlé Mulefüt 80SL, Tubeless Ready

Tyres

F: SCHWALBE JUMBO JIM PERFORMANCE ADDIX 26+ 26x4.0", Foldable, 67TPI
R: SCHWALBE JUMBO JIM PERFORMANCE ADDIX 26+ 26x4.0", Foldable, 67TPI

Max Tyre Size

4.8"

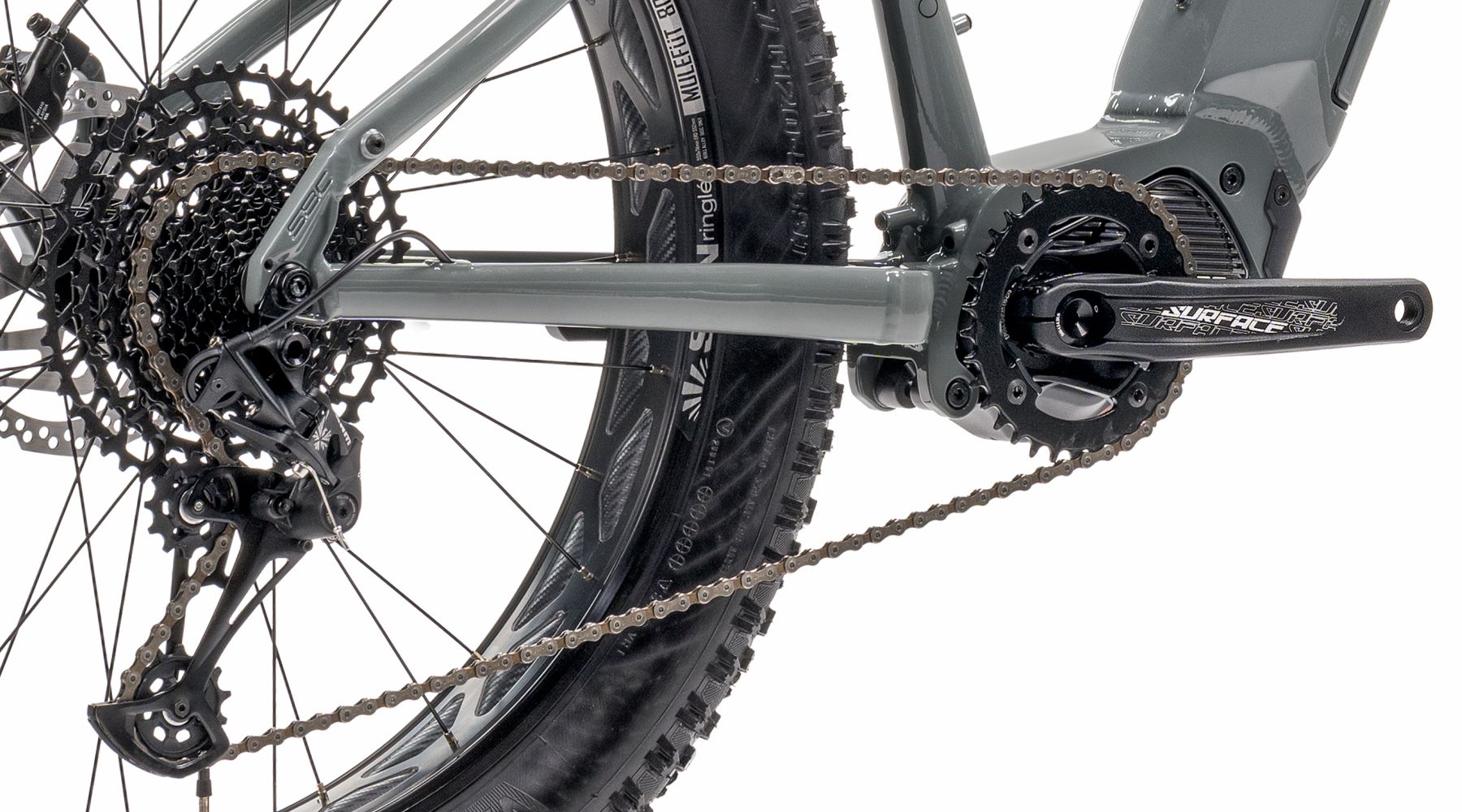

DRIVETRAIN

Crankset

Alloy Fat Bike Crank, E7000

Max Chainring Size

38T

Shifter(s)

R: Shimano SL-M4100-R Deore, 10 Speed Rapidfire Plus

Rear Derailleur

Shimano RD-M4100 Deore, 10 Speed

Cassette

Shimano CS-M4100 Deore, 10 Speed 11-46T

Chain

Shimano E-BIKE 10spd

BRAKES

Brakes

F: Shimano MT200, Resin Pads
R: Shimano MT200, Resin Pads

Rotors

F: Shimano SM-RT10 180mm, 6-Bolt
R: Shimano SM-RT10 180mm , 6-Bolt

COCKPIT

Grips

SBC Lockon Grip

Handlebar

SURFACE Alloy, Dia:31.8mm, Backsweep:9°, Rise 5mm

Stem

SURFACE Alloy, 31.8mm, Rise 6°, with stainless steel bolts

Saddle

SURFACE E-BIKE saddle, Black, Cromo Rails

Seat Post

SURFACE Alloy

Seatpost Clamp

SURFACE QR Clamp

WEIGHT

Bike Weight

from 25,5 kg (M size, no pedals)

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

Can I order an extra battery for my S-Electro FAT Sport?

Yes you can - get in touch and we can sort it out for you.
Can I chip my ebike?

Most country laws prohibit the use of derestricting or chipping your ebike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.
Can I fit a suspension fork on my Fat Sport?

Yes, you can - we recommend the Rockshox Bluto 100mm air suspension fork
Where can I find the E-bike manual?

Click HERE to view.
Where can I find serial number of the E bike?

The serial number of the frame is located under the black cover, you will need to unscrew 2 screws in order to take it down to see the frame number.

OTHER MODELS IN THE SERIES

€899 €1.399

SE:SERIES FAT ADVENTURE

Hardtail | Fat Bike | Alloy

Alloy Fork
26" x 4.7" Wheels
1x11 Speed Shimano
15.62kg

€2.799

S-ELECTRO DIAMOND FAT SPORT

Hardtail | E Fat | alloy

Alloy Fork
26" x 4.0" Wheels
1x10 Speed Shimano
E7000 Shimano Motor
60Nm Torque
504Wh Battery
25.5kg

€3.799

S-ELECTRO DIAMOND FAT ADVENTURER

Hardtail | E Fat | alloy

Carbon Rigid Fork
26" Fat
1x11 Speed Shimano
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
24.2 kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	154-170	170-180	178-190	185-210
	Rider inseam(cm)	70-77	77-82	81-86	84-95
A	Seat tube c/t	390	430	465	500
B	Seat tube angle	74	74	74	74
C	Head tube angle	68.5	68.5	68.5	68.5
D	Top Tube	610	620	643	663
E	Reach	425	435	455	475
F	Chainstay length	475	475	475	475
G	bb height	333	333	333	333
H	head tube length	145	145	155	155
I	stack	646	646	656	656
J	standover	823	830	826	818
K	Wheelbase	1185	1194.4	1218	1238
