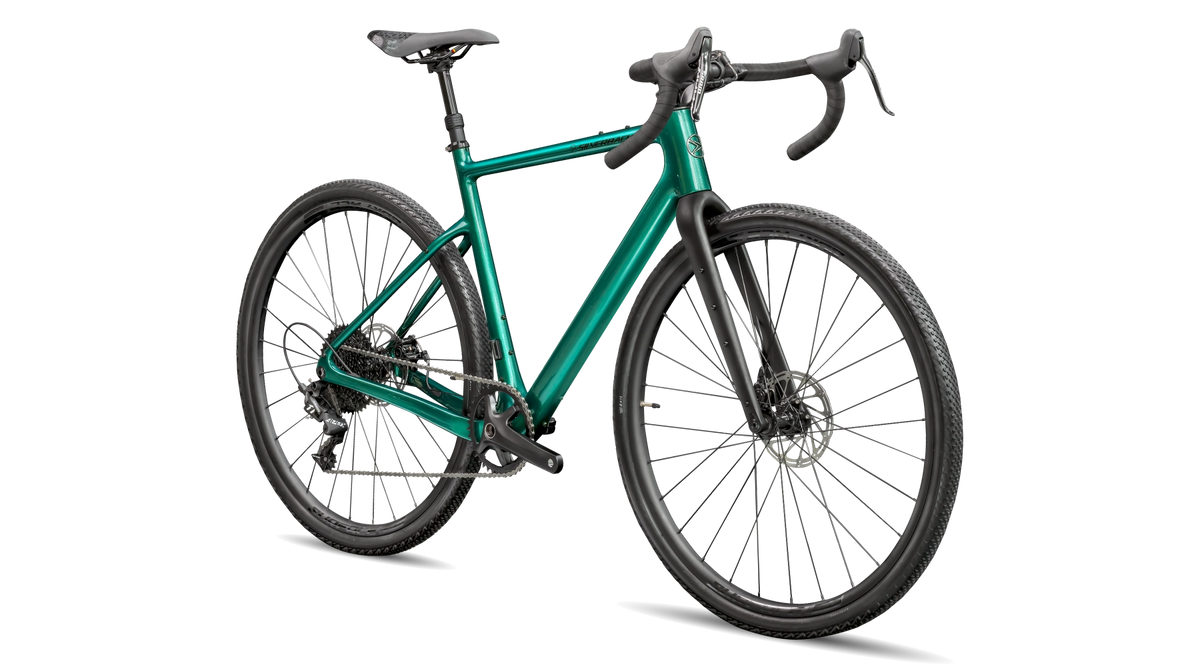

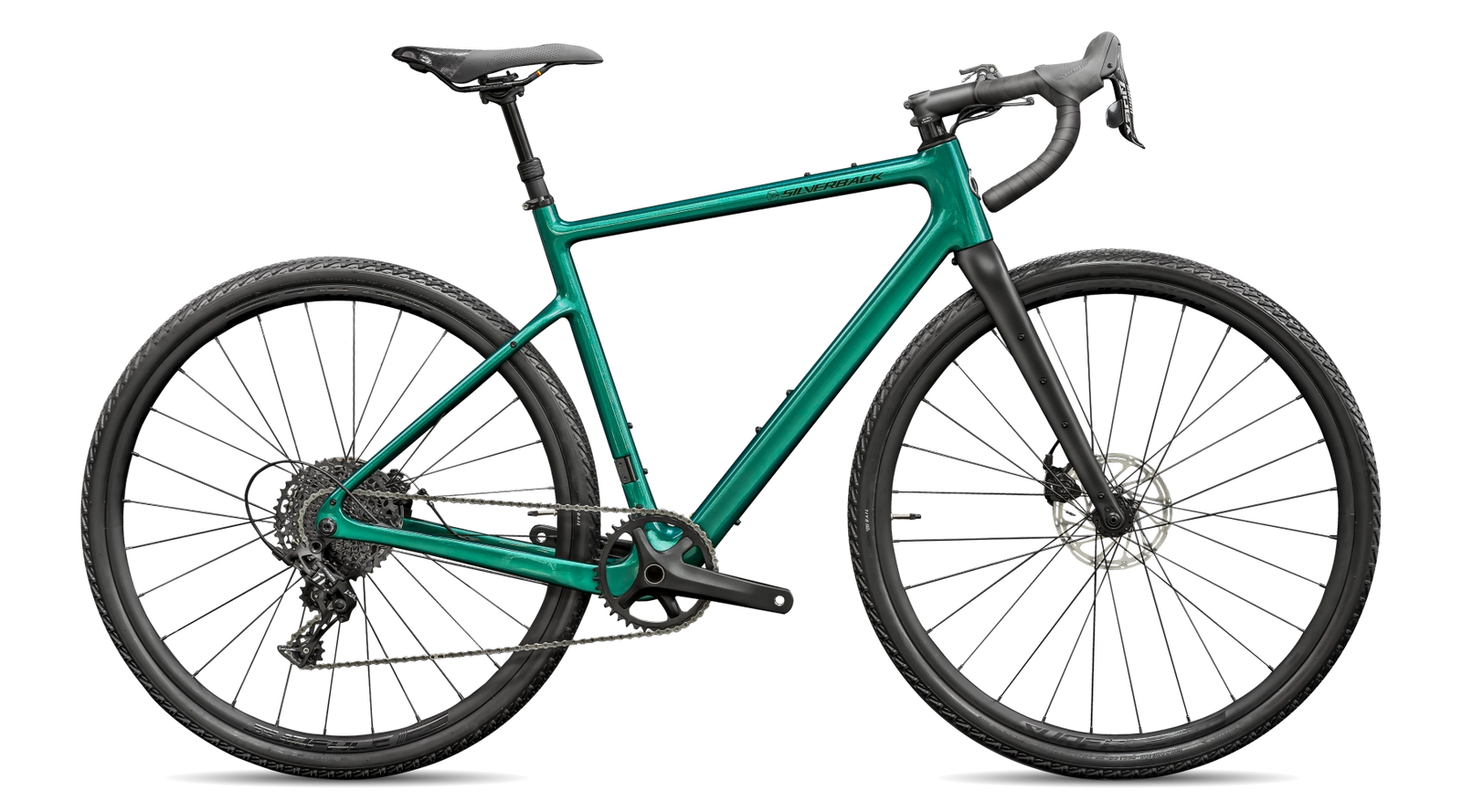

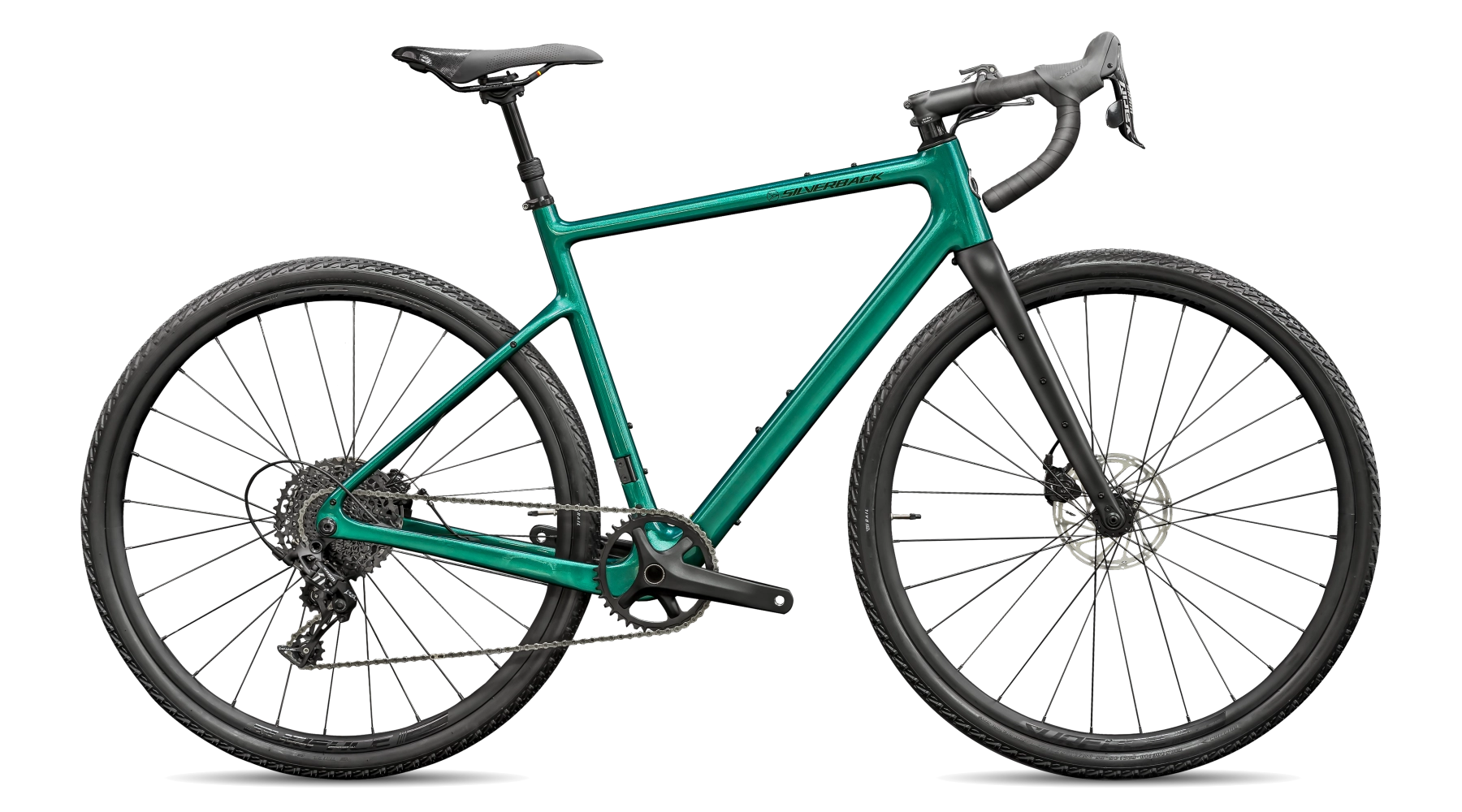

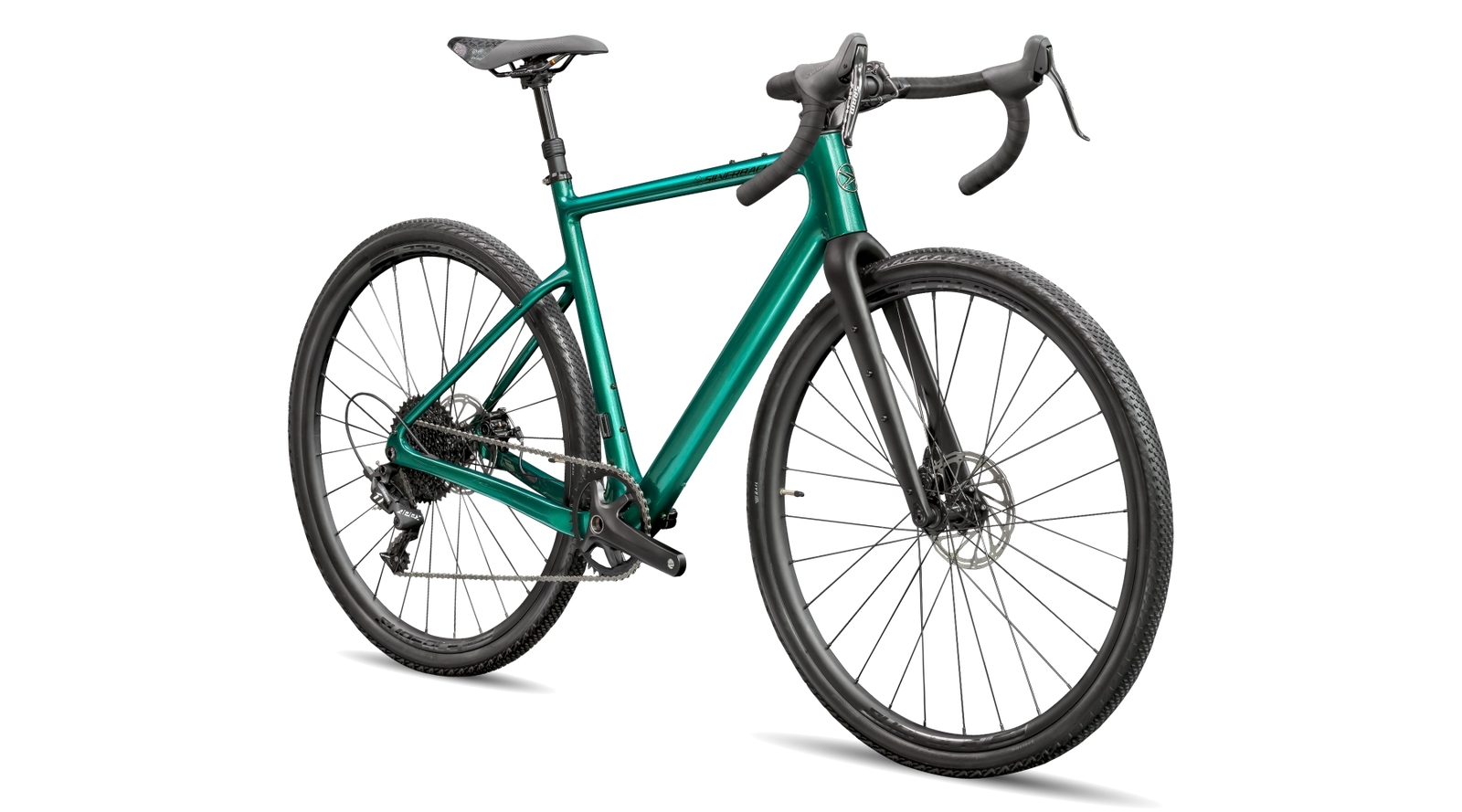

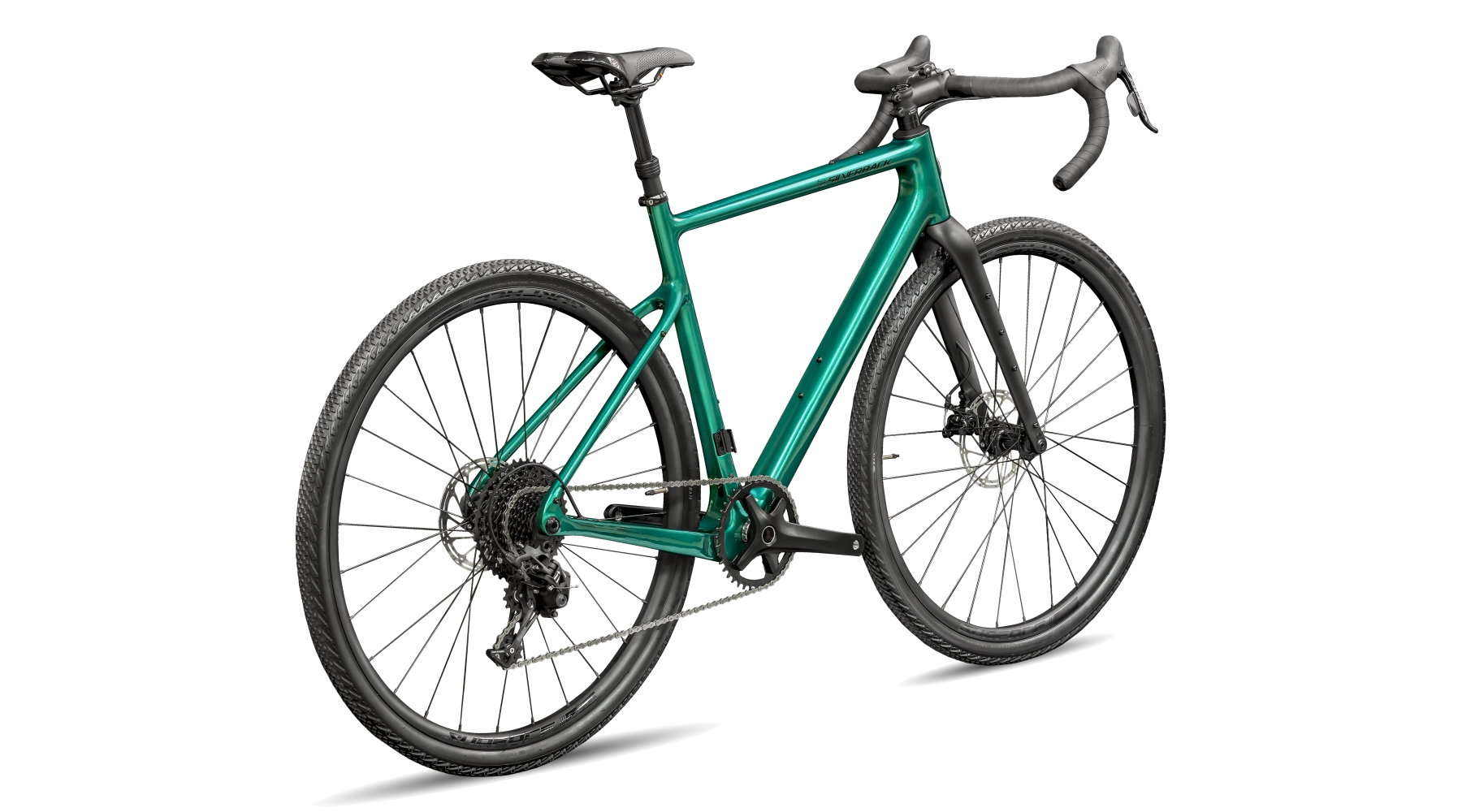

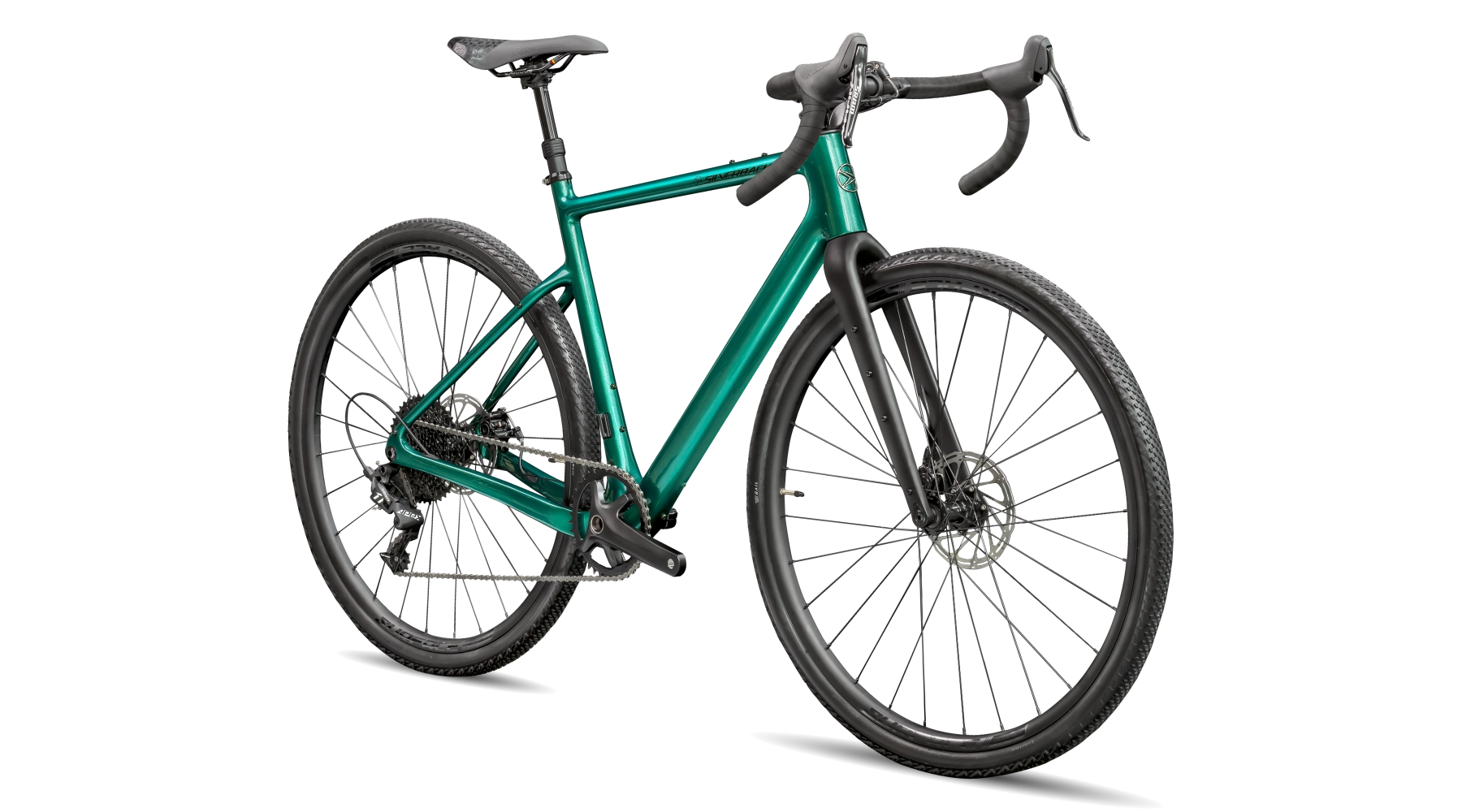

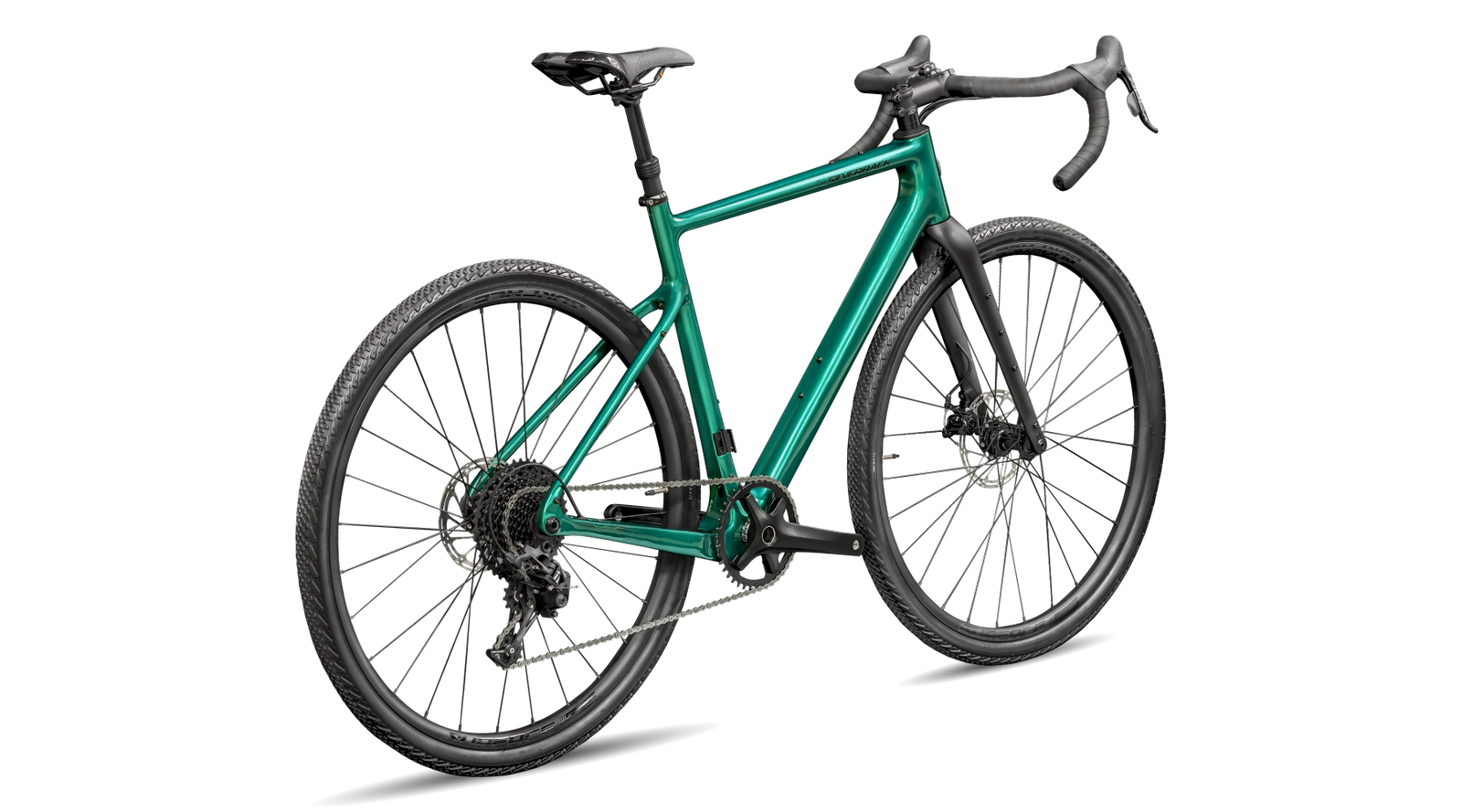

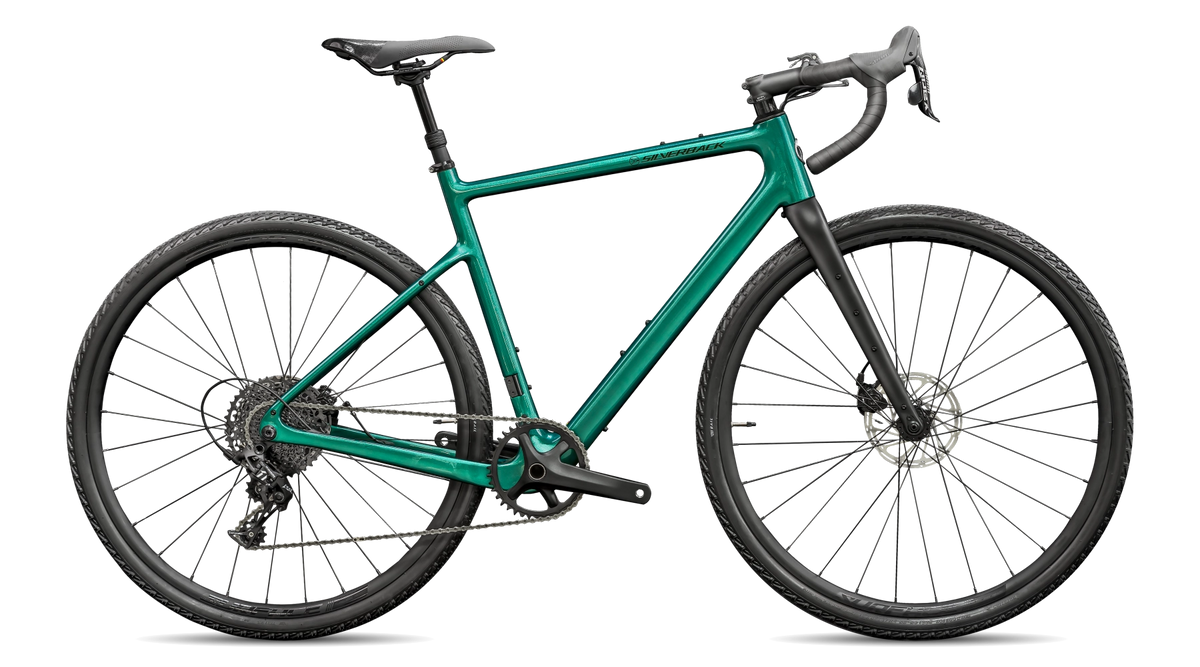

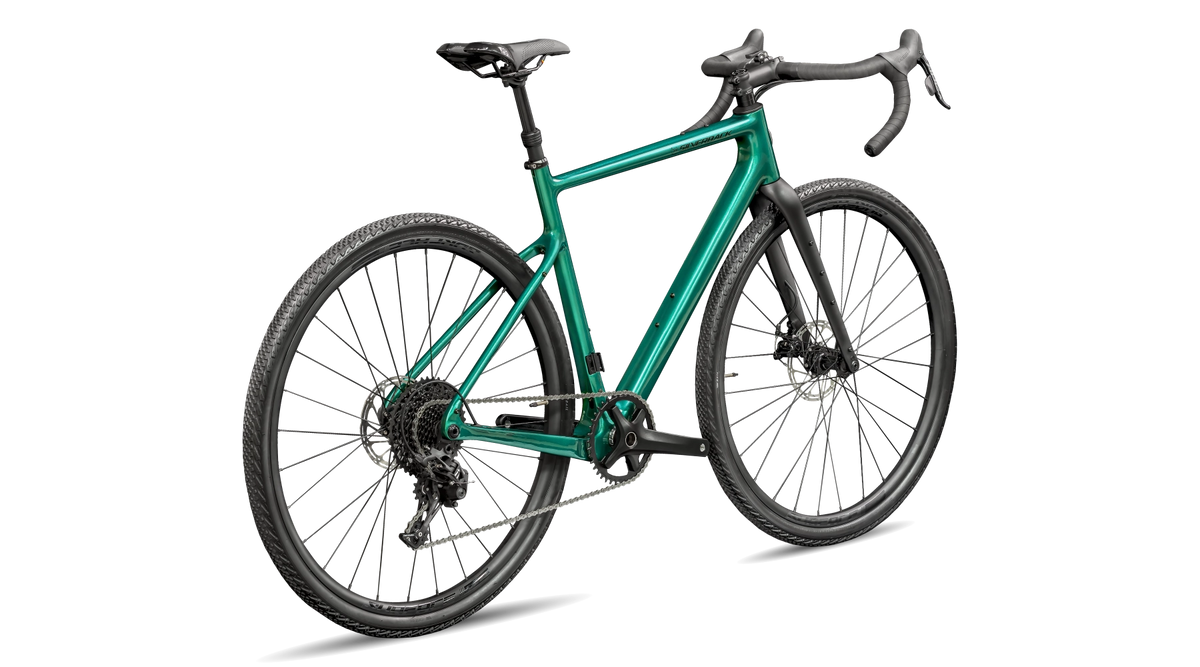

SE:SERIES GR CF 11

€2.999

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

0.00 0 reviews

Size:

Color: Emerald Metallic

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Vaude Aqua Back Deluxe Single

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-21

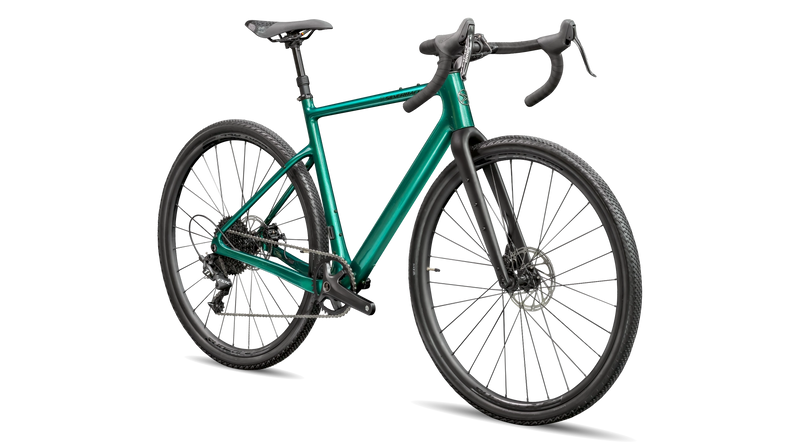

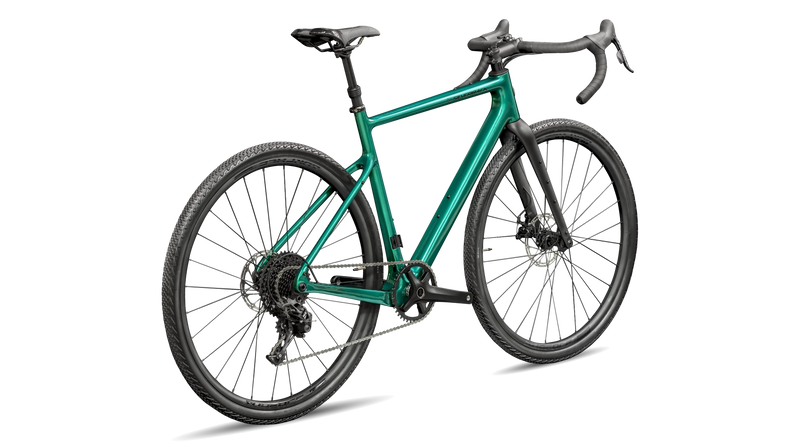

SE:SERIES GR CF 11

€2.999,00

Add to cart

Where Speed Meets Grit

Built around a completely new carbon gravel frame, this bike is engineered to be light, responsive, and ready for the wide‑ranging demands of modern gravel riding. Its versatile geometry and generous clearance accommodate up to 700×50c tyres or 650b road‑plus for added comfort. Practical details—rack mounts, a PF30 bottom bracket, and hydraulic disc brakes—ensure reliable performance in all conditions, making it a capable partner for everything from fast dirt roads to loaded adventures.

At a Glance

Carbon Gravel Frame, Internal Cable Routing, Tapered HT, 142mm Thru-axle
Carbon Fork, 12mm Thru-axle, Disc mount, Bottle & Rack mounts
Shimano GRX 12-Speed Rear Derailleur
Shimano GRX Hydraulic Disc brakes
Surface Custom Gravel Wheelset, 700c alloy
Maxxis Rambler 700x40c tyres, Silkshield
Weight: from 8.82 kg

TECH HIGHLIGHTS

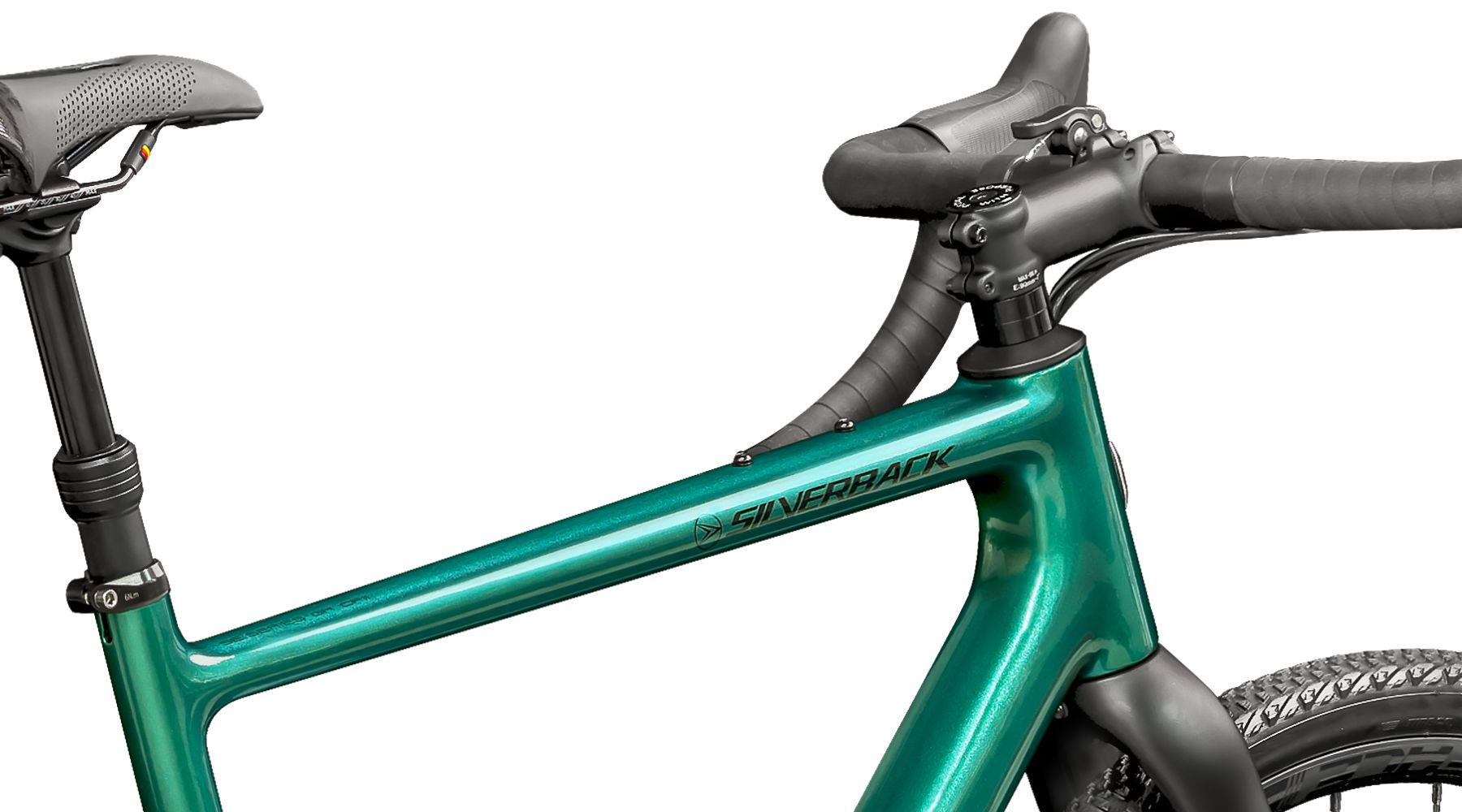

INTERNAL CABLE ROUTING & DI2/AXS READY

All cable routing on the frameset is internal, including the fork. Cables are out of the way, resulting in a sleek look that protects cables from debris ingression. With three cable entry ports, the frame supports the brake hose, rear and front gear cable, or dropper post in 1X configurations. If mechanical shifting is not up to your standard, rest assured that the frame is compatible with Di2 and AXS electronic groupset.

CARBON USED – TYPE AND BENEFITS

The structure is mainly composited of T700 UD carbon fibre. Offering equilibrium in stiffness to strength ratio. UD carbon fibre has absolute strength in the direction of the fibre. Strategically controlling the fibre lay-up, produces a matrix that is stiff where desired and strong where necessary, with minimum weight addition. The frame is finished in a 3K Twill weave for a robust composite surface that can withstand any demands exerted by the rider.

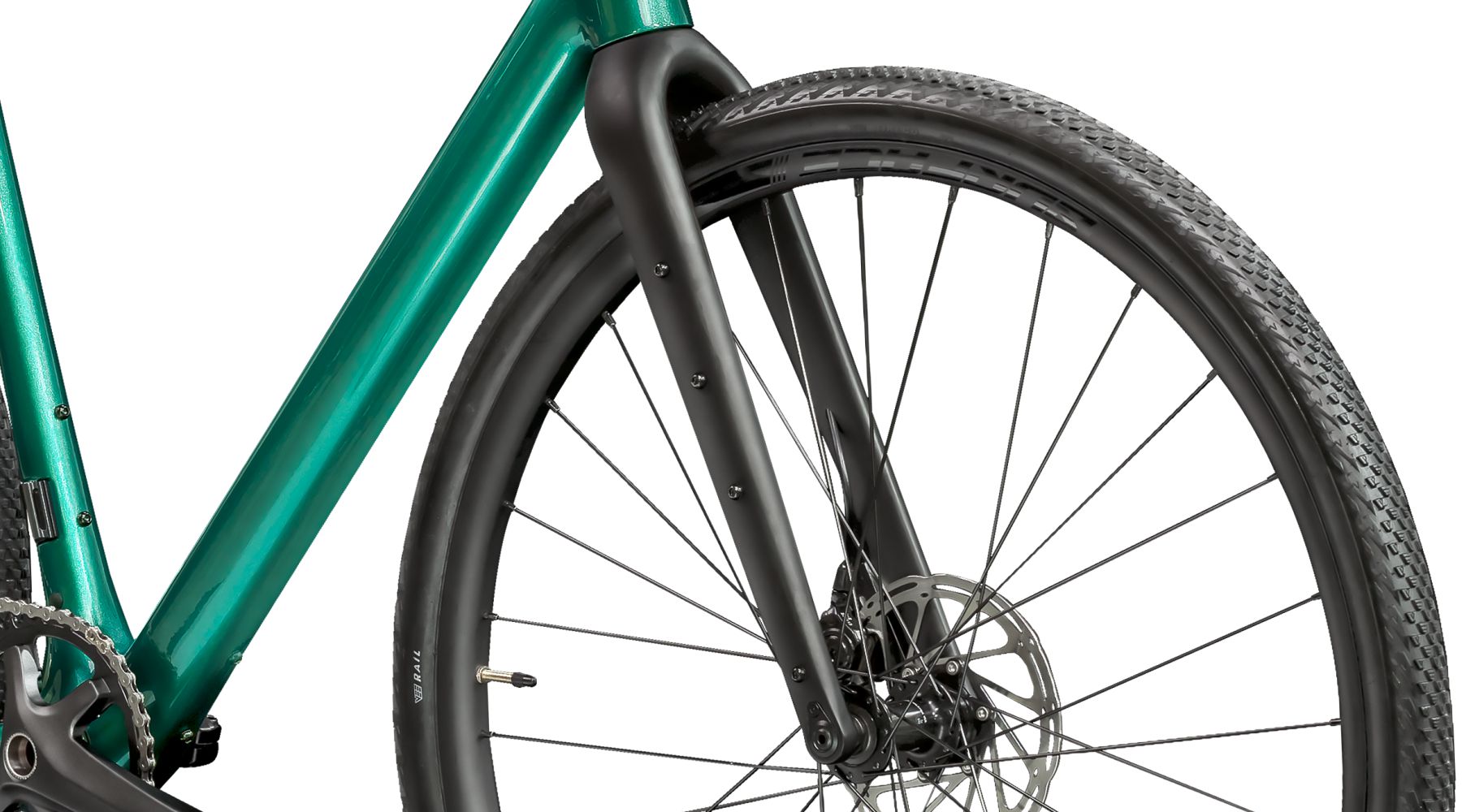

SBC CARBON FORK

The SBC Fork has all-round performance, while retaining absolute functionality. Equipped with fender mounts to protect both rider and components from unwanted debris spray in wet conditions. Fitted with bottle bosses on both stanchions, it greatly increases hydration capacity of the frameset. The bosses also double up as pannier mounts to increase load capacity.

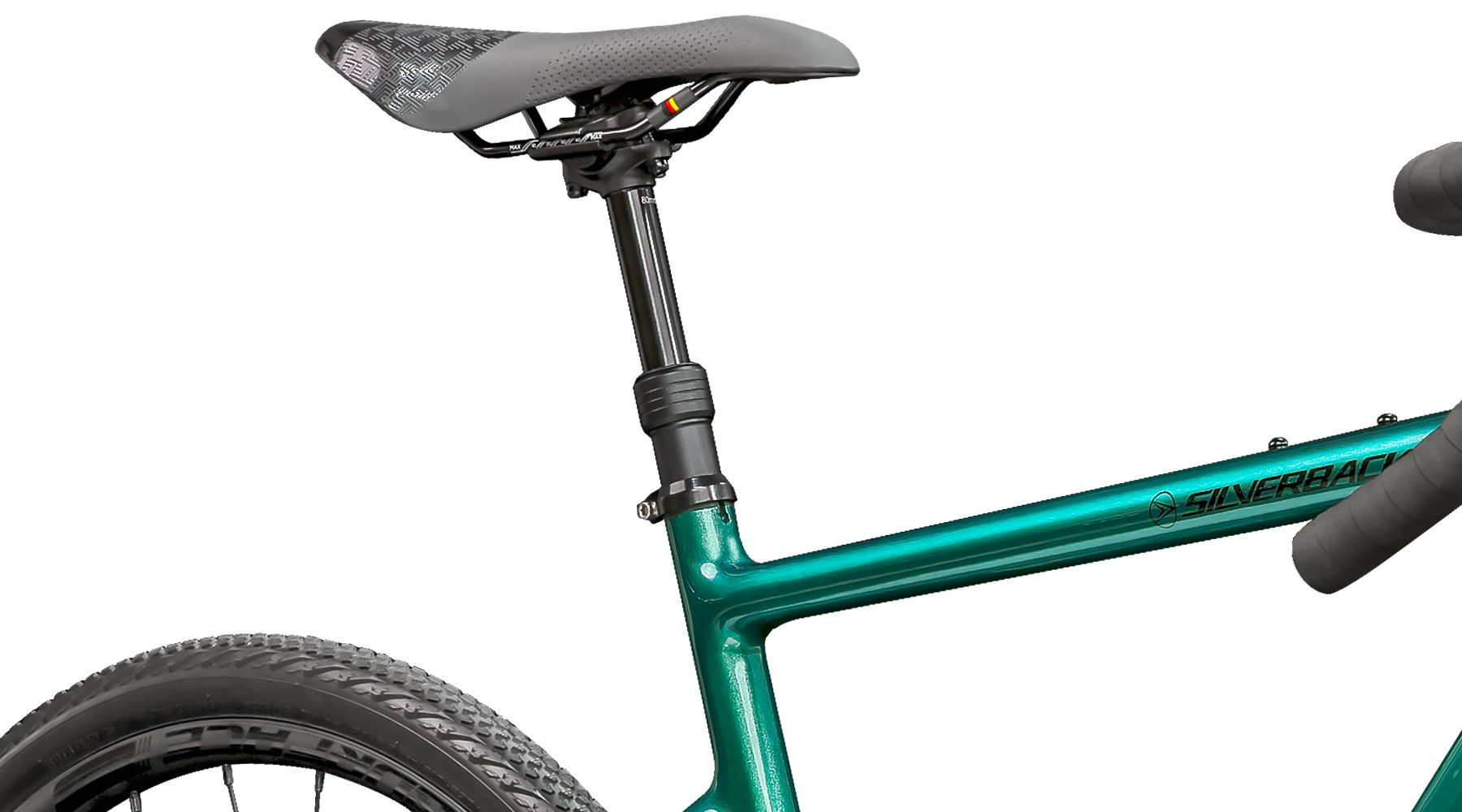

DROPPER POST INCLUDED

The SE:SERIES GR CF includes a dropper seatpost with 100mm of travel. The dropper post cable is routed internally through the frame, with a multi-position remote lever on the handlebars.

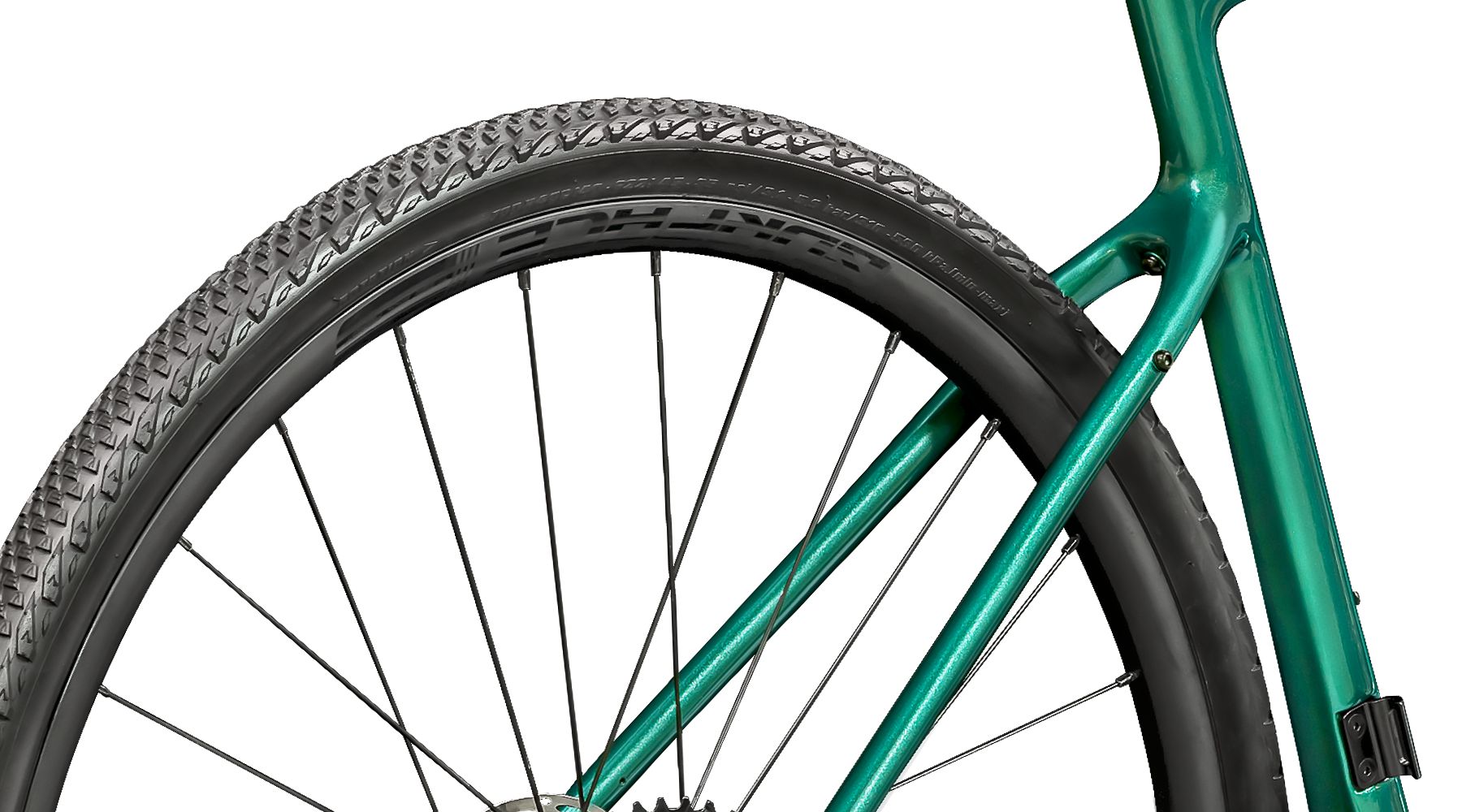

WIDE TYRE CLEARANCE

The frameset is compatible with both 700C large volume tyres and 650B tyres.It is designed to fit a maximum size 700 x 50C and 650B x 2.0” tyre. For long distance riding, over moderate to easy terrain; 700C tyres are recommended. While for shorter, demanding terrains, 650B tyres will be the best option.

GRAVEL FOCUSED GEOMETRY

The wheelbase of the frameset is semi-short to retain a trail capable bike, with good weight distribution under load. A slack head angle makes for a terrain capable front end that will roll challenging obstructions. The steeper seat angle aids in ascending more efficiently, with better power transfer at variable gradient increase. The SE:SERIES GR CF is super capable and wants to be challenged.

FORK RACK MOUNTS

Pannier mounts on the fork let you carry extra gear up front, improving load balance and boosting the bike’s bikepacking and touring capability without hurting handling. (Rack not included)

REAR RACK MOUNTS

Rear rack mounts make a gravel bike far more versatile — they let you carry real gear on a fast, off‑road‑ready frame, turning it into a capable commuter, tourer, or bikepacking rig without compromising performance. (Rack not included)

HYDRAULIC DISC BRAKES

SE:SERIES GR CF features hydraulic disc brakes. Disc brakes offer all-weather performance, great modulation

FLARED HANDLEBARS

The flare on the drop allows for a more natural interface between hand and handlebar. The 16° flare increases clearance between the hoods and wrist, when riding in the drops, allowing for adequate clearance to navigate the bike through demanding terrain.

THRU AXLE DROPOUTS

Thru-axles effectively bolt the wheel to the frame or fork. By comparison, QR systems only slot in place, and compress the dropout to retain the wheel. The increased strength and stiffness of thru-axles can be attributed to both the increase in effective engagement area and the fixing mechanism to the dropout. The thru-axle system is significantly safer, with fewer point for potential failure.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Full Carbon Frame, Internal Cable Routing, Flat-mount Disc Brake Mounts. Supports 700C and 650B Wheelsize, including Internal Routed Dropper Post Compatible.

Headset

Internal Cable Routing. IS52/28.6 IS52/40

Frame Axle Spacing

142x12mm

Axle Specification

172x12mm P1.0

Hanger Type

HANGER 40

FORK

Fork

700C Full Carbon Fork, 100x12mm Hub Spacing, for Internal Cable Routing, waterbottle and pannier mounts

WHEELS

Wheelset

SURFACE Custom Wheelset

Hubs

F: Shimano HB-RS470 Front Hub, 28H, 100mm OLD for 12mm Thru Type Axle (w/o Lock Ring)
R: Shimano FH-TC500-MS-B Freehub, Center Lock, 12 speed, 12mm thru-axle, 32H, OLD: 142mm

Rims

F: SURFACE Alloy Rim, 21mm Internal Width, 30mm Depth, 28H
R: SURFACE Alloy Rim, 21mm Internal Width, 30mm Depth, 28H

Tyres

Maxxis Rambler 700Cx40C, 60TPI, Silkshield, Tubeless Ready

Max Tyre Size

50C or 2.0"

DRIVETRAIN

Crankset

Shimano GRX FC-RX820-1, 12-Speed, 40T

Max Chainring Size

50/34T or 46T

Bottom Bracket & Type

Shimano SM-BBR60, BSA68

Shifter(s)

Shimano GRX ST-RX820

Rear Derailleur

Shimano GRX RD-RX822, 12-Speed, 10-51T, Direct Attachment

Cassette

Shimano Deore CS-M6200, 12speed Hyperglide+, 10-51T

Chain

Shimno Deore CN-M6100 Chain, 12 Speed

BRAKES

Brakes

Shimano GRX BR-RX820 Hydraulic Disc, Resin Pad

Rotors

Shimano SM-RT70 160mm, Centre-Lock

COCKPIT

Grips

Surface Handlebar Wrap, Suede Black, Plug with Expander Bolt

Handlebar

SURFACE Alloy Handlebar, Ø 31.8mm, Reach: 77mm, Drop: 128mm, Flare: 16°

Stem

SURFACE Alloy Stem, 31.8mm, Rise ±7°

Saddle

SURFACE Saddle, Steel Rails

Seat Post

SURFACE Alloy, Ø 27.2mm

Seatpost Clamp

SURFACE Alloy

Pedals

Not Included

WEIGHT

Bike Weight

9.5 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider

FAQ.

What type of terrain is the SE:SERIES GR CF suitable for?

The SE:SERIES GR CF is best suited to gravel and asphalt roads.
What is the maximum tyre clearance of the SE:SERIES GR CF?

The SE:SERIES GR CF has a maximum tyre clearance of 50C.
Can I fit 27.5" / 650b wheels to the SE:SERIES GR CF?

Yes, the maximum clearance is 2.0".
What is the low gear capacity for the rear derailleur?

The derailleur low gear capacity is 42T.
What type of brakes does the SE:SERIES GR CF have?

The SE:SERIES GR CF has hydraulic disc brakes.
Can I fit fenders or a rack to the SE:SERIES GR CF?

Yes, the SE:SERIES GR CF have mounts suitable for fenders and a rear rack. There are also pannier mounts on the fork.
What is the weight limit on this bike?

The weight limit is 120 kg. That includes the weight of the bicycle.

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XXS	XS	S	M	L
	Rider height(cm)	142-152	150-160	160-168	168-178	178-188
	Rider inseam(cm)	66-69	69-72	72-76	76-80	80-85
A	Seat tube c/t	450	490	520	540	560
B	Seat tube angle	74	73	73	72.5	72.5
C	Head tube angle	70	71	71	71	71
D	Top Tube	517	537	551	571	588
E	Reach	365	370	379	388	397
F	Chainstay length	435	435	435	435	435
G	bb height	294	294	294	294	294
H	head tube length	110	125	140	160	185
I	stack	529	548	562	581	604
J	standover	765	796	818	837	858
K	Wheelbase	1021	1023	1036	1052	1069
