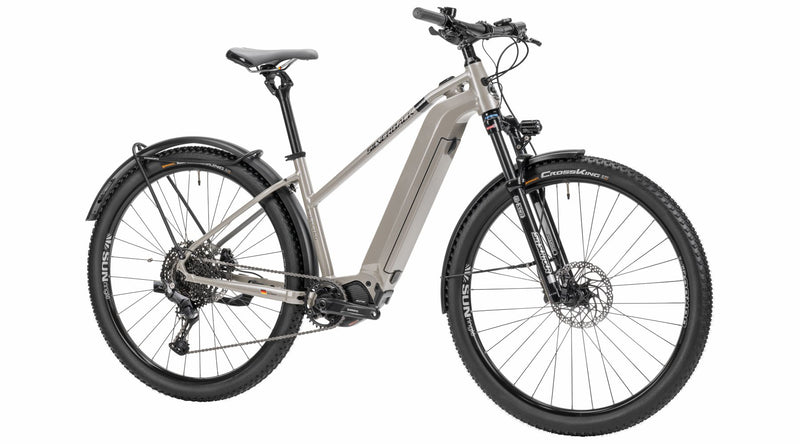

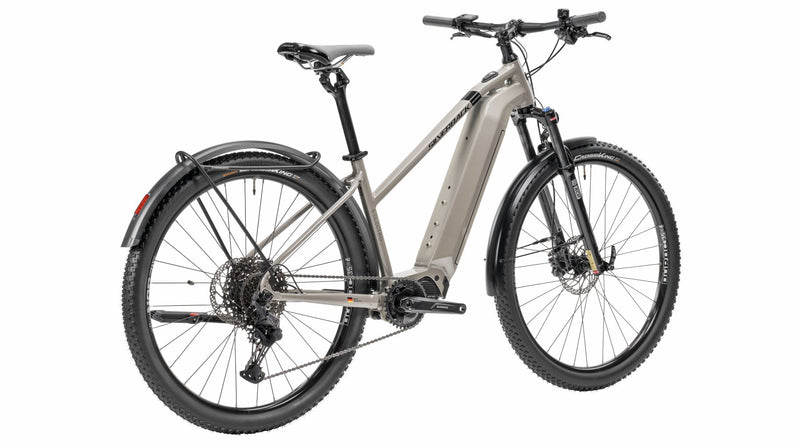

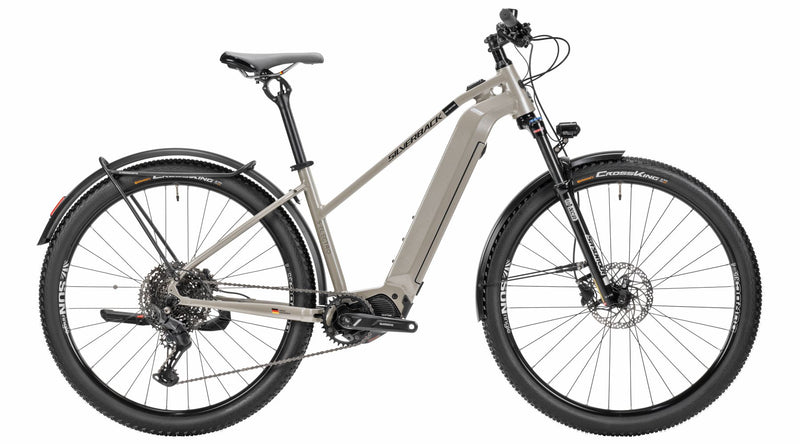

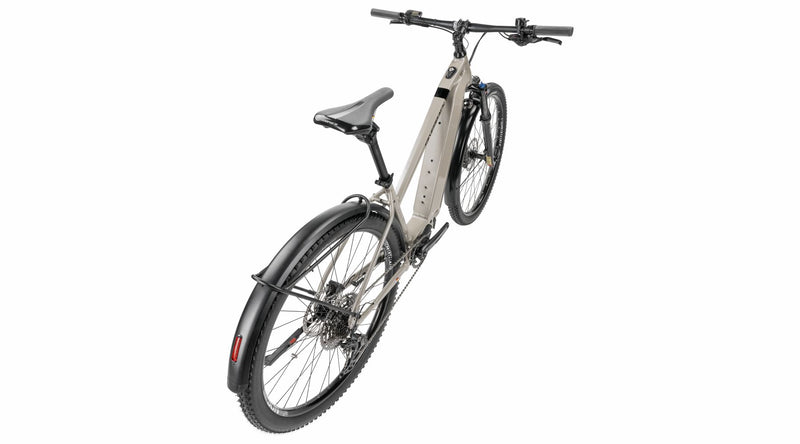

S-Electro Diamond Step 1

Name: S-Electro Diamond Step 1
Brand: S-Electro
SKU: 0086544002335
Price: 3499.0 EUR
Availability: InStock
Rating: 4.80 (10 reviews)

Hardtail | Alloy | 29" x 2.35" Wheels | 120mm Fork | 21.5kg

€3.499

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.80 10 reviews

Size:

Color: Rainbow Pearl

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 1872622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Garmin Varia RTL516 Radar Tail Light

Sphere MTB / XC helmet - black - cycling - bike - side - Space - - - - Speedlab

B2BF Supra Bib Shorts

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-3

S-Electro Diamond Step 1

€3.499,00

Add to cart

The S-Electro Diamond Step is a commute focused electric assisted sport bicycle. Whether you are commuting to work and back or just out for weekend cruises, the Diamond Step does so in comfort thanks to the possibility of 29'' or 27.5 plus tyres and suspension fork. Accessorize with panniers and fenders, and you can commute or even tour all year round with the Diamond Step. The low standover frame of the S-Electro Diamond Step means that even if you are wearing a suit, or skirt, its easier to mount. A powerful Shimano EP8 motor and super high capacity 720Wh battery completes the very capable, very fun S-Electro eBike and gets you there with less effort. Multi-day commutes on a single charge is nothing to brag about, unless your bike can't do it. Ours can.

At a Glance

6061 Hydroformed alloy diamond E-Stepdown frame
Suntour SF19 Raidon32-DS-Boost-RL-R-15QLC32 29 CTS, Boost, 120mm travel
Shimano EP8
Darfon 720Wh high-capacity battery
Shimano Deore 11 spd rear derailleur
SUNringlé Duroc 35, STR Tubeless rims
Maxxis Forekaster 29 x 2,35", 120 tpi, EXO tyres
Surface alloy lightweight components
Shimano MT200 hydraulic disc brakes

TECH HIGHLIGHTS

RIDE VAST DISTANCES ASSISTED, WITHOUT THE NEED FOR RECHARGE ON THE WAY.

S-Electro Diamond is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Diamond unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.

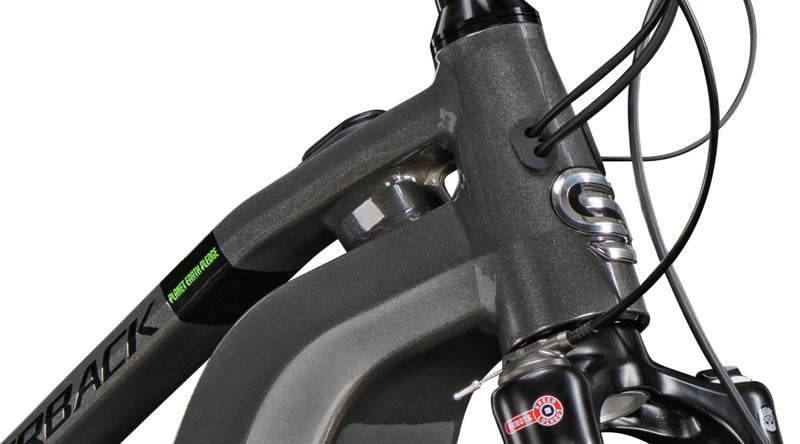

HYDROFORMED DOUBLE BUTTED INTEGRATED ALLOY FRAME

S-Electro Diamond features a double butted hydroformed alloy stepdown frame with integrated motor mount and internal battery. The step in the frame is designed for improved clearance during use - easier mounting as well as a more comfortable bike to use in traffic.Hydroforming is the process of forcing tubing into a negative mould with internal pressurized oil and or water. The frame can have thinner walls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing.

DRIVE SYSTEM, POWER AND DISPLAY.

S-Electro Diamond is designed around a Shimano Steps EP8 motor. This motor is paired to a high capacity 720Wh internal battery giving the Step an unrivalled range of pedal assistance. The Shimano LCD display is intuitive and easy to use, also indicating battery levels and shows all info needed for the electric system.

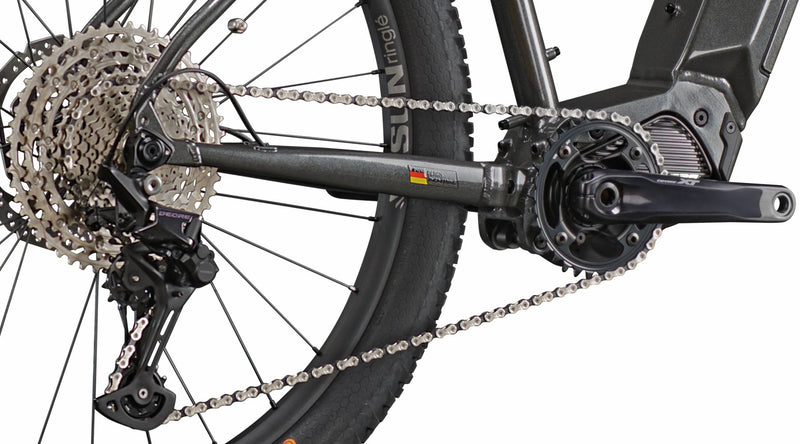

SHIMANO 11 & 12 SPEED DRIVETRAINS

Efficient shifting, superior durability and plenty of gears for almost any terrain.

Possible integration of lighting system.

SAFETY FIRST

Durable hydraulic disc brakes deliver superior stopping power in all conditions.

Possible integration of lighting system.

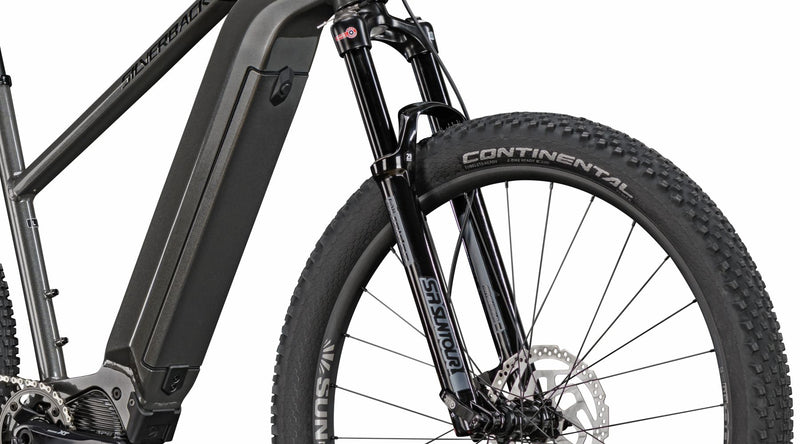

QUALITY SUSPENSION FORKS

Offering 140mm of shock-absorption.

GEOMETRY

Designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This is ideal for commuting or touring, whilst maintaining capability to take on more demanding terrain. Low stand over, making it great for both male and female riders.

OPTIMISED CHAINSTAY LENGTH BETWEEN AGILITY AND LARGE VOLUME TYRE

Shorter chainstay means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

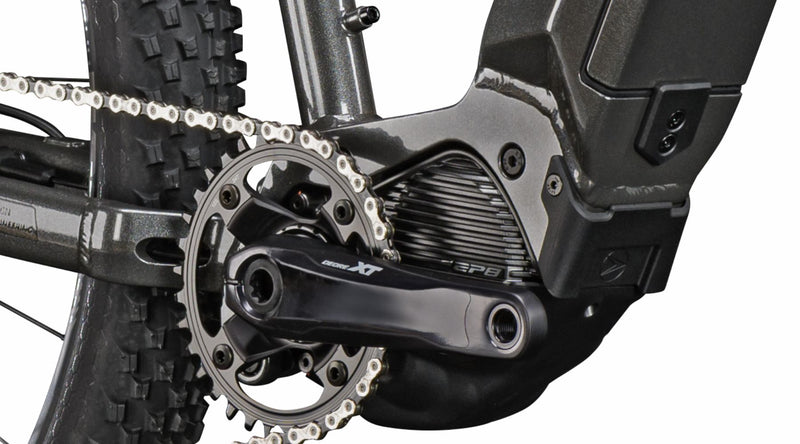

POWERFUL SHIMANO MOTOR

S-Electro Diamond is designed around a Shimano Steps EP8, 85 Nm mid-drive motor. Shimano’s EP8 motor offers excellent all-round performance which is perfect for E-MTB riding. With its smooth torque support, the ride feel is simply incredible.

HIGH VOLUME 720 Wh BATTERY

Large 720Wh internal battery delivering 2.8 - 4.8 hours / 72 - 120 km range of pedal assistance. The battery charges to 80% in 3 hours. Lock up your bike worry free – the battery is key removable only. Charging is easy on or off the bike – turn the key, pop it out, and plug in the charger delivered with your bike.

DROPPER POST

The bike is internal routed dropper post compatible and simple to set up. Dropper posts increase riding clearance on technical sections. It could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome.

LONG-TRAVEL DROPPER POSTS

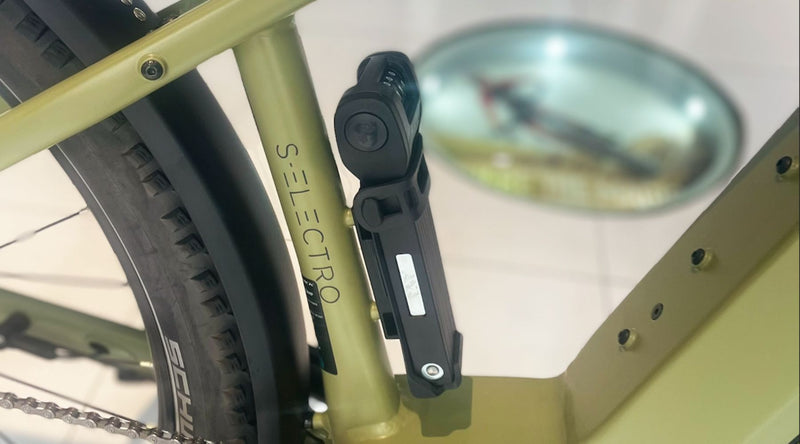

The Diamond frame waterbottle bosses are welded to the outer surface of the seat-tube, allowing the seatpost to slide deeper. More space for longer travel!

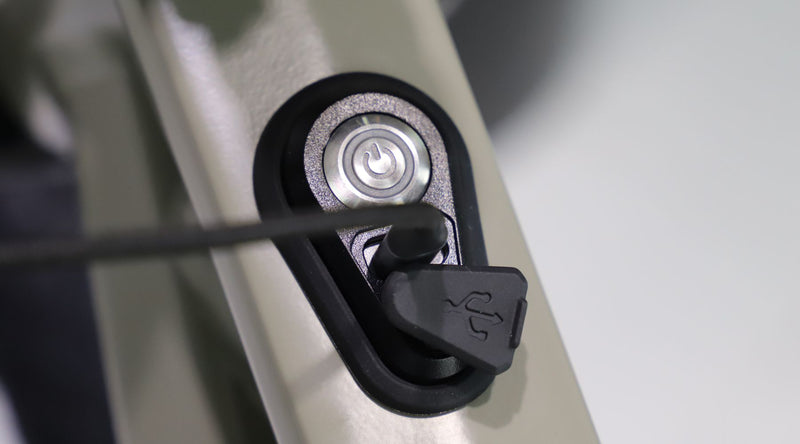

LED START BUTTON AND USB-C CHARGING PORT

The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour. USB-C charging for your smartphone.

INFORMATIVE DISPLAY

Depending on S-Electro Diamond Model, it offers a very informative display for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.

ADJUSTABLE STACK

Extra spacers on the fork steerer offers an upright relaxed riding position, reducing back and shoulder pressure for more comfort.

OVERSIZED COCKPIT PARTS

S-Electro Diamond models use oversized cockpit parts such as wider handelbar, stem and seat post diameter, which offer more leverage and finer control. A wider handelbar opens your chest and bring your weight forward, giving more traction on the front wheel.

SPECIALLY DEVELOPED E-BIKE ERGONOMIC SADDLE

S-Electro Diamond models offer a specially developed E-MTB saddle which is purposely suitable for use on electric bicycles in terms of function, ergonomics and durability.

FENDER AND RACK COMPATIBLE

All S-Electro Diamond frames feature mounts for a fenders and rear rack with built-in pannier mounts. Please follow the structural weight limits when adding cargo.

KICK STAND MOUNT

Park your E-bike bike quickly, safely and prevent annoying scratches. (Kickstand sold separately)

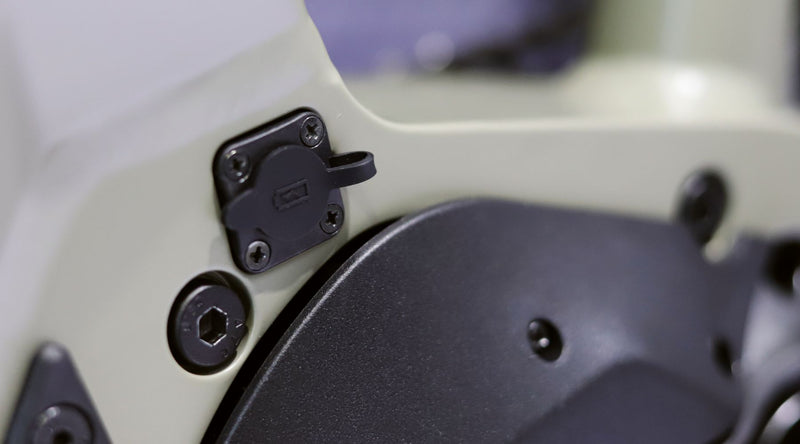

CHARGING PORT

S-Electro Diamond charging port features a compact, semi-integrated design for charging the frame-integrated 720Wh battery.

BATTERY CHARGER ADAPTER

This is particularly useful for charging your e-bike during the cold winter months or if you are unable to store your bike indoors. Suitable for battery chargers from the Darfon series, so you can charge the battery off the bike. (Sold separately)

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Aluminium E - MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. The geometry is designed for an all day easy trail ride or a commute to your preferred destination. This is a Step through frame making it easier to get your leg over the TT. This frame has tyre clearance for 29 x 2,6" tyres. Sizes range from S - XL

Headset

Token TK035A-15 Sealed Bearing

Frame Axle Spacing

148x12mm, P.1.75

Front Axle Specification

110x15 mm

Hanger Type

Hanger 03

E-BIKE

Motor

Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque

Battery

Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight

Charger

Darfon Smart Plus, 100-240V, 4A, EU use

Display

Shimano SC-E7000, 31.8mm

Switch

SW-EM7000, Left

SUSPENSION

Fork

Suntour SF19 Raidon32-DS-Boost-RL-R-15QLC32 29 CTS, 120mm Travel, Tapered Steerer, Matt Black, Boost 110mm Thru Axle

Fork Travel

120mm

WHEELS

Wheelset

SUNringlé Custom Wheelset

Hubs

F: Shimano HB-MT410-B, 32H, 15mm Thru-Axle, 110mm OLD

R: Shimano FH-MT400-B, 32H, 12mm Thru-Axle, Center Lock, 148mm OLD

Rims

F: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width

R: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width

Tyres

F: Maxxis Forekaster 29 x 2,35", 120 tpi, EXO

R: Maxxis Forekaster 29 x 2,35", 120 tpi, EXO

Max Tyre Size

2.6"

DRIVETRAIN

Crankset

Shimano FC-EM600

Max Chainring Size

38T

Shifter(s)

R: Shimano SL-M5100-R Deore, 11 Speed Rapidfire Plus

Rear Derailleur

Shimano RD-M5100 Deore, 11 Speed

Cassette

Shimano CS-M5100 Deore, 11 Speed 11-51T

Chain

Shimano CN-HG601-11, 11spd

BRAKES

Brakes

F: Shimano MT200, Resin Pads

R: Shimano BRUR300 R & MT200, Resin Pad

Rotors

F: Shimano SM-RT10 180mm

R: Shimano SM-RT10 180mm

COCKPIT

Grips

SURFACE ERGO

Handlebar

SURFACE Alloy, Dia:31.8mm, Backsweep:9°, Rise 5mm

Stem

SURFACE High-Rise alloy

Saddle

SURFACE E-BIKE saddle, Cromo Rails

Seat Post

SURFACE Suspension Post w/Protective Cover, 30.9mm

Seatpost Clamp

SURFACE Alloy

WEIGHT

Bike Weight

21.5kg (M size, no pedals)

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

Can I use the S-Electro Diamond Step on trails?

Step is primarily designed for urban environments, pathways and light trails. Don’t hit jumps, drops or technical sections. Other than that, it is an MTB and can be taken on XC rides.
Can I modify my electric motor for more speed?

No. We do not recommend modifying your motor. Any modifications will void your warranty, promote premature component wear and could compromise structural integrity of your frame.
Can I fit 29" wheels on my Diamond Step?

No
Can I ride the Diamond Step as a "normal" non-assist pedal bicycle?

Yes, you can, you will notice the extra weight associated with the electric drive system, but other than that, you can pedal and ride the bike as normal.
Where can I find the E-bike manual?
Click HERE to view.
Where can I find serial number of the E bike?
The serial number of the frame is located under the black cover, you will need to unscrew 2 screws in order to take it down to see the frame number.
Can I customize my Shimano display to another language or change other settings?
Yes, you need to download E TUBE app and configure the settings. SEE HERE
Can I upgrade the length of my suspension on my bike?
The suspension length is normally determined by the frame design, it should not be changed.

OTHER MODELS IN THE SERIES

€1.599

S-ELECTRO STEP-SERIES 50 T10

Hardtail | E Sport | Alloy

100mm Travel
27.5" x 2.1" Wheels
1x10 Speed Shimano
Ananda Hub Motor
50Nm Torque
504Wh Battery
23.2 kg

€3.499

S-ELECTRO DIAMOND STEP 1

Hardtail | Alloy

120mm Fork
29" x 2.35" Wheels
1x11 Speed Shimano
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
21.5kg

€3.299

S-ELECTRO STEP-SERIES 120

Hardtail | E Sport | Alloy

100mm Travel
27.5" x 2.35" Wheels
1x10 Speed Shimano
Ananda Mid-Motor
120Nm Torque
705Wh Battery
30.7 kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	154-170	170-180	178-190	185-210
	Rider inseam(cm)	70-77	77-82	81-86	84-95
A	Seat tube c/t	390	430	465	500
B	Seat tube angle	74	74	74	74
C	Head tube angle	68	68	68	68
D	Top Tube	599	609	630	662
E	Reach	410	420	440	470
F	Chainstay length	460	460	460	460
G	bb height	320	320	320	320
H	head tube length	135	135	140	145
I	stack	659	659	663	668
J	standover	801	799	794	823
K	Wheelbase	1163	1173	1195	1227

Rider Reviews

5 stars: 8 (80%)
4 stars: 2 (20%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

⭐⭐⭐⭐⭐ Sehr zufrieden mit meinem Kauf
Ich habe den S-Electro Diamond Step vor einigen Wochen gekauft und bin sehr zufrieden. Das Produkt entspricht genau der Beschreibung und überzeugt durch seine hochwertige Verarbeitung und Qualität. Die Lieferung war schnell und das Produkt war sicher verpackt.

Auch die Kommunikation mit dem Kundenservice war freundlich und unkompliziert. Insgesamt eine sehr positive Erfahrung. Ich kann den S-Electro Diamond Step jedem empfehlen, der Wert auf Qualität und Zuverlässigkeit legt. Ich würde jederzeit wieder hier kaufen.

Ich habe mich für das S-ELECTRO DIAMOND STEP 1 entschieden, weil ich ein hochwertiges E-Bike mit tiefem Einstieg gesucht habe, das sowohl im Alltag als auch auf längeren Touren überzeugt. Nach mittlerweile über 900 Kilometern kann ich sagen: Es war die richtige Entscheidung.
*Der tiefe Einstieg macht das Auf- und Absteigen besonders angenehm und vermittelt gleichzeitig ein sehr sicheres Fahrgefühl.

Der kraftvolle Shimano EP8 Motor unterstützt harmonisch und bringt mich selbst an steilen Anstiegen mühelos nach oben. Dank des 720-Wh-Akkus sind auch längere Touren ohne Reichweitenangst möglich.

Die Verarbeitung ist hervorragend und das integrierte Akkudesign verleiht dem Bike eine moderne, hochwertige Optik. Ich nutze das S-ELECTRO DIAMOND STEP 1 sowohl für den täglichen Arbeitsweg als auch für Wochenendausflüge und bin jedes Mal begeistert. Wer ein komfortables, leistungsstarkes und zuverlässiges E-Bike sucht, dem kann ich dieses Modell uneingeschränkt empfehlen.

Das S-ELECTRO DIAMOND STEP 1 hat meine Erwartungen in jeder Hinsicht übertroffen. Der tiefe Einstieg macht das Auf- und Absteigen besonders angenehm, und trotzdem fühlt sich das Bike sehr stabil und hochwertig an. Genau das habe ich für meine täglichen Fahrten und längeren Wochenendtouren gesucht.
Der kraftvolle Shimano EP8 Motor unterstützt sehr natürlich und bringt mich selbst an steilen Anstiegen mühelos nach oben. Mit dem 720-Wh-Akku sind auch ausgedehnte Touren problemlos möglich, ohne ständig an die Reichweite denken zu müssen. Das Fahrverhalten ist ruhig, sicher und gleichzeitig angenehm agil. Die Federgabel sorgt zusätzlich für viel Komfort auf Schotterwegen und unebenen Radwegen.
Besonders begeistert bin ich von der hochwertigen Verarbeitung, den zuverlässigen hydraulischen Scheibenbremsen und der präzisen Shimano-Schaltung. Das Bike eignet sich perfekt für den täglichen Arbeitsweg, entspannte Touren oder längere Ausflüge in die Natur.
Wer ein komfortables, leistungsstarkes und hochwertig ausgestattetes E-Bike mit tiefem Einstieg sucht, wird mit dem S-ELECTRO DIAMOND STEP 1 viel Freude haben. Ich würde mich jederzeit wieder dafür entscheiden." Die Kombination aus Shimano EP8 Motor (85 Nm), 720-Wh-Akku und komfortabler Step-Through-Geometrie macht das Modell vielseitig für Alltag und Touren.

Nach über 500 Kilometern mit dem S-ELECTRO DIAMOND STEP 1 bin ich absolut begeistert. Der tiefe Einstieg macht das Auf- und Absteigen unglaublich komfortabel, ohne dass das Bike an Stabilität verliert. Genau das habe ich für meine täglichen Fahrten und Wochenendausflüge gesucht.
Der Shimano EP8 Motor liefert kraftvolle Unterstützung, selbst an steilen Anstiegen, und dank des großen 720-Wh-Akkus sind auch längere Touren problemlos möglich. Das Fahrgefühl ist angenehm natürlich und die Unterstützung setzt sehr harmonisch ein. Die Kombination aus der Federgabel und der gefederten Sattelstütze sorgt für hohen Komfort – selbst auf Schotterwegen und Waldpfaden.
Besonders gefällt mir die aufgeräumte Optik mit dem integrierten Akku sowie die hochwertige Verarbeitung. Die Schaltung arbeitet präzise und die hydraulischen Scheibenbremsen vermitteln jederzeit ein sicheres Gefühl. Das Bike eignet sich perfekt für Pendler, Freizeittouren und längere Abenteuer auf unterschiedlichstem Untergrund.
Wer ein leistungsstarkes, komfortables und hochwertiges E-Bike mit tiefem Einstieg sucht, wird mit dem S-ELECTRO DIAMOND STEP 1 garantiert zufrieden sein. Für mich war es die beste Entscheidung

Comfort & Versatility

The step-through frame makes mounting and dismounting effortless, while the 120mm suspension fork and 29” wheels provide a smooth, stable ride on any terrain.

Smart, Seamless

Switch between assist modes with the intuitive LED control button, while the on-bar LED display keeps you informed with real-time battery life and ride stats.

Limits

With a high-capacity 720Wh internal battery, you can tackle vast distances without worrying about recharging on the way—perfect for extended adventures and all-day exploration.

Effortless Power

Powered by a Shimano EP8 250W motor with an integrated torque sensor, this e-adventure bike provides smooth, responsive pedal assist, making climbs and long rides easier and more enjoyable.
