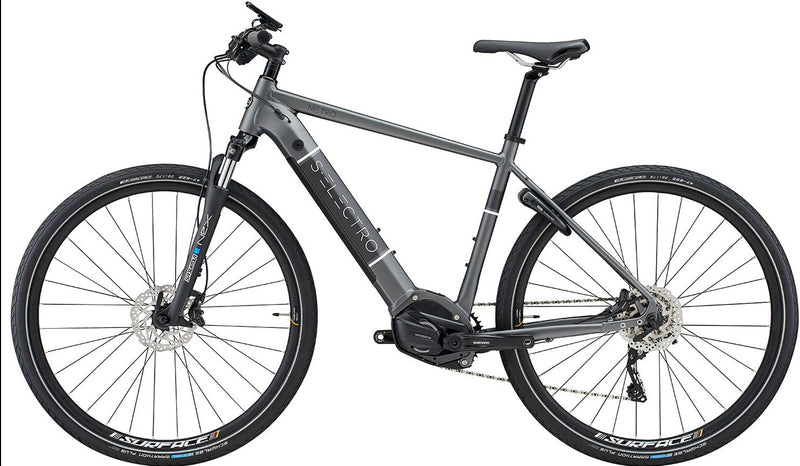

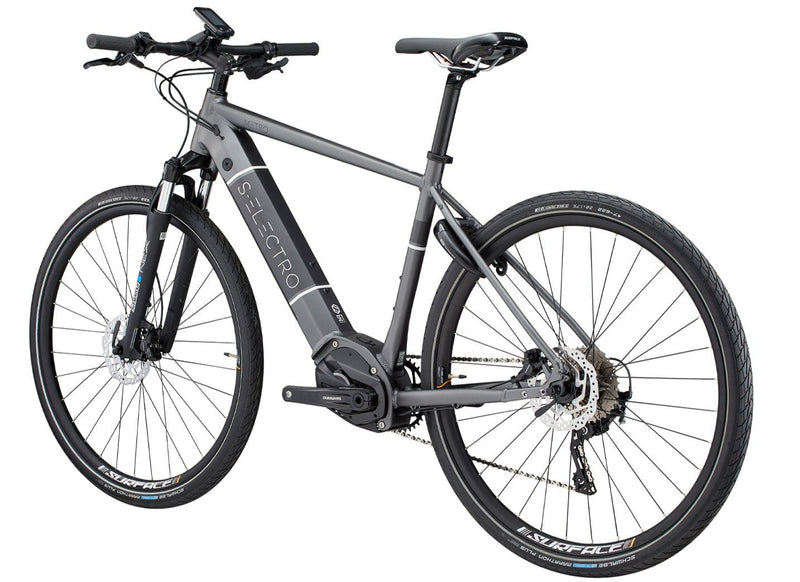

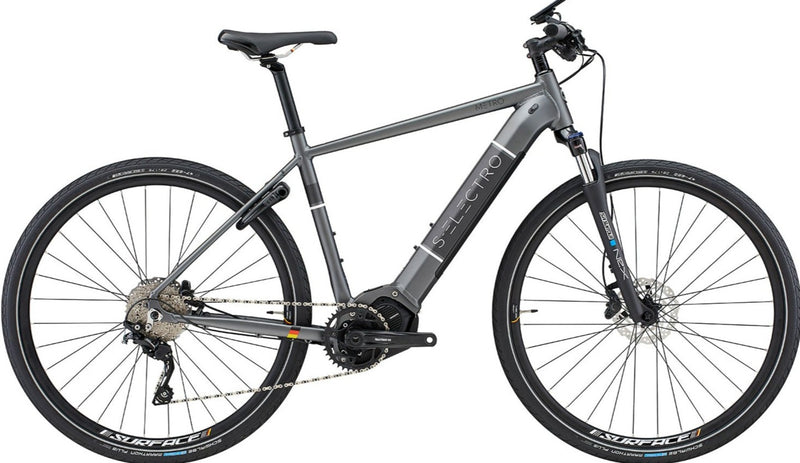

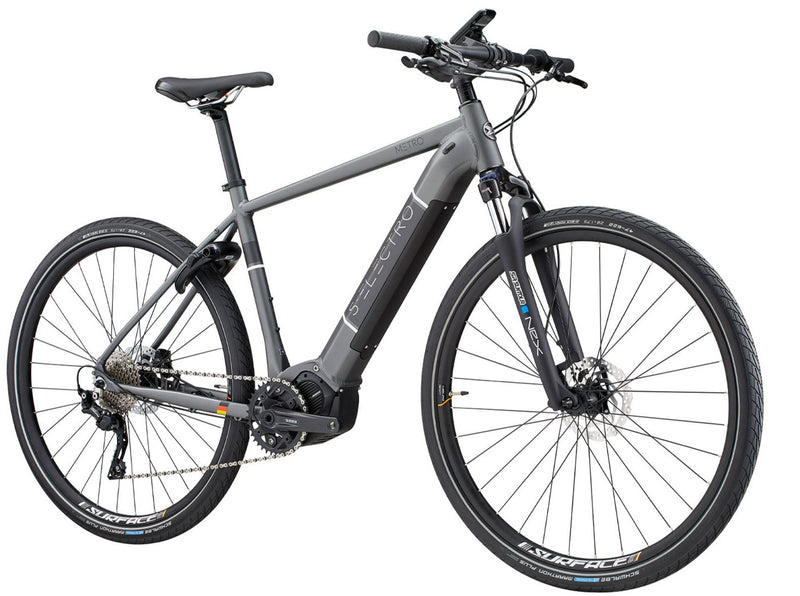

S-Electro-Metro
Hardtail | E-Commuting | Alloy | 700C | 22 kg
€2.999

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

Size
    EmptyDrop
    Fork Travel

    63mm

    Motor

    SHIMANO E7000

    Torque

    up to 60 Nm

    Battery

    504 Wh

    Range

    2.0 - 3.3 hours
    50 - 84 km

    (varies based on riding conditions)

    Charge Time

    1.5 - 3.1 hours

    (50 - 100%)

    Assist

    25 km/h
    20 mph

    Noise

    Quiet

    Fork Travel

    63mm

    Motor

    SHIMANO E7000

    Torque

    up to 60 Nm

    Battery

    504 Wh

    Range

    2.0 - 3.3 hours
    50 - 84 km

    (varies based on riding conditions)

    Charge Time

    1.5 - 3.1 hours

    (50 - 100%)

    Assist

    25 km/h
    20 mph

    Noise

    Quiet

    Book an appointment for a personal consultation. Dedicated time with our shop pro to help you make the right choice.

    {formbuilder:101028}

    KEY FEATURES

    • Alloy S-ELECTRO Metro integrated eBike frame,
    • SR Suntour NEX HLO DS 700, 63mm, Hydraulic Lockout
    • Shimano E7000 motor
    • Shimano 504Wh battery
    • Shimano Deore 10 speed rear derailleur
    • SURFACE 29" Symmetrical Alloy Rim, Tubeless Ready rims
    • Schwalbe Marathon Plus 28x1.75 tyres
    • Shimano Deore BL-T6000 hydraulic disc brakes, 160mm rotors
    • Alloy control parts
    • SIMPLISTIC E-COMMUTING.

      The S-Electro Metro is the ultimate electric assist commuter hybrid. The Metro is a minimalist take on a capable and practical commuter. Stripped of superfluous appendices, the Metro can be locked up outside your office or a shop, or taken on a train. A suspension fork adds comfort when you're navigating the urban jungle, and the Shimano E7000 motor has plenty of torque to tackle the hills.

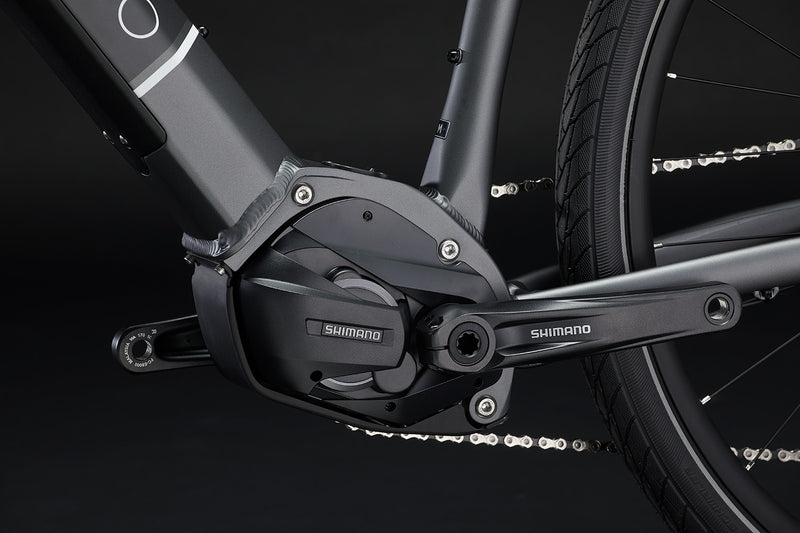

      SHIMANO ELECTRIC DRIVE SYSTEM

      S-Electro Metro is designed around the Shimano Steps E7000 electric assist motor and is powered by a sizable 504Wh internal battery. The Steps motor has plenty of range 30 - 100km depending on your level of assist and terrain, and recharges to 80% in 3 hours.

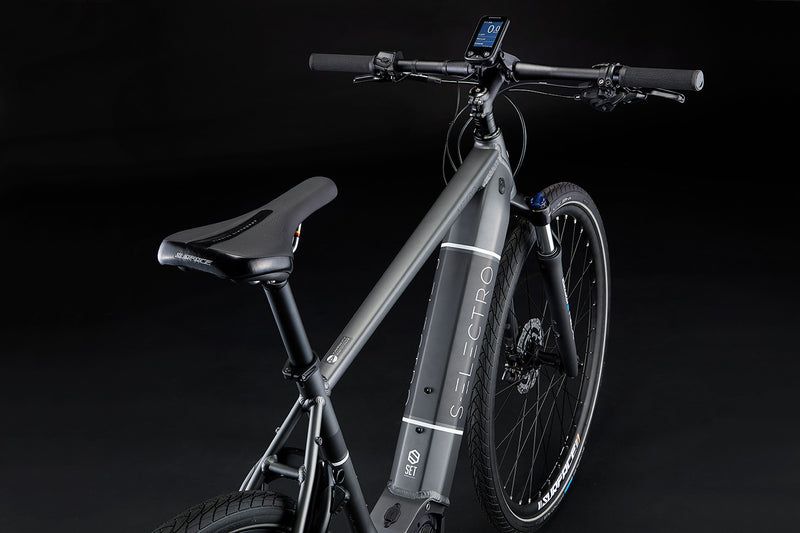

      FRAME DESIGN

      Metro features a S-Electro engineered hydroformed alloy frame. The battery and all cables are internal, and the motor mount is neatly integrated. Hydroforming is a process where thinwall alloy tubing gets molded into complex shapes by internal pressurized water and or oil - this creates stronger tubing resulting in lighter, stronger frames.

    • WHY IT’S BEST.

      1. Metro is fitted with a suspension fork - making sure that your commute is comfortable.
      2. Simplicity. The Metro is easy to maintain, easy to use and extremely good value for money.
      3. Electric assist means that you can commute further and quicker, with less rider input. So getting to work red faced and sweaty is a thing of the past.
      4. Metro Geometry is designed for comfort, get there comfortably.
      5. The durable wheels and tyres on the Metro are chosen to deal with the rigours of daily commuting.
      6. The fit and finish on S-Electro bikes are top notch!

      ENGINEERING NOTES.

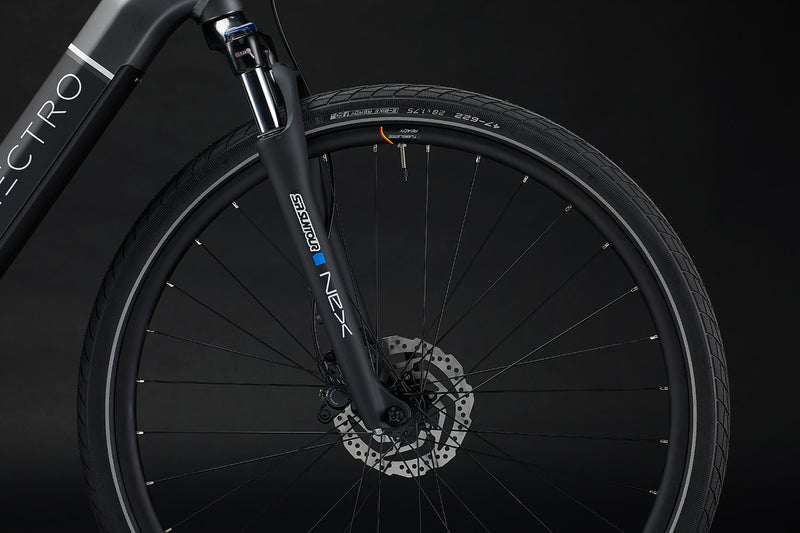

      SUSPENSION FORK

      Metro is fitted with an SR Suntour NEX HLO DS 700, 63mm suspension fork with Hydraulic Lockout. This is a lightweight suspension fork that adds comfort to your daily commute.

      COMPONENT CHOICES

      Reliability and durability for commuting bikes are essential. For that reason, S-Electro Metro has been fitted with a Shimano 10 speed drivetrain. This simplistic Deore drivetrain needs less maintenance than an 11 or 12 speed drivetrain and is known for quality shifting.

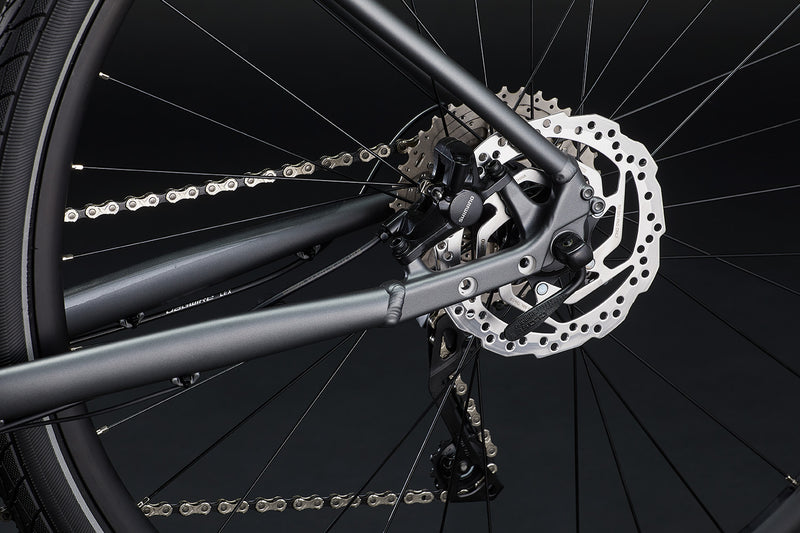

      HYDRAULIC DISC BRAKES

      Shimano Deore BL T6000 hydraulic disc brakes takes care of quick stopping in traffic. Good modulation and solid braking performance are at the heart of Shimano brakes.

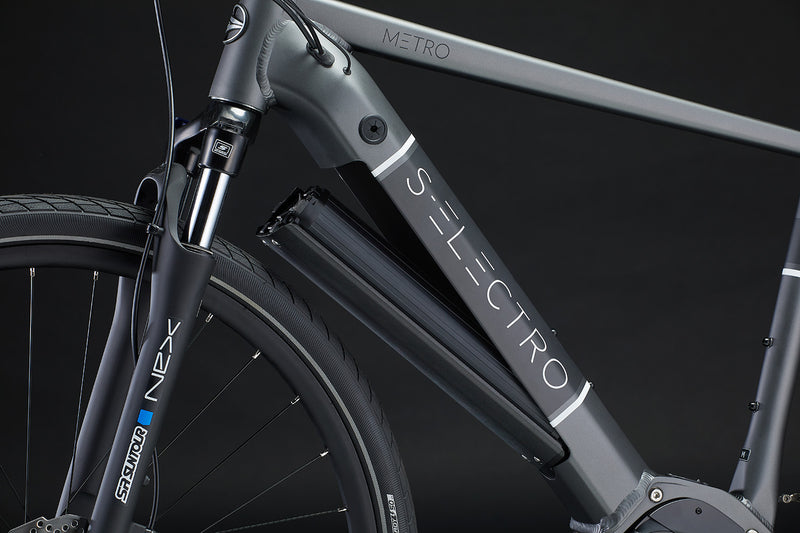

      INTERNAL REMOVABLE BATTERY

      The internal battery located in the downtube is locked for safety, but also removable to replace, or to charge off the bike.

      RACK AND FENDER MOUNTS

      Purebred commuter, the Metro has rack and fender mounts and when you order on Speedlab, you can have the fenders pre-installed.

      700C WHEELS

      The Surface symmetrical alloy wheels and Schwalbe Marathon Plus tyres with SmartGuard used on the Metro are chosen for low rolling resistance, decent on-road grip and also durability when used in urban environments.

    • SPECIFICATIONS.

      FRAMESET

      Frame

      Double Butted Hydroformed 6061 alloy Frame with Internal Battery.

      Headset

      FSA NO.42/ACB-1-A

      Frame Axle Spacing

      135x9mm

      Axle Specification

      QR

      Hanger Type

      HANGER 25

      E-BIKE

      Motor

      Shimano E7000

      Battery

      Shimano E8035 504Wh Battery

      Charger

      Shimano EC-E6002

      Display

      Shimano E6100

      Switch

      Shimano SW-E6010.

      SUSPENSION

      Fork

      SR Suntour NEX HLO DS 700, 63mm, Hydraulic Lockout

      Fork Travel

      63mm

      WHEELS

      Wheelset

      SURFACE 700 C Custom

      Hubs

      Front: Shimano TX505 100x9mm, Centrelock,

      Rear: Shimano TX505-8 135x9mm, Centerlock

      Rims

      SURFACE 700 C" Symmetrical Alloy Rim, Tubeless Ready

      Tyres

      Schwalbe Marathon Plus 28x1.75, SmartGuard, E-50

      Max Tyre Size

      47C or 2.0"

      DRIVETRAIN

      Crankset

      Shimano E6100 Crankarm

      Max Chainring Size

      38 T

      Shifter(s)

      Shimano Deore 10-Speed

      Rear Derailleur

      Shimano DEORE 10-Speed Rear Derailleur DA 36T

      Cassette

      Shimano HG-50-10 10 Speed 11-36t

      Chain

      KMC X10 10 Speed

      BRAKES

      Brakes

      Shimano DEORE BL-T6000, Rotors: Shimano RT10 180/160mm

      Rotors

      F: Shimano RT10 180mm

      R: Shimano RT10 160mm

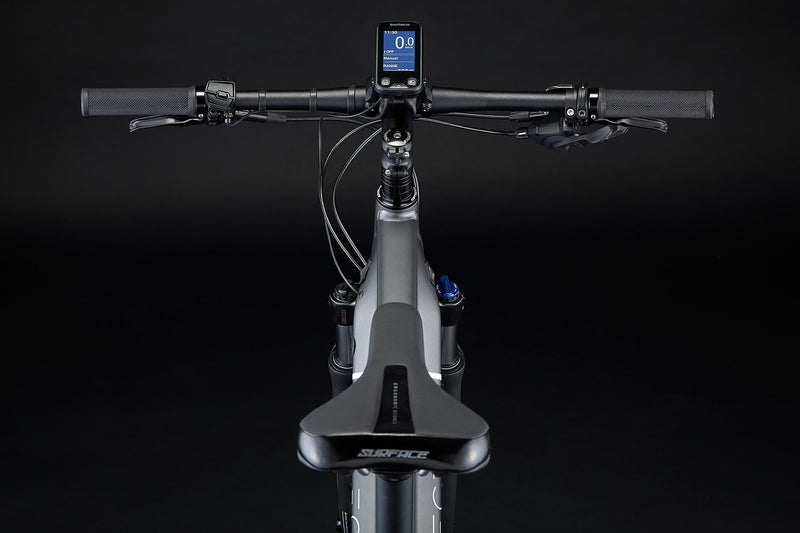

      COCKPIT

      Grips

      SBC Lockon

      Handlebar

      SURFACE Alloy, Dia:31.8mm,

      Stem

      SURFACE Alloy Stem, 31.8mm

      Saddle

      Surface, double density with rubber base.

      Seat Post

      SURFACE Alloy, Dia:30.9mm

      Seatpost Clamp

      Alloy QR Clamp

      Pedals

      Not included

      WEIGHT

      Bike Weight

      22 kg

      RIDER WEIGHT LIMIT

      120kg - combined weight of bike and rider (including all kit).

      EXTRAS

      Lock

      Integrated rear wheel lock solution

      Disclaimer: Due to the nature of bike manufacturing, specification & finishes, component availability and price may be subject to change without prior written notification. Also images may not match final specifications due to component availability.

      Due to Covid-related scheduling and component availability challenges, bike specifications are subject to change without notice. Specifications may not be exactly what is shown in the photo.

    • FIND YOUR FIT.

      Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

      GEOMETRY.

      map type(mm unless specified) XS S M L XL
      Rider height(cm) 150-160 160-170 170-178 176-185 185-195
      Rider inseam(cm) 68-72 72-77 77-81 80-84 84-88
      A Seat tube c/t 400 450 500 550 575
      B Seat tube angle 73 73 73 73 73
      C Head tube angle 69 69.5 70 70.5 70.5
      D Top Tube 576 593 617 638 657
      E Reach 395 410 430 445 455
      F Chainstay length 465 465 465 465 465
      G bb height 308 308 308 308 308
      H head tube length 115 120 130 150 180
      I stack 592 599 611 632 660
      J standover 739 766 797 833 857
      K Wheelbase 1106 1118 1137 1153 1173
    • FAQ.

      • Can I upgrade the battery to a 730Wh unit in my S-Electro Metro?

        No you can not fit a 730Wh battery in the frame. The 504Wh unit will give you plenty of range for commuting.

      • Can I put drop handlebars on the Metro?

        You can, but your brakes and shifters will not be a straight fit. Consider this before buying drop handlebars.

      • Can I fit a suspension seatpost?

        Yes you can. They are available on the Speedlab shop.

      • I know Shimano gears, but not their electric motors. Are they good?

        Yes, without a doubt. Shimano makes some of the best and most advanced electric motors on the eBicycle market today.

      • Can I fit a kickstand to the S-Electro Metro frame?

        Yes, the S-Electro Metro is compatible with 40mm kickstands. Check out the Speedlab Kickstand CL-KA100.

      • How many assistance modes doe the S-Electro Metro have?

        The S-Electro Metro has 3 assistance modes.

      • Can I tune my S-Electro Metro to increase the power-assist speed limit?

        Due to strict regulations governing e-bikes, it is neither allowed nor recommended to alter the speed.

      • Where can I find the E-bike manual?

        Click HERE to view.

      • Where can I find serial number of the E bike?

         By all S-electro Diamond Trail, S-electro Diamond Stepdown, S-electro Diamond fat, S-electro Diamond Comp models please tell that the serial number of the frame is located under the black cover, one needs to unscrew 2 screws in order to take it down to see the frame number. For the S-electro Stepdown, S-electro Comp SL, S-electro Elite AL 2 (630Wh) models the frame number is located on the side of the side of the frame around the motor.

      • Can I customize my Shimano display to another language or change other settings?

         Yes, you need to download E TUBE app and configure the settings. SEE HERE
