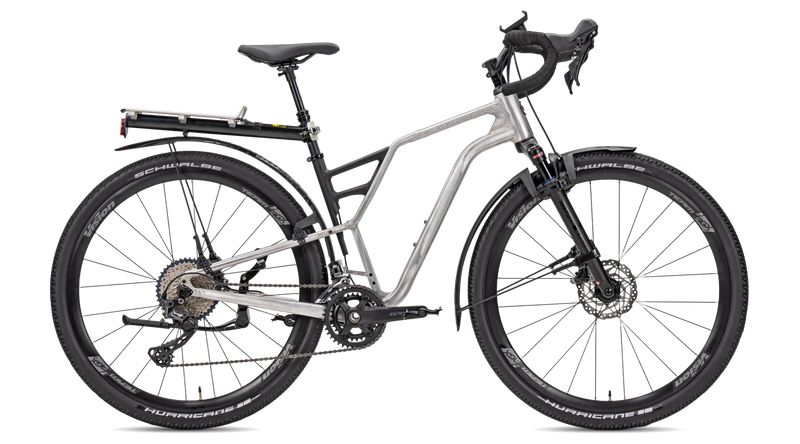

SilverRider^TM Gravel Sport

Name: SilverRider Gravel Sport
Brand: Silverback
SKU: SR-GR-SPO-XS-26
Price: 1799.0 EUR
Availability: InStock

€1.799

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

1. Select your Size:

XS

Rider Height: —
Rider Inseam: —
S

Rider Height: —
Rider Inseam: —
M

Rider Height: —
Rider Inseam: —
L

Rider Height: —
Rider Inseam: —
XL

Rider Height: —
Rider Inseam: —
XXL

Rider Height: —
Rider Inseam: —

2. Select your Frame Color: Brushed Alloy

3. Select your S-Tec Color: Midnight Matt Black

PRE ORDER (Delivery late Aug 2026)

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 1872622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Crankbrothers Stamp 1 Platform Pedals S - M, M - L

new lower price

Surface Bottle cage Unit with multi tool black/black

SKS Mountain Black Bottle - 750ml

new lower price

Axa Bicycle Lock Fold Light 100

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-11

SilverRider^TM Gravel Sport

€1.799,00

Add to cart

Performance You Can Use

The SilverRider Gravel Sport builds on the same fast, responsive gravel race frameset, but evolves it for long‑range comfort and mixed‑terrain endurance. The drop‑bar cockpit adds multiple hand positions for better efficiency over distance, while the rider‑forward stem keeps steering calm and predictable on rough roads. A tuned suspension fork smooths out chatter and washboard surfaces, helping riders conserve energy hour after hour. It’s the same agile, efficient platform—now optimized for bigger days, broader horizons, and more comfortable touring on unpredictable terrain. Finished with smooth welds, recycled alloy, water‑based paints, and laser‑etched details, the SilverRider Gravel is crafted in small batches, backed by a lifetime warranty, and built to perform at the highest level.

At a Glance

Use: Urban, Gravel touring & commuting

Frame: Silverback AL-6061 Hydro-formed gravel frame with patented S-Tec absorption unit

Fork: Fox 32 Performance, 40mm travel

Drivetrain: Shimano CUES 11-speed

Wheels: Vision Team30 AGX i23 tubeless ready wheels Schwalbe Hurricane 29 x 2.0" Tubeless Ready, SnakeSkin PerfL Addix tyres

Brakes: Shimano hydraulic disc brakes

Cockpit: Silverback flared drop-bars with 30° riser stem Silverback dropper post

TECH HIGHLIGHTS

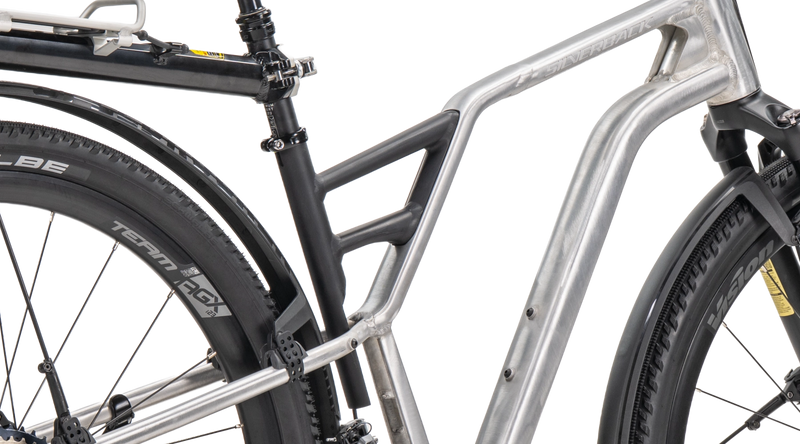

S-TEC CUSHIONING SYSTEM

The vibration‑damping S-tec system smooths out the constant buzz and sharp hits from rough terrain, reducing fatigue so you can ride longer with more comfort and control. By absorbing chatter before it reaches your body, it keeps the bike feeling calmer and more stable, especially on long rides or uneven surfaces.

WIDER 29x2.0" / 700x50C TYRES

Wider tubeless ready tyres give a gravel race bike more speed‑stability, more control, and more efficiency on rough terrain. The bigger air volume smooths out chatter, keeps the bike planted in loose corners, and reduces fatigue over long, rugged courses—letting you hold power and push harder deeper into the race.

SHIMANO 11-SPEED DRIVETRAIN

CUES U6000 brings quiet, confident shifting to the chaos of gravel. Its chain‑stabilizing clutch keeps things tight over washboard and loose rock, the gear range feels natural on rolling terrain, and the whole system is built to shrug off dust, grit, and long‑ride abuse. It’s a drivetrain that simply keeps working, so you can focus on the ride instead of the mechanics.

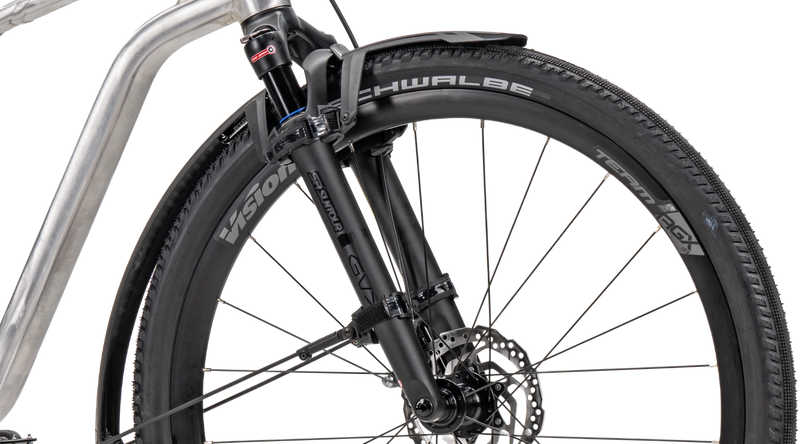

QUALITY SUSPENSION FORK

Make rough terrain feel calmer and more manageable. It takes the sting out of washboard and loose stones, keeping the front end steadier and your hands and arms fresher. The ride feels smoother, the bike tracks more confidently, and long days on mixed surfaces become noticeably easier.

S-SHAPE SKELETAL STRUCTURE

Re-imagined and re-designed from the ground up, the SilverRider re-defines the hardtail bicycle. Defying conventional, traditional frame shapes, it unlocks a new mix of power and comfort! Rethinking aesthetic, materials and style.

SIT MORE UPRIGHT

A 30° riser stem lifts the front end so you get a more upright posture, less pressure on your hands and back, and better visibility in traffic and on rough paths.

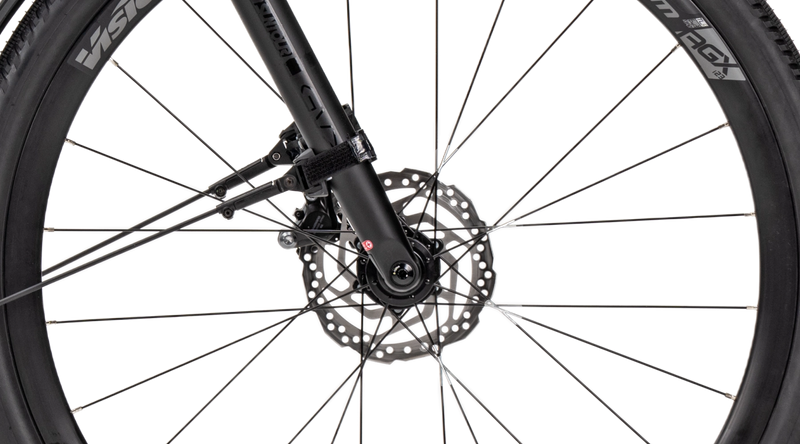

SPEED CONTROL

Shimano hydraulic disc brakes deliver superior stopping power in all conditions.

DROPPER POST INCLUDED

Dropper posts increase riding clearance on technical sections. It can also make mounting and dismounting easier, and stops or traffic light waits less cumbersome.

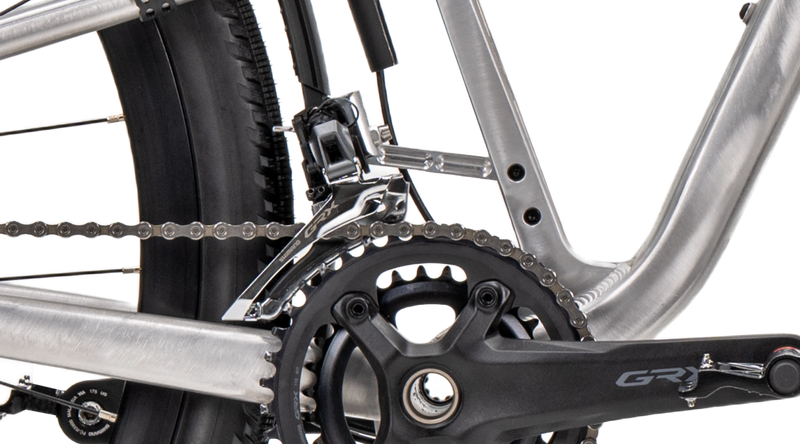

1X or 2X CONVERTIBLE

Optional front derailleur mount allows the bike to easily convert for an even wider range of gear options.

CUSTOM RACK AVAILABLE

Pannier racks let you carry gear securely without a backpack. (rack sold separately)

FORK PANNIER MOUNTS

Pannier mounts on the fork further expanded cargo carrying capacity.
(Rack sold separately)

GREEN BY DESIGN

Crafted from recycled alloy, finished with water-based paints, and accented by laser‑etched details — this frame embodies sustainable innovation without compromising performance or style.

INTEGRATED CARRY HANDLE

S-Tec unit doubles as a convenient carry handle.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Alloy Gravel Frame. S-Tech Seat Tube. Flat-mount Disc Brake Mounts. Hybrid geo for 650B/700C, Flat/Drop Bar Compatiblility. Internal Routed Dropper Post Compatible.

Headset

Internal Routing headset with 1.5" sealed bearings top and bottom

Frame Axle Spacing

142 x 12mm

Axle Specification

L: 161.5mm, 142 x 12mm P1.5

Kickstand Mount

18mm

Hanger Type

Hanger 11

Warranty

Limited lifetime: https://silverbackbikes.de/pages/warranty

SUSPENSION

Fork

Fox 32 Taper-cast Performance Elite, Float FIT4, OLD: 12x100mm, Through Axle

Fork Travel

40mm

WHEELS

Wheelset

Vision Team30 AGX i23

Hubs

F: Vision, 24H, sealed cartridge bearings
R: Vision, 24H, sealed cartridge bearings, Shimano 12-spd

Rims

F: Vision 30mm aero depth, Alloy, 23mm Internal Width, tubeless ready, 24H
R: Vision 30mm aero depth, Alloy, 23mm Internal Width, tubeless ready, 24H

Tyres

F: Schwalbe Tyre Hurricane HS 499, 29x2.0", SnakeSkin PerfL Addix, Tubeless Ready
R: Schwalbe Tyre Hurricane HS 499, 29x2.0", SnakeSkin PerfL Addix, Tubeless Ready

Max Tyre Size

50C / 2.0"

DRIVETRAIN

Crankset

Shimano FC-U603, 11-Speed, 40T, 170-175mm crank length

Max Chainring Size

42T

Shifter(s)

Shimano BL/ST-U6030 CUES, 11-speed

Rear Derailleur

Shimano RD-U6000, top normal, Shadow Plus, Direct Attachment, 11-Speed

Cassette

Shimano CS-LG400-11 CUES, Linkglide 11-speed, 11-50T

Chain

Shimno CN-LG500, 118 links, 9-11-Speed

BRAKES

Brakes

Shimano BR-U6030 CUES hydraulic disc

Rotors

F: Shimano SM-RT70, 160mm, Centre-Lock
R: Shimano SM-RT70, 160mm, Centre-Lock

COCKPIT

Bar tape

Bar tape with gel lining, plug with expander bolt

Handlebar

Alloy Drop bar, Dia: Ø31.8mm, Drop: 124mm, Reach: 75mm, 16˚ Flare; W: 380 for size XS, W: 400 for size S, W: 420 for size M, W: 420 for size L, W: 440 for size XL, W: 440 for size XXL

Stem

Alloy Stem with internal guide cable routing, Barbore Ø31.8mm, Rise 30°, Extension 90mm, stainless steel bolts. L: 60 for size XS, L: 60 for size S, L: 75 for size M, L: 90 for size L, L: 90 for size XL, L: 90 for size XXL

Saddle

Silverback Gravel Ergo Zone

Seat Post

Dropper Post with handlebar remote lever, Ø27.2mm, 100mm Travel

Seatpost Clamp

Alloy Ø34.9

EXTRAS

Fenders

SKS Speedrocker set

Rack

Speedkit Alloy rack

Kickstand

Speedkit Alloy Kickstand, 18mm mounting, adjustable length

Cellphone Holder

SP Connect, handlebar mounted

WEIGHT

Bike Weight

14.99 kg (M size)

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Owner's Manuals

Technical Manuals & Setup Guides

Access the complete documentation for your bike:

English Manual Guide – [Download]
German Manual Guide – [Download]

FAQ

What is the maximum rear rotor size I can fit?

The frame can fit a 160mm rotor, but you will need an adaptor for it.
What is the maximum fork travel I can fit?

A 40mm travel fork.
What is the maximum tyre size?

29 x 2.0" / 700x50C
What is the torque setting for the S - Tech unit?

24Nm Minimum

OTHER MODELS IN THE SERIES

€1.499

SILVERRIDER GRAVEL PATH

Gravel | Alloy

Carbon Rigid Fork
700C x 50C Wheels
1x11 Speed Shimano
10.8kg

€1.799

SILVERRIDER GRAVEL SPORT

Gravel | Alloy

40mm travel
700C x 50C Wheels
1x11 Speed Shimano
14.99kg

€1.899

SILVERRIDER GRAVEL PRO

Gravel | Alloy

Carbon Rigid Fork
700C x 50C Wheels
1x12 Speed Shimano
10.8kg Alloy wheels

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XS	S	M	L	XL	XXL
	Rider height(cm)	144-154	152-164	164-172	170-178	178-188	185-195
	Rider inseam(cm)	65-70	69-74	74-78	77-81	81-85	84-89
A	Seat tube c/t	425	450	475	500	525	550
B	Seat tube angle	72°	72°	72°	72°	72°	72°
C	Head tube angle	68°	68°	68°	68°	68°	68°
D	Top Tube	548	560	571	585	595	605
E	Reach	368	377	387	397	407	416
F	Chainstay length	435	435	435	435	435	435
G	bb height	290	292	292	292	292	292
H	head tube length	120	130	135	145	145	145
I	stack	558	573	582	597	601	605
J	standover	724	726	726	726	726	726
K	Wheelbase	1046	1062	1075	1091	1102	1113
