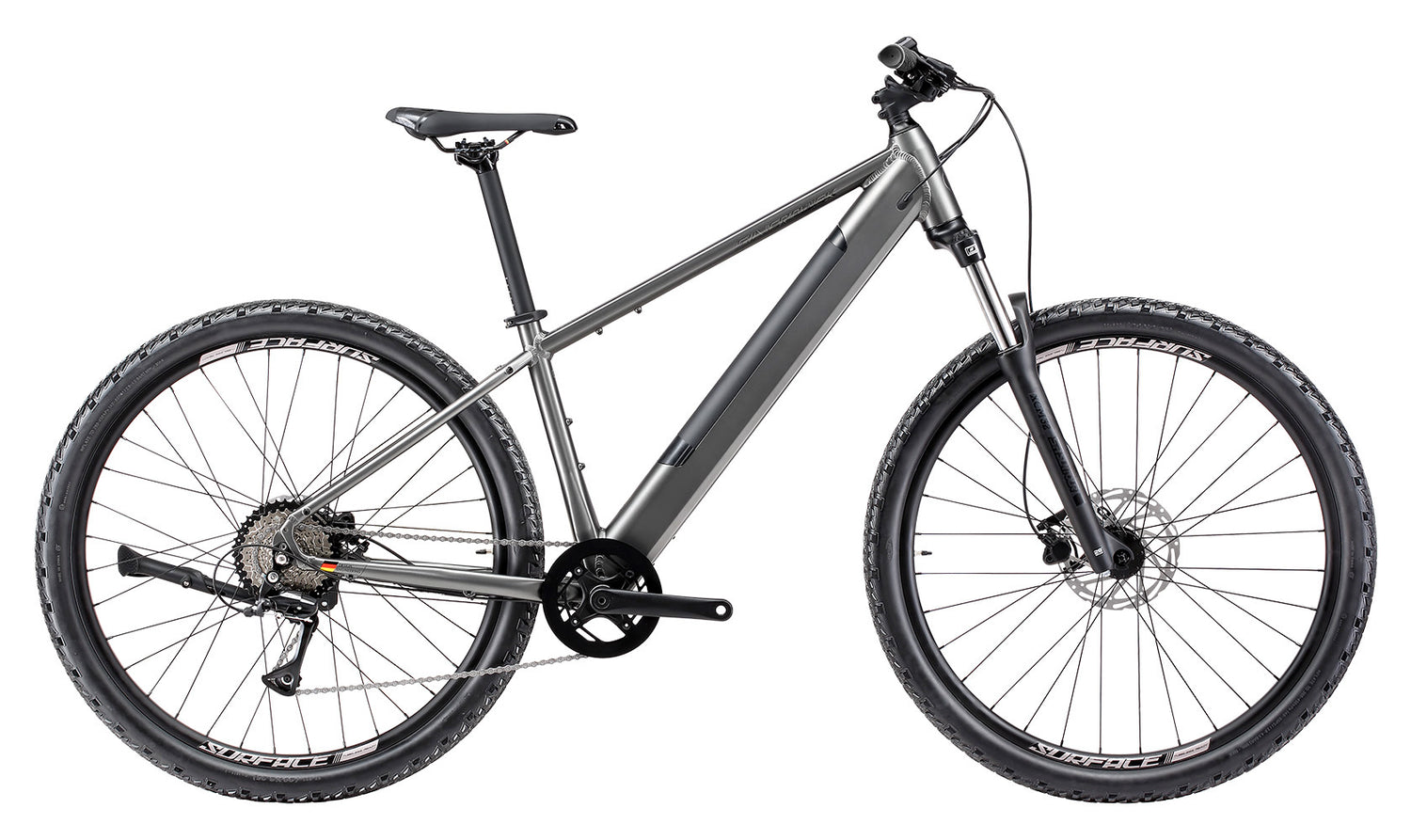

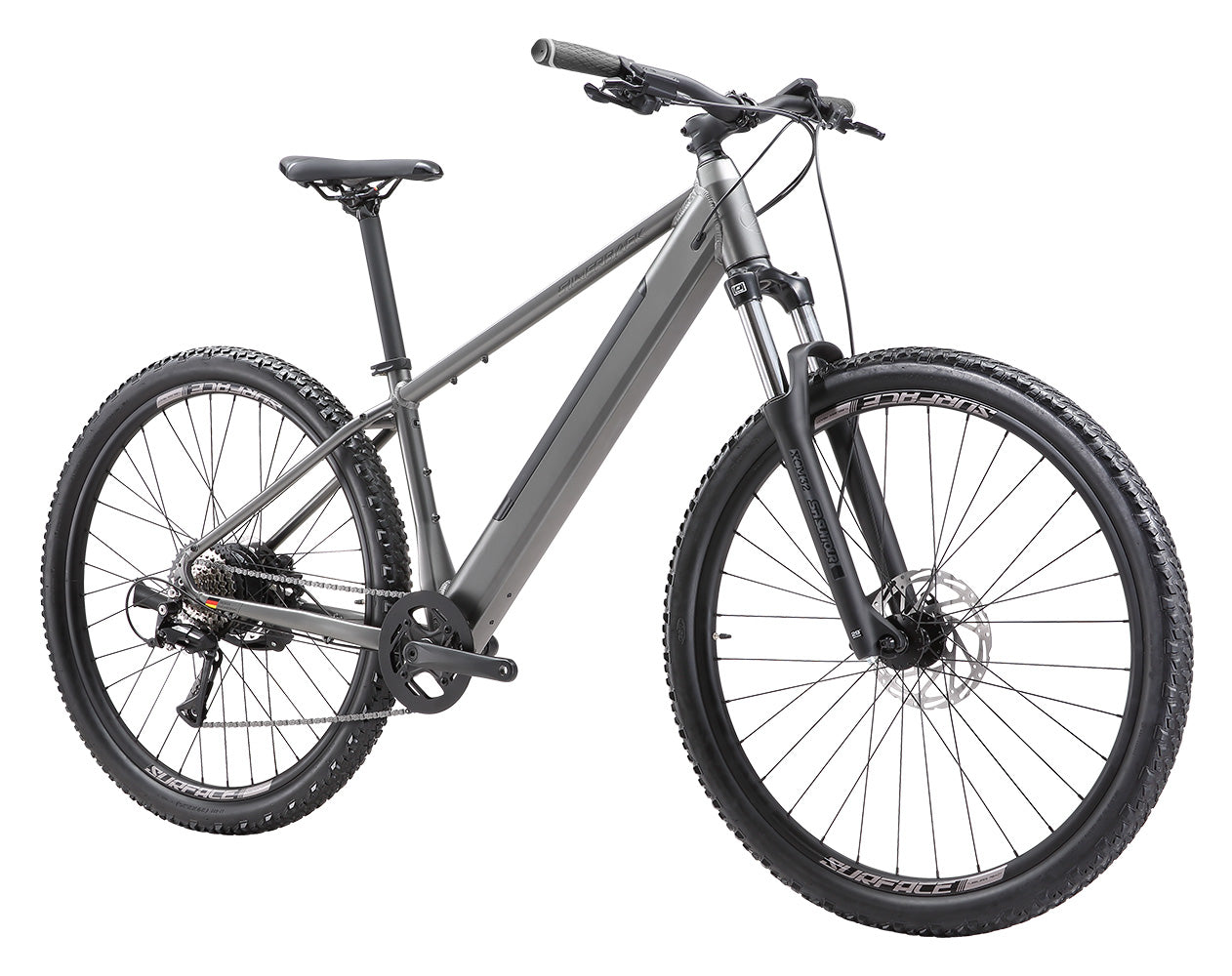

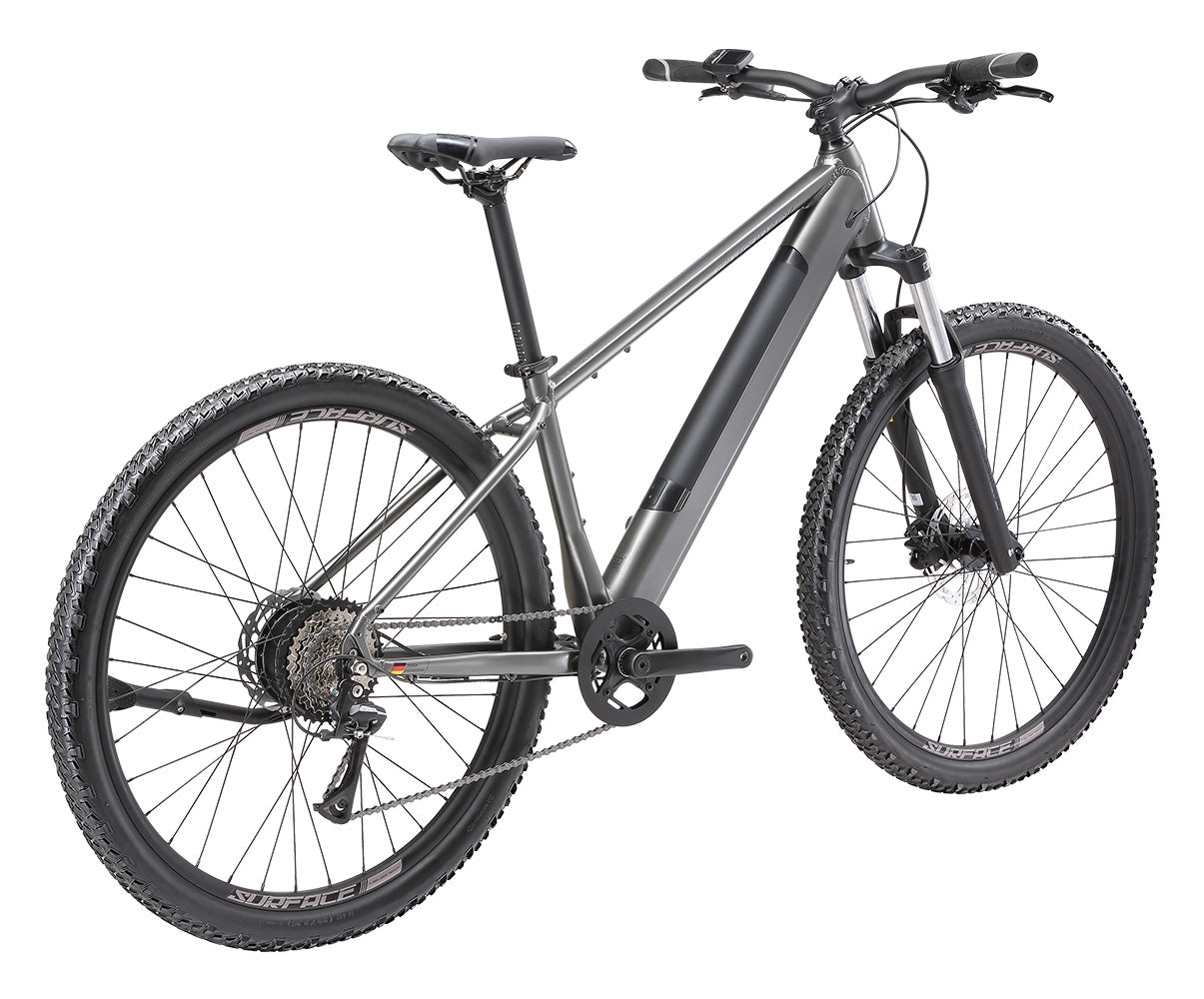

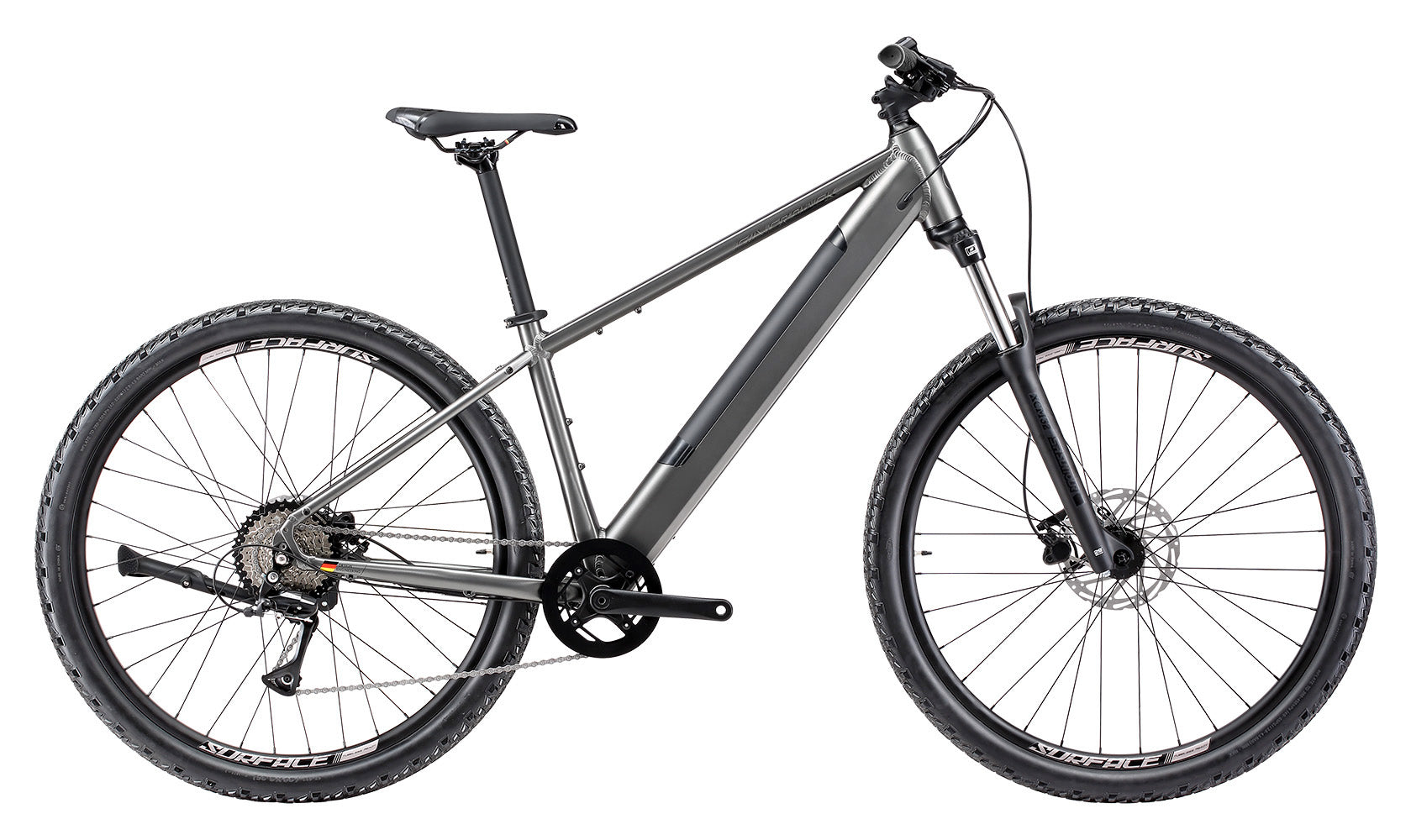

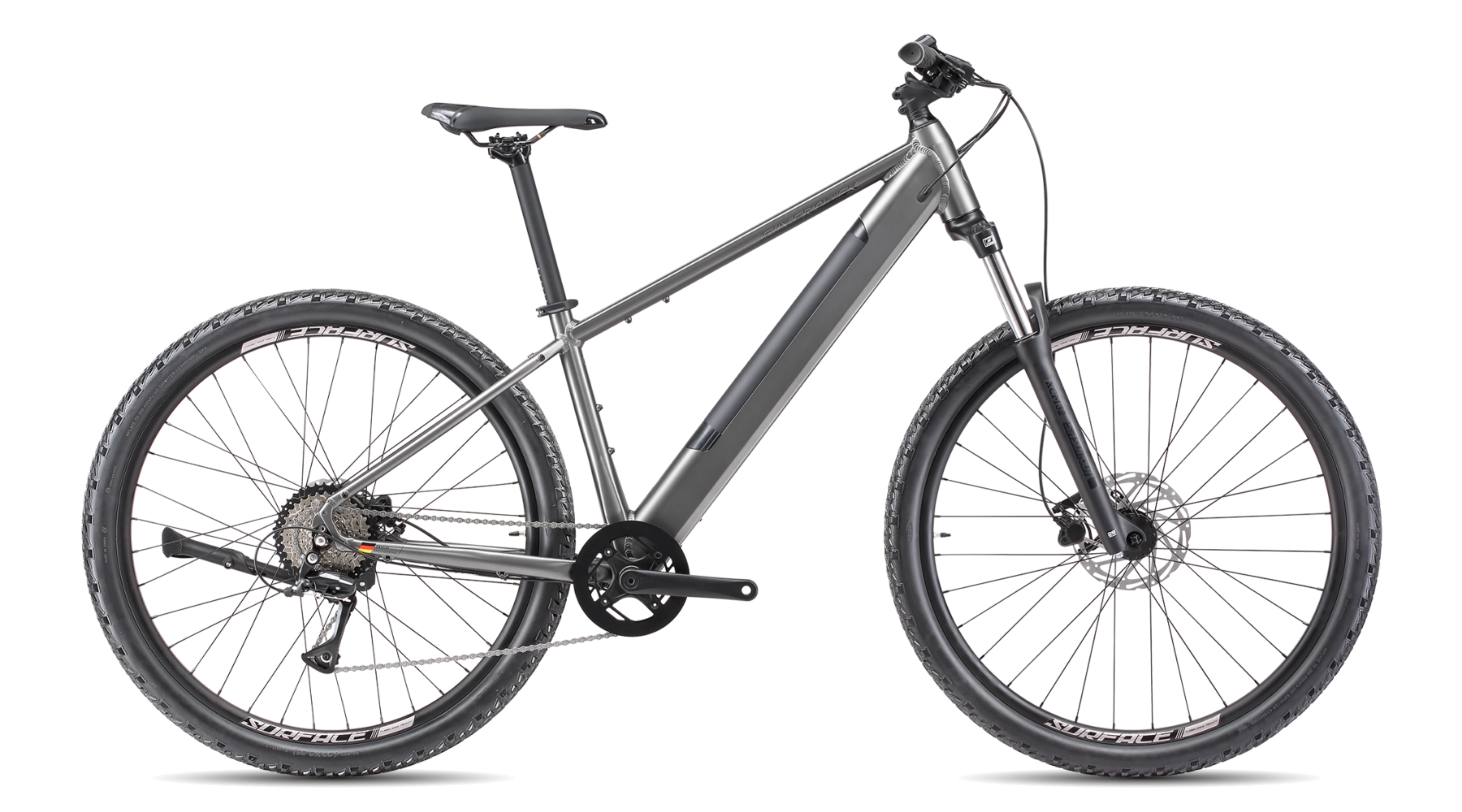

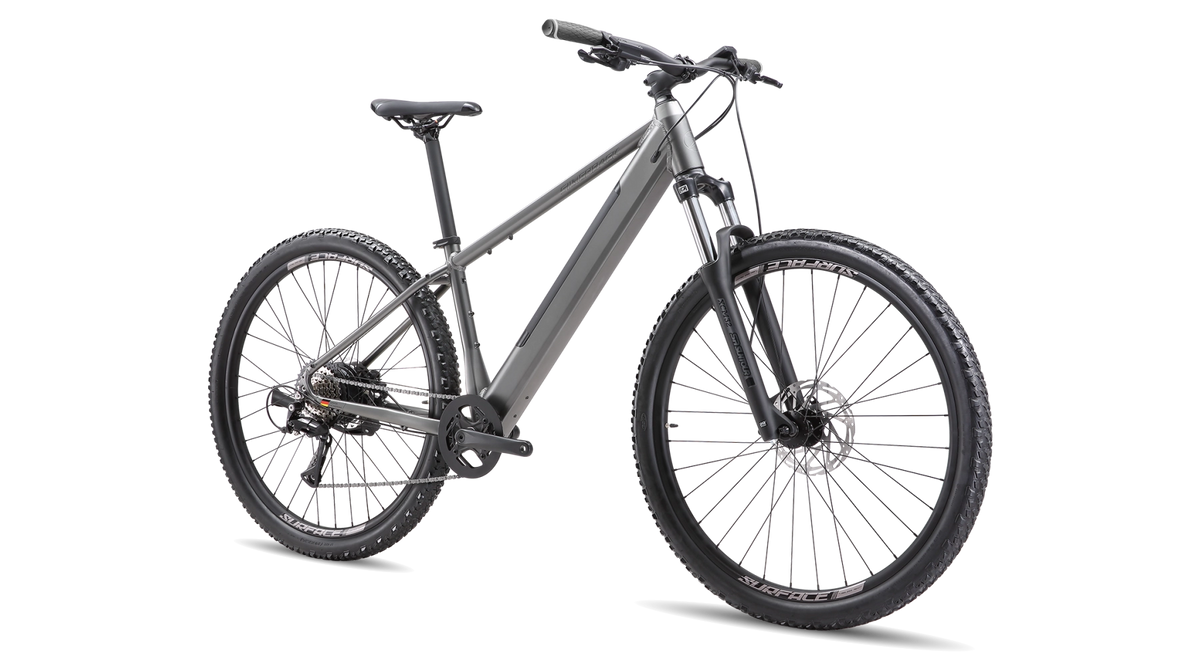

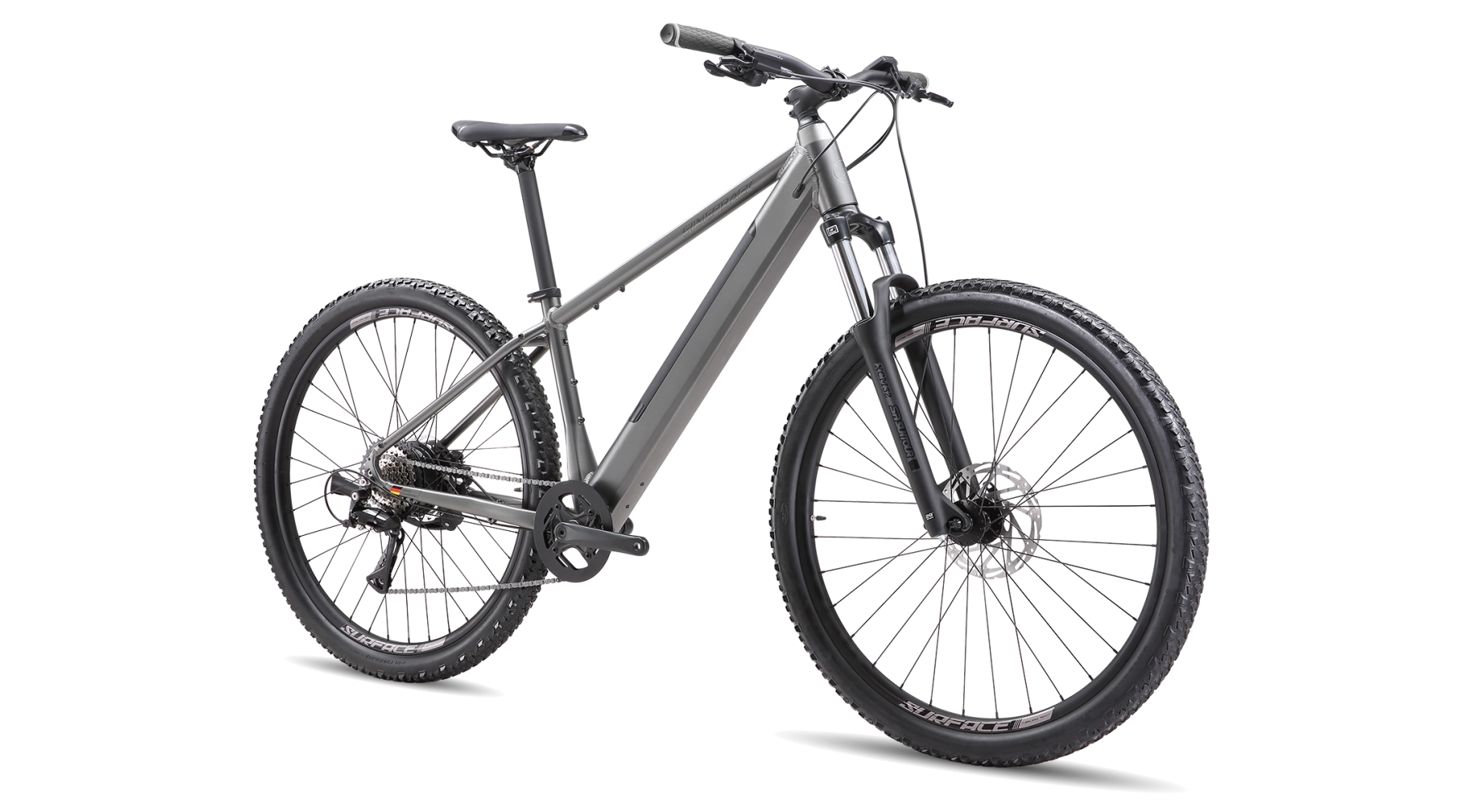

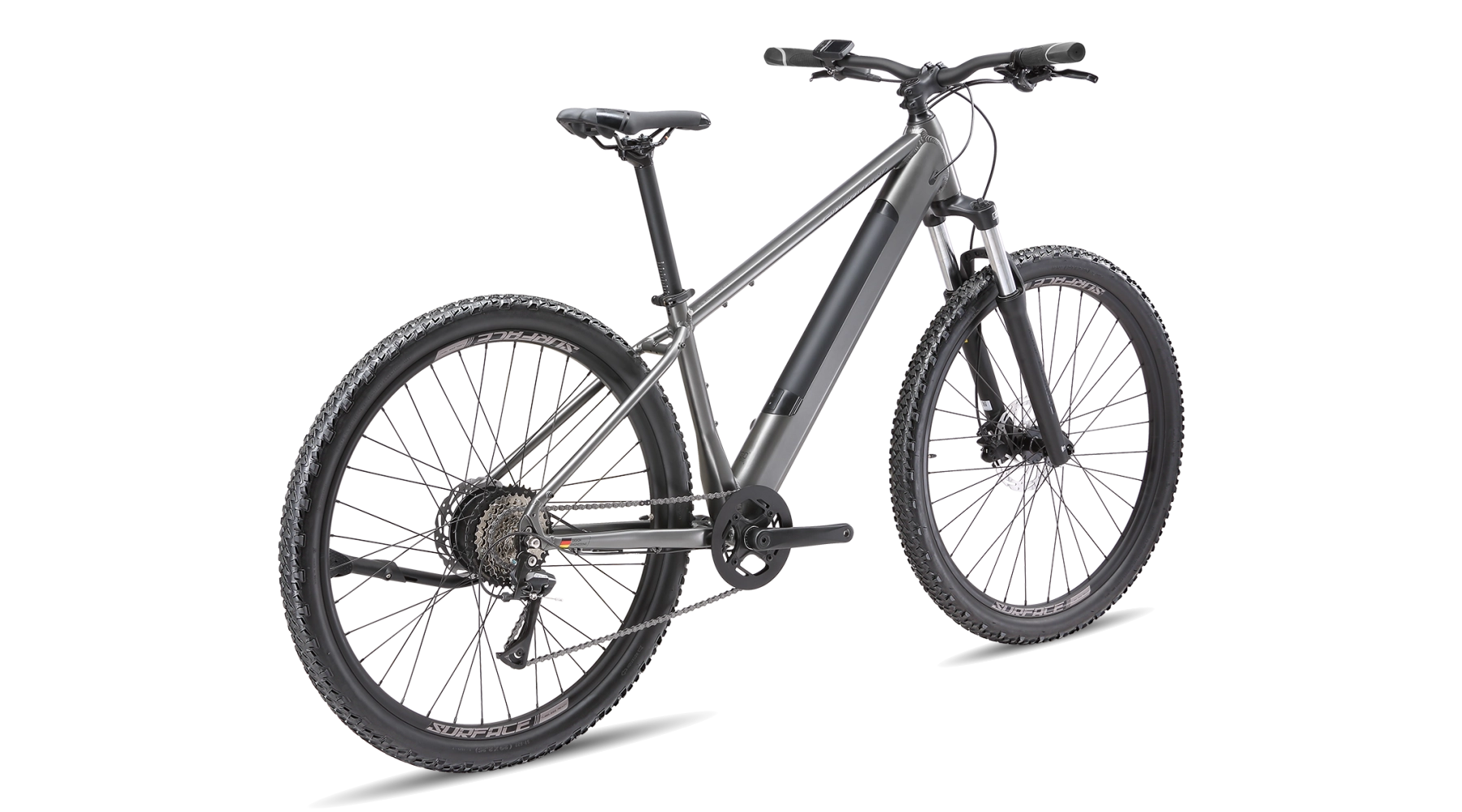

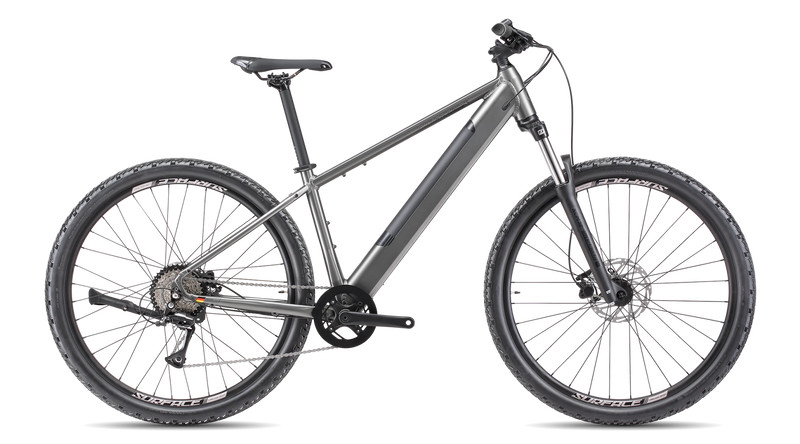

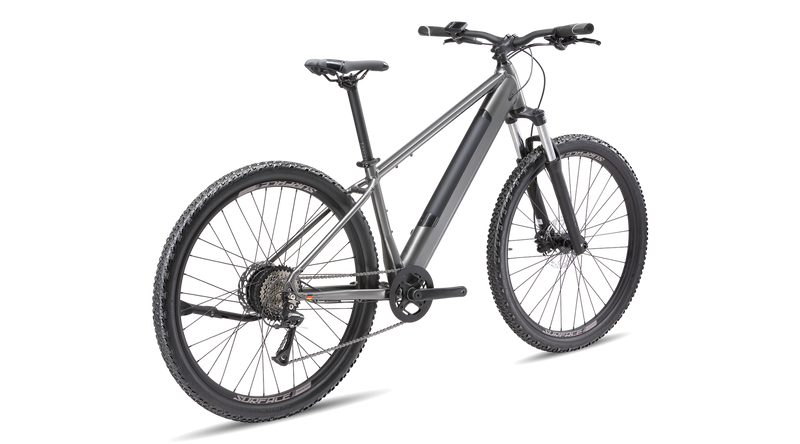

Versatile sport E-bike
S-ELECTRO 50
Hardtail
|
E Sport
|
Alloy
|
29"
|
1x8 Speed
|
120mm Fork
|
22.5 kg
€1.599
Price incl. VAT excl. Local Import Taxes & Shipping Costs.
Fork Travel
120mm
Motor
Ananda hub motor
Torque
up to 50 Nm
Battery
504 Wh
Range
Up to 4.8 hours
Up to 100 km
(varies based on riding conditions)
Charge Time
3 - 6 hours
(50 - 100%)
Assist
25 km/h
20 mph
Noise
Quiet
Fork Travel
120mm
Motor
Ananda hub motor
Torque
up to 50 Nm
Battery
504 Wh
Range
Up to 4.8 hours
Up to 100 km
(varies based on riding conditions)
Charge Time
3 - 6 hours
(50 - 100%)
Assist
25 km/h
20 mph
Noise
Quiet
KEY FEATURES
- 6061 Hydro-formed alloy hardtail e-bike frame
- SR Suntour XCM32, 120mm, Coil suspension fork
- Ananda 250W hub-motor, 50Nm torque, incl. torque sensor
- 504Wh internal battery with LG Korea cells
- Shimano Acera 1 x 8-Speed drivetain
- Custom Surface wheelset with Shimano hubs
- CST 29x2.25" tyres
- Surface alloy lightweight components
- Weight: 22.5 kg
-
OVERVIEW
![drop-down-arrow-icon-speedlab]()
E-BIKE ALLROUNDER - DAILY COMMUTER & OFFROAD ADVENTURES.
S-Electro 50 is designed around a powerful 50Nm, 250W hub-motor and internal 504Wh replaceable battery. An on-bar smart control LCD display and buttons make switching modes intuitive and easy to do on the fly, while also indicating speed, distance and battery levels. The full Shimano drivetrain offers efficient and reliable gear shifting, while the Shimano hydraulic disc brakes deliver control and stopping power.
FEATURES THAT MATTER
S-Electro 50's 50Nm 250W hub motor is fueled by it's removable internal 504Wh battery that features high quality cells from LG Korea. The integrated torque sensor helps regulate the motors pedal-assist to optimize energy consumption as well as a more natural riding experience. The frame sports 2 sets of water bottle mounts, as well as fender and rack mounts.
DRIVE SYSTEM, POWER AND DISPLAY.
S-Electro 50's frame is dropper post compatible for future upgrades, while the integrated kickstand mount helps with convenient bike parking.
-
Why it's best
![drop-down-arrow-icon-speedlab]()

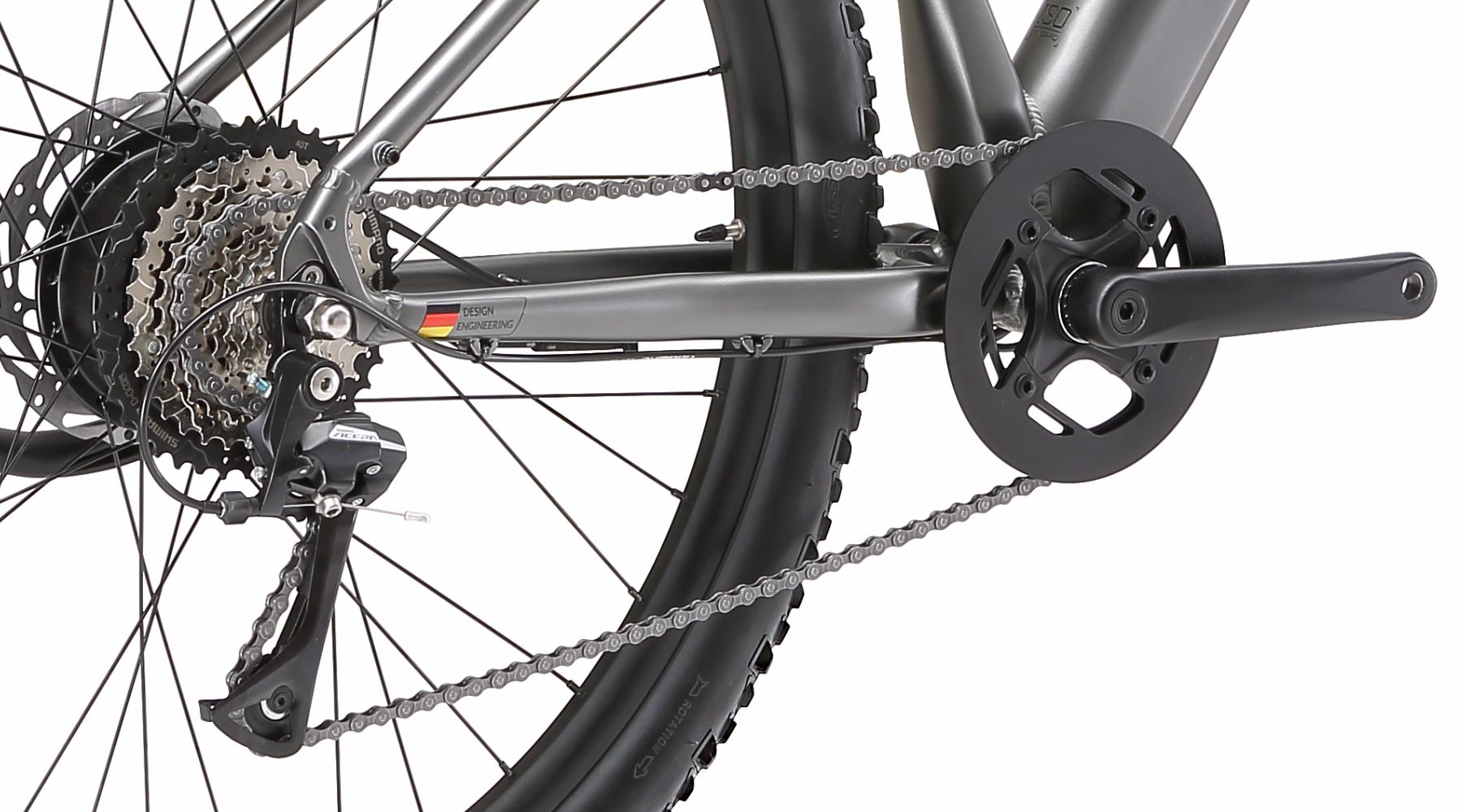

SHIMANO 8-SPEED DRIVETRAIN
Efficient shifting, superior durability and the 11-34T cassette offers plenty of gears for almost any terrain.

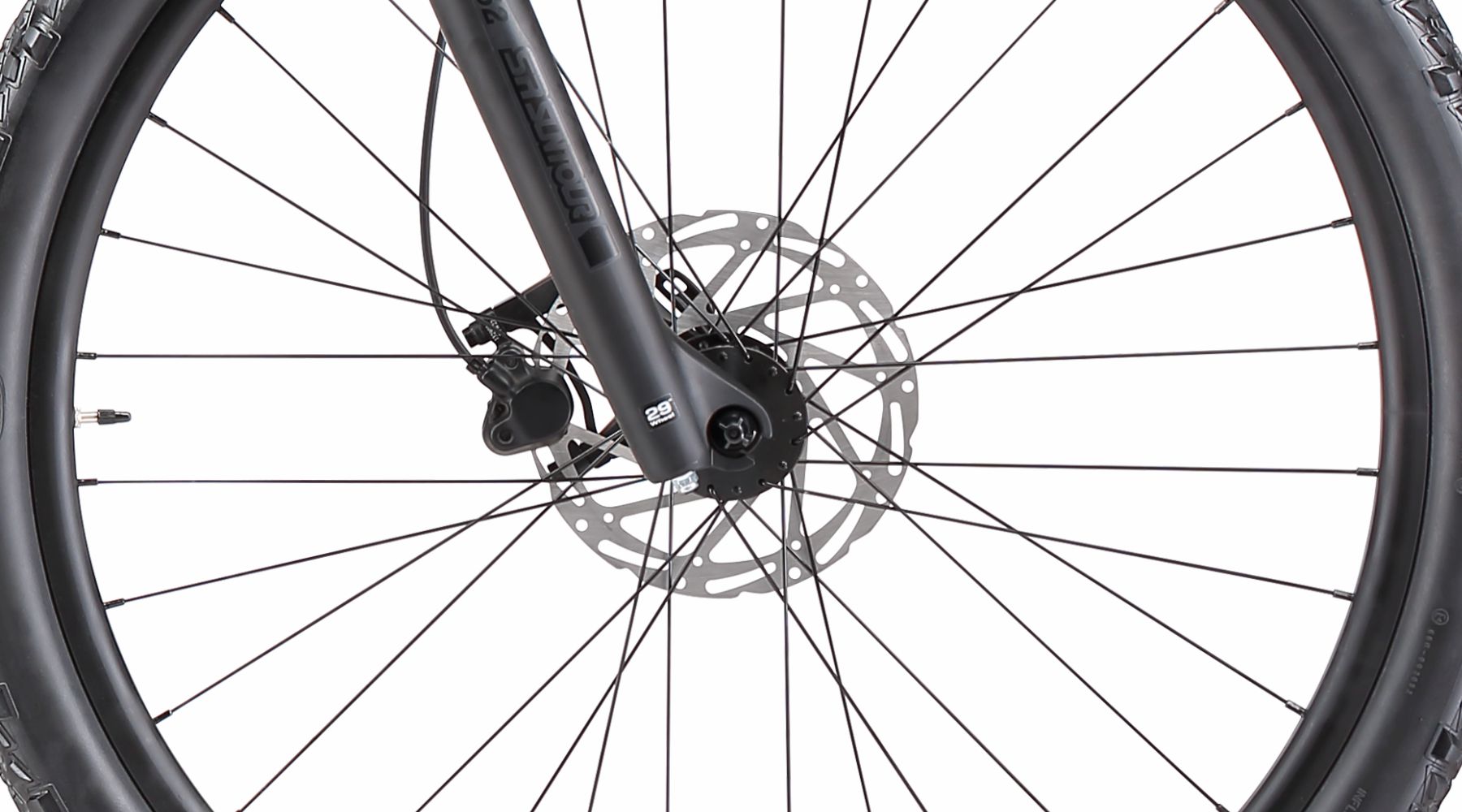

SAFETY FIRST
Powerful Shimano hydraulic disc brakes deliver superior stopping power in all conditions.

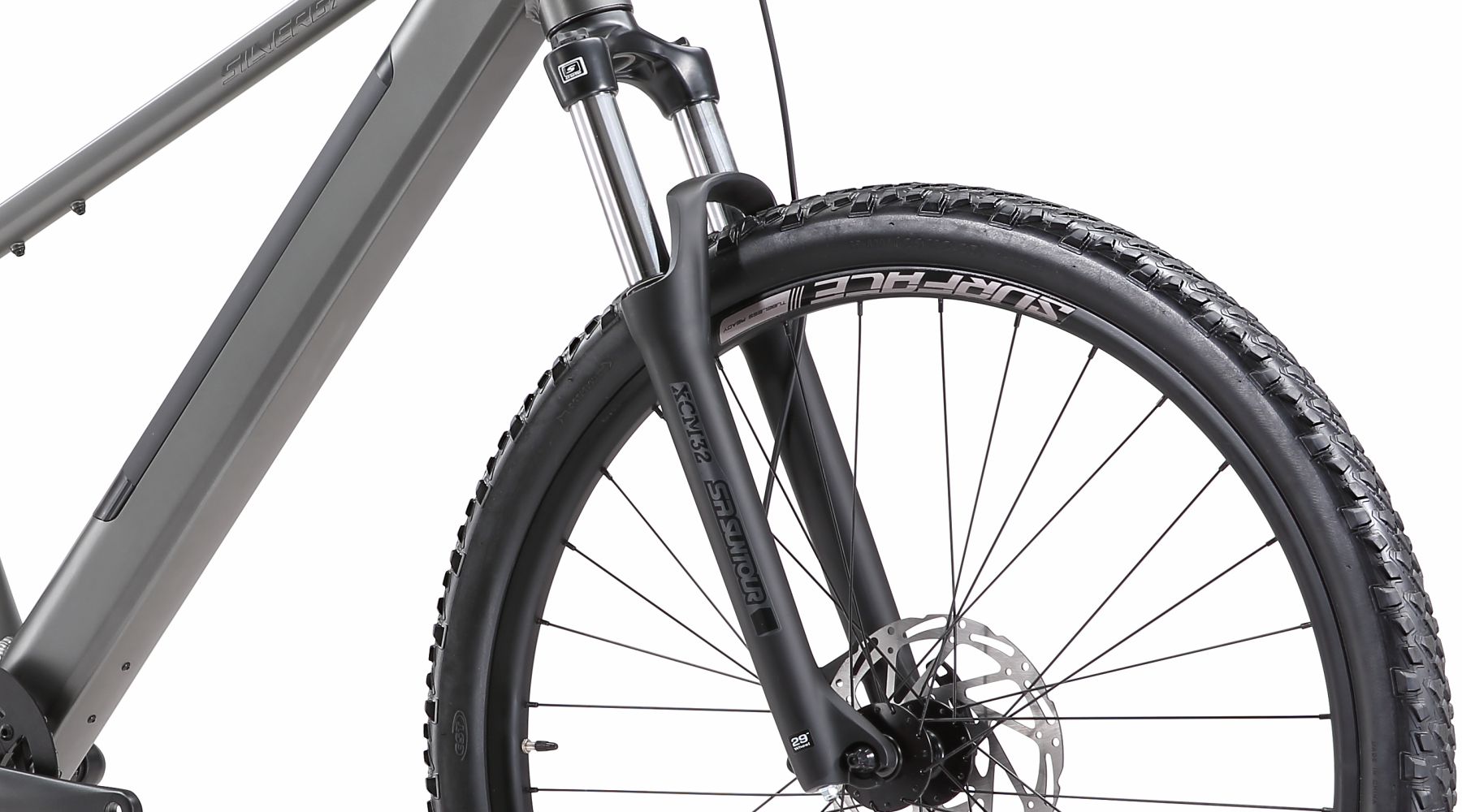

QUALITY SUSPENSION FORKS
Offering 120mm of shock-absorption. Rated and tested strength and durability for E-bikes.
GEOMETRY
Designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This is ideal for commuting or touring, whilst maintaining capability to take on more demanding terrain. Low stand over, making it great for both male and female riders.

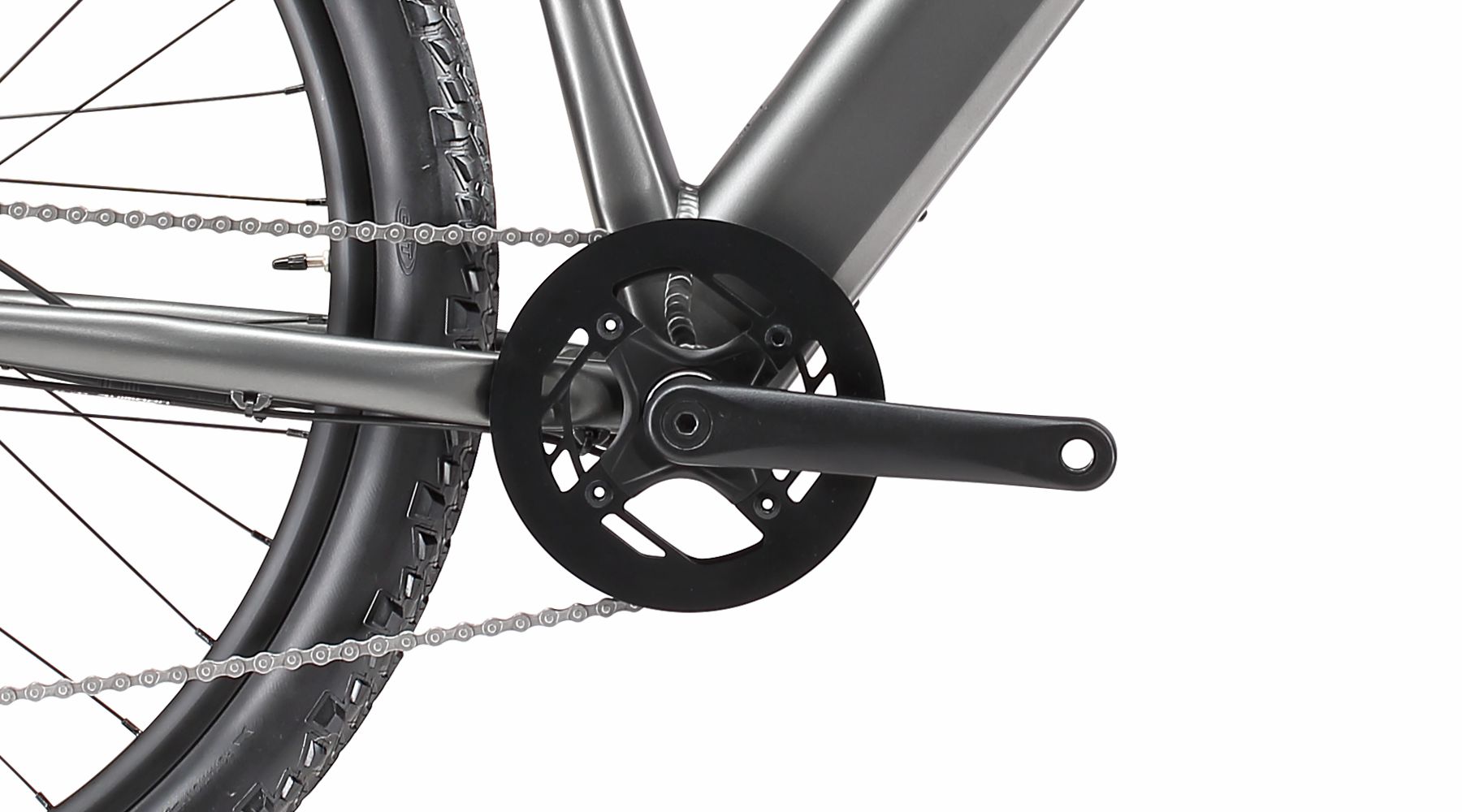

38T CHAINRING & CHAIN GUARD
38T Narrow wide chain and single Chainguard and built to fit and facilitate Torque Sensor. The Narrow/Wide chainrings help prevent chain drop.
POWERFUL HUB MOTOR
S-Electro 50 is designed around a powerful 50Nm, 250W hub-motor. The integrated torque sensor helps regulate the motors pedal-assist to optimize energy consumption as well as a more natural riding experience.

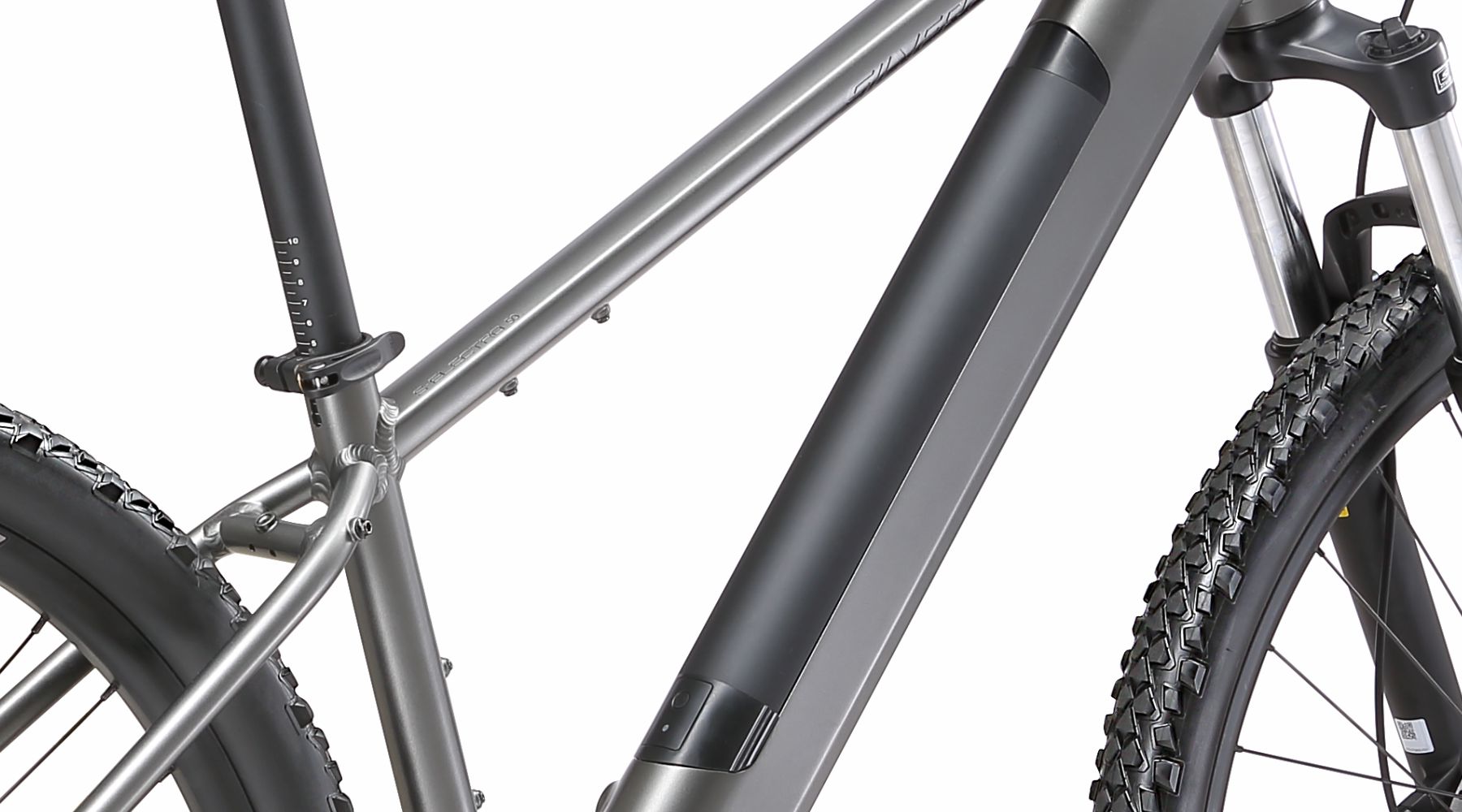

HIGH VOLUME 504 Wh BATTERY
504Wh internal battery delivering up to 4.8 hours / up to 100 km range of pedal assistance. Lock up your bike worry free – the battery is key removable only.
DROPPER POST COMPATIBLE
Dropper posts can improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome. The frame is compatible with internal-routed dropper posts and simple to set up.
LONG-TRAVEL DROPPER POSTS
The S-Electro 50 frame waterbottle bosses are welded to the outer surface of the seat-tube, allowing the seatpost to slide deeper. More space for longer travel!
TUBELESS READY E-BIKE RIMS
The S-Electro 50 includes tubeless ready rims, ready for future upgrades.
INFORMATIVE DISPLAY
Depending on S-Electro Diamond Model, it offers a very informative display for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.
E-BIKE RATED WHEEL SET
Strong and durable to better handle the power and weight of e-bikes. In addition, the E-MTB rated CST tyres are fast and smooth rolling for commuting.
OVERSIZED COCKPIT PARTS
S-Electro 50 uses oversized alloy cockpit parts such as riser handlebar, stem and seat post diameter, which are strong, lightweight and offer a more comfortable sitting position. Ergonomic grips help give hand relief.
ERGONOMIC SADDLE
S-Electro models offer an anatomically shaped saddle for more comfort.
FENDER AND RACK COMPATIBLE
The S-Electro 50 includes mounting points for rear racks, allowing you to haul your gear when you commute/tour. (Rack sold separately)

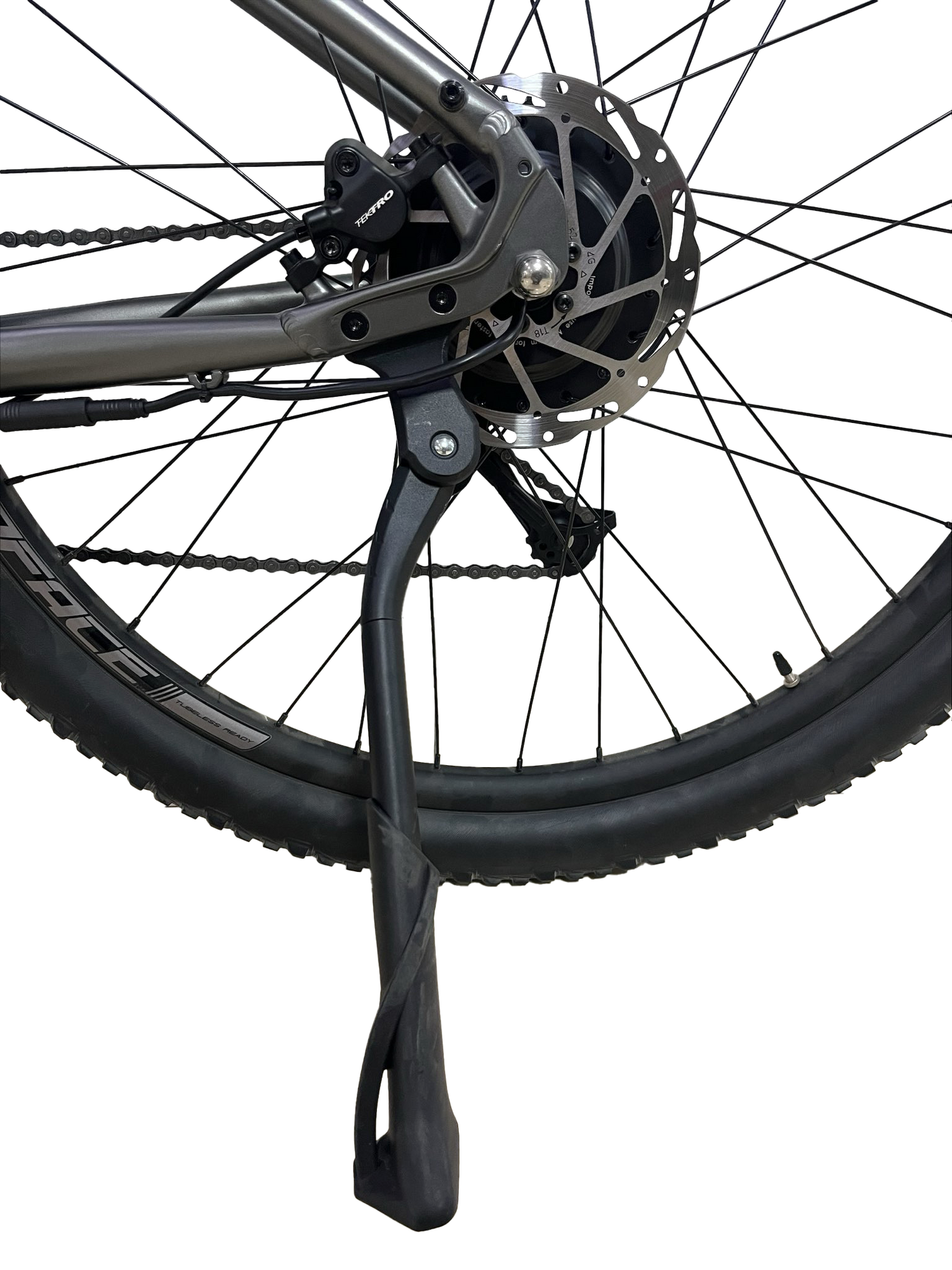

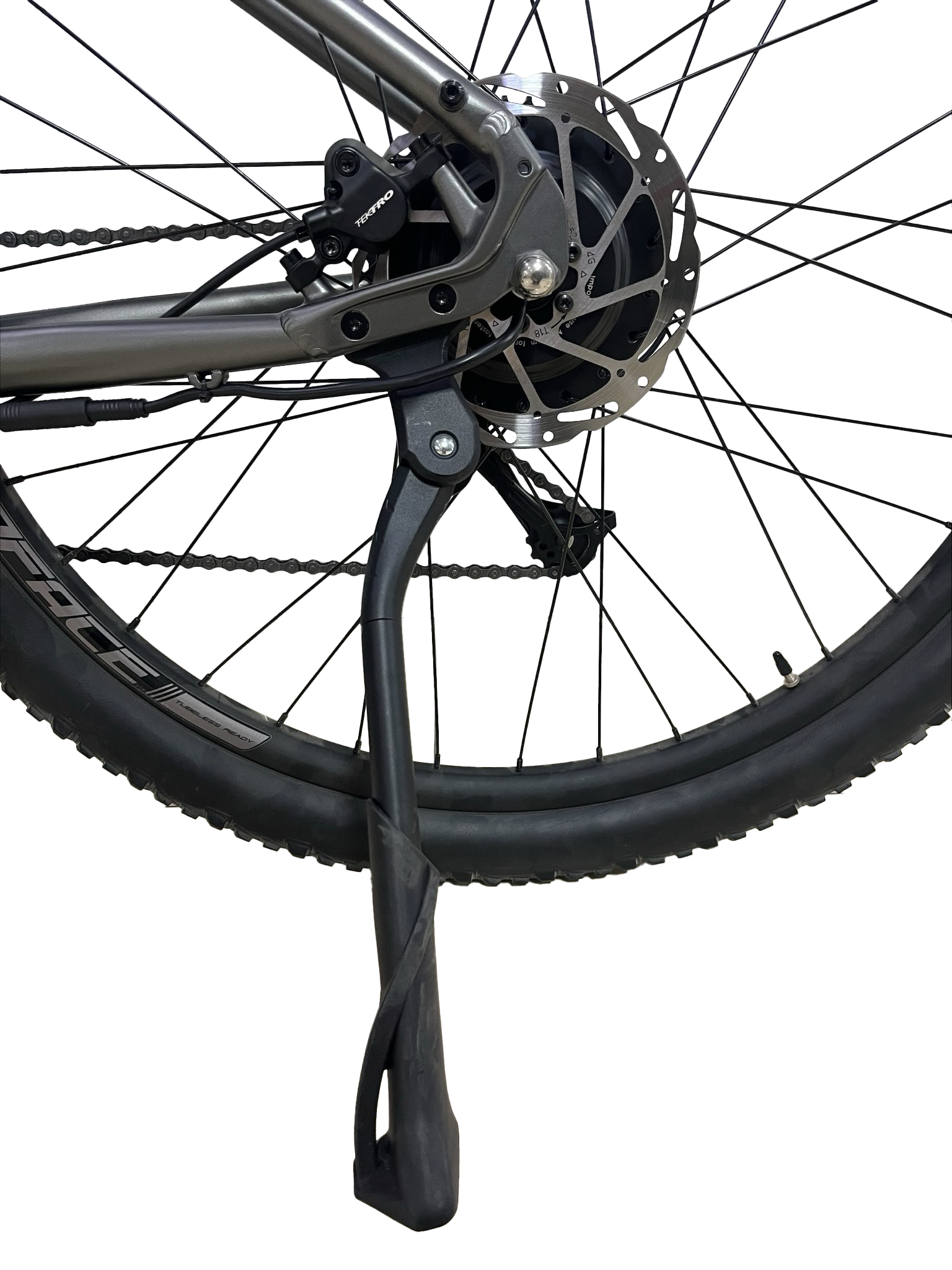

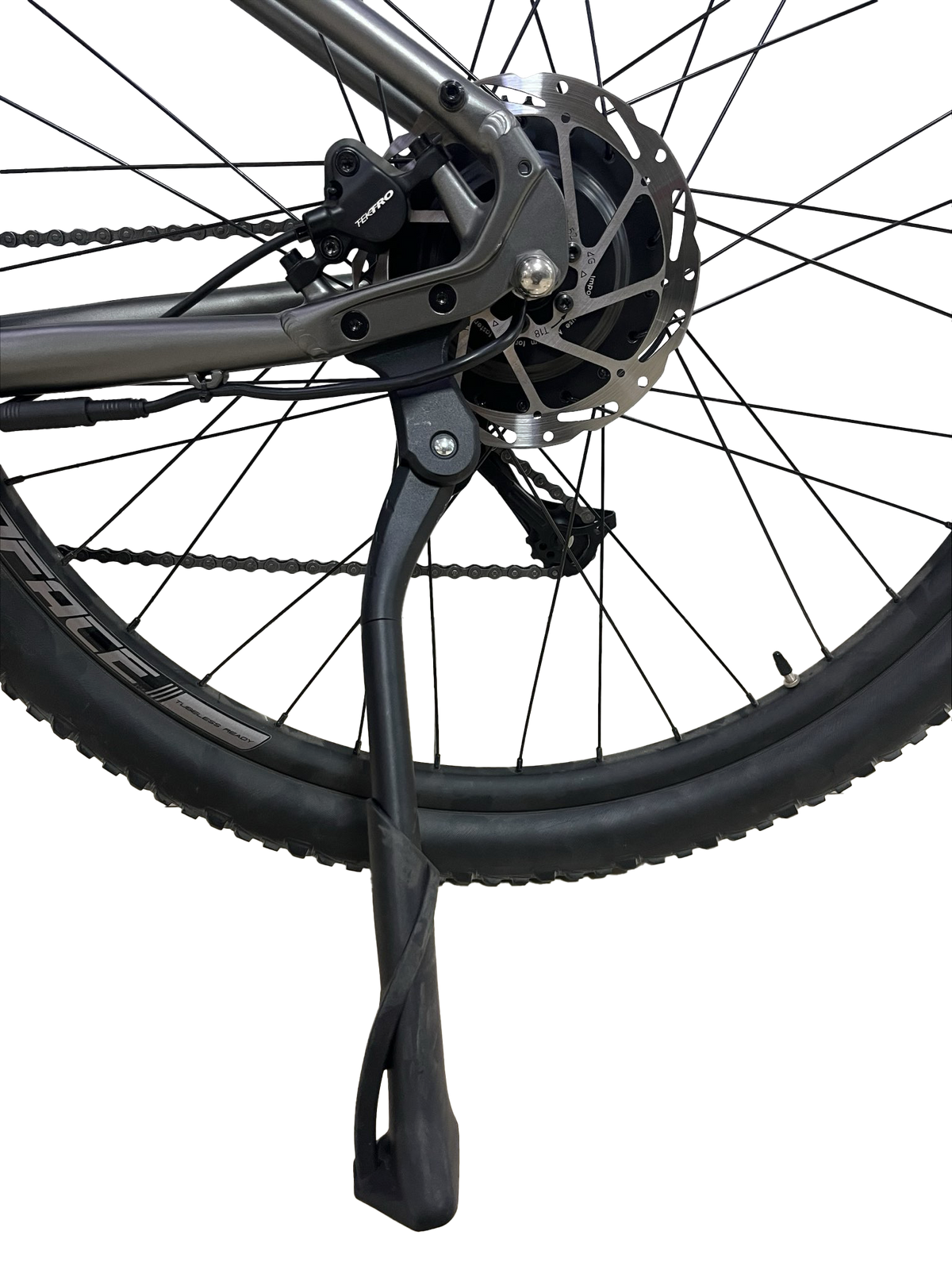

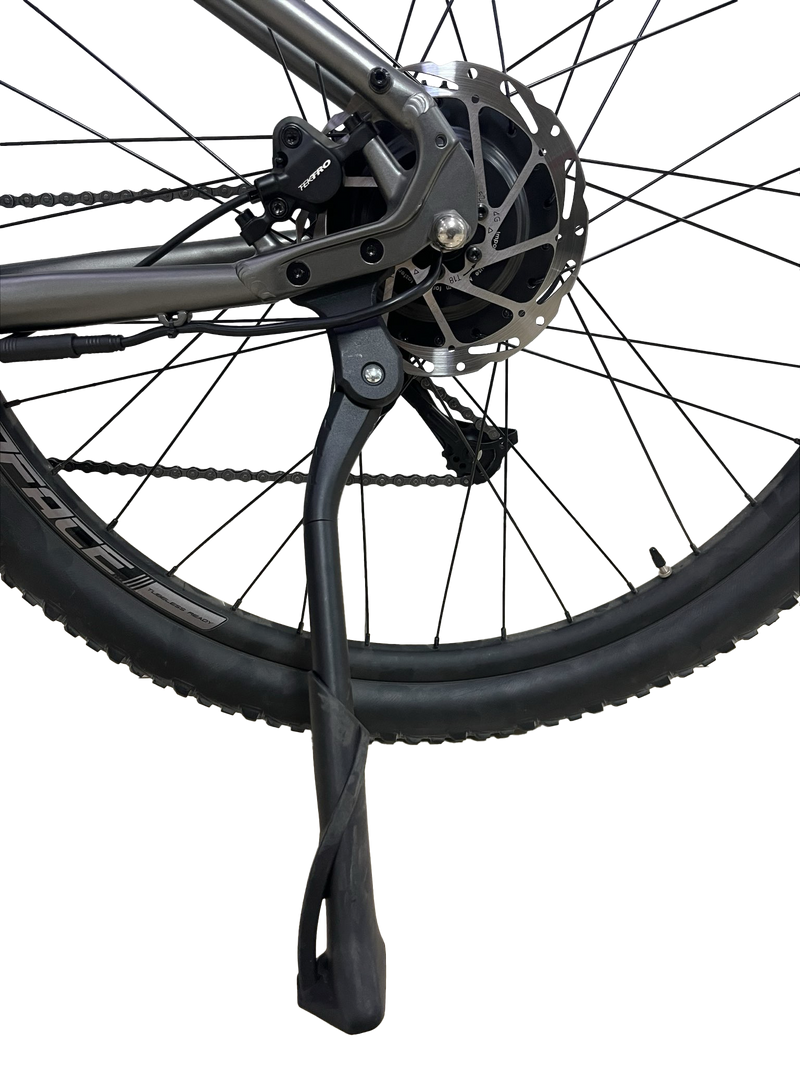

KICK STAND MOUNT
Park your E-bike bike quickly and safely. (Kickstand included)
-
Specification
![drop-down-arrow-icon-speedlab]()
-
Size chart & Geometry
![drop-down-arrow-icon-speedlab]()
FIND YOUR FIT.
Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.GEOMETRY.
map type(mm unless specified) S M L XL Rider height(cm) 154-170 170-180 178-190 185-210 Rider inseam(cm) 70-77 77-82 81-86 84-95 A Seat tube c/t 390 420 460 500 B Seat tube angle 74.5° 74.5° 74.5° 74.5° C Head tube angle 67° 67° 67° 67° D Top Tube 609 620 644 666 E Reach 425 435 455 475 F Chainstay length 465 465 465 465 G bb height 315 315 315 315 H head tube length 135 140 155 165 I stack 662 666 680 689 J standover 764 778 808 836 K Wheelbase 1198 1198 1229 1253 -
