SE:Series 7

Name: SE:Series 7
Brand: Silverback
SKU: 0086544013706
Price: 358.0 EUR
Availability: OutOfStock
Rating: 4.80 (5 reviews)

€358

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.80 5 reviews

Size:

Wheel Size:

Color: Moondust Metallic

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Joeblow sport digital - Pumps - cycling - bike - TOPEAK - - - - Speedlab

Topeak Joeblow sport digital

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-05

SE:Series 7

€358,00

Sold Out

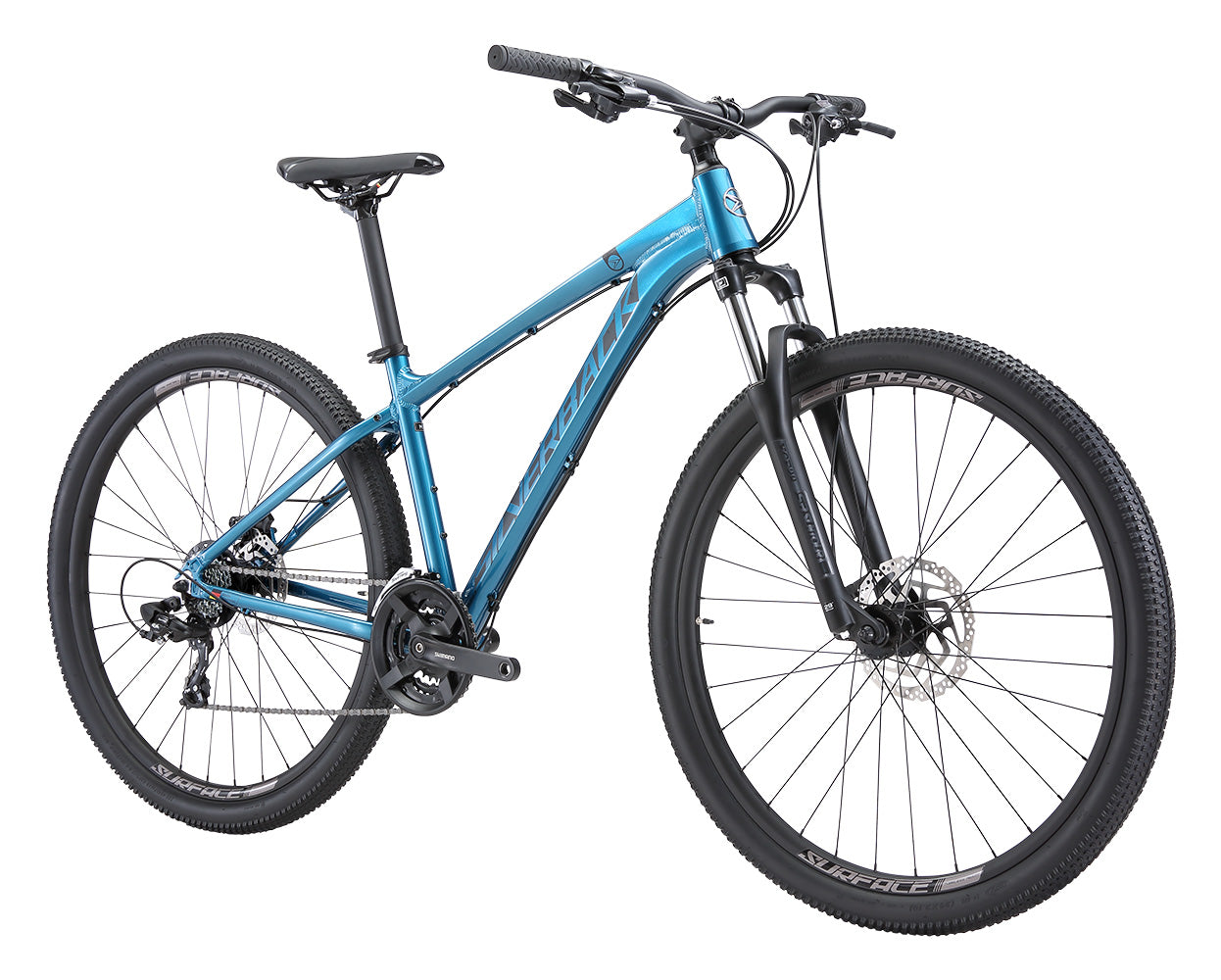

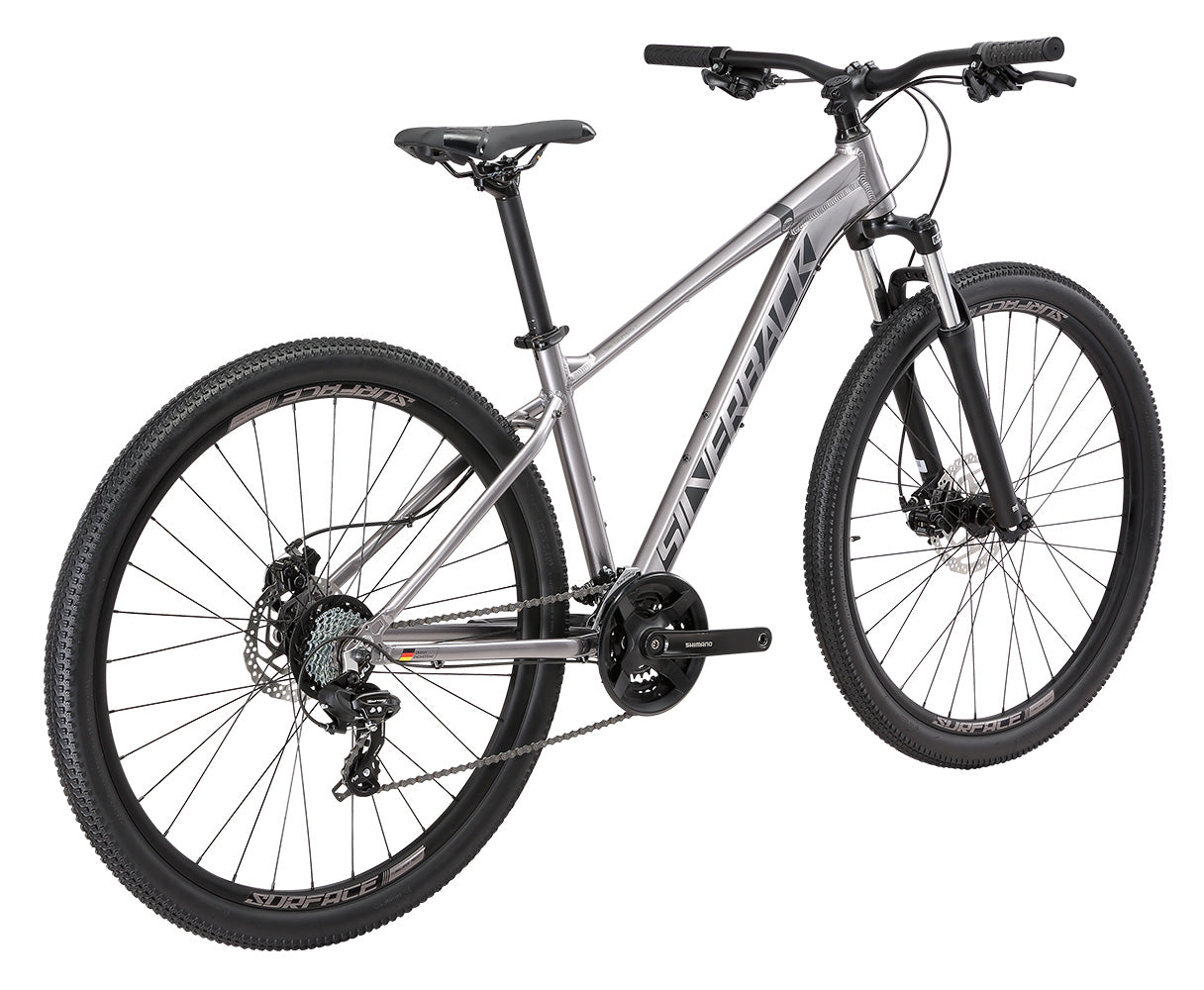

Lightweight aluminium hardtail mountain bike for outdoor exercise and every day commuters. The 3 x 7-Speed Shimano Tourney drivetrain lets you cruise over any terrain. The 100mm suspension fork adds some obstacle cushioning, while the disc brakes deliver reliable stopping power in wet and dry. The included standard kickstand and rack mounts, add convenience for your daily commute.

At a Glance

Hydro-formed 6061 alloy frame
Suntour XCE28 Suspension Fork, 100mm travel
Shimano Tourney 7-speed rear derailleur
Surface Tubeless Ready wheelset with Shimano hubs
CST 29x2.10" tyres
Shimano Cable-Disc Brakes
Weight: 16.5 kg

TECH HIGHLIGHTS

SE:SERIES 7 - OUTDOOR EXERCISE & DAILY COMMUTER

RECREATION POP GEOMETRY

POP geometry engages bigger leg muscle groups for more effective climbing. The rider position on the SE:Series 7 improves traction, front wheel grip and bike control. This means that it also feels more natural, boosting confidence and skill development.

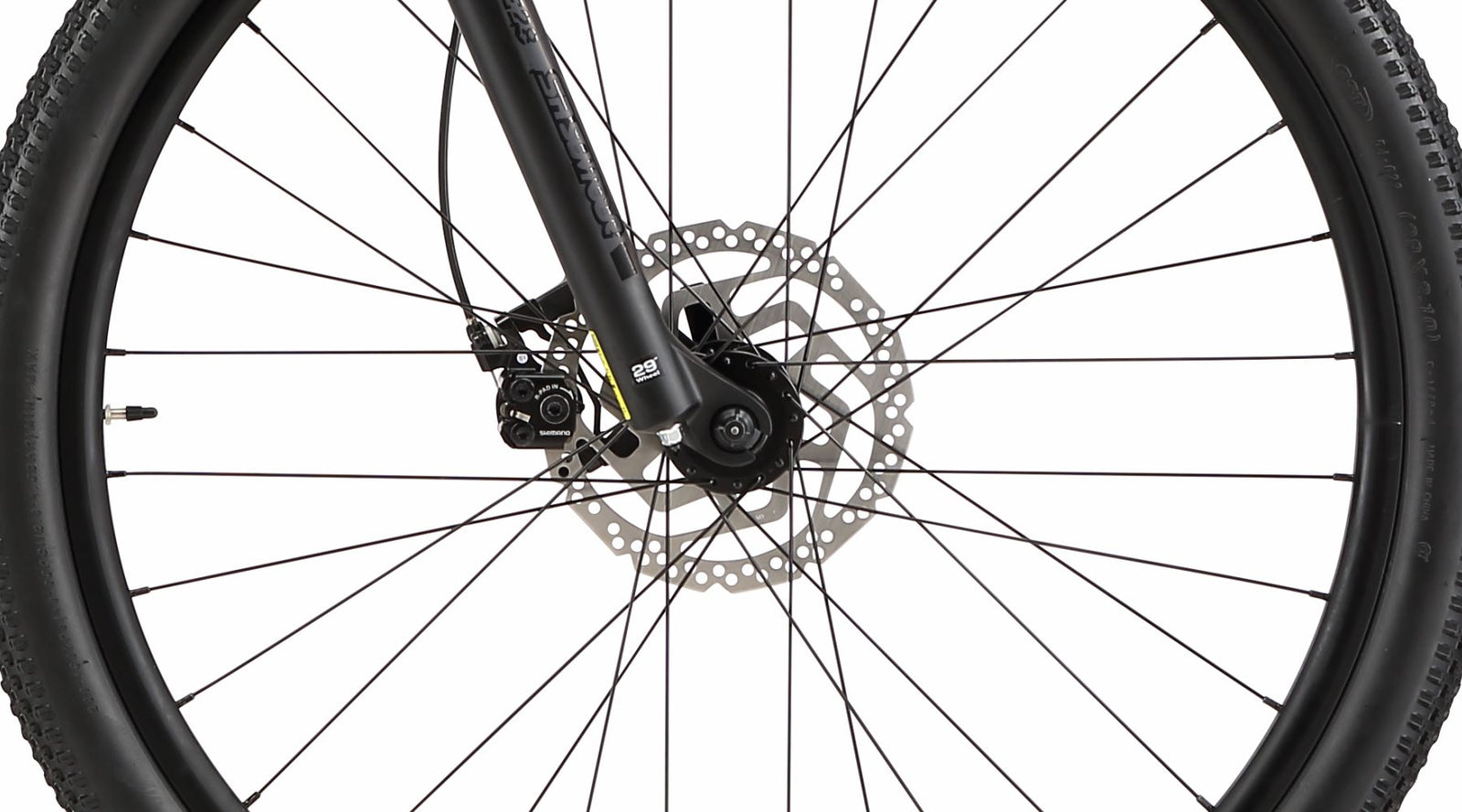

Mechanical Disc Brakes

The SE:Series 7 comes equipped with mechanical disc brakes for strong and reliable stopping power.

Hydroformed alloy frame

Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 26, 27.5 & 29" x 2.1" tyre clearance, rack and fender mounts.

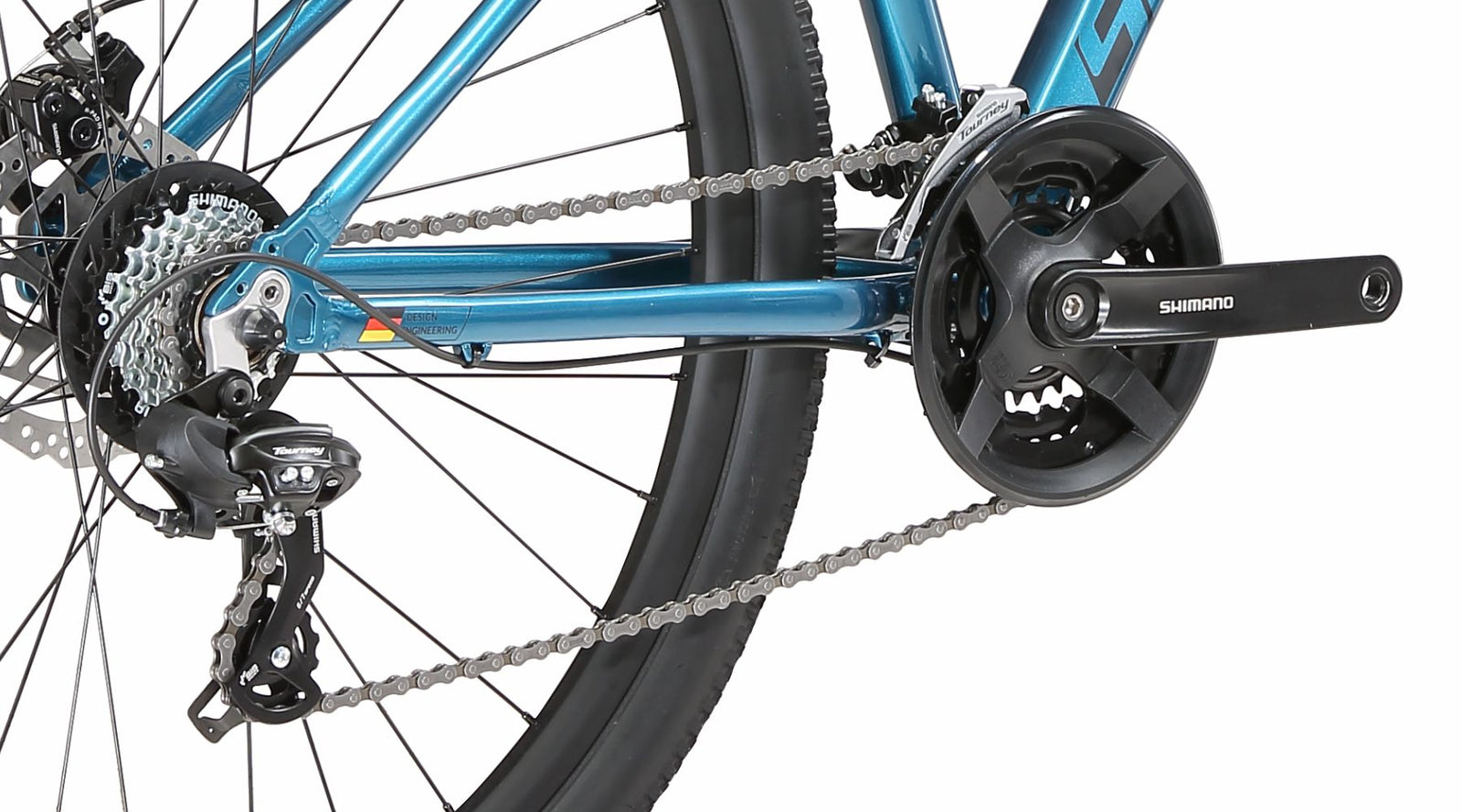

3 x 7 Drivetrain

Ample gears for your commute! A chainring guard is also included on all 3x drivetrains to help prevent clothing getting caught.

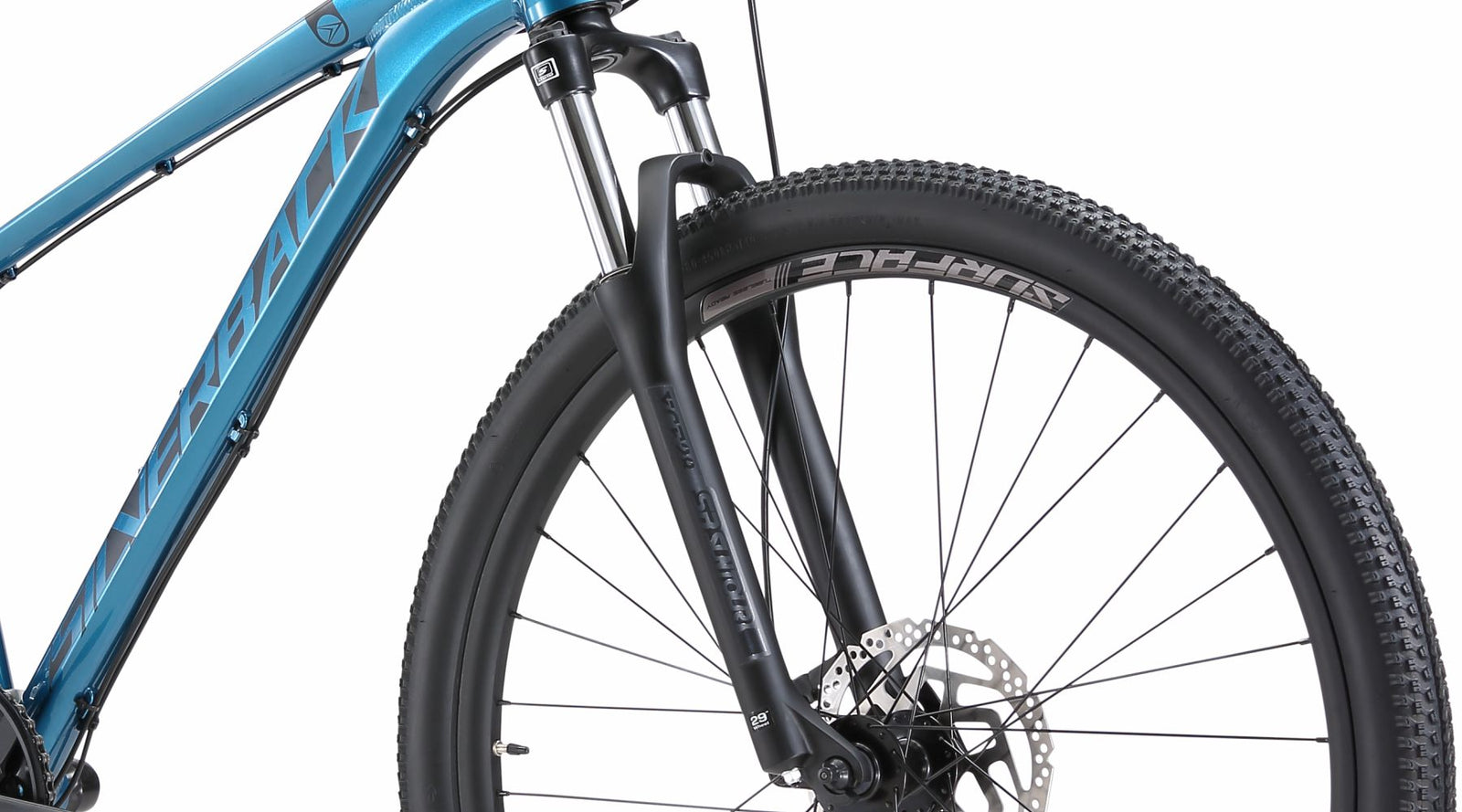

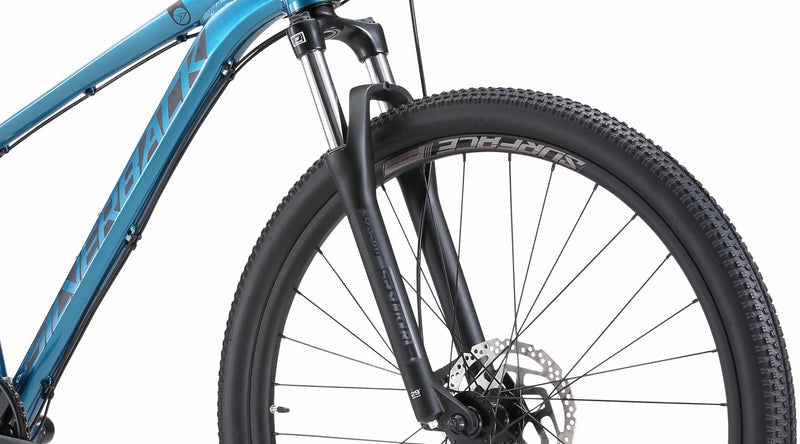

Quality Suspension Fork

The SE:Series 7 is fitted with purpose chosen 100mm suspension fork - Suntour XCE28 Coil fork with Tapered Steerer. A suspension fork improves comfort and traction on a hardtail mountain bike.

SURFACE ALLOY CONTROL PARTS

All SE:Series bicycles are fitted with Surface quality alloy control parts. This means less weight, more durability and function, and worry free ownership. Ergonomic Grips & Saddle improve comfort by relieving pressure from sensitive areas.

TUBELESS READY, WIDER RIMS & TIRES

Surface Alloy Wheels are pre-taped and tubeless ready from the box. Easy to set up tubeless, just add sealant and inflate to seat.

Waterbottle mounts

SE:Series 7 offers more waterbottle mount options. Sizes M-XL have capacity for 2 bottles. (Bottle cages sold separately)

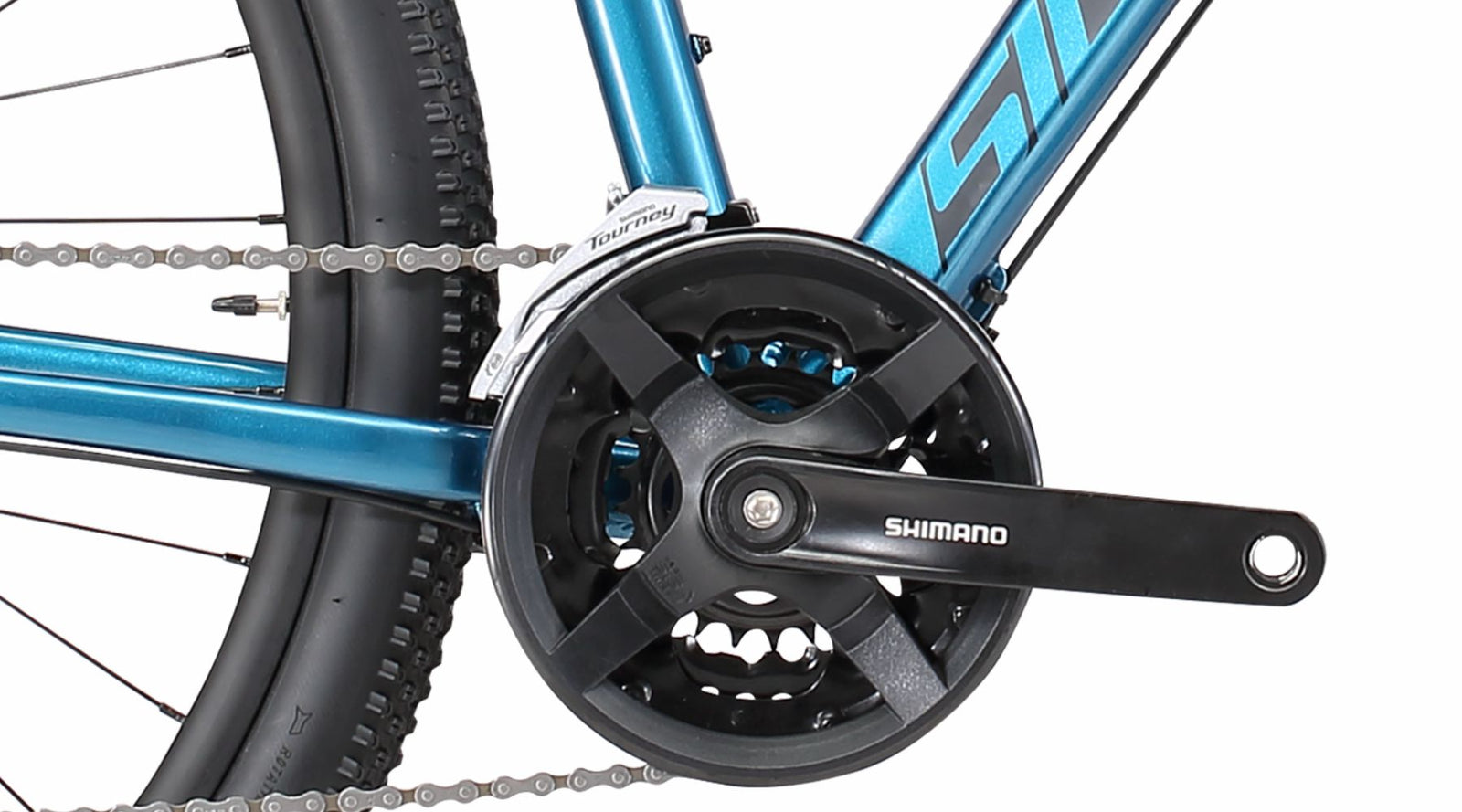

SURFACE CHAIN GUARD

Improves chain stability, helps to prevent chain drop as well as preventing clothing snags.

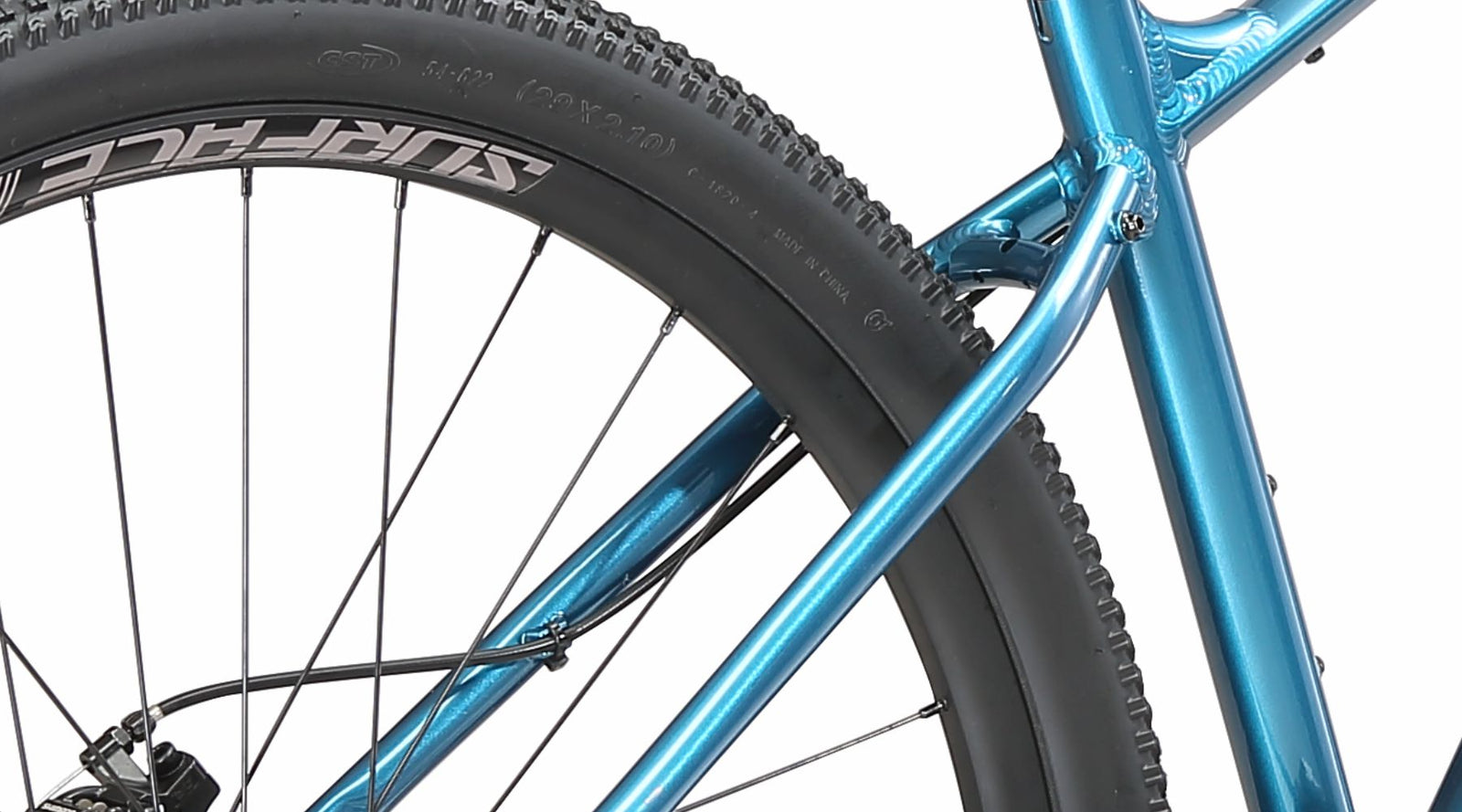

TYRE CLEARANCE

Designed to easily fit higher volume up to 2.1” tires with plenty of mud clearance. Bigger tires can increase contact area and thus ride comfort, control and grip.

RACK MOUNTS INTEGRATED IN FRAME.

All SE:Series models include mounting points for rear racks, allowing you to haul your gear when you commute/tour. (Rack sold separately)

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, external cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.35" tyre clearance, rack and fender mounts

Headset

Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/30

Frame Axle Spacing

135x9mm

Axle Specification

Hanger Type

HANGER 05

SUSPENSION

Fork

SR Suntour XCE28 Coil, 29"x2.1", 100m Travel, Preload Adjuster

Fork Travel

100mm

WHEELS

Wheelset

SURFACE Custom

Hubs

F: Joytech Alloy, 32H, 100mm OLD, 115mm QR, 6-bolt Disc
R: Joytech Alloy, 32H, 135mm OLD, 170mm QR, 6-bolt Disc, 7-Speed

Rims

F: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready
R: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready

Tyres

F: CST 1820, 29x2.10"; Wire Bead
R: CST 1820, 29x2.10"; Wire Bead

Max Tyre Size

2.1"

DRIVETRAIN

Crankset

Shimano Tourney FC-TY301, 42x34x24T, 7-Speed

Max Chainring Size

42x34x24T

Bottom Bracket & Type

BSA73

Shifter(s)

L: Shimano ST-EF41-L Shift/Brake Lever, 3-Speed
R: Shimano ST-EF41-7R Shift/Brake Lever, 7-Speed

Front Derailleur

Shimano Tourney FD-TY600-L6, Top-Swing, 3-Speed

Rear Derailleur

Shimano Tourney RD-TY300, 6/7-Speed

Cassette

Shimano MF-TZ510-7 Freewheel, 7-Speed, 14-28T

Chain

KMC Z7

BRAKES

Brakes

Shimano BR-M375 Mechanical/Cable Disc, Resin Pads

Rotors

F: Shimano SM-RT26 Rotor, 180mm
R: Shimano SM-RT26 Rotor, 160mm

COCKPIT

Grips

Surface Single Density, 120mm

Handlebar

Surface, Alloy, Ø31.8mm, 720~760mm, 9° Backsweep, 30mm Rise

Stem

Surface, Alloy, Ø31.8mm, ±3° Rise, 45mm Extension

Saddle

Surface

Seat Post

Surface Alloy, Ø30.9mm

Seatpost Clamp

Alloy, 35mm, QR Clamp

Pedals

One Piece PP, Black

WEIGHT

Bike Weight

16.5 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

What hanger model fits the SE Series 7?

Hanger 05
Is the bike tubeless or tubeless ready or will it need to be fully converted?

This bike has tubeless ready rims, however, the tyres will need to be replaced with tubeless tyres
What is the longest dropper post I can fit on this bike?

Estimated max dropper travel per frame size: S: 125mm, M: 150mm, L: 170mm, XL: 170mm
Can I order this model as a 650B plus?

Yes, XS, S & M are available in 650B / 27.5"
Can I fit a longer fork onto this bike?

No, we dont recommend more than a 100mm travel fork.
Will the geometry change if I fit 650B plus wheels?

Yes, the BB height, stack & standover will be lower.

OTHER MODELS IN THE SERIES

€289

SE:SERIES 275V

Hardtail | Sport XC | Alloy

100mm Travel
27.5" x 2.1" Wheels
3x7 Speed Shimano
16.3kg

€358

SE:SERIES 7

Hardtail | Sport XC | Alloy

100mm Travel
26/27.5/29" Size-specific
3x7 Speed Shimano
16.5 kg

€486

SE:SERIES 8

Hardtail | Sport XC | Alloy

100mm Travel
29"/27.5"
1x8 Speed Shimano
15.5kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XXS(26")	XS(27.5")	S(27.5")	M(27.5")
	Rider height(cm)	134-146	143-156	153-170	170-180
	Rider inseam(cm)	61-66	65-70	69-77	77-81
A	Seat tube c/t	330	350	380	420
B	Seat tube angle	74°	74°	74°	74°
C	Head tube angle	69°	68°	68°	68°
D	Top Tube	545	564	579	601
E	Reach	380	393	408	430
F	Chainstay length	435	445	445	445
G	bb height	305	305	305	305
H	head tube length	105	110	110	110
I	stack	576	595	595	595
J	standover	680	686	705	730
K	Wheelbase	1051	1103	1118	1140

map	type(mm unless specified)	S(29")	M(29")	L(29")	XL(29")
	Rider height(cm)	153-170	170-180	178-190	188-210
	Rider inseam(cm)	69-77	77-81	80-86	85-95
A	Seat tube c/t	380	420	460	500
B	Seat tube angle	74°	74°	74°	74°
C	Head tube angle	67.5°	67.5°	67.5°	67.5°
D	Top Tube	587	607	630	659
E	Reach	409	428	450	475
F	Chainstay length	460	460	460	460
G	bb height	310	310	310	310
H	head tube length	110	110	115	125
I	stack	619	624	628	637
J	standover	719	744	771	799
K	Wheelbase	1148	1168	1192	1221
