SE:Series 10

Name: SE:Series 10
Brand: Silverback
SKU: 0086544014185
Price: 686.0 EUR
Availability: OutOfStock
Rating: 4.67 (6 reviews)

€686

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.67 6 reviews

Size:

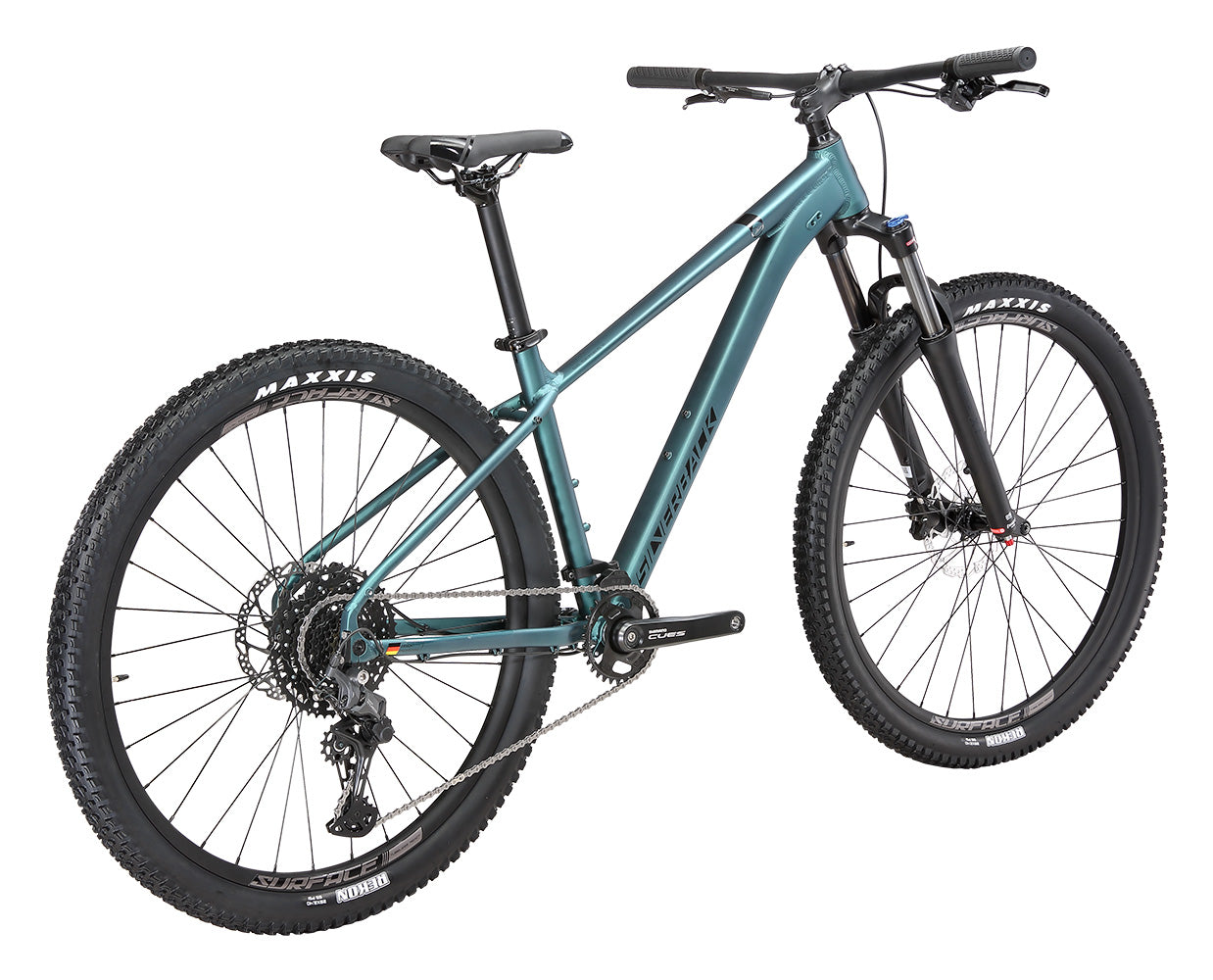

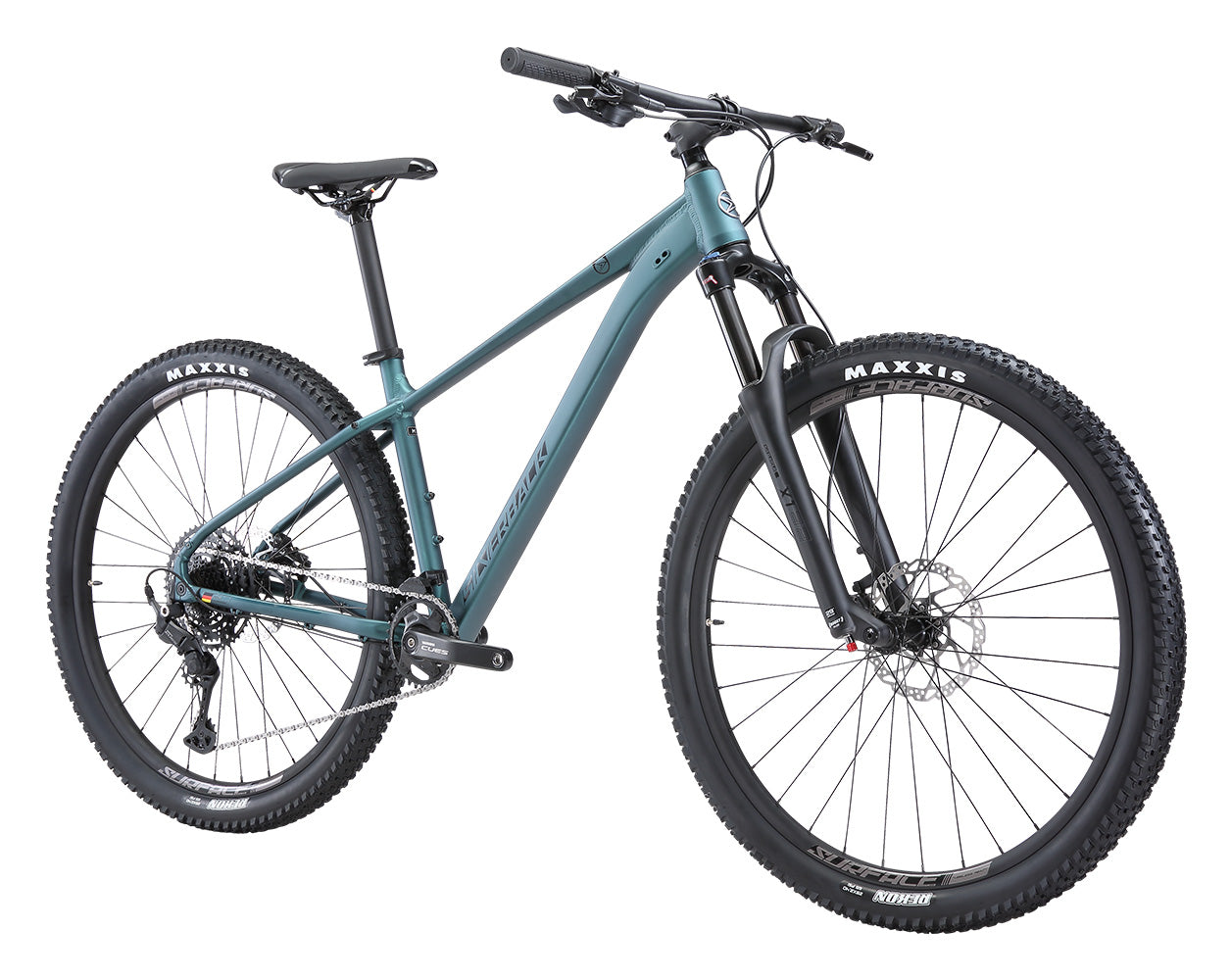

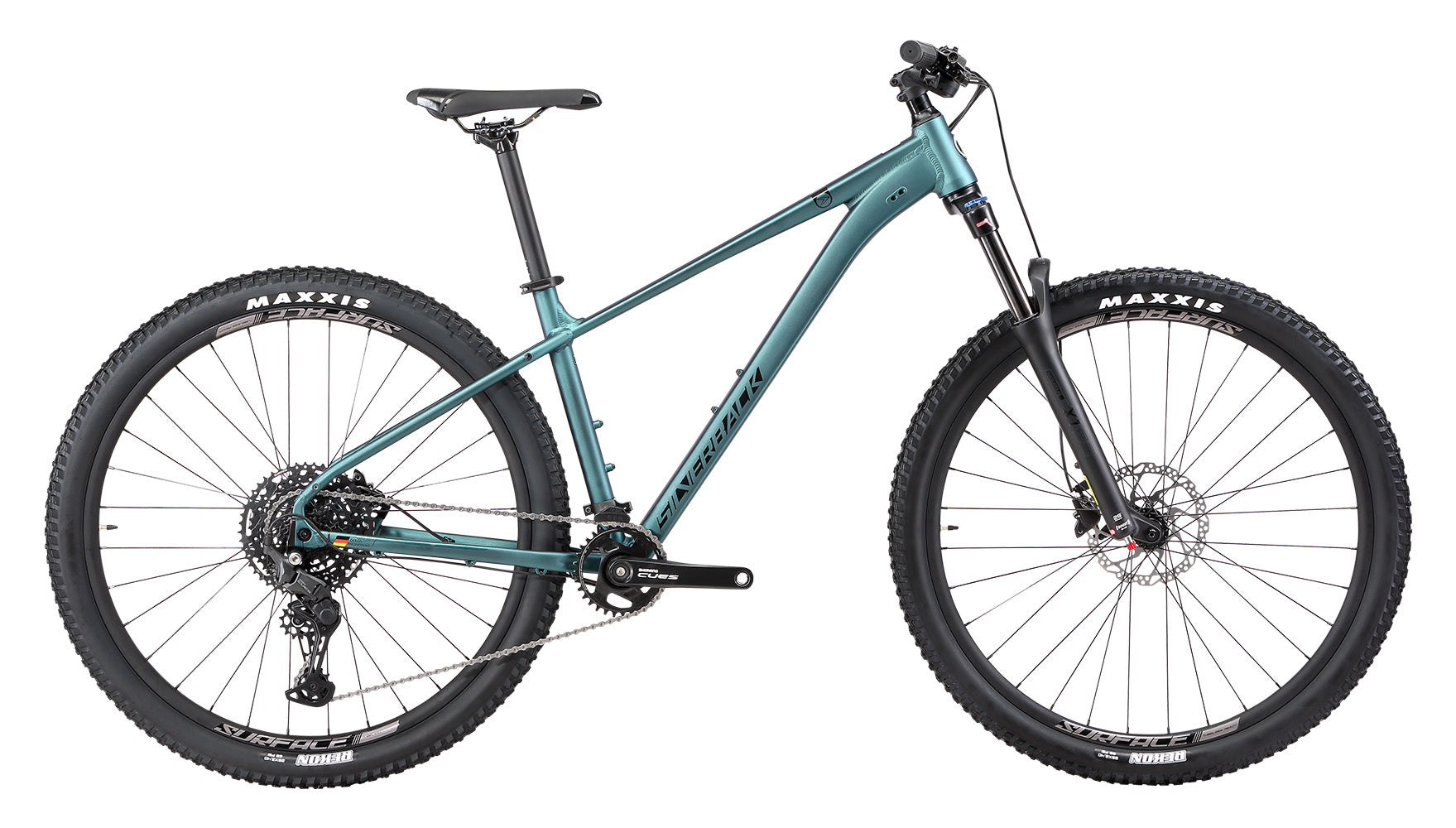

Color: Matt Metallic Emerald

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Joeblow sport digital - Pumps - cycling - bike - TOPEAK - - - - Speedlab

Topeak Joeblow sport digital

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-19

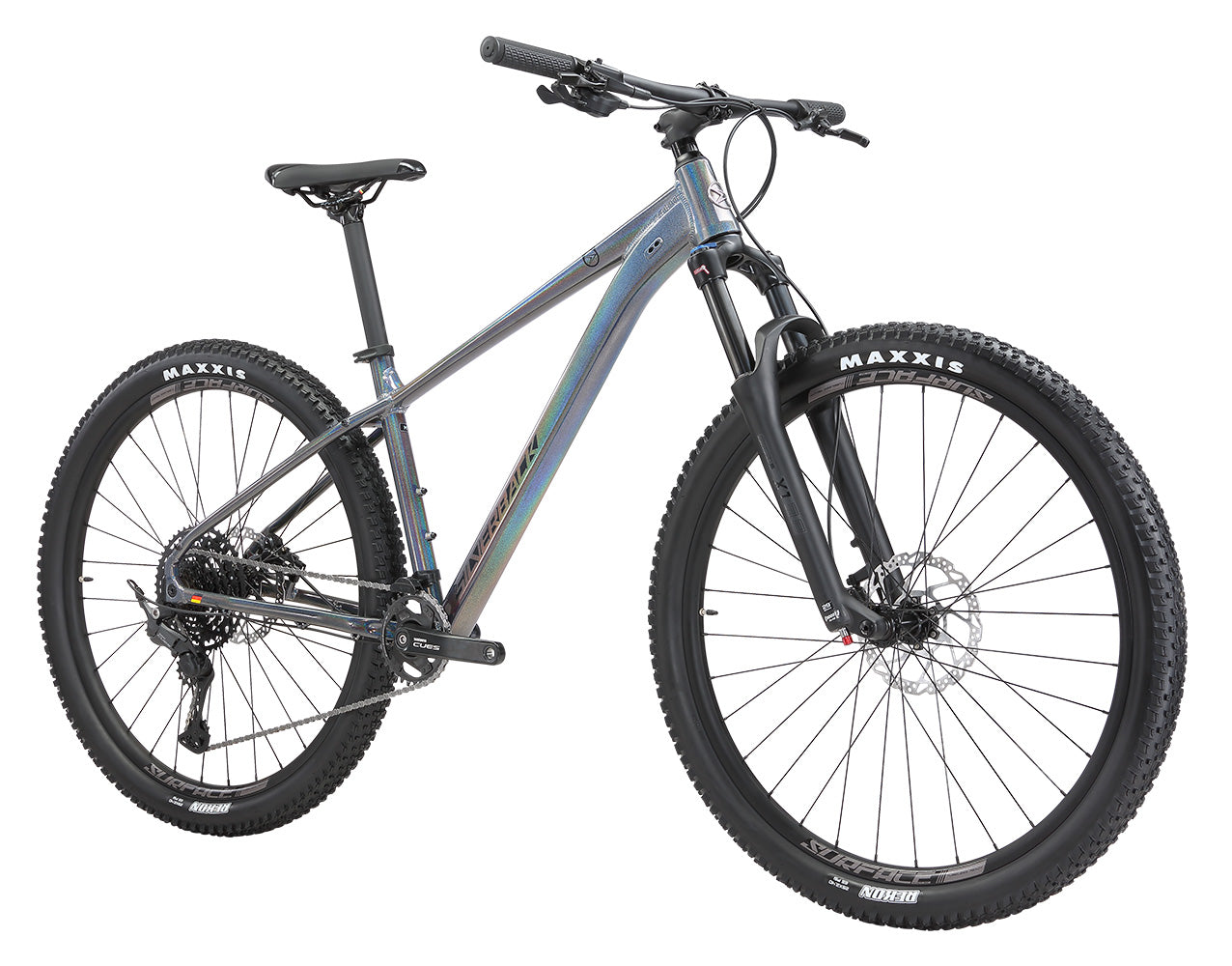

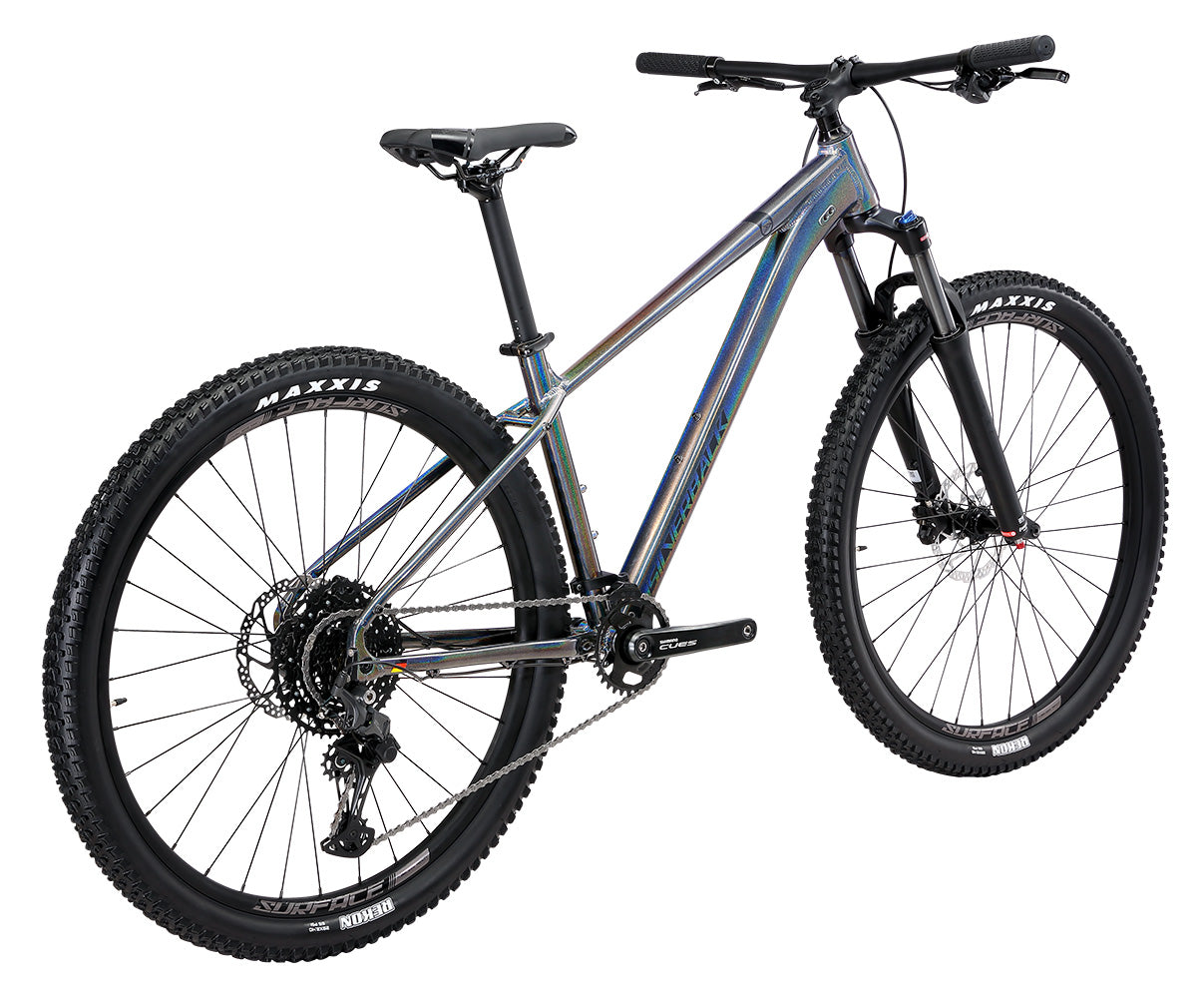

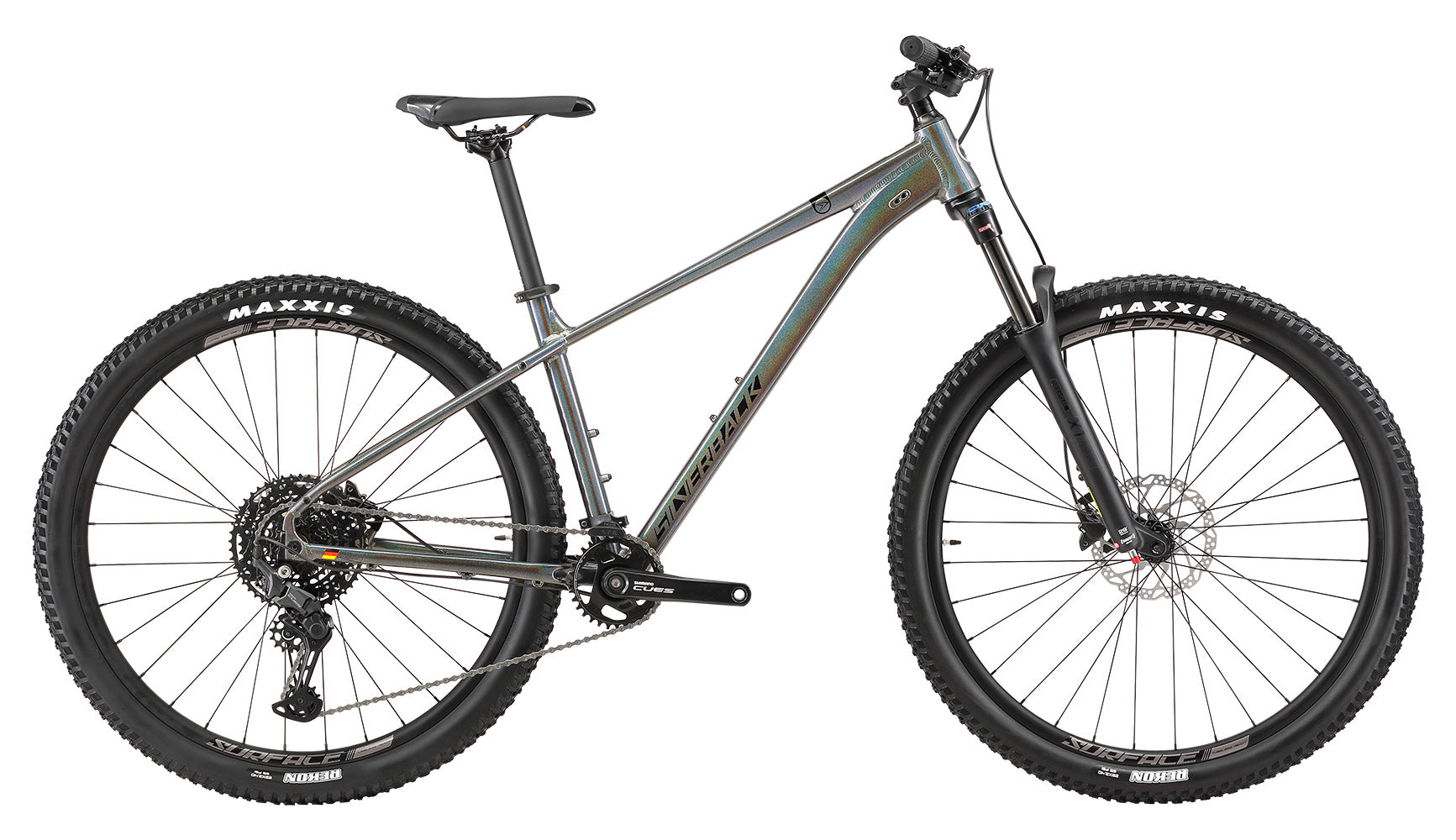

SE:Series 10

€686,00

Sold Out

Hardtail trail and enduro riding is a sure-fire way to quickly boost your skill and confidence. Featuring our new sweet spot geometry, The SE:Series 10 brings uncompromised climbing and descending prowess to trail hardtails.

At a Glance

New Hydro-formed 6061 alloy frame with Boost spacing & ISCG tabs
Suntour X1 Air Fork, 120mm travel
Shimano CUES 6000 Shadow Plus 10-speed rear derailleur
Surface Custom Asymmetrical, Tubeless Ready wheelset
Maxxis Rekon 29x2.4" tyres
Shimano Hydraulic Disc Brakes
Weight: 16.5 kg

TECH HIGHLIGHTS

SE SERIES 10 - THE PERFECT ENTRY TO TRAIL RIDING

Hardtail trail mountain biking is a sure-fire way to quickly boost your skill and confidence. Featuring our new sweet spot geometry, The SE Series 10 brings uncompromised climbing and descending prowess to trail hardtails.

TRAIL OPTIMISED POP GEOMETRY

POP geometry engages bigger leg muscle groups for more effective climbing. The rider position on the SE Series 10 improves traction, front wheel grip and bike control. This means that it also feels more natural, boosting confidence and skill development.

Hydroformed alloy frame

New Frame, Updated Geometry and Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, 148mm x 12mm through axle dropouts, 18mm direct-mount 2-bolt kickstand, water bottle bosses, ISCG Tabs, 29" x 2.4" tyre clearance, rack and fender mounts.

Short chainstays

The Short chainstays on the SE Series 10 makes for a very nimble handling bike. The forged and flipped yoke creates enough clearance for 29x2.6" tyres on the 430mm chainstays with ample crankarm clearance to boot.

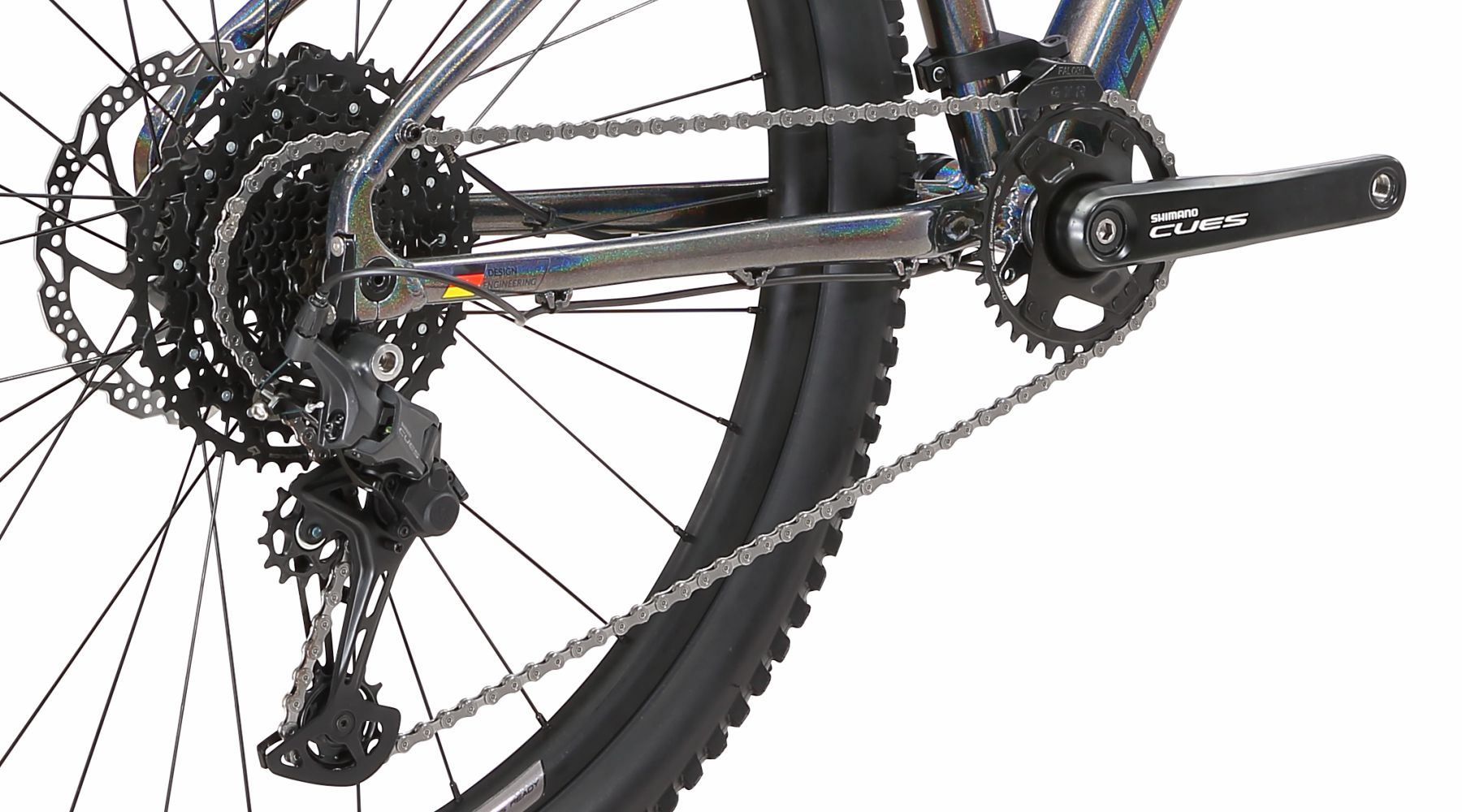

1x Drivetrain

All SE Series 10 & 12 models come standard with 1x drivetrains.

Innovative easy-route internal cable routing

SE Series 10 features full internal routing. The brake line follows the seatstay, making this the shortest possible rear brake line route on the bike. Dropper post cable routing is included for future bike upgrades.

Internal Dropper post compatible

SE Series 10 models have internal cable routing ready for a dropper post upgrade.

Long-travel dropper post friendly

SE Series 10 & 12 models seatube bolts that are elevated, preventing interference with long-travel dropper post insert depth.

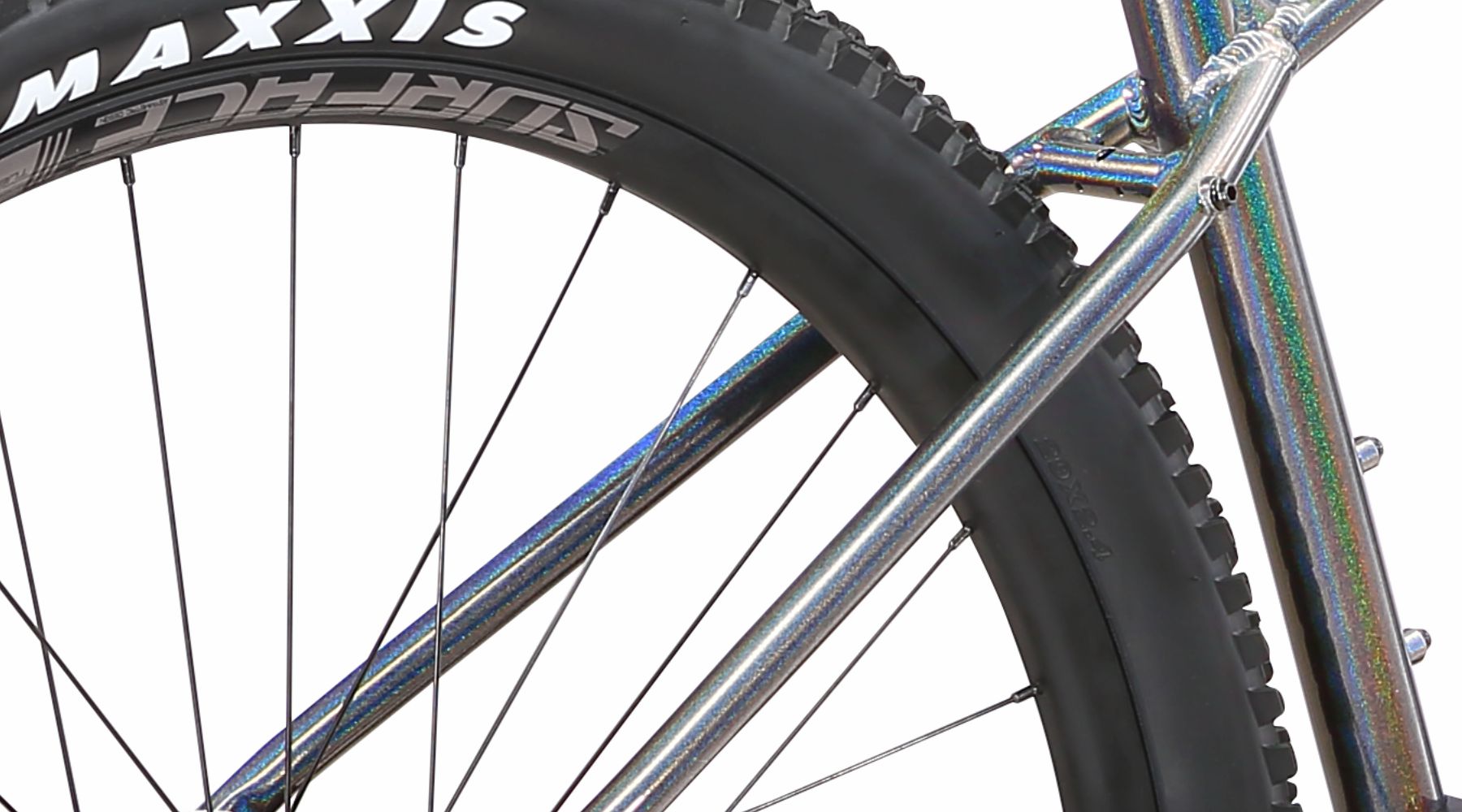

High volume - 2.6" tyre compatibility

Tyre compatibility is 27.5 x 2.8" or 29" up to 2.6" wide, giving plenty of setup options and creating our most versatile hardtail ever. Larger volume tyres offer noticeably better bump absorption and grip!

Thru Axles and boost

The SE Series 10 front and rear axles offer BOOST spacing and thru axles. This makes for stronger wheels, a more durable frame, and stiffer feeling bike when you ride it hard.

Waterbottle mounts

SE Series 10 offers more waterbottle mount options. Sizes M-XL have capacity for 2 full sized bottles while size Small has 1. (Bottle cages sold separately)

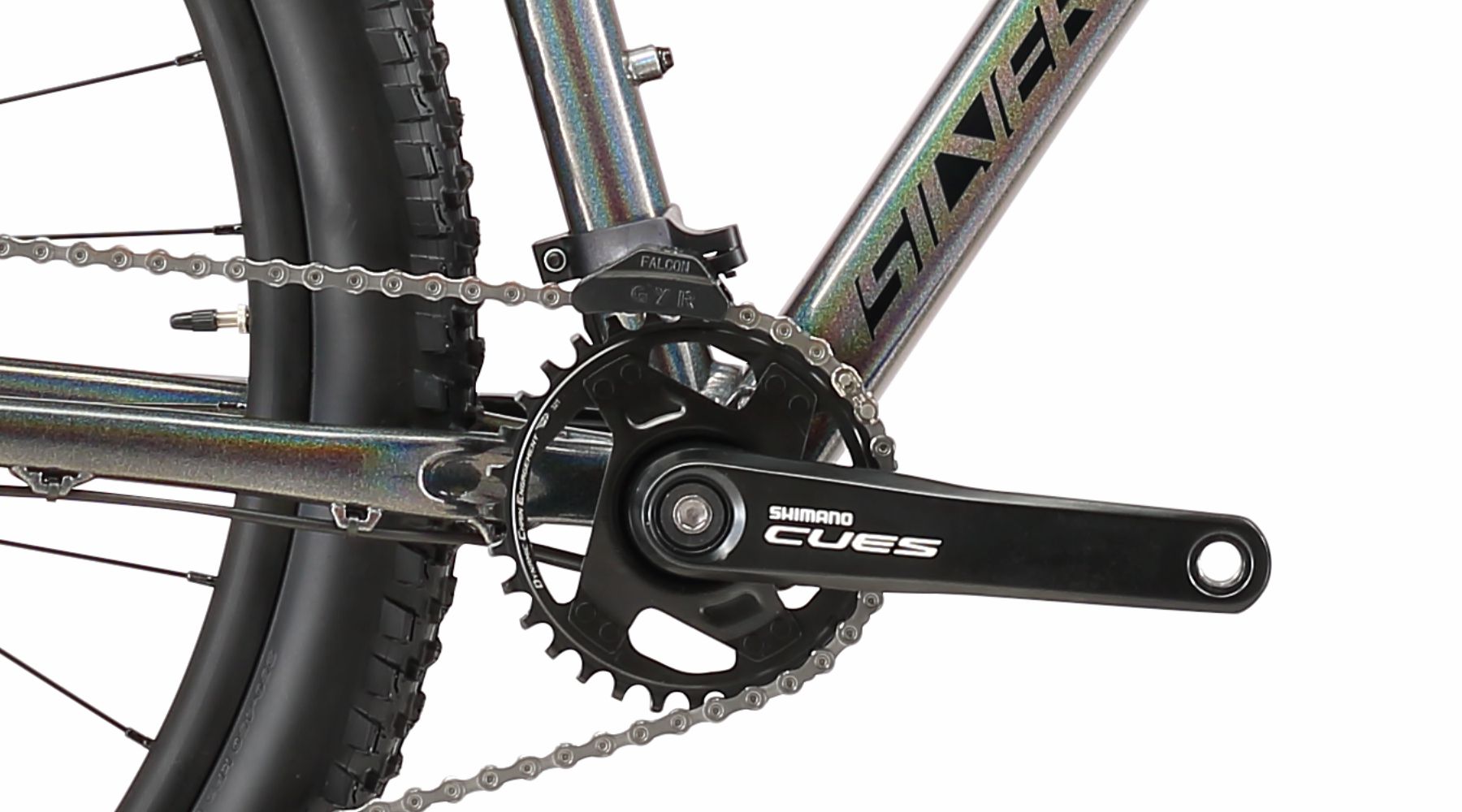

SURFACE CHAIN GUIDE

Included on all 1x drivetrains. Improves chain stability, helps to prevent chain drop.

Fine-tuned Head Tube

Tapered 66.5° head angle improves climbing stance & handling.

Refined seat-stay bridge & wide tyre clearance

Seat Stay support bridge to stiffen up the rear triangle with an attachment point for a fender or mud guard.

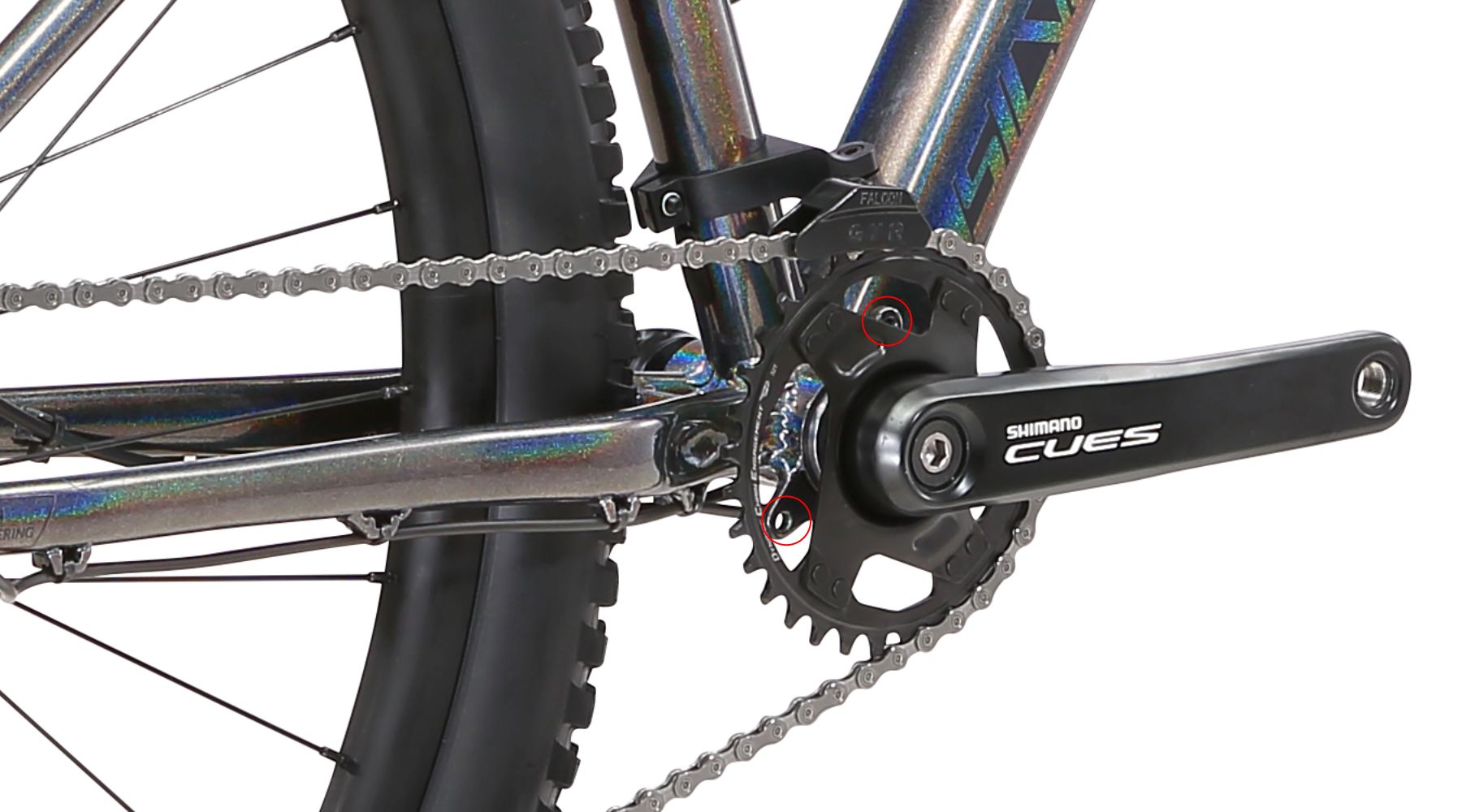

International Standard Chain Device (ISCG).

Dont drop a chain! All SE Series 10 frames feature ISCG tabs & compatible chain guide.

RACK MOUNTS INTEGRATED IN FRAME.

All SE Series models include rack mounts, allowing you to haul your gear when you commute/tour. (Rack sold separately)

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Headset

Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/30

Frame Axle Spacing

148x12mm

Axle Specification

173x12mm P1.5T

Kickstand Mount

18mm Direct Mount

Hanger Type

HANGER 19

SUSPENSION

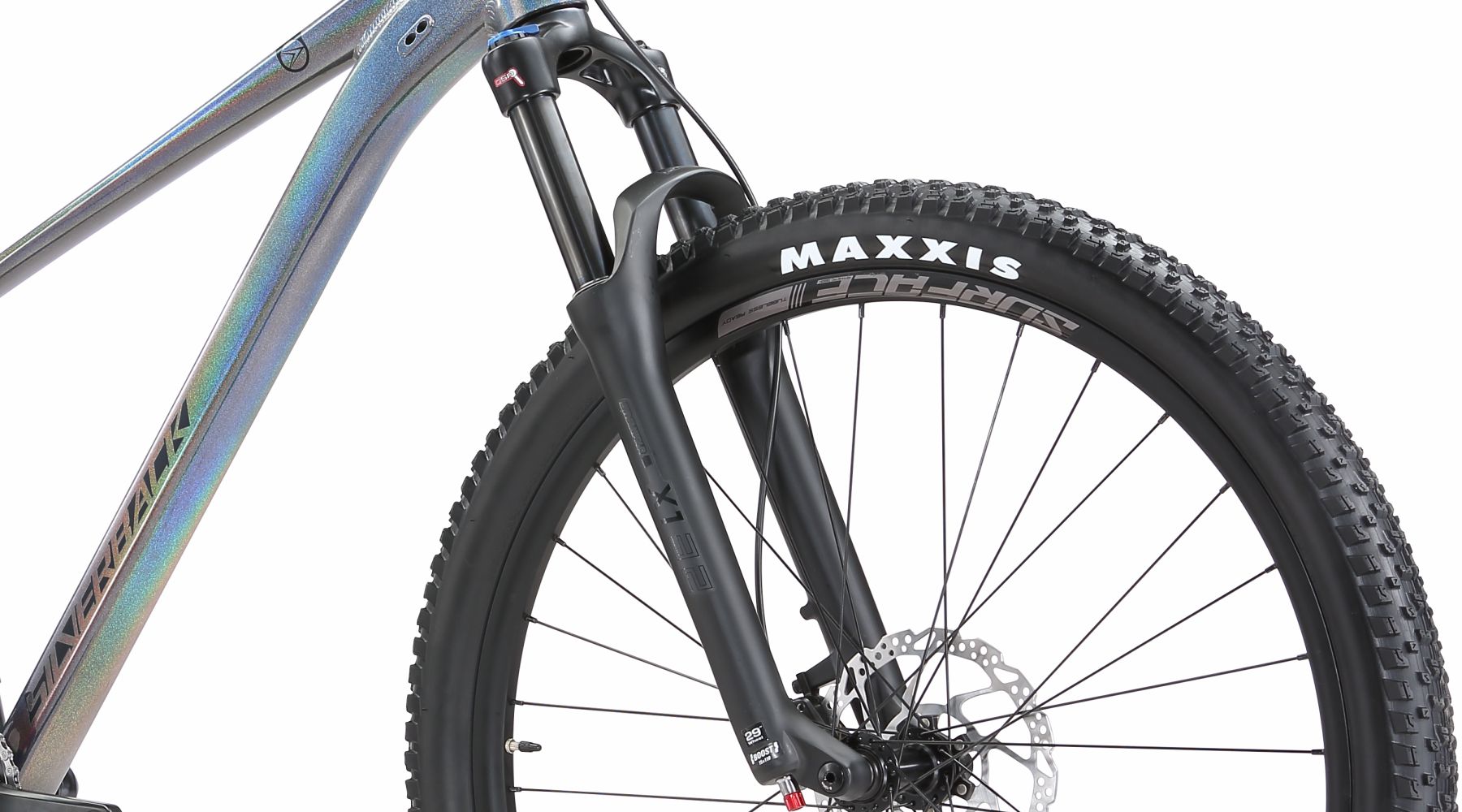

Fork

SR Suntour X1 Boost Air LOR DS, 120mm Travel, 32mm Black Stanchions, LOR Damper

Fork Travel

120mm

WHEELS

Wheelset

SURFACE Custom

Hubs

F: Shimano HB-TC500-15-B, Centre Lock Disc, 32H, 15mm Thru-Axle, OLD: 110mm

R: Shimano FH-TC500-HM-B, Centre Lock Disc, 32H, 8-11-Speed, 12mm Thru-Axle, OLD:148mm

Rims

F: Surface Alloy, 32H, 29" x 25mm, Asymmetrical, Tubeless Ready

R: Surface Alloy, 32H, 29" x 25mm, Asymmetrical, Tubeless Ready

Tyres

F: Maxxis Rekon, 29x2.4" Wire Bead

R: Maxxis Rekon, 29x2.4" Wire Bead

Max Tyre Size

2.4"

DRIVETRAIN

Crankset

Shimano CUES FC-U4000-1, 170mm, 32T

Max Chainring Size

34T

Bottom Bracket & Type

BSA73

Shifter(s)

R: Shimano CUES SL-U6000-10R, 10-Speed, Rapidfire Plus w/o Optical Gear

Rear Derailleur

Shimano CUES RD-U6000, 10/11-Speed, Shadow Plus

Cassette

Shimano CUES CS-LG300-10, 10-Speed Cassette, 11-48T

Chain

Shimano CN-LG500 LG, 9/10/11-Speed

BRAKES

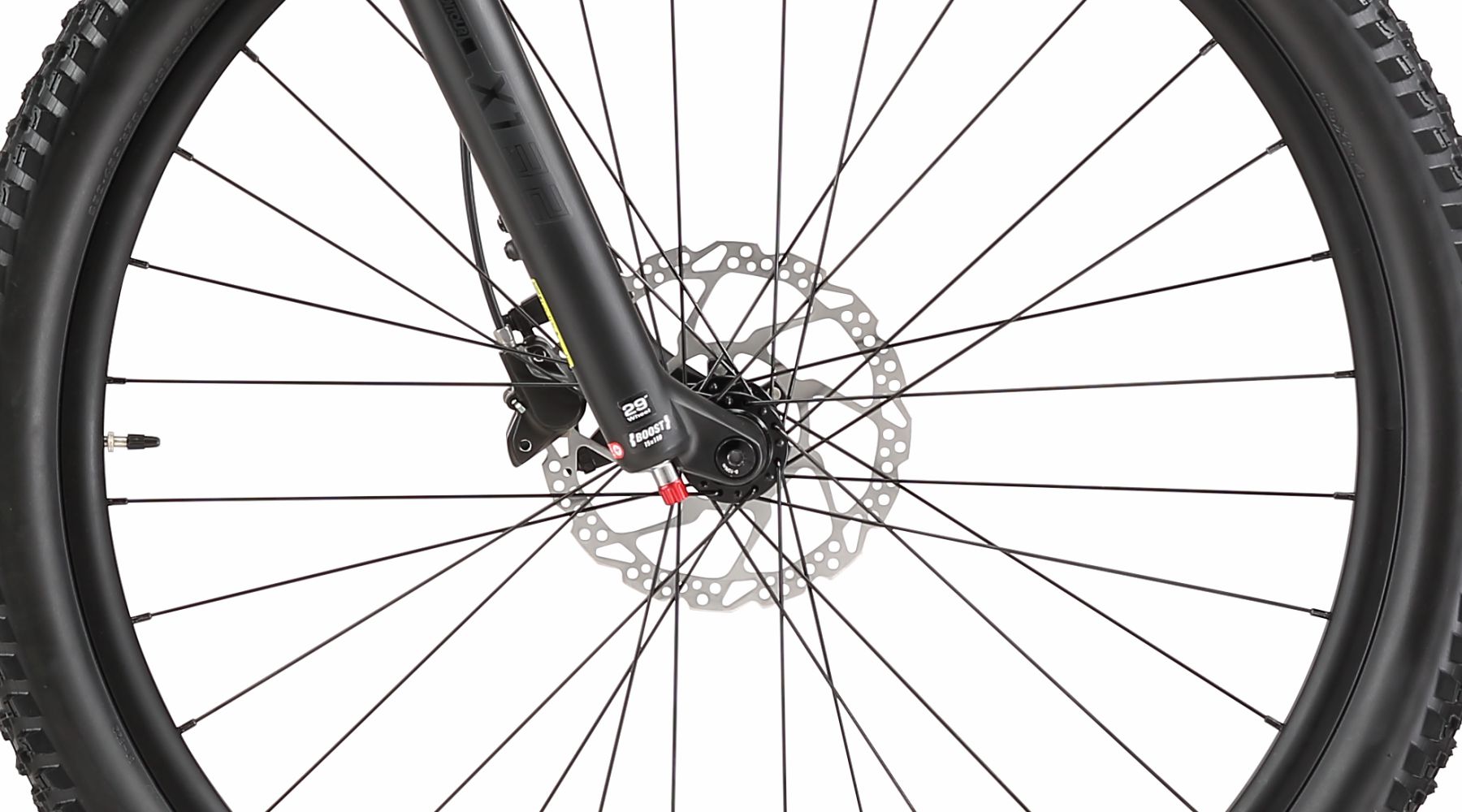

Brakes

Shimano MT200 2-piston Hydraulic Disc, Resin Pads

Rotors

F: Shimano Deore SM-RT54 Rotor, 180mm, w/ Lock Ring, External Serration

R: Shimano Deore SM-RT54 Rotor, 180mm, w/ Lock Ring, External Serration

COCKPIT

Grips

Surface Single Density

Handlebar

Surface, Alloy, Dia: 31,8mm, 740~780mm, 9° Backsweep, 12mm Rise

Stem

Surface, Alloy, 31.8mm, ±6° Rise

Saddle

Surface

Seat Post

Surface Alloy, 30.9mm

Seatpost Clamp

Alloy, 35mm, QR Clamp

Pedals

One Piece Alloy Pedal, Black

WEIGHT

Bike Weight

16.5 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

What hanger model fits the SE Series 10?

Hanger 19
Is the bike tubeless or tubeless ready or will it need to be fully converted?

This bike has tubeless ready rims, however, the tyres will need to be replaced with tubeless tyres
What is the longest dropper post I can fit on this bike?

Max dropper travel per frame size: S: 125mm, M: 150mm, L: 170mm, XL: 170mm
Can I order this model as a 650B plus?

No, the bicycle is only available as a 29 x 2.4"
Can I fit a longer fork onto this bike?

Yes, you can fit a 130mm travel fork.
Will the geometry change if I fit 650B plus wheels?

Yes, the BB height will be lower.

OTHER MODELS IN THE SERIES

€640

SE:SERIES 9 D

Hardtail | Sport XC | Alloy

100mm Travel
27.5/29" Size-Specific
1x9 Speed Shimano
16.3kg

€686

SE:SERIES 10

Hardtail | Trail | Alloy

120mm Travel
29" x 2.4" Wheels
1x10 Speed Shimano
16.5kg

€866

SE:SERIES 12

Hardtail | Trail | Alloy

120mm Travel
29" x 2.4" Wheels
1x12 Speed Shimano
16.3kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	154-170	170-180	178-190	185-210
	Rider inseam(cm)	70-77	77-81	80-86	84-95
A	Seat tube c/t	390	420	455	490
B	Seat tube angle	75°	75°	75°	75°
C	Head tube angle	66.5°	66.5°	66.5°	66.5°
D	Top Tube	581	608	637	671
E	Reach	415	440	465	495
F	Chainstay length	445	445	445	445
G	bb height	319	319	319	319
H	head tube length	95	105	120	135
I	stack	619	628	642	656
J	standover	742	741	741	740
K	Wheelbase	1158	1187	1219	1255
