SE:Series^TM Fat SX

€1.599

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

Size

S

M

L

XL

files/satin-matt-watermelon-red-gloss-maroon-decals.png

FIND OUT ABOUT SILVERBACK'S WARRANTY

Add to cart SHOP AT COMPARE BIKES

6 reviews

MY DREAM BIKE^TM

COMPARE BIKES

Bike Finder

Book a Test Ride

Customize

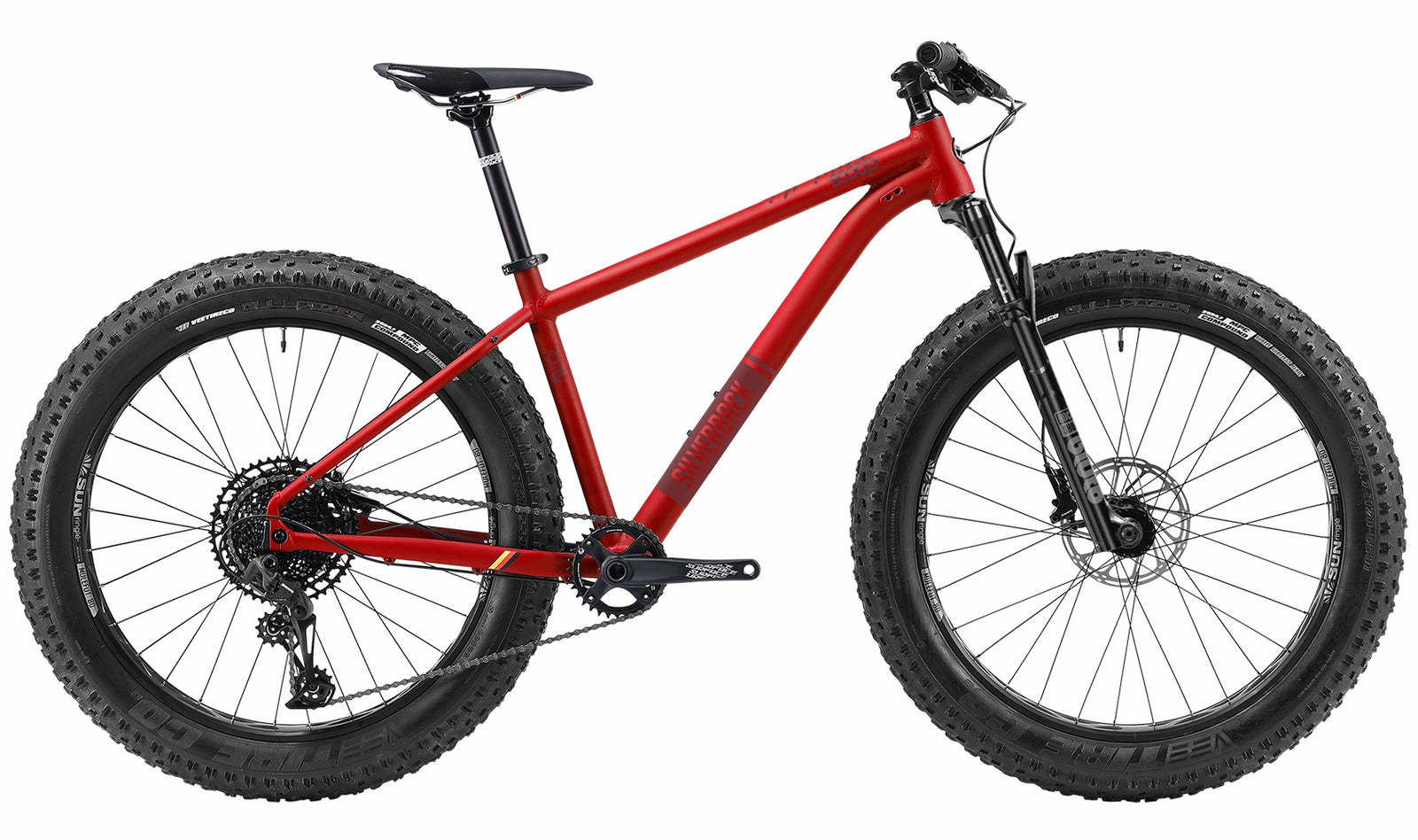

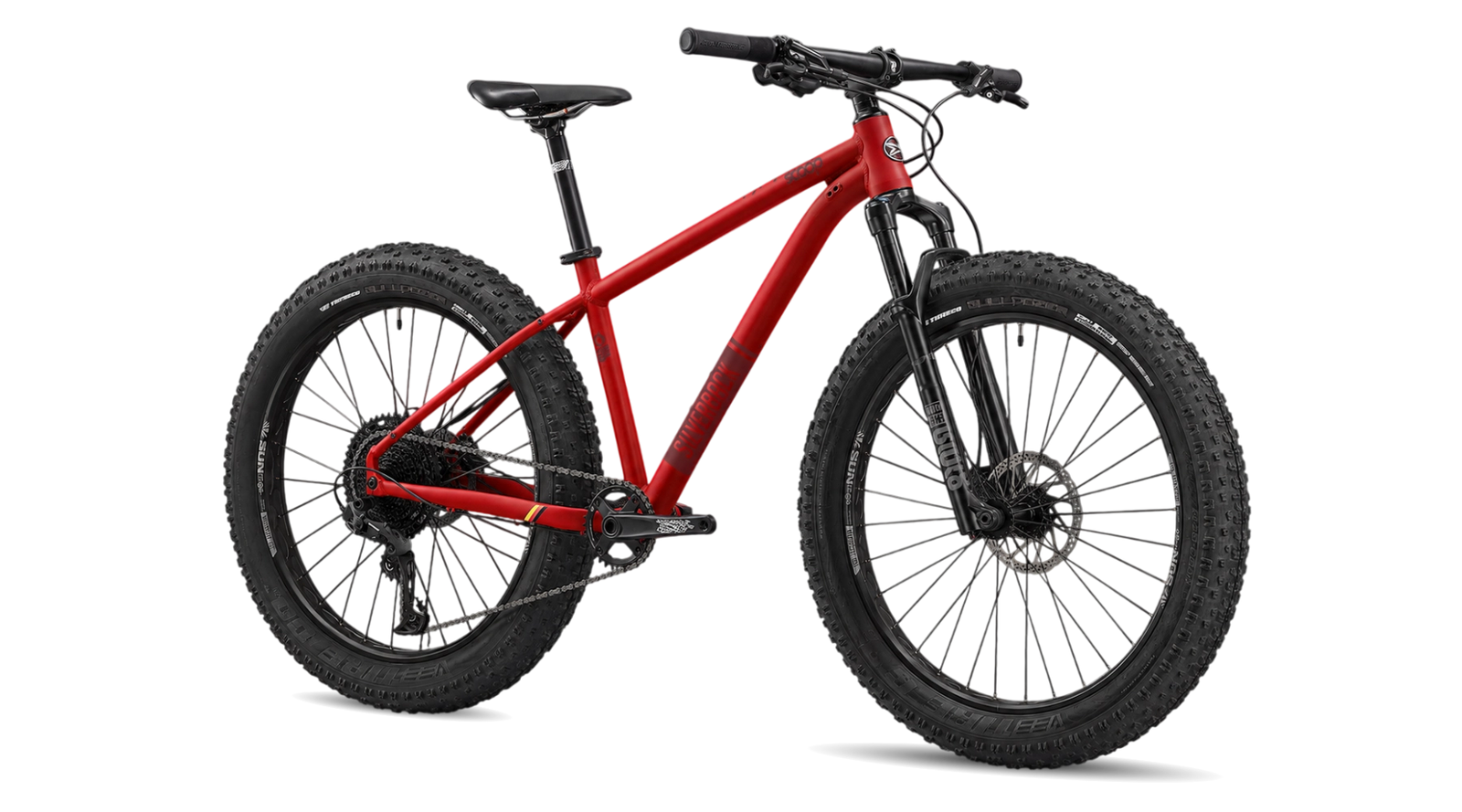

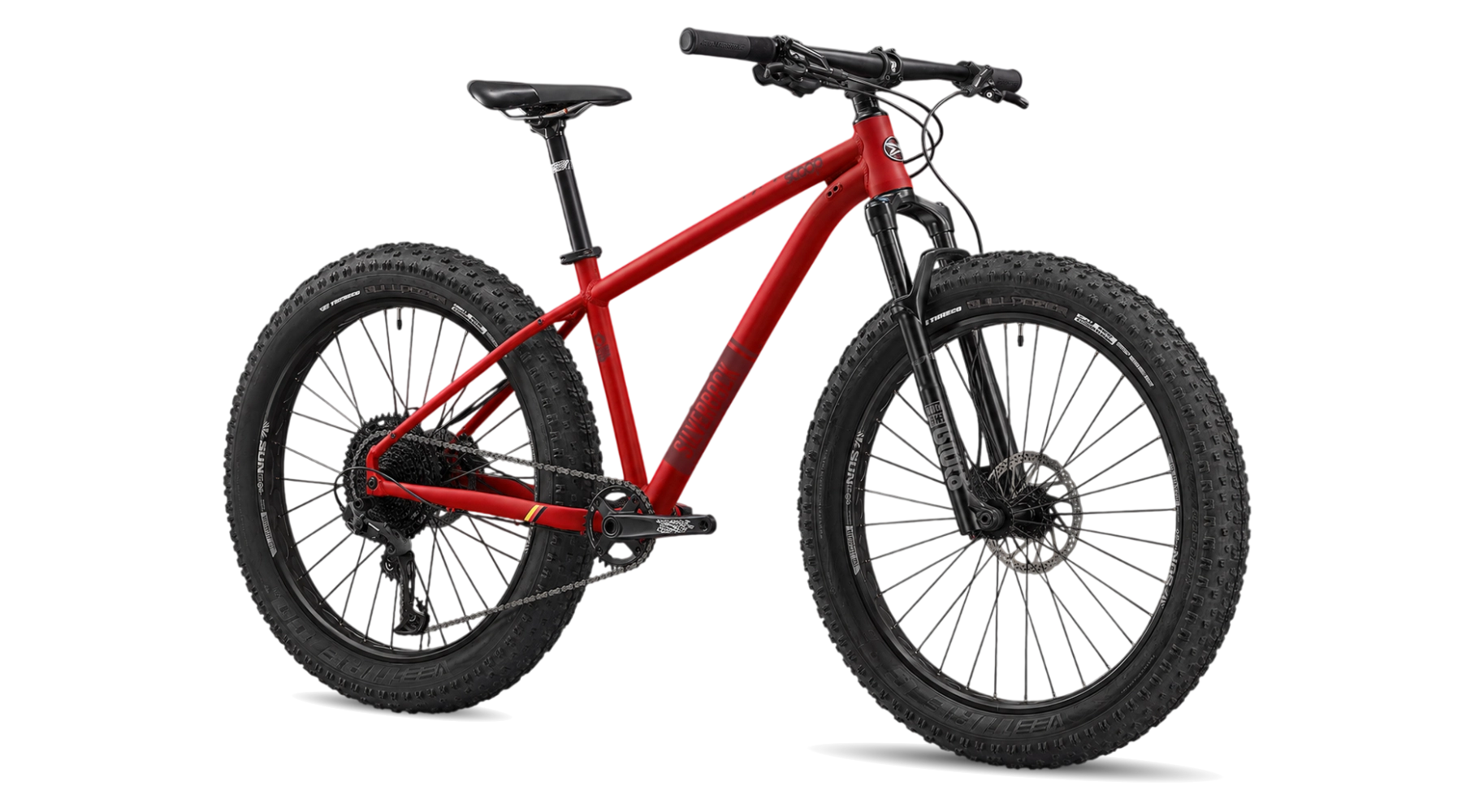

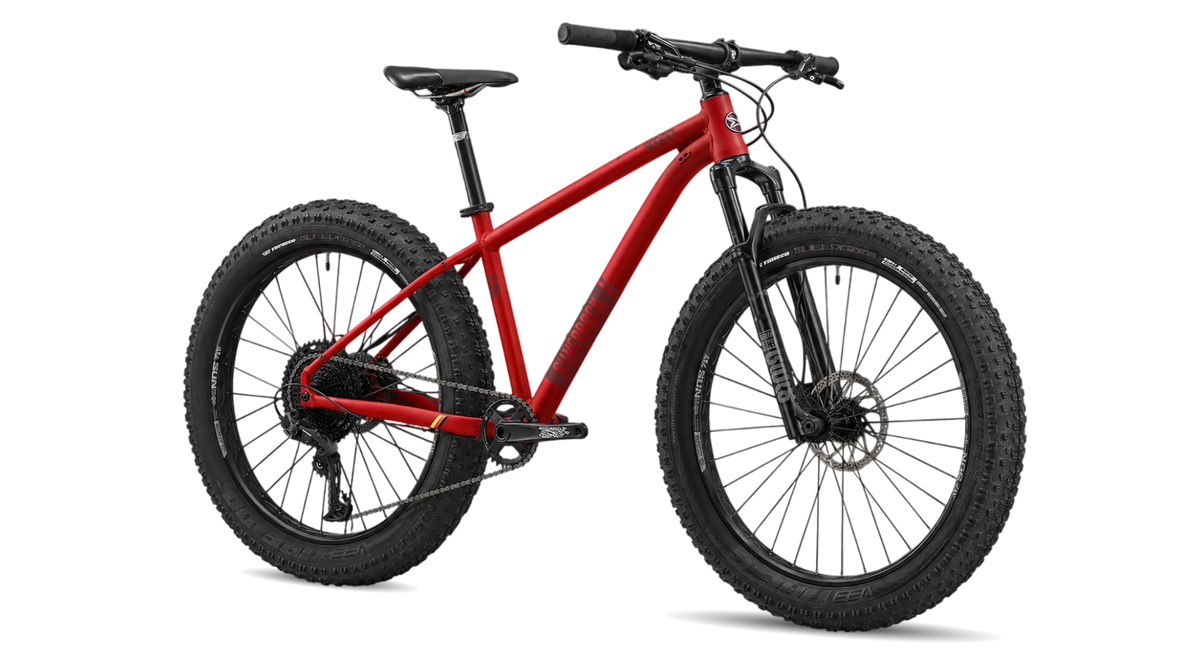

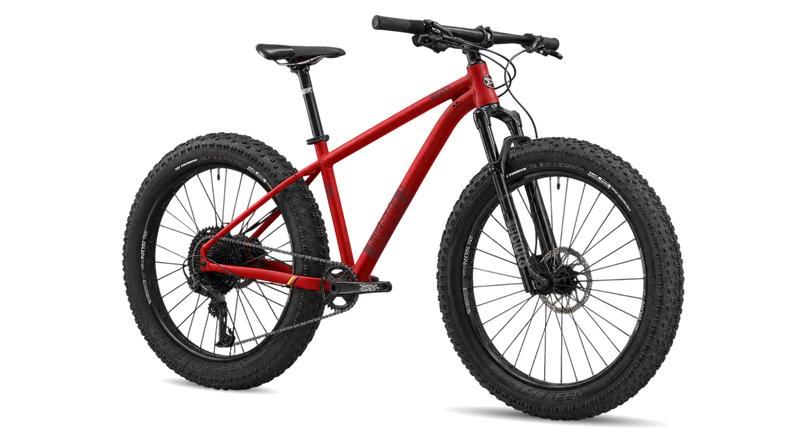

SE:Series Fat SX

€1.599,00 ~~€1.999,00~~

Shop speedlab

KEY FEATURES

6061 Alloy Fatbike specific 26" frame, tapered headset, Thru Axle
Rockshox Bluto 100mm suspension fork
SRAM SX Eagle, 12spd rear derailleur
SUNRingle MuleFut 80SL tubeless wheelset
VEE Rubber Bulldozer, 26" x 4.7" MPC tyres
Surface alloy components
Surface dropper post
SRAM DB LVLT hydraulic disc brakes
Weight: 16.7 kg

WHY IT'S GREAT
Specification
GEOMETRY & SIZING
Review & Faq
DOWNLOAD PDF
Owner's Manual

WHY IT'S GREAT
SRAM SX AND A ROCKSHOX BLUTO SUSPENSION FORK - NOW THAT'S BEST IN CLASS!

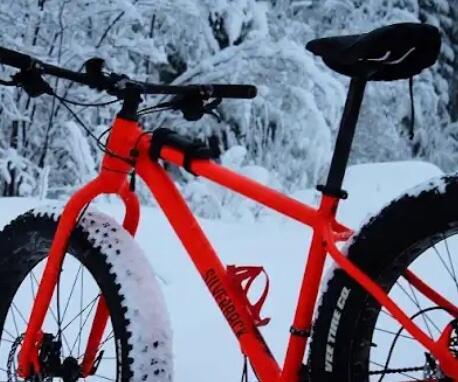

Easily traverse the desert dunes or get lost in a snowy winter wonderland on fat tyres. Fatbikes are built to take on extreme conditions without drama. The SE:Series Fat SX features an SX Eagle 1 x 12 speed drivetrain, giving the rider a very low gear and allowing you to climb up almost anything, loose rock or slippery slopes. The Bluto fork takes care of rough stuff and the big volume tyres will absorb trail bumps. To keep the muck out of your cables and for both function and aesthetics, the SE:Series Fat SX has internal cable routing.

1X12 SRAM SX DRIVETRAIN

1x Drivetrains have loads of benefits over multi-chainring setups. Benefits include ease of use, chain retention over technical terrain, cheaper and easier maintenance, more reliable and more durable componentry, easier climbing, improved ground clearance and less weight.

SURFACE DROPPER POST

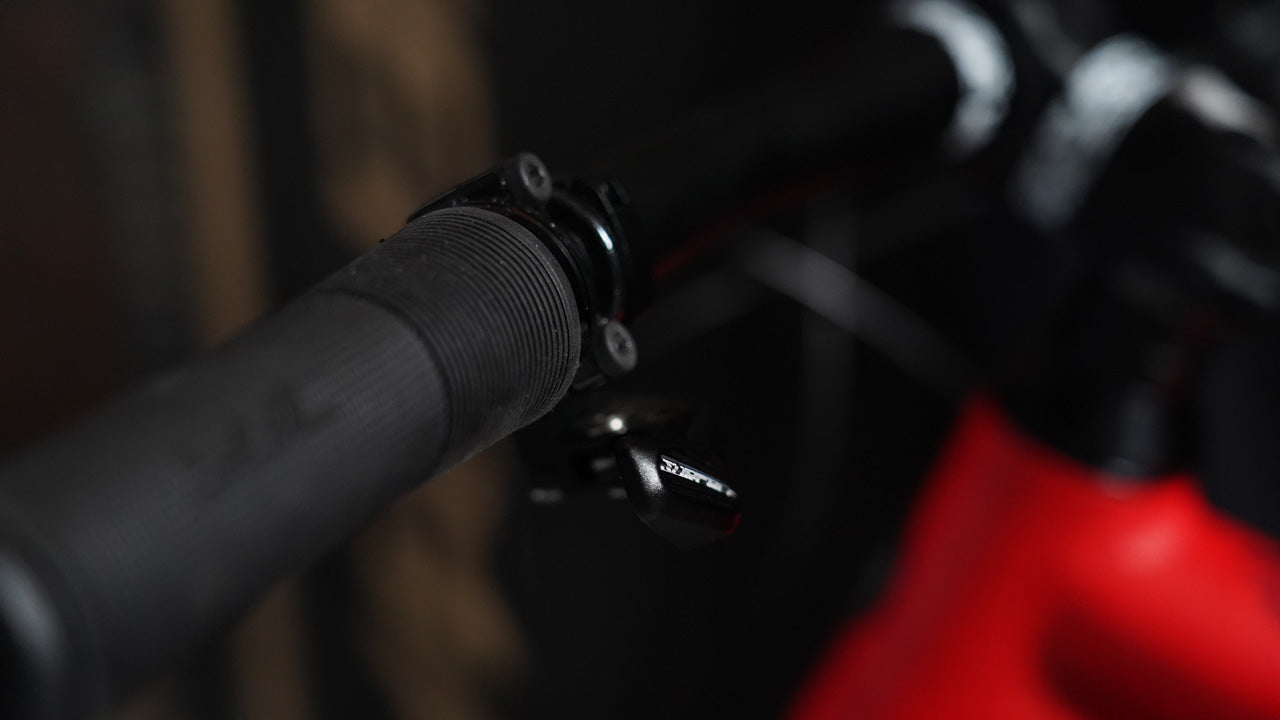

The SE:Series Fat SX features a Surface internal routed dropper post. A dropper post can greatly benefit riders of all off-road disciplines. The ability to get your saddle out of the way quickly and without taking your hands off the bars, means you can shift your weight more freely on the bike, making for more confidence in technical sections and ultimately more control as well as a bigger margin for error. Surface stealth dropper posts offer cable-actuated bar-mounted remote activation, meaning that riders can adjust saddle height on the fly without taking hands off the bars
WHY IT’S BEST.

The SE:Series Fat SX features easy ride geometry that is comfortable for longer adventures and handles well over difficult terrain.

A Tapered headtube means increased front-end stiffness and that the SE:Series Fat SX is compatable with most modern day forks

Rockshox Bluto 100mm suspension fork coupled with the fat tyres provides bump absorbsion, giving you a comfortable ride

1X12 SRAM SX Eagle drivetrain mean less components yet a wide range of gears

Designed with rack, fender and kickstand mounts allows you to easily set the SE:Series Fat SX up for a bike adventure

Hydraulic disc brakes means dependable braking in all weather conditions
ENGINEERING NOTES.

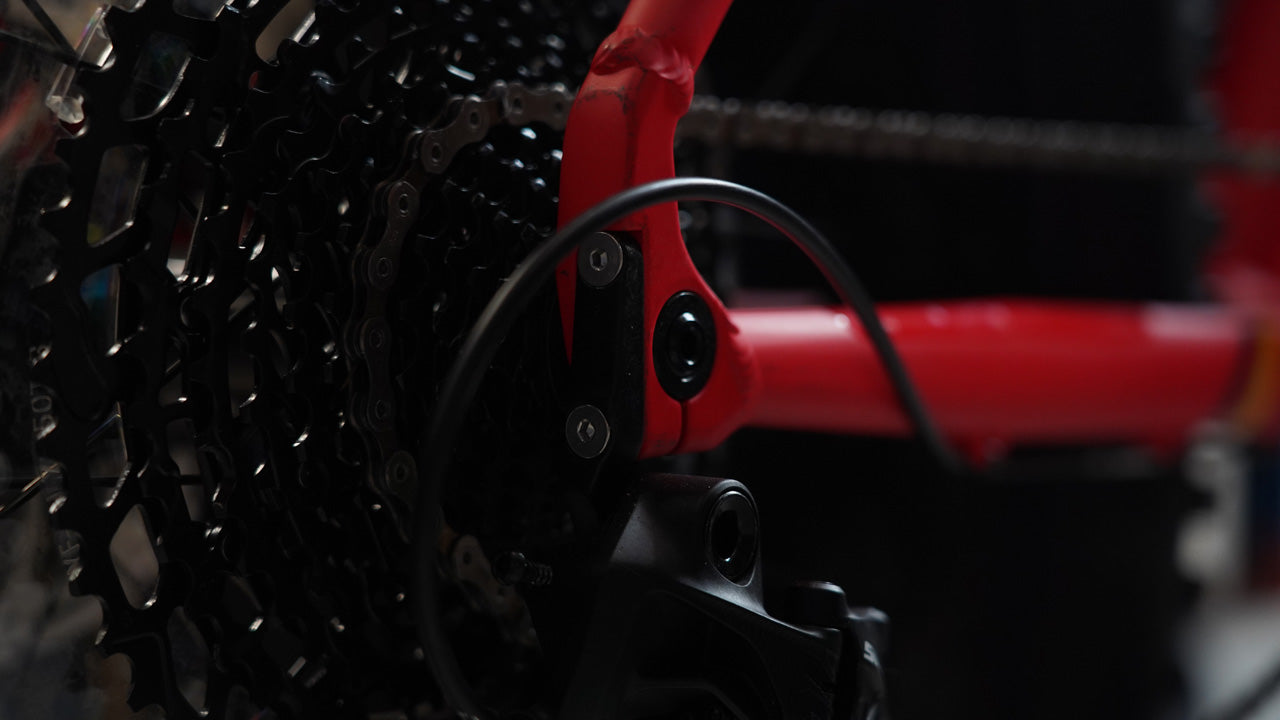

12 SPEED DRIVETRAIN

SE:Series Fat SX features a SRAM SX 12 speed Eagle drivetrain. A 1x setup with a wide range cassette means easier climbing but also the ability to maintain higher pedalling speed on descents.

FAT WHEELS

SE:Series Fat is designed to run FAT 26" x 4.7" tyres with plenty of mud clearance. Bigger tyres can increase contact area and thus ride comfort, control and grip. SE:Series Fat wheels are pre-taped and tubeless ready.

GEOMETRY

SE:Series Fat features capable easy ride geometry. Comfortable for longer adventures and handles well over difficult terrain. The frame is dropper post ready - further enhancing SE:Series Fat terrain capabilities.

HYDRAULIC DISC BRAKES

SE:Series Fat SX comes with hydraulic disc brakes. Disc brakes offer dependable all weather performance over rim brakes.

HYDRO-FORMED 6061 ALLOY FRAME

SE:Series Fat features a brand new frame focused on the sport adventure market. The frame tubes are hydro-formed into complex shapes to increase strength and stiffness, minimising weight and excess material use. Geometry has been updated to make for bike that handles better over rough terrain, making for a very easy bike to ride.

INTERNAL ROUTED FULL LENGTH CABLE HOUSINGS

Internal routed cables keeps the cockpit clean and neat.

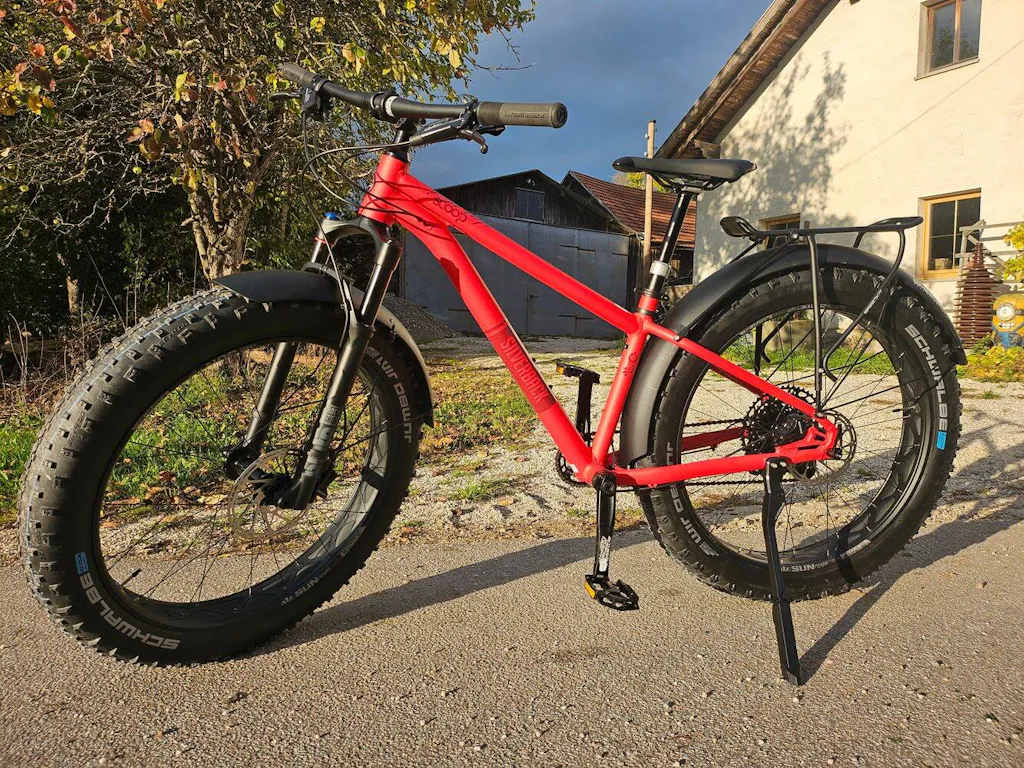

RACK, FENDER AND KICKSTAND MOUNTS

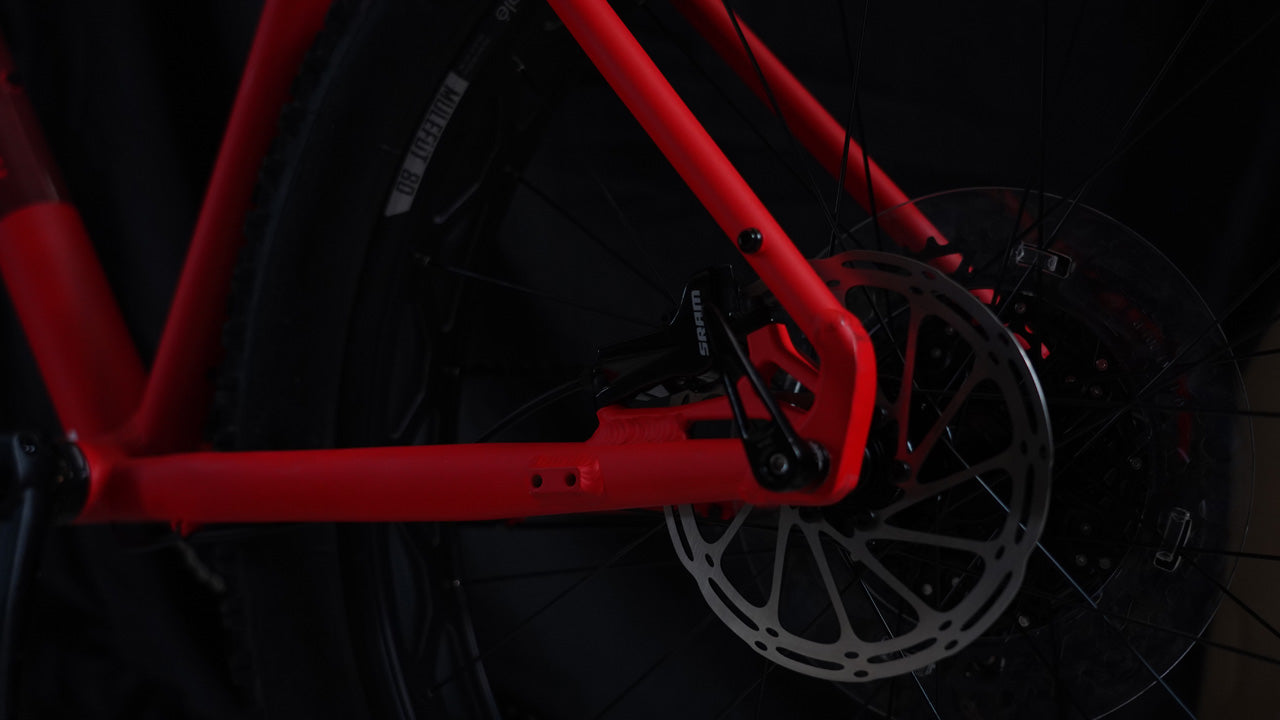

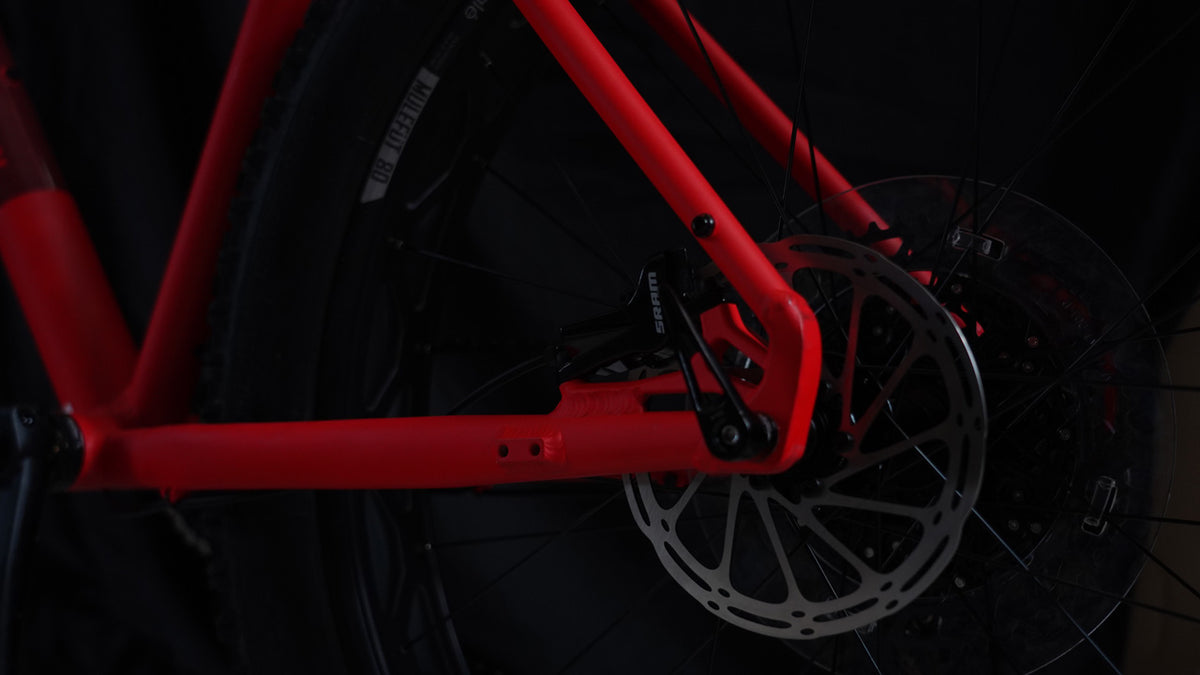

There is an integrated kickstand mount in the left rear chainstay. The addition of a kickstand is neat and uncomplicated. We suggest using the Speedkit kickstand for e-bikes/fatbikes. The disc Brake calliper mounted inside rear triangle to protect it from environmental damage, while also acting like a brace, improving strength around the dropout and kickstand mount. The frame features mounting points for a rear fender and pannier racks. SE:Series Fat can easily be set up as an adventure or touring bike.

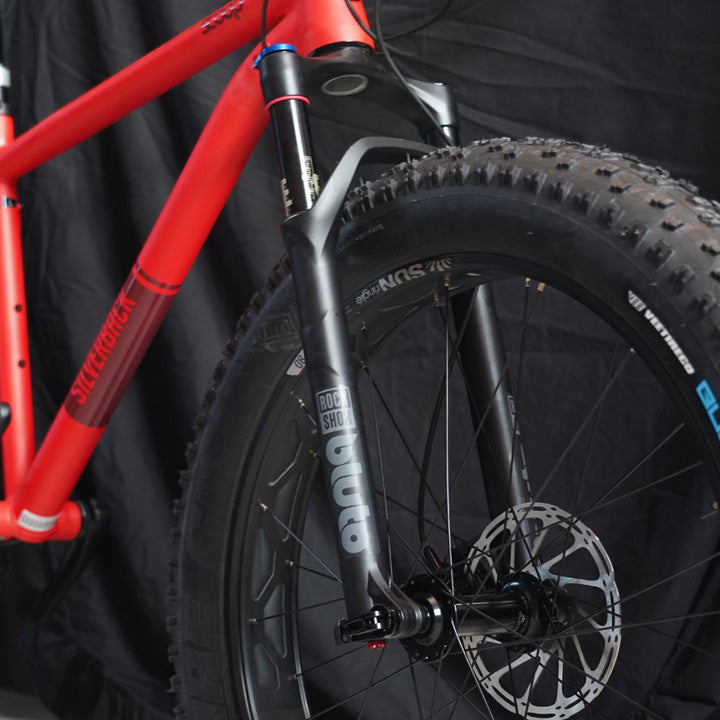

ROCKSHOX BLUTO SUSPENSION FORK

The SE:Series Fat SX has been updated to a 100mm Bluto air suspension fork. Suspension forks are designed to deal with uneven terrain by absorbing bumps and controlling the rate of the wheel rebound. This means a smoother - more controlled ride with more traction, but also less fatigue and more riding enjoyment. The Bluto is and air fork and can be setup to specific rider weight with the help of a shock pump

SHORT CHAINSTAYS

Short chainstays coupled with updated geometry means that the SE:Series Fat is more nimble through corners, yet retains overall stability.

SHORT CHAINSTAYS

A Tapered headtube increases front-end stiffness and directly influences steering feel and precision. This also means that the Stride range is compatible with all modern forks, if you would want to upgrade your suspension.
Specification

SPECIFICATIONS.

FRAMESET

Frame

Silverback SE:Series Fat 26" Butted 6061 Aluminium, Tapered 1-1/8"-1.5" headtube, 197mmx12mm T/A Dropouts, 120mm BB width

Headset

Token Sealed headset, ACB 1-1/8" Upper, 1.5" Lower

Frame Axle Spacing

197x12mm

Axle Specification

224x12mm P1.5

Hanger Type

HANGER 19

SUSPENSION

Fork

Rockshox Bluto Motion Control RL, 100mm, Solo Air, Crown adjust, 15x150mm MXL Lite, 51mm offset, tapered steerer

Fork Travel

100mm

WHEELS

Wheelset

SUNRingle

Hubs

F: SUNRingle SRC sealed hubs, 6 Bolt, Alloy, sealed Bearings, 15mm x 150mm

R: SUNRingle SRC sealed hubs, 6 Bolt, Alloy, sealed Bearings, 12mm x 197mm

Rims

SUNRingle Mulefut 80 SL, 32 H, Tubeless Ready, 26"

Tyres

VEE Rubber Bulldozer 26" x 4.7" MPC Tubeless

Max Tyre Size

5.0"

DRIVETRAIN

Crankset

Surface forged alloy arms, 175mm all sizes, 32T Chain ring

Max Chainring Size

38/28T or 38T

Bottom Bracket & Type

BSA120

Shifter(s)

SRAM SX Eagle Trigger Shifter

Rear Derailleur

SRAM SX Eagle 12 Speed

Cassette

SRAM Eagle PG1210 11-50T

Chain

SRAM SX Eagle

BRAKES

Brakes

SRAM DB LVLT, Centerline F :180mm R : 160mm rotors

Rotors

F: 180mm, 6 bolt

R: 160mm, 6 bolt

COCKPIT

Grips

Surface

Handlebar

Surface Alloy butted, 31.8mm, 720mm all sizes

Stem

Surface alloy, 31.8mm, 6 deg Rise, 60mm all sizes

Saddle

Surface Performance Comfort

Seat Post

Surface Dropper Post, 30.9mm, 125mm - S, 150mm - M/L/XL

Seatpost Clamp

Surface Alloy, 34.9mm QR

Pedals

VPE-506 Du Bearing Alloy

WEIGHT

Bike Weight
16.7 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Disclaimer: Due to the nature of bike manufacturing, specification & finishes, component availability and price may be subject to change without prior written notification. Also images may not match final specifications due to component availability.

Due to Covid-related scheduling and component availability challenges, bike specifications are subject to change without notice. Specifications may not be exactly what is shown in the photo.

Size chart & Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type	S	M	L	XL
	Rider height(cm)	158-170	170-180	178-188	188-200
	Rider inseam(cm)	72-77	77-82	81-85	85-91
a	Seat tube c/t	380	430	480	530
b	Seat tube angle	73	73	73	73
c	Head tube angle	69.5	69.5	69.5	69.5
d	Top Tube	570	600	622	645
e	Reach	388	418	439	457
f	Chainstay length	450	450	450	450
g	bb height	318	318	318	318
h	head tube length	110	110	115	130
i	stack	595	595	600	614
j	standover	762	778	802	832
k	Wheelbase	1090	1120	1142	1166

Review & Faq
FAQ.

What is the warranty on this bikes frame?

Limited lifetime warranty

Can I fit a dropper post on this bike?

Yes

Can the fork fit a fender?

No

Why are there two open holes on the right side of the down tube?

The two open holes on the drive side of the Down Tube is for the option to fit a dropper post or a front derailleur.

Are Fat Bike tyres fairly available?

It depends from country to country. Most stores will probably stock tyres

Can I fit a suspension fork to my fatbike - and what is the maximum travel fork I can add?

Yes you can. We recommend the Rockshox Bluto with 100mm of travel.
