SE:Series Trail 26D

Name: SE:Series Trail 26D
Brand: Silverback
SKU: 0086544016196
Price: 899.0 EUR
Availability: OutOfStock

€899

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

No reviews

Size:

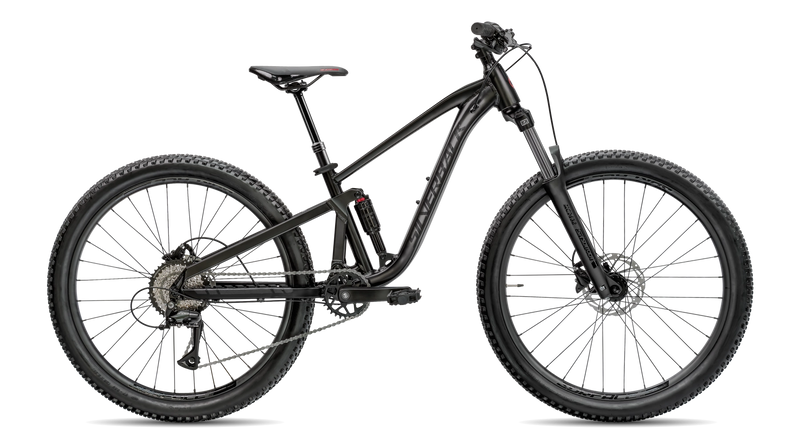

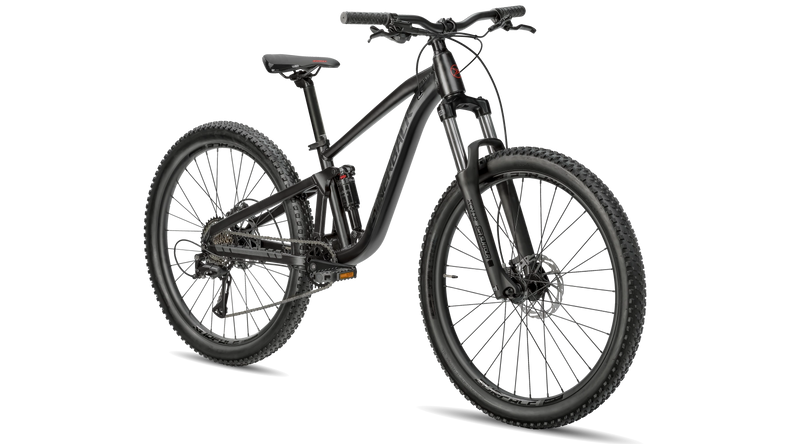

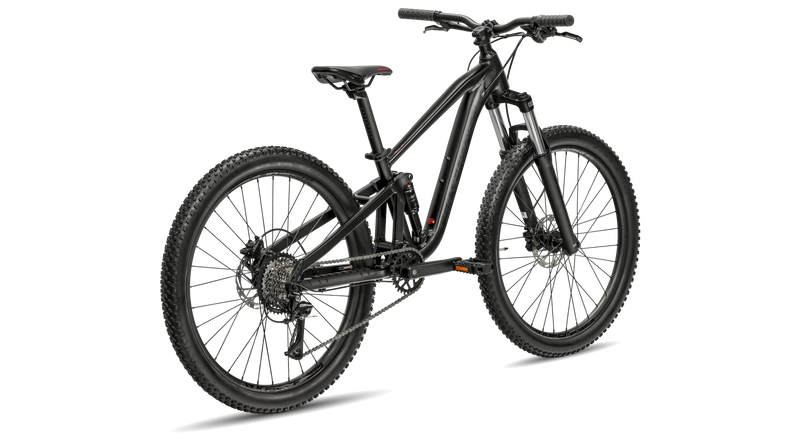

Color: Stealth Black

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

new lower price

Sam Kids/Toddlers Helmet - Helmet - Space - Matt Grey/Lime - - - Speedlab

Space Sam Boys Helmet, Matt Grey/Lime

Top Cap - Blue - Top caps - BornToBeFast - DodgerBlue - - - Speedlab

SKS Mountain Black Bottle - 500ml

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-03

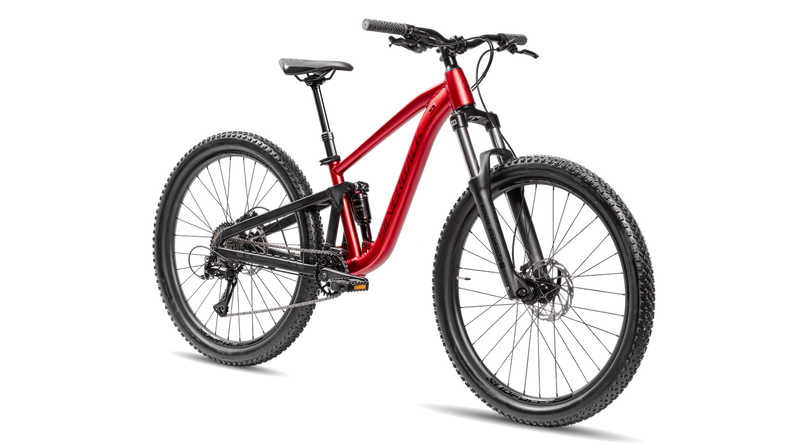

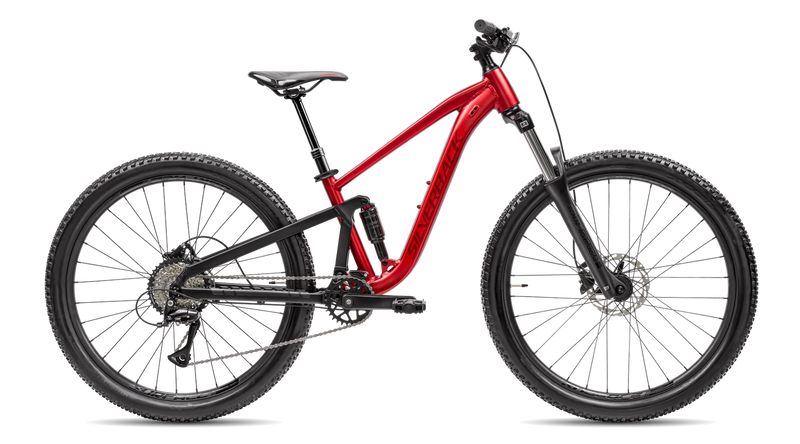

SE:Series Trail 26D

€899,00

Sold Out

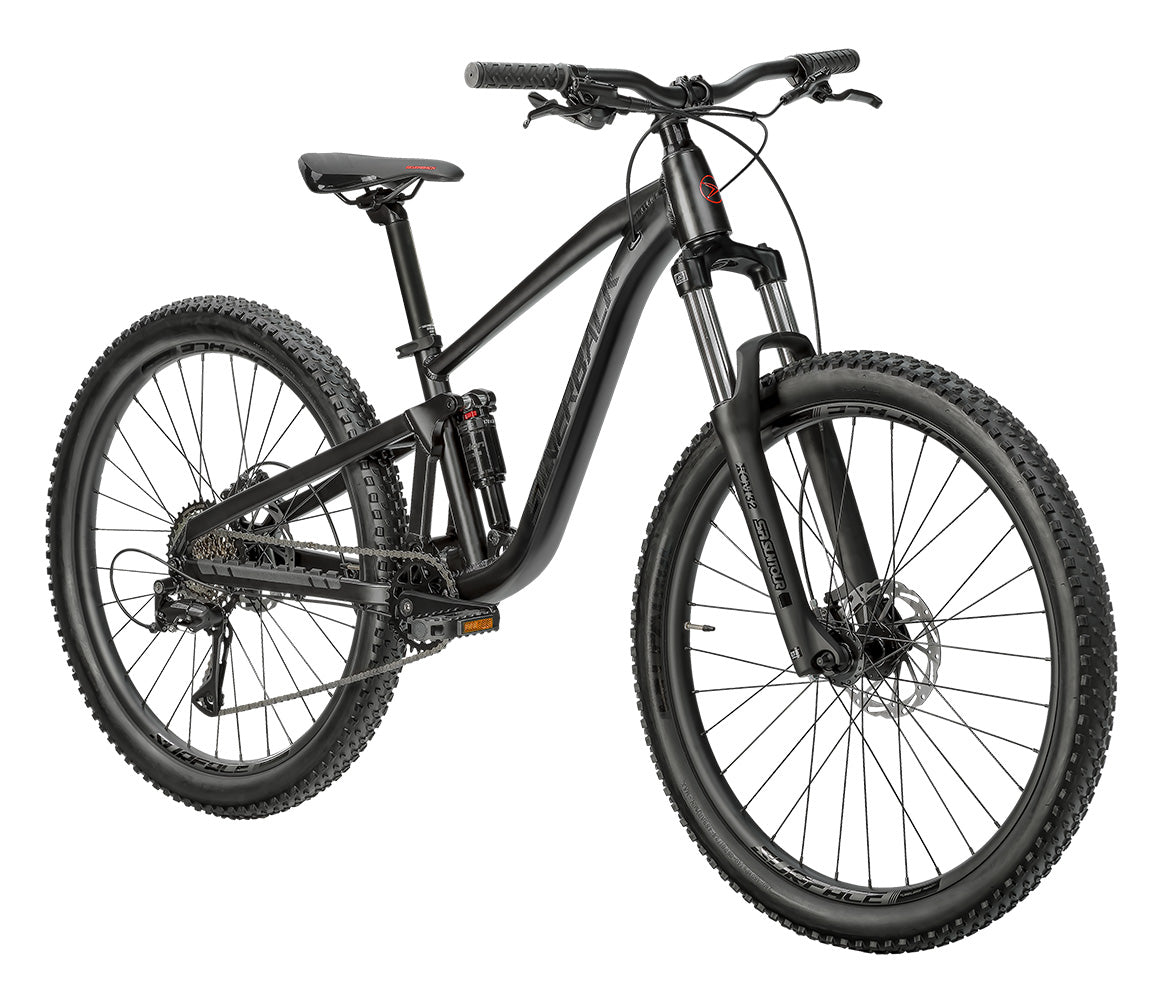

DUAL SUSPENSION TRAIL CAPABILITY FOR KIDS/YOUTH

Designed for young riders ready to take on the trails, this 26" dual suspension mountain bike delivers confidence, comfort, and control on every ride. With a rugged frame and 120mm front and rear suspension, it smooths out bumps and keeps the fun rolling on dirt paths, forest tracks, and rocky terrain. The 1x 8-speed Shimano drivetrain delivers smooth and simple gear shifts for a variety of elevation. Built for durability and excitement, it’s the ultimate trail companion for kids and youth who want to ride harder, go farther, and explore more.

At a Glance

Lightweight hydroformed 26" 6061 alloy frame
SR Suntour XCM32 DS 27.5" 120mm suspension fork
Surface 1x crankset with 30T Narrow-Wide chainring
Shimano Acera 8-speed gears
Shimano Hydraulic disc brakes, 160mm rotors
Surface Tubeless-ready 26" alloy wheels
CST 26 x 2.25" tyres
Alloy control parts
Chain Ring Guide included
Thru-axle rear wheel
Weight: 15.5 kg

TECH HIGHLIGHTS

CAPABLE YOUTH TRAIL DUAL SUSPENSION

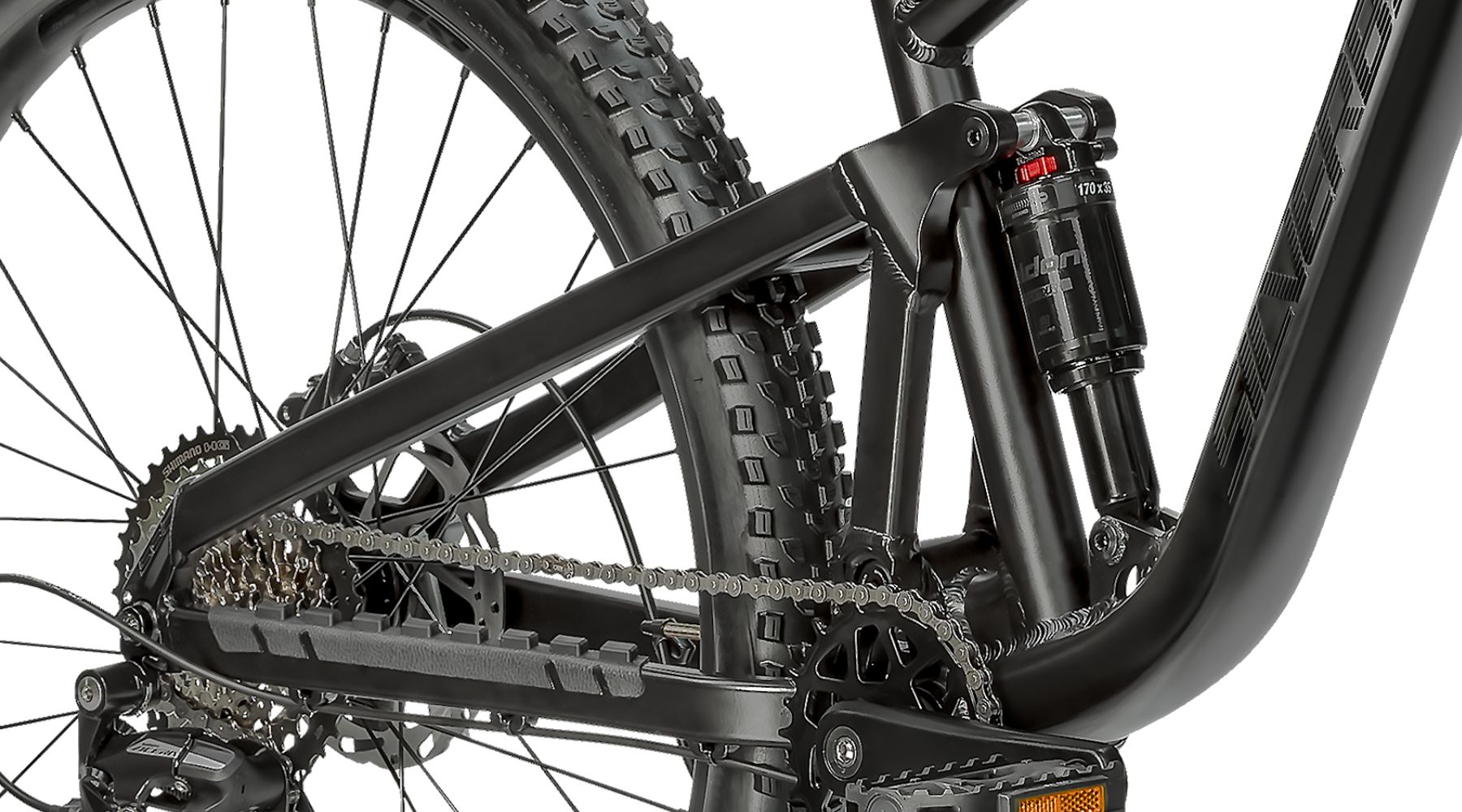

SINGLE PIVOT REAR SUSPENSION

The single‑pivot layout offers precise tracking, strong trail feedback, and long‑lasting pivots, with fewer moving parts for lower maintenance and greater reliability, delivering 120mm of rear‑wheel travel.

QUALITY SUSPENSION

The SE:SERIES TRAIL 26D is fitted with purpose chosen 120mm Suntour XCM32 coil fork. 32mm stanchions improve control and reducing flex under load.

PEDAL POWER & TRAIL CONFIDENCE

This anti-squat curve gives young riders efficient pedaling early and smooth control deeper in travel — perfect for building confidence on climbs and descents.

YOUTH SUSPENSION LEVERAGE

The leverage rate is optimized for younger riders, helping absorb small bumps while providing consistent and predictable performance over varied terrain. This also aids in setup simplicity and tuning.

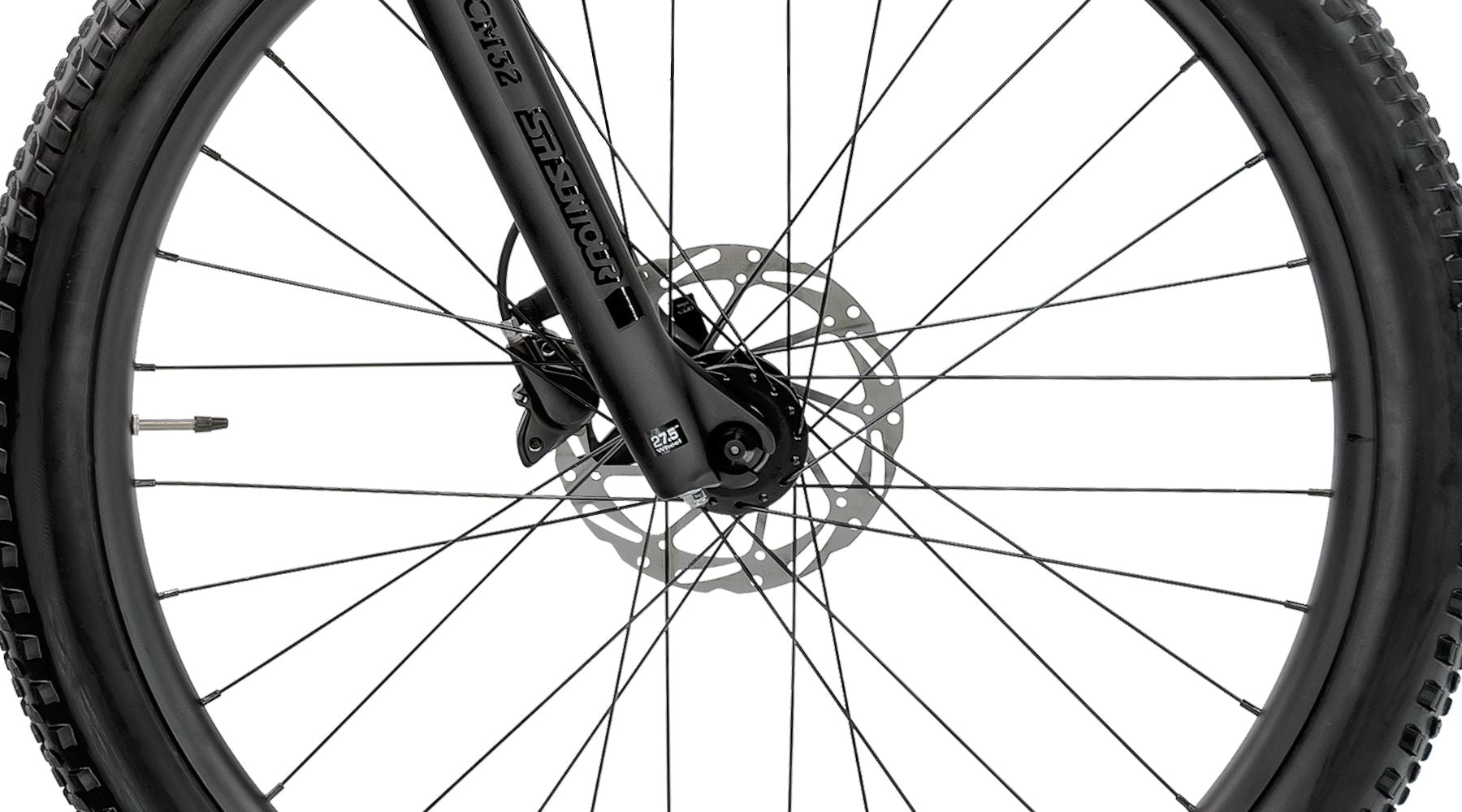

HYDRAULIC DISC BRAKES

SE:SERIES TRAIL 26D includes hydraulic disc brakes offering stronger and more dependable all-weather performance over cable-actuated disc or rim brakes. The hydraulic levers also pull lighter for young riders.

HYDRO FORMED ALLOY FRAME

The frame tubes are hydro-formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use - resulting in a lighter bike for young riders.

ADAPTED POP GEOMETRY

Silverback's Position of Power geometry. Longer frame places the rider forward, in a more balanced position, improving grip on the rear on climbs and on the front on descents. A longer wheelbase and slacker head angle means more control at speed.

TUBELESS READY WHEELS

The SE:SERIES TRAIL 26D are pre-taped at the factory and tubeless ready from the box. Easy to set up, just add sealant and inflate to seat.

WATERBOTTLE SPACE

SE:SERIES TRAIL 26D includes standard waterbottle mounts for bottles and pump mounts and can fit bottles up to 600ml within the front triangle.

SUPER LOW STANDOVER

SE:SERIES TRAIL 26D frame has a very low standover, this means that it can be ridden by both girls and boys with more room for movement. This improves control and confidence over technical terrain.

DROPPER POST READY

SE:SERIES TRAIL 26D frame is ready for a dropper post upgrade with internal routing for the Dropper post remote cable. (80mm travel dropper post included in certain countries)

CHAIN RING GUIDE INCLUDED

Keeps the chain securely in place during bumpy rides, reducing frustration and mechanical stops. Fewer dropped chains means less need for trail-side fixes or parental intervention.

1X GEARED DRIVETRAIN

1x offers less maintenance, is more intuitive to use and offers a wider gear range than 3x groupsets. We spec a Shimano Acera 1x 8-speed drivetrain and a 30t chainring in favor of climbing, rather than flat terrain top speed.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Alloy Trail Dual suspension Frame for 26" wheels. True single pivot design, 120mm Rear Travel with 170x35mm Rear Shock. 20x10mm hardware. BSA Bottom Bracket. OLD 142.

Headset

Semi-Integrated Threadless Headset, ZS44/28.6 [[PIPE]] ZS56/30

Frame Axle Spacing

142x12mm

Axle Specification

175 x 12mm P1.75

Hanger Type

Hanger 03

SUSPENSION

Fork

SR Suntour XCM32 DS, 27.5", 32mm Stanchions, 1-1/8" Tapered steerer tube, OLD:100x9mm, 120mm Travel, Custom softer spring for lighter weight riders

Fork Travel

120mm

Rear shock

SR Suntour Raidon R, 170x35mm, 43 x 10mm Hardware Top, 20 x 10mm hardware Bottom.

Rear Suspension Travel

120mm

Shock Mounting

Body: Standard, 43x10mm

Shaft: Standard, 20x10mm

Eye-to-Eye x Stroke

170x35mm

WHEELS

Wheelset

Surface Custom Wheelset

Hubs

F: Alloy, 6-bolt, 100 x 9mm QR

R: Alloy, 6-bolt, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 142mm

Rims

F: 26" Symmetrical Alloy Rim, 25mm Internal width, Tubeless Ready

R: 26" Symmetrical Alloy Rim, 25mm Internal width, Tubeless Ready

Tyres

F: CST C1846 26x2.25"

R: CST C1846 26x2.25"

Max Tyre Size

2.25"

DRIVETRAIN

Crankset

Alloy Crank with 30T Narrow Wide Steel ring, 152mm crankarm length

Max Chainring Size

32T

Bottom Bracket & Type

BSA73

Shifter(s)

R: Shimano Altus SL-M315-8R Rapidire Plus Shift Lever, with optical gear display, 8-speed

Rear Derailleur

Shimano Acera RD-M3020, 8-Speed

Cassette

Shimano Acera CS-HG400, 11-40T, 8-Speed

Chain

KMC Z8.3, 108-Links

BRAKES

Brakes

Shimano MT200 2-piston Hydraulic Disc, Resin Pads

Rotors

Shimano SM-RT26, 160mm, 6-bolt

COCKPIT

Grips

SURFACE Single Density, 120mm

Handlebar

SURFACE Alloy, Ø25.4mm, 10° Back sweep, 20mm Rise, 620mm width

Stem

SURFACE Alloy, Ø25.4mm, Extension: 40mm, Rise: 7°

Saddle

SURFACE Youth

Seat Post

SURFACE Alloy, Ø30.9mm

Seatpost Clamp

SURFACE Alloy w/QR clamp

Pedals

9/16" Ball, PP

WEIGHT

Bike Weight

15.5 Kg

RIDER WEIGHT LIMIT

75kg - combined weight of bike and rider (including all kit).

FAQ.

What is the weight limit on this bike?

75kg - combined weight of bike and rider (including all kit).
Can I fit V - Brakes to this bicycle?

No
Is this a unisex bicycle?

Yes
Can this bicycle fit a water bottle?

Yes, there is 1 water bottle cage mount on the Down Tube, inside the front triangle.
Can I swop the brakes around?

No.
Can I fit 27.5" wheels to this model?

The fork can fit 27.5" front wheel, but the rear wheel is 26" only. So a 27.5/26" mullet setup is possible, but the geometry is altered.
What is the maximum tyre size I can fit on this model?

To meet EN/ISO standards, the front tyre maximum size is 27.5" x 2.3" and the rear tyre maximum size is 26" x 2.25".

OTHER MODELS IN THE SERIES

€499

SPYKE 26 (GEN4)

Hardtail | Youth Trail | Alloy

100mm Travel
26" x 2.35" Wheels
1x7 Speed Shimano
13.82kg

€899

SE:SERIES TRAIL 26D

Dual Suspension | Youth Trail | Alloy

120/120mm Travel
26" x 2.25" Wheels
1x8 Speed Shimano
15.5kg

€1.349

SE:SERIES TRAIL 10

Dual Suspension | Trail | Alloy

140/140mm Travel
29" x 2.4" Wheels
1x10 Speed Shimano
16.5 kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S
	Rider height(cm)	143-156
	Rider inseam(cm)	65-70
A	Seat tube c/t	320
B	Seat tube angle	76°
C	Head tube angle	66°
D	Top Tube	507
E	Reach	370
F	Chainstay length	425
G	bb height	330
H	head tube length	100
I	stack	556
J	standover	697
K	Wheelbase	1084
