SE:Series Fat Single €1.399,00

SPEC SIZE & GEO COMPARE CUSTOMIZE BOOK A DEMO

SE:Series Fat Single

Name: SE:Series Fat Single
Brand: Silverback
SKU: 6097000451931
Price: 1399.0 EUR
Availability: InStock
Rating: 5.00 (12 reviews)

€1.399

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

5.00 12 reviews

Size:

Color: Cammo Green to Spring Lime

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Speedkit Fender - for fat bikes, fixed up to 26x4,5"

Chain Lock Cosa Nostra Plus LO-C21 - Lock - bike - cycling - XLC - - - - Speedlab

XLC Chain Lock Cosa Nostra Plus LO-C21

new lower price

Pannier Racks CL - 420Q - Pannier Racks - Speedkit - - - - Speedlab

Speedkit Pannier Racks CL - 420Q

SKS Road Black Bottle - 750ml

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-19

SE:Series Fat Single

€1.399,00

Add to cart

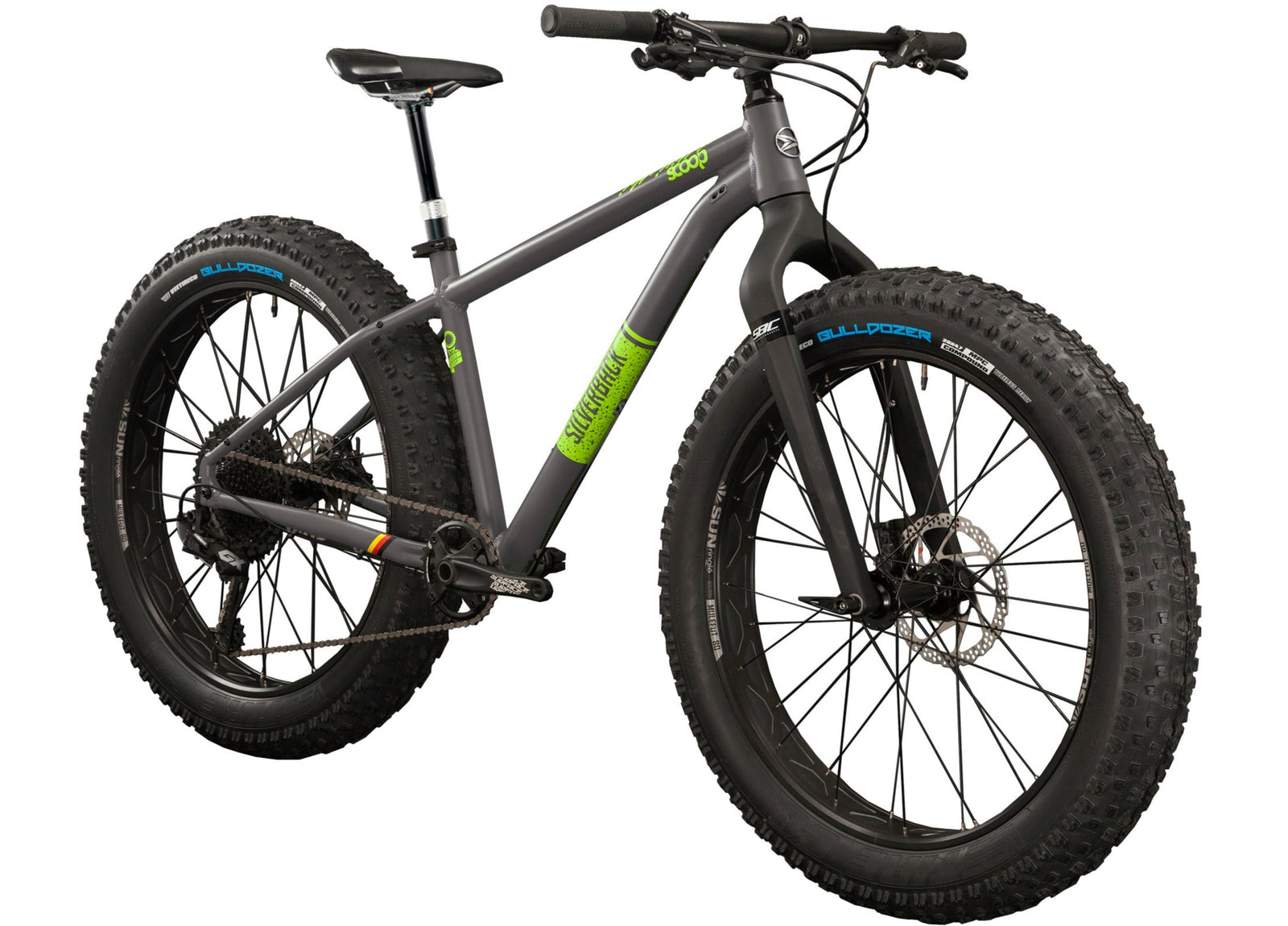

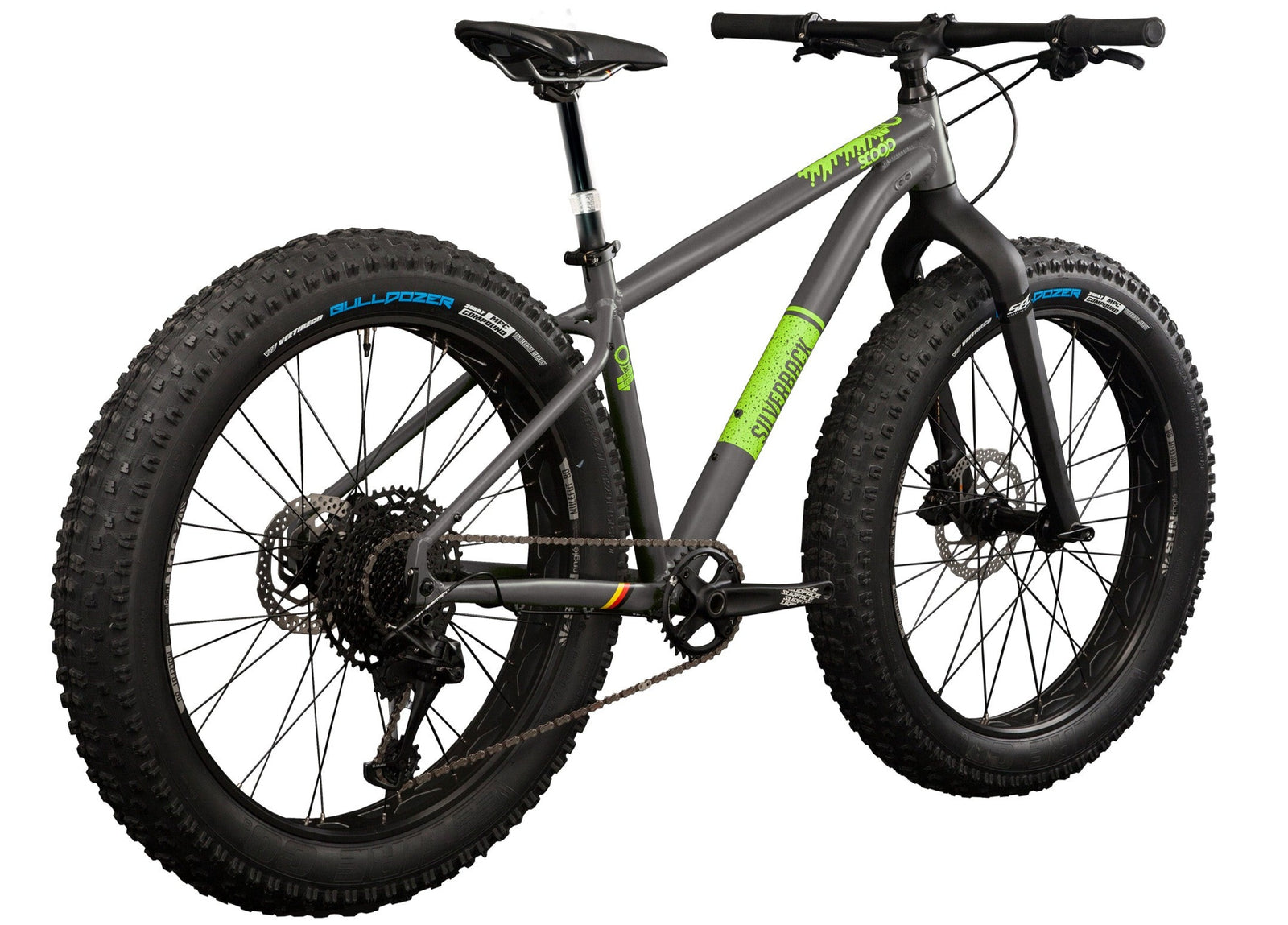

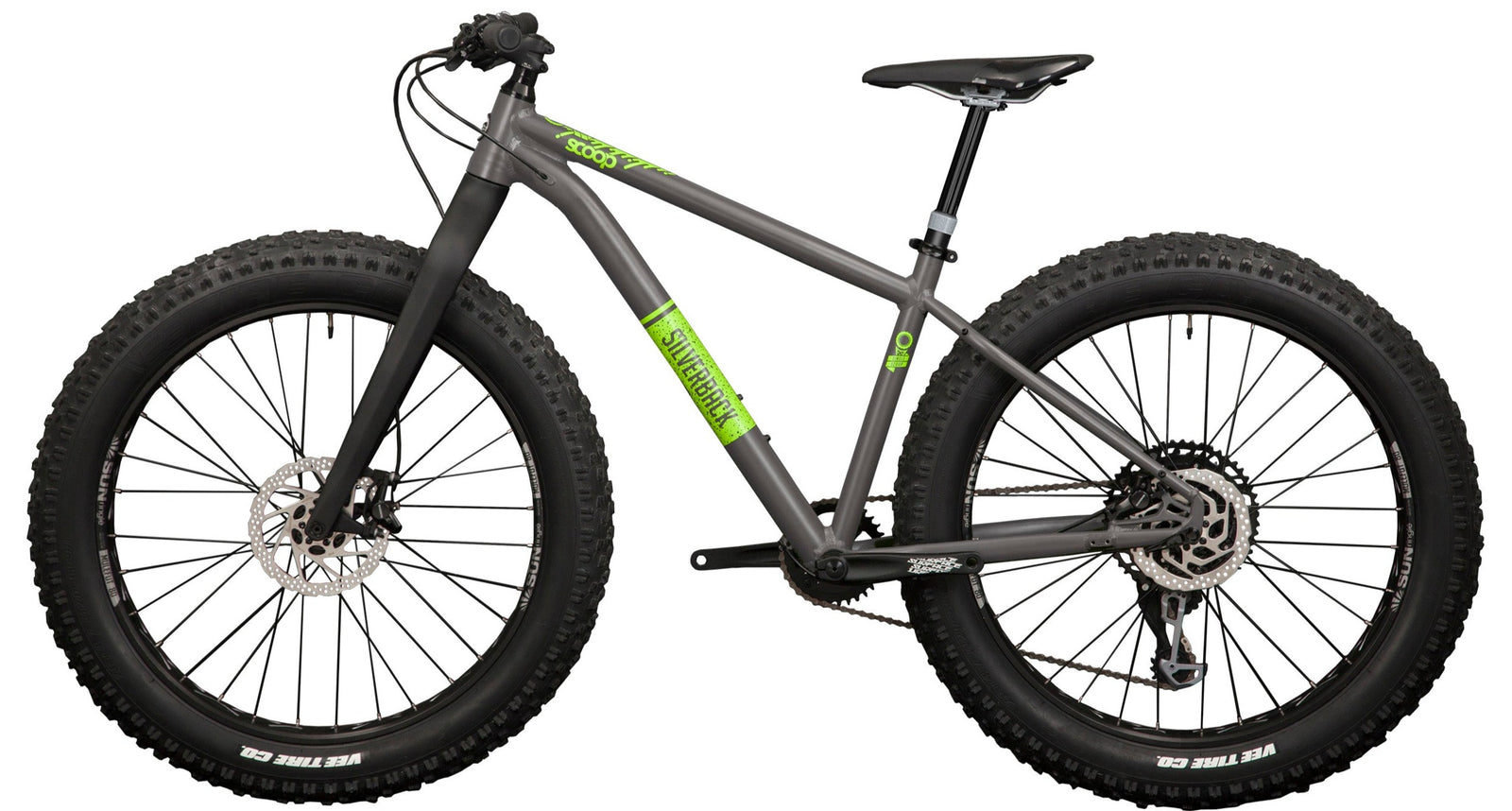

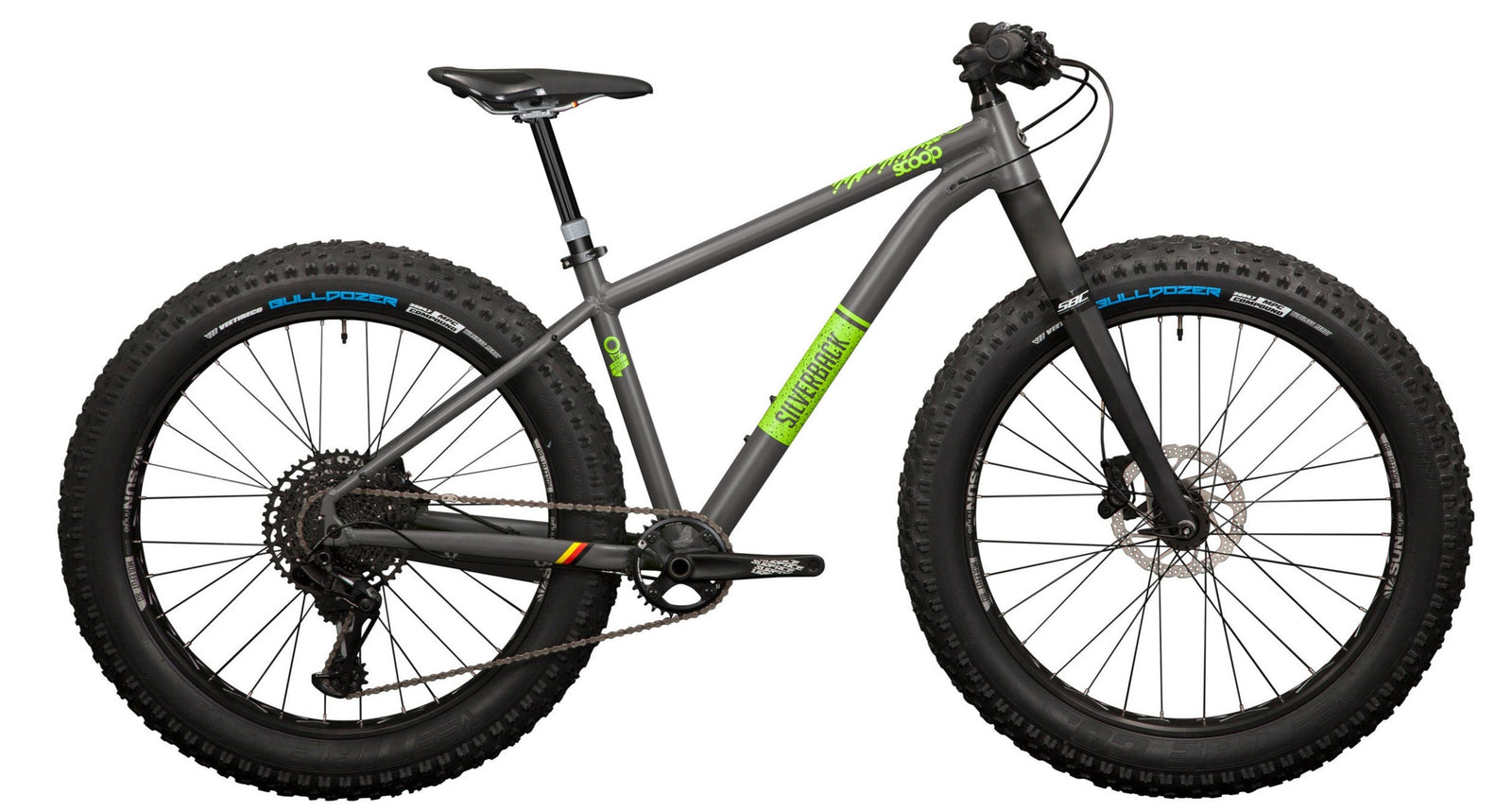

Easily traverse the desert dunes or get lost in a snowy winter wonderland on fat tyres. Don’t be fooled by the bulkiness of the Fatbike, these bikes are built to take on extreme conditions without drama. The SE-Series Fat Single features a Shimano Deore 1 x 12 speed drivetrain, giving the rider a very low gear and allowing you to climb up almost anything, loose rock or slippery slopes. The carbon fork and big volume tyres will absorb trail bumps. To keep the muck out of your cables and for both function and aesthetics, the SE-Series Fat Single has internal cable routing.

At a Glance

6061 Alloy Fatbike specific 26" frame, tapered headset, Thru Axle
SBC Carbon Fork, 26" Rigid, 150x15mm Thru Axle
Shimano Deore 12-spd Drivetrain
SUNRingle MuleFut 80SL tubeless wheelset
VEE Rubber Bulldozer 26" x 4'7" tyres
Silverback alloy components
Silverback Dropper post
Shimano Deore Hydraulic Disc brakes
Weight: 15.9 kg

TECH HIGHLIGHTS

SBC CARBON FORK AND A 12 SPEED DRIVETRAIN.

Engineering_notes_Scoop_Single_grey-fork

SBC CARBON FORK

The SE-Series Fat Single features a thru axle SBC Carbon rigid fork. The carbon fork and fat wheels provide bump absorption so that even though a rigid fork, the bike does not feel harsh. A rigid fork is also lighter than alloy and virtually maintenance free, so great for peace of mind, remote adventures.

Engineering_notes_Scoop_Single_grey-drivetrain

1X12 DRIVETRAIN

1x Drivetrains have loads of benefits over multi-chainring setups. Benefits include ease of use, chain retention over technical terrain, cheaper and easier maintenance, more reliable and more durable components, easier climbing, improved ground clearance and less weight.

1×12 DRIVETRAIN

SE-Series Fat Single features a Shimano Deore 1x12spd drivetrain. Wide range gears means easy climbing and good top-end speed.

Engineering_notes_Scoop_Single_grey-wheels

FAT WHEELS

SE-Series Fat is designed to run FAT 26" tyres with plenty of mud clearance. Bigger tyres can increase contact area and thus ride comfort, control and grip. SE-Series Fat wheels are pre-taped and tubeless ready.

Engineering_notes_Scoop_Single_grey-disc_brakes

HYDRAULIC DISC BRAKES

SE-Series Fat models come with hydraulic disc brakes. Disc brakes offer dependable all weather performance over rim brakes.

Engineering_notes_Scoop_Single_grey-geometry

HYDRO-FORMED 6061 ALLOY FRAME

SE-Series Fat Single features a brand new frame focused on the sport adventure market. The frame tubes are hydro-formed into complex shapes to increase strength and stiffness, minimising weight and excess material use. Geometry has been updated to make for bike that handles better over rough terrain, making for a very easy bike to ride. SE-Series Fat also features new T/A dropouts.

Engineering_notes_Scoop_Single_grey-rack_and_fender_mounts

RACK, FENDER AND KICKSTAND MOUNTS

There is an integrated kickstand mount in the left rear chainstay. The addition of a kickstand is neat and uncomplicated. We suggest using the Speedkit kickstand for e-bikes/fatbikes. The disc Brake calliper mounted inside rear triangle to protect it from environmental damage, while also acting like a brace, improving strength around the dropout and kickstand mount. The frame features mounting points for a rear fender and pannier racks. SE-Series Fat can easily be set up as an adventure or touring bike.

RESPONSIVE SHORT CHAINSTAYS

Short chainstays coupled with updated geometry means that the SE-Series Fat is more nimble through corners, yet retains overall stability.

SBC CARBON RIGID FORK

The SE-Series Fat Single features a thru axle SBC Alloy rigid fork. Matchy-matchy colour and alloy tubing profiles. The fat wheels provide bump absorption so that even though a rigid fork, the bike does not feel harsh. A rigid fork is also virtually maintenance free, so great for peace of mind, remote adventures.

Engineering_notes_Scoop_Single_grey-internal_routing

INTERNALLY ROUTED FULL LENGTH CABLE HOUSINGS

Internal routed cables with full length cable housings keeps the cockpit clean and neat. This also ensures that cables are out of harm's way, and requires less maintenance due to less dirt ingression into the cables.

TAPERED HEADTUBE

A Tapered headtube increases front-end stiffness and directly influences steering feel and precision. This also means that the Stride range is compatible with all modern forks, if you would want to upgrade your suspension

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Silverback SE-Series Fat 26" Butted 6061 Aluminium, Tapered 1-1/8"-1.5" Headtube, 197mmx12mm T/A Dropouts, 120mm BB width

Headset

Token Sealed headset, ACB 1-1/8" Upper, 1.5" Lower

Frame Axle Spacing

197x12mm

Axle Specification

224x12mm P1.5

Hanger Type

HANGER 19

SUSPENSION

Fork

SBC Fat Specific 26" Carbon Fork, Tapered, 15 x 150mm T/A

WHEELS

Wheelset

SUNRingle

Hubs

F: SUNRingle SRC sealed hubs, 6-Bolt, Alloy, sealed Bearings, 15mm x 150mm
R: SUNRingle SRC sealed hubs, 6-Bolt, Alloy, sealed Bearings, 12mm x 197mm

Rims

SUNRingle Mulefut 80 SL, 26"x80mm, 32 H, Tubeless Ready

Tyres

VEE Rubber Bulldozer 26" x 4.7" MPC Tubeless

Max Tyre Size

4.8"

DRIVETRAIN

Crankset

Surface forged alloy arms, 175mm all sizes, 34T Chain Ring

Max Chainring Size

38/28T or 38T

Bottom Bracket & Type

BSA120

Shifter(s)

Shimano SL-M6100-R, Deore, Rapid Fire Plus, 12-Spd

Rear Derailleur

Shimano RD-M6100, Deore, Shadow Plus, SGS 12-Spd

Cassette

Sunrace CSMZ800, 11-51T, 12-Spd

Chain

KMC X12 NBPK, 118 links

BRAKES

Brakes

Shimano BL-M6100 Deore, Hydraulic Disc

Rotors

F: Shimano SM-RT66, 6-bolt, 180mm
R: Shimano SM-RT66, 6-bolt, 160mm

COCKPIT

Grips

SBC 144mm

Handlebar

Alloy, Ø31.8mm, 5mm Rise, 9° backsweep, 720mm all sizes

Stem

Alloy, Ø31.8mm, 6° Rise, 60mm all sizes

Saddle

Silverback Performance Comfort

Seat Post

Silverback Dropper Post, Ø30.9mm, 125mm - S, 150mm - M/L/XL

Seatpost Clamp

Alloy, Ø34.9mm QR

Pedals

Alloy, One-piece

WEIGHT

Bike Weight

15.9 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

What is the weight limit on this bike?

120kg
What pedals does this bike come with?

Yes, this bike comes with pedals in the box.
What is the recommended pressure for these tyres?

It depends where you ride. A good rule of thumb would be between 0.8 - 1.4 BAR.
What is the maximum tyre clearance on this bicycle?

26 x 4.8" tyres.
Why is it called the SE-Series Fat Single?

The SE-Series Fat Single is a 1 x setup and has a rigid carbon fork.
Can I fit racks to this frame?

Yes, you can fit racks to the rear triangle of this frame.
Can I fit a suspension fork to my fatbike - and what is the maximum travel fork I can add?

Yes you can. We recommend the Rockshox Bluto with 100mm of travel.
How much weight Can I mount to my SE-Series Fat Single Fork water bottle mount holes?
The water bottle mount hole of FK-GF 1852 load maximum weight : 10 kg.

OTHER MODELS IN THE SERIES

€999

SE:SERIES FAT DELUXE

Hardtail | Fat Bike | Alloy

Alloy Fork
26" x 4.7" Wheels
1x10 Speed Shimano
15.24kg

€1.399 €1.699

SE:SERIES FAT SINGLE

Hardtail | Fat Bike | Alloy

Carbon Rigid Fork
26" x 4.7" Wheels
1x12 Speed Shimano
15.9kg

€3.799

S-ELECTRO DIAMOND FAT ADVENTURER

Hardtail | E Fat | alloy

Carbon Rigid Fork
26" Fat
1x11 Speed Shimano
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
24.2 kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type	S	M	L	XL
	Rider height(cm)	158-170	170-180	178-188	188-200
	Rider inseam(cm)	72-77	77-82	81-85	85-91
a	Seat tube c/t	380	430	480	530
b	Seat tube angle	73	73	73	73
c	Head tube angle	69.5	69.5	69.5	69.5
d	Top Tube	570	600	622	645
e	Reach	388	418	439	457
f	Chainstay length	450	450	450	450
g	bb height	318	318	318	318
h	head tube length	110	110	115	130
i	stack	595	595	600	614
j	standover	762	778	802	832
k	Wheelbase	1090	1120	1142	1166

Rider Reviews

Gorgeous bike

I originally wanted to buy a Scoop Single but it was out of stock. So after contacting Silverback I was asked if I was prepared to have the equipment of a Scoop Single on a Scoop Deluxe, to which I agreed.

One week later the bike arrived, and I must say it looks and feels pristine: everything about the bike oozes quality from the SBC Carbon Fork over the Shimano Deore 12 speed Drivetrain, the SUNRingle MuleFut tubeless wheelset, VEE Rubber Bulldozer 26" x 4'7" tyres to the Surface Dropper post and Shimano Deore Hydraulic Disc brakes. I own a Specialized Carv Comp 29 MTB, and a Specialized Crux but they don't compare to this bike...this bike is a delight to look at and - based on my first impressions - to ride. I have ridden my MTB for years, but fat bikes, and especially this one, are true fun!

great

My Silverback is the Scoop single fatbike and it has been great. No problems at all and very easy to build up from the box! I can highly recommend Silverback fatbikes for everyone!

Really nice and fun bicycle.

Hello, I'm a happy owner of a Single Scoop fat bike. Really nice and fun bicycle. I have owned it for several years and I have never had problems and I have done many kilometers. I discovered your brand via the internet and I advertised it at the Trail Bike shop in Rome where I then purchased your bicycle. I wish I could try your own gravel or MTB.

I recommend this product.

The Single Scoop is a versatile bike where you can ride pretty much anywhere. The built quality is outstanding, and the cost of money is attractive comparing with other brands.
I've been riding from sand to single trakes and even attempting a few jumps. The carbon forks give extra comfort, but I would recommend a suspension forks and drop seat post for riders wanting to take more from this bike.
I recommend this product.
