Designed in pursuit
of performance.

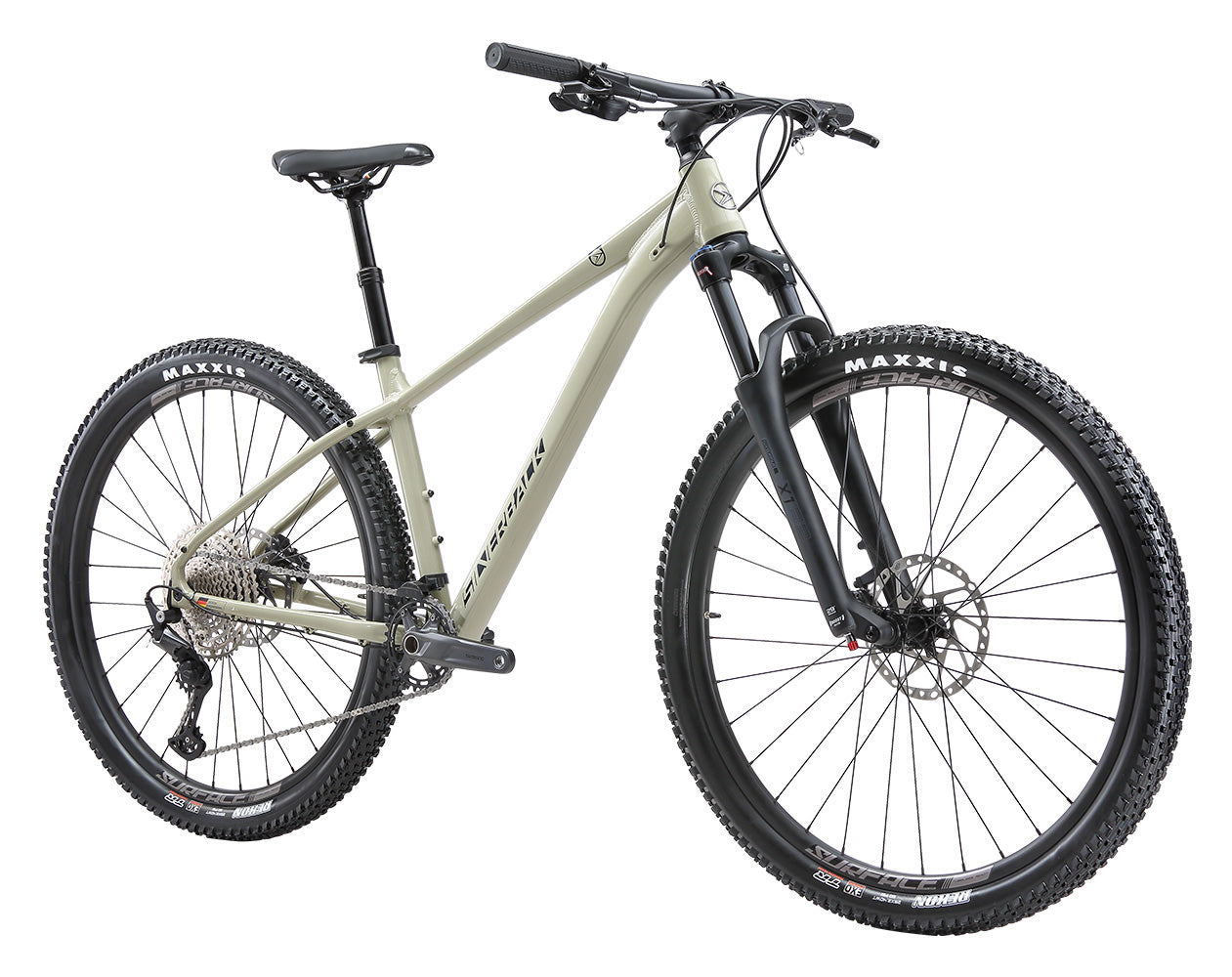

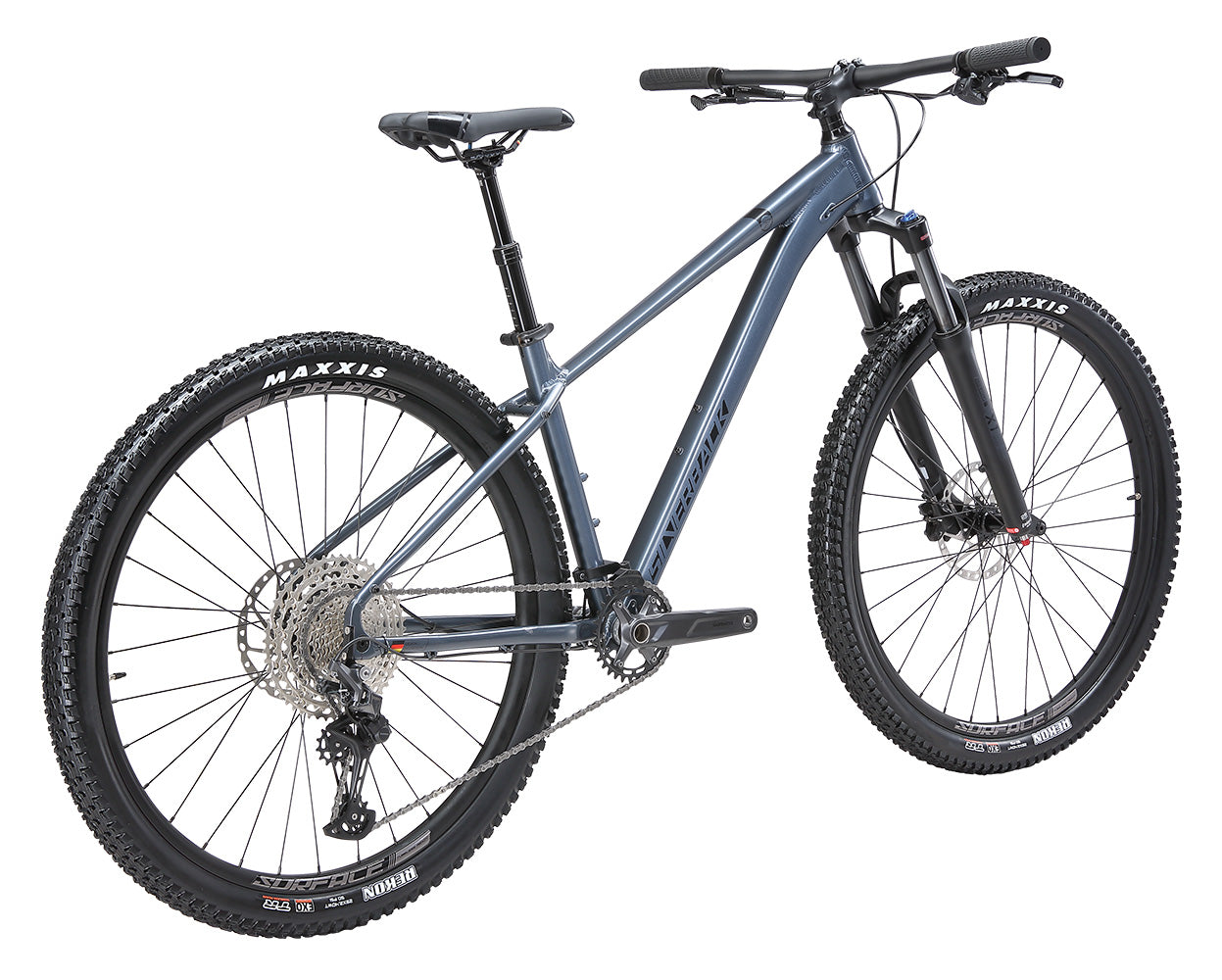

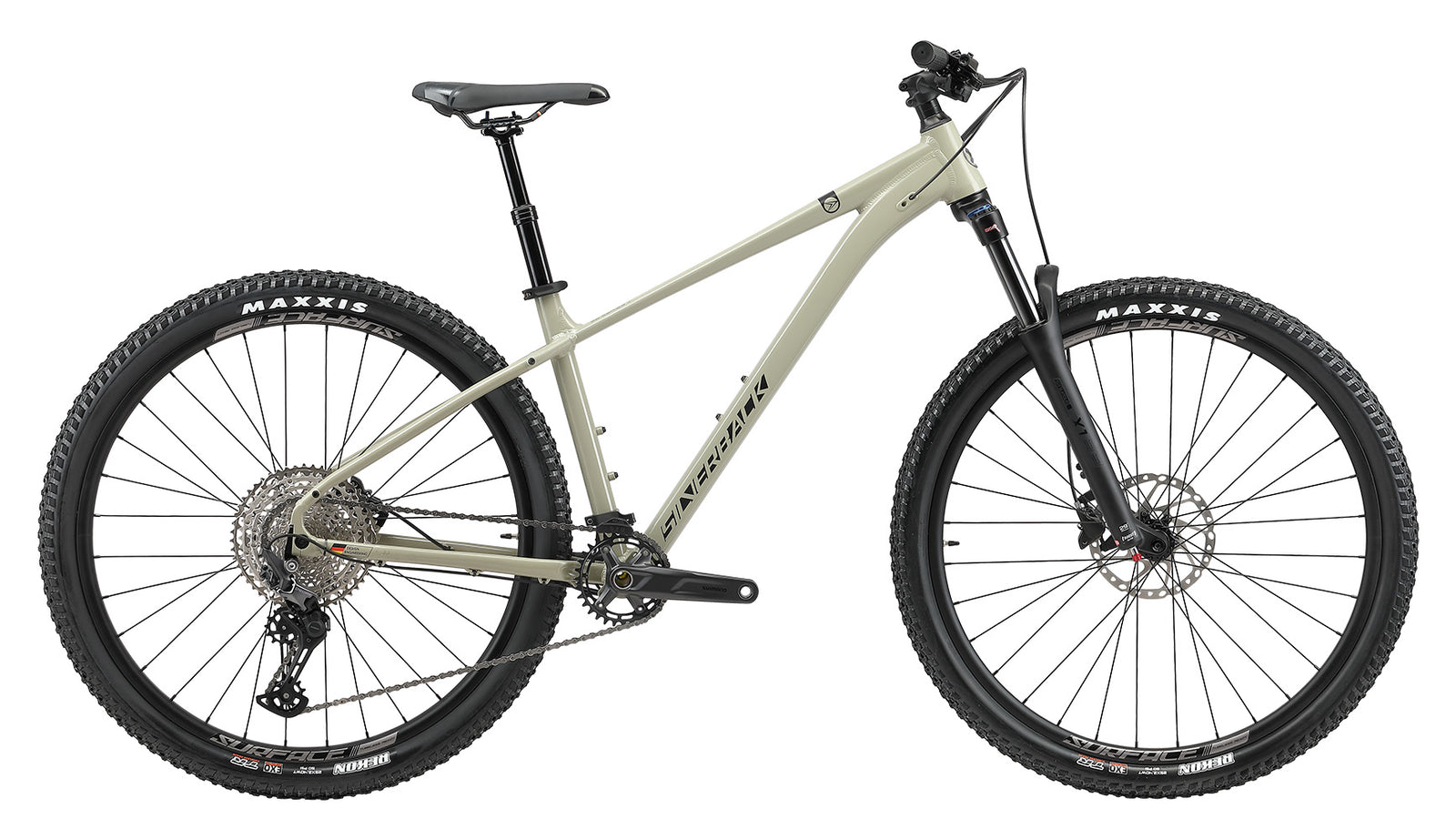

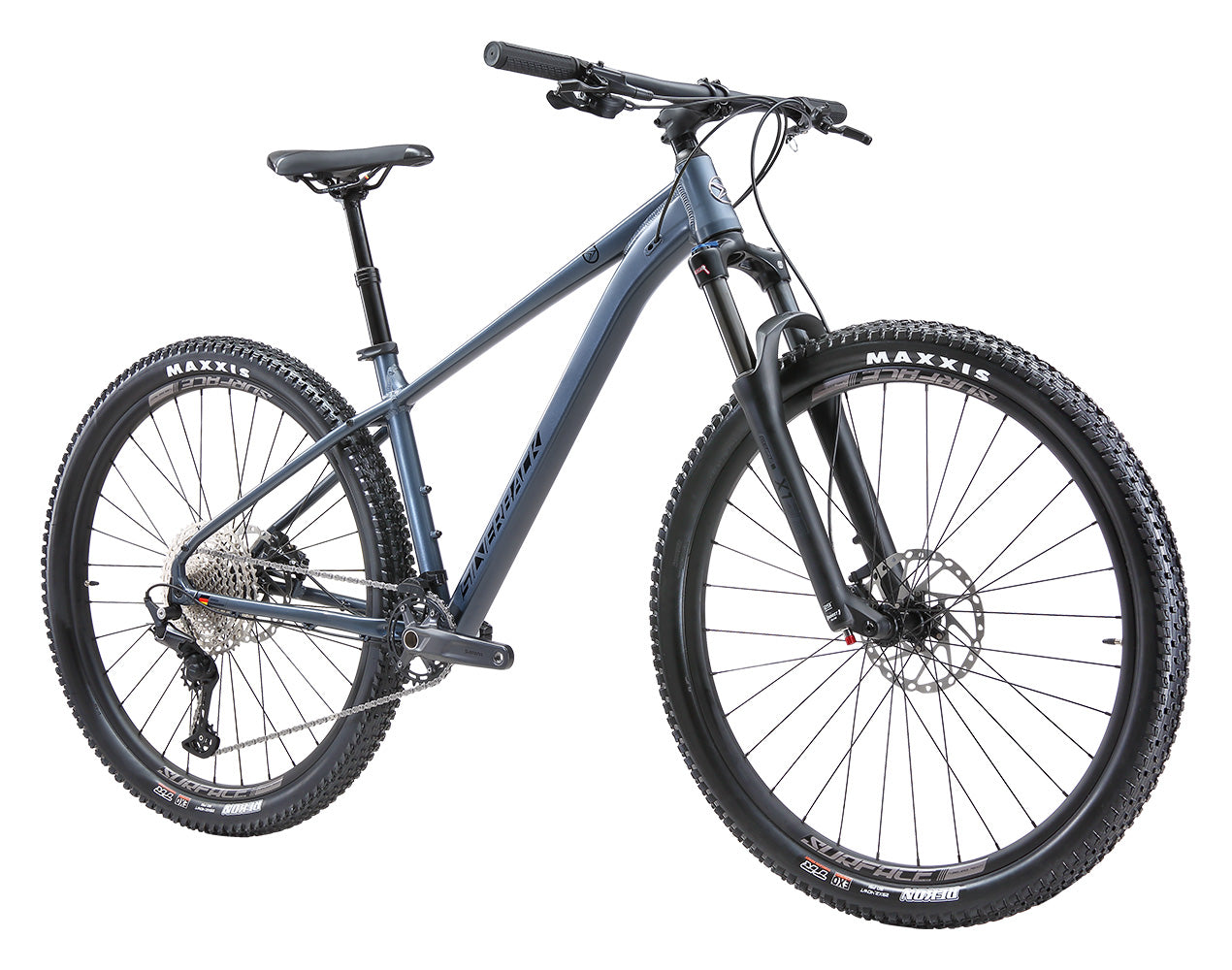

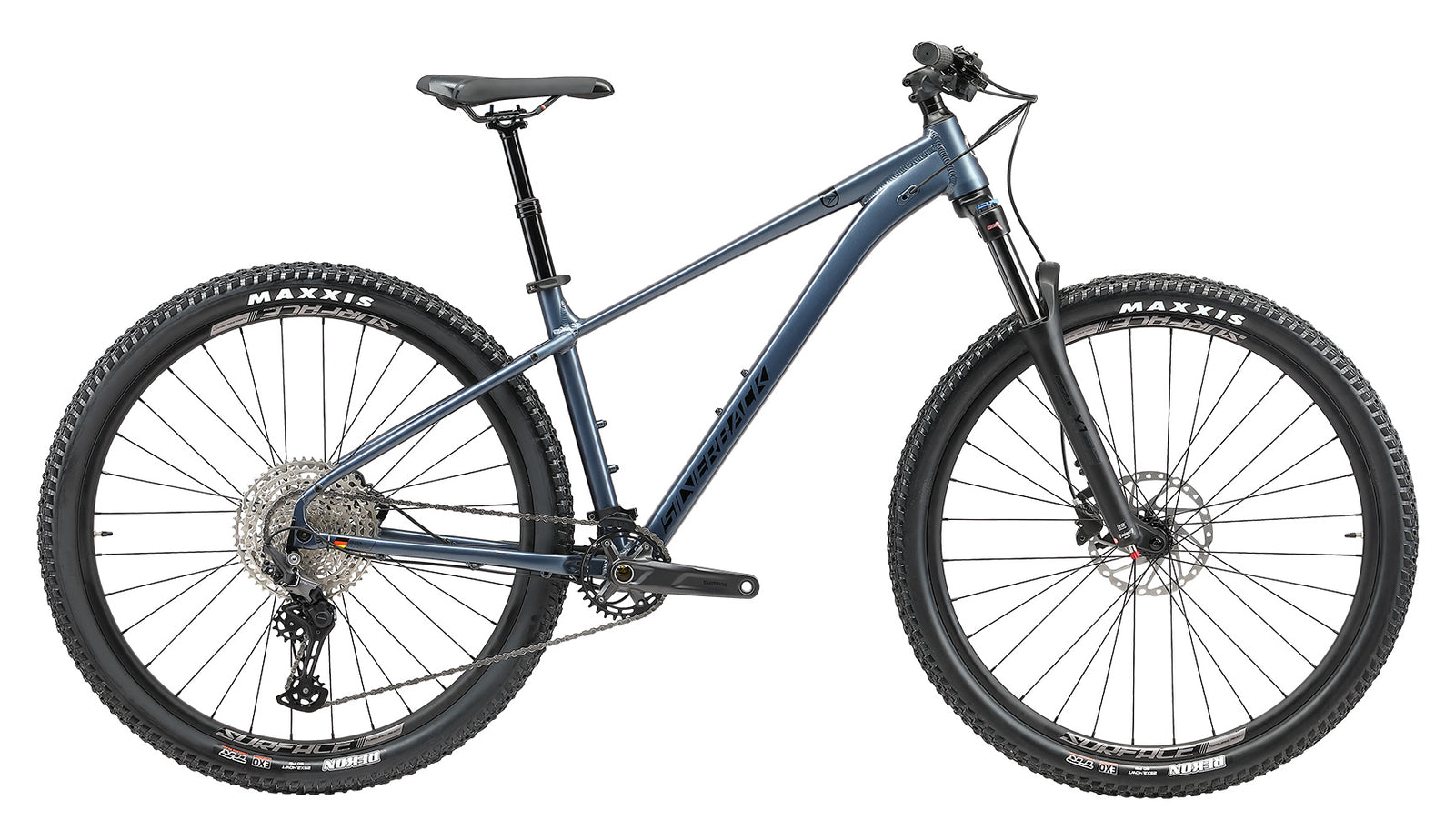

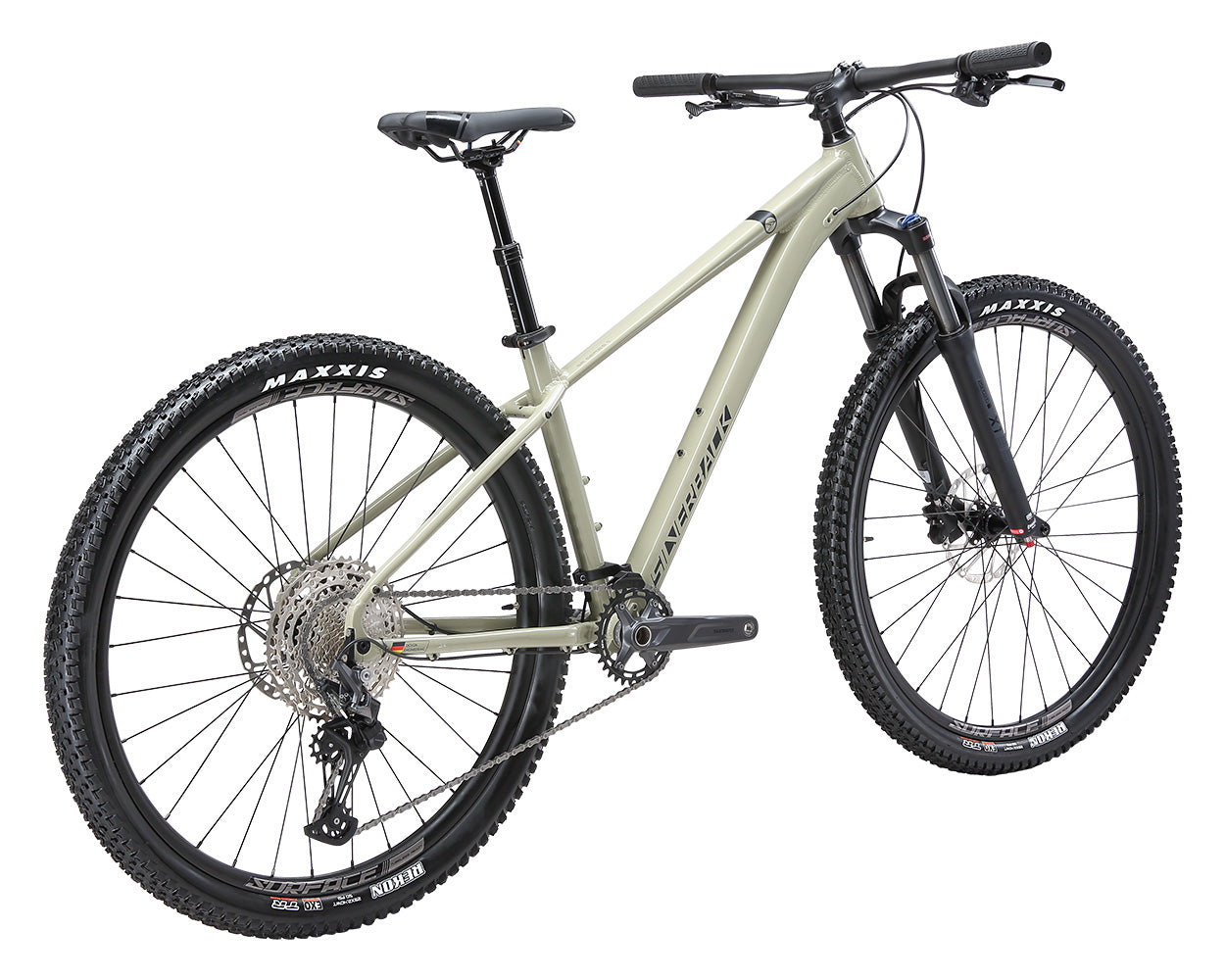

SE:Series 12
Hardtail
|
Trail
|
Alloy
|
29"
|
1x12 Speed
|
120mm Travel
|
16.3kg
€866
Price incl. VAT excl. Local Import Taxes & Shipping Costs.
KEY FEATURES
- New Hydro-formed 6061 alloy frame with Boost spacing & ISCG tabs

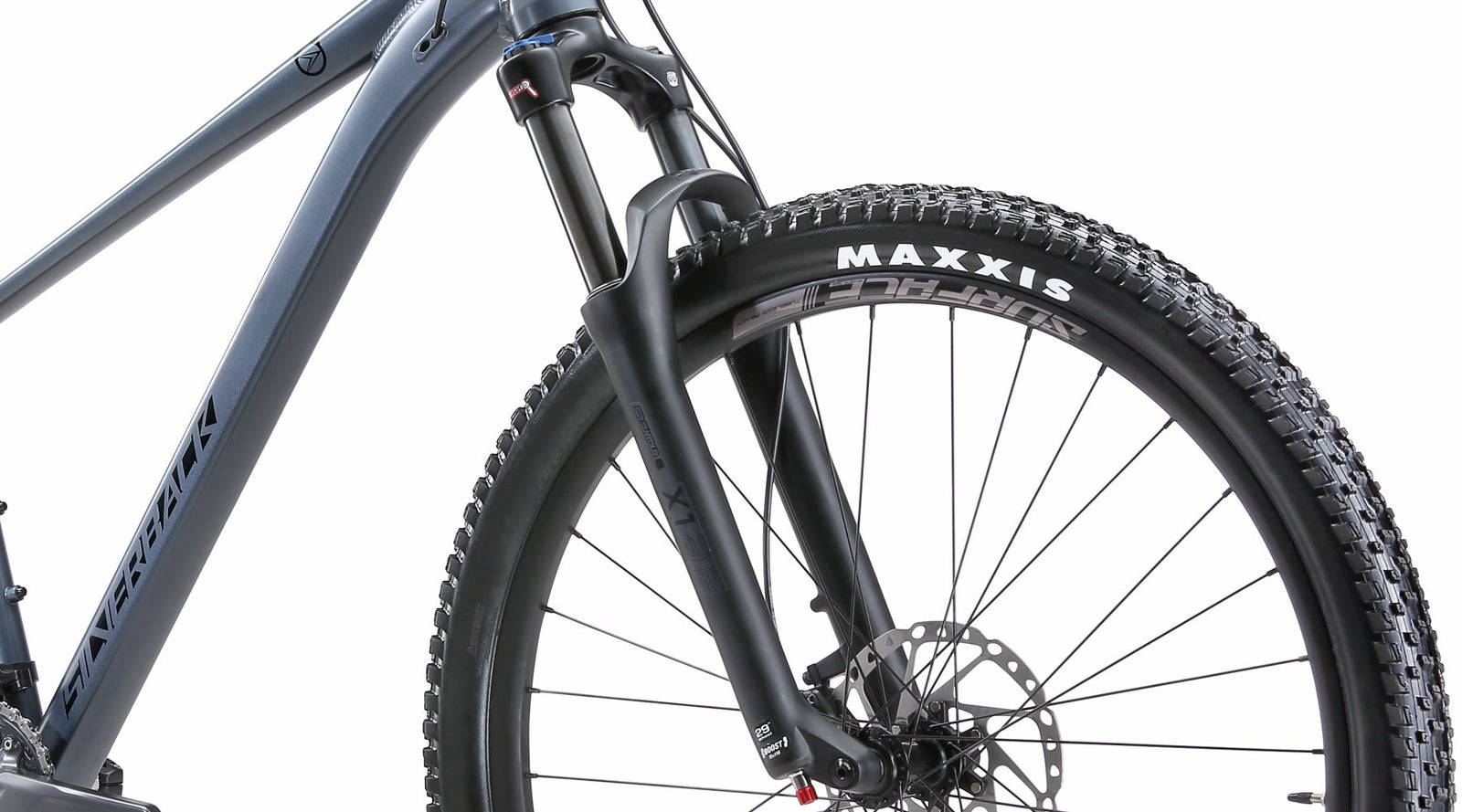

- Suntour X1 Air Fork, 120mm travel
- Shimano Deore Shadow Plus 12-speed rear derailleur
- Surface Custom Asymmetrical, Tubeless Ready wheelset
- Maxxis Rekon 29x2.4" tyres
- Shimano Hydraulic Disc Brakes
- Surface Dropper seatpost
- Weight: 16.3 kg
-
OVERVIEW
![drop-down-arrow-icon-speedlab]()
SE SERIES 12 - TRAIL PERFORMANCE RIDING
Hardtail trail mountain biking is a sure-fire way to quickly boost your skill and confidence. Featuring our new sweet spot geometry, The SE Series 12 brings uncompromised climbing and descending prowess to trail hardtails.
TRAIL OPTIMISED POP GEOMETRY
POP geometry engages bigger leg muscle groups for more effective climbing. The rider position on the SE Series 12 improves traction, front wheel grip and bike control. This means that it also feels more natural, boosting confidence and skill development.
Short chainstays
The Short chainstays on the SE Series 12 makes for a very nimble handling bike. The forged and flipped yoke creates enough clearance for 29x2.6" tyres on the 430mm chainstays with ample crankarm clearance to boot.
-
Why it's best
![drop-down-arrow-icon-speedlab]()
WHY IT’S BEST.
- SE Series 12 is designed to rip - this is a real mountain bike, a Trail hardtail ready to take your riding to the next level.
- Threaded bottom bracket - a press-fit BB on a trail bike is a no-no in our opinion. Less creaks, easy to work on and less maintenance needed.
- SB'S POP geometry means that SE Series 12 not only descends and handles well, but climbing is improved as well as balance, cornering grip and traction over technical terrain.
- True to Silverback's Best In Class philosophy SE Series 12 offers unbeatable value in this segment. Considered, high quality frame with a purpose chosen but wallet friendly build kit.
- A hardtail can be really hard on your body. To help with comfort, the bigger tyres and SR Suntour fork with 34mm stanchions makes the tech sections easier to navigate.
- It's a hard knock life for trail wheels. The custom Surface asymmetrical wheelset, rims is strong enough to take big hits on the trail without issues, yet light enough to use on your everyday rides.
Hydroformed alloy frame
New Frame, Updated Geometry and Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, 148mm x 12mm through axle dropouts, 18mm direct-mount 2-bolt kickstand, water bottle bosses, ISCG Tabs, 29" x 2.4" tyre clearance, rack and fender mounts

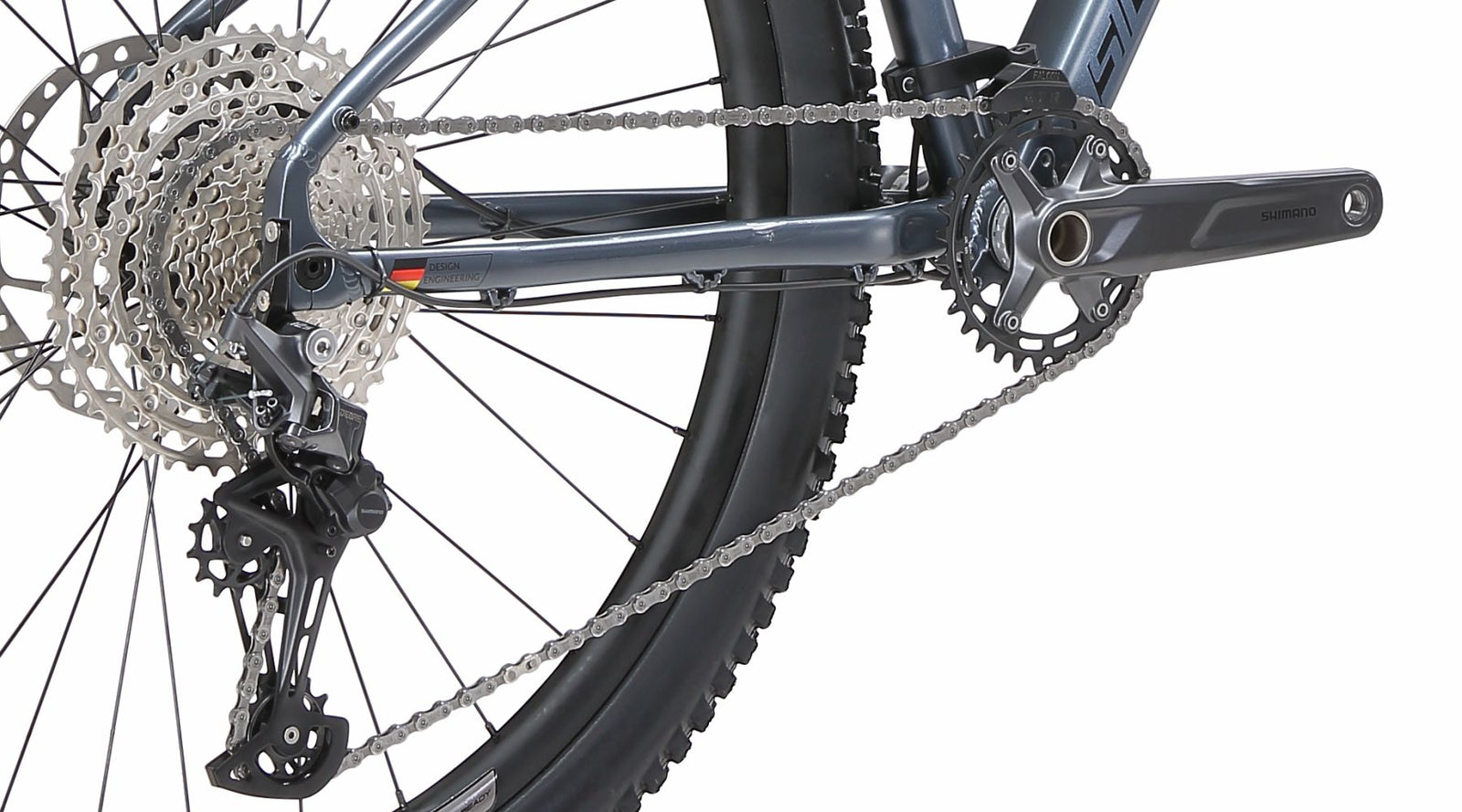

1x Drivetrain
All SE Series 10 & 12 models come standard with 1x drivetrains.

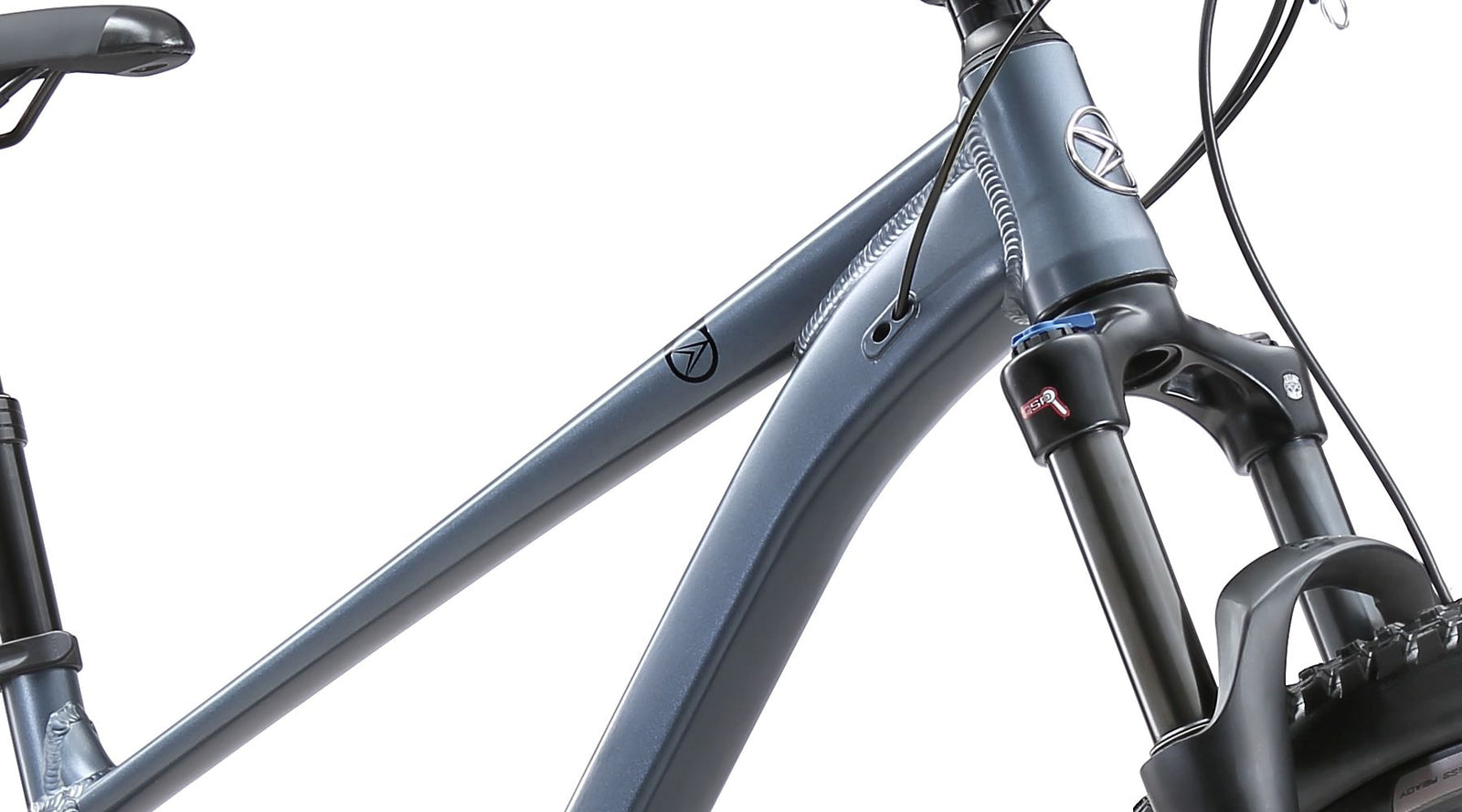

Innovative easy-route internal cable routing
SE Series 12 features full internal routing. The brake line follows the seatstay, making this the shortest possible rear brake line route on the bike. Dropper post cable routing is included for future bike upgrades.
Internal Dropper post compatible
SE Series 12 models come equipped with internal dropper posts as standard!
High volume - 2.6" tyre compatibility
Tyre compatibility is 27.5 x 2.8" or 29" up to 2.6" wide, giving plenty of setup options and creating our most versatile hardtail ever. Larger volume tyres offer noticeably better bump absorption and grip!
Thru Axles and boost
The SE Series 12 front and rear axles offer BOOST spacing and thru axles. This makes for stronger wheels, a more durable frame, and stiffer feeling bike when you ride it hard.
Waterbottle mounts
SE Series 12 offers more waterbottle mount options. Sizes M-XL have capacity for 2 full sized bottles while size Small has 1. (Bottle cages sold separately)

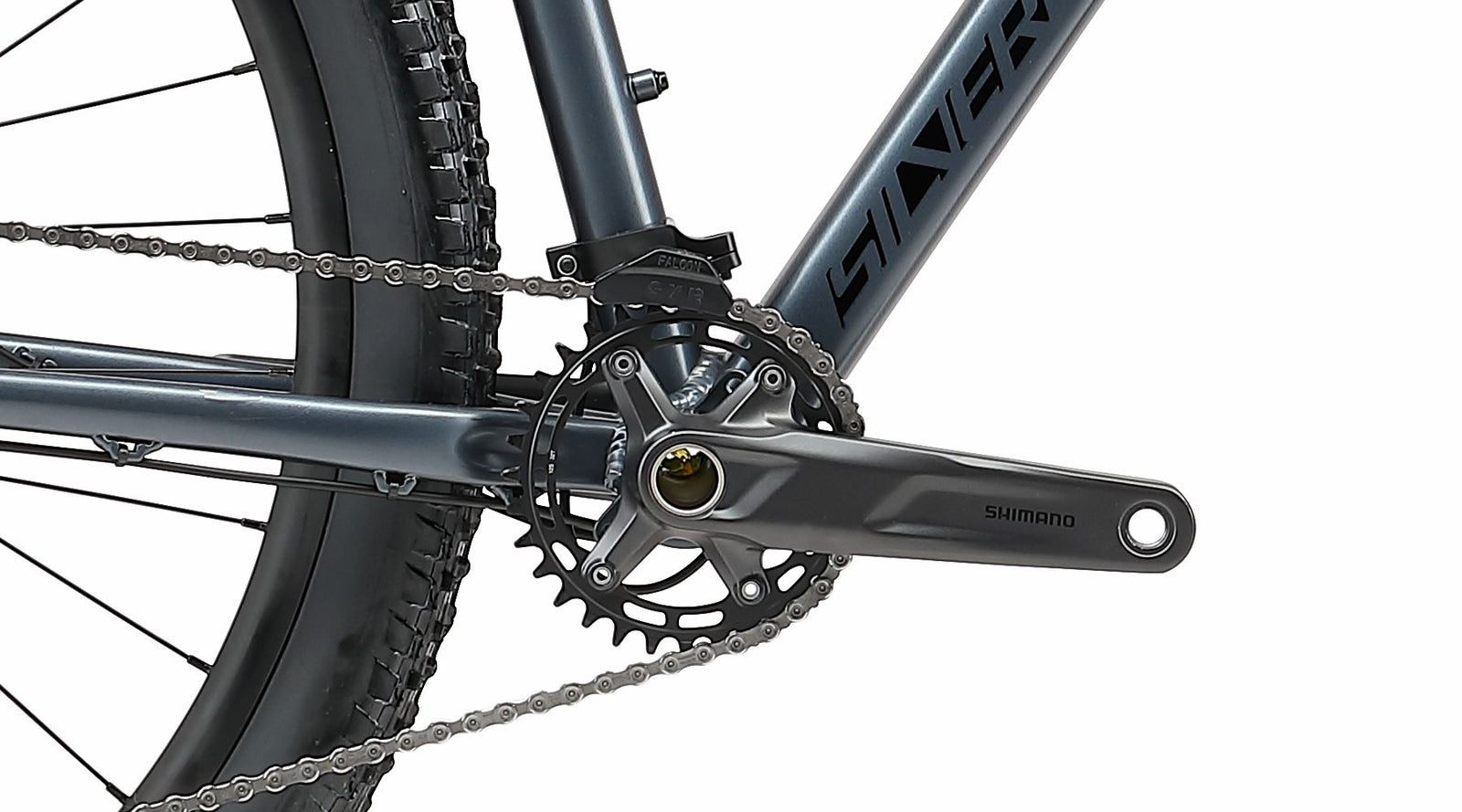

SURFACE CHAIN GUIDE
Included on all 1x drivetrains. Improves chain stability, helps to prevent chain drop.
Fine-tuned Head Tube
Tapered 66.5° head angle improves climbing stance & handling.

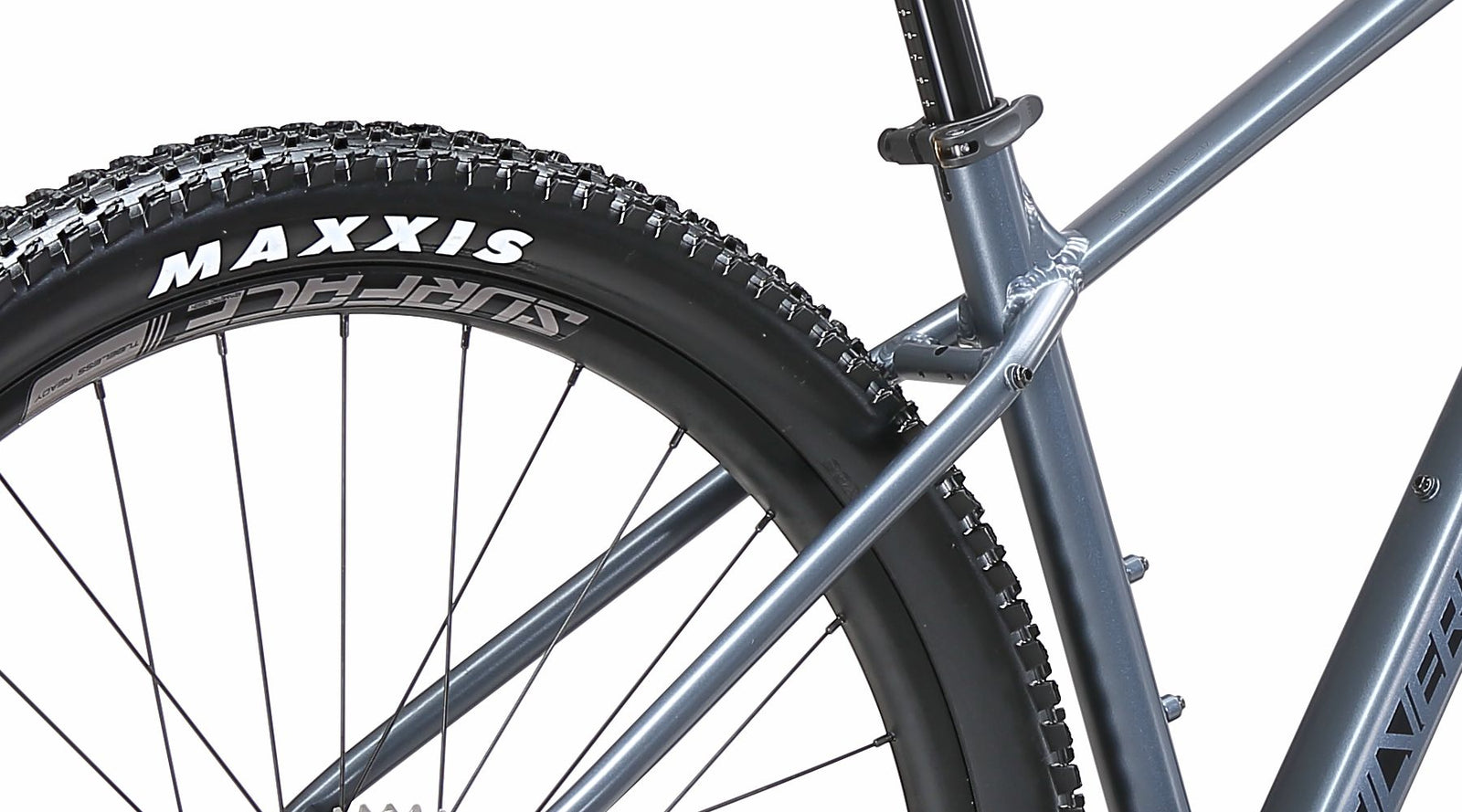

Refined seat-stay bridge & wide tyre clearance
Seat Stay support bridge to stiffen up the rear triangle with an attachment point for a fender or mud guard.
International Standard Chain Device (ISCG).
Dont drop a chain! All SE Series 12 frames feature ISCG tabs & compatible chain guide.
RACK MOUNTS INTEGRATED IN FRAME.
All SE Series models include rack mounts, allowing you to haul your gear when you commute/tour. (Rack sold separately)
-
Specification
![drop-down-arrow-icon-speedlab]()
-
Size chart & Geometry
![drop-down-arrow-icon-speedlab]()
FIND YOUR FIT.
Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.
map type(mm unless specified) S M L XL Rider height(cm) 154-170 170-180 178-190 185-210 Rider inseam(cm) 70-77 77-81 80-86 84-95 A Seat tube c/t 390 420 455 490 B Seat tube angle 75° 75° 75° 75° C Head tube angle 66.5° 66.5° 66.5° 66.5° D Top Tube 581 608 637 671 E Reach 415 440 465 495 F Chainstay length 445 445 445 445 G bb height 319 319 319 319 H head tube length 95 105 120 135 I stack 619 628 642 656 J standover 742 741 741 740 K Wheelbase 1158 1187 1219 1255 -
