OUTDOOR EXERCISE & DAILY COMMUTER.

Name: SE:Series 275V
Brand: Silverback
SKU: 0086544014581
Price: 289,00 EUR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

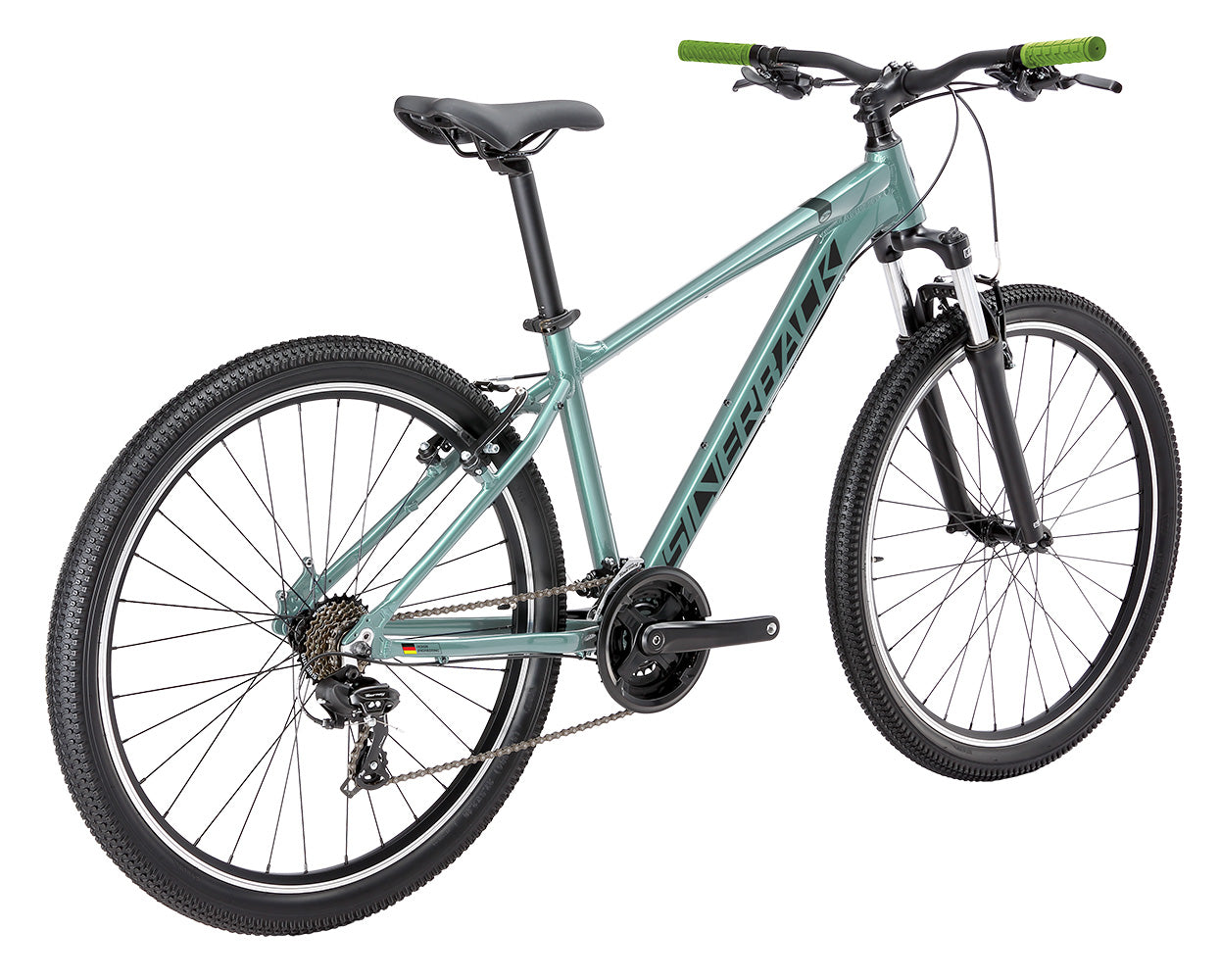

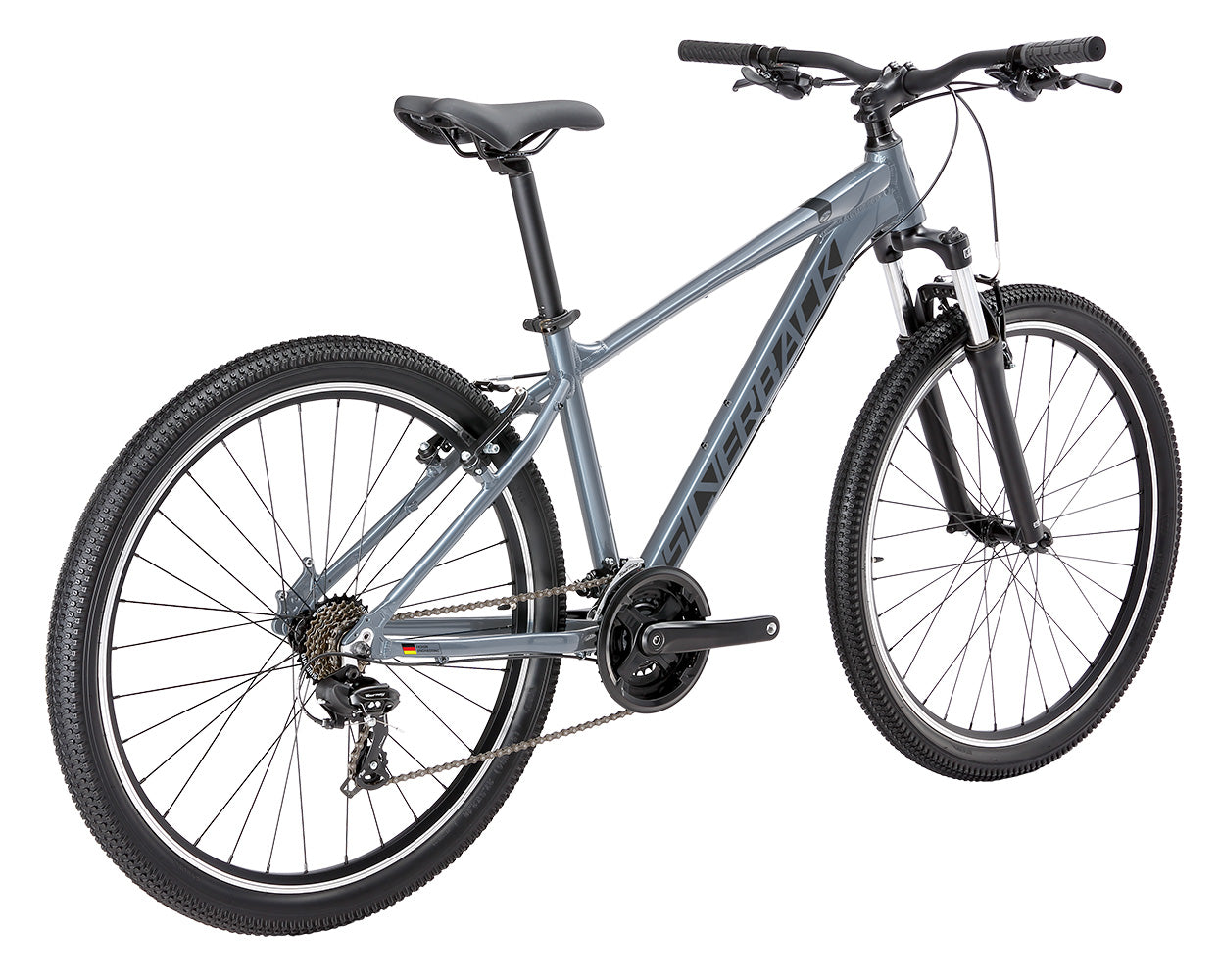

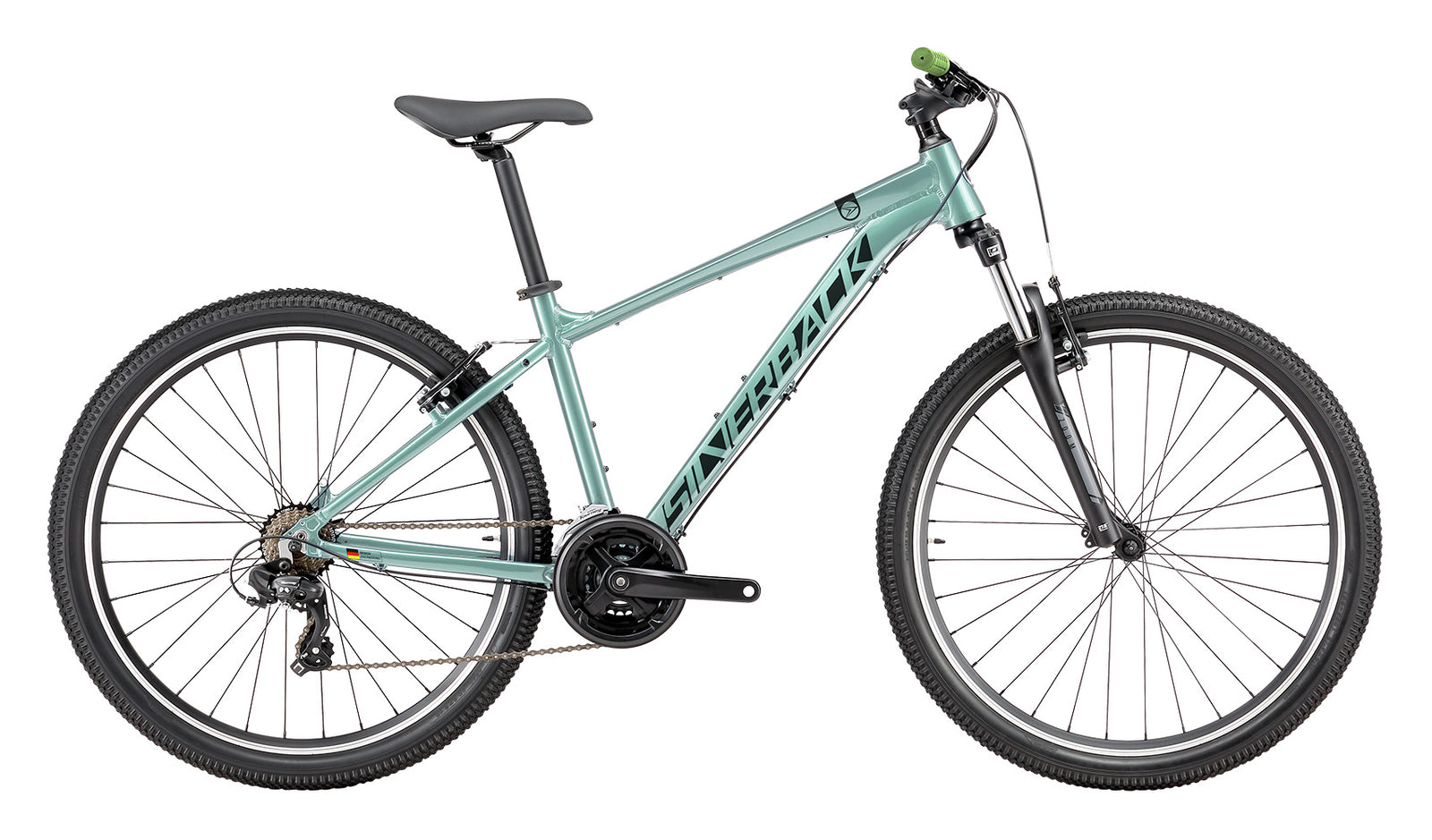

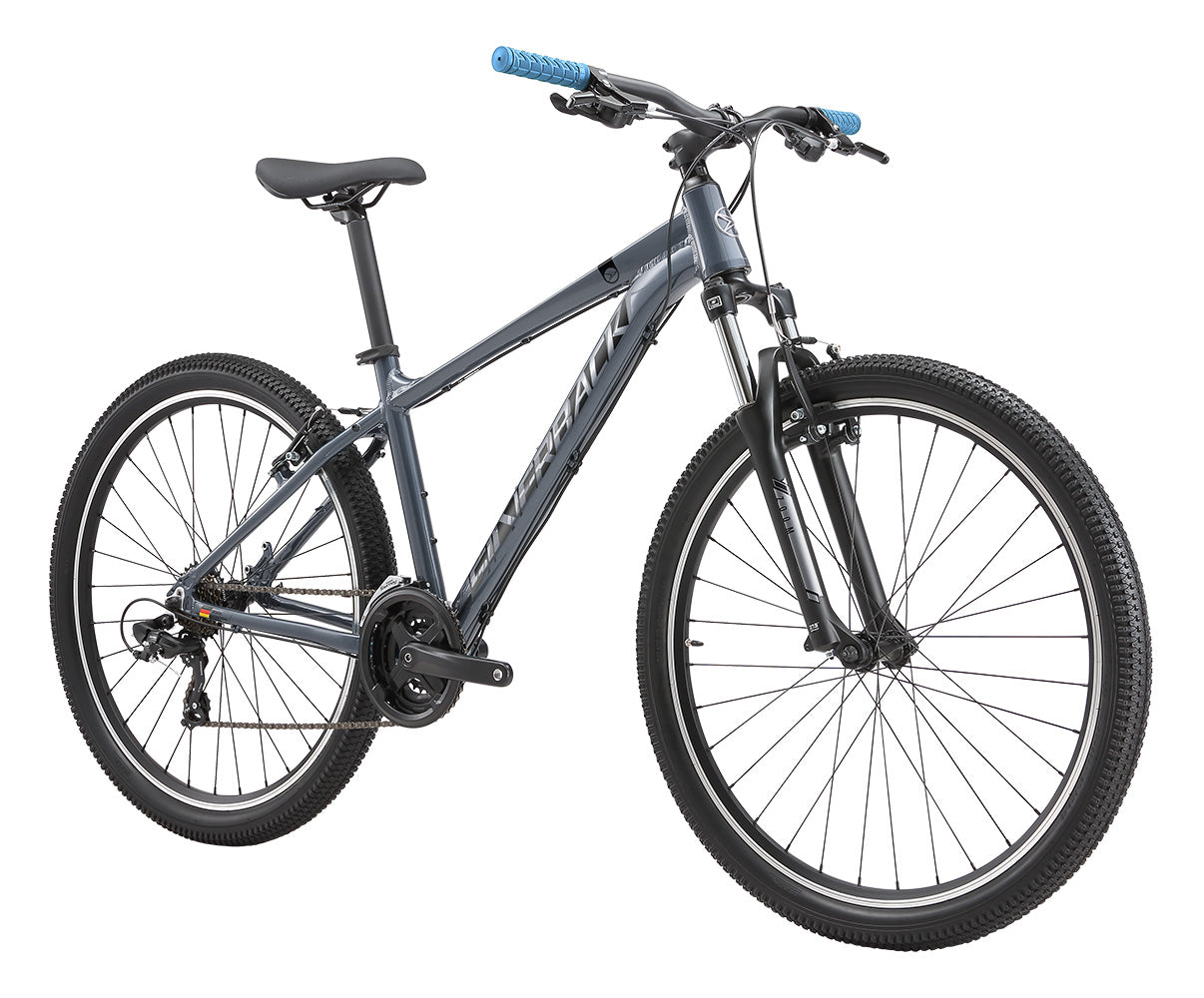

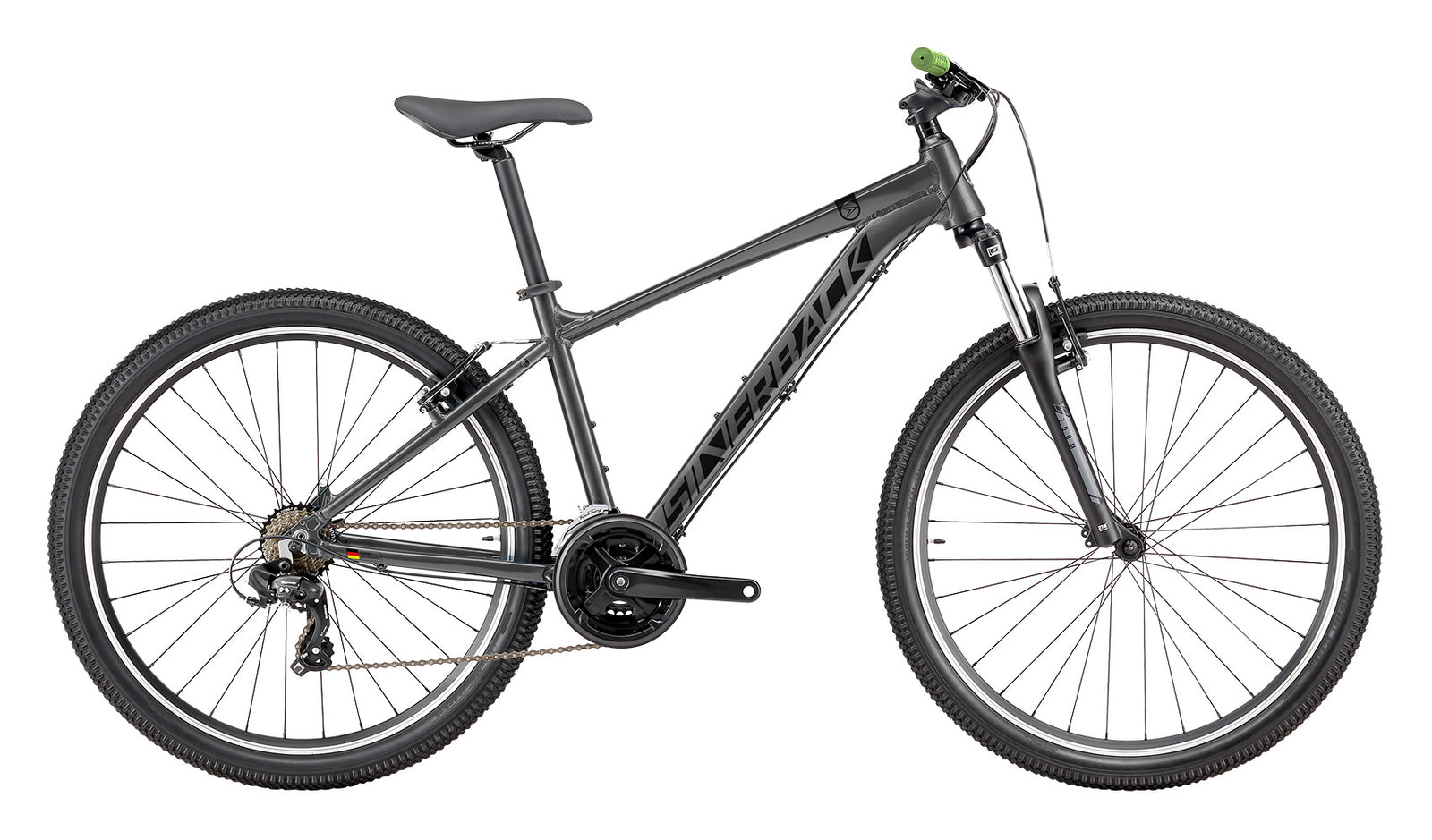

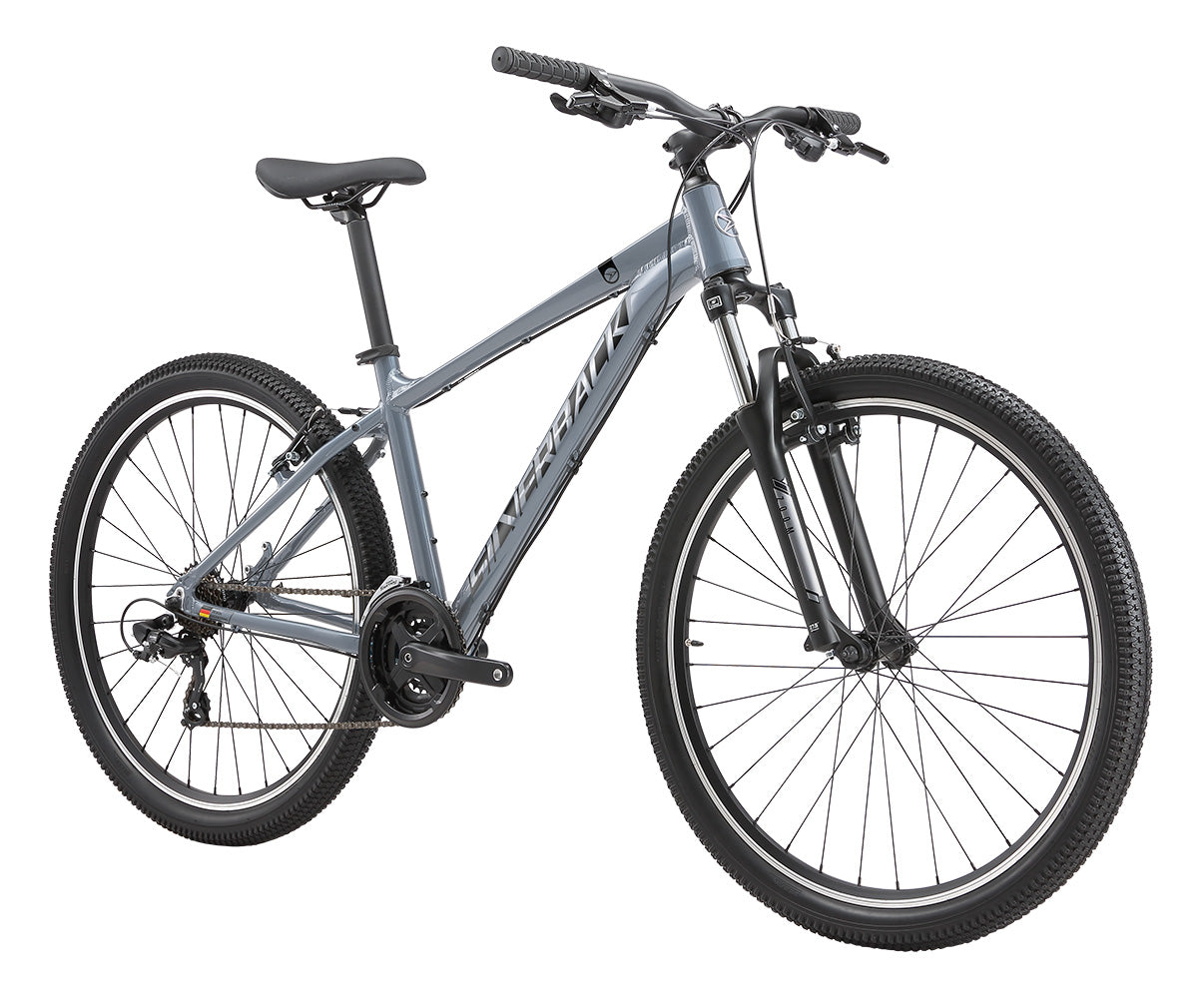

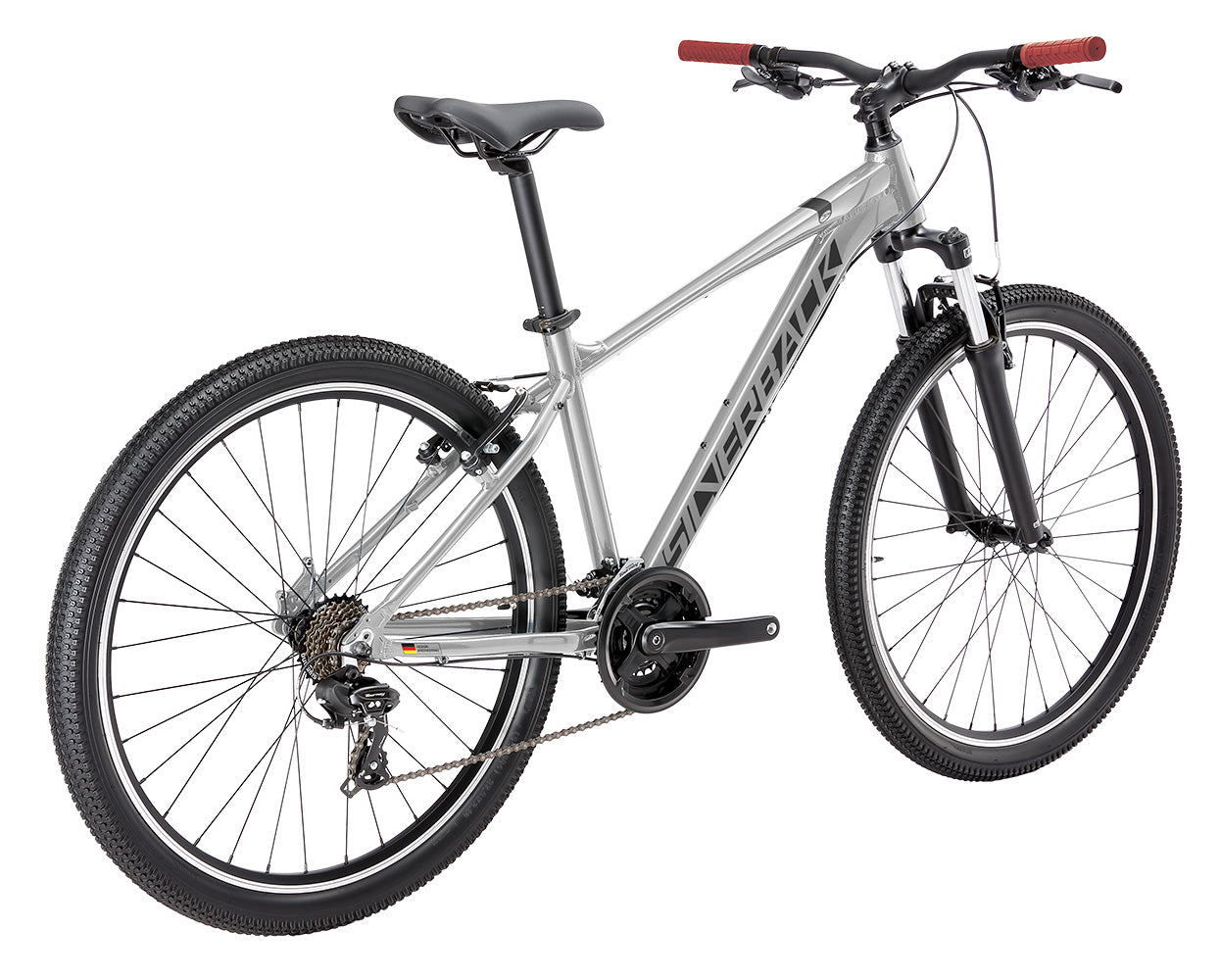

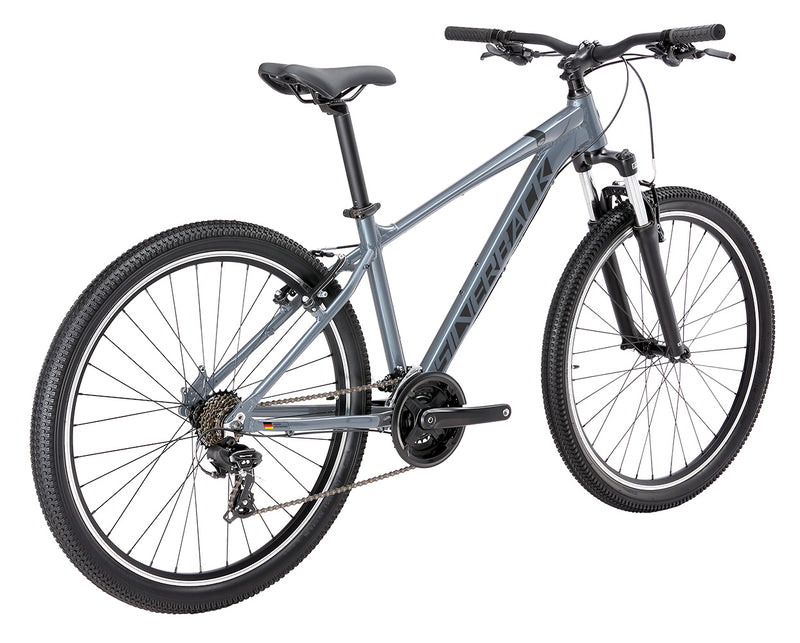

SE:Series 275V

€289

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

Size

XS

S

M

L

XL

Glacier Shade 0086544014581
Silver Ice 0086544015083
Mint Green 0086544015076
Blue Slate 0086544015182
Platinum 0086544015281

EmptyDrop

FIND OUT ABOUT SILVERBACK'S WARRANTY

Sold Out SHOP AT COMPARE BIKES

Based on 5 reviews

MY DREAM BIKE^TM

COMPARE BIKES

SE:Series 275V

€289,00

Shop speedlab

KEY FEATURES

Hydro-formed 6061 alloy frame, Adapted POP geometry
Zoom 565D AMS Suspension Fork, 100mm travel
Shimano Tourney 3 x 7-speed drivetrain
Surface Tubeless Ready wheelset with alloy rims
Wanda 27.5"x2.10" tyres
Alloy V-brakes
Alloy components
Weight: 16.3 kg

Overview
Why it's best
Specification
GEOMETRY & SIZING
Review & Faq
DOWNLOAD PDF
Owner's Manual

OVERVIEW

SE:SERIES 275V - OUTDOOR EXERCISE & DAILY COMMUTER

Lightweight aluminium hardtail mountain bike for outdoor exercise and every day commuters. The 3 x 7-Speed Shimano Tourney drivetrain lets you cruise over any terrain. The 100mm suspension fork adds some obstacle cushioning. The included standard kickstand and rack mounts, add convenience for your daily commute.

RECREATION POP GEOMETRY

POP geometry engages bigger leg muscle groups for more effective climbing. The rider position on the SE:Series 7 improves traction, front wheel grip and bike control. This means that it also feels more natural, boosting confidence and skill development.

Alloy V-Brakes

V-brakes are easy to set up, easy to maintain and offer decent power and modulation.
Why it's best

Hydroformed alloy frame

Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 x 2.1" tyre clearance, rack and fender mounts.

3 x 7 Drivetrain

Ample gears for your commute! A chainring guard is also included on all 3x drivetrains to help prevent clothing getting caught.

100mm Suspension Fork

The SE:Series 7 is fitted with purpose chosen 100mm suspension fork - Zoom 565D AMS Coil fork with Tapered Steerer. A suspension fork improves comfort and traction on a hardtail mountain bike.

SURFACE ALLOY CONTROL PARTS

All SE:Series bicycles are fitted with Surface quality alloy control parts. This means less weight, more durability and function, and worry free ownership. Ergonomic Grips & Saddle improve comfort by relieving pressure from sensitive areas.

TUBELESS READY, WIDER RIMS & TIRES

Surface Alloy Wheels are pre-taped and tubeless ready from the box. Easy to set up tubeless, just add sealant and inflate to seat.

Waterbottle mounts

SE:Series 7 offers more waterbottle mount options. Sizes M-XL have capacity for 2 bottles. (Bottle cages sold separately)

SURFACE CHAIN GUARD

Improves chain stability, helps to prevent chain drop as well as preventing clothing snags.

TYRE CLEARANCE

Designed to easily fit higher volume up to 2.1” tires with plenty of mud clearance. Bigger tires can increase contact area and thus ride comfort, control and grip.

RACK MOUNTS INTEGRATED IN FRAME.

All SE:Series models include mounting points for rear racks, allowing you to haul your gear when you commute/tour. (Rack sold separately)
Specification

SPECIFICATIONS.

FRAMESET

Frame

Updated Geometry and Hydroformed tubing, Tapered headtube, 6061 Alloy, full length cable routing, replaceable derailleur hanger, integrated mount for 40mm direct-mount 2-bolt kickstand

Headset

Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/30

Frame Axle Spacing

135x9mm

Axle Specification

QR

Hanger Type

HANGER 05

SUSPENSION

Fork

Zoom 565D AMS, Coil, 100m Travel, Preload Adjuster

Fork Travel

100mm

WHEELS

Wheelset

SURFACE Custom

Hubs

F: Joytech Alloy, 32H, 100mm OLD, 115mm QR,V-brake

R: Joytech Alloy, 32H, 135mm OLD, 170mm QR, V-brake, 7-Speed

Rims

F: Surface Alloy, 32H, 27.5" x 25mm, Symmetrical, Tubeless Ready

R: Surface Alloy, 32H, 27.5" x 25mm, Symmetrical, Tubeless Ready

Tyres

F: Wanda P1226D, 27.5x2.10"; Wire Bead

R: Wanda P1226D, 27.5x2.10"; Wire Bead

Max Tyre Size

2.1"

DRIVETRAIN

Crankset

Surface, 42x34x24T, 7-Speed

Max Chainring Size

42x34x24T

Bottom Bracket & Type

BSA73

Shifter(s)

L: Shimano SL-M315-L Altus Shift Lever, 3-speed

R: Shimano SL-M315-7R Altus Shift Lever, 7-speed

Front Derailleur

Shimano FD-TY600-L6 Tournet Front Derailleur, Top-Swing

Rear Derailleur

Shimano RD-TY300 Rear Derailleur, 6/7-speed

Cassette

Shimano MF-TZ500-7 Sprocket, 14-28T, 7 Speed

Chain

PYC 7-speed

BRAKES

Brakes

Alloy, V-brakes

Rotors

N/A

COCKPIT

Grips

Surface Single Density, 120mm

Handlebar

Surface, Alloy, Ø31.8mm, 680mm, 9° Backsweep, 30mm Rise

Stem

Surface, Alloy, Ø31.8mm, ±3° Rise, 45mm Extension

Saddle

Surface

Seat Post

Surface Alloy, Ø30.9mm

Seatpost Clamp

Alloy, 35mm, QR Clamp

Pedals

One Piece PP, Black

WEIGHT

Bike Weight

16.3 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Disclaimer: Due to the nature of bike manufacturing, specification & finishes, component availability and price may be subject to change without prior written notification. Also images may not match final specifications due to component availability.

Due to Covid-related scheduling and component availability challenges, bike specifications are subject to change without notice. Specifications may not be exactly what is shown in the photo.

Size chart & Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XS	S	M	L	XL
	Rider height(cm)	143-156	153-170	170-180	178-190	188-210
	Rider inseam(cm)	65-70	69-77	77-81	80-86	85-95
A	Seat tube c/t	350	380	420	460	500
B	Seat tube angle	74°	74°	74°	74°	74°
C	Head tube angle	68°	68°	68°	68°	68°
D	Top Tube	564	579	601	622	654
E	Reach	393	408	430	450	475
F	Chainstay length	445	445	445	445	445
G	bb height	325	325	325	325	325
H	head tube length	110	110	110	115	140
I	stack	595	595	595	600	623
J	standover	686	705	730	757	790
K	Wheelbase	1103	1118	1140	1162	1196

Review & Faq
FAQ.

What hanger model fits the SE Series 275V?

Hanger 05

Is the bike tubeless or tubeless ready or will it need to be fully converted?

This bike has tubeless ready rims, however, the tyres will need to be replaced with tubeless tyres

What is the longest dropper post I can fit on this bike?

Estimated max dropper travel per frame size: S: 125mm, M: 150mm, L: 170mm, XL: 170mm

Can I fit a longer fork onto this bike?

No, we dont recommend more than a 100mm travel fork.

Will the geometry change if I fit 650B plus wheels?

Yes, the BB height, stack & standover will be lower.
