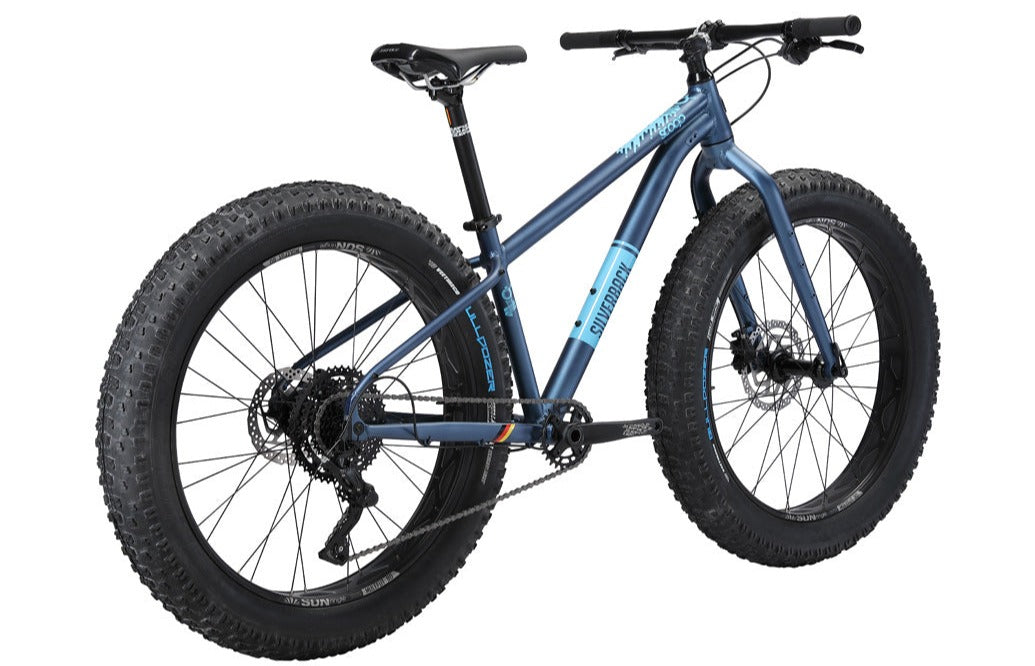

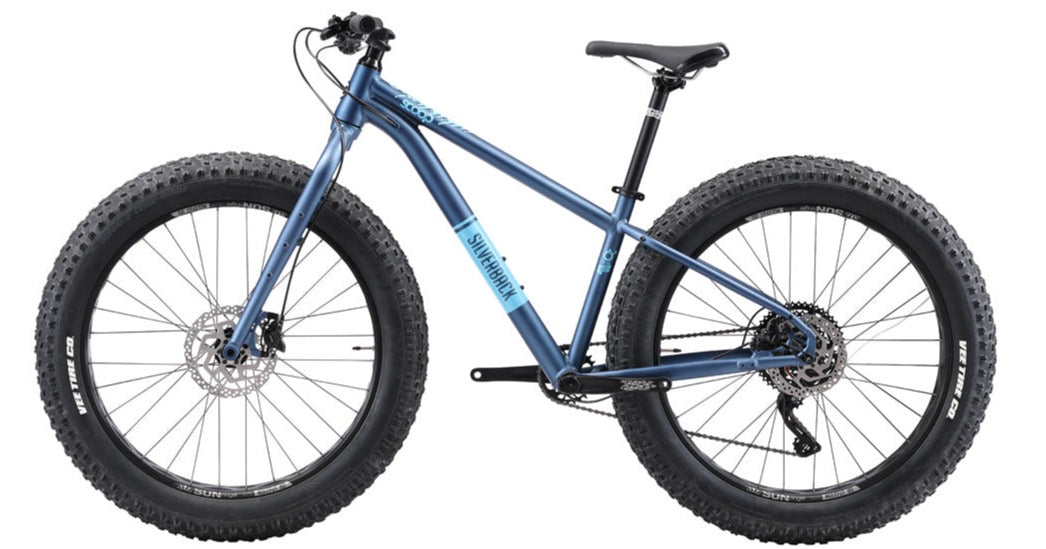

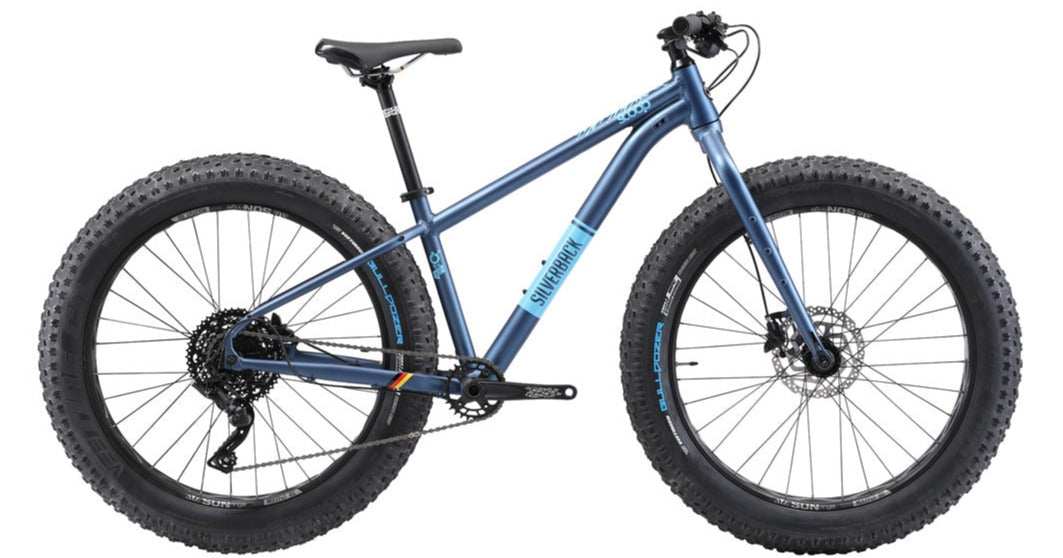

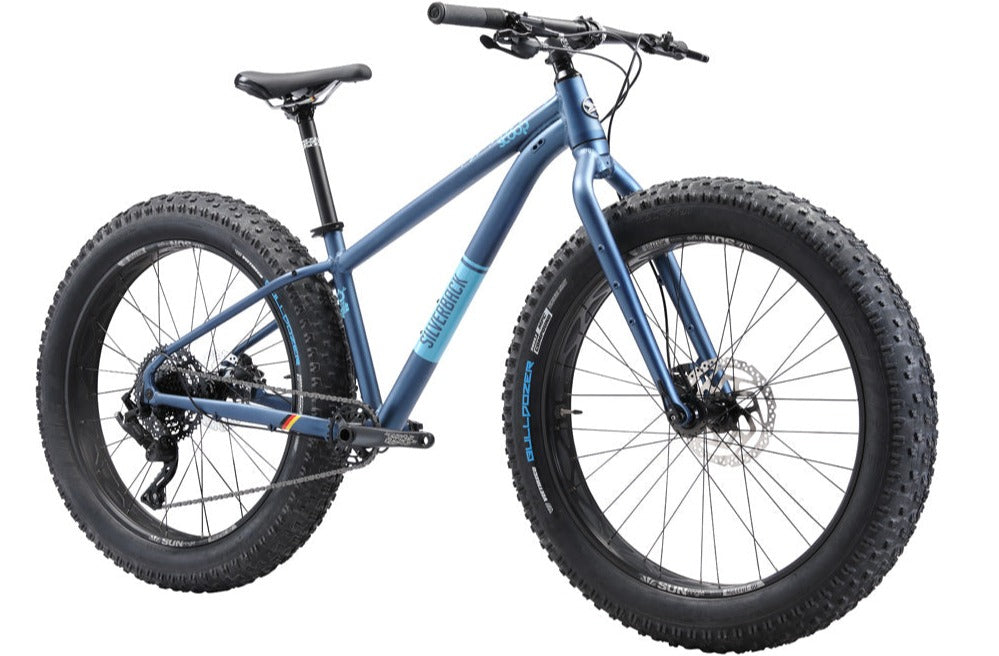

SE:Series Fat Delight

Name: SE:Series Fat Delight
Brand: Silverback
SKU: 6097000452232
Price: 899.0 EUR
Availability: OutOfStock

€899

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

5.0 5 reviews

Size:

Color: CHARCOAL / ICE BLUE

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Speedkit Fender - for fat bikes, fixed up to 26x4,5"

new lower price

SBC Carbon Fork - Fat Bike

Chain Lock Cosa Nostra Plus LO-C21 - Lock - bike - cycling - XLC - - - - Speedlab

XLC Chain Lock Cosa Nostra Plus LO-C21

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-19

SE:Series Fat Delight

€899,00

Add to cart

At a Glance

6061 Alloy Fatbike specific 26" frame, tapered headset, Thru Axle
Silverback Alloy Fat fork, Tapered, 15x150mm Axle
SUNRingle MuleFut 80SL tubeless wheelset
Surface forged alloy crankset, 28T chainring
MICROshift 9spd RD-M6195M clutch rear derailleur
MICROshift 11-46t, 9spd cassette
VEE Tire Bulldozer 26x4.7", MPC Foldable, Tubeless Ready tyres
Shimano BL-MT200 Hydraulic Disc Brakes
Surface alloy components
Weight: 15.55kg

TECH HIGHLIGHTS

SINGLE CHAINRING AND AN ALLOY FAT FORK.

Explore the sand dunes in the summer and snowy mountains in the winter with the oversized tyres on the SE-Series Fat Delight. Don’t be fooled by the bulkiness of the Fatbike, these bikes are built to take on extreme conditions without drama. The SE:Series Fat Delight has a single front chainring paired with a wide range cassette, giving the rider a very low gear and allowing you to climb up almost anything, loose rock or slippery slopes. The big volume tyres will absorb trail bumps and to keep the muck out of your cables and for both function and aesthetics, the SE:Series Fat Delight has internal cable routing.

ALLOY RIGID FAT FORK

SE:Series Fat Delight has a colour matched alloy rigid fork that is specifically designed to suit the go-anywhere capability and attitude of the SE:Series Fat bikes. Accommodating Fat tyres, the fork has a thru axle for maximum stiffness.

REPLACEABLE THRU AXLE THREADED INSERT

SE:Series Fat frame features a replaceable threaded insert for the rear thru axle. This means that if you should damage your thread, it can easily be replaced with a new insert to restore functionality. SE:Series Fat also features an easily replaceable rear derailleur hanger.

ALLOY RIGID FORK

The SE:Series Fat Delight features a thru axle alloy rigid fork. Matchy-matchy colour and alloy tubing profiles. The fat wheels provide bump absorption so that even though a rigid fork, the bike does not feel harsh. A rigid fork is also virtually maintenance free, so great for peace of mind, remote adventures.

FAT WHEELS

SE:Series Fat is designed to run FAT 26" tyres with plenty of mud clearance. Bigger tyres can increase contact area and thus ride comfort, control and grip. SE:Series Fat wheels are pre-taped and tubeless ready.

HYDRAULIC DISC BRAKES

SE:Series Fat Delight models come with hydraulic disc brakes. Disc brakes offer dependable all weather performance over rim brakes.

ALLOY RIGID FORK

RACK, FENDER AND KICKSTAND MOUNTS

There is an integrated kickstand mount in the left rear chainstay. The addition of a kickstand is neat and uncomplicated. We suggest using the Speedkit kickstand for e-bikes/fatbikes. The disc Brake calliper mounted inside rear triangle to protect it from environmental damage, while also acting like a brace, improving strength around the dropout and kickstand mount. The frame features mounting points for a rear fender and pannier racks. SE:Series Fat can easily be set up as an adventure or touring bike.

RESPONSIVE SHORT CHAINSTAYS

Short chainstays coupled with updated geometry means that the SE:Series Fat is more nimble through corners, yet retains overall stability.

INTERNAL CABLE ROUTING

Internal routed cables with full length cable housings keeps the cockpit clean and neat. This also ensures that cables are out of harm's way, and requires less maintenance due to less dirt ingression into the cables.

TAPERED HEADTUBE

A Tapered headtube increases front-end stiffness and directly influences steering feel and precision. This also means that the Stride range is compatible with all modern forks, if you would want to upgrade your suspension.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

26" Butted 6061 Aluminium, Tapered 1-1/8"-1.5" headtube, 197mm x 12mm Thru Axle Dropouts, 120mm BB width

Headset

ZS44/28.6 ZS56/40

Frame Axle Spacing

197x12mm

Frame Specification

224x12mm P1.5

Hanger Type

HANGER 19

SUSPENSION

Fork

Silverback Alloy Fat fork, Tapered, 15x150mm Axle

WHEELS

Wheelset

SUNRingle

Hubs

F: SUNRingle SRC, 15x150mm, 6-bolt disc, 32H
R: SUNRingle SRC, 12x197mm, 6-bolt disc, 32H

Rims

SUNringle Mulefut 80SL, 26"x80mm, 32H, Tubeless Ready

Tyres

VEE Rubber Bulldozer 26" x 4.7" MPC Tubeless

Max Tyre Size

4.8"

DRIVETRAIN

Crankset

Surface forged alloy, 175mm, 28T

Max Chainring Size

32T

Bottom Bracket & Type

BSA120

Shifter(s)

R: Microshift Xpress PLUS, 1x9spd

Rear Derailleur

Microshift RD-M6195M, 9spd, Active Motion RD+ with clutch

Cassette

Microshift CS-H093 11-46t, 9spd

Chain

9-speed, 118 links

BRAKES

Brakes

Shimano BL-MT200 Hydraulic Disc Brakes

Rotors

F: Shimano SM-RT26, 6-bolt, 180mm
R: Shimano SM-RT26, 6-bolt, 160mm

COCKPIT

Grips

SBC, 144mm length

Handlebar

Alloy Handlebar, Ø31.8mm, Backsweep: 9°, Rise: 5mm; Width: 720mm

Stem

Alloy Stem, Ø31.8mm, Rise 6°, with stainless steel bolts; 60mm

Saddle

Surface Performance Comfort

Seat Post

Alloy, Ø30.9mm

Seatpost Clamp

Alloy

Pedals

One Piece Alloy

WEIGHT

Bike Weight

15.55kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

Does this bike come with pedals or do we have to purchase that seperate?

Yes, this bike comes with pedals in the box.
Would I be able to put a suspension fork on this bike if I wanted to?

Yes, the tapered headtube can fit most modern forks.
What is the recommended pressure for these tyres?

It depends where you ride. A good rule of thumb would be between 0.8 - 1.4 BAR.
Can the fork fit a fender?

No
Can I fit racks to this frame?

Yes, you can fit racks to the rear triangle of this frame.
Can I fit a suspension fork to my fatbike - and what is the maximum travel fork I can add?

Yes you can. We recommend the Rockshox Bluto with 100mm of travel.

OTHER MODELS IN THE SERIES

€599 €899

SE SERIES FAT 24

Hardtail | Fat Bike | Alloy

Alloy Fork
24" x 4.0" Wheels
1x8 Speed Microshift
14.4kg

€899

SE:SERIES FAT DELIGHT

Hardtail | Fat Bike | Alloy

Alloy Fork
26" x 4.7" Wheels
1x9 Speed Microshift
15.55kg

€999

SE:SERIES FAT DELUXE

Hardtail | Fat Bike | Alloy

Alloy Fork
26" x 4.7" Wheels
1x10 Speed Shimano
15.24kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type	S	M	L	XL
	Rider height(cm)	158-170	170-180	178-188	188-200
	Rider inseam(cm)	72-77	77-82	81-85	85-91
a	Seat tube c/t	380	430	480	530
b	Seat tube angle	73	73	73	73
c	Head tube angle	69.5	69.5	69.5	69.5
d	Top Tube	570	600	622	645
e	Reach	388	418	439	457
f	Chainstay length	450	450	450	450
g	bb height	318	318	318	318
h	head tube length	110	110	115	130
i	stack	595	595	600	614
j	standover	762	778	802	832
k	Wheelbase	1090	1120	1142	1166
