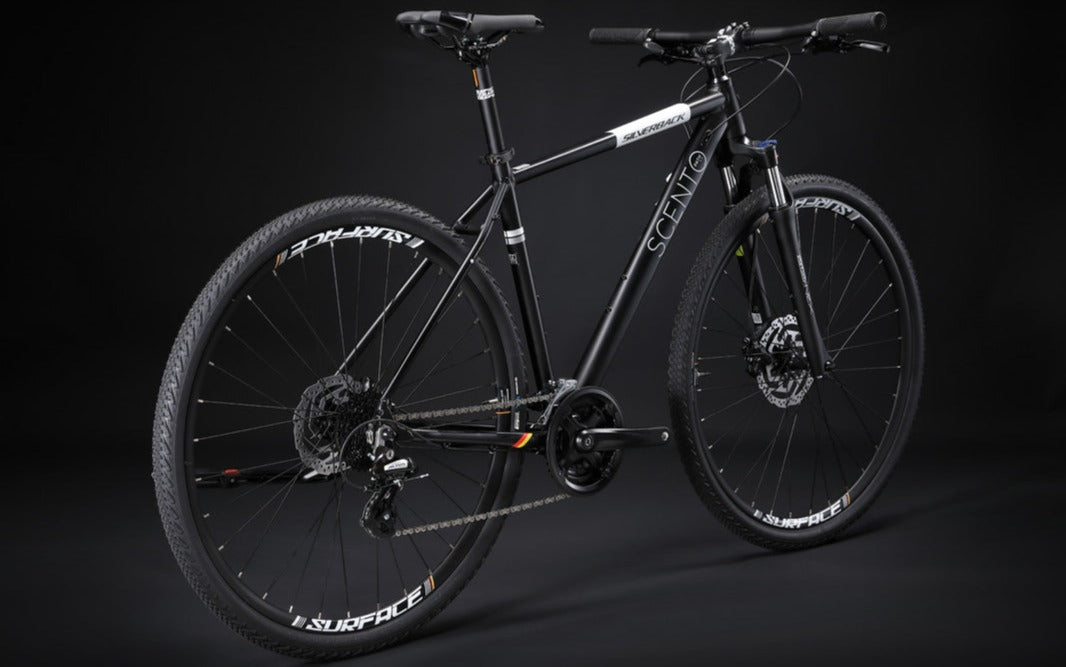

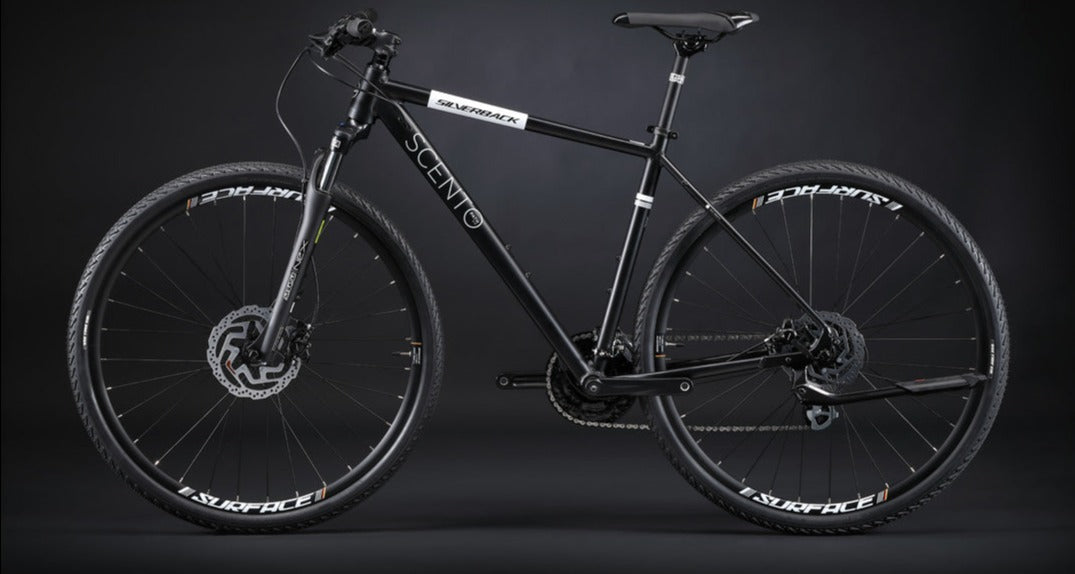

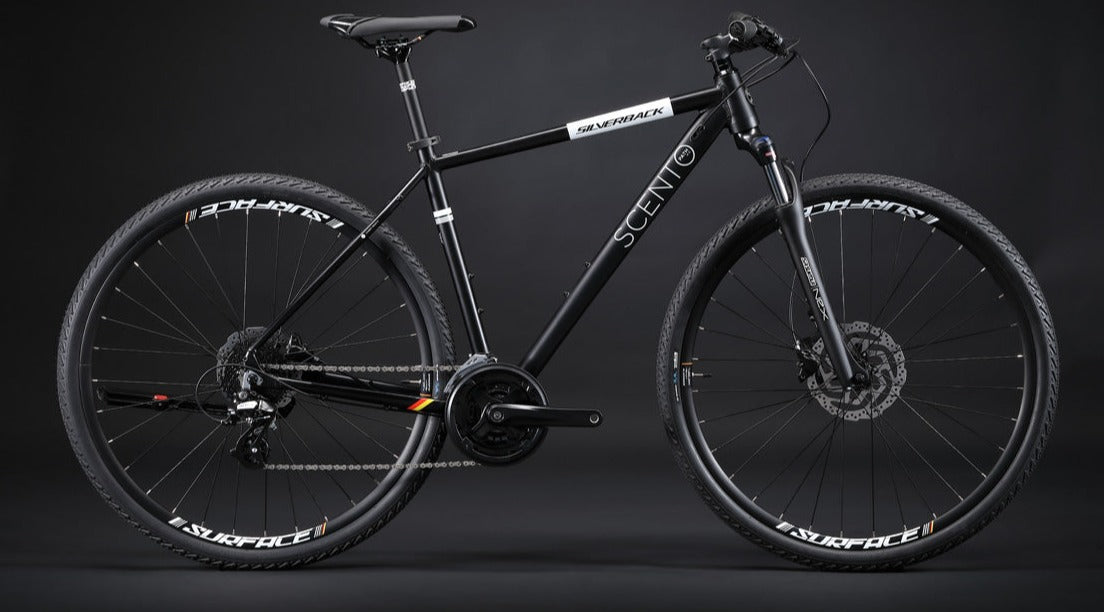

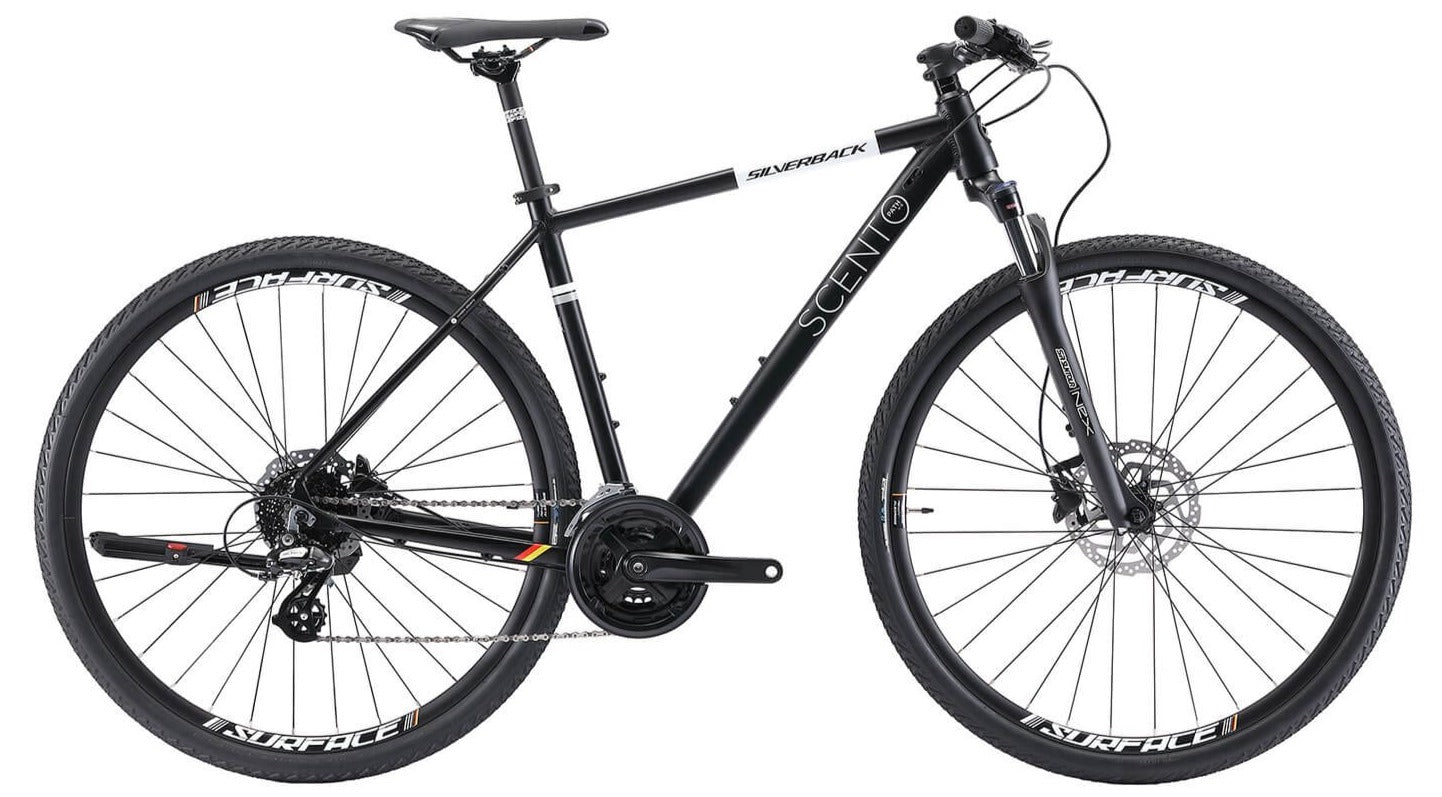

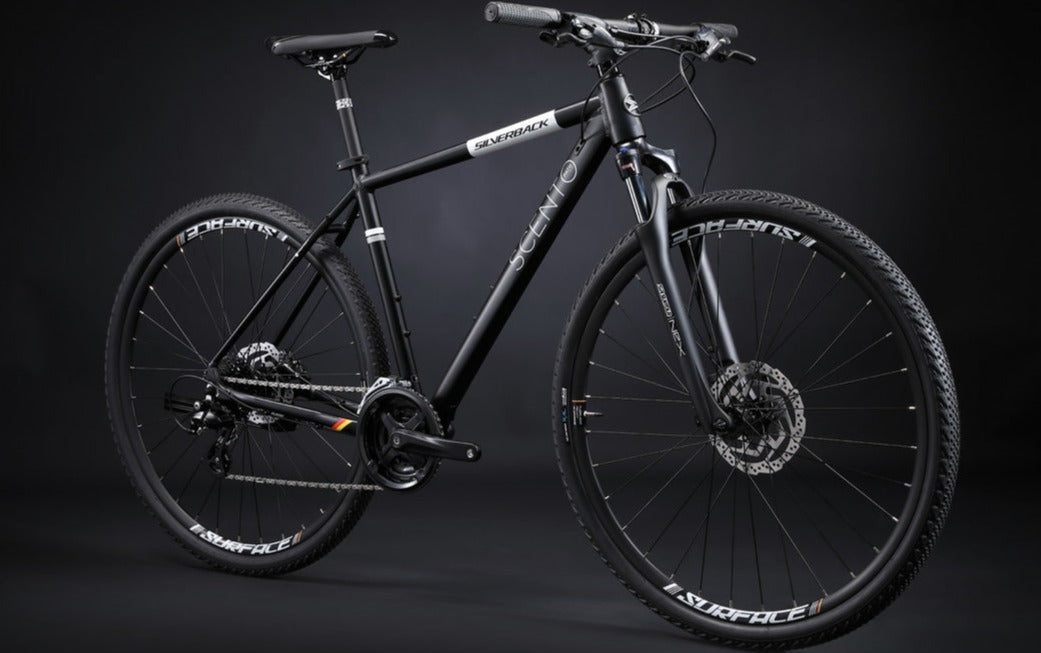

    Suspension fork, internal routing and hydraulic disc brakes.

    Scento Path HD is designed to go off the beaten track, or shoot through that cobblestone back alley to get you there, in comfort and on time. A Shimano Altus drivetrain fitted to a quality alloy frame is at the heart of this bike. Rack and fender compatibility is a must for bike like this. Hydraulic disc brakes are powerful, easy to use, offers great modulation, and is all-weather and terrain friendly. The HD is fitted with alloy components, flat bars and quality, fast rolling rubber. Take the shortest route!

    Hydro formed alloy road frame

    The Scento - Silverback Engineered Custom Butted 6061 Aluminium frame features a tapered 1-1/8"-1.5" headtube, integrated headset, semi smooth welds, SB formed stays and a replaceable alloy derailleur hanger. Designed for 700C wheels, this frame is lightweight and stiff, pedal efficient and durable.

    Comfort and pedal efficiency- orientated commute geometry

    The Scento range is designed for your daily commute. The Path design & specification places the rider in an efficient position for pedaling around the city or neighborhood.

    WHY IT’S BEST.

    1. Shimano Hydraulic Disc Brakes
    2. Kenda Kwick Drumlin, 700C x 40C tyres
    3. Suspension fork with 63mm travel
    4. The Shimano Altus drivetrain is reliable and offers indexed shifting, and requires minimal maintenance - perfect for commuters.
    5. German engineered simplicity.
    6. Rack and fender ready - Scento Path HD is great for any season.

    ENGINEERING NOTES.

    Geometry

    Scento geometry is focused on commuting. This means the rider is placed slightly higher on the bike, for better visibility in traffic. The head angle is steep, making for nimble handling, and a short wheelbase, for a bike that's easier to take on a train, or put away in an apartment. The geometry has also been optimised for power delivery and comfort.

    Rack and fender, hydration mounts & kickstand

    Scento frames feature rack and fender mounts. This means it is easy to set up for touring, and all weather commuting. Also features two water bottle or accessory mounts in the front triangle and a kickstand!

    Internal routing

    All cables are run internally on the Scento frames. Internal routing protects cables better, and keeps the bike clean and neat.

    700C wheels

    Running on 700C Tubeless ready Surface alloy road wheels, the Scento has very little rolling resistance, meaning less input for greater speed and distance. Get there quicker and less sweaty. Winning.

    Hydraulic disc brakes

    The Path HD is fitted with quality hydraulic disc brakes. These are all weather and all terrain friendly.

    Drivetrain

    Scento Path HD features Shimano components chosen for reliability over long term use. Shimano components offer great shifting and little maintenance, perfect for a commuting bike.

    SR Suntour NEX Suspension fork

    The Path HD is fitted with an SR Suntour NEX HLO, DS 700, 63mm suspension travel with hydraulic lock out.

    SPECIFICATIONS.

    FRAMESET

    Frame

    Headset

    Integrated 1-1/8" to 1-1/2" Headset

    Frame Axle Spacing

    Axle Specification

    Hanger Type

    HANGER 25

    SUSPENSION

    Fork

    SR Suntour NEX HLO DS 700, 63mm, Hydraulic Lockout, Black

    Fork Travel

    Rear shock

    Rear Suspension Travel

    Shock Mounting

    Eye-to-Eye x Stroke

    WHEELS

    Wheelset

    Hubs

    F; Shimano HB-TX505 Front Hub, 32H, 100mm OLD, for Center Lock Rotor, R; Shimano FH-TX505-8 Freehub, 32H, 135mm OLD, for Center Lock Rotor

    Rims

    F; Alexrims AT470 Double Wall, R; Alexrims AT470 Double Wall

    Tyres

    F; Kenda Kwick Drumlin, 700C x 40C, R; Kenda Kwick Drumlin, 700C x 40C

    Max Tyre Size

    DRIVETRAIN

    Crankset

    SURFACE Alloy 42/34/24T

    Max Chainring Size

    Bottom Bracket & Type

    Shifter(s)

    L; Shimano ST-EF505(L) with BR-MT200(R) Altus Disc Brake Assembled Set, J-Kit 1700mm Hose, R; Shimano ST-EF505(8R) with BR-MT200(F) Altus Disc Brake Assembled Set, 900mm Hose

    Front Derailleur

    Shimano FD-TY700-TS3 Front Derailleur, Band Type 31,8mm

    Rear Derailleur

    Shimano RD-M310-L Altus Rear Derailleur, 7/8-speed

    Cassette

    Chain

    PYC 8 Speed

    BRAKES

    Brakes

    Shimano - Part of the shifter set

    Rotors

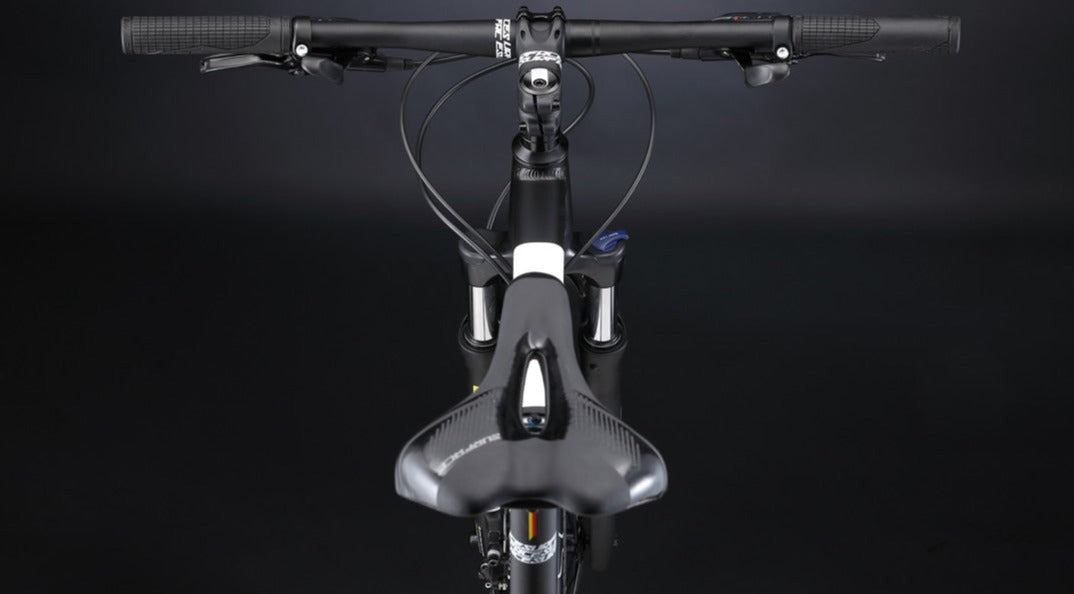

    COCKPIT

    Grips

    SURFACE Push-on Grip

    Handlebar

    SURFACE Alloy Handlebar, Dia:31.8mm, Backsweep:9°, Rise 5mm

    Stem

    SURFACE Alloy Stem

    Saddle

    K.San Saddle, Nylon Base

    Seat Post

    SURFACE Aluminium, Black

    Seatpost Clamp

    SURFACE QR Clamp

    Pedals

    One Piece Alloy Pedal, Black

    WEIGHT

    Bike Weight

    13,88kg

    RIDER WEIGHT LIMIT

    120kg - combined weight of bike and rider (including all kit).

    Disclaimer: Due to Covid-related scheduling and component availability challenges, bike specifications are subject to change without notice. Specifications may not be exactly what is shown in the photo.

    FIND YOUR FIT

    Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

    GEOMETRY.

    map type(mm unless specified) S M L XL
    Rider height(cm) 160-168 168-175 175-183 183-191
    Rider inseam(cm) 72-76 76-79 79-83 83-87
    A Seat tube c/t 470 500 530 560
    B Seat tube angle 74.6 74.6 74.6 74.6
    C Head tube angle 70 70.5 71 71.5
    D Top Tube 550 570 590 605
    E Reach 387 406 420 427
    F Chainstay length 435 435 435 435
    G bb height 291 291 291 291
    H head tube length 100 100 120 150
    I stack 594 596 617 647
    J standover 773 791 817 846
    K Wheelbase 1054 1069 1085 1096
