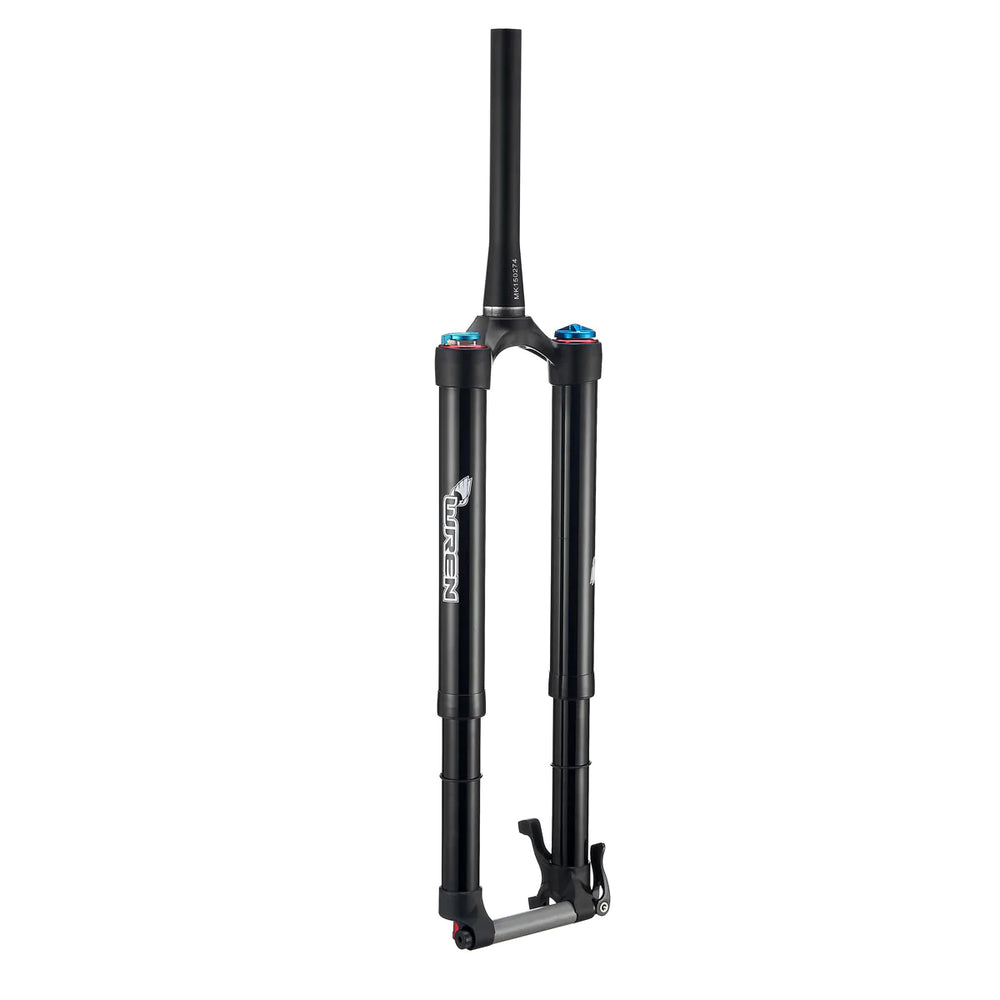

The Wren TwinAir System
|
The Wren TwinAir System is designed to fine-tune the ride of the fork using only your air pump. No disassembly of the fork is required. The TwinAir system is similar to the token system used in other suspension forks but is infinitely more adjustable. Tokens are a fixed size and each one you drop-in gives you a jump in the spring rate. The floating piston in the TwinAir system can be moved as little or as much as you want. This allows you to fine-tune the spring rate to exactly match your riding style and trail conditions. The TwinAir system divides the air chamber in half using a floating piston. There are individual air valves for the top and bottom chambers. If you want your ride to be as plush as possible, add air only to the top. If you want a more progressive feel, begin adding air to the bottom. This moves the floating piston up reducing the size of the air chamber. Remember, you have total control over the movement of the floating piston, so fine-tuning the air spring is a snap! You can even make adjustments on the trail by caring your shock pump. Try that with a token system. |
 |
The Wren All-Weather Damper
Introducing the NEW Wren All-Weather damper. Now standard equipment in all Wren suspension forks. Real-world tested down to -27°F (so far), the Wren All-Weather damper is the only damper you need to ride in all temperatures. Wren dampers are a sealed cartridge unit that prevents contamination and needs no servicing. The sealed unit uses a flexible bladder to keep the oil under pressure at all times greatly reducing the effects of cavitation at high damper speeds. Wren dampers have both compression and rebound circuits and provide a true lockout. Wren All-Weather dampers are maintenance-free ensuring consistent performance over the life of the damper.
Keyed Stanchions
Keyed Stanchions keep Wren suspension forks running true and prevent the stanchions from twisting. The 43mm beefy uppers are channeled to accept brass keys that fit our oversize 36mm stanchions. The keys perfectly align the stanchions in the uppers and are designed to shear should you take a really big hit. This protects the channels and your fork from damage. The fork will still function and the keys are easily replaced.

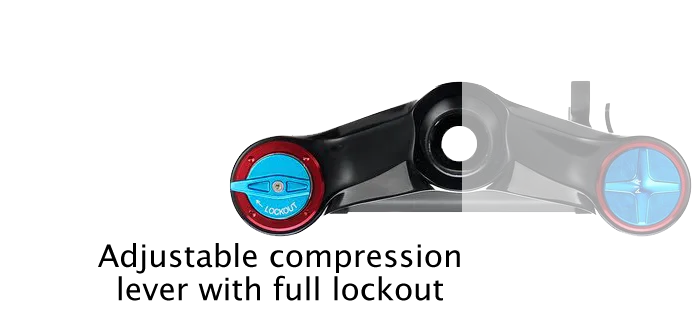

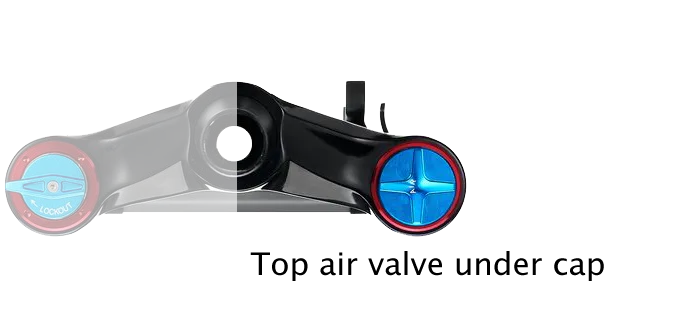

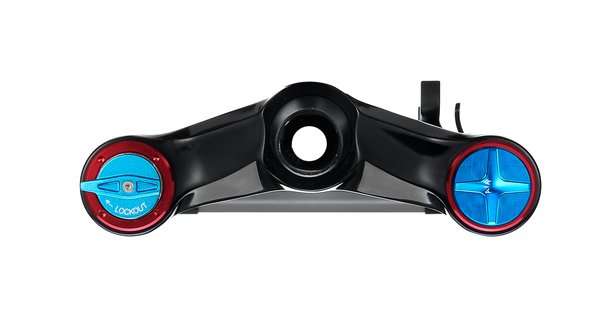

Damper Side
Not all lockouts are created equal. When our fork is locked out, you'd swear you're riding a rigid fork. Bring on the mixed surface-type adventures!
Specifications
Tire Size: Width – 150mm hub is up to 5.0″. Please refer to the tire size chart.
Wheel Size*: 26″ and 27.5" Fat. 29″ Midfat. Please refer to the wheel size chart.
Steerer: 7050 Alloy Tapered – 1.125″ ~ 1.5″, Length: 260mm
Crown: 6066T6 Alloy 3D forged
Stanchions: 7050 Alloy hard anodized, 36mm
Uppers: 7050 Alloy hard anodized, 43mm
Dropouts: Forged

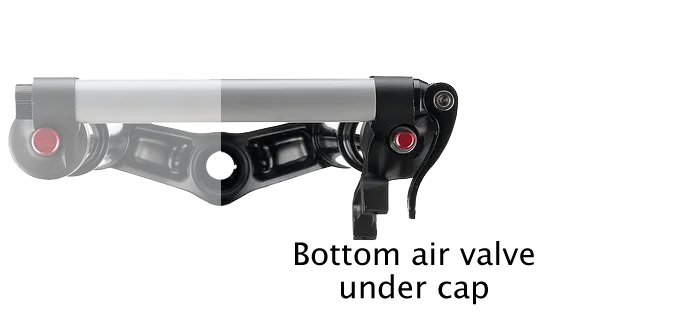

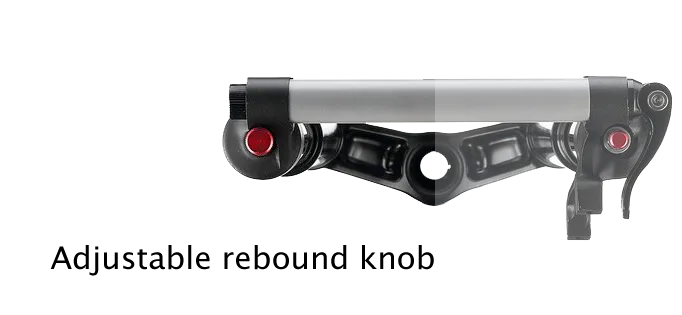

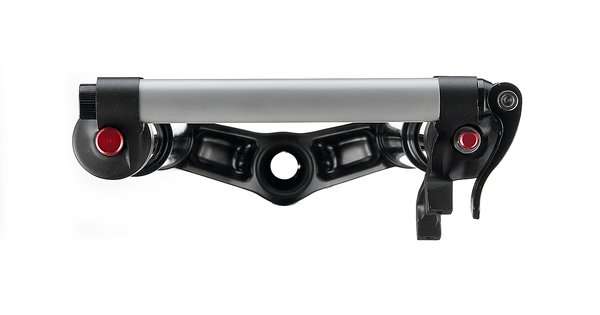

Axle: 15mm Bolt-On Conical (dual M8 Boltheads) / QR 15mm also Available
Brake: PM6 post-mount, direct mount for a 160 mm rotor. Use adapters for 180 mm or 203 mm rotors
Offset: 45mm
Damper: All-Weather, sealed oil cartridge, adjustable rebound, and compression with true lockout.
Airspring: TwinAir System, fully adjustable.
Weights:
110mm Travel – 2151 g / 4.7 lb
*Travel might be limited due to size of wheel/tire combination
Fork Adjustability
| Fork Model | Travel Only | Travel/AC Together |
|---|---|---|
| 110mm Travel | 110 | 110/530 |
| 100 | 100/520 | |
| 90 | 90/510 | |
| 80 | 80/500 |
