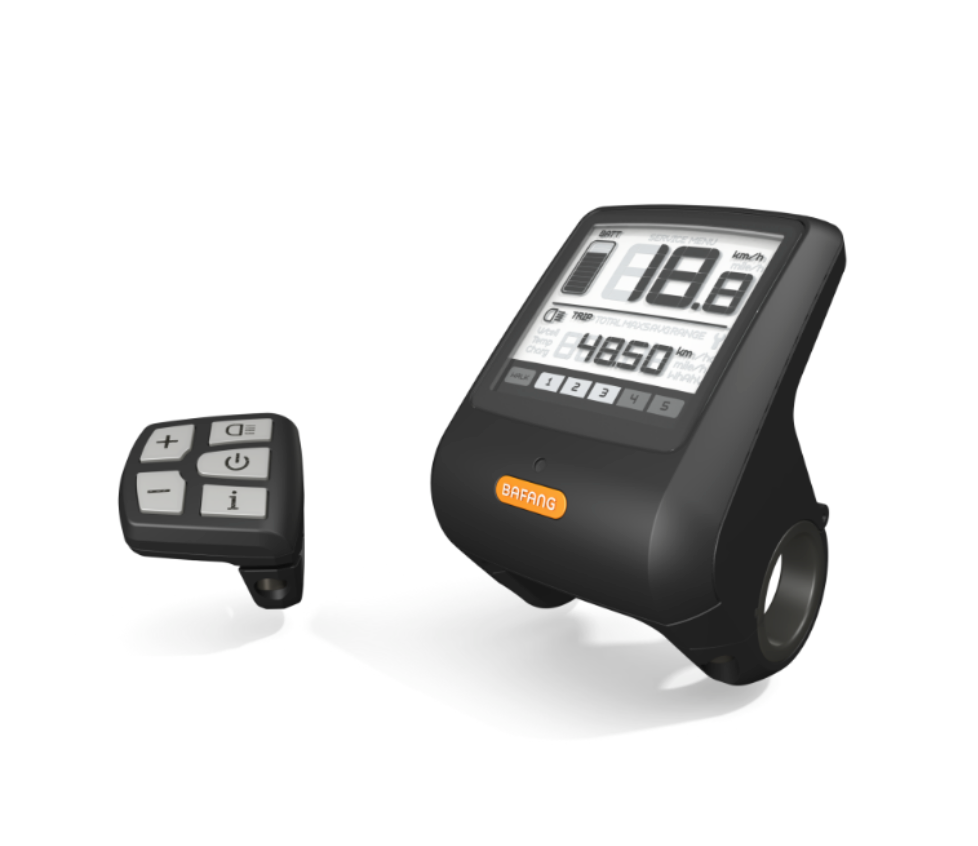

Bafang Display DP C07
€99,90
Typically leaves our warehouse 1-3 business days
Tech highlights
Handlebar-Mounted Controls
Description
Bafang DP C07 LCD display with UART communication protocol, recognizable by the round connector.
Includes mounting rubber bands and screws.
Wheel size and speed limit are NOT adjustable. The wheel size is set to 28" by default and the speed is set to 25 km/h.
Suitable for BBS01B / BBS02B / BBSHD, and various e-bikes with MAX drive M400 systems, as well as front and rear wheel motor systems that use the UART communication protocol.

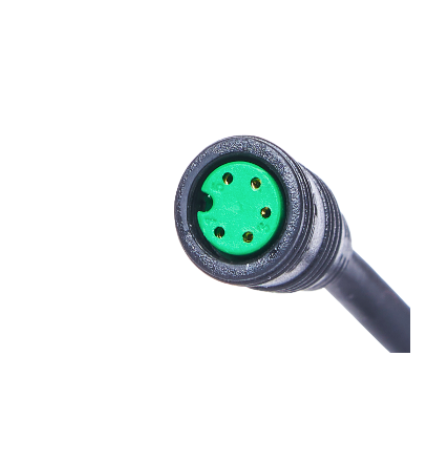

With a 5-pin round connector.
Display cable length: 23 cm.
Control button cable length: 30 cm.
Weight: 185 g.
Display Functions:
- Speedometer (Speed / MAX / AVG)
- Odometer (TRIP / ODO)
- Time and trip meter
- Pedal assistance with 1–5 levels
- 6 km/h Start & Go function
- Battery indicator
- Night light

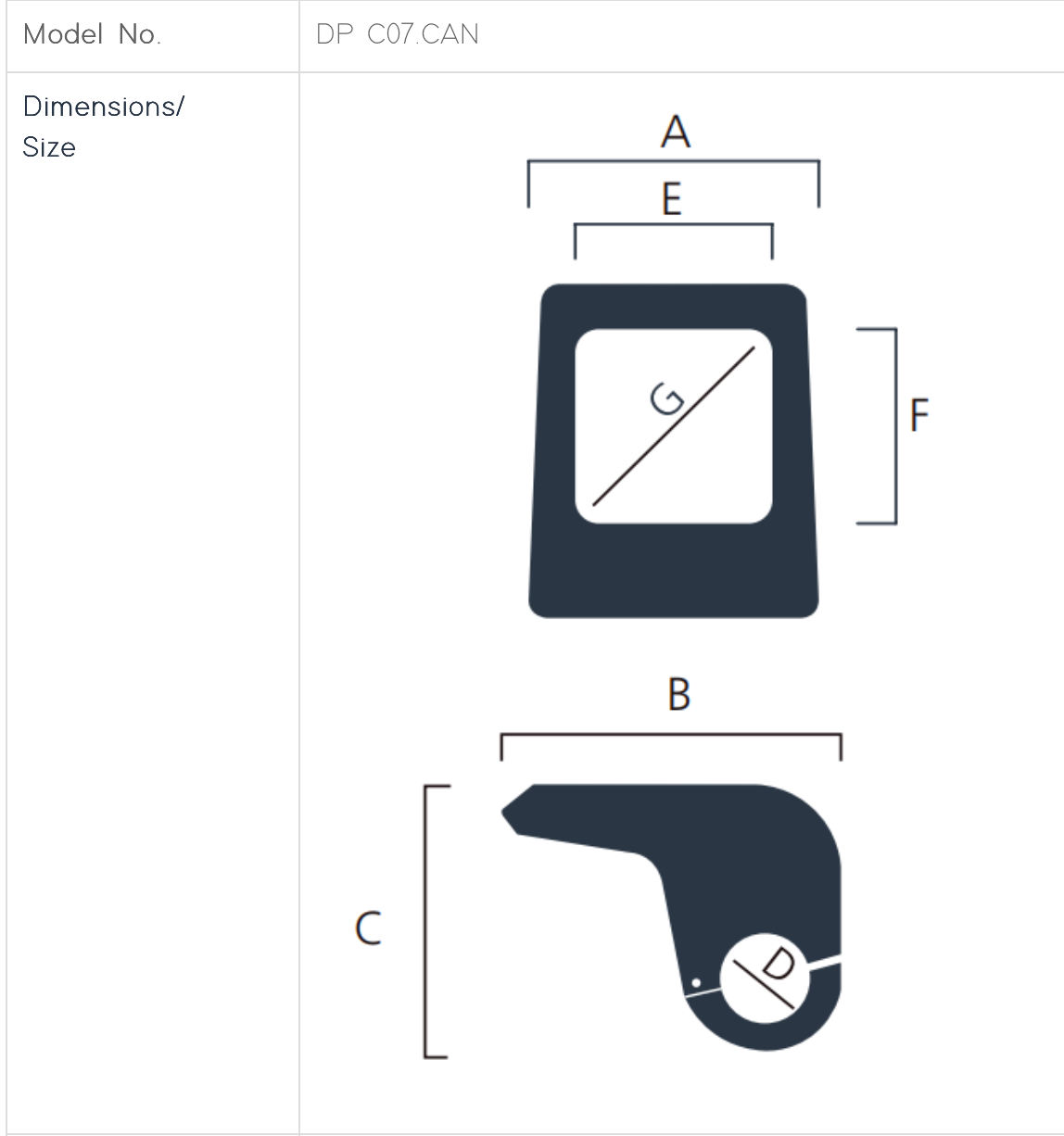

DP C07.CAN; CAN; Cable length: 230mm; Control Unit Cable: 300mm
Item Number:
2102022202002
Waterproof: IP X5
Certifications: CE / EN 15194 / REACH / ROHS
