Fox 32 TC Taper-Cast Performance-Elite 2022 Float FIT4 Gravel fork

  • Fox 32 TC Taper-Cast Performance-Elite 2022 Float FIT4 Gravel fork
  • Fox 32 TC Taper-Cast Performance-Elite 2022 Float FIT4 Gravel fork
  • Fox 32 TC Taper-Cast Performance-Elite 2022 Float FIT4 Gravel fork
  • Fox 32 TC Taper-Cast Performance-Elite 2022 Float FIT4 Gravel fork

Fox

Fox 32 TC Taper-Cast Performance-Elite 2022 Float FIT4 Gravel fork

910-31-097
€699,00
€699,00

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

YOUR BENEFITS

Secured and trusted checkout with:

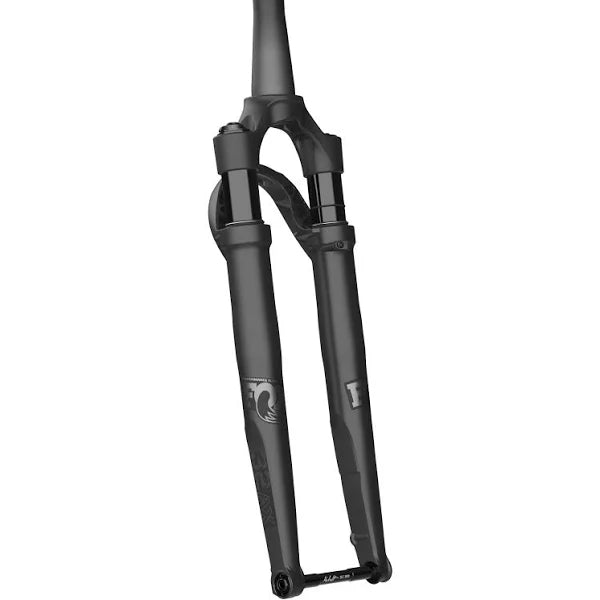

FOX suspension fork 2022 28" 32 TC Performance Elite Float P-SE 40 Taper-Cast 3-Pos Adjust FIT4 matte black Kabolt 12x100 mm tapered 45 mm rake

The intended use of uses for gravel bikes is becoming ever broader and the routes traveled are becoming more and more demanding. Therefore, the consideration of building a suspension fork for more comfort and driving pleasure on the gravel bike is only the logical consequence. Thanks to the ultra-light Fox 32 Taper Cast, optimized for gravel bikes, replacing the rigid fork is now even easier. With a weight of only 1226 grams (abbreviated, manufacturer information), it is the lightest suspension fork Fox has ever made. Their slim taper-cast design improves air resistance and blends in perfectly with the look of modern gravel bikes. In addition, it is mainly responsible for the extremely low weight of the fork. The shapely casting is made possible by the smaller air chamber of the fork with 40 millimeters of spring travel, compared to MTB suspension forks with greater spring travel. The adapted, smaller air chamber also ensures that the fork works optimally for many riders without installing volume spacers. If necessary, up to 4 spacers can be installed to adjust the spring characteristic.
The proven lower leg bypass channels ensure optimal oil circulation and help to achieve optimal performance using the entire spring travel.
Also striking about the design of the 32 Taper Cast is the fork bridge that has moved to the back of the fork, which enables a lower position and thus material savings. In addition, the fork bridge, which is not visible from the front, also contributes to the slim appearance of the fork. For a wide intended use of uses, the fork is equipped with a 330 millimeter long steerer tube, which also makes it compatible for particularly comfortable seating positions on bikes with a long head tube. The mudguard brackets included in the scope of delivery ensure untroubled driving fun even in bad weather.

NOTE: The fork is not suitable for 650b tires as the chassis limits the width to 30 millimeters for this tire size.


Technical specifications:

Area of intended use : Gravel
E-bike ready: no
Wheel size: 28"
Material fork crown/shaft: aluminium
Material standpipes: anodized aluminum
Standpipe diameter: 32 mm
Material immersion tubes: aluminium
Axle standard : 12 x 100 mm Kabolt thru axle type
Steerer tube: 1.5" to 1 1/8" tapered
Steerer tube length: 330 mm
Travel: 40mm
Spring system: Float Air, air
Adaptation of the spring characteristic: yes, via volume spacers
Cushioning: 3-pos FIT4, closed cartridge
Lockout: fork crown
Installation height: 435.5 mm
Brake Mount: Flat Mount
Max. permissible brake disc size: 180 mm
Tire diameter max.: 700c (not compatible with 650b wheels)
Tire width max.: 50 mm (45 mm when using fenders)
Rake: 50mm
Colour: matt black, logos - grey, standpipes - black

Weight according to the manufacturer: 1226g


Scope of delivery:

1x FOX suspension fork 2022 28" 32 TC Performance Elite Float P-SE 40 Taper-Cast 3-Pos Adjust FIT4 matte black 45 mm rake
1x FOX thru axle Kabolt
2x volume spacers
2x brackets for mounting mudguards
