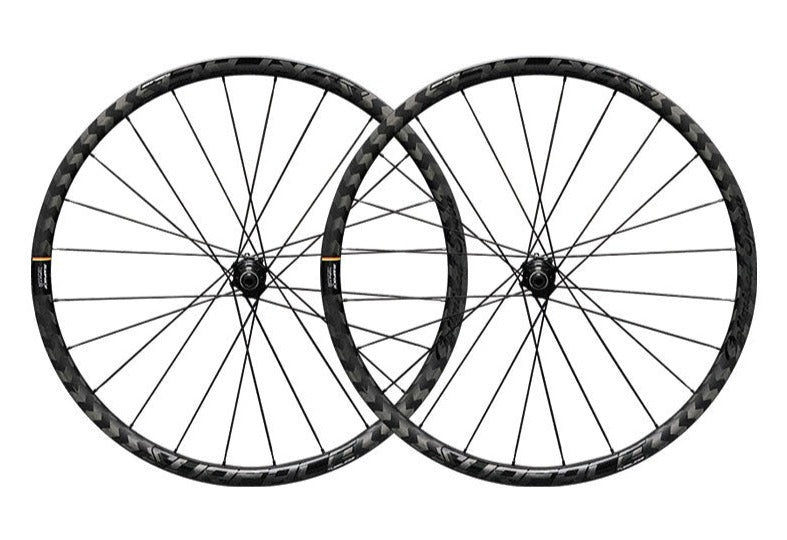

Surface Elite Carbon MTB Tubeless Wheelset

  • Surface Elite Carbon MTB Tubeless Wheelset
  • Surface Elite Carbon MTB Tubeless Wheelset
  • Surface Elite Carbon MTB Tubeless Wheelset
  • Surface Elite Carbon MTB Tubeless Wheelset
    ▶
  • Surface Elite Carbon MTB Tubeless Wheelset
  • Surface Elite Carbon MTB Tubeless Wheelset
  • Surface Elite Carbon MTB Tubeless Wheelset

Surface

Surface Elite Carbon MTB Tubeless Wheelset

6009700046221
€1.169,00
1
Download pdf
€1.169,00

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

YOUR BENEFITS

Secured and trusted checkout with:

Payment Icon 1
Payment Icon 2
Payment Icon 3
Payment Icon 4
Payment Icon 5
Payment Icon 6
  • The surface Elite MTB wheelset is a great upgrade for your XC machine.
  • Constructed from 15K Twill weave Toray Carbon fiber, the Elite's construction lends itself to being ultra-light, stiff and highly durable. It is designed for XC racing. The Surface Sport wheels are tubeless ready with rim tape pre-applied and includes tubeless valves for easy setup.
  • A 5deg Engagement hub with super smooth bearings makes for a fast rolling wheel with quick engagement. The carbon ply layup is designed to dissipate stresses and be impact resistant.
  • Tubeless ready.
  • The Surface Elite wheelset features Surface Thru Axle hubs 15mm F / 12mm R.



5˚ engagement ratchet super smooth hub bearing stress dissipating structural ply layup impact resistant surface ply layup
 Size 29"
ID 21mm
OD 27mm
Depth 27.5mm
622mm ETRTO
24H
Rim Material Toray carbon, 15k twill weave
Rim Type Symmetrical
Internal Width 21.0mm
External Width 27.0mm
Depth 27.5mm
Hole Count Front: 24h
Rear: 24h
Tubeless Yes
E-Bike No
Valve Presta
Tape N/A
Wheel Weight Front: 725g
Rear: 825g
Wheelset Weight 1550g
ETRTO 622
Spoke pattern front Front: 2-cross straight pull
Rear: 2-cross straight pull
Hub

DT Swiss 350
Front: surface, 100mm old, m15 thru-axle
rear: surface, 142 old, m12 thru-axle
Brake Type Disc brake, 6-bolt
Freehub SRAM XD Driver
Recommended tyre Front: 29"x2,25"
Rear: 29"x2,25"
Are the rims tubeless-ready?
Yes, they are true tubeless. This means no rim tape is required as there is no nipple hole in the rim bed.

Can I change my hub end caps to a different OLD?
Yes, DT Swiss offers exchangeable hub caps in their series.

What are the manufacturing advantages of carbon wheels?
Stress-dissipating structural ply layup with an impact-resistant surface ply layup.
