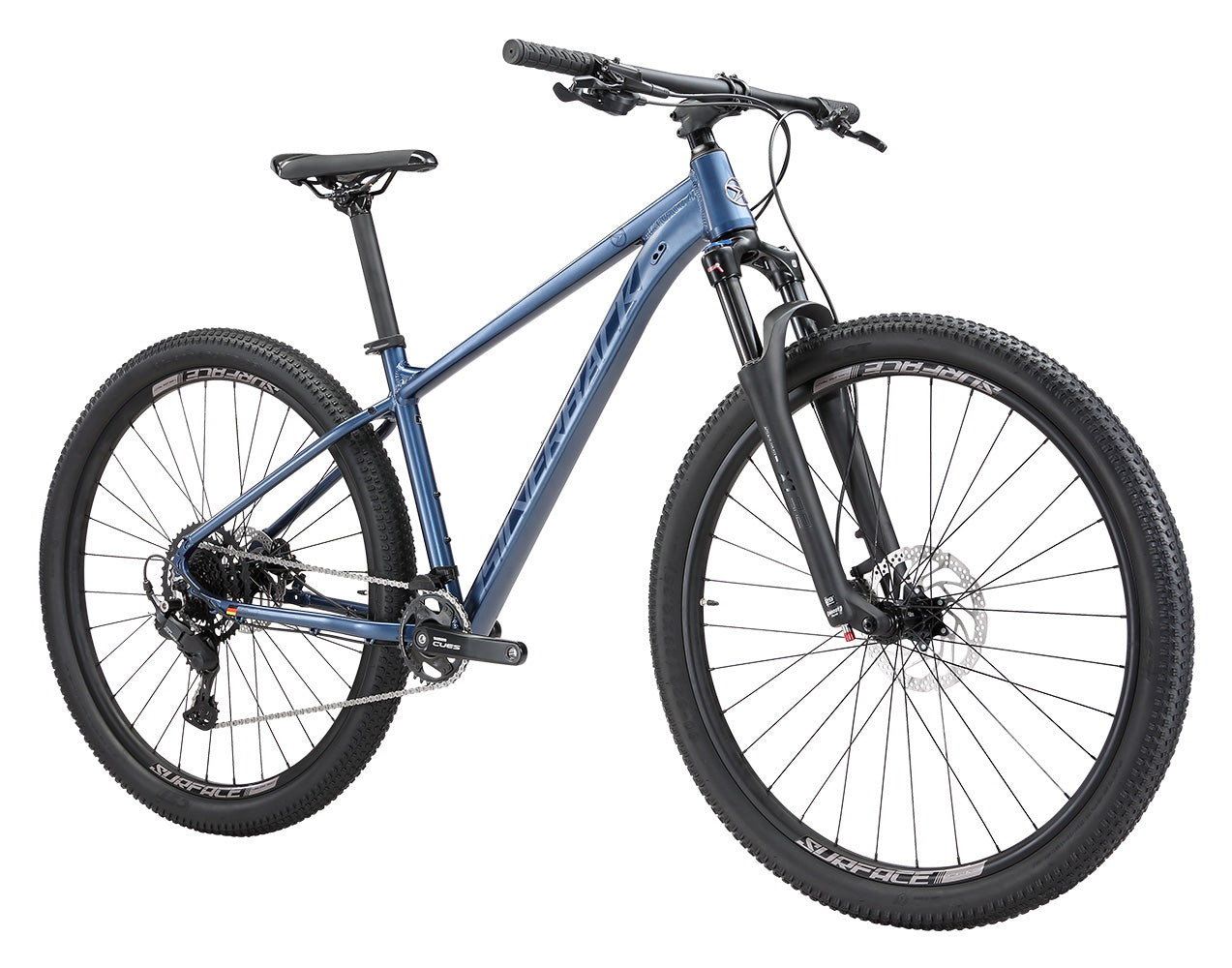

SE:Series 9

Name: SE:Series 9
Brand: Silverback
SKU: 0086544014000
Price: 566.0 EUR
Availability: OutOfStock

€566

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.40 5 reviews

Size:

Wheel Size:

Color: Gloss Metallic Emerald

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Joeblow sport digital - Pumps - cycling - bike - TOPEAK - - - - Speedlab

Topeak Joeblow sport digital

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-22

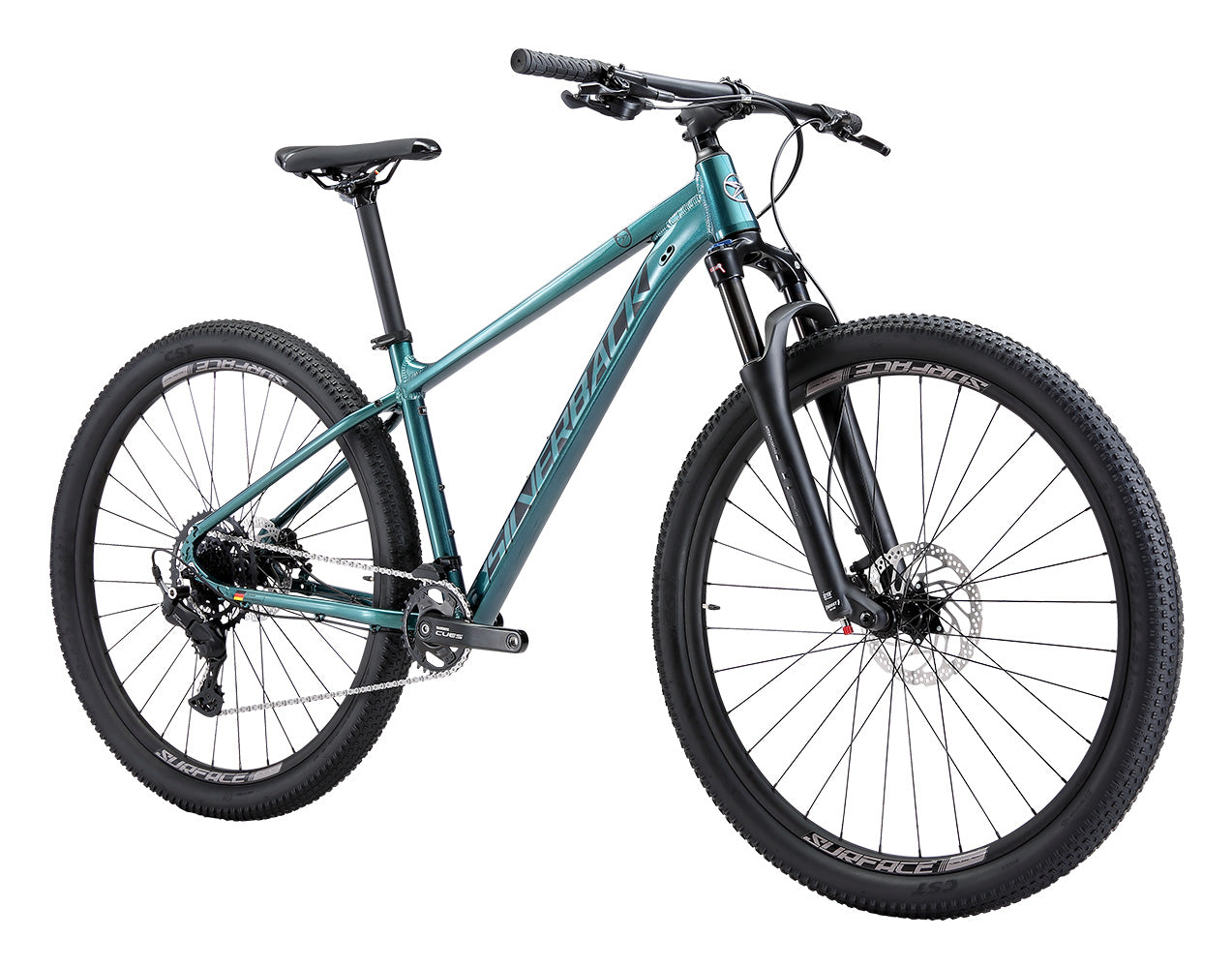

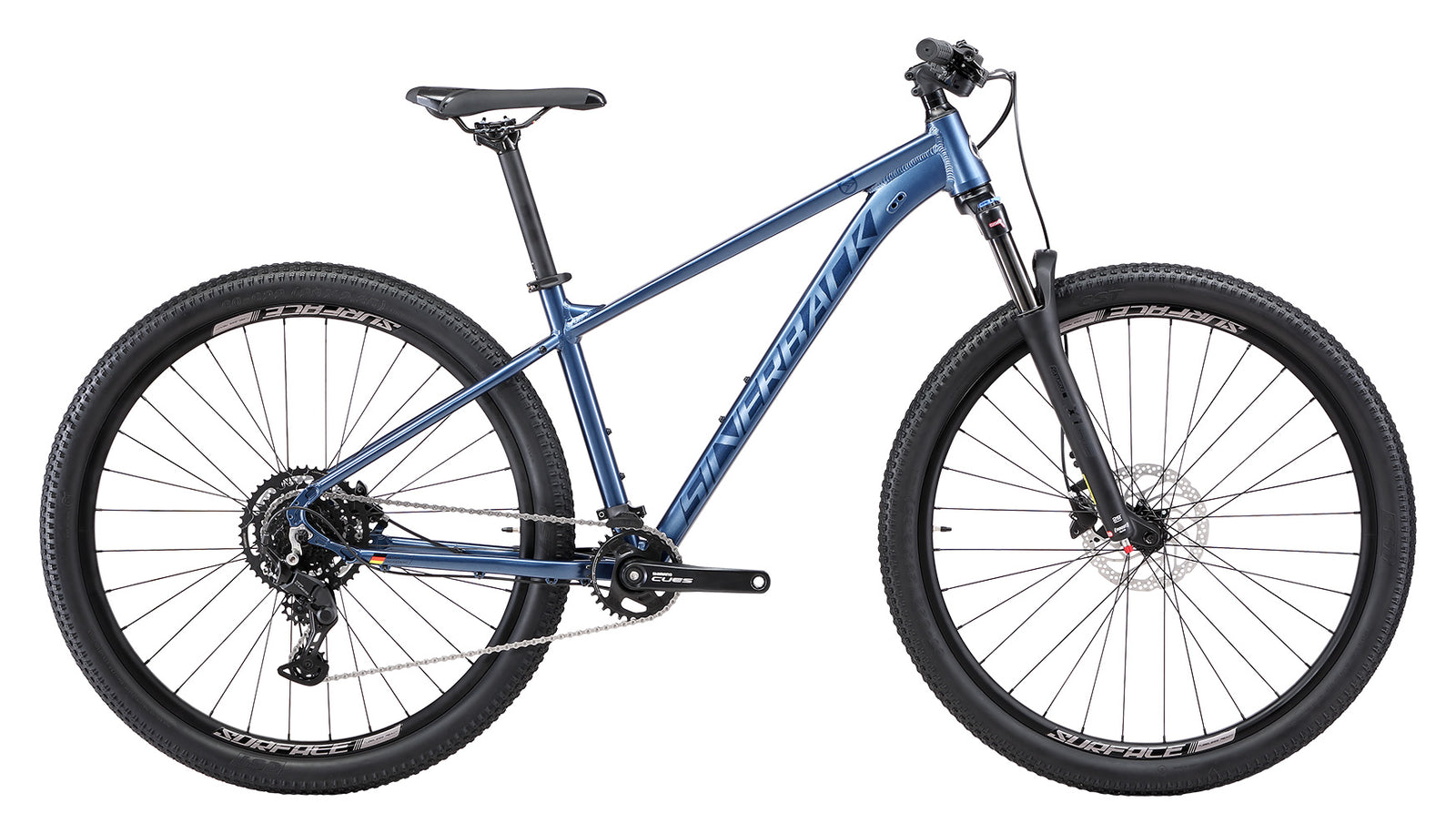

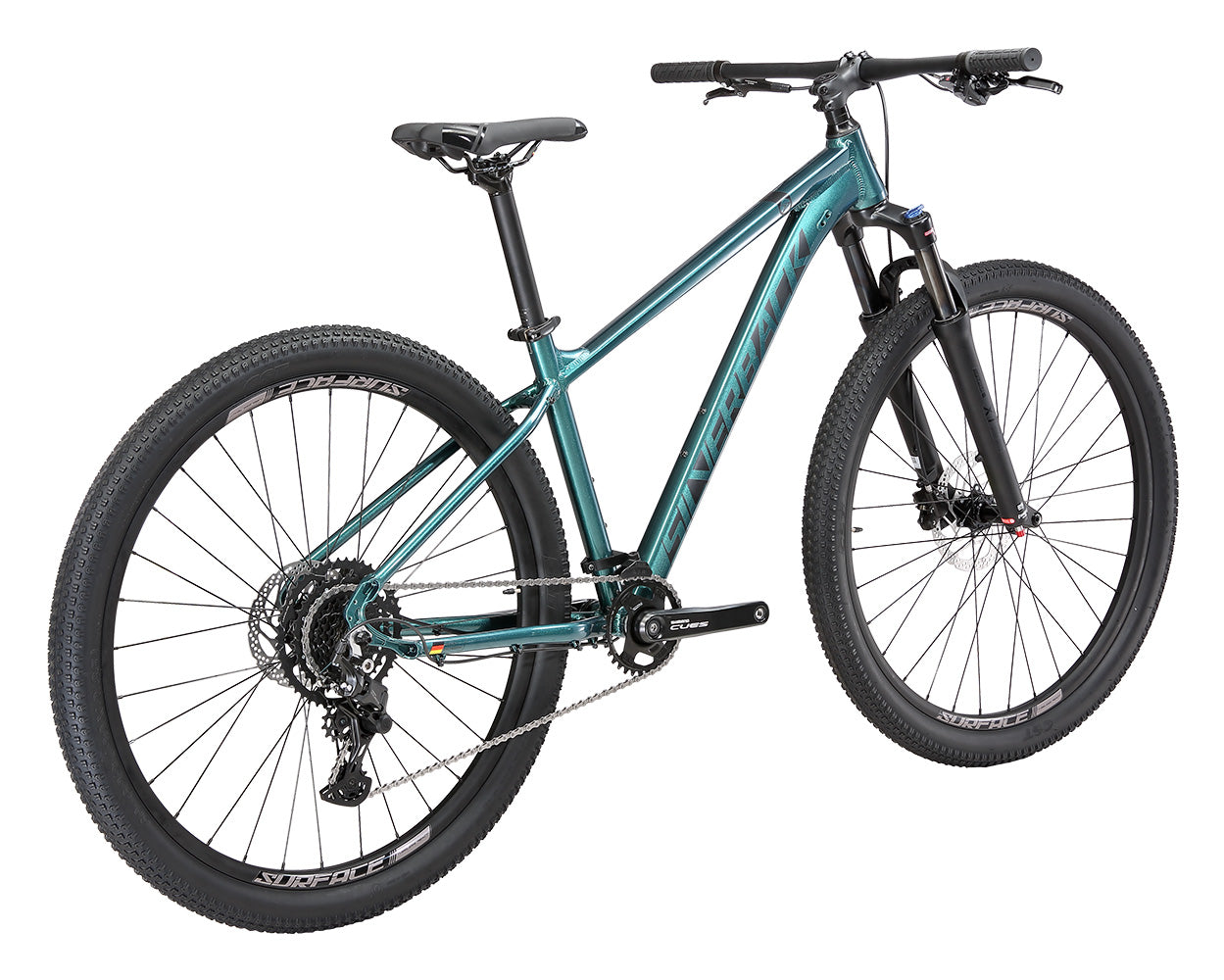

SE:Series 9

€566,00

Sold Out

Hardtail sport riding for every day adventurers and commuters. Featuring a 9-Speed Shimano CUES drivetrain and 100mm Air suspension fork, the SE:Series 9 is an off-road Sport-XC bike, ideal for weekend adventures. The included standard kickstand and rack mounts, make it equally comfortable and convenient for your daily commute.

At a Glance

Hydro-formed 6061 alloy frame
Suntour X1 Air Fork, 32mm stanchions, 100mm travel
Shimano CUES 4000 Shadow 9-speed rear derailleur
Surface Tubeless Ready wheelset with Shimano hubs
CST 29x2.35" tyres
Shimano Hydraulic Disc Brakes
Weight: 16.3 kg

TECH HIGHLIGHTS

SE:SERIES 9 - WEEKEND ADVENTURER AND DAILY COMMUTER

Hardtail sport riding for every day adventurers and commuters. Featuring a 9-Speed Shimano CUES drivetrain and 100mm Air suspension fork, make the SE:Series 9 an off-road Sport-XC bike, ideal for weekend adventures. The included standard kickstand and rack mounts, make it equally comfortable and convenient for your daily commute.

SPORT OPTIMISED POP GEOMETRY

POP geometry engages bigger leg muscle groups for more effective climbing. The rider position on the SE:Series 9 improves traction, front wheel grip and bike control. This means that it also feels more natural, boosting confidence and skill development.

Hydraulic Disc Brakes

The SE:Series 9 comes equipped with hydraulic disc brakes for stronger and more reliable stopping power.

Hydroformed alloy frame

Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.35" tyre clearance, rack and fender mounts.

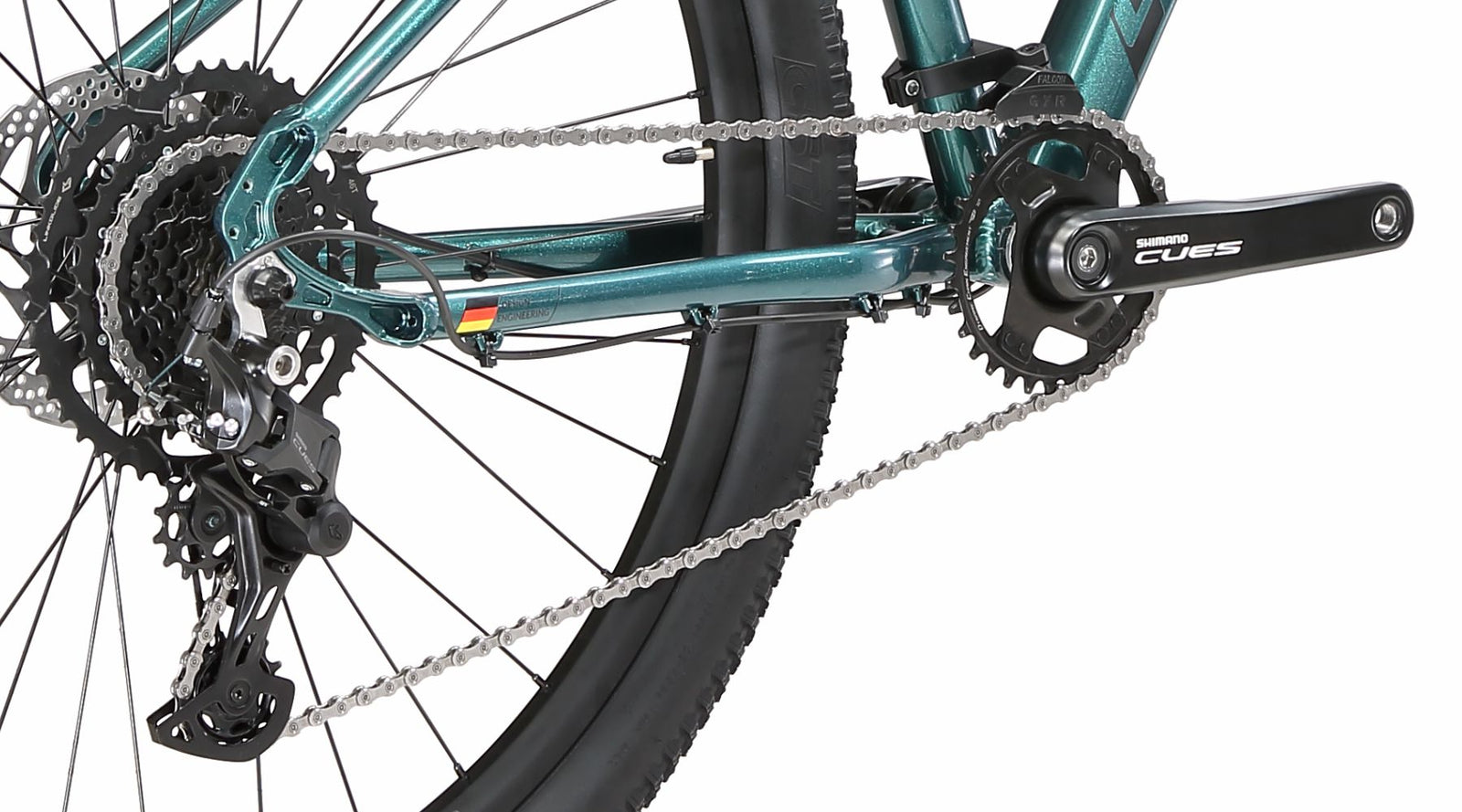

1x Drivetrain

All SE:Series 8 & 9 models come standard with 1x drivetrains - more intuitive to use and requires less maintenance.

RACK MOUNTS INTEGRATED IN FRAME.

All SE:Series models include mounting points for rear racks, allowing you to haul your gear when you commute/tour. (Rack sold separately)

Easy-route internal cable routing

SE:Series 9 features full internal routing. The brake line follows the seatstay, making this the shortest possible rear brake line route on the bike. Dropper post cable routing is included for future bike upgrades.

Internal Dropper post compatible

SE:Series 9 models have internal cable routing ready for a dropper post upgrade. (Dropper post sold separately)

High volume - 2.35" tyre compatibility

Tyre compatibility is up to 2.35" wide, offering noticeably better bump absorption and grip!

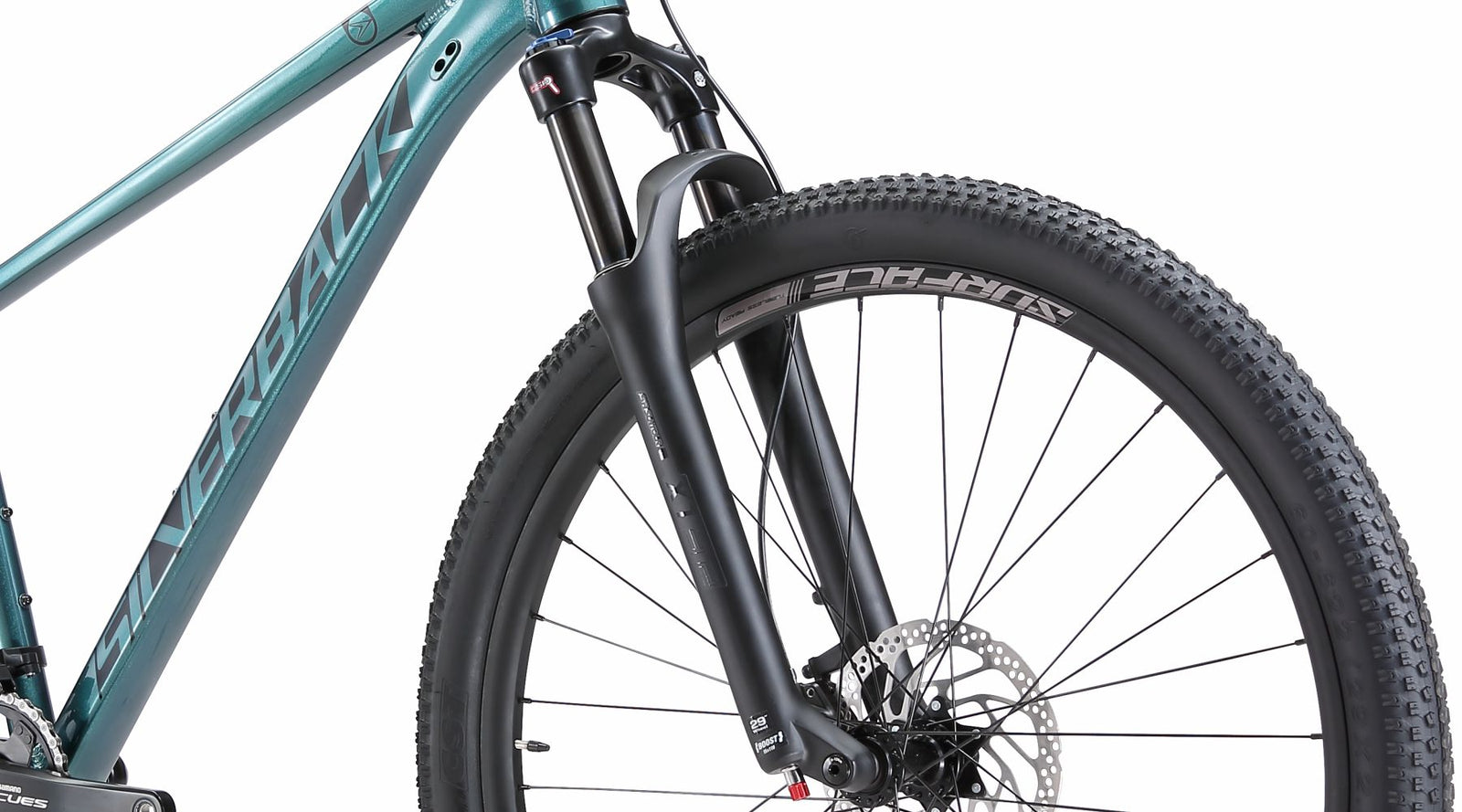

Thru Axle and Boost

The SE:Series 9 front fork features BOOST spacing and thru axle. This delivers more secure steering and a stronger front wheel and fork.

Waterbottle mounts

SE:Series 9 offers more waterbottle mount options. Sizes M-XL have capacity for 2 full sized bottles while size Small has 1. (Bottle cages sold separately)

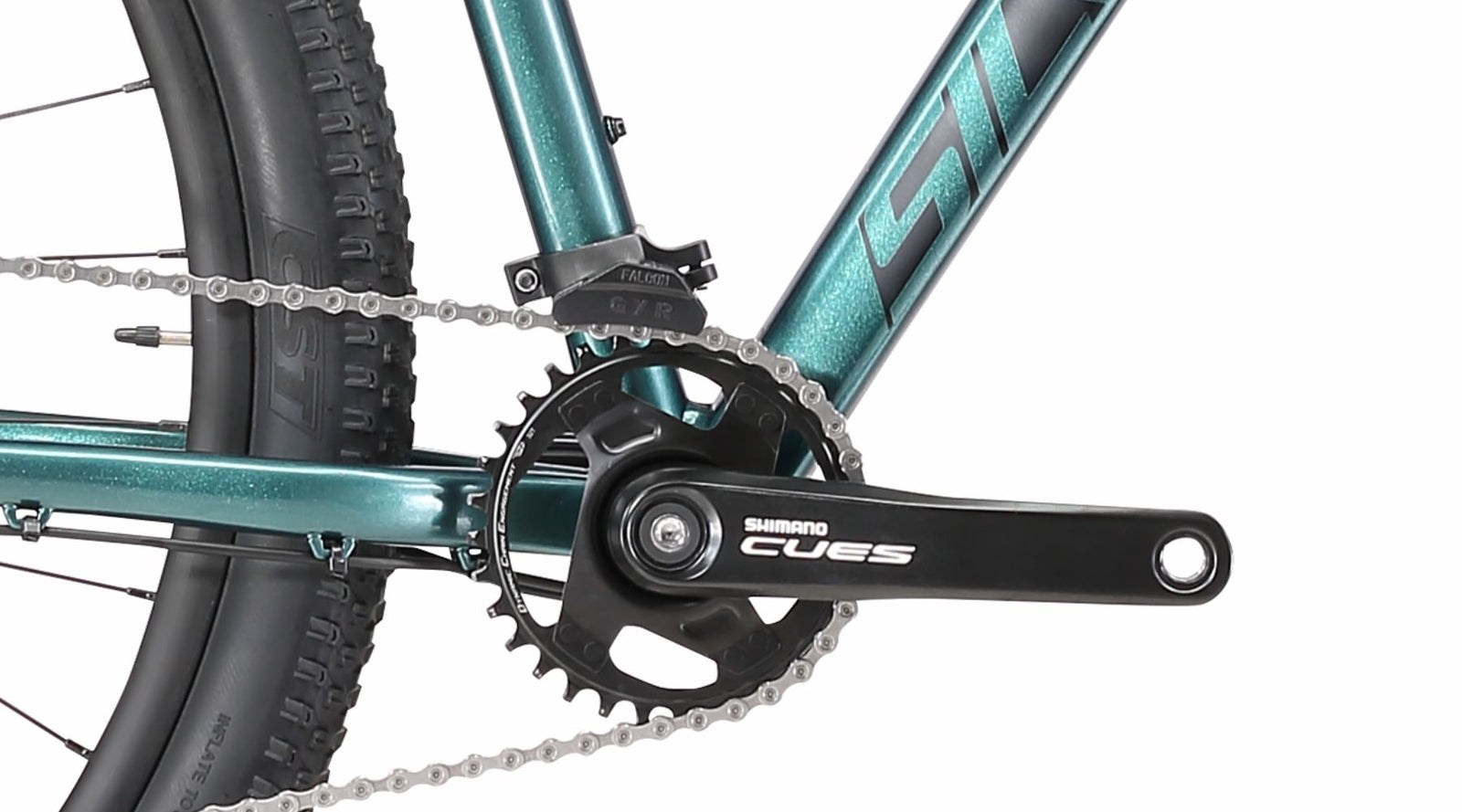

SURFACE CHAIN GUIDE

Included on all 1x drivetrains. Improves chain stability, helps to prevent chain drop.

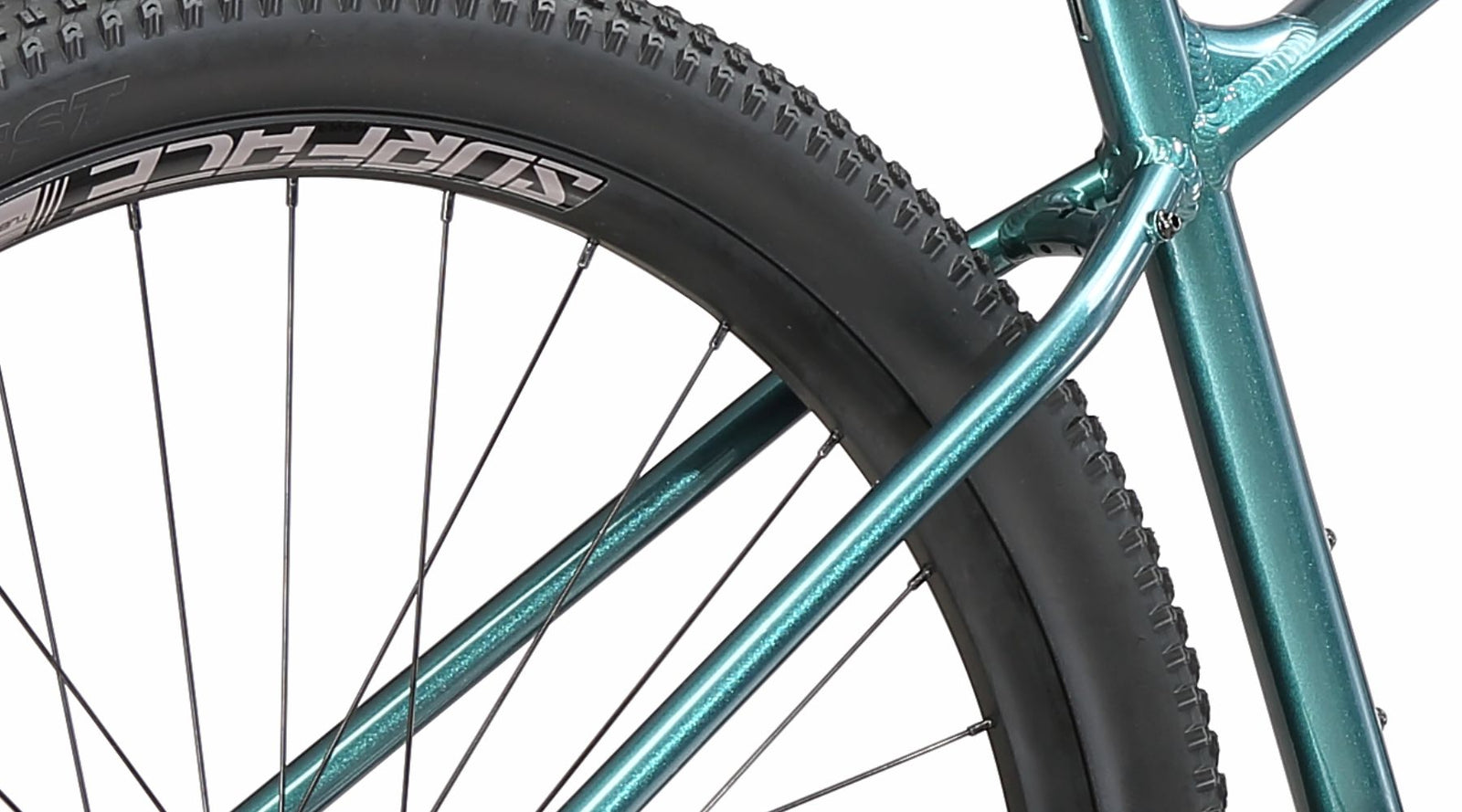

Refined seat-stay bridge & wide tyre clearance

Seat Stay support bridge to stiffen up the rear triangle with an attachment point for a fender or mud guard.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Headset

Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/30

Frame Axle Spacing

135x9mm

Axle Specification

Hanger Type

HANGER 22

SUSPENSION

Fork

SR Suntour X1 Boost Air LOR DS, 100mm Travel, 32mm Black Stanchions, LOR Damper, 15mm Boost thru-axle

Fork Travel

100mm

WHEELS

Wheelset

SURFACE Custom

Hubs

F: Shimano HB-TC500-15-B, Centre Lock Disc, 32H, 15mm Thru-Axle, OLD: 110mm
R: Shimano FH-QC300-HM, Centre Lock Disc, 32H, 8-11-Speed, 170mm QR, OLD:135mm

Rims

F: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready
R: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready

Tyres

F: CST 1820, 29x2.35" Wire Bead
R: CST 1820, 29x2.35" Wire Bead

Max Tyre Size

2.35"

DRIVETRAIN

Crankset

Shimano CUES FC-U4000-1, 170mm, 32T

Max Chainring Size

34T

Bottom Bracket & Type

BSA73

Shifter(s)

R: Shimano CUES SL-U4000-9R, 9-Speed, Rapidfire Plus w/ Optical Gear

Rear Derailleur

Shimano CUES RD-U4000, 9-Speed, Shadow

Cassette

Shimano CUES CS-LG300-9, 9-Speed Cassette, 11-46T

Chain

Shimano CN-LG500 LG, 9/10/11-Speed

BRAKES

Brakes

Shimano MT200 2-piston Hydraulic Disc, Resin Pads

Rotors

F: Shimano Deore SM-RT30 Rotor, 180mm, w/ Lock Ring, External Serration
R: Shimano Deore SM-RT30 Rotor, 160mm, w/ Lock Ring, External Serration

COCKPIT

Grips

Surface Single Density

Handlebar

Surface, Alloy, Dia: 31,8mm, 720~760mm, 9° Backsweep, 12mm Rise

Stem

Surface, Alloy, 31.8mm, ±6° Rise, 60mm Extension

Saddle

Surface

Seat Post

Surface Alloy, 30.9mm

Seatpost Clamp

Alloy, 35mm, QR Clamp

Pedals

One Piece Alloy Pedal, Black

WEIGHT

Bike Weight

16.3 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

What hanger model fits the SE:Series 9?

Hanger 22
Is the bike tubeless or tubeless ready or will it need to be fully converted?

This bike has tubeless ready rims, however, the tyres will need to be replaced with tubeless tyres
What is the longest dropper post I can fit on this bike?

Estimated max dropper travel per frame size: S: 125mm, M: 150mm, L: 170mm, XL: 170mm
Can I order this model as a 650B plus?

Yes, XS, S & M are available in 650B / 27.5"
Can I fit a longer fork onto this bike?

No, we dont recommend more than a 100mm travel fork.
Will the geometry change if I fit 650B plus wheels?

Yes, the BB height, stack & standover will be lower.

OTHER MODELS IN THE SERIES

€486

SE:SERIES 8

Hardtail | Sport XC | Alloy

100mm Travel
29"/27.5"
1x8 Speed Shimano
15.5kg

€566

SE:SERIES 9

Hardtail | Sport XC | Alloy

100mm Travel
27.5/29" Size-Specific
1x9 Speed Shimano
16.3kg

€686

SE:SERIES 10

Hardtail | Trail | Alloy

120mm Travel
29" x 2.4" Wheels
1x10 Speed Shimano
16.5kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XS(27.5")	S(27.5")	M(27.5")
	Rider height(cm)	143-156	153-170	170-180
	Rider inseam(cm)	65-70	69-77	77-81
A	Seat tube c/t	350	380	420
B	Seat tube angle	74°	74°	74°
C	Head tube angle	68°	68°	68°
D	Top Tube	565	582	604
E	Reach	393	410	430
F	Chainstay length	445	445	445
G	bb height	325	325	325
H	head tube length	95	95	105
I	stack	598	598	607
J	standover	711	706	735
K	Wheelbase	1109	1126	1150

map	type(mm unless specified)	S(29")	M(29")	L(29")	XL(29")
	Rider height(cm)	153-170	170-180	178-190	188-210
	Rider inseam(cm)	69-77	77-81	80-86	85-95
A	Seat tube c/t	380	420	460	500
B	Seat tube angle	74°	74°	74°	74°
C	Head tube angle	67.5°	67.5°	67.5°	67.5°
D	Top Tube	585	607	630	658
E	Reach	410	430	450	475
F	Chainstay length	460	460	460	460
G	bb height	328	328	328	328
H	head tube length	95	105	115	125
I	stack	610	619	628	637
J	standover	716	745	774	802
K	Wheelbase	1144	1168	1192	1221
