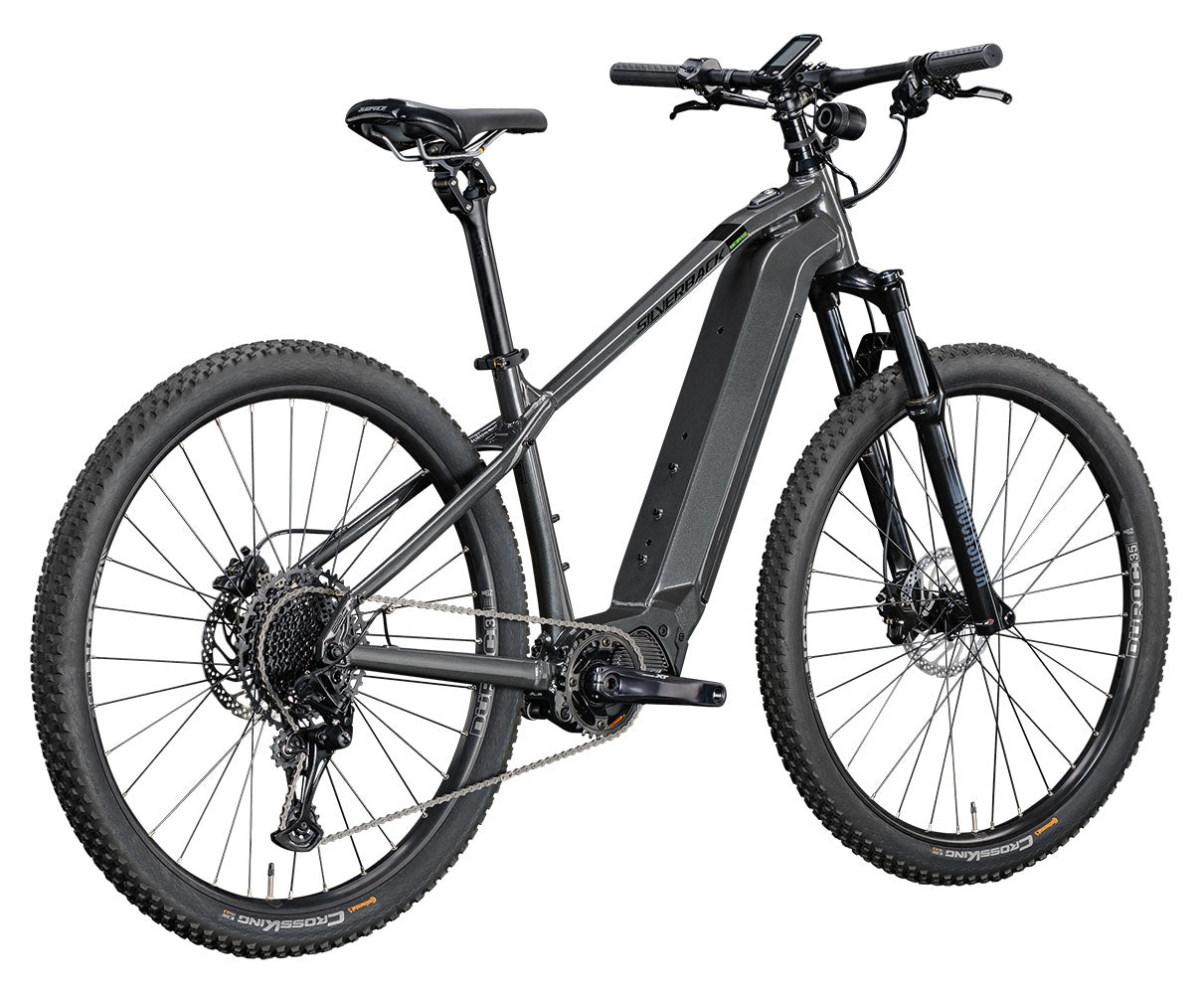

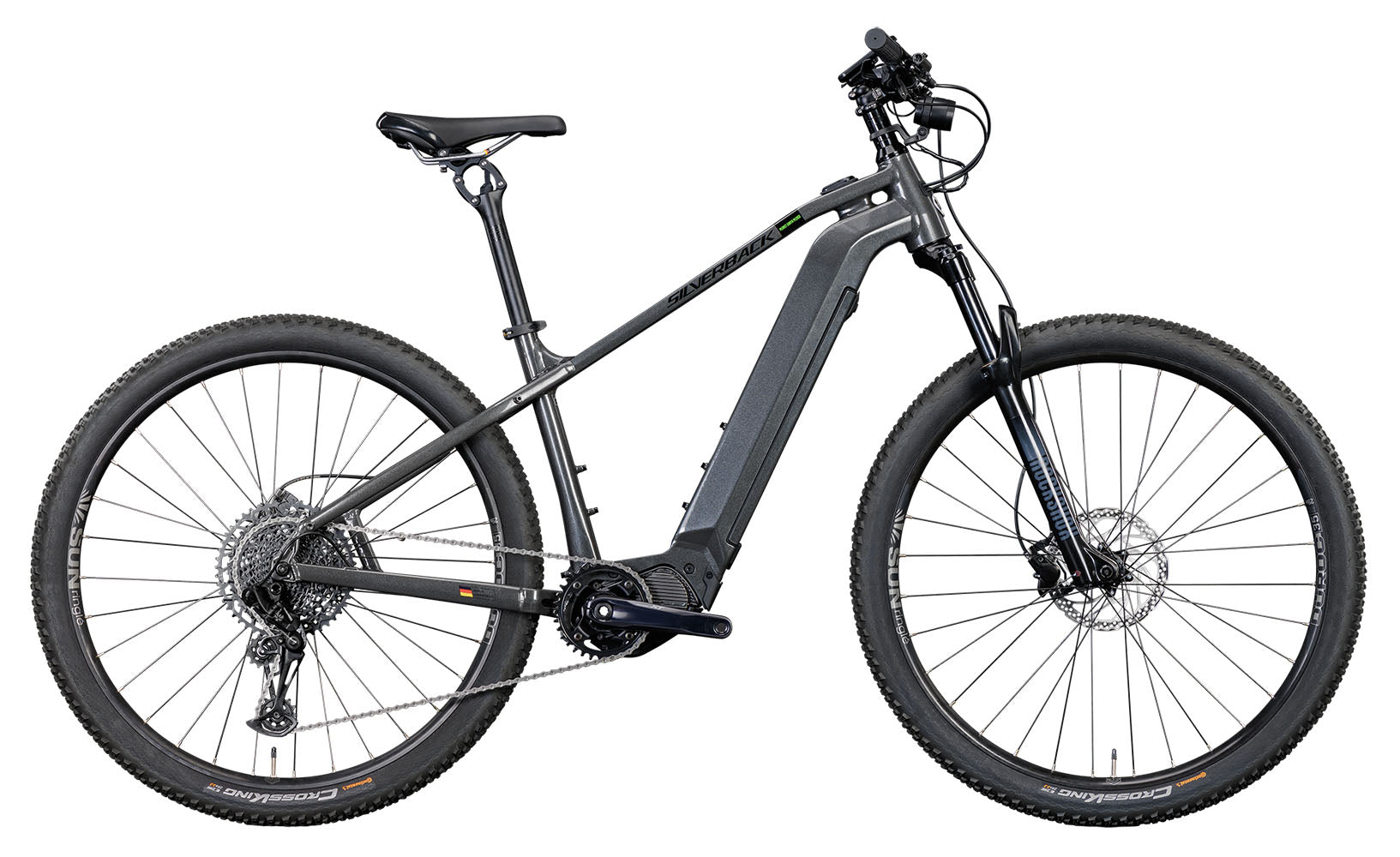

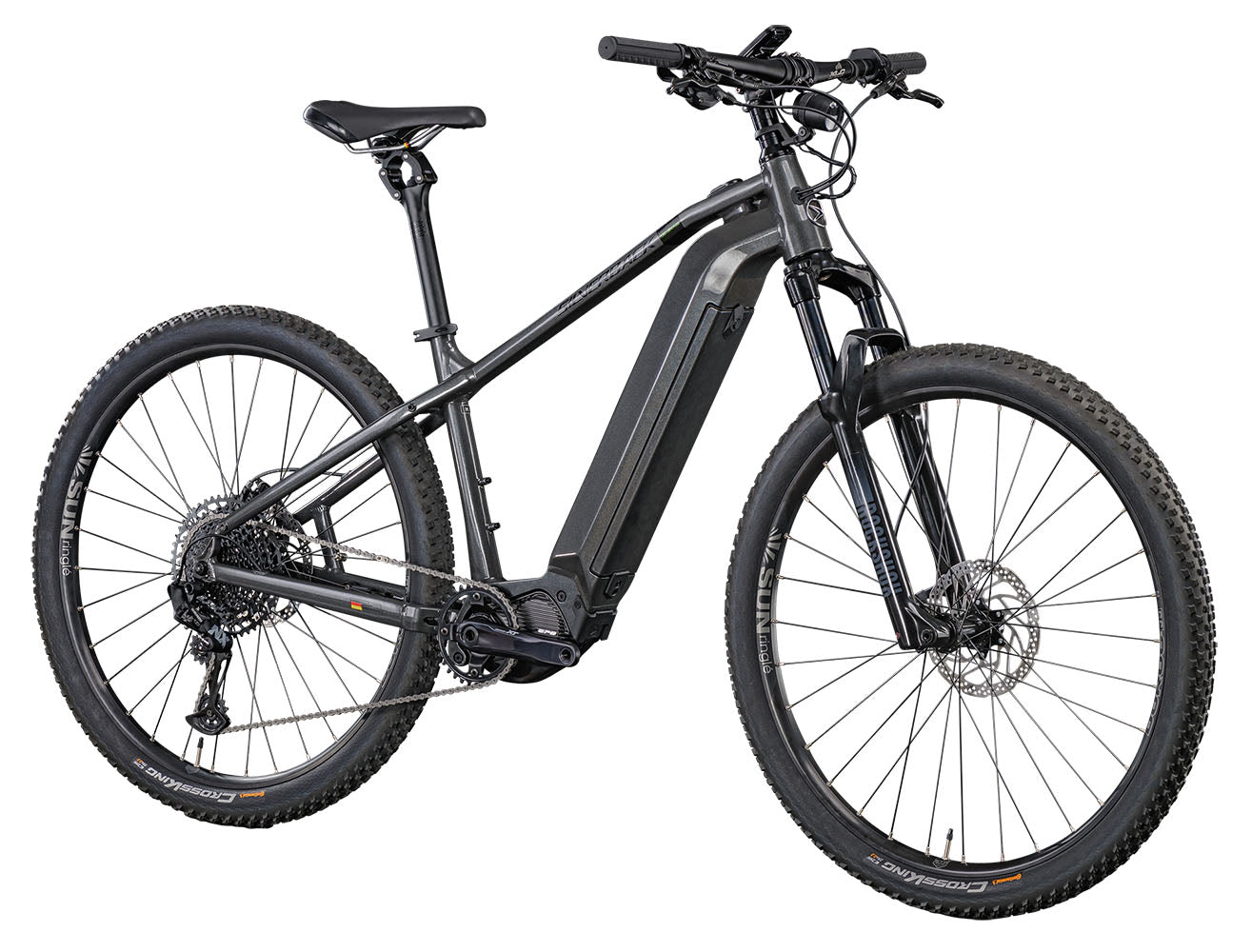

S-Electro Diamond Comp

POWER (W) / TORQUE (NM)

36V / 250W / 85Nm

BATTERY CAPACITY

720Wh

ELECTRIC SYSTEM

EP8

ENGINEERING PERFECTION

S-ELECTRO ELITE COMP

Customer Reviews

Based on 3 reviews Write a review

ride vast distances assisted, without the need for recharge on the way.

S-Electro Elite Comp is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Elite unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.
 S-Electro Elite Comp lightweight alloy

Hydro formed double butted integrated alloy frame

Elite Comp features a double butted hydro-formed alloy frame with integrated motor mount and internal battery. This means that the frame can have thinner walls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing. Hydro forming is the process of forcing tubing into a negative mold with internal pressurised oil and or water.

S-Electro Elite Comp e-bike

Drive system, power and display.

S-Electro Elite Comp is designed around a Shimano Steps 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Elite unrivalled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.

DESIGNER NOTES.

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/s-electro-comp-semi-int-alloy-frame-icon.png?v=1595568707

ALLOY FRAME

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/air-fork-icon.png?v=1595231562

AIR SUSPENSION FORK

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/integrated-battery-icon.png?v=1595580326

INTEGRATED BATTERY

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/electric-assistance-icon.png?v=1595229686

ELECTRIC ASSIST

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/fender-rack-mount-icon.png?v=1595229686

FENDER AND RACK COMPATIBLE

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/internal-cable-routing-icon.png?v=1595193334

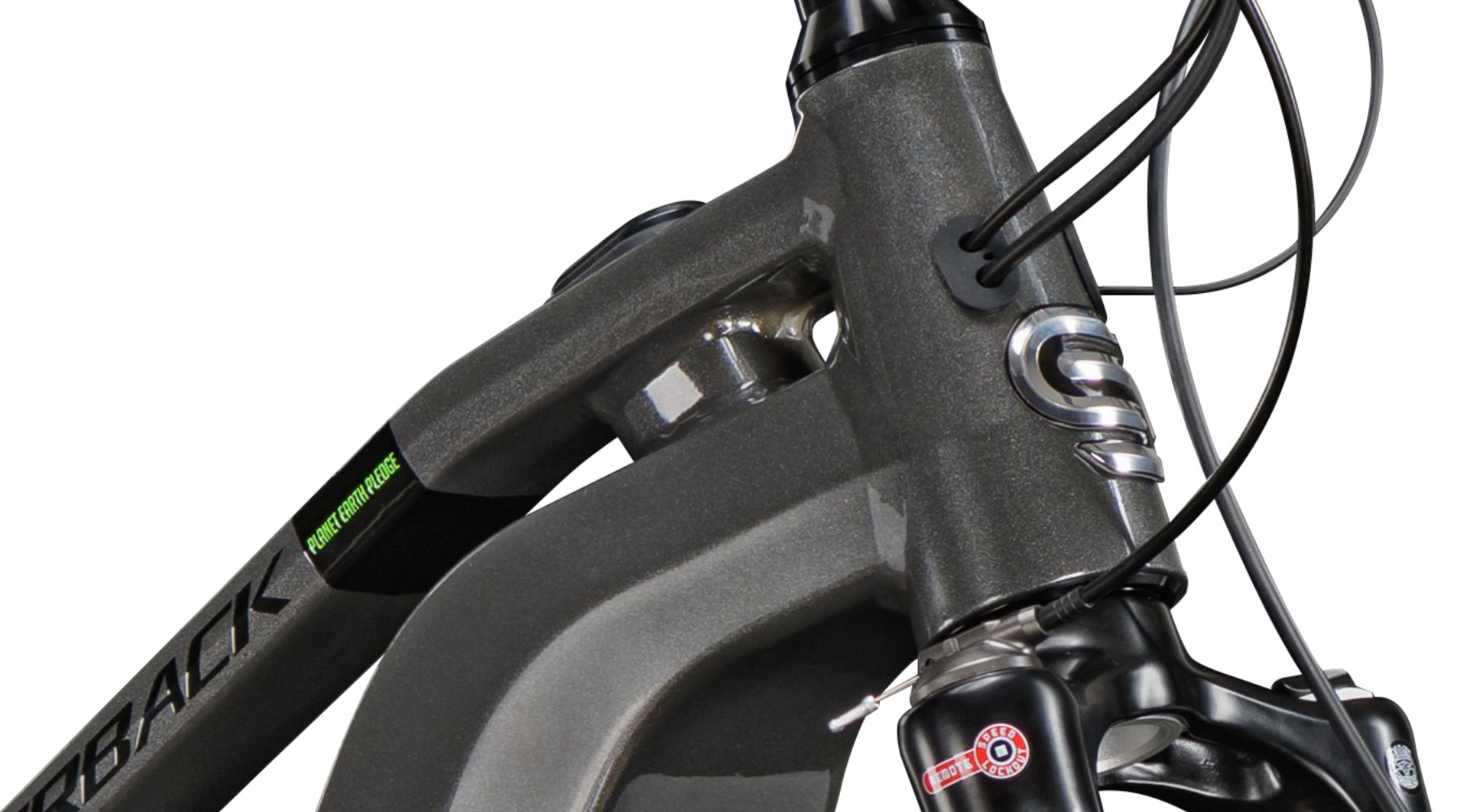

INTERNAL ROUTING

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/bigger-volume-tyres-icon.png?v=1595193334

HIGHER VOLUME TYRE COMPATIBLE

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/internal-dropper-post-ready-icon.png?v=1595193334

DROPPER POST COMPATIBLE

WHY IT’S BEST / KEY FEATURES

WHY IT’S BEST.

  1. Electric assisted bikes can help people get into or back into riding.
  2. The 720Wh battery offers massive range - less charging, more riding
  3. Removable battery makes charging easier - whether you have an outlet close by or not.
  4. Geometry is comfort orientated, but also makes for confident handling.
  5. The Fox Rhythm fork is easy to set up and a great quality fork that does an excellent job at smoothing out bumpy terrain.
  6. Even available in a size Small means that absolutely anyone can get into eBiking!

ENGINEERING NOTES.

 S-Electro Elite Comp smart button

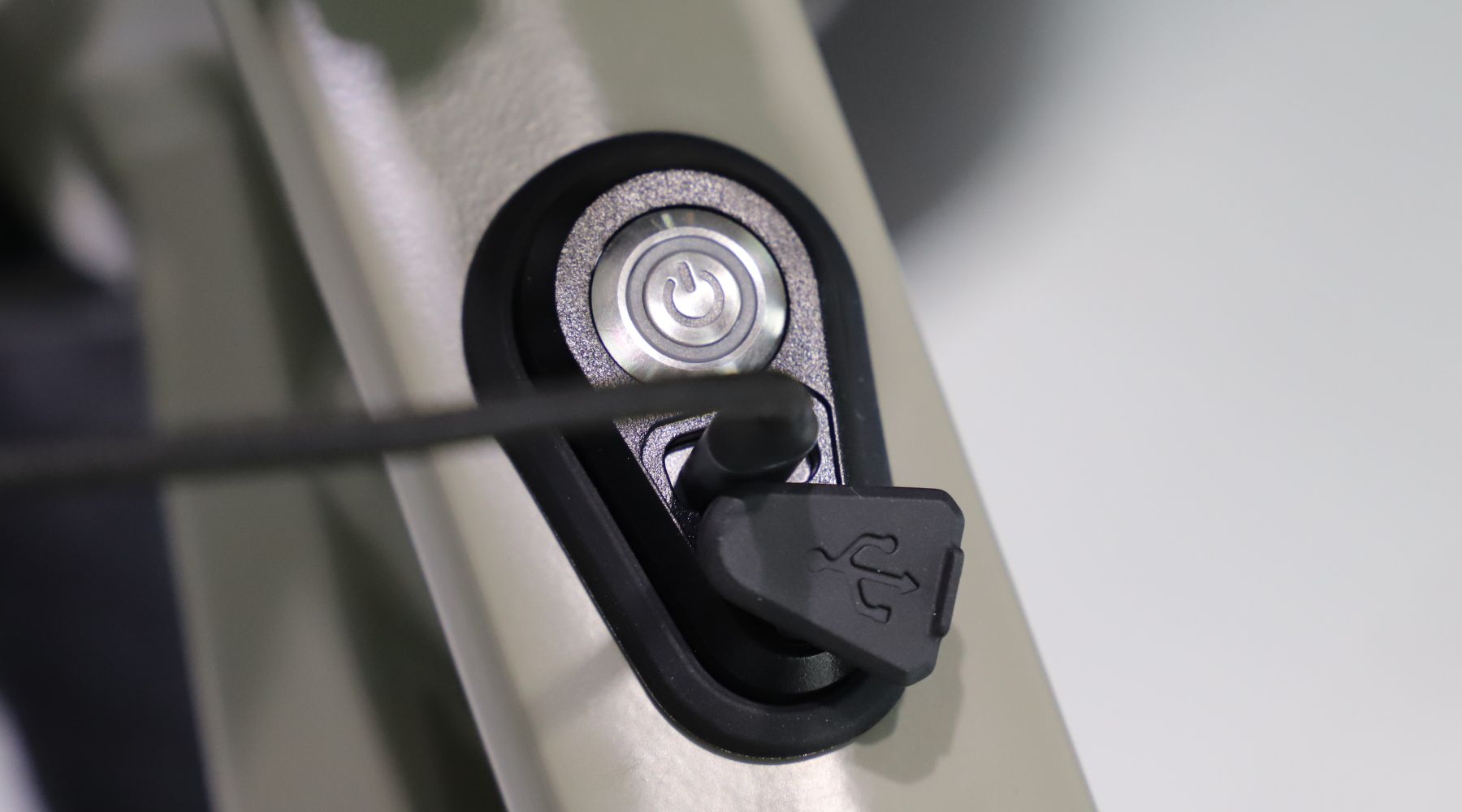

SMART CONTROL LED BUTTON

The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour.

 S-Electro Elite Comp wheels

HIGHER VOLUME TYRE COMPATIBILITY

Elie comp is designed to accommodate tyres of up to 29" x 2.6". Higher volume tyres means more grip and more comfort without the added weight of plus tyres.

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-elite-comp-engineering-note-geometry.jpg?v=1597238182

GEOMETRY

Geometry on the S-Electro Elite Comp is designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This makes the Elite Comp the ideal commuting or touring companion. The frame also has a low standover, making it great for both male and female riders.

 S-Electro Elite Comp short chainstay

SHORT CHAINSTAYS

Shorter chainstays means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

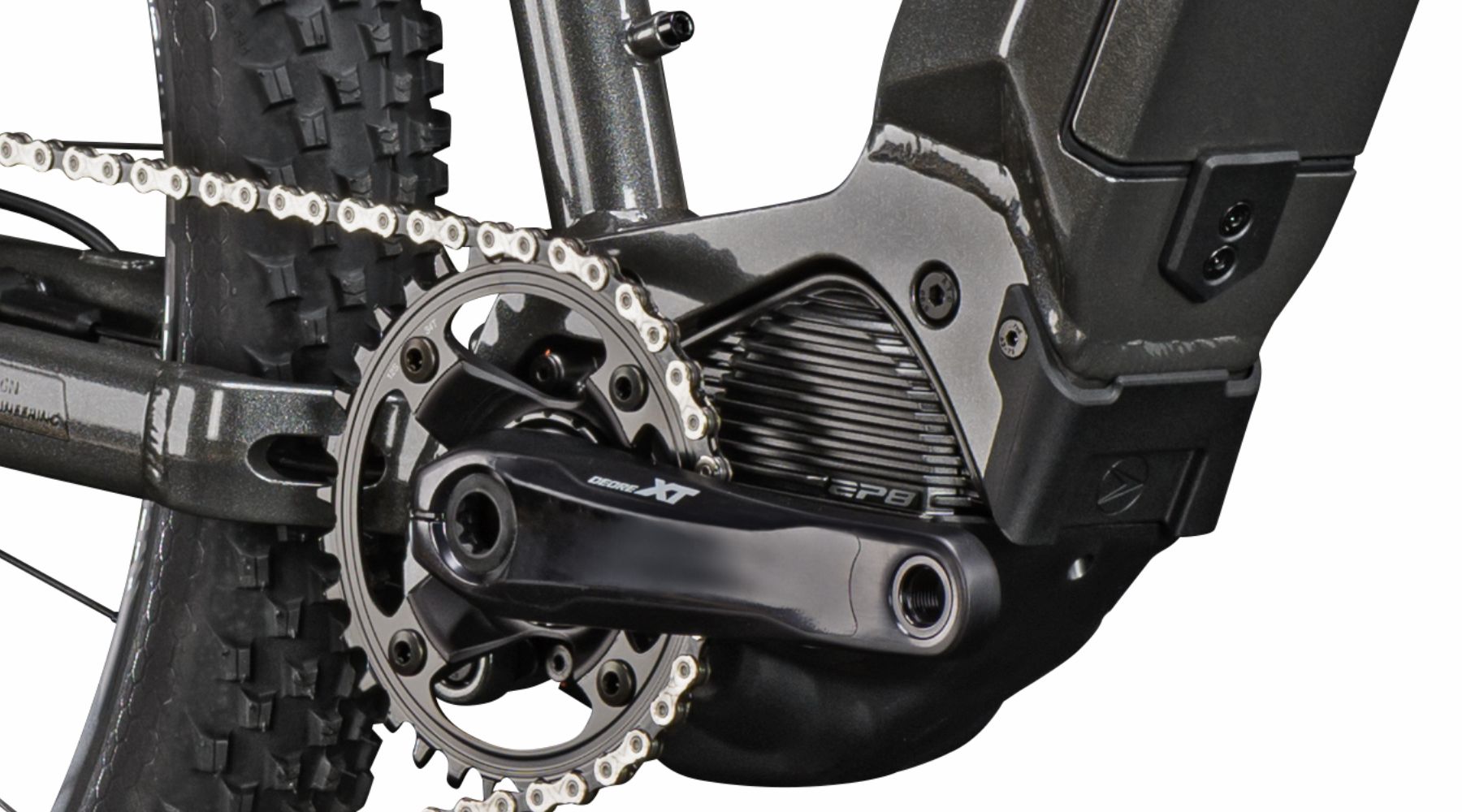

 S-Electro Elite Comp integrated motor

INTEGRATED MOTOR COVER

The frame is finished with a protective motor cover. This protects the motor from impact damage, and also finishes the bike really well.

 S-Electro Elite Comp dropper seat post

DROPPER POST COMPATIBILITY

The bike is internal routed dropper post compatible and easy to set up. Dropper posts increase riding clearance on technical sections, but could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumborsome.

  • 6061 Hydro-formed diamond e-bike frame,
  • Rockshox Recon Gold RL, 120mm, DebonAir, Boost suspension fork
  • Shimano EP8 motor
  • Darfon 720Wh high capacity battery
  • SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width wheels
  • Maxxis Forekaster 29x2.35", 120TPi, EXO, Tubeless tyres
  • Shimano Deore M5100 11sp rear derailleur
  • Surface alloy components

WHY IT’S BEST.

  1. Electric assisted bikes can help people get into or back into riding.
  2. The 720Wh battery offers massive range - less charging, more riding
  3. Removable battery makes charging easier - whether you have an outlet close by or not.
  4. Geometry is comfort orientated, but also makes for confident handling.
  5. The Fox Rhythm fork is easy to set up and a great quality fork that does an excellent job at smoothing out bumpy terrain.
  6. Even available in a size Small means that absolutely anyone can get into eBiking!

ENGINEERING NOTES.

 S-Electro Elite Comp smart button

SMART CONTROL LED BUTTON

The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour.

 S-Electro Elite Comp wheels

HIGHER VOLUME TYRE COMPATIBILITY

Elie comp is designed to accommodate tyres of up to 29" x 2.6". Higher volume tyres means more grip and more comfort without the added weight of plus tyres.

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-elite-comp-engineering-note-geometry.jpg?v=1597238182

GEOMETRY

Geometry on the S-Electro Elite Comp is designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This makes the Elite Comp the ideal commuting or touring companion. The frame also has a low standover, making it great for both male and female riders.

 S-Electro Elite Comp short chainstay

SHORT CHAINSTAYS

Shorter chainstays means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

 S-Electro Elite Comp integrated motor

INTEGRATED MOTOR COVER

The frame is finished with a protective motor cover. This protects the motor from impact damage, and also finishes the bike really well.

 S-Electro Elite Comp dropper seat post

DROPPER POST COMPATIBILITY

The bike is internal routed dropper post compatible and easy to set up. Dropper posts increase riding clearance on technical sections, but could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumborsome.

ride vast distances assisted, without the need for recharge on the way.

S-Electro Elite Comp is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Elite unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.
 S-Electro Elite Comp lightweight alloy

Hydro formed double butted integrated alloy frame

Elite Comp features a double butted hydro-formed alloy frame with integrated motor mount and internal battery. This means that the frame can have thinner walls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing. Hydro forming is the process of forcing tubing into a negative mold with internal pressurised oil and or water.

S-Electro Elite Comp e-bike

Drive system, power and display.

S-Electro Elite Comp is designed around a Shimano Steps 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Elite unrivalled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.

DESIGNER NOTES.

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/s-electro-comp-semi-int-alloy-frame-icon.png?v=1595568707

ALLOY FRAME

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/air-fork-icon.png?v=1595231562

AIR SUSPENSION FORK

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/integrated-battery-icon.png?v=1595580326

INTEGRATED BATTERY

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/electric-assistance-icon.png?v=1595229686

ELECTRIC ASSIST

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/fender-rack-mount-icon.png?v=1595229686

FENDER AND RACK COMPATIBLE

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/internal-cable-routing-icon.png?v=1595193334

INTERNAL ROUTING

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/bigger-volume-tyres-icon.png?v=1595193334

HIGHER VOLUME TYRE COMPATIBLE

https://cdn.shopify.com/s/files/1/0082/4128/3143/files/internal-dropper-post-ready-icon.png?v=1595193334

DROPPER POST COMPATIBLE

Technical SPECIFICATION

SPECIFICATIONS.

E-DRIVE SYSTEM
Motor Shimano EP8
Battery Darfon 720Wh
Display Shimano E7000 Screen Display
Charger Shimano E6010

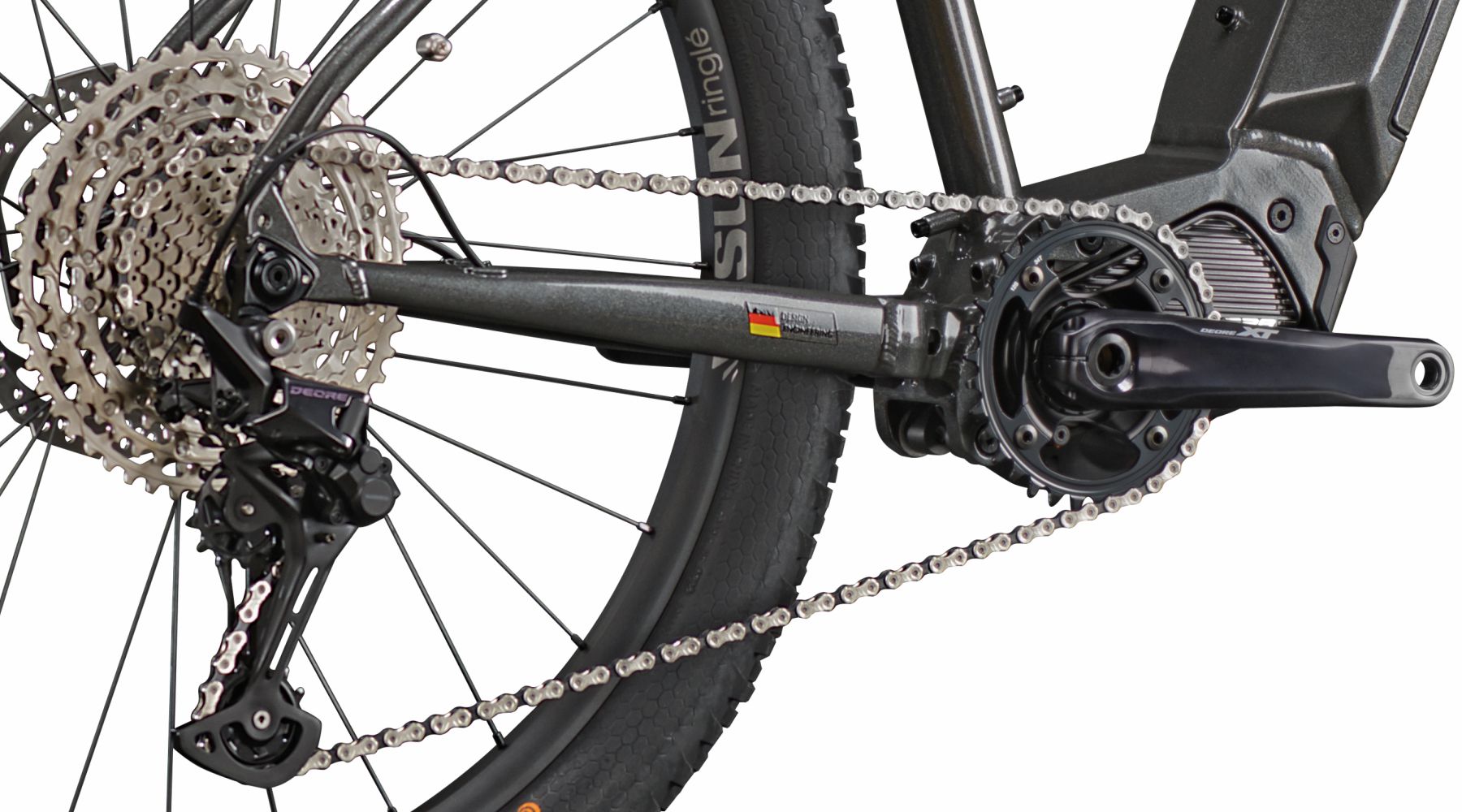

DRIVETRAIN
Crankset Shimano M600 Crankarm
Cassette Shimano Deore 11sp 11-51t
Rear Derailleur Shimano Deore M5100 11sp
Shifters Deore M5100 11sp
Chain Shimano HG601 11sp
Headset Token TK035A-15 Sealed Bearing

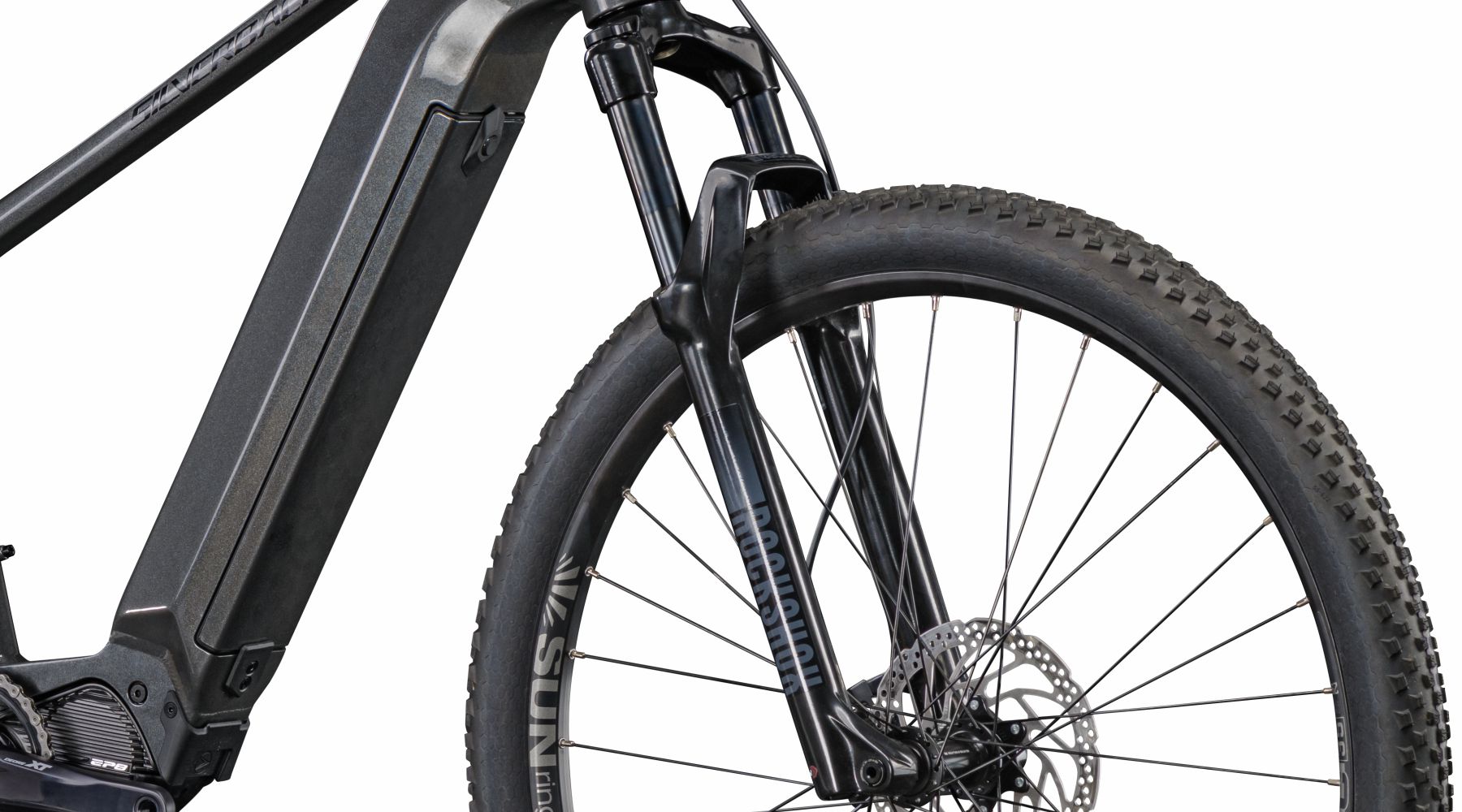

SUSPENSION
Fork Rockshox Recon Gold RL, 120mm, DebonAir, Boost, Diffusion Black
WHEELS
Hubs Front Hub: Shimano MT410, Boost, Rear Hub: Shimano MT400-B, Boost
Rims SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width
Tyres Maxxis Forekaster 29x2.35", 120TPi, EXO, Tubeless
COCKPIT
Seatpost Surface Aluminium, Black L: Drop: 150 (or 350mm fixed) for size S, L: Drop: 150 (or 400mm fixed) for size M, L: Drop: 170 (or 400mm fixed) for size L, L: Drop: 170 (or 400mm fixed) for size XL,
Saddle Surface
Handlebar Surface Alloy Handlebar, Dia:31.8mm, Backsweep:9°, Rise 5mm; W: 740 for size S, W: 760 for size M, W: 780 for size L, W: 780 for size XL,
Stem Surface High-Rise Stem; L: 60 for size S, L: 60 for size M, L: 60 for size L, L: 60 for size XL,
Seatclamp Surface Alloy w/Steel Bolt
Grips SBC Lockon Grip
Pedals One Piece Alloy Pedal
FRAME
Frame 6061 Alloy S-ELECTRO Comp integrated eBike frame
BRAKES
Brake set Shimano MT200, Resin Pads, Rotors: Shimano RT10 180mm

Disclaimer: Due to the nature of bike manufacturing, specification & finishes, component availability and price may be subject to change without prior written notification. Also images may not match final specifications due to component availability.

Close full specification

FAQS
  • FAQ

  • Can I order an extra battery for my S-Electro?

    Yes you can - get in touch and we can sort it out for you.

  • Can I chip my ebike?

    Most country laws prohibit the use of derestricting or chipping your ebike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.

  • Can I fit a throttle to my Elite?

    We don't sell throttles. You would have to check with your local authorities on their policies on pedal assist vs unassisted ebikes. Contact us directly for warranty information should you want to add a throttle. In most cases you warranty will be void if not installed by an accredited dealer.

  • Can I ride my ebike without assist?

    Yes - just pedal as you would any other bike.

Expand full faqs

GEOMETRY AND SIZE GUIDE

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.
