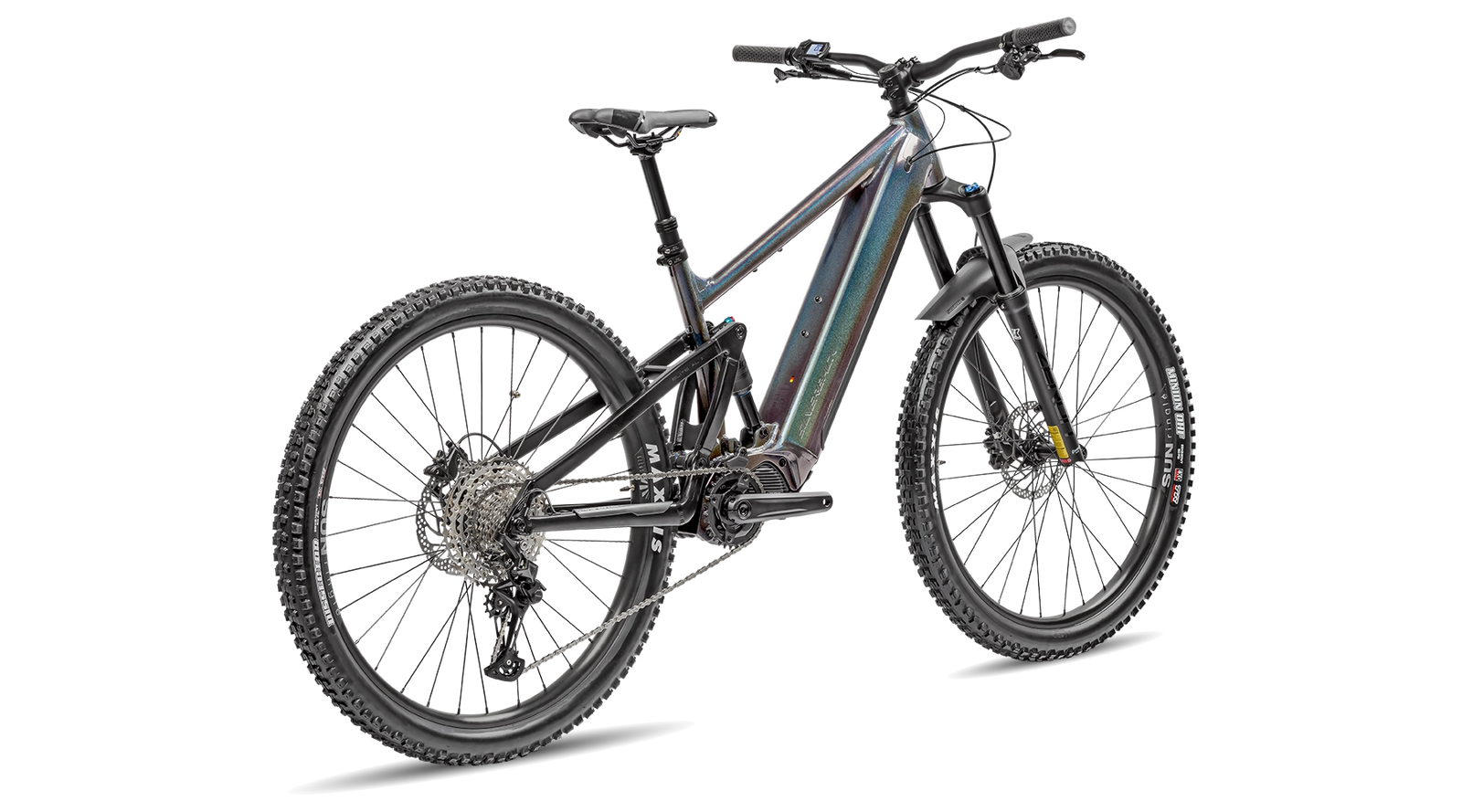

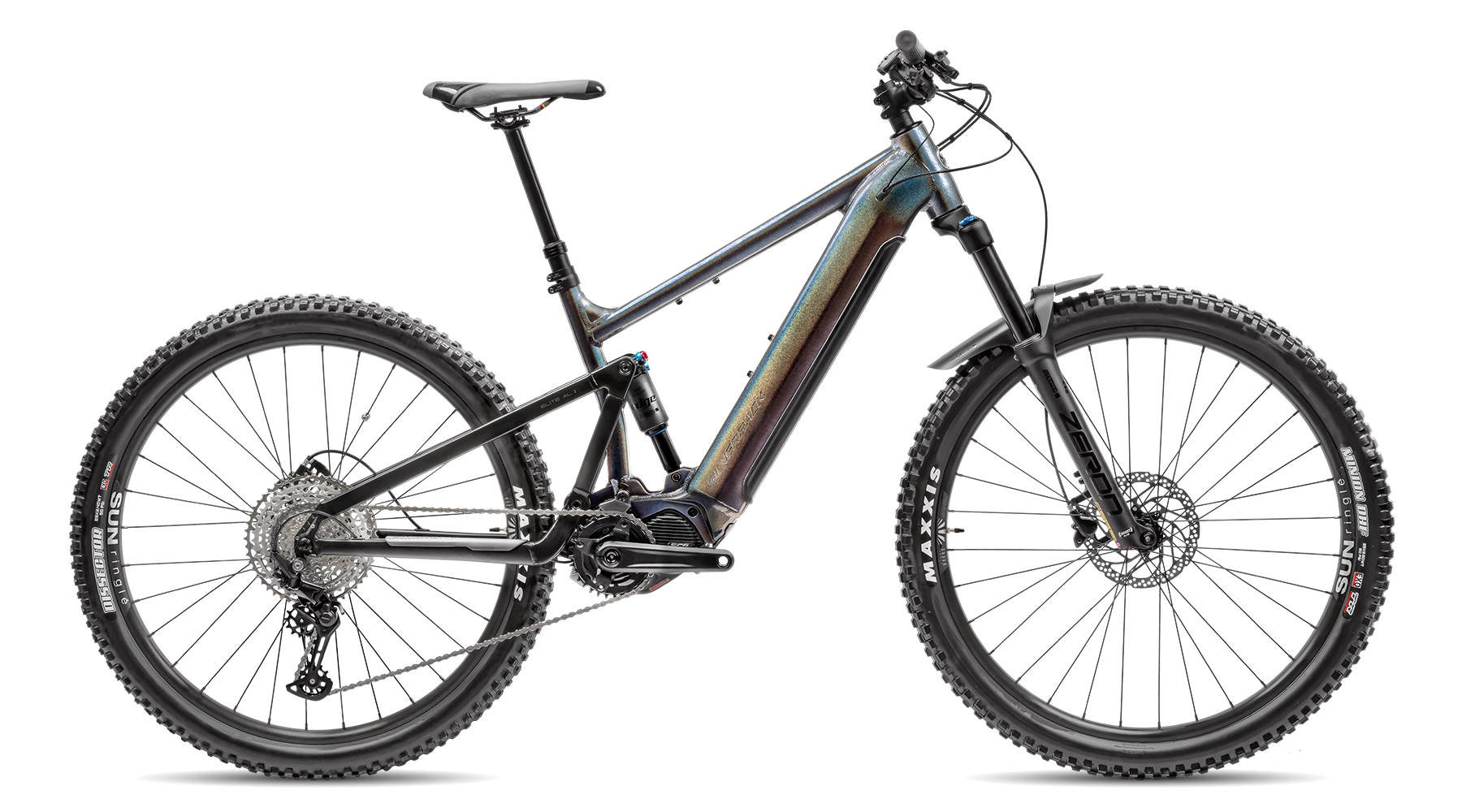

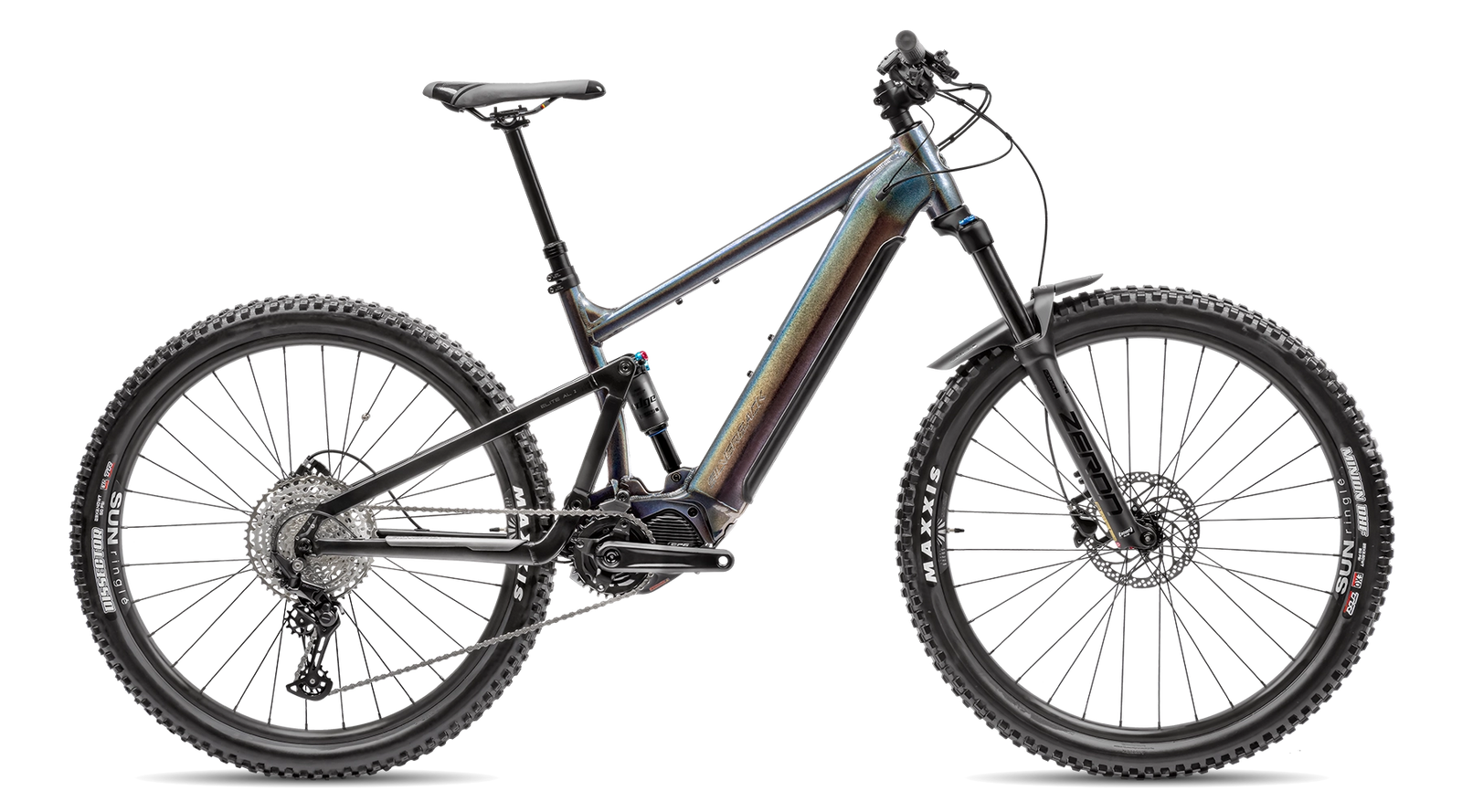

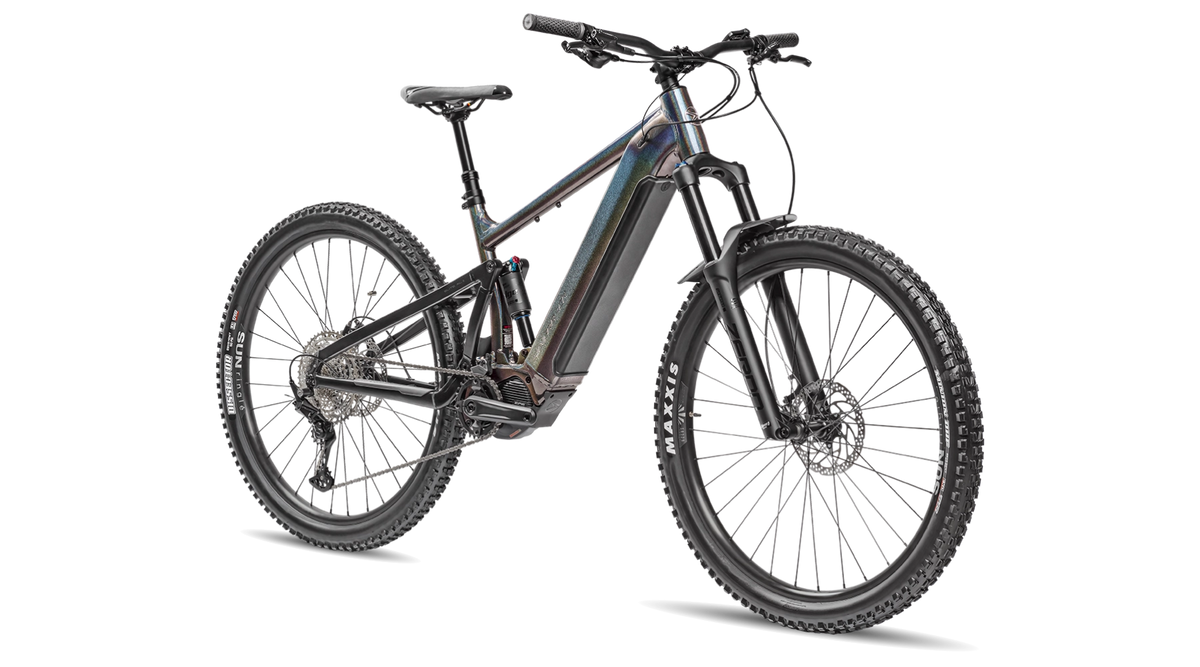

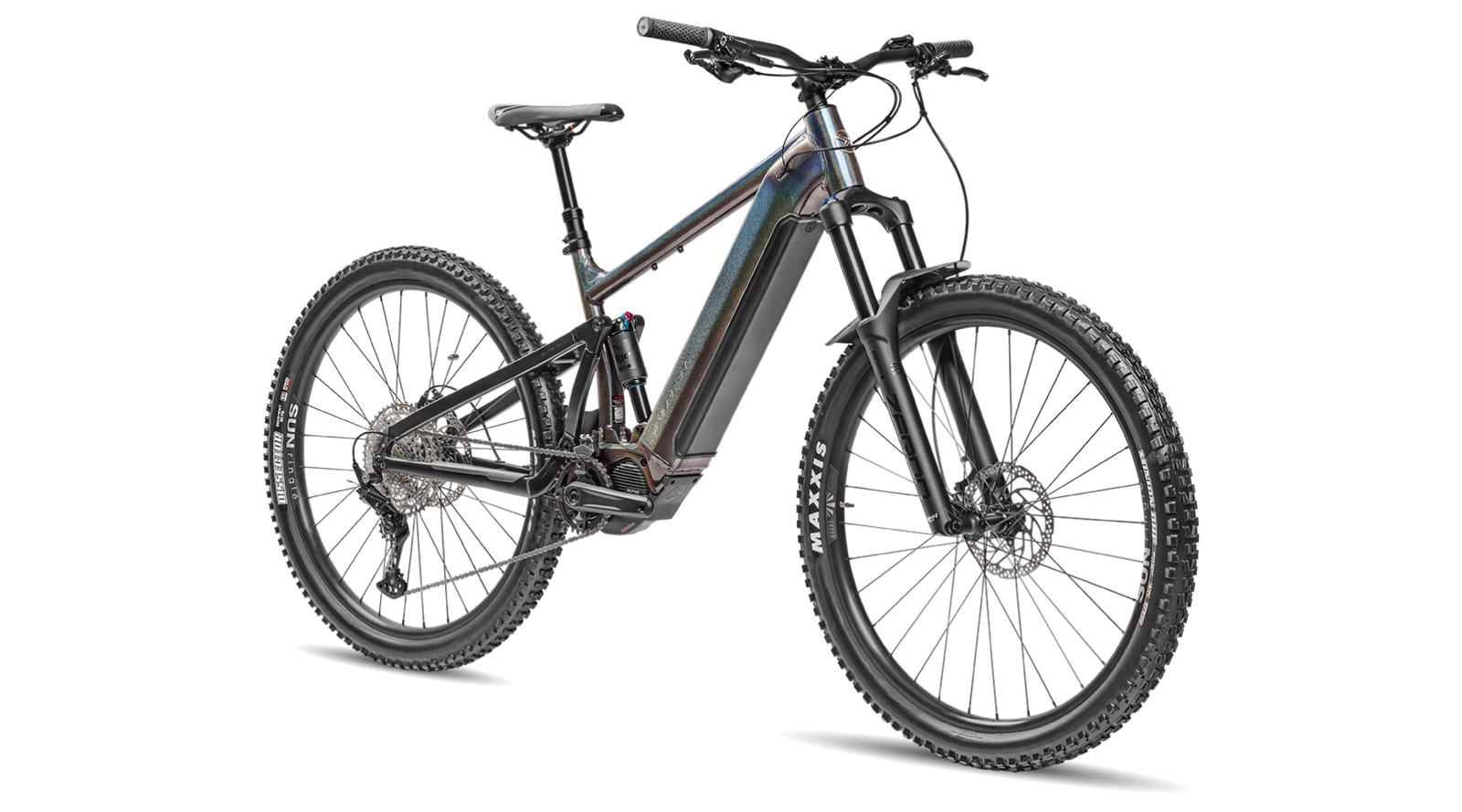

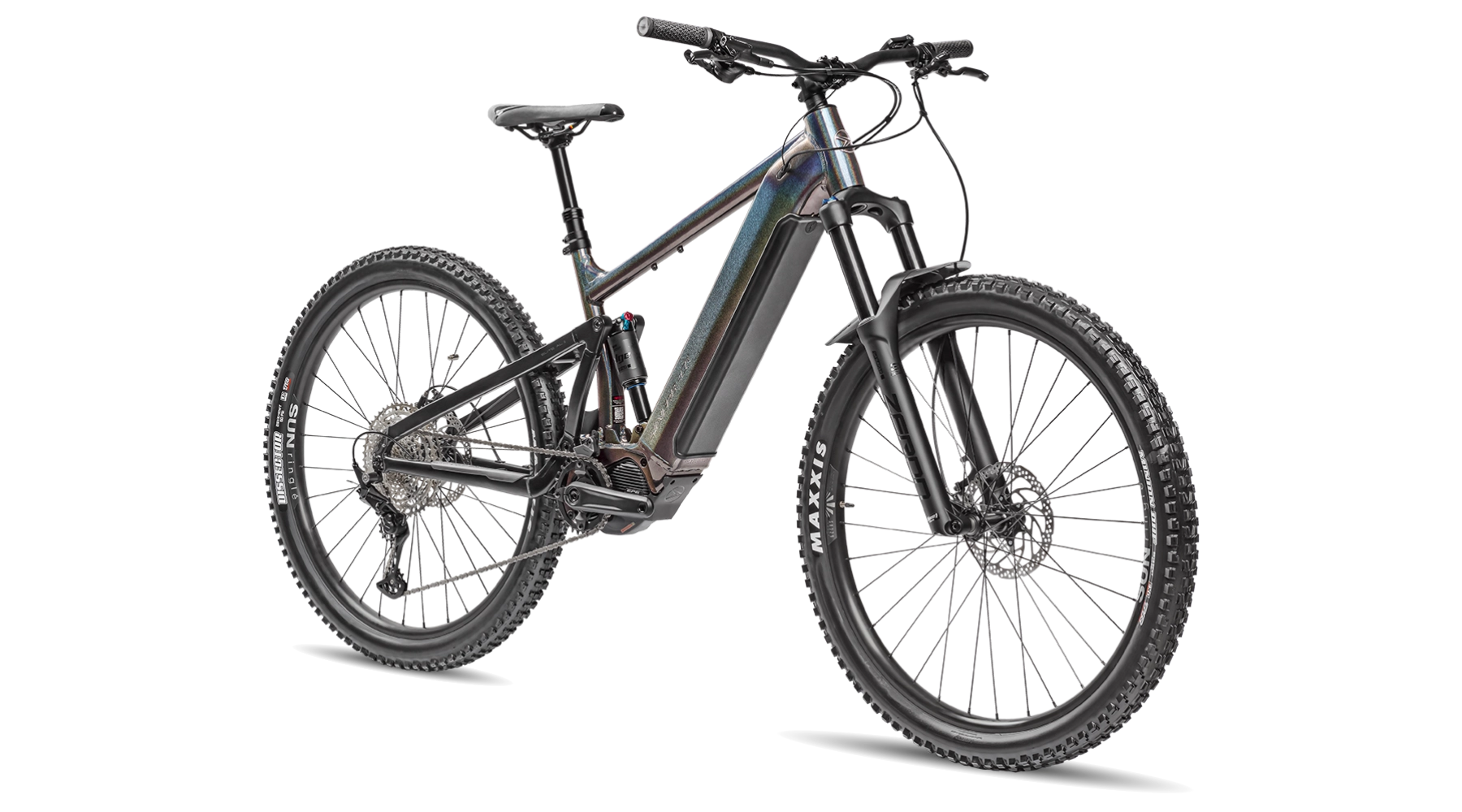

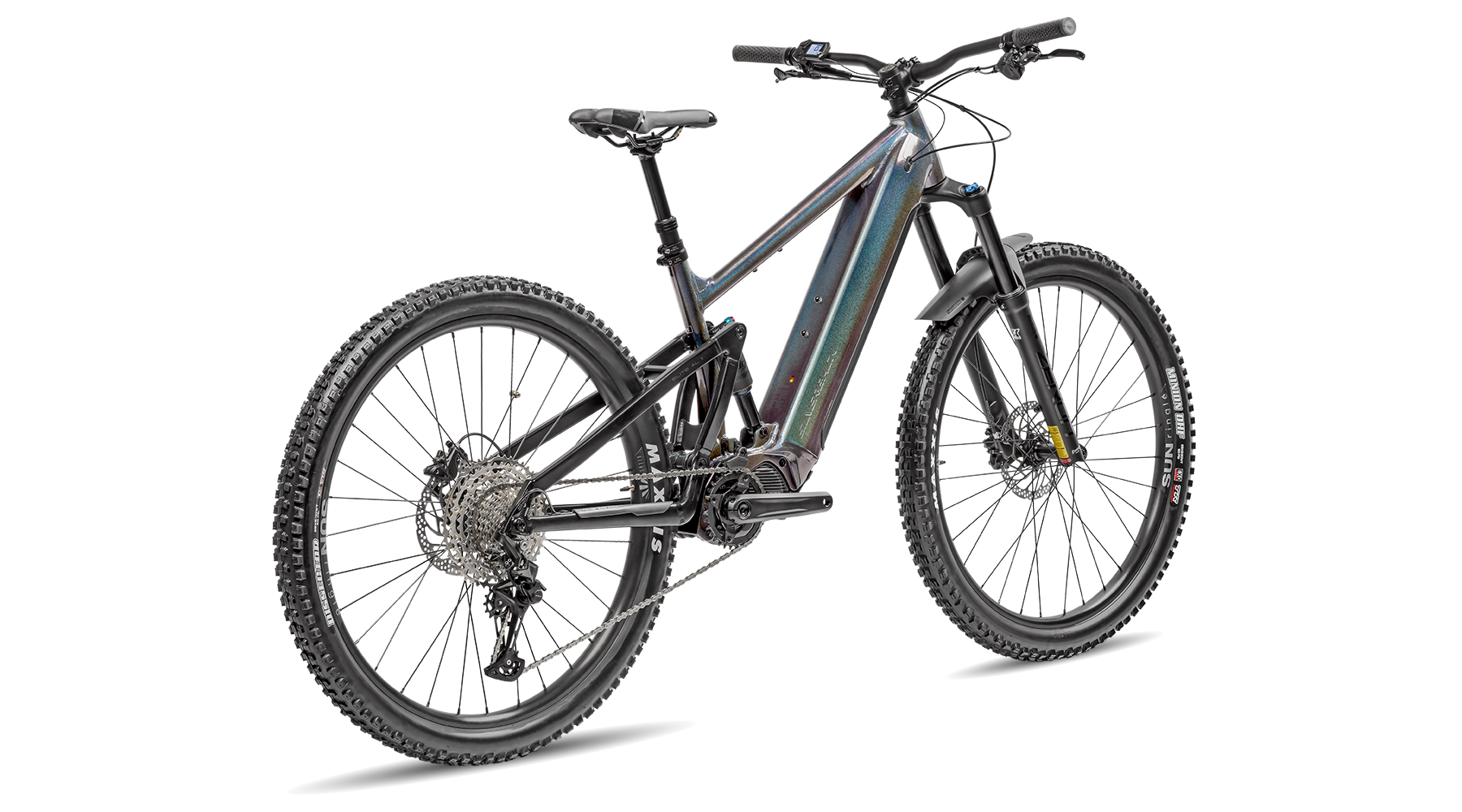

S-Electro Elite AL 2 (New Gen)

Name: S-Electro Elite AL 2 (New Gen)
Brand: S-Electro
SKU: 0086544012808
Price: 3999.0 EUR
Availability: OutOfStock

€3.999

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.3 4 reviews

Size:

Color: Rainbow Pearl

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Space Spectra - LED MTB Helmet (Matte Black)

Supreme Bib Shorts - Cycle Kit - BornToBeFast - - - - Speedlab

Surface Dropper Seatpost

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-3

S-Electro Elite AL 2 (New Gen)

€3.999,00

Sold Out

TRAIL/ENDURO E-BIKE

Das S-Electro Elite AL 2 vereint langhubige Kontrolle, EP6-Power und eine ganztägige Akkureichweite in einem Bike, das für echtes Enduro-Terrain gebaut ist. Es klettert mühelos, fährt sich souverän bergab und bleibt auch bei rauen Trails gelassen, wodurch Sie weiter und schneller fahren können – mit voller Kontrolle.

Auf einen Blick

Alloy, 145mm Dual-Suspension, integrated eBike frame
Suntour Zeron 36X AIR, 150 mm Suspension fork
Suntour Edge X 2RC rear shock
Shimano EP6 motor
Shimano 630Wh high-capacity battery
Shimano Deore, 12spd rear derailleur
SUNringle Duroc 35 wheels with 32mm Internal Rims
Maxxis Minion DHF 2.5"/Dissector 2.40" EXO/TR Tyres
Silverback dropper post
Silverback alloy components

TECHNISCHE HIGHLIGHTS

TRAIL/ENDURO E-BIKE.

The Elite AL e-Bike allows for the rider to tackle steeper and more technical terrain with assisted power, and helps the rider stay comfortable with 29” wheels and medium travel suspension to absorb the terrain. Single pivot one-piece solid rear triangle for precise suspension movement and increased lateral stiffness is ideal for electric power assisted full suspension bikes to tackle heavy terrain with an aggressive riding style.

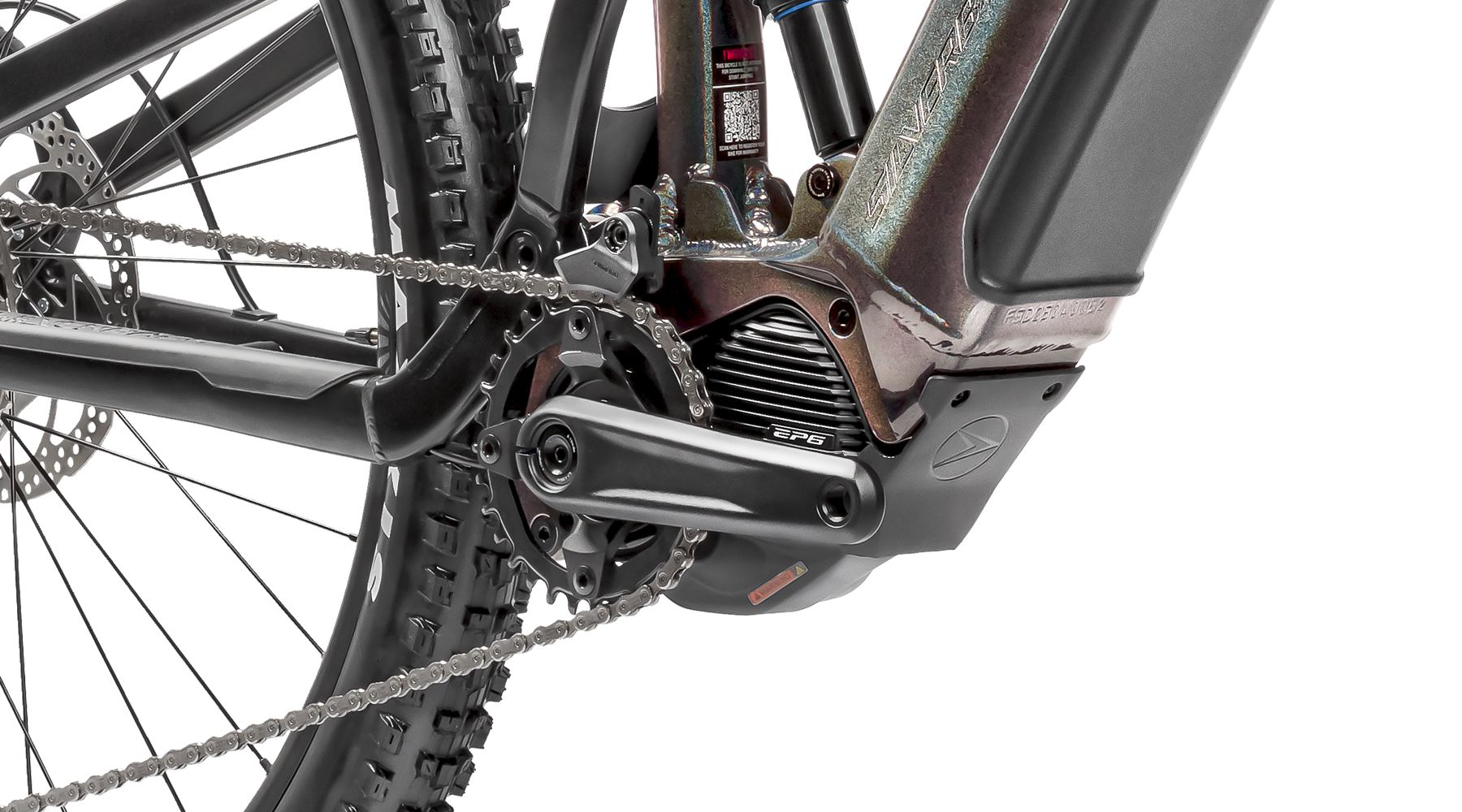

POWERFUL SHIMANO MOTOR

Shimano Steps EP-6 with 85 Nm mid-drive motor. Responsive, low-pedal drag and smooth torque support. Customizable via the Shimano E-Tube Project app.

ELECTRIC DRIVE SYSTEM

A powerful Shimano EP6 electric motor paired with a large 630Wh internal battery makes mole hills of mountains. The battery charges to 80% in 3 hours, and a range of up to 100km depending on the assist levels and terrain you are riding.

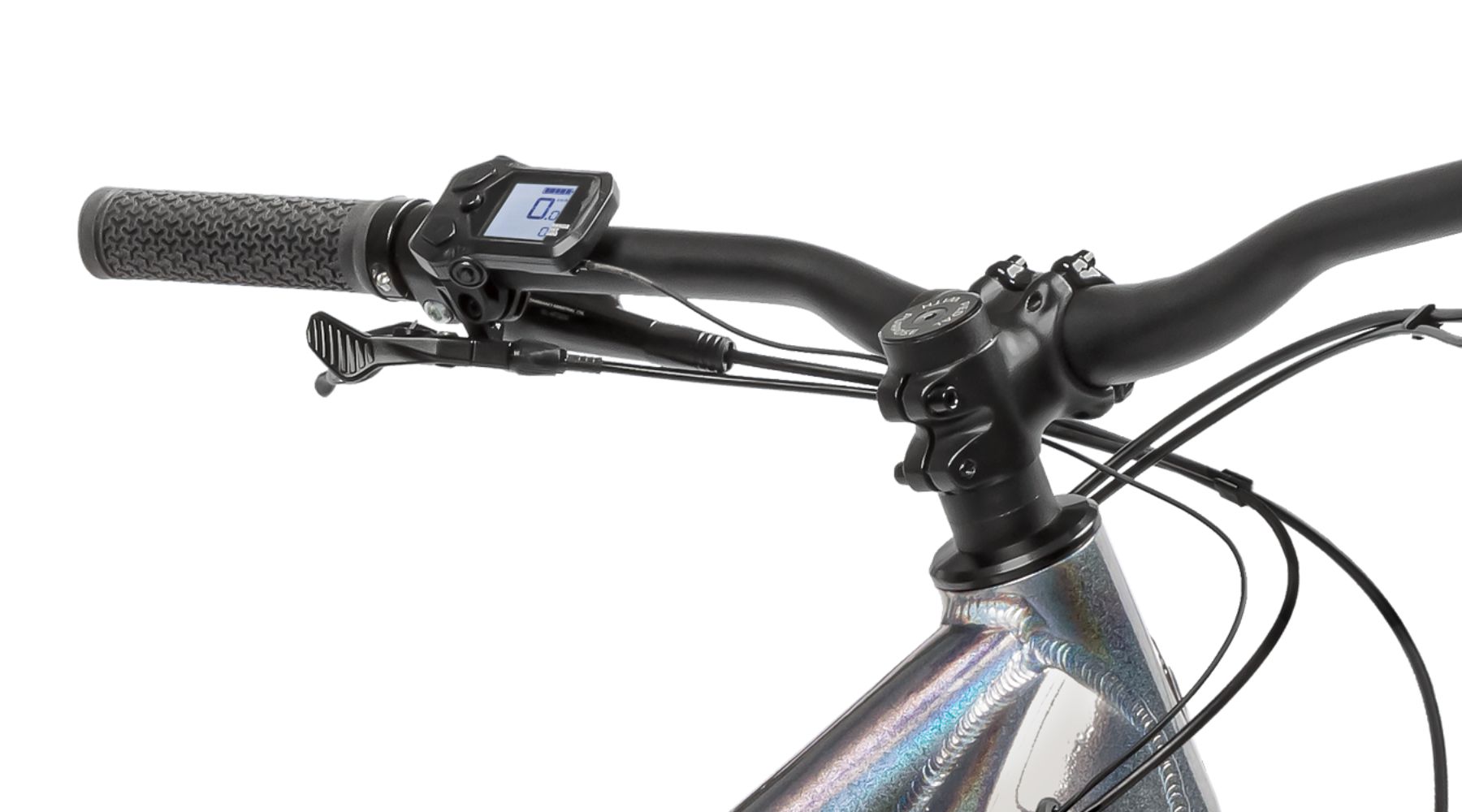

INFORMATIVE DISPLAY

Shimano EN600 informative display for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.

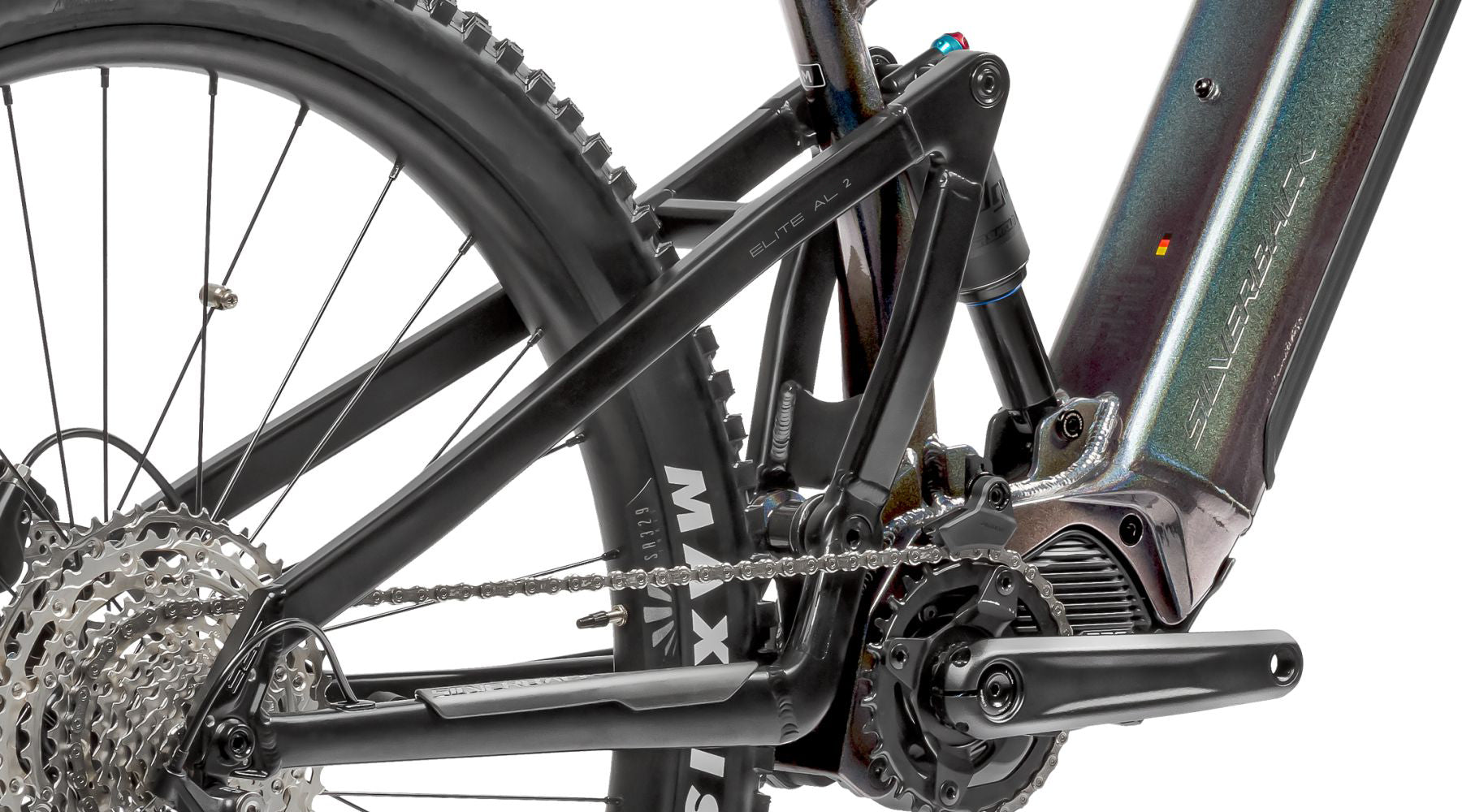

SUSPENSION KINEMATICS

The linear leverage ratio ensures the long stroke shock gets to full travel on rough terrain and allows the rider to have consistent damping throughout the whole shock stroke. The linear ratio allows for a consistent feeling and when combined with the assisted motor power, it helps to give the rider a solid platform to ride with no matter the bump size.

SUSPENSION ANTI-SQUAT

The high anti-squat figure helps to keep the bike articulate in its movements under assisted power and with soft suspension settings for all day comfort. The bike responds well to any crank movement in any gear combination and allows rider to use large front chainring without losing this responsiveness.

HYDROFORMED DOUBLE BUTTED INTEGRATED ALLOY FRAME

Featuring a double butted hydroformed fully alloy frame with integrated motor mount and internal battery. The frame can have thinner walls, complex shapes that makes it stronger and lighter.

SUNRINGLÉ DÜROC 35 WHEELSET

They’re robust and lightweight for fast, rugged trail riding. Rims are 35mm wide (31mm inner).

SRC hubs feature cartridge bearings, flange diameters for optimized for balanced spoke tension, and an oversized rear axle for increased durability.

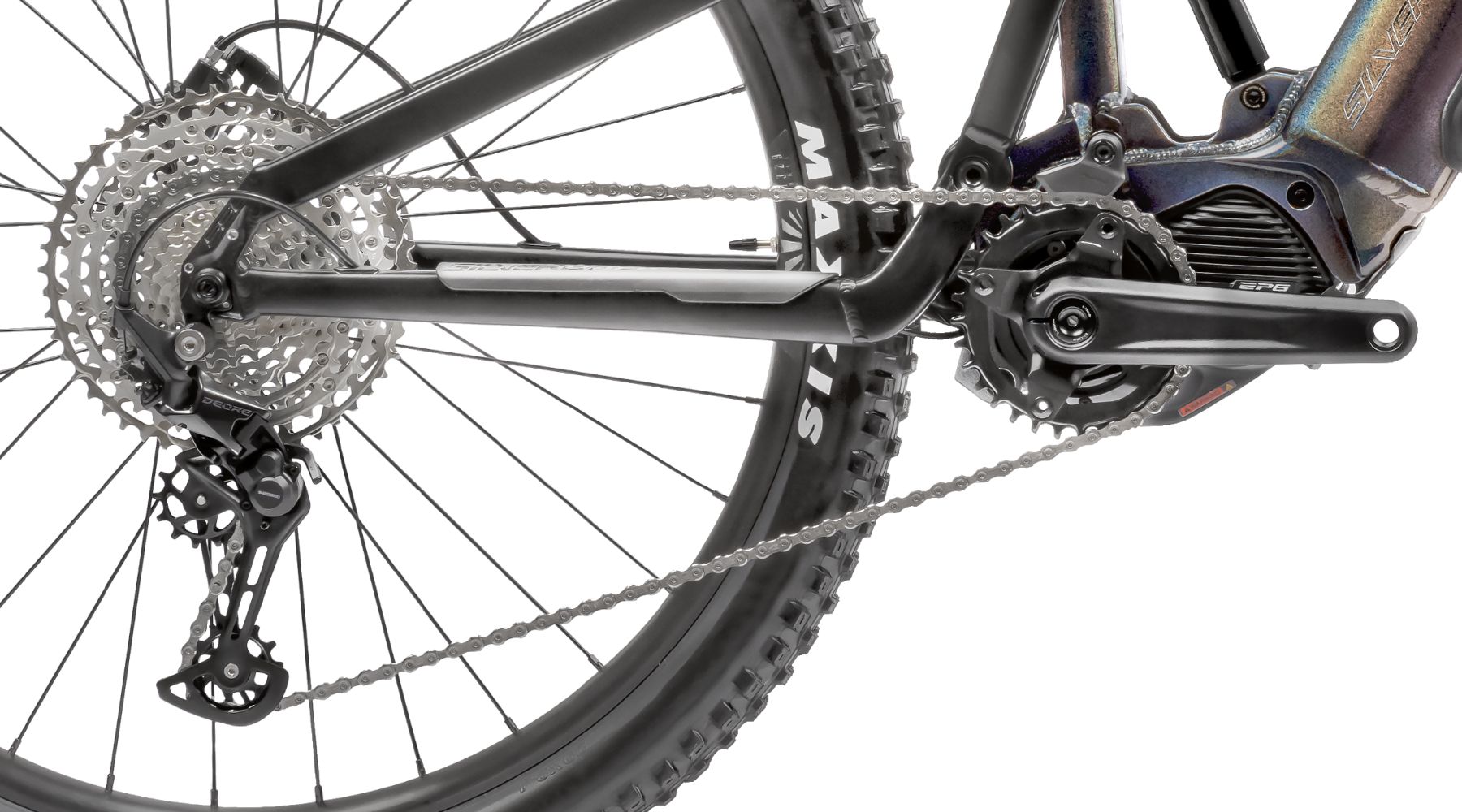

SHIMANO DEORE 12-SPD GEARS

Efficient shifting, superior durability and plenty of gears for almost any terrain.

SHIMANO CHAIN RETAINER

Helps ensure chain stability and avoid chain drop through rough sections of trail.

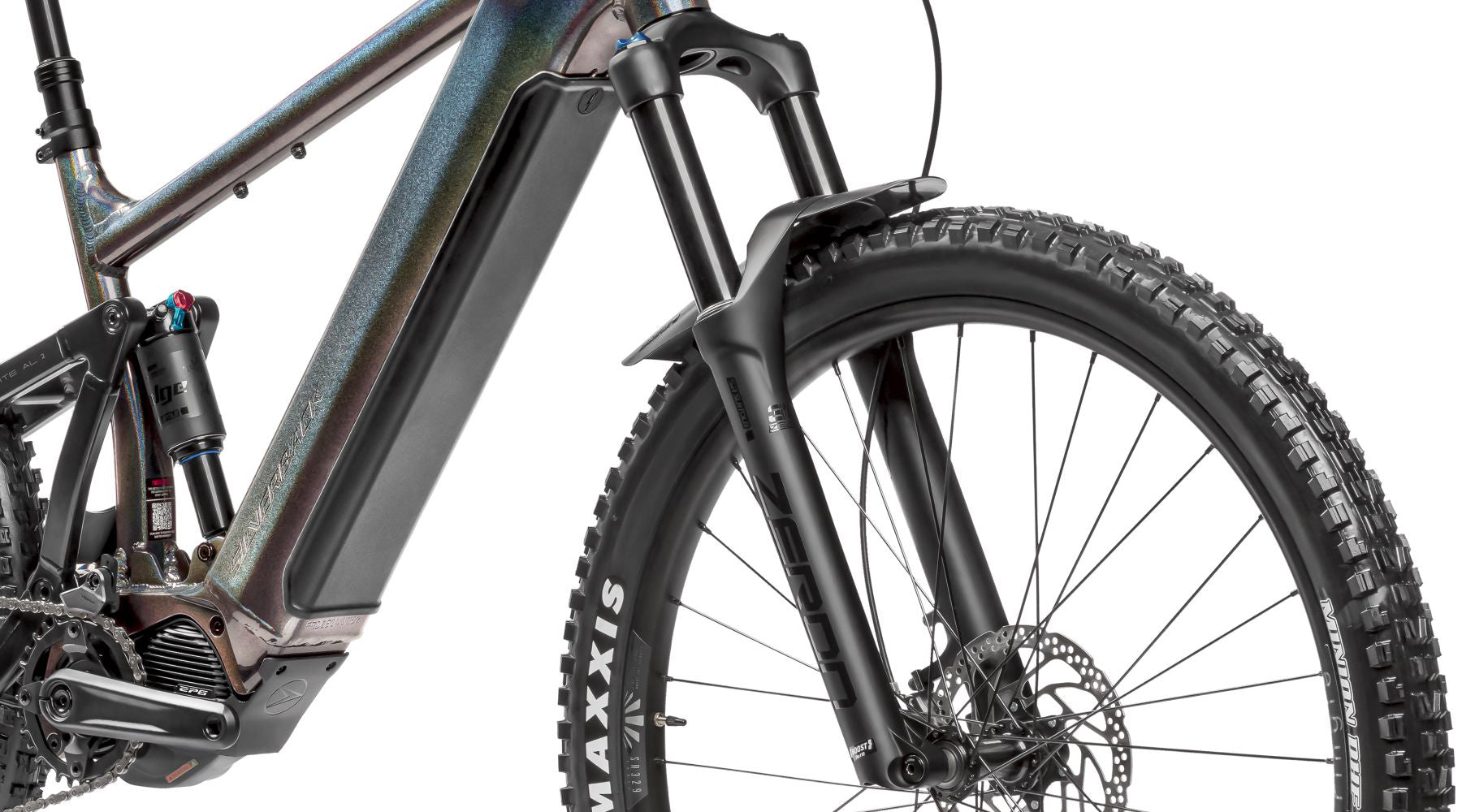

QUALITY SUSPENSION FORKS

Offering 150mm of AIR-sprung shock-absorption, strong 36mm stanchions - enough to handle the unique rigors of enduro and E-MTB riders alike.

CUSTOM TUNED SHOCKS

Custom tuned to deliver maximum performance. 145mm of rear wheel travel.

INTERNAL CABLE ROUTING

Cables route through the frame, better organization while still being for easily accessible.

OPTIMISED CHAINSTAY LENGTH

Shorter chainstay means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

SHIMANO 630 Wh BATTERY

Large 630Wh internal battery delivering 2 - 4 hours / 50 - 100 km range of pedal assistance. The battery charges to 80% in 3 hours.

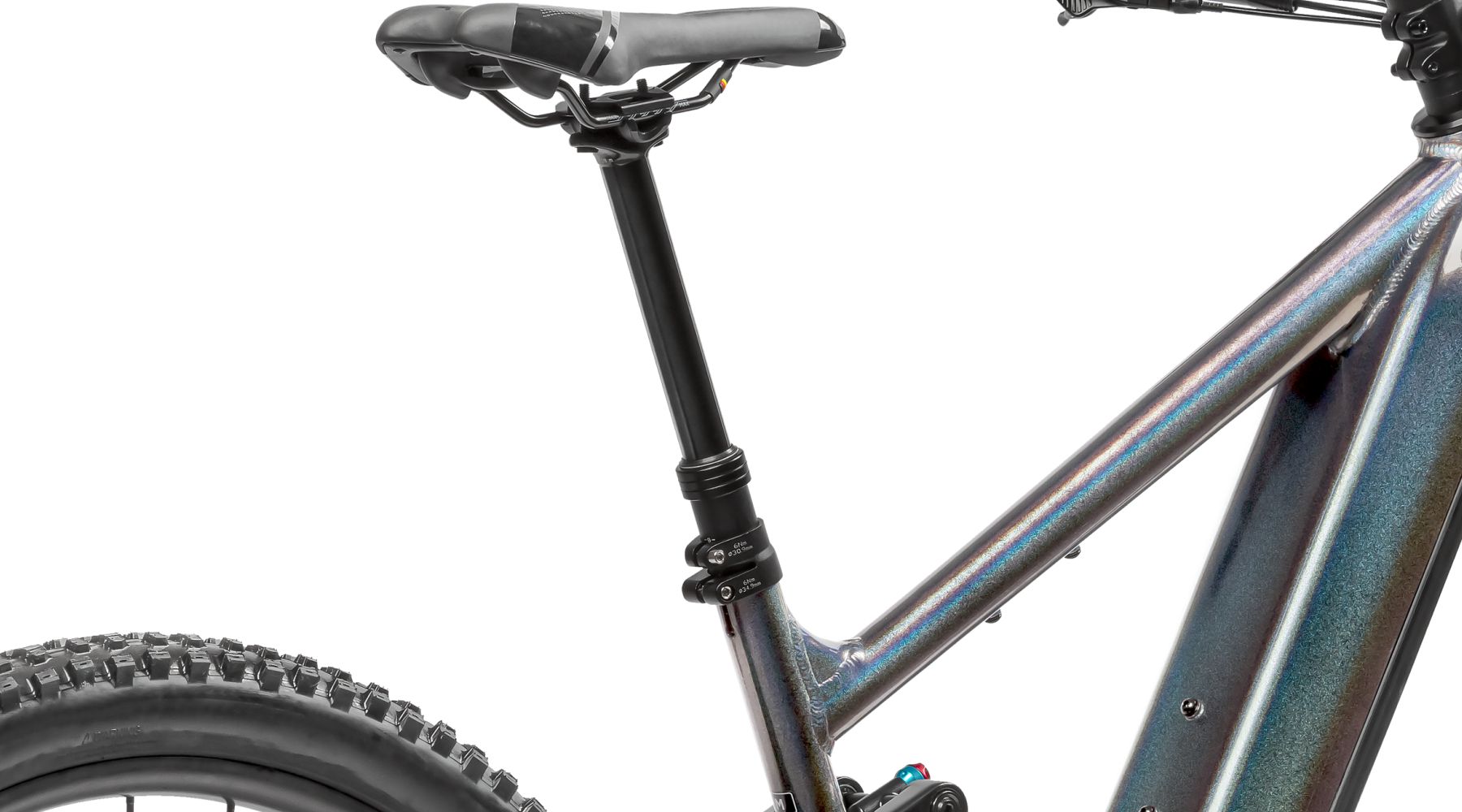

LONG DROPPER POSTS

The bike is internal routed dropper post compatible and simple to set up. 125 - 170mm travel depending on frame size.

KICK STAND MOUNT

Park your E-bike bike quickly, safely and prevent annoying scratches.

BATTERY CHARGING PORT

Compact, semi-integrated design for charging convenience.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Alloy Dual Suspension with Shimano EP6 motor and Shimano 630Wh internal battery. Trail/Enduro frame with 150mm front and 145mm single-pivot rear travel.

Headset

Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/39.8

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm P1.75

Hanger Type

Hanger 03

E-BIKE

Motor

Shimano EP600 Drive Unit, Mid-Position, 25km/h, 85Nm Torque

Battery

Shimano BT-EN806-A, 630Wh In-Tube Battery

Charger

Shimano EC-E8004-1 Battery charger for EU/SINGAPORE/RUSSIA

Display

Shimano EN600 Computer

Switch

Shimano EN600L

SUSPENSION

Fork

Suntour Zeron 36X AIR Boost EQ RC, 29", 110 x 15mm, 150mm Travel

Fork Travel

150mm

Rear Shock

Suntour Edge X 2RC, Custom tuning, 185x55mm Trunnion, 8x30mm hardware, 145mm Wheel Travel

Rear Travel

145mm

Shock Mounting

Body: Trunnion, M10x54mm

Shaft: Standard, 8x30mm

Eye-to-Eye x Stroke

185x55mm

WHEELS

Wheelset

SUNringlé Duroc 35 Wheelset

Hubs

F: SUNringlé SRC, Boost, 110x15mm, 6 Bolt, 32H

R: SUNringlé SRC, Boost, 148x12mm, 6 Bolt, 32H

Rims

F: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width, 35mm Outer Width

R: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width, 35mm Outer Width

Tyres

F: Maxxis DHF 29x2.5" EXO/TR, Wire Bead, 60TPI

R: Maxxis Dissector 29x2.4" EXO/TR, Wire Bead, 60TPI

Max Tyre Size

Front: 2.6"

Rear: 2.5" (29'')

DRIVETRAIN

Crankset

E-Bike Crank for Shimano motor, 170mm crankarms. 32T

Max Chainring Size

32T

Shifter(s)

R: Shimano Deore SL-M6100-R, Rapidfire Plus, 12-Speed

Rear Derailleur

Shimano Deore RD-M6100 SGS Shadow Plus, 12-Speed

Cassette

Shimano Deore CS-M6100-12, Hyperglide+, 10-51T, 12-Speed

Chain

Shimano Deore CN-M6100 HG, 12-Speed, 118 Links

BRAKES

Brakes

Tektro HD-M535 Gemini SL, 4-Piston Hydraulic Disc, Metal Pads

Rotors

F: Tektro 203mm

R: Tektro 203mm

COCKPIT

Grips

Double Density Lock-On

Handlebar

Alloy, Dia: Ø31.8mm, 9° Backsweep, 30mm Rise, 760mm Wide

Stem

Alloy, Ø31.8mm, ±3˚ Rise, 45mm Extension

Saddle

Silverback Ergo

Seat Post

Alloy Dropper, Ø30.9mm, 125mm ~ 170mm Travel

Seatpost Clamp

Alloy Ø30.9mm Dual Security Clamp

WEIGHT

Bike Weight

25.8 kg

RIDER WEIGHT LIMIT

120 kg - combined weight of bike and rider (including all kit).

Owner's Manuals

Technische Handbücher & Einrichtungsanleitungen

Greifen Sie auf die vollständige Dokumentation für Ihr Fahrrad zu:

Allgemeine Bedienungsanleitung – Detaillierte technische Spezifikationen und Pflegehinweise. [Herunterladen]

Kurzanleitung zur Einrichtung – Schritt-für-Schritt-Anleitungen für Montage und Einstellung. [Herunterladen]

FAQ

How do I adjust travel on my Elite AL?

It's better to ask your LBS to adjust the travel internally in your shock.
Can I fit a 180mm triple clamp on my AL?

We dont recommend it.
What's the difference between pedal assist and throttle bike?

Exactly that - the one you as rider have to pedal to have the motor engage and assist. For throttle, you the rider don't have to do any physical input other than actuate the throttle.
Can I fit plus tyres on the AL?

Yes, 2.8" - but only on 27.5" rims.
Where can I find the E-bike manual?

Click HERE to view.
Where can I find serial number of the E bike?

For the S-electro Stepdown, S-electro Comp SL, S-electro Elite AL 2 (630Wh) models the frame number is located on the side of the side of the frame around the motor.
Can I customize my Shimano display to another language or change other settings?

Yes, you need to download E TUBE app and configure the settings. SEE HERE
Can I upgrade the length of my suspension on my bike?

The suspension length is normally determined by the frame design, it should not be changed.

ANDERE MODELLE DER SERIE

€3.999

S-ELECTRO ELITE AL 1

Dual Suspension | E-Enduro | Alloy

150/145mm
29" x 2.5" Wheels
1x12 Speed SRAM
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
24 kg

€3.999

S-ELECTRO ELITE AL 2 (NEW GEN)

Dual Suspension | E-Enduro | Alloy

150/145mm Travel
29" x 2.5" Wheels
1x12 Speed Shimano
EP-6 Shimano Motor
85Nm Torque
630Wh Battery
25.8 kg

€5.999

S-ELECTRO PRO CF 2

Dual Suspension | E Enduro | Carbon

150/145mm Travel
29" x 2.5" Wheels
1x12 Speed SRAM
EP-801 Shimano Motor
85Nm Torque
720Wh Battery
from 22kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	160-173	170-180	180-190	190-200
	Rider inseam(cm)	73-79	77-82	82-86	86-91
A	Seat tube c/t	390	420	450	480
B	Seat tube angle	76.5	76.5	76.5	76.5
C	Head tube angle	64.5	64.5	64.5	64.5
D	Top Tube	521	548	583	612
E	Reach	430	450	478	500
F	Chainstay length	467	467	467	467
G	bb height	347	347	347	347
H	head tube length	120	125	135	135
I	stack	626	631	640	640
J	standover	805	825	847	866
K	Wheelbase	1229	1251	1283	1305
