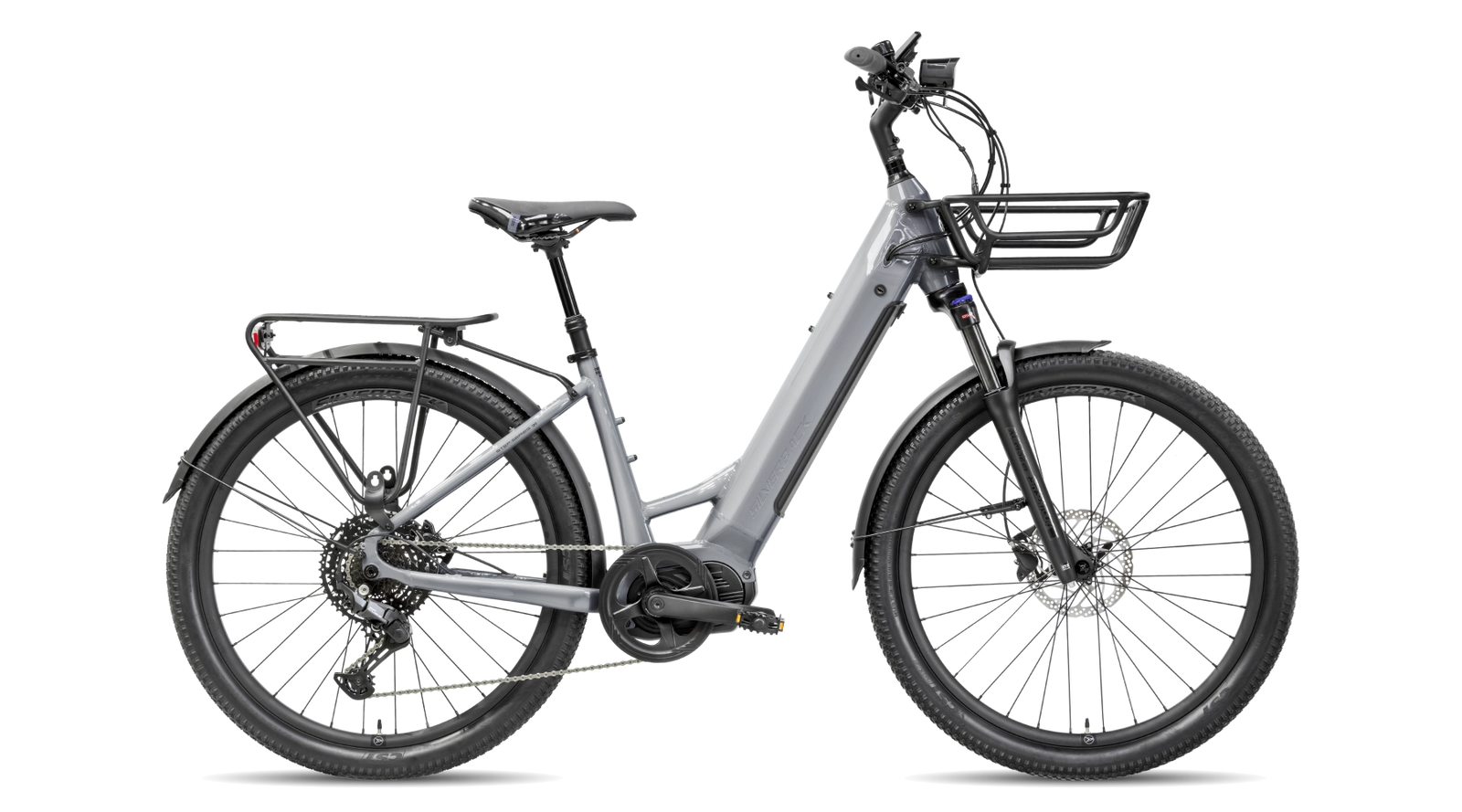

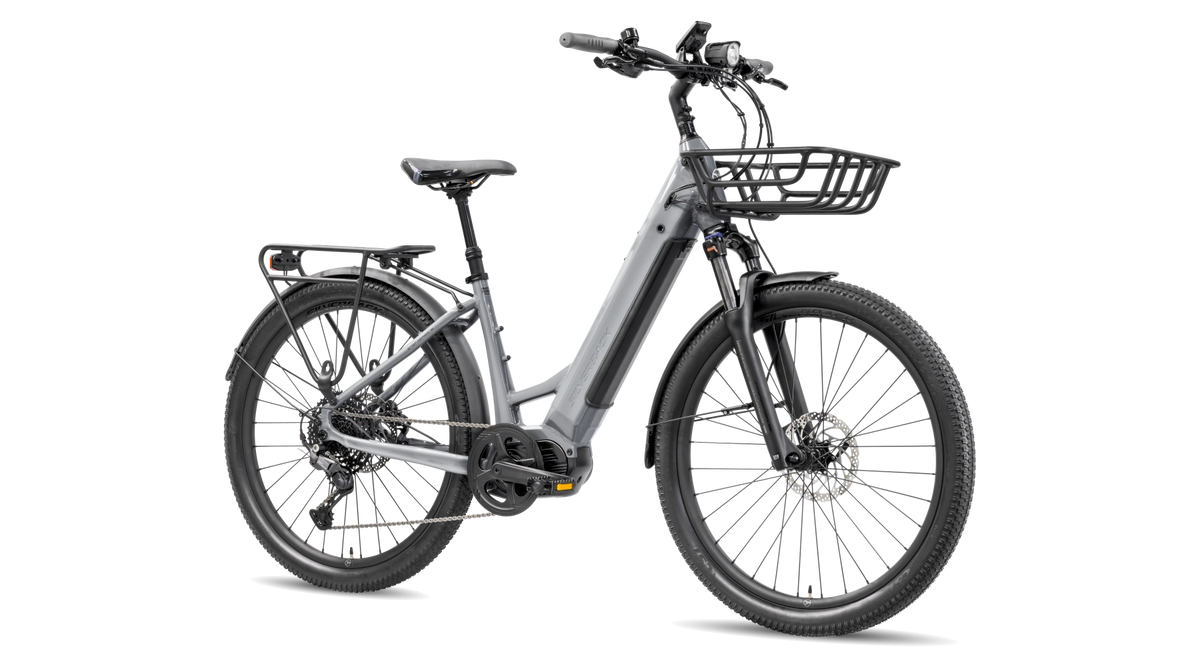

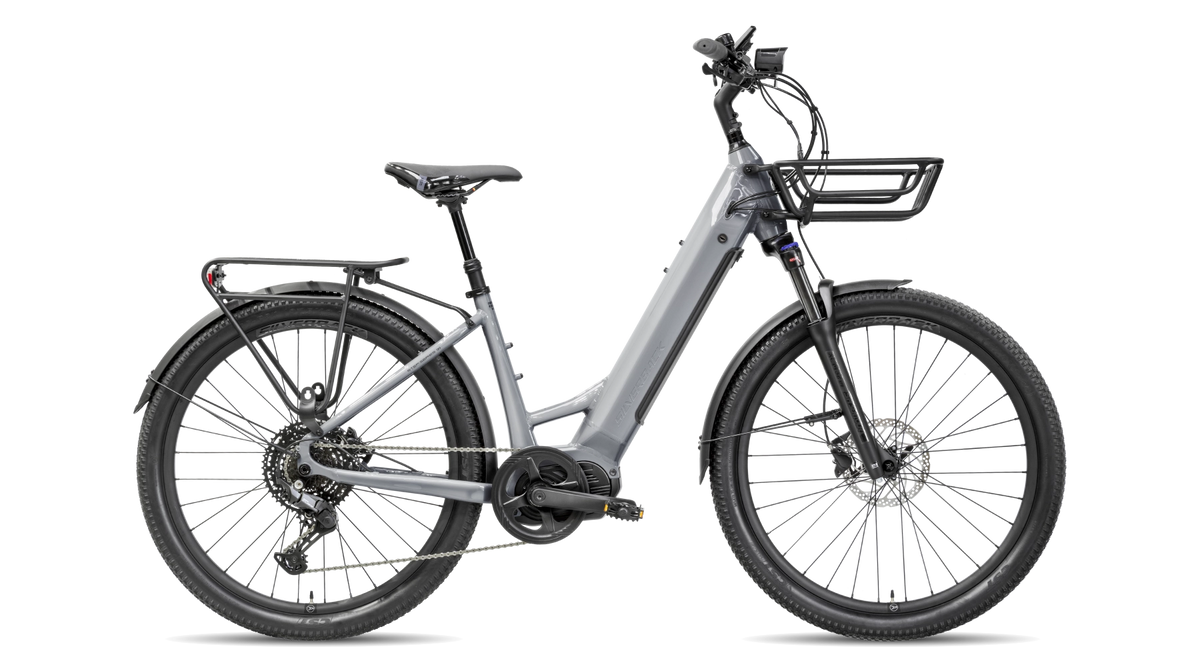

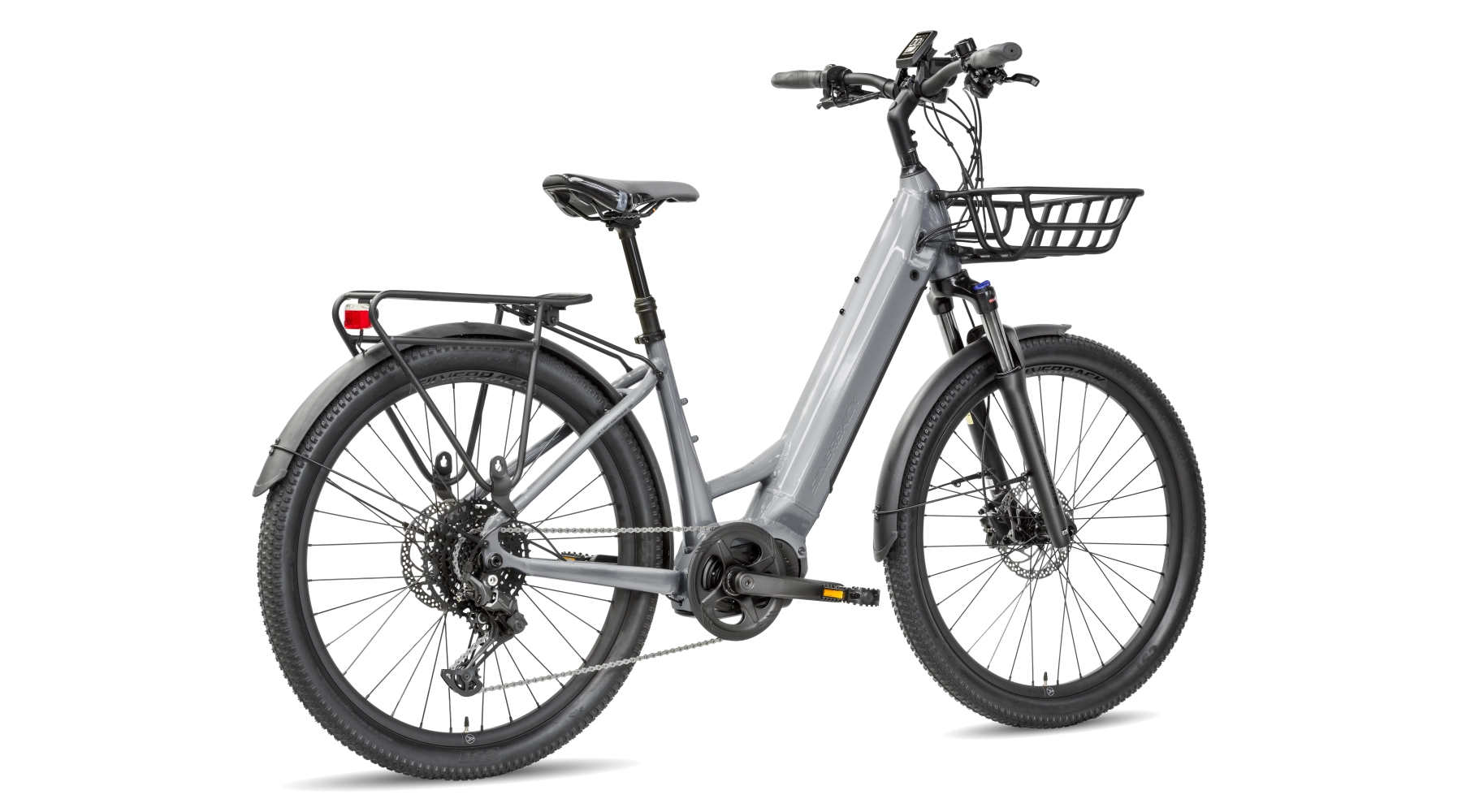

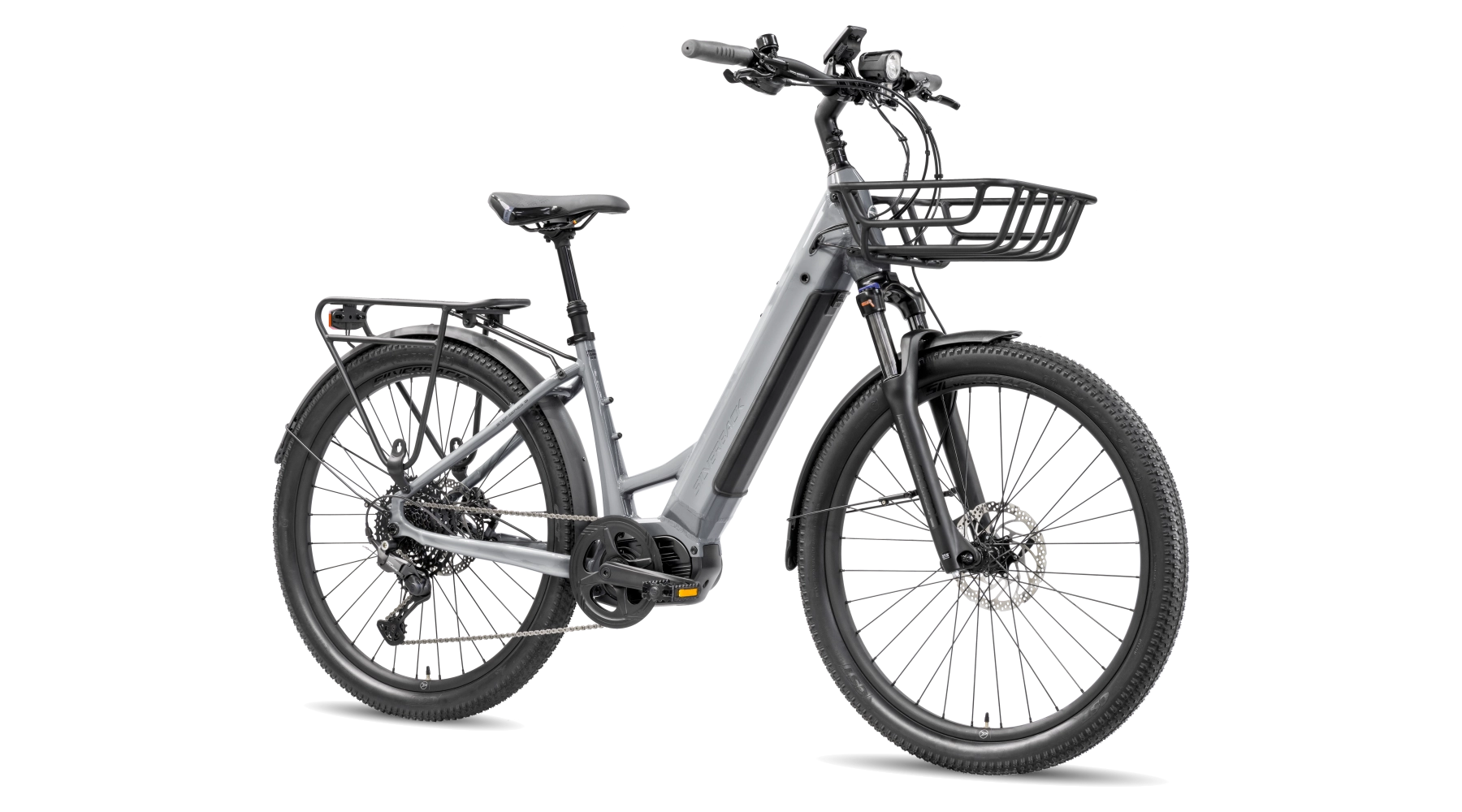

S-ELECTRO STEP-SERIES 120

Name: S-ELECTRO STEP-SERIES 120
Brand: S-Electro
SKU: 0086544015427
Price: 2999.0 EUR
Availability: OutOfStock

€2.999

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.6 5 reviews

Size:

Color: Iconic Grey

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Garmin Varia RTL516 Radar Tail Light

Space Spectra - LED MTB Helmet (Matte Grey)

new lower price

Tubeless Kit - Tubeless Kits - Speedkit - - - - Speedlab

Speedkit Tubeless Kit

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-42

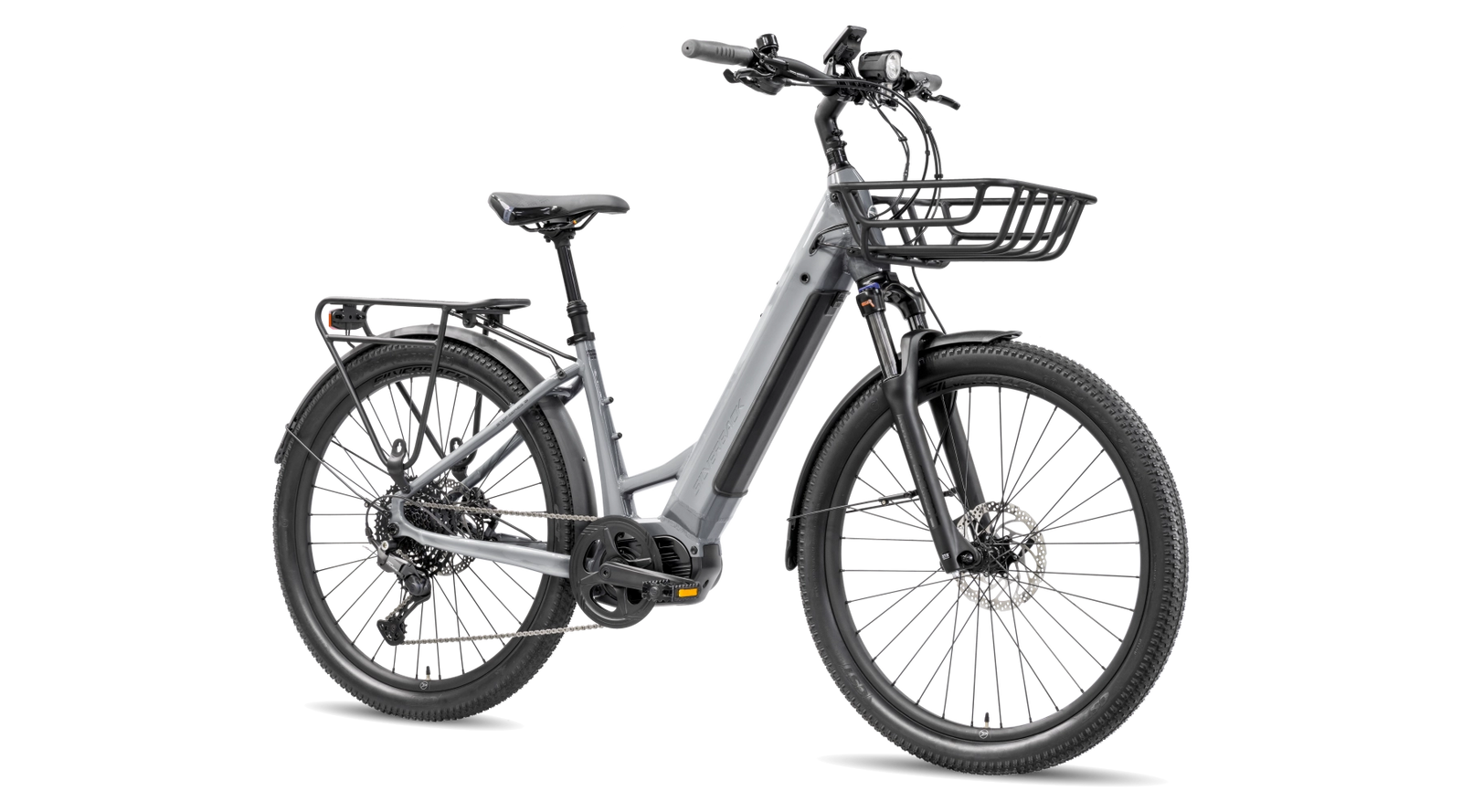

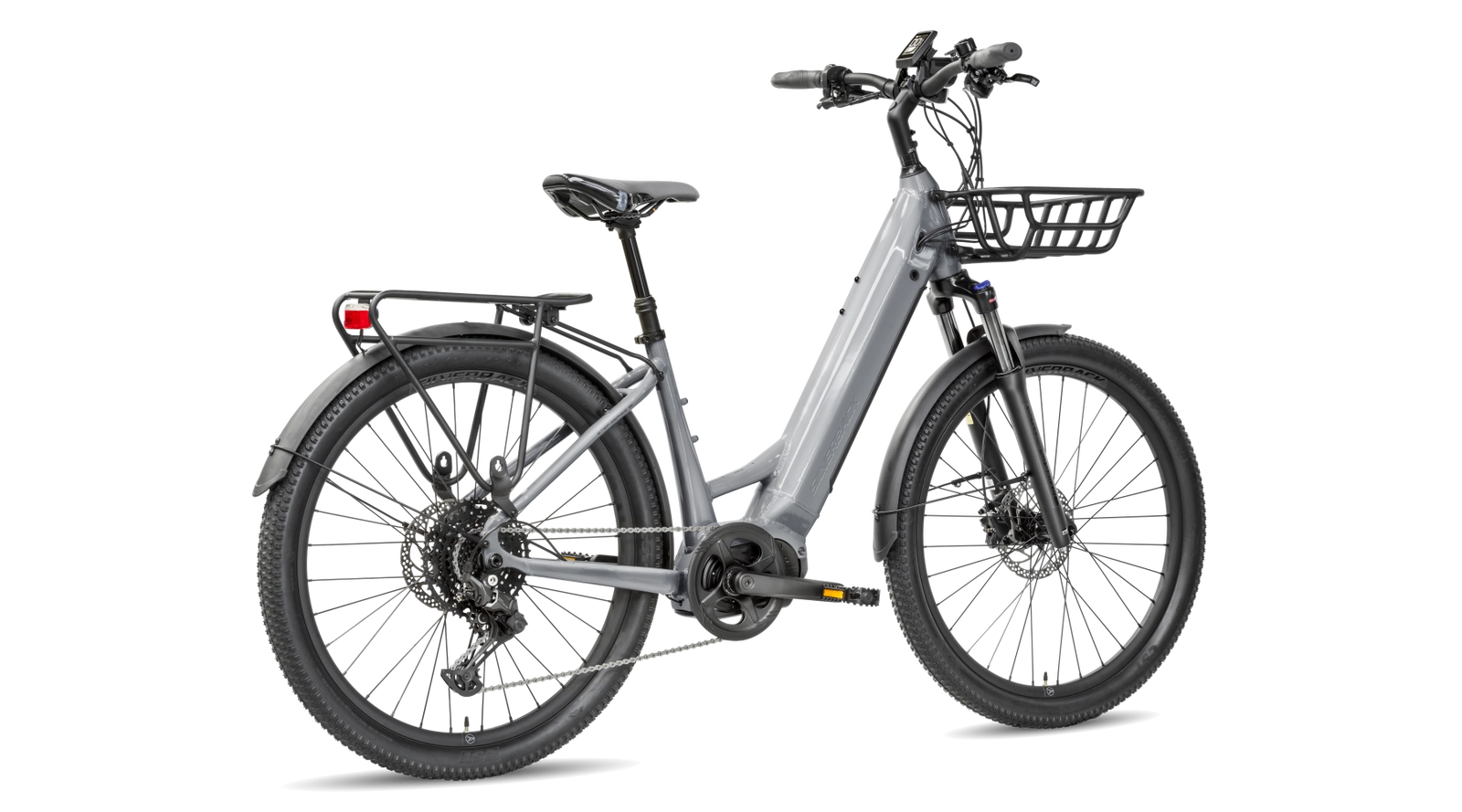

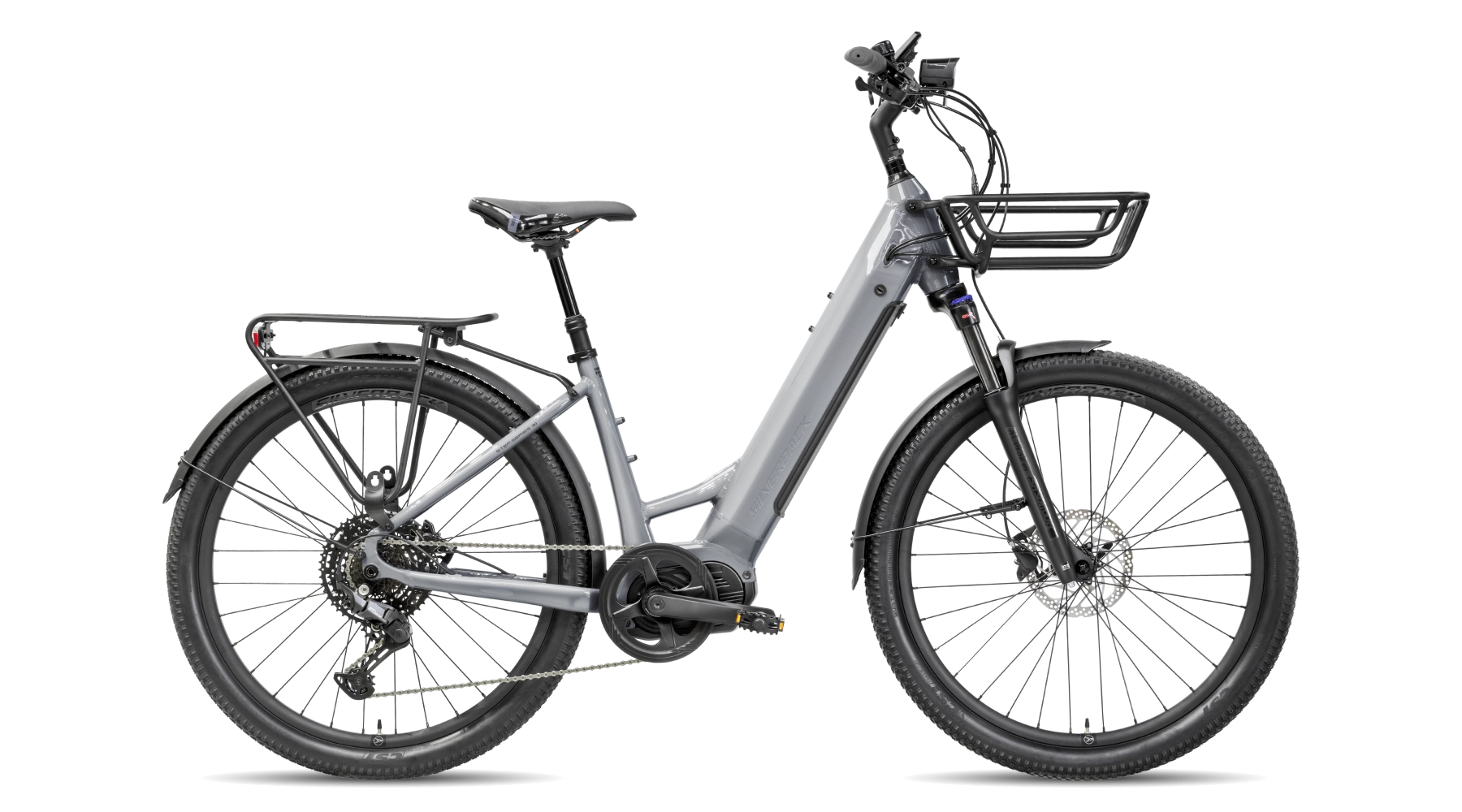

S-ELECTRO STEP-SERIES 120

€2.999,00

Sold Out

HOCHGESCHWINDIGKEITS-PENDLER-E-BIKE.

Die S-Electro Step Series 120 basiert auf einem leistungsstarken 120 Nm, 300 W Mittelmotor, der dort, wo es die Vorschriften erlauben, Tretunterstützung bis zu 45 km/h bietet. Ihr herausnehmbarer 705 Wh Akku ermöglicht eine unterstützte Reichweite von bis zu 100 km und bietet Ihnen somit genug Energie für tägliche Pendelfahrten und längere Wochenendtouren. Das Rahmendesign mit tiefem Einstieg erleichtert das Auf- und Absteigen vom Fahrrad, während das smarte LCD-Display am Lenker wichtige Informationen – Geschwindigkeit, Distanz, Batteriestand – klar und zugänglich hält. Moduswechsel sind dank leicht erreichbarer Bedientasten intuitiv. Ein Shimano-Antrieb sorgt für reibungsloses, effizientes Schalten, und hydraulische Shimano-Scheibenbremsen bieten zuverlässige Bremskraft bei allen Bedingungen.

Auf einen Blick

6061 Hydro-formed alloy step-thru hardtail e-bike frame
SR Suntour XCM32, 100mm, Coil suspension fork
Ananda 300W mid-motor, 120Nm torque
705Wh internal removable battery
Shimano CUES 1 x 10-Speed drivetrain
Custom Silverback wheelset with Shimano hubs
CST 27.5 x 2.35" tyres
Silverback lightweight alloy components
45km/h ans 25km/h options available per country restrictions
Weight: 30.7 kg

TECHNISCHE HIGHLIGHTS

HIGH-SPEED COMMUTER E-BIKE.

S-Electro Step Series 120 is designed around a powerful 120Nm, 300W mid-motor that can allow pedal assist up to 45km/h, where permitted in certain countries. The removeable 705Wh battery delivers up to 100km of powered riding. The step-thru frame makes mounting/dismounting easier and more convenient. An on-bar smart control LCD display and buttons make switching modes intuitive and easy to do on the fly, while also indicating speed, distance and battery levels. The Shimano drivetrain offers efficient and reliable gear shifting, while the Shimano hydraulic disc brakes deliver control and stopping power.

POWERFUL MID-MOTOR

S-Electro Step Series 120 is designed around a powerful 120Nm, 300W hub-motor. The integrated torque sensor helps regulate the motors pedal-assist to optimize energy consumption as well as a more natural riding experience.

HIGH VOLUME 705 Wh BATTERY

705Wh removable internal battery delivering up to 2.5 hours / up to 100 km range of pedal assistance. Lock up your bike worry free – the battery is key removable only.

44T CHAINRING & CHAIN GUARD

44T Narrow wide chain and single Chainguard and built to fit and facilitate pedaling at higher speeds. The Narrow/Wide chainrings help prevent chain drop.

SHIMANO 10-SPEED DRIVETRAIN

Efficient shifting, superior durability and the 11-48T cassette offers plenty of gears for comfortable pedaling.

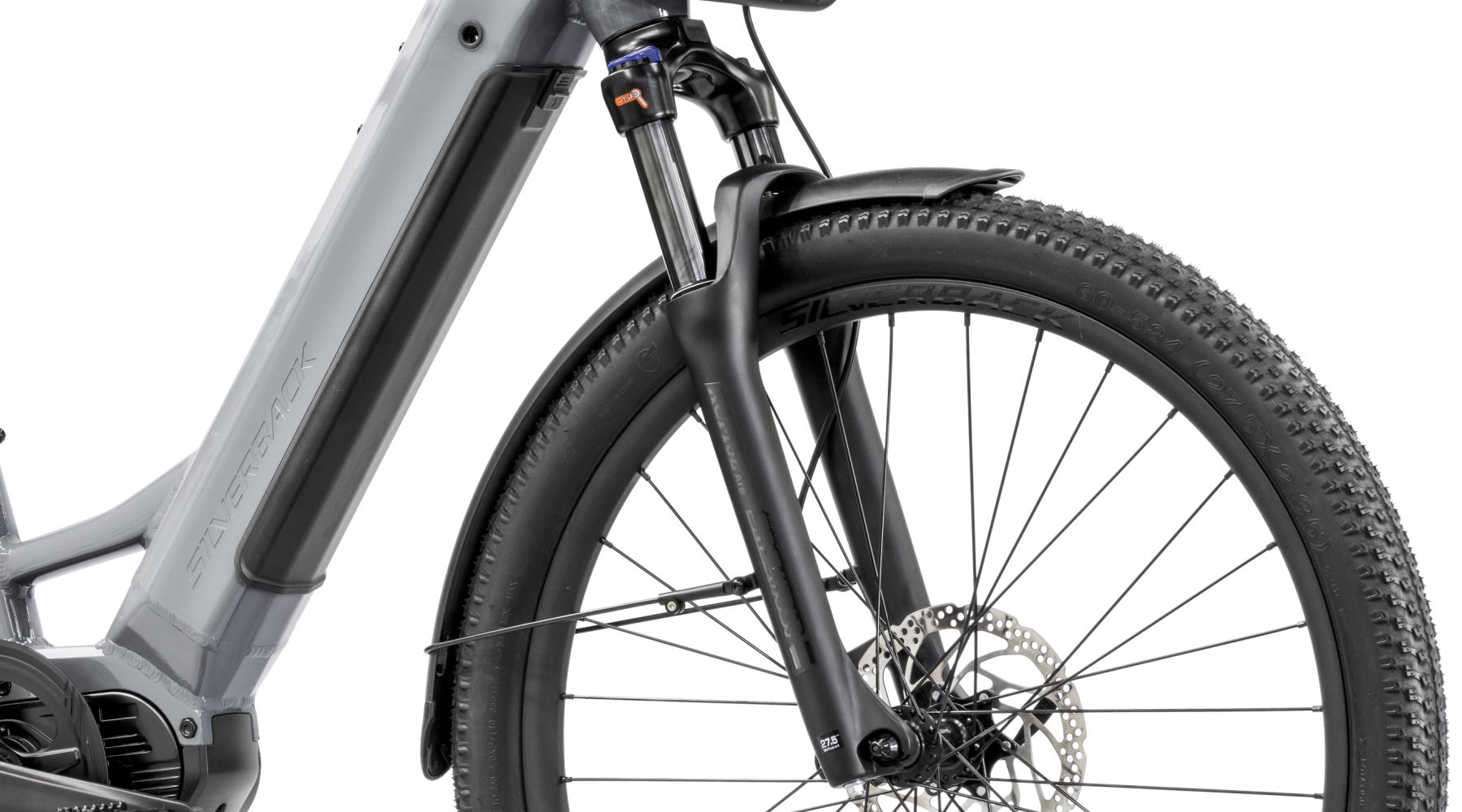

QUALITY SUSPENSION FORK

Featuring Suntour's XCM32 coil fork with 100mm of shock-absorption. Rated and tested strength and durability for E-bikes.

SAFETY FIRST

Powerful Shimano hydraulic disc brakes deliver superior stopping power in all conditions.

GEOMETRY

Ideal for commuting or touring. Step-thru frame design gives maximum clearance, making it great for both male and female riders.

DROPPER POST INCLUDED

Dropper posts can improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits more comfortable.

LONG-TRAVEL DROPPER POSTS

The frame's waterbottle bosses are welded to the outer surface of the seat-tube, allowing the seatpost to slide deeper. More space for longer travel!

TUBELESS READY E-BIKE RIMS

The S-Electro Step Series 120 includes tubeless ready rims, ready for future upgrades.

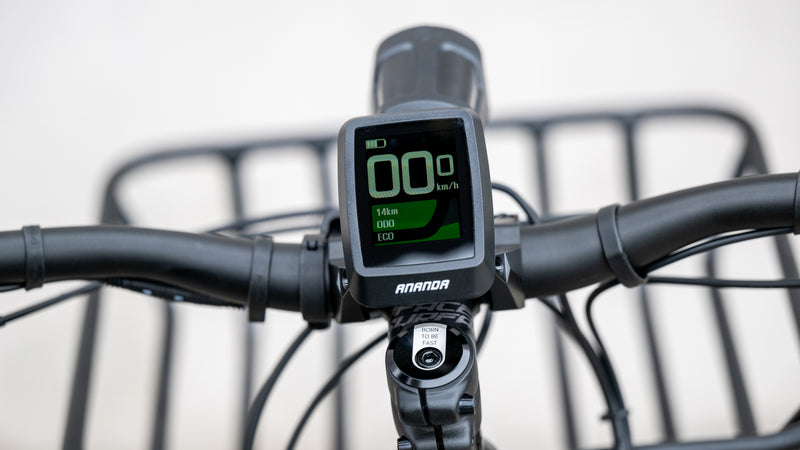

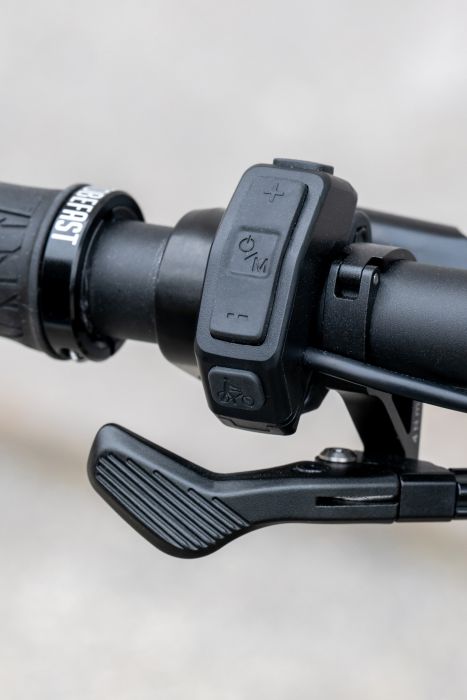

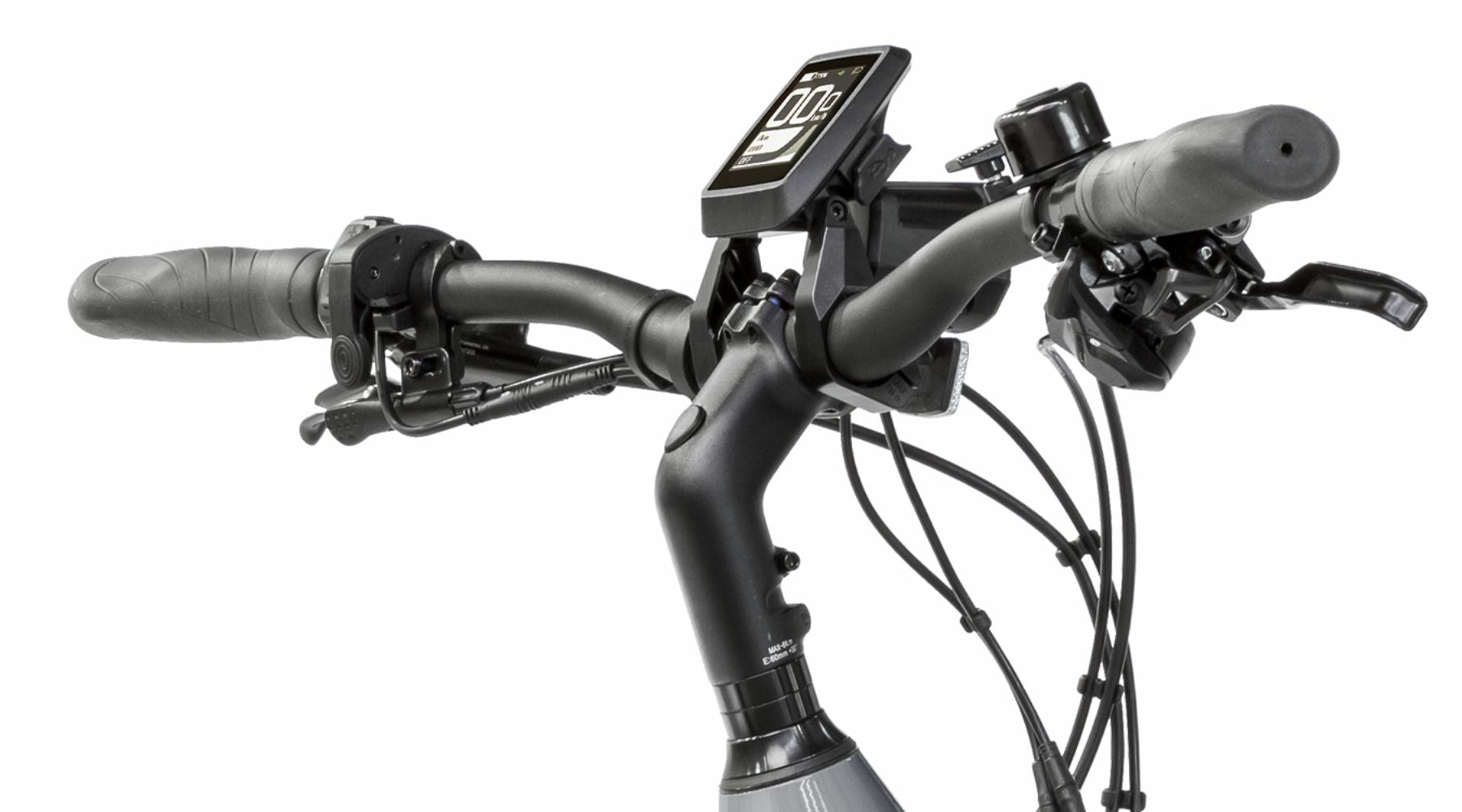

INFORMATIVE DISPLAY

Offering a very informative display for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.

E-BIKE RATED WHEEL SET

Strong and durable to better handle the power and weight of e-bikes. In addition, the E-MTB rated CST tyres are fast and smooth rolling for commuting.

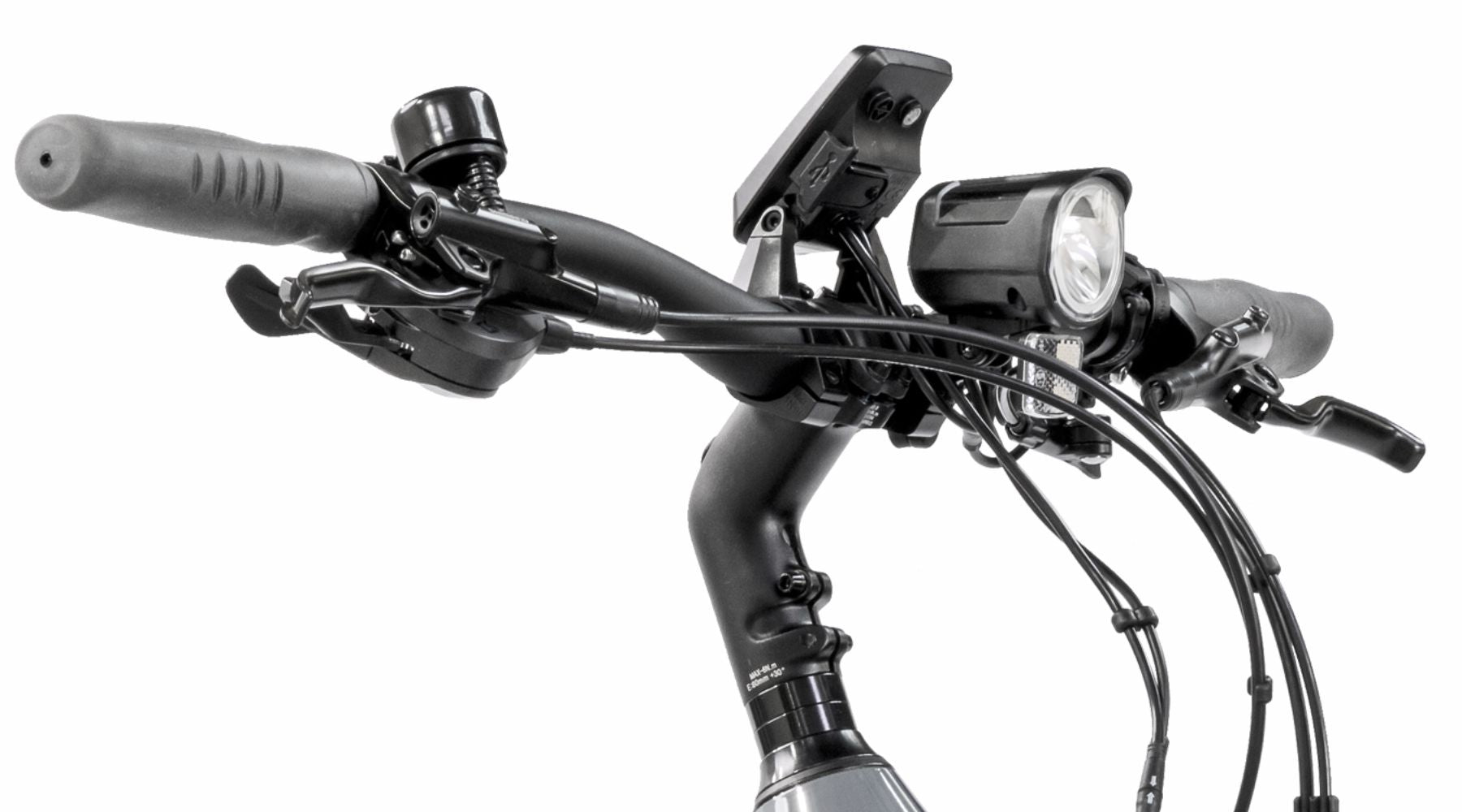

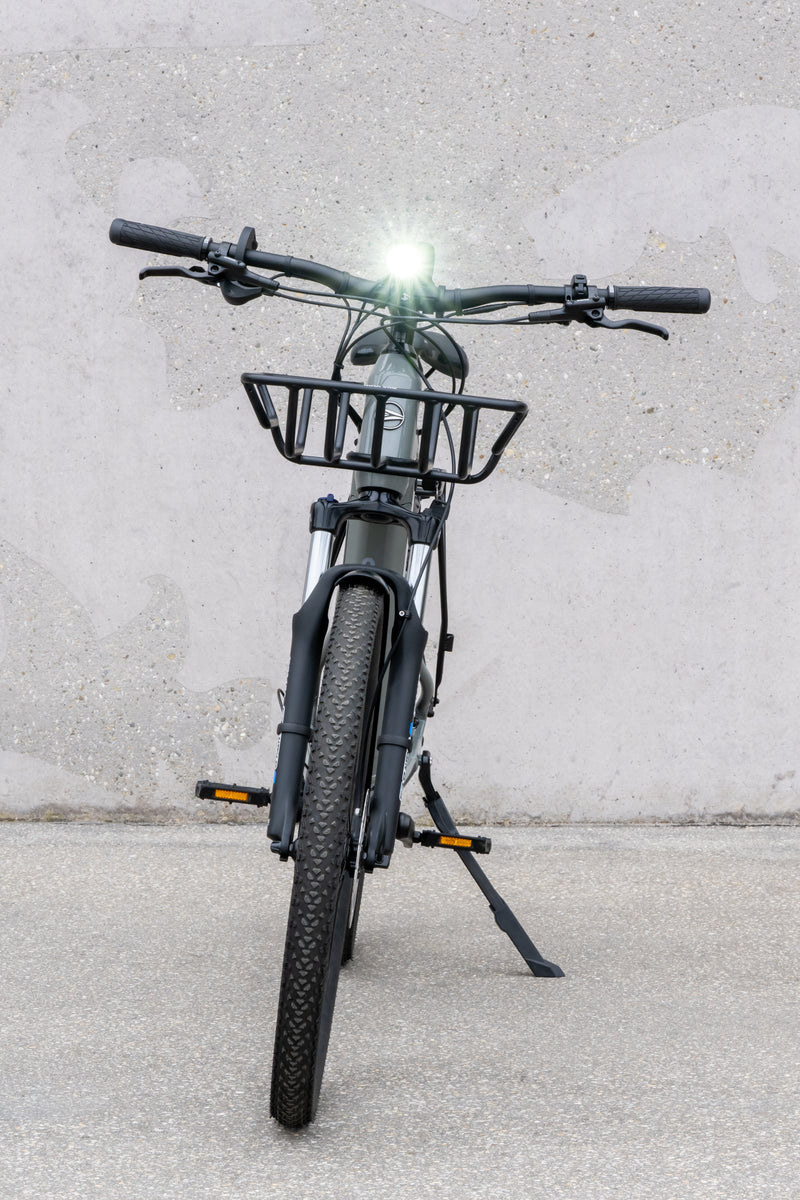

HEADLIGHT INCL.

A bright handlebar headlight boosts your visibility and keeps every ride safer, day or night.

ERGONOMIC SADDLE

S-Electro models offer an anatomically shaped saddle for more comfort.

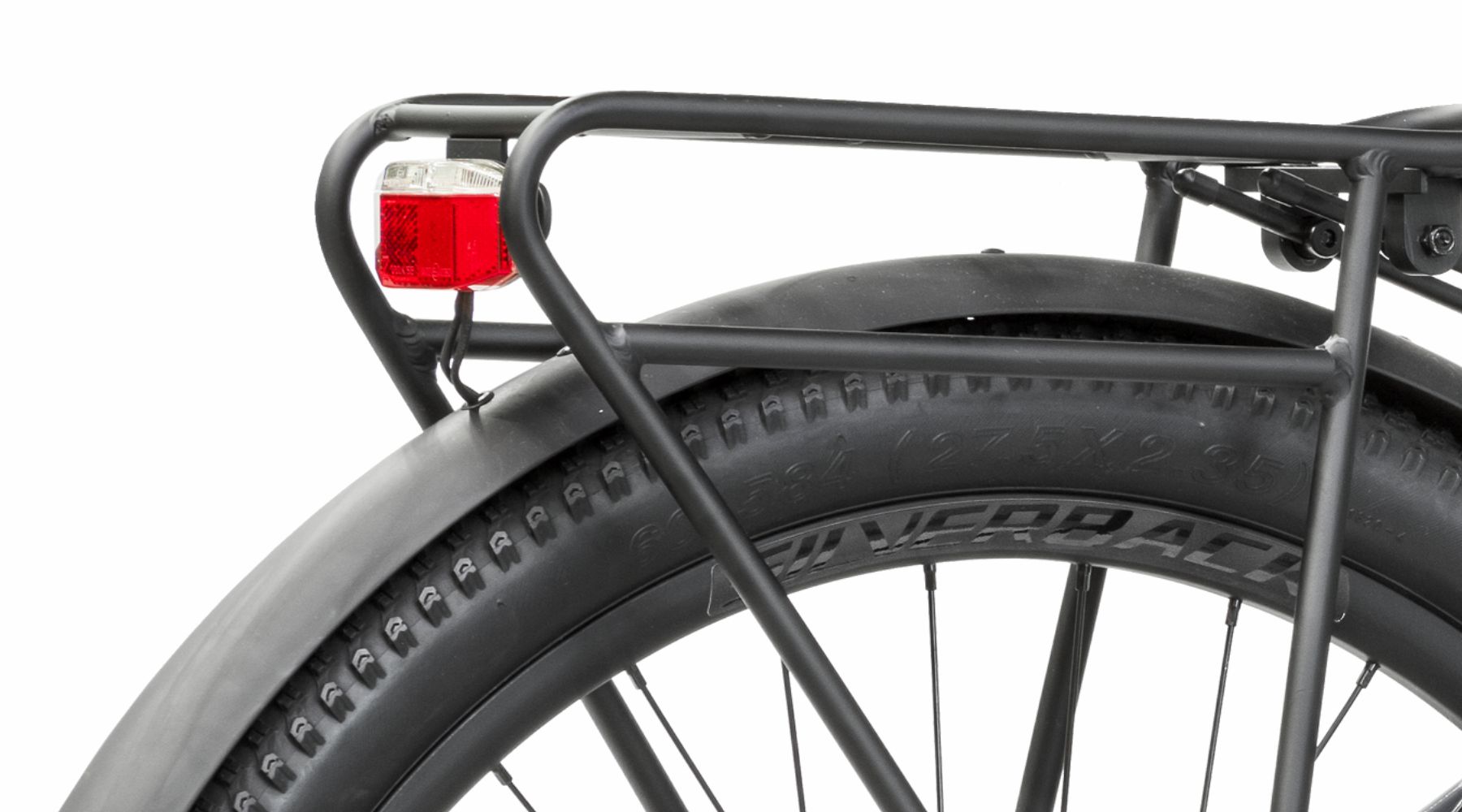

FENDERs AND RACKS INCL.

The S-Electro Step Series includes a rear rack & fenders, allowing you to haul your gear when you commute/tour.

KICK STAND MOUNT

Park your E-bike bike quickly and safely. (40mm dual bolt Kickstand included)

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

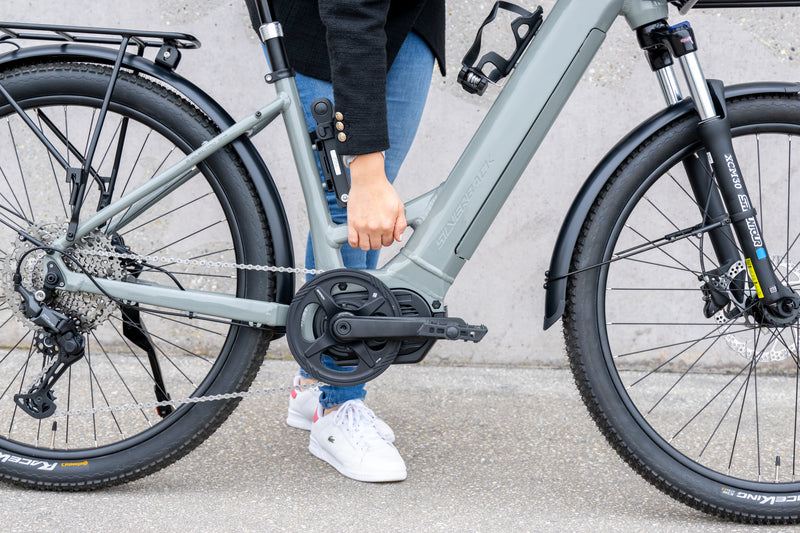

New Step‑Thru Frame with integrated carry handle, T6‑6061 aluminium, semi‑internal cable routing, replaceable hanger, 40mm 2‑bolt kickstand mounts, rack & fender mounts.

Headset

Semi-integrated threadless, ZS44/28.6, ZS56/39.8

Frame Axle Spacing

148 x 12mm

Front Axle Specification

100 x 9mm

Kickstand Mount

40mm Direct Mount

Hanger Type

Hanger 42

E-BIKE

Motor

Ananda 300W, 120Nm torque, 45Km/h Mid-Motor

Battery

705Wh In-Tube Battery

Charger

2A Charger, EU 3-Pin

Display

Display and Remote Control

Switch

Integrated with on-bar display

SUSPENSION

Fork

SR Suntour XCM32 ATB Coil with Lockout, 27.5"x2.4", 100m Travel

Fork Travel

100mm

WHEELS

Wheelset

Silverback Custom Wheelset

Hubs

F: Shimano HB-QC300, QR, 32H, Centre Lock, OLD: 100mm

R: Shimano FH-TC500-HM-B, 12mm Thru-Axle, 32H, Centre Lock, 8-11 Speed, 32H, OLD: 148mm

Rims

F: 27.5" Alloy Rim, Tubeless Ready

R: 27.5" Alloy Rim, Tubeless Ready

Tyres

F: CST 1820 27.5 x 2.35" wire bead

R: CST 1820 27.5 x 2.35" wire bead

Max Tyre Size

2.35"

DRIVETRAIN

Crankset

Alloy, 44T chainring with chainguard, 170mm crank length

Max Chainring Size

44T

Shifter(s)

R: Shimano SL-U6000-10R CUES 10-Speed, Rapidfire Plus w/o Optical Gear

Rear Derailleur

Shimano RD-U6000 CUES, 10-Speed

Cassette

Shimano CS-LG300-10 CUES 10-Speed, 11-48T

Chain

Shimano CN-LG500 LG Chain, 126 Links, 10-Speed

BRAKES

Brakes

F: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads

R: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads

Rotors

F: Shimano SM-RT30 180mm, with Lock Ring

R: Shimano RT-EM300 180mm, with Lock Ring and Magnet

Max rotor size

180mm

COCKPIT

Grips

Surface ergo

Handlebar

Alloy Handlebar, Dia: Ø31.8mm, 9° Backsweep, 30mm Rise

Stem

Alloy Forged Stem, 60mm extension, Ø31.8mm, Rise 30°

Saddle

Silverback E-bike saddle

Seat Post

Alloy Dropper Post, 100mm travel with remote lever, Ø30.9mm

Seatpost Clamp

Alloy 35mm QR Clamp

Fenders

Matt Black Plastic fenders for Front and Rear

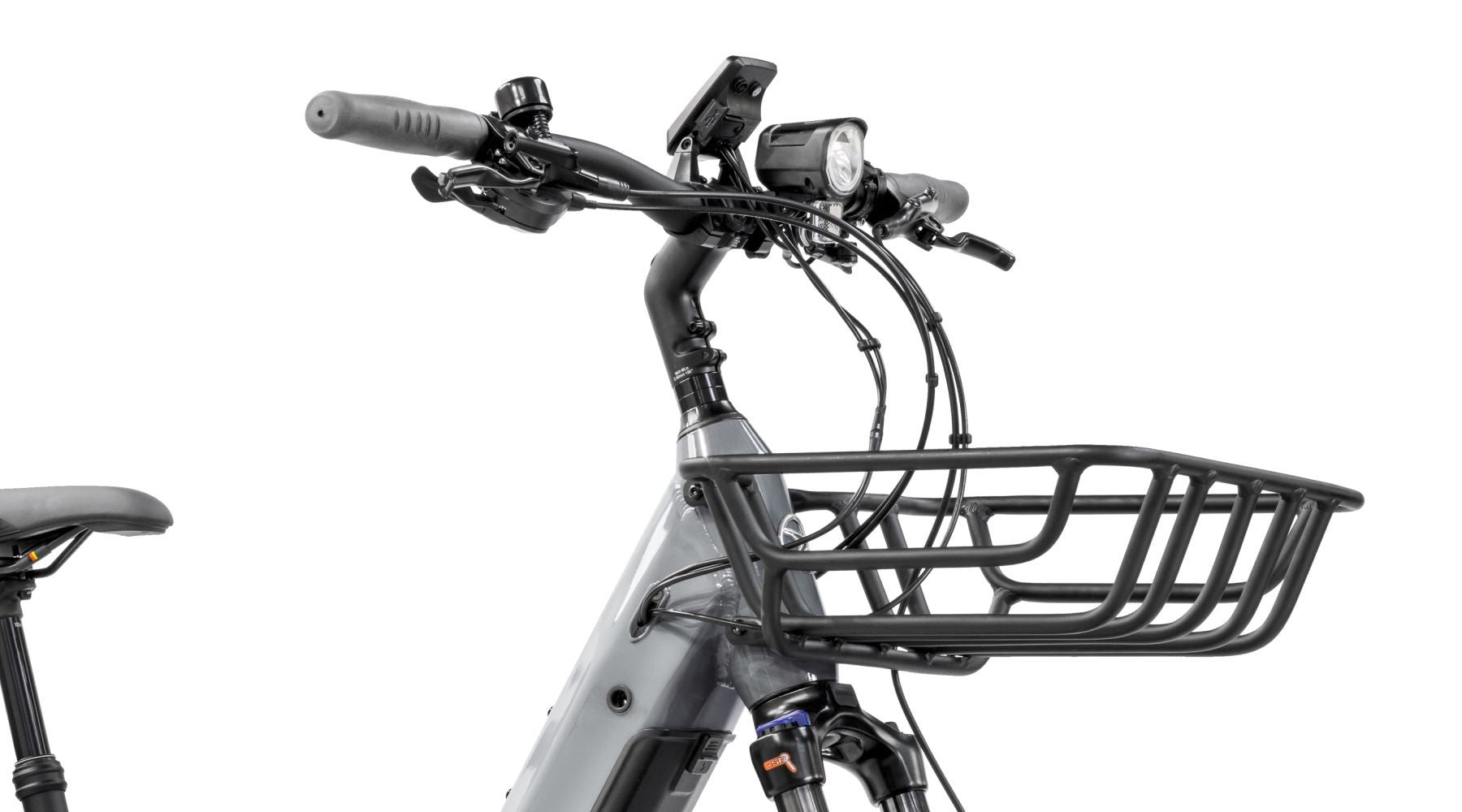

Front Tray

Front aluminium tray, 362x332x387x113mm, 8kg weight limit

Rear Rack

Aluminium rack, 25kg weight limit

Kickstand

Surface, Alloy, 40mm direct-mount 2-bolt, adjustable foot

WEIGHT

Bike Weight

30.7 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Owner's Manuals

Technische Handbücher & Einrichtungsanleitungen

Greifen Sie auf die vollständige Dokumentation für Ihr Fahrrad zu:

Allgemeines E-Bike-Benutzerhandbuch – Detaillierte technische Spezifikationen und Pflegehinweise. [Herunterladen]

Kurzanleitung zur Einrichtung – Einfache, Schritt-für-Schritt-Broschüre zum Verständnis der wesentlichen Bedienelemente. [Herunterladen]

FAQ.

Can I order an extra battery for my S-Electro Step Series 120?

Yes you can - get in touch and we can sort it out for you.
Can I chip my e-bike?

Most country laws prohibit the use of derestricting or chipping your e-bike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.
Can I fit a throttle to my e-Bike?

A throttle is included on the Step:Series 120 in certain markets. We do not sell it separately.
Can I ride my e-bike without assist?

Yes - just pedal as you would any other bike.
Where can I find serial number of the S-Electro 120?

The frame serial number is located near the bottom bracket.
Can I customize my display to another language or change other settings?

Yes, there are instructions inside your e-bike manual.
Can I upgrade the length of my suspension on my bike?

The suspension length is normally determined by the frame design, it should not be changed.
What is the longest dropper post I can fit on this bike?

Max dropper travel per frame size: M: 150mm, L: 170mm

ANDERE MODELLE DER SERIE

€1.599

S-ELECTRO STEP-SERIES 50

Hardtail | E Sport | Alloy

100mm Travel
27.5" x 2.1" Wheels
1x8 Speed Shimano
Ananda Hub Motor
50Nm Torque
504Wh Battery
23.2 kg

€2.999

S-ELECTRO STEP-SERIES 120

Hardtail | E Sport | Alloy

100mm Travel
27.5" x 2.35" Wheels
1x10 Speed Shimano
Ananda Mid-Motor
120Nm Torque
705Wh Battery
30.7 kg

€3.499

S-ELECTRO DIAMOND STEP 1

Hardtail | Alloy

120mm Fork
29" x 2.35" Wheels
1x11 Speed Shimano
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
21.5kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S-M	M-L
	Rider height(cm)	150-172	164-190
	Rider inseam(cm)	68-78	74-89
A	Seat tube c/t	425	475
B	Seat tube angle	72.5°	72.5°
C	Head tube angle	69°	69°
D	Top Tube	615	648
E	Reach	400	430
F	Chainstay length	470	470
G	bb height	301	301
H	head tube length	185	195
I	stack	682	691
J	standover	504	503
K	Wheelbase	1155	1188
