S-Electro Pro CF 1 €7.999,00

SPEZ GRÖSSE & GEOGRAPHIE VERGLEICHEN ANPASSEN DEMO VEREINBAREN

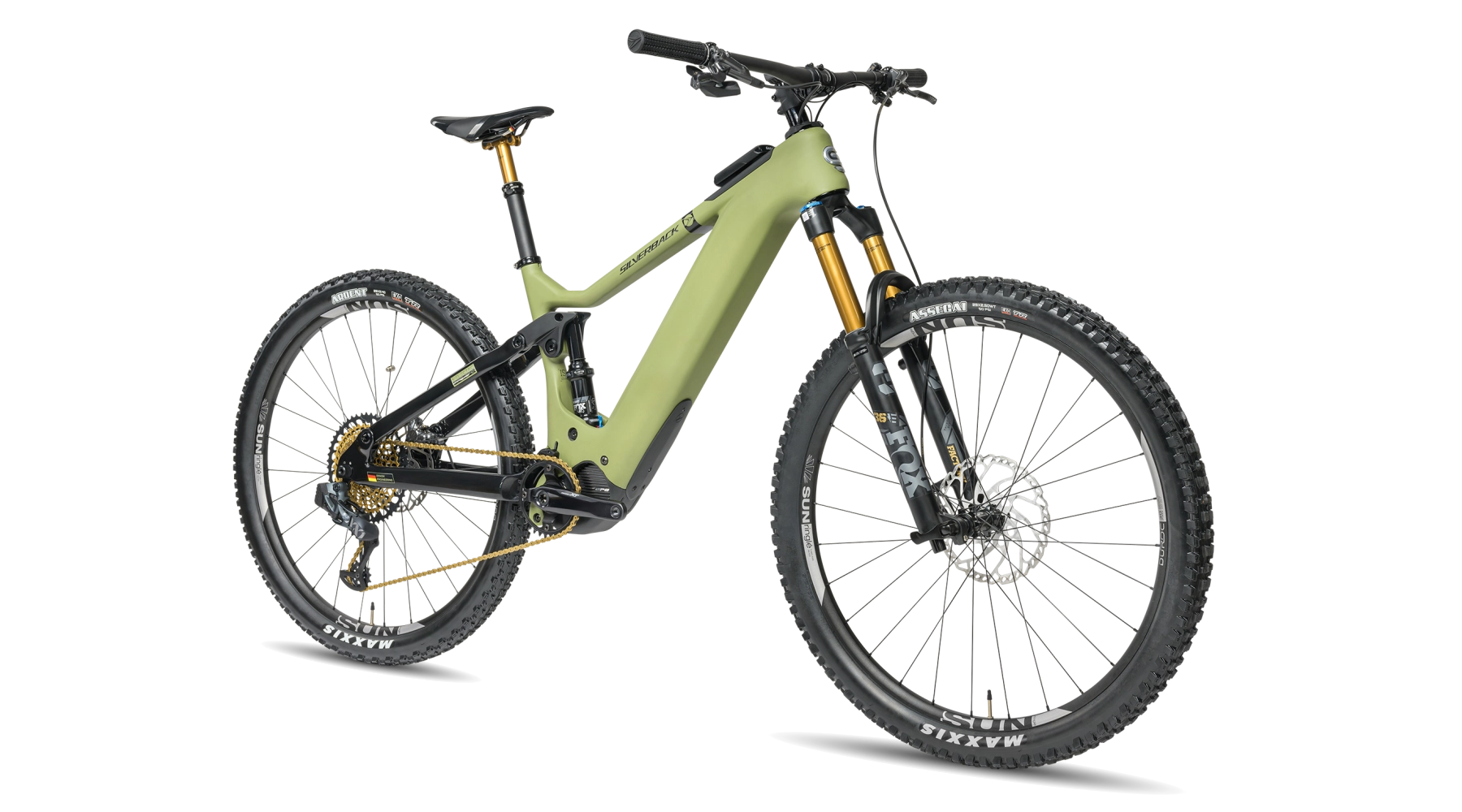

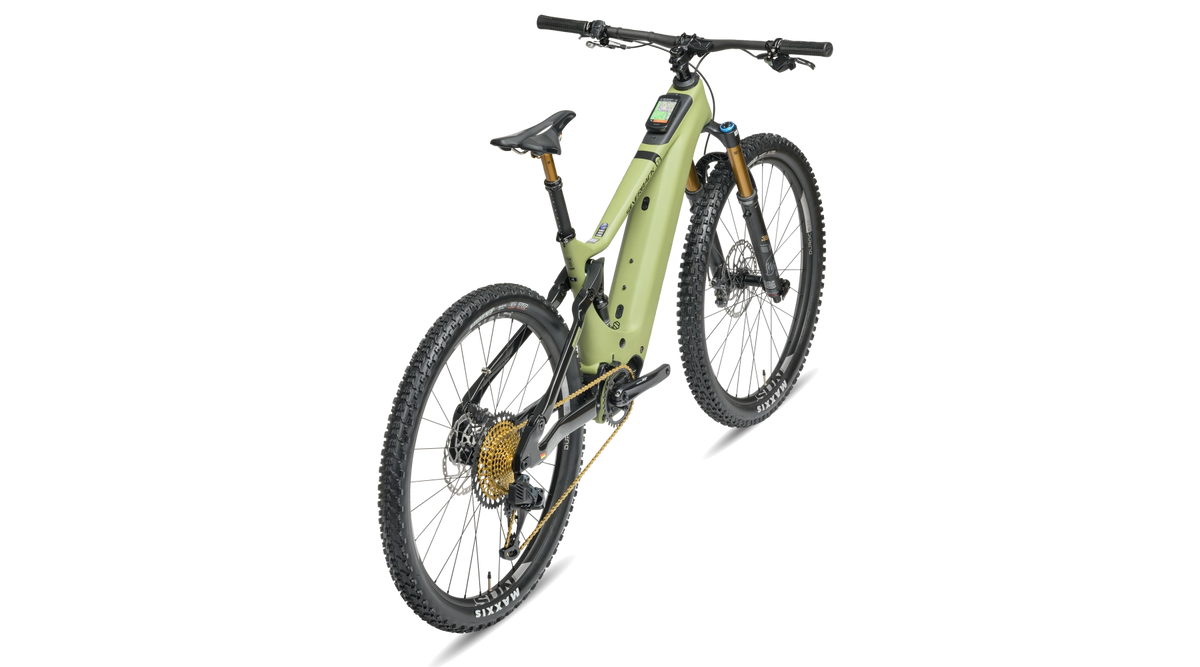

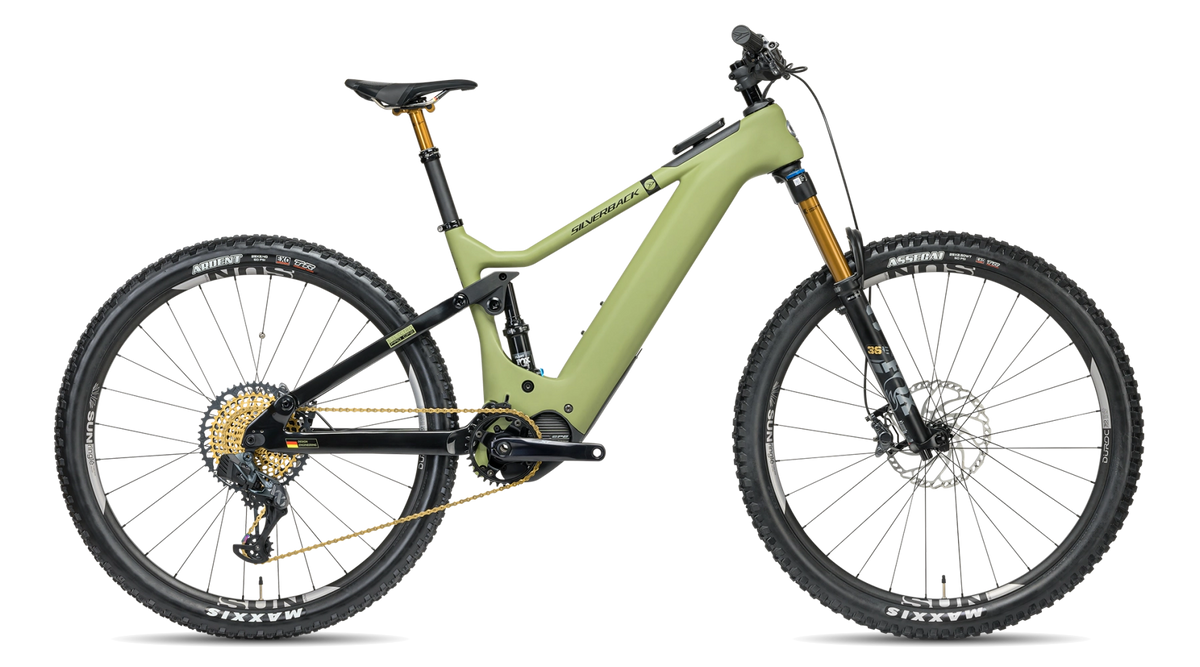

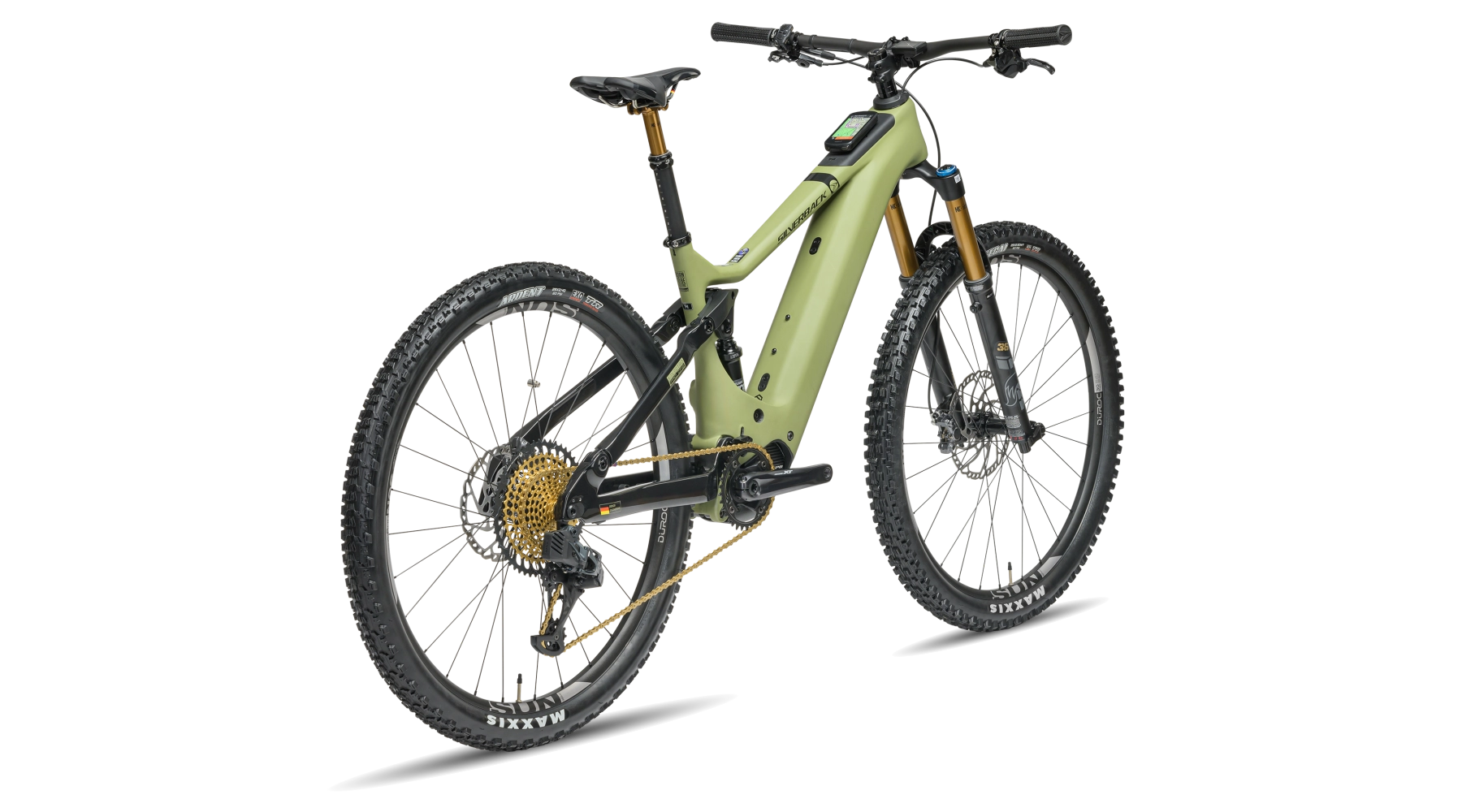

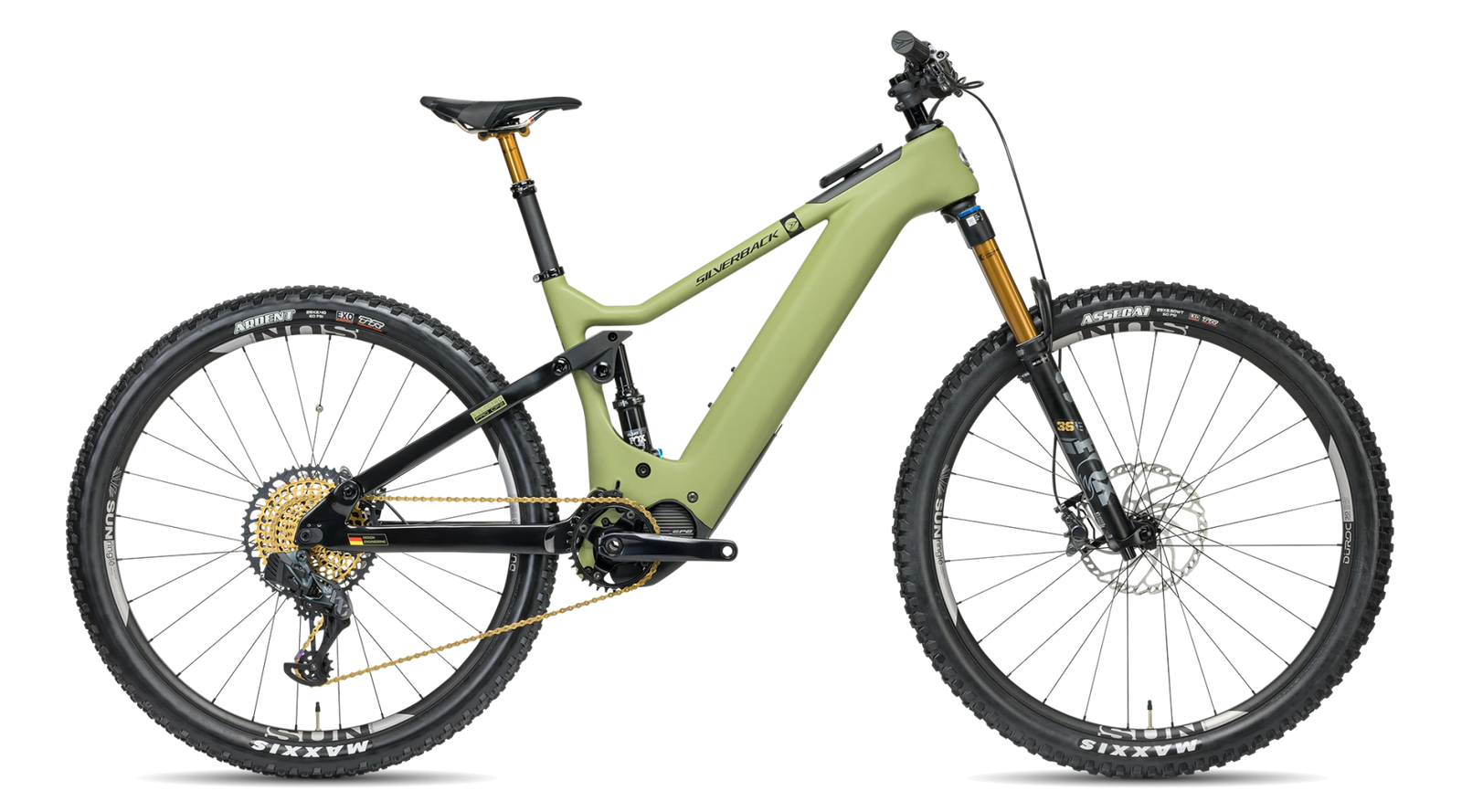

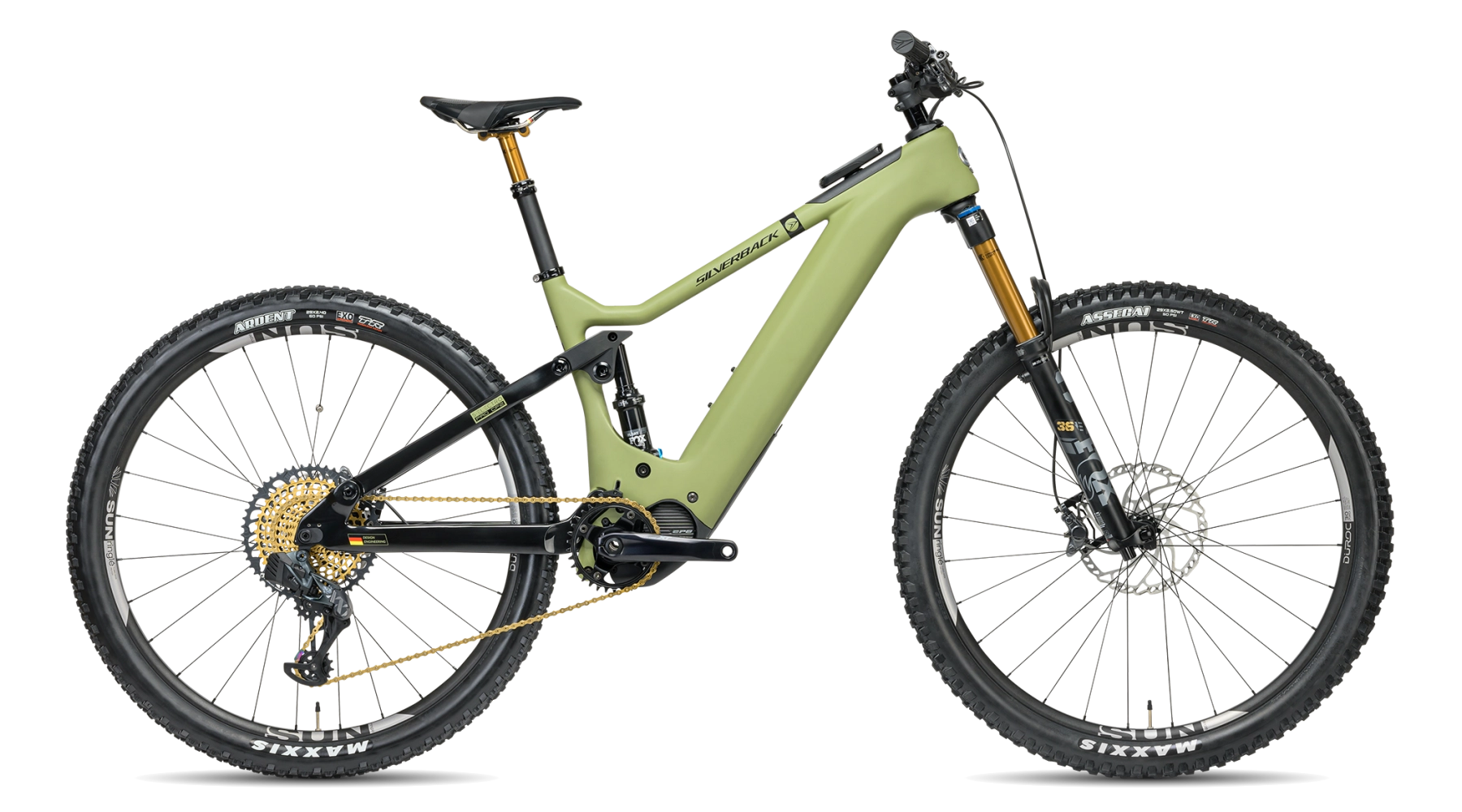

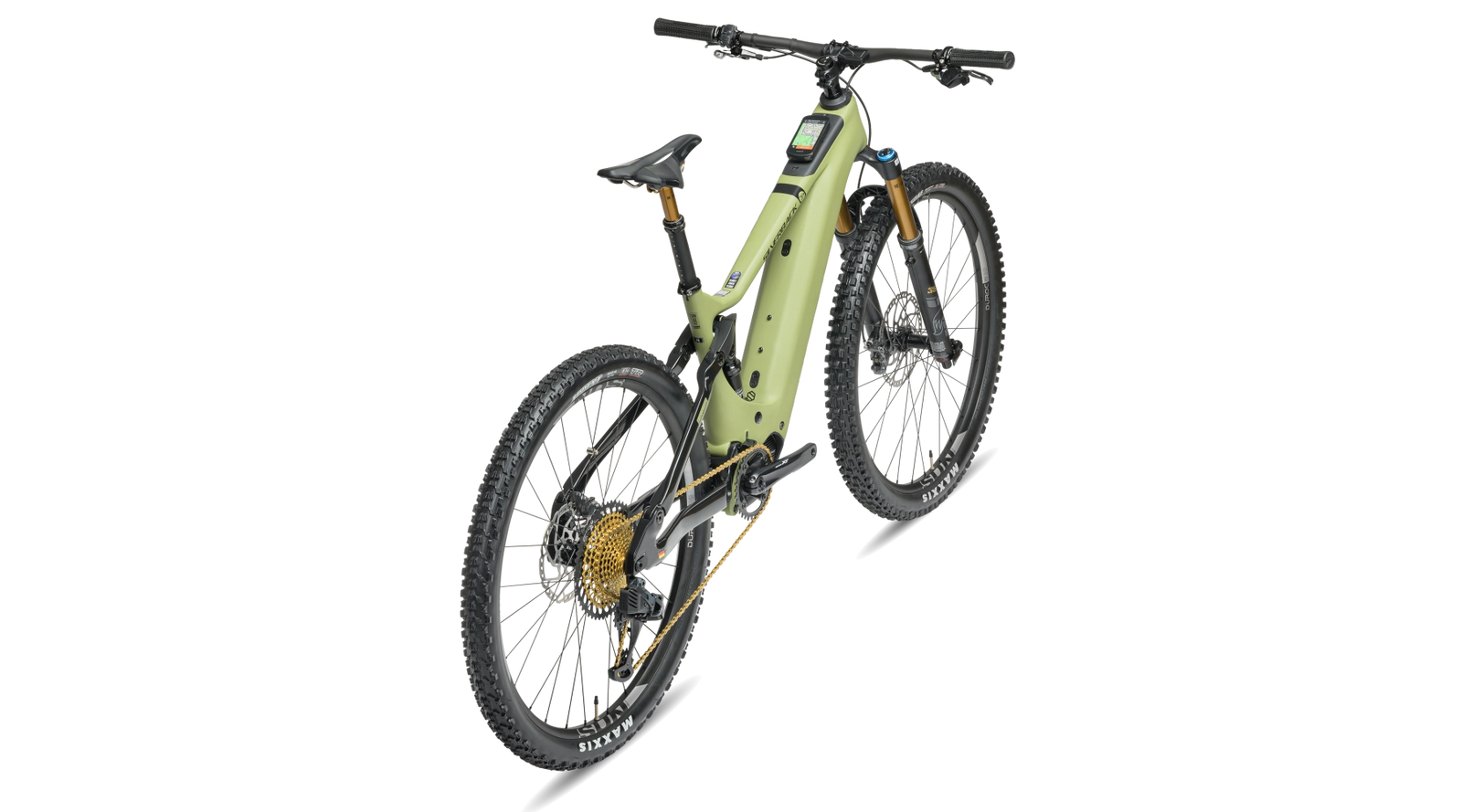

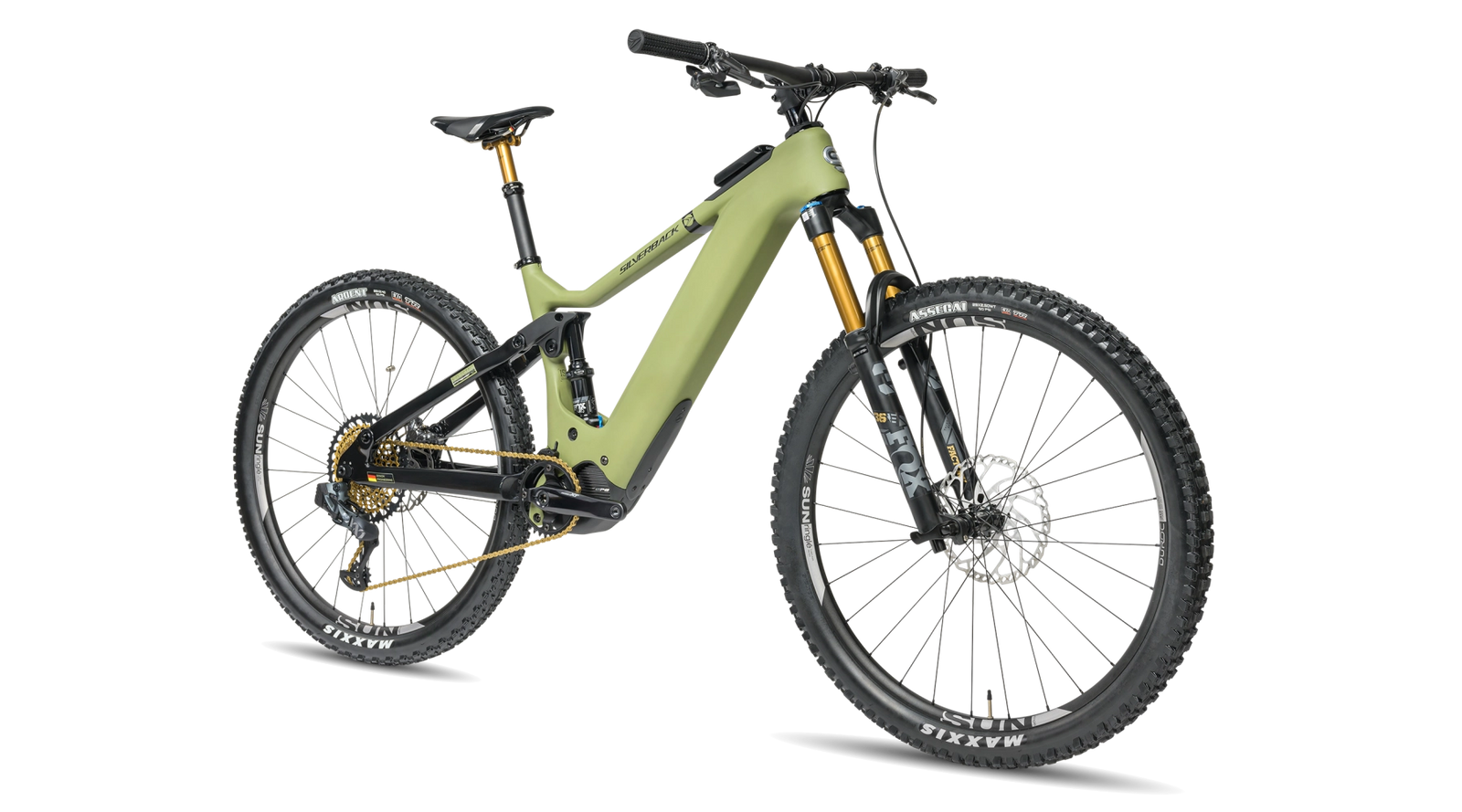

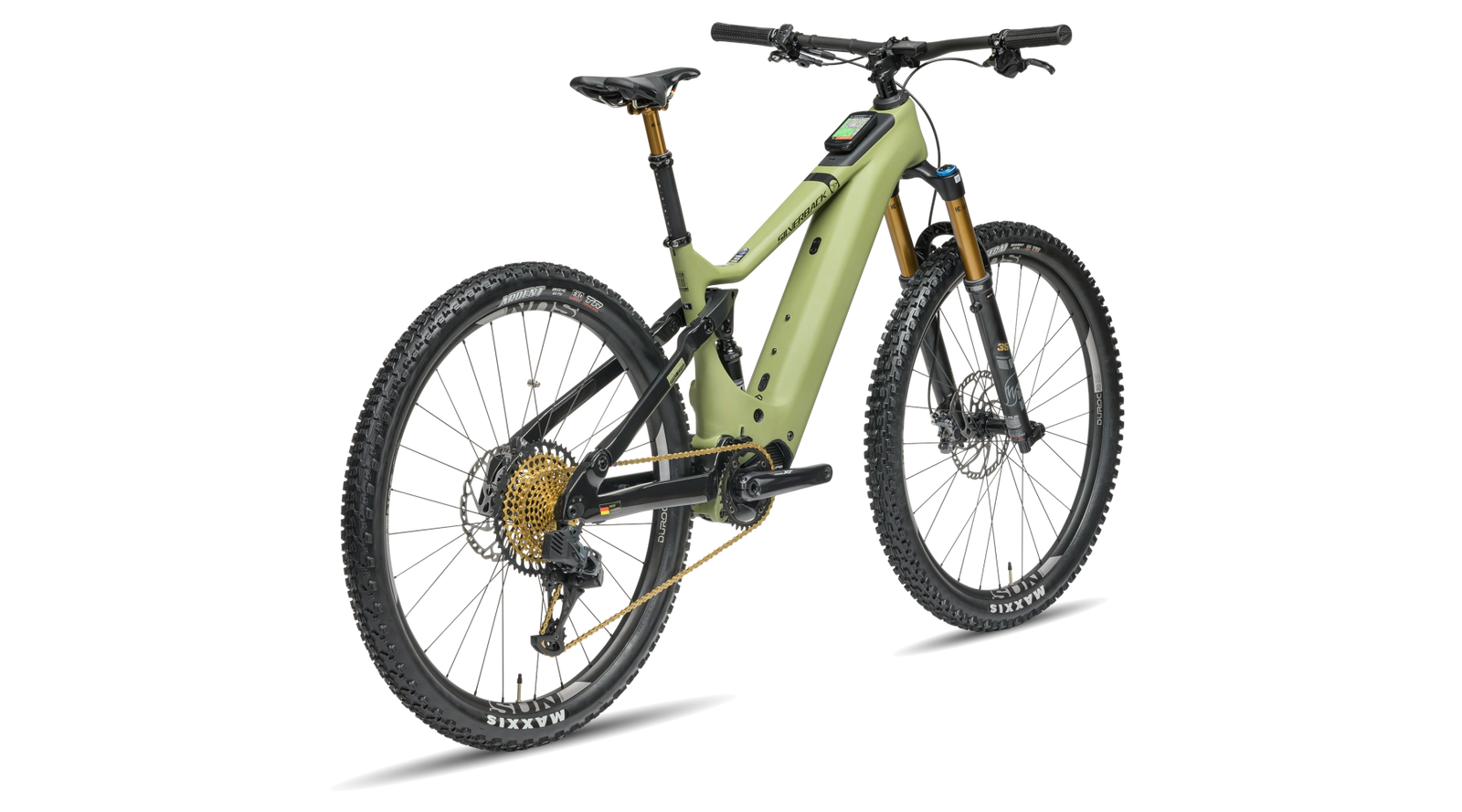

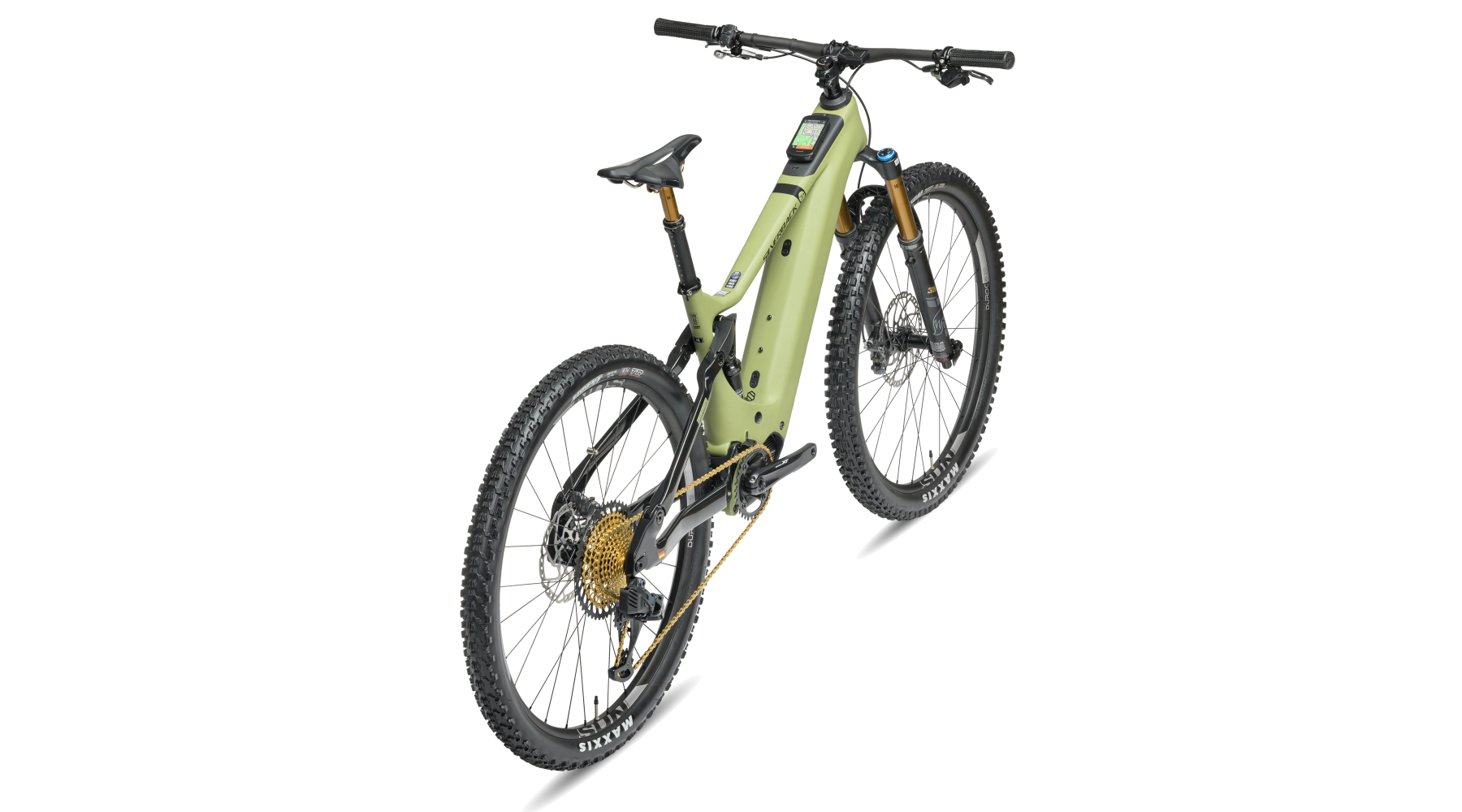

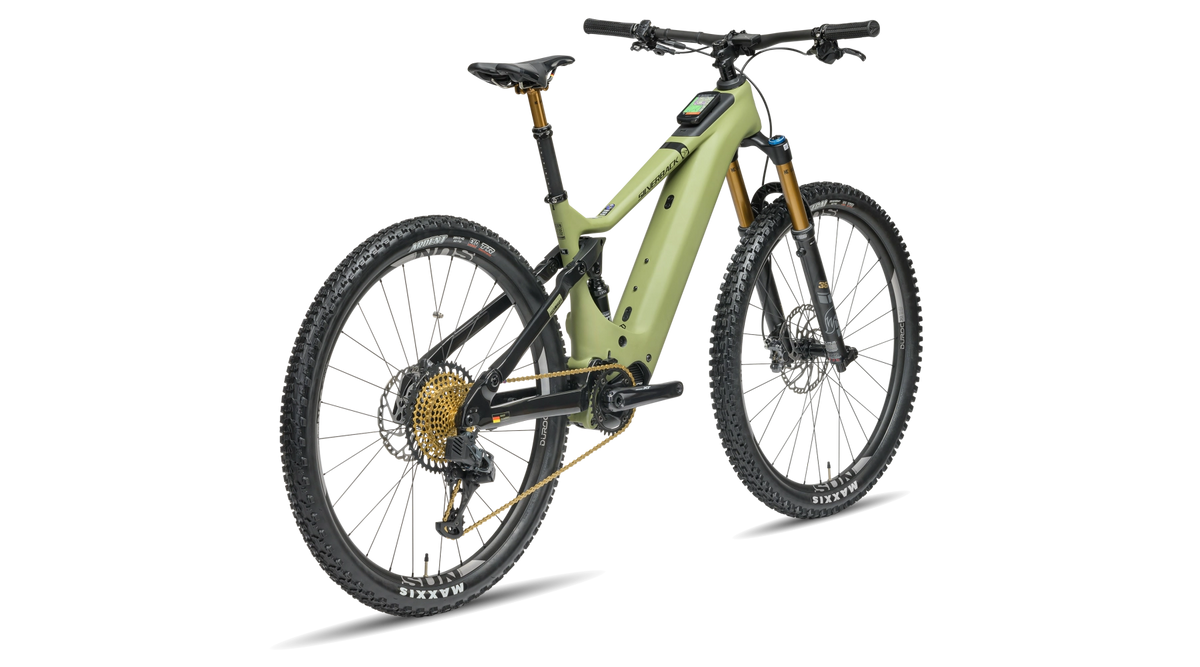

S-Electro Pro CF 1

Name: S-Electro Pro CF 1
Brand: S-Electro
SKU: 0086544002106
Price: 7999.0 EUR
Availability: InStock

€7.999

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.8 9 reviews

Size:

Color: Military Green

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Garmin Speed Sensor 2 AND CADENCE SENSOR 2

SRAM PowerLock Master Link for Eagle 12-speed

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-29

S-Electro Pro CF 1

€7.999,00

Add to cart

Carbon-Enduro-E-Bike mit einstellbarer Geometrie!

Das S-Electro Pro CF ist unser Flaggschiff unter den Carbon-Enduro-Fullys. Die Geometrie des CF ähnelt stark der unseres neuen Slider Enduro-Bikes. Silverbacks POP-Geometrie, kombiniert mit einem modifizierten „Faux Bar“-Federungssystem, schafft ein leistungsstarkes und Enduro-taugliches 29-Zoll-E-Bike mit langem Federweg, das auch mit 27,5-Zoll-Laufrädern kompatibel ist. Der hochwertige Carbonrahmen ist leicht und verfügt über eine vollständige interne Zugführung.

Auf einen Blick

Dual Suspension, Full Carbon integrated eBike frame, 4-bar suspension
Fox Float 36 Factory, gold, GRIP 2, 44mm offset, Air Suspension Fork, 150mm Travel
Fox Float Factory DPS, EVOL, 3 Position rear shock, 145mm Travel, Trunnion.
Shimano EP801 motor
720Wh high-capacity battery
SRAM XX1 Eagle AXS 12spd Wireless shifting
SUNringle Duroc SD37 Pro wheelset
Maxxis Assegai 2.5"/Minion DHRII 2.4" tyres
Fox Factory dropper seatpost, gold
Shimano XTR 9100 brakes
Surface carbon handelbar

TECHNISCHE HIGHLIGHTS

Top-end carbon enduro eBike with adjustable geometry!

The S-Electro Pro CF is our flagship dual suspension Carbon enduro bike. CF's geometry closely resembles that of our new Slider enduro bike. Silverback’s POP geometry coupled with a modified 'Faux bar' suspension layout creates a highly capable - enduro ready long travel 29” eBike that is also compatible with 27.5” wheels. The top end carbon frame is lightweight and features full internal routing. A Metric trunnion mount rear shock is custom tuned to work with the S-Electro Pro CF's suspension to deliver an efficient climbing platform in climbing mode, and then to turn the bike into a race ready descender when in open mode. The Shimano pedal assist drive system makes getting to the top of the trails easier, saving your energy for the downhills. No gondolas needed here.

Carbon full suspension frame

Pro CF is a carbon fiber full suspension frame with a 4-bar suspension design. Frame is designed to be compact and low, to make it easy to move around and have a low center of gravity. The carbon lay up schedule is purposefully chosen for the best balance of strength to weight. Since the Pro CF is an enduro frame, the frame needs to withstand abuse, and so it is ISO tested to enduro standards.

Electric drive system

A powerful Shimano EP801 electric motor paired with a gigantic 36V, 720Wh internal battery makes mole hills of mountains. The battery charges to 80% in 3 hours, and the Pro CF has a range from 30 - 100km depending on the assist levels and terrain you are riding.

SUSPENSION KINEMATICS

Progressive leverage curve creates a bottomless feeling suspension and good trail feedback. The suspension starts with great small bump compliance and ramps up to give good mid-stroke support, allowing the rider to handle the bike aggressively while it remains stable and consistent. At the end of the travel the suspension firms up a lot, enabling the bike to feel bottomless on large hits.

SUSPENSION ANTI-SQUAT

The anti-squat goes from neutral in the small rear cog, and then gently ramps up to just above neutral in the largest rear cog. This allows the suspension to absorb the trail bumps from small to large, even when the motor is consistently driving the chain. It is optimized for 34t front ring, but can adjust from there.

SUSPENSION DESIGN

A full carbon fiber 4‑bar layout that balances strong pedaling efficiency with confident, downhill stability.

WHEELS

Fitted with bomb proof Sunringle Duroc SD37 PRO 29 wheels on Sunringle BOOST hubs and aggressive Maxxis Assegai/Minion DHR II tyres.

INTERNAL REMOVABLE HIGH CAPACITY BATTERY

The internal 720Wh battery located in the downtube is locked for safety, but also removable to replace, or to charge off the bike.

SUSPENSION FORK

The Pro CF is fitted with the class leading Fox 36 Factory 29 suspension fork, with GRIP2 damper and 150 mm of buttery smooth travel.

REAR SHOCK

Fitted with a Fox Performance Float DPS, EVOL, 3 Position, Trunnion mount, offering amazing performance that suits the nature of the bike.

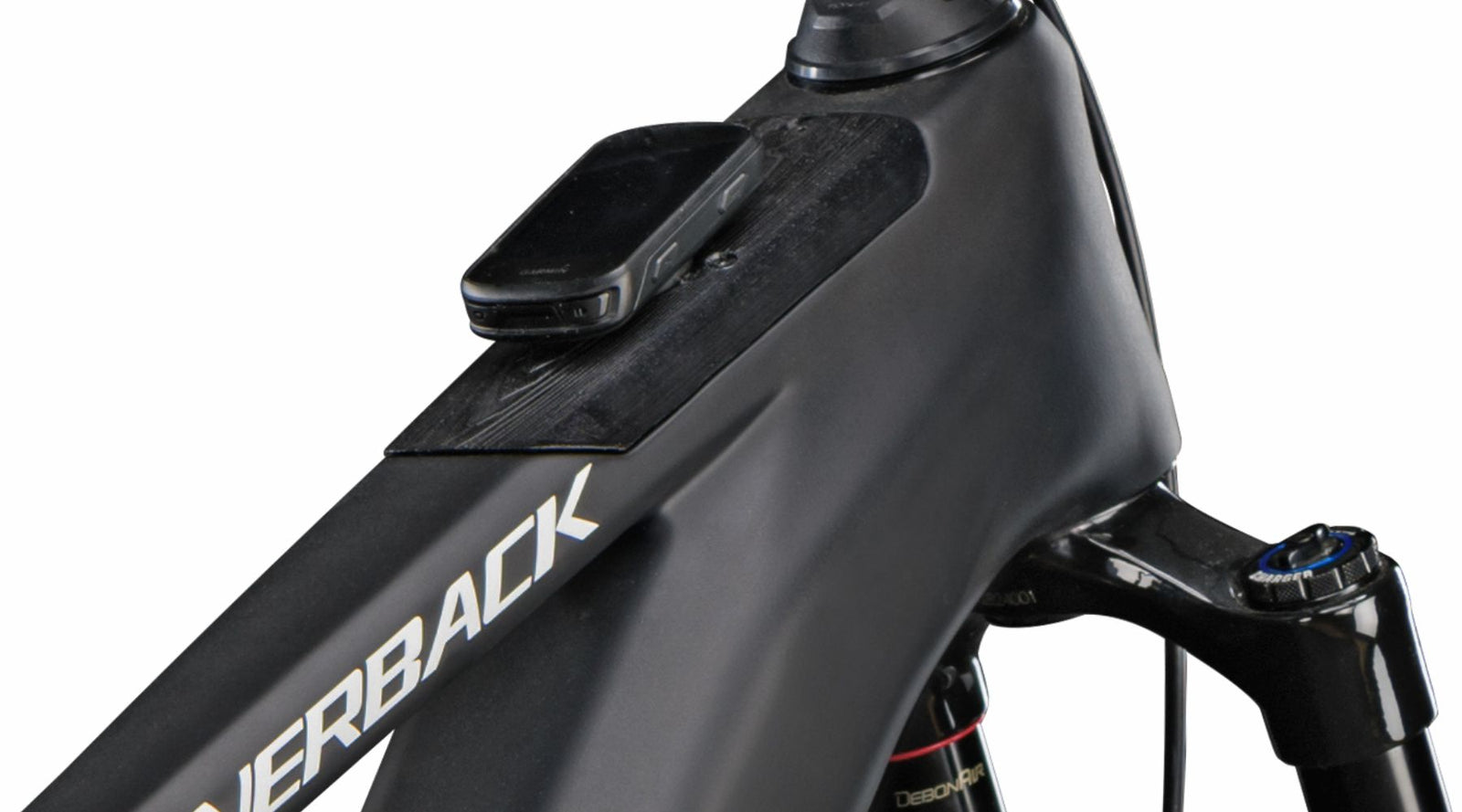

INTEGRATED GARMIN DEVICE BRACKET.

The GPS bike computer connects to the e-bike system and shows you remaining ride range, battery charge, and electrical assistance level for your bike (the Garmin device is not included in the price).

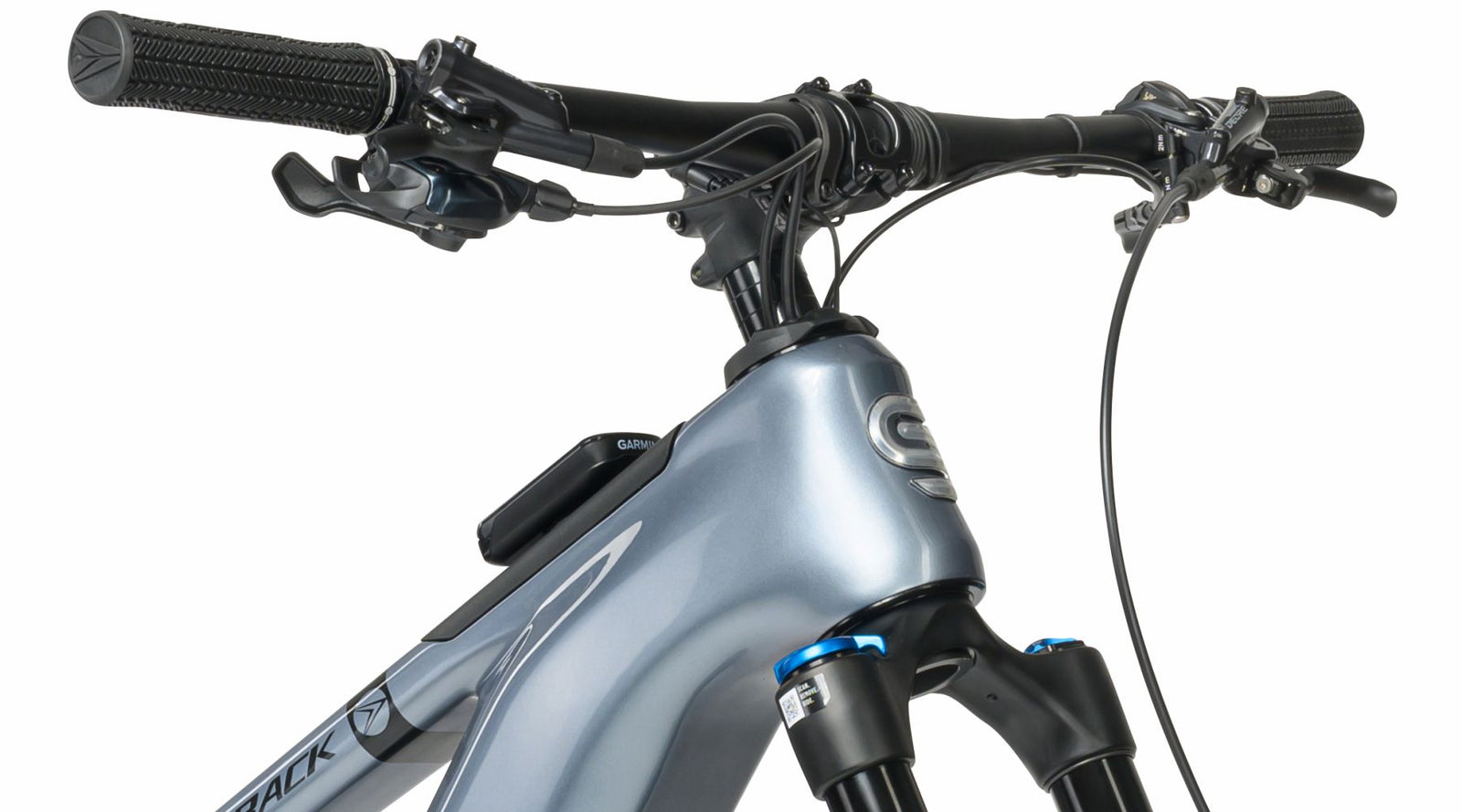

CABLE MANAGEMENT

Semi-internal cable routing from the headset to components. Cables exit at the back of the motor mount and go direct into the chainstays so no cables are visible.

FLIP CHIP

Geometry can be changed between 447mm and 457mm chainstay length. Setup can be run as 29" front and back, or mullet 29" front and 27.5" rear wheel size.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Full Carbon Fiber Dual Suspension E-bike. Adjustable Chainstay Length for 29" & 27.5" Mullet wheel setup. Rear Travel is 145mm. Garmin 1030 top tube integration or smartphone integration bracket. Fully Integrated cable routing. 720Wh battery with Shimano EP801. Lightweight frame made possible by removing the battery cutout.

Headset

Token E-Box Headset (ZS56/28.6 l ZS66/40), E-bike Integrated Cable Routing Headset

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm

Hanger Type

Hanger 29

E-BIKE

Motor

Shimano EP801, 85Nm Torque

Battery

720Wh, 36V, 20Ah Li-Ion Battery, Weight: 3.8kg

Charger

Darfon Smart Plus, 4A, 100-240V

Display

Shimano SC-EM800

Switch

Shimano SW-EM800 Left, Left

SUSPENSION

Fork

Fox 36 Float Factory, GRIP2, 150mm Travel, 44mm Offset, Air

Fork Travel

150mm

Rear shock

Fox Factory Float DPS, EVOL, 3 Position, Trunion

Rear Suspension Travel

145mm

Shock Mounting

Body: Trunnion, M10x54mm

Shaft: Standard, 8x30mm

Eye-to-Eye x Stroke

205x57.5mm

WHEELS

Wheelset

SUNringle Duroc SD37 Pro 29'' Boost

Hubs

Sunringle Boost 110x15, 148x12, 6 Bolt

Rims

SUNringle SD37 Pro 29''

Tyres

F: Maxxis Assegai 29x2.5WT, 120TPI, 3C Maxxgrip, DoubleDown

R: Maxxis Minion DHRII 29x2.4WT, 120TPI, 3C, DoubleDown

Max Tyre Size

2.6"

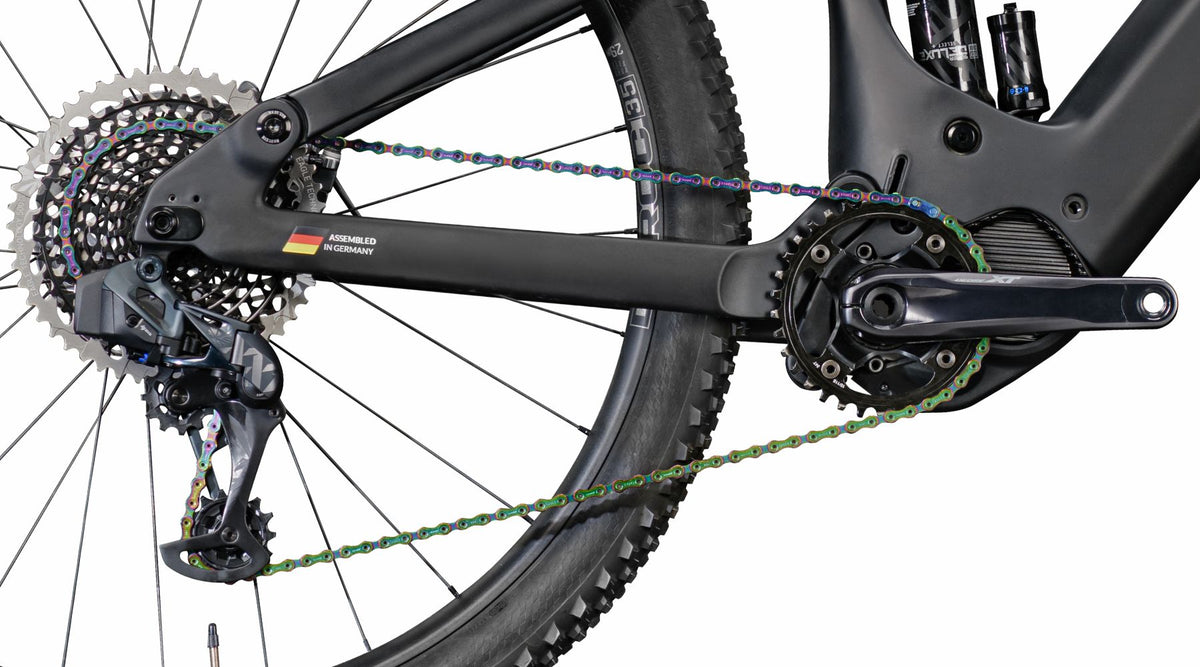

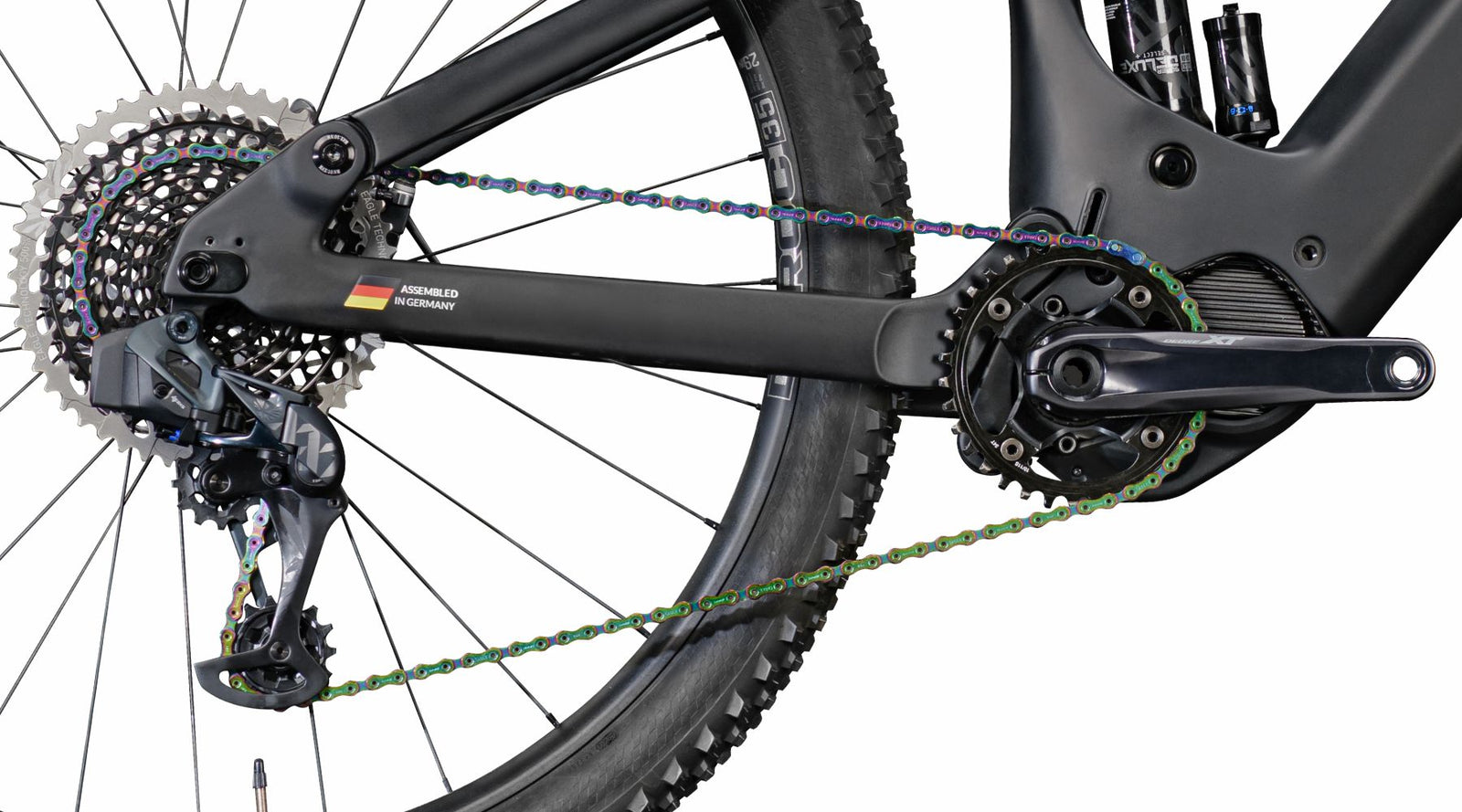

DRIVETRAIN

Crankset

Shimano XT M8150, 34T

Max Chainring Size

38T

Shifter(s)

SRAM XX1 AXS, 12spd

Rear Derailleur

SRAM XX1 Eagle AXS, 12spd incl. charger

Cassette

SRAM XG-1299 10-52T, 12 speed, gold, 10-52T

Chain

SRAM XX1 Eagle Hollow Pin 12 speed, incl. PowerLock, 126, gold

BRAKES

Brakes

Shimano XTR BL/BR-M9000,

Rotors

F: SM-RT66, 203mm, 6 bolt

R: SM-RT66, 180mm, 6 bolt

COCKPIT

Grips

SBC Lockon

Handlebar

Surface Carbon, Dia: 31.8mm, Width: 780mm, Backsweep: 9°, Rise: 5mm

Stem

Surface Alloy, 31.8mm, Rise: 6°

Saddle

Surface Race, Titanium Rails

Seat Post

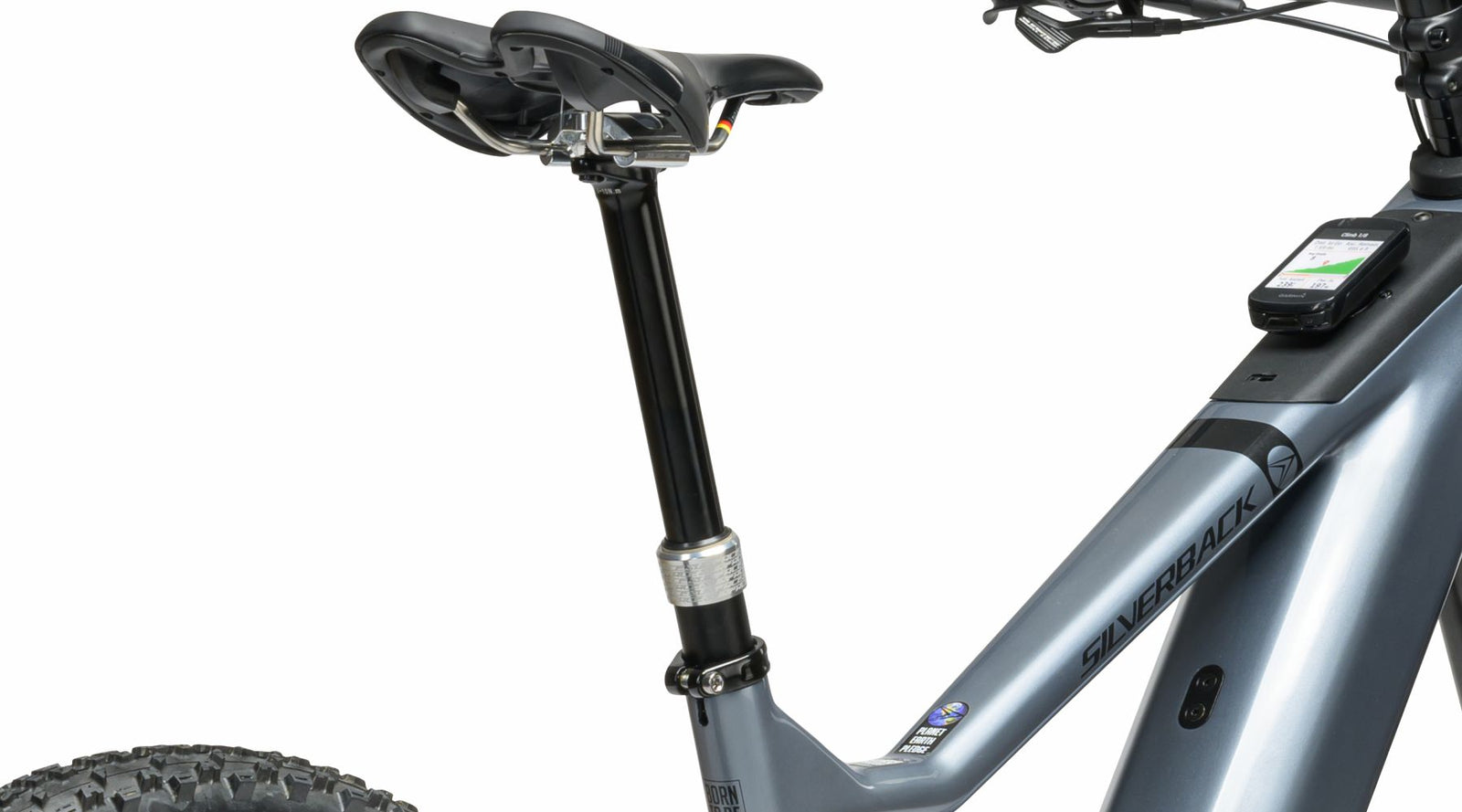

Fox Factory Transfer Dropper, gold, Dia: 30.9mm, Drop length: 170mm

Seatpost Clamp

Surface Alloy lightweight

Pedals

Not Included

WEIGHT

Bike Weight

from 20.9 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

How do I adjust travel on my Pro CF?

It's better to ask your LBS to adjust the travel internally in your shock.
Why Carbon?

Carbon has many properties that make it ideal for enduro bikes. It's strength to weight ratio being the most noticeable property. There's also an alloy version for riders not interested in carbon bikes.
Can I race DH on my Pro CF?

Sure. It's not a DH bike though, so will still ride like a long travel enduro bike.
Can I fit plus tyres on the CF?

Yes, 2.8" - but only on 275 rims.
Where can I find the E-bike manual?
Click HERE to view.
Where can I find serial number of the E bike?
The serial number of the frame is located on the frame around the BB area. Please look for the sticker.
Can I customize my Shimano display to another language or change other settings?
Yes, you need to download E TUBE app and configure the settings. SEE HERE
Can I upgrade the length of my suspension on my bike?
The suspension length is normally determined by the frame design, it should not be changed.

ANDERE MODELLE DER SERIE

€3.999

S-ELECTRO ELITE AL 1

Dual Suspension | E-Enduro | Alloy

150/145mm
29" x 2.5" Wheels
1x12 Speed SRAM
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
24 kg

€7.999

S-ELECTRO PRO CF 1

Dual Suspension | E-Enduro | Carbon

150/145mm Travel
29" x 2.5" Wheels
1x12 Speed SRAM AXS
EP-801 Shimano Motor
85Nm Torque
720Wh Battery
from 20.9kg

€5.999

S-ELECTRO PRO CF 2

Dual Suspension | E Enduro | Carbon

150/145mm Travel
29" x 2.5" Wheels
1x12 Speed SRAM
EP-801 Shimano Motor
85Nm Torque
720Wh Battery
from 22kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L
	Rider height(cm)	154-170	168-180	178-195
	Rider inseam(cm)	70-77	76-82	81-89
A	Seat tube c/t	390	420	460
B	Seat tube angle	75.5	75.5	75.5
C	Head tube angle	65	65	65
D	Top Tube	622	630	653
E	Reach	450	470	490
F	Chainstay length	447 or 457	447 or 457	447 or 457
G	bb height	350	350	350
H	head tube length	100	110	120
I	stack	600	609	619
J	standover	767	767	767
K	Wheelbase	1188	1210	1234
