SE:SERIES TRAIL 10

€1.349,00

Sold Out

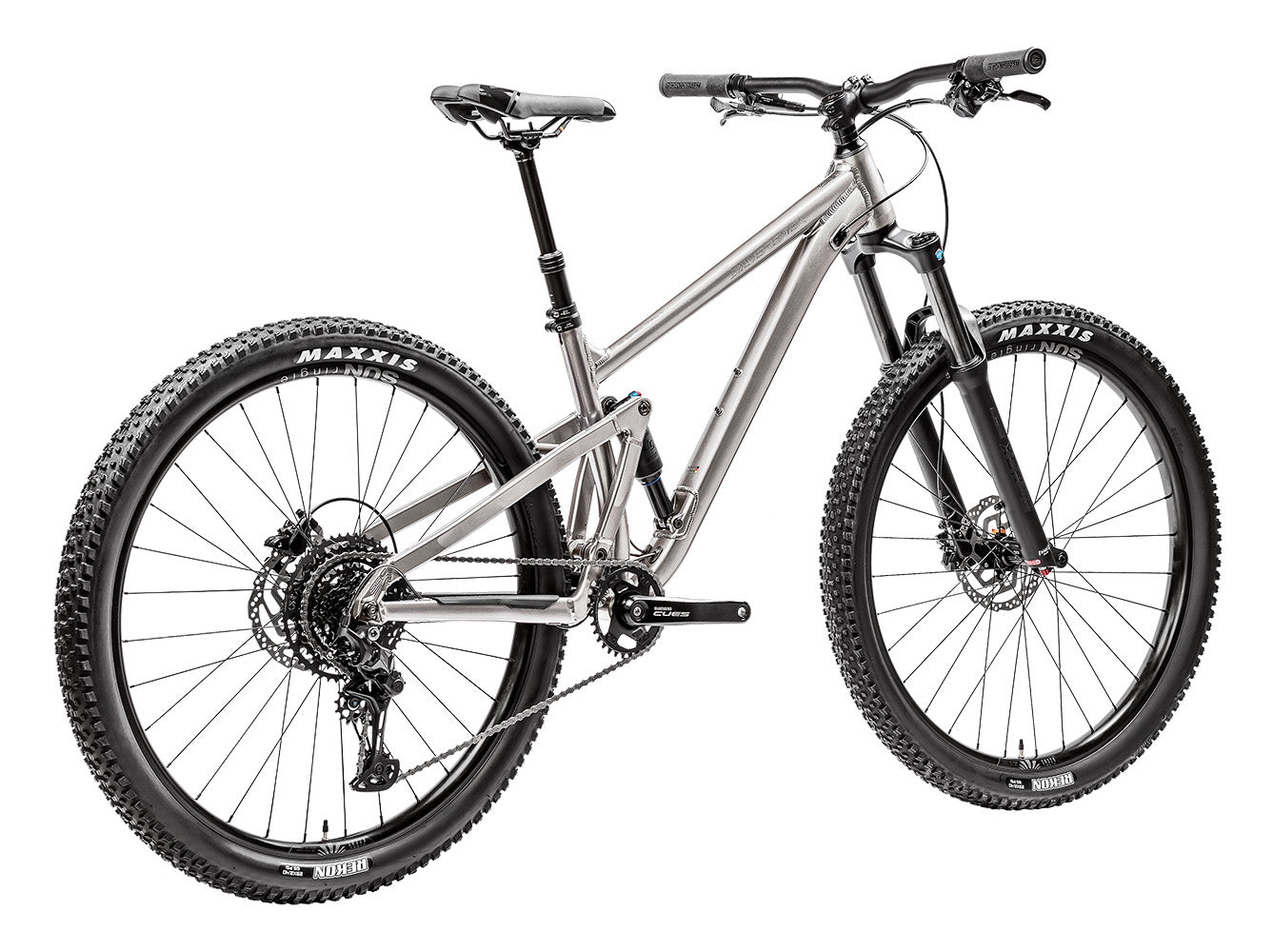

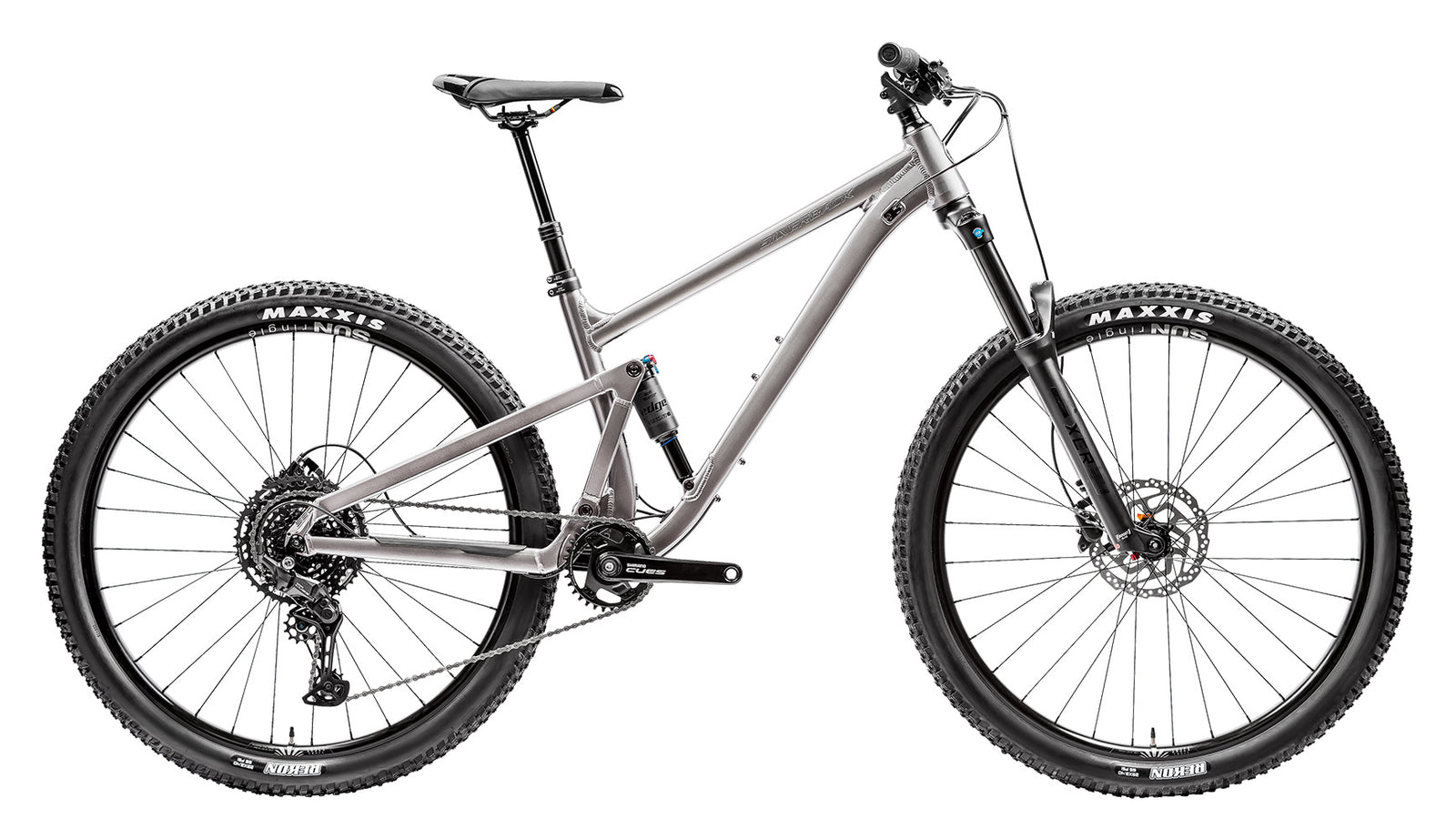

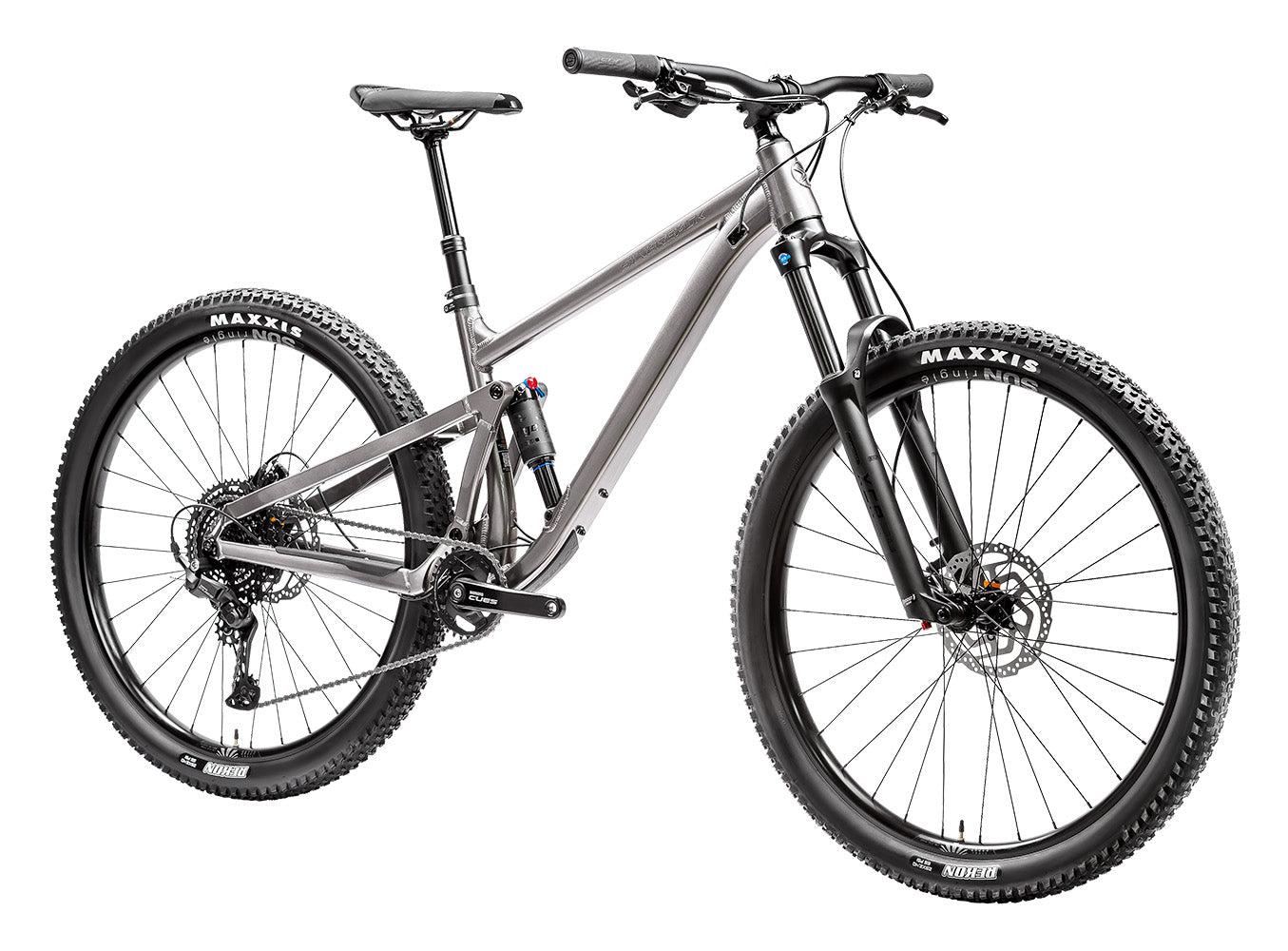

SE:Series Trail is an nimble and fast dual suspension trail platform. The aluminium frameset encompasses a solid rear triangle with a more forgiving front triangle tubeset, giving excellent ride feel, control and all day trail riding comfort. The geometry used helps maintain a balanced posture for both uphill traction and downhill control with a medium reach and balanced head tube angle. Frame designed with short seat tube to allow for long travel dropper post use and great standover clearance. Frame allows for two small water bottles to be carried on the frame, one inside the front triangle and one below the down tube. Single pivot rear suspension design provides excellent tracking, trail feedback and longevity of pivots. 140mm Suspension kinematics uses a linear leverage ratio to make the bike less sensitive to aggressive rider movement, making the handling more consistent for performance riding.

Auf einen Blick

Dual suspension Hydro-formed 6061 Alloy Frame, 140mm travel, Boost 148mm, tapered headtube.
Suntour XCR34 AIR fork, 140mm travel
Suntour RS24 EdgeX Shock, Air Spring

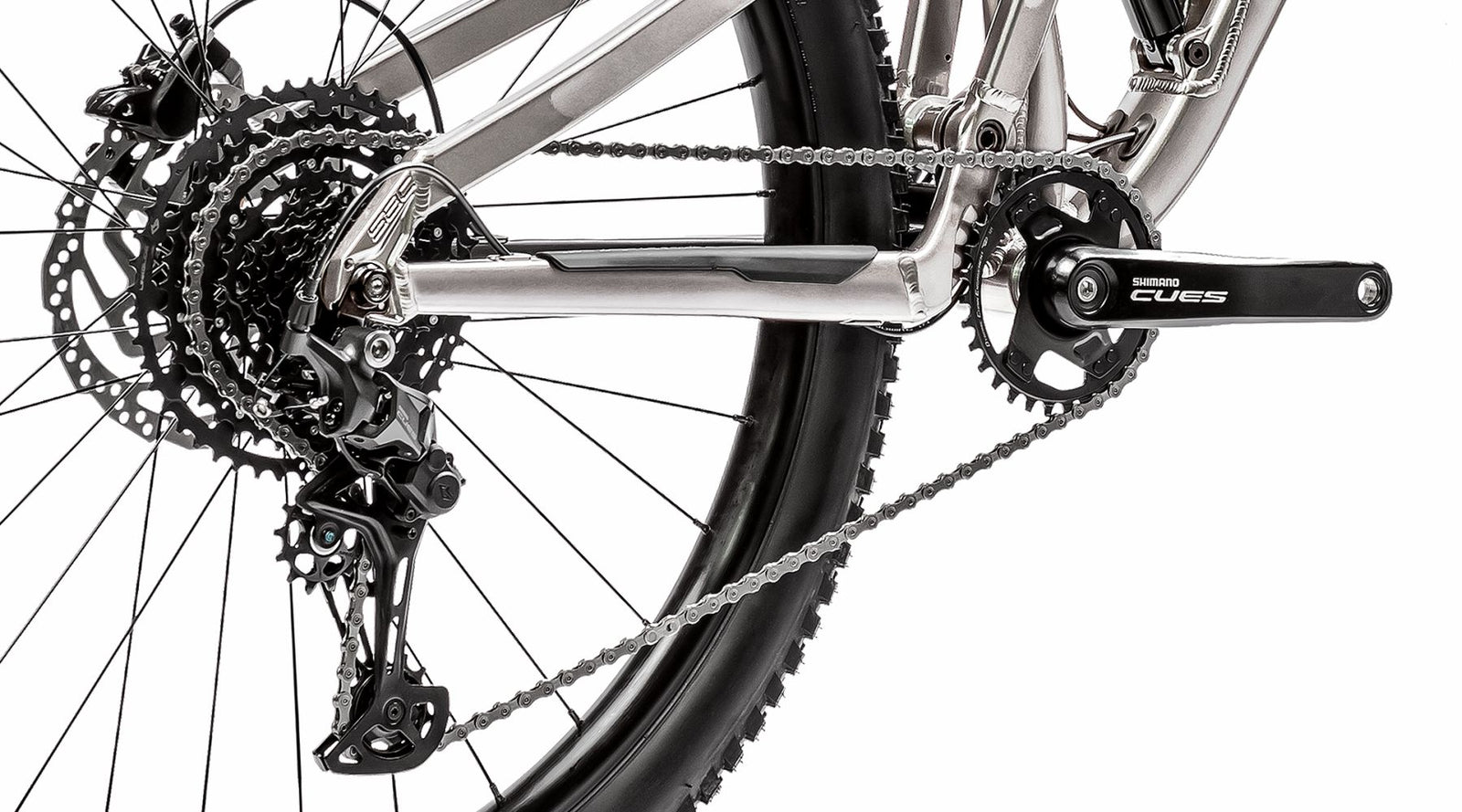

Shimano CUES 10-speed Drivetrain
Shimano Hydraulic disc brakes
Maxxis Rekon 29x2.4", Tubeless Ready Tyres
Sunringle custom wheelset, Tubeless Ready, 32H
Surface Dropper Post
Weight: 16.7 kg

TECHNISCHE HIGHLIGHTS

10-SPD TRAIL DUAL SUSPENSION.

SUSPENSION KINEMATICS

The linear leverage ratio ensures the long stroke shock gets to full travel on rough terrain and allows the rider to have consistent damping throughout the whole shock stroke. This linear feeling is more like a coil shock and allows the rider to tune their suspension more accurately for different course terrain as it responds very well to shock setup, helping to get the most speed on varying enduro tracks.

SUSPENSION ANTI-SQUAT

The high anti-squat start helps the bike to have a crisp and responsive feel during the climbs and flat out technical singletrack racing. It then backs off in the mid-stroke area to help the bike absorb rough terrain while pedalling, but still allowing a responsive forward motion at every crank movement, yet not so much as to overly stiffen the suspension.

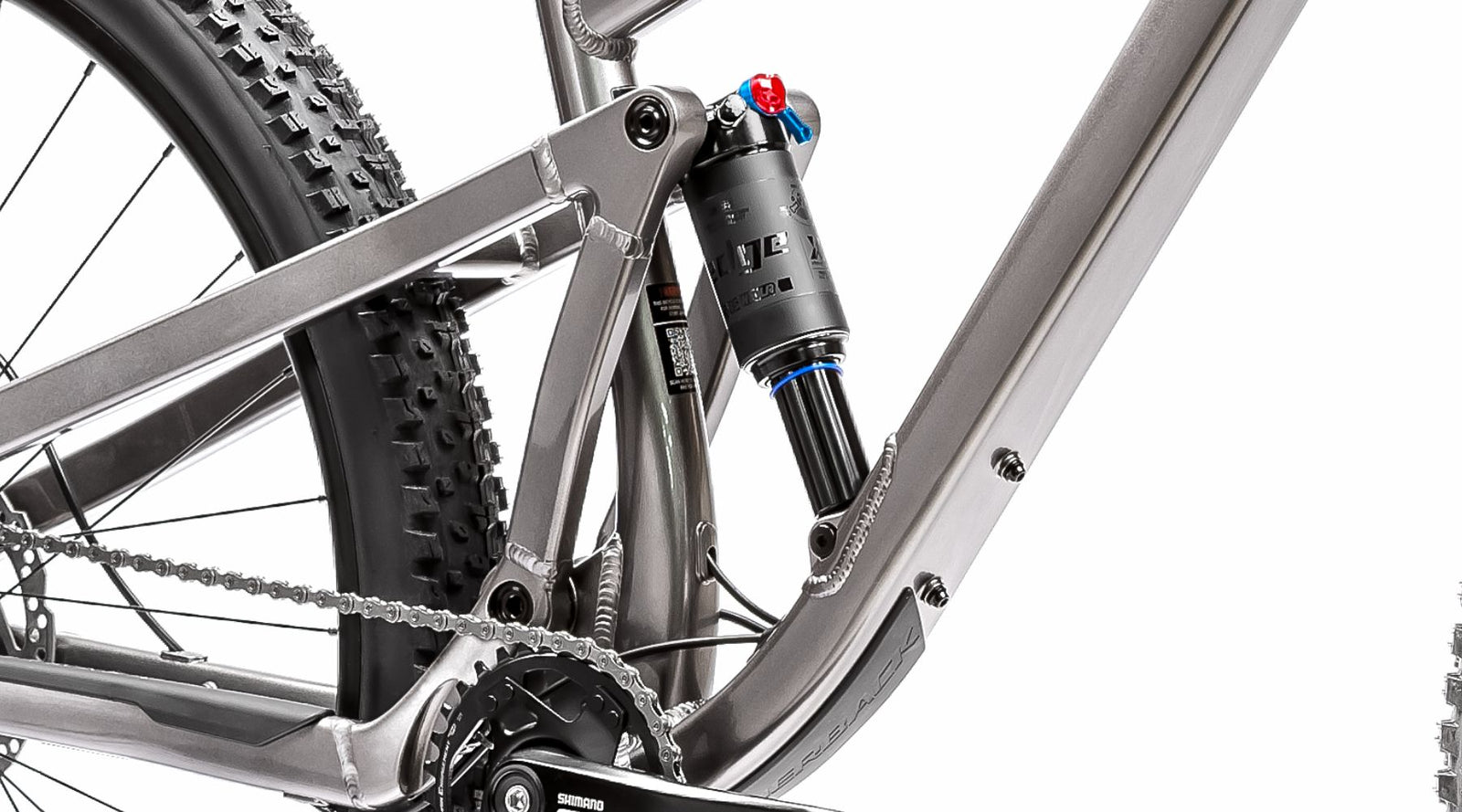

TRUE SINGLE PIVOT SUSPENSION

Single pivot design provides excellent tracking, trail feedback and longevity of pivots. Suspension kinematics uses a linear leverage ratio to make the bike less sensitive to aggressive rider movement, making the handling more consistent for performance riding. Offers 140mm of travel.

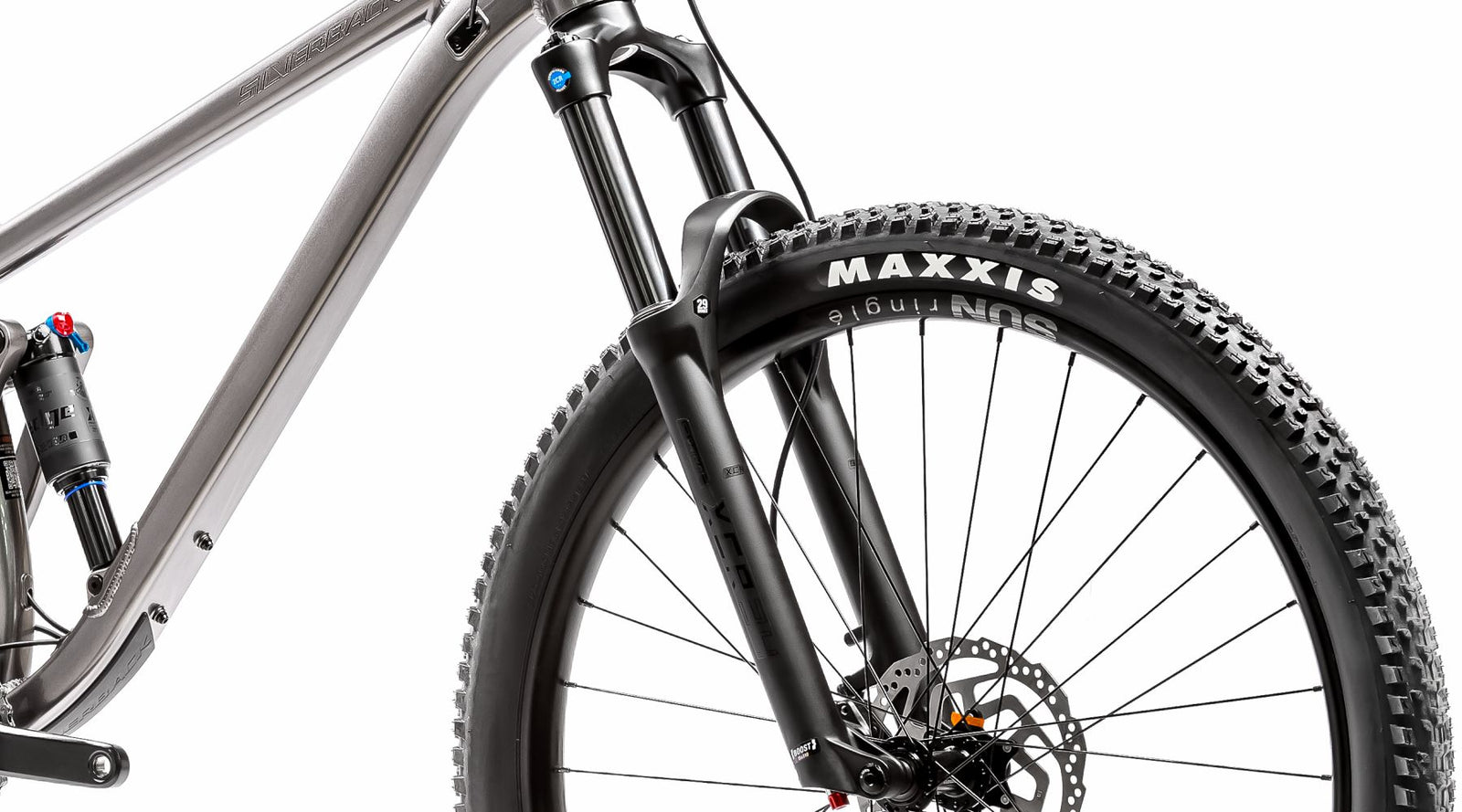

QUALITY SUSPENSION

Designed for a 140mm travel fork to soak up bumps and drops.

1X DRIVETRAIN SPECIFIC DESIGN

Front derailleurs are dead. With that comes a wider main pivot bearing stance for increased stiffness.

POP GEOMETRY ADAPTED FOR TRAIL

Slacker head angles and longer wheelbases, along with other geometry and suspension tweaks allow for a bike that is more capable and forgiving on the downhills, without sacrificing uphill ability in the process. The SE:Series Trail has 140mm travel and has some geometry changes that empower your trail-shredding.

SPEED CONTROL

Shimano hydraulic disc brakes deliver controlled stopping power.

CABLE MANAGEMENT

Semi-internal cable routing helps keep both the overall look and cables clean, as well as easy to service.

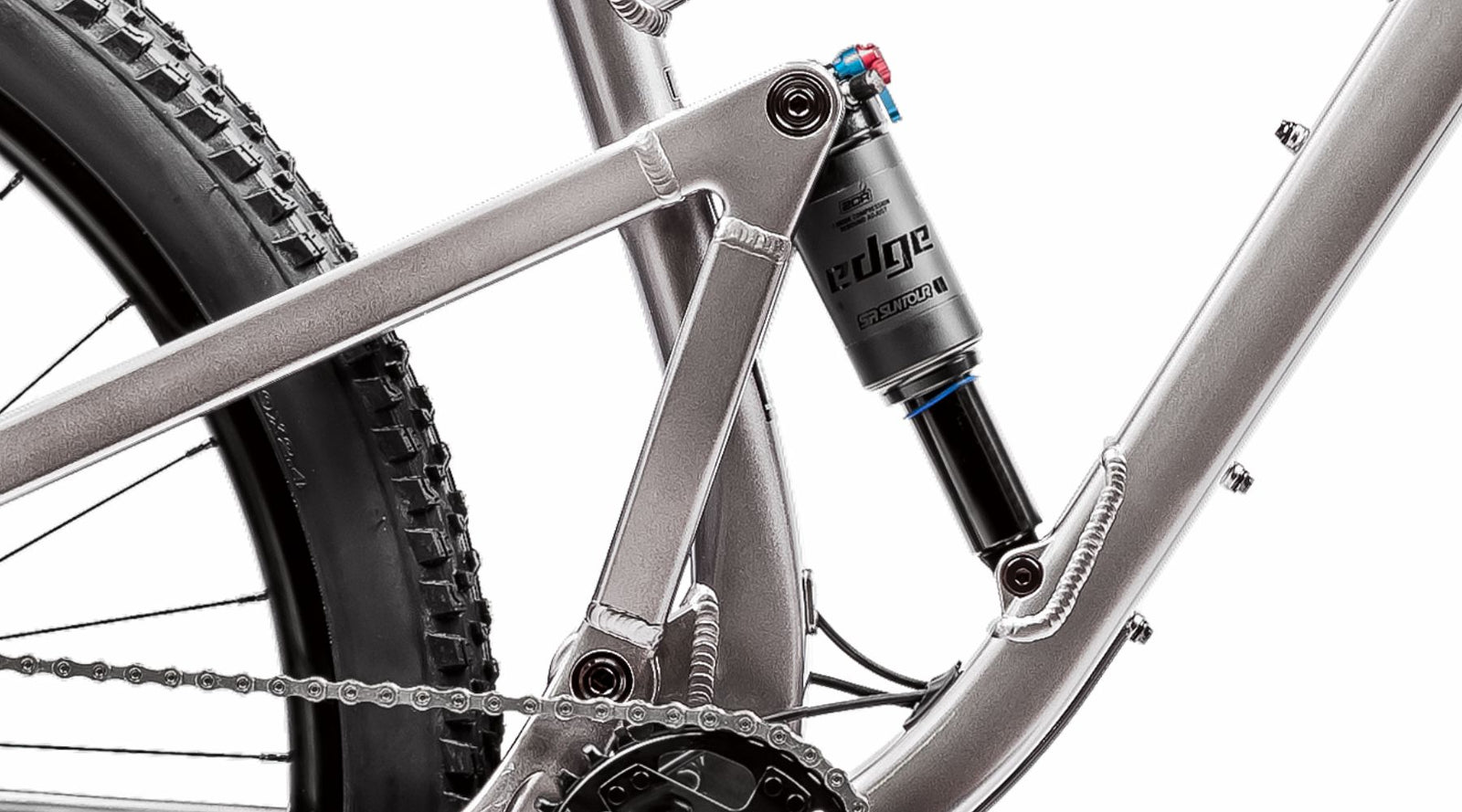

SHOCK MOUNT INTEGRATION

Lower shock mount integrated into down tube for excellent strength and helps lower the centre of gravity for performance handling. Long 52.5mm stroke shock helps maintain excellent dampening properties on long downhills.

DROPPER POST STANDARD

Frame designed with short seat tube to allow for long travel dropper post use and great standover clearance.

POP GEOMETRY

The geometry used helps maintain a balanced posture for both uphill traction and downhill control with a medium reach and balanced head tube angle.

MY25_SE_Series_Trail_10_Bottle_cage_mounts

2 BOTTLE MOUNTS

When it comes to water bottles, two is definitely better than one.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Alloy Trail Dual suspension Frame. True single pivot design, 140mm Rear Travel with 185x52.5mm Trunnion Shock. 30x8mm hardware. BSA Bottom Bracket. Boost 148

Headset

Semi-Integrated Threadless Headset, ZS44/28.6 [[PIPE]] ZS56/39.8

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm P1.75

Hanger Type

HANGER 3

SUSPENSION

Fork

29": SR Suntour Durolux 36 Air, 150mm Travel, Boost, RC2 low & high speed compression & rebound adjust (Australia only)

29 & 27.5": SR Suntour XCR34 Air, 140mm Travel, Boost, RC2 low & high speed compression & rebound adjust (International markets)

Fork Travel

150/140mm

Rear shock

Suntour RS24 EdgeX, 2CR, Custom Tuned, Trunnion, 185x52.5mm

Rear Suspension Travel

140mm

Shock Mounting

Body: Trunnion, M10x54mm

Shaft: Standard, 8x30mm

Eye-to-Eye x Stroke

185x52.5mm

WHEELS

Wheelset

SUNringlé Custom Wheelset

Hubs

F: Shimano HB-TC500-15-B, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm

R: Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm

Rims

F: SUNringlé 329, Sleeved, STR Tubeless

R: SUNringlé 329, Sleeved, STR Tubeless

Tyres

F: Maxxis Rekon 29x2.4"

R: Maxxis Rekon 29x2.4"

Max Tyre Size

2.5"

DRIVETRAIN

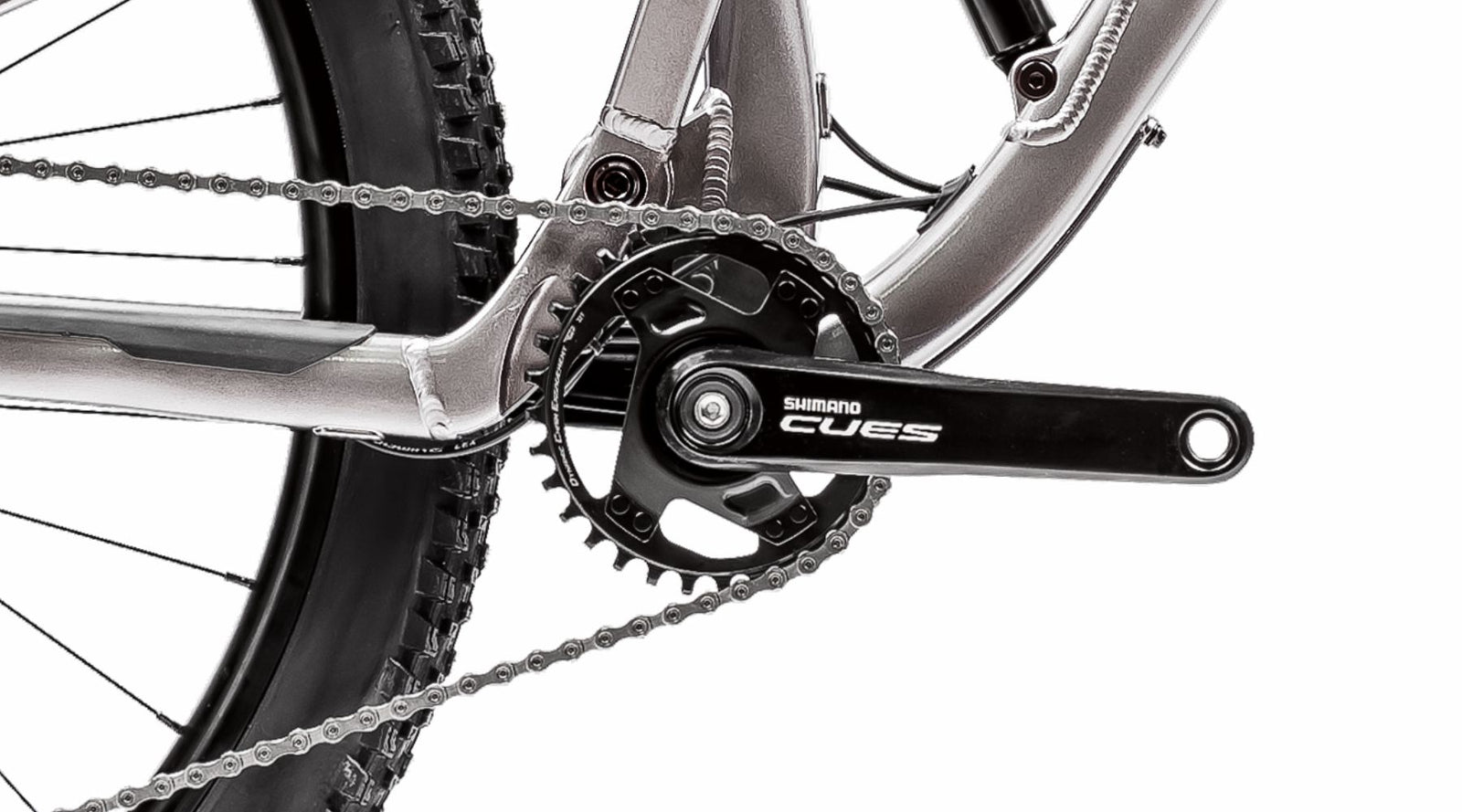

Crankset

Shimano FC-U4000-1 CUES, 32T, 170mm

Max Chainring Size

32T

Bottom Bracket & Type

BSA73

Shifter(s)

R: Shimano SL-U6000-10R CUES 10-Speed Right Shift Lever, Rapidfire Plus w/o Optical Gear

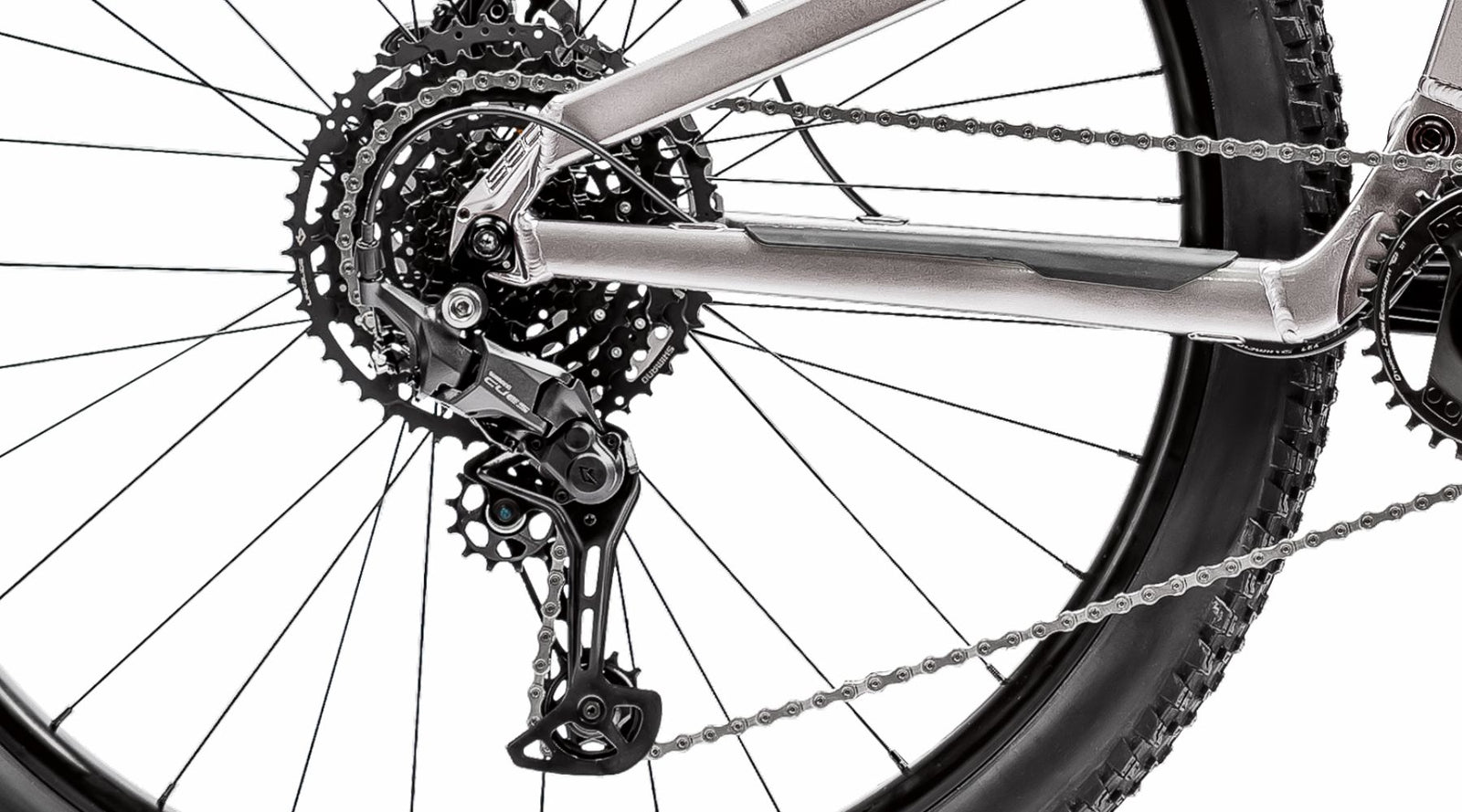

Rear Derailleur

Shimano RD-U6000 CUES, 10/11 Speed

Cassette

Shimano CS-LG300-10 CUES 10-Speed, 11-48T

Chain

Shimano CN-LG500 LG, 9/10/11 Speed

BRAKES

Brakes

Shimano MT200 2-piston Hydraulic Disc, Resin Pads

Rotors

Shimano SM-RT10 Rotor, 180mm, Centre Lock

COCKPIT

Grips

SURFACE Double Density Lock-On

Handlebar

SURFACE Alloy Handlebar, Dia: Ø31.8mm, 9° Back sweep, 20mm Rise

Stem

SURFACE Alloy, 31.8mm, Extension: 45mm, Rise: 3°

Saddle

SURFACE Ergo

Seat Post

SURFACE Dropper Post, Remote Lever, Ø30.9mm, S:100/M:125/L:150/XL:170mm Travel

Seatpost Clamp

SURFACE Alloy w/Steel Bolt

Pedals

Not Included

WEIGHT

Bike Weight

16.7 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

:FAQ.

Does this bike come with a chainstay protector?

Yes, but an additional chainstay protector can be purchased on Speedlab.shop
How much travel does the fork on this bike have?

140 - 150mm travel, depending on fork included.
What is the weight limit on the SELSeries Trail?

110kg - combined weight of bike and rider (including all kit).
Can I put a front derailleur on SE:Series Trail?

No. The entire range is designed with wide range 1x drivetrains in mind. This allows for wider bearing stances and a stiffer frame
What bearings does this frame use?

Main pivot uses 2 pieces 6903 MAX type bearings (2 rubber seals). Upper shock mount uses 4 pieces 6900 MAX type bearings (2 rubber seals).
Can I put a longer fork on this frame?

No, it will void the warranty
Can I upgrade the length of my suspension on my bike?
The suspension length is normally determined by the frame design, it should not be changed.

ANDERE MODELLE DER SERIE

€1.605

SE:SERIES TRAIL 11

Dual Suspension | Trail | Alloy

140/140mm Travel
29" x 2.5" Wheels
1x11 Speed Shimano
16.6 kg

€1.349

SE:SERIES TRAIL 10

Dual Suspension | Trail | Alloy

140/140mm Travel
29" x 2.4" Wheels
1x10 Speed Shimano
16.5 kg

€2.899

SE:SERIES ENDURO 11

Dual Suspension | Trail/Enduro | Alloy

160/150mm Travel
29" x 2.4" Wheels
1x11 Speed Shimano
16.9kg

Geometrie

6FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S (27.5")	S (29")	M (29")	L (29")	XL (29")
	Rider height(cm)	154-170	154-170	170-180	180-190	188-210
	Rider inseam(cm)	70-77	70-77	77-82	82-86	85-95
A	Seat tube c/t	380	390	410	435	460
B	Seat tube angle	74.5°	79°	79°	79°	79°
C	Head tube angle	55.5°	65°	65°	65°	65°
D	Top Tube	594	546	571	597	633
E	Reach	420	425	450	475	510
F	Chainstay length	450	445	445	445	445
G	bb height	312	338	338	338	338
H	head tube length	120	110	110	120	130
I	stack	628	620	620	629	638
J	standover	756	745	739	742	745
K	Wheelbase	1172	1188	1213	1242	1281
