SE:SERIES TRAIL 9 €1.349,00

AUSSTATTUNG GRÖSSE & GEOMETRIE VERGLEICHEN JETZT KONFIGURIEREN PROBEFAHRT BUCHEN

SE:SERIES TRAIL 9

Name: SE:SERIES TRAIL 9
Brand: Silverback
SKU: 0086544017896
Price: 1349.0 EUR
Availability: OutOfStock

€1.349

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

0.00 0 reviews

Size:

XS - 27.5"

Körpergröße: —
Schrittlänge des Fahrers: —
S - 29"

Körpergröße: —
Schrittlänge des Fahrers: —
M - 29"

Körpergröße: —
Schrittlänge des Fahrers: —
L - 29"

Körpergröße: —
Schrittlänge des Fahrers: —
XL - 29"

Körpergröße: —
Schrittlänge des Fahrers: —

Color: Metallic Pistachio

ABHOLUNG IM GESCHÄFT

KAUFE DIREKT IN UNSEREM STORE
Ohmstrasse 1872622
NuertingenGermany
+49 7022 9 777 818

LIEFERUNG DIREKT NACH HAUSE

EINFACHE MONTAGE

Rüste Dein Bike auf.

Supreme Bib Shorts - Cycle Kit - BornToBeFast - - - - Speedlab

B2BF Top Cap - Black

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-3

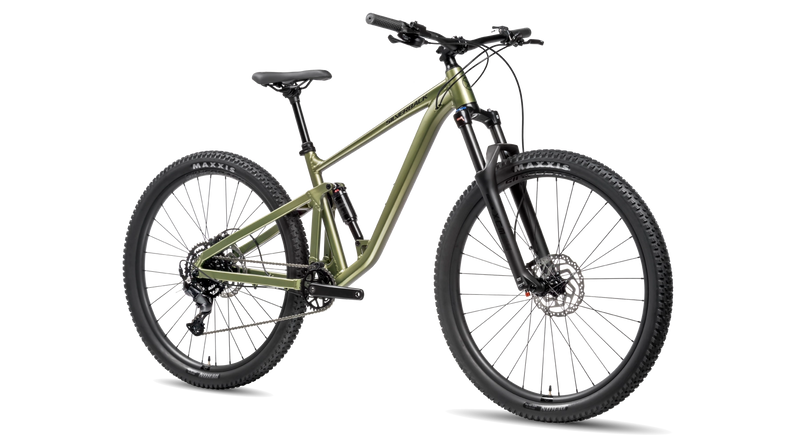

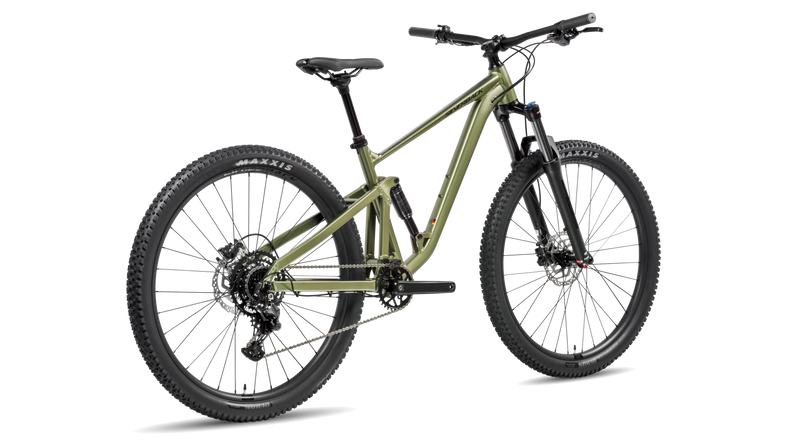

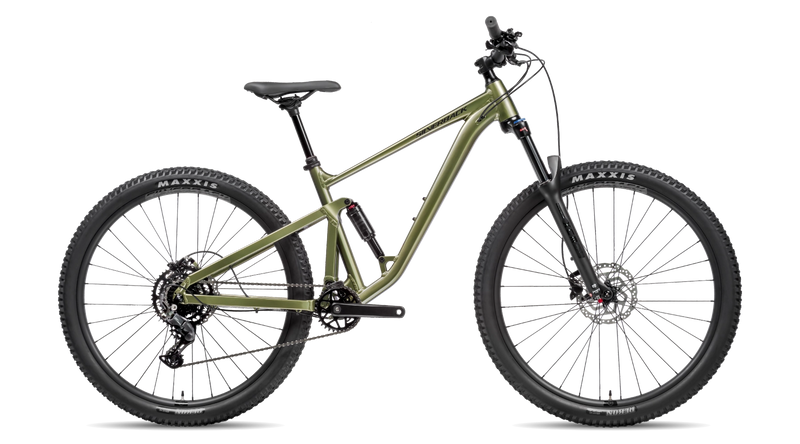

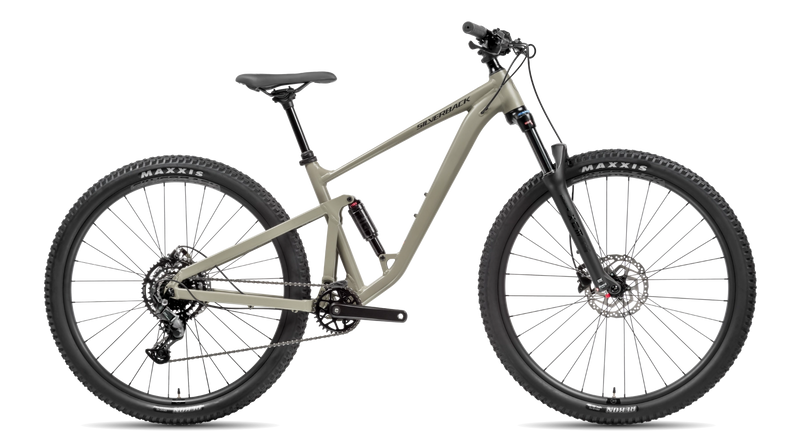

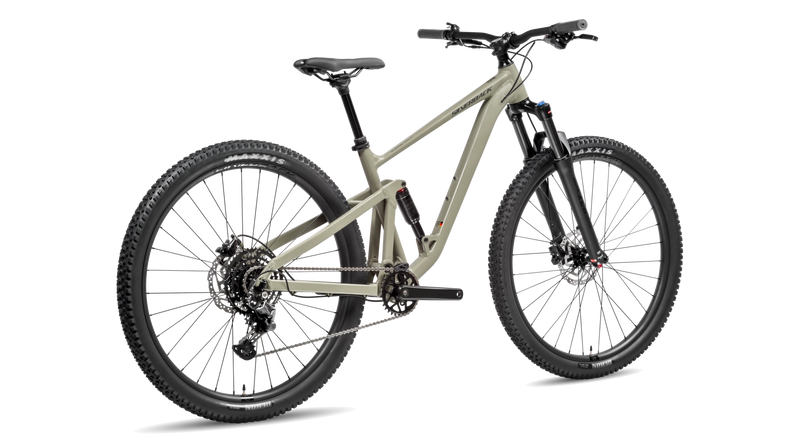

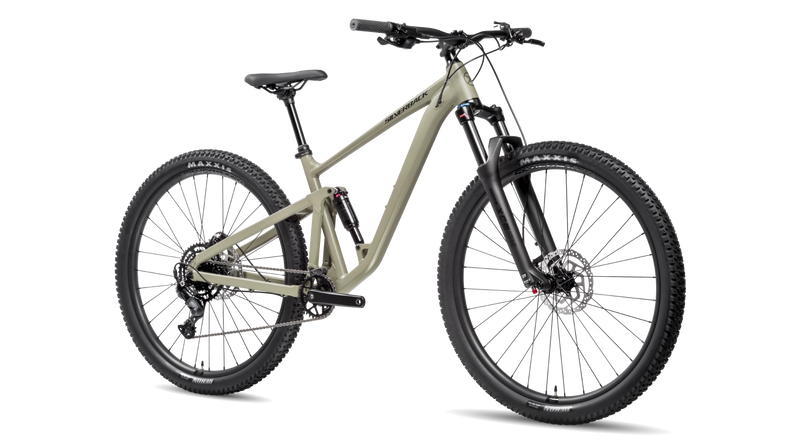

SE:SERIES TRAIL 9

€1.349,00

Sold Out

Built for Real Trails, Not Perfect Conditions.

A fast, confident trail bike built for real‑world singletrack. The aluminium frame blends stiffness and comfort, backed by 130 mm front and rear travel for smooth, predictable control. Balanced geometry keeps you centred on climbs and stable on descents, with a short seat tube for easy dropper use and great standover. Dual bottle mounts add range. The reliable single‑pivot suspension delivers clean trail feel and long‑term durability, while the 9‑speed drivetrain keeps things simple, tough and ready for progression.

Auf einen Blick

Dual suspension Hydro-formed 6061 Alloy Frame, 130mm travel, Boost 148mm thru-axle, tapered headtube.
Suntour XCM34 Coil fork, 130mm travel
Suntour Raidon R rear shock, Air Spring

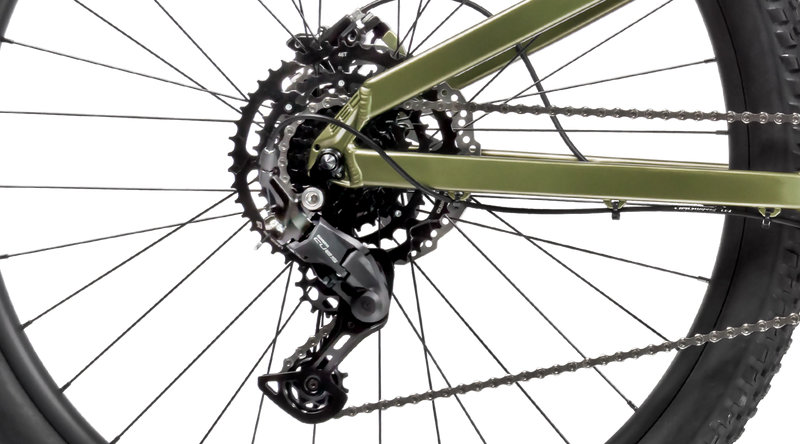

Shimano CUES 9-speed Drivetrain
Shimano Hydraulic disc brakes
Maxxis Rekon 29x2.4", Tubeless Ready Tyres
Silverback custom wheelset, Shimano hubs, Tubeless Ready
Silverback Dropper Post
Weight: 17 kg

TECHNISCHE HIGHLIGHTS

9-SPD TRAIL DUAL SUSPENSION.

SE:Series Trail is an nimble and fast dual suspension trail platform. The aluminium frameset encompasses a solid rear triangle with a more forgiving front triangle tubeset, giving excellent ride feel, control and all day trail riding comfort. The geometry used helps maintain a balanced posture for both uphill traction and downhill control with a medium reach and balanced head tube angle. Frame designed with short seat tube to allow for long travel dropper post use and great standover clearance. Frame allows for two small water bottles to be carried on the frame, one inside the front triangle and one below the down tube. Single pivot rear suspension design provides excellent tracking, trail feedback and longevity of pivots.

SUSPENSION KINEMATICS

The linear leverage ratio ensures the long stroke shock gets to full travel on rough terrain and allows the rider to have consistent damping throughout the whole shock stroke. This linear feeling is more like a coil shock and allows the rider to tune their suspension more accurately for different course terrain as it responds very well to shock setup, helping to get the most speed on varying enduro tracks.

SUSPENSION ANTI-SQUAT

The high anti-squat start helps the bike to have a crisp and responsive feel during the climbs and flat out technical singletrack racing. It then backs off in the mid-stroke area to help the bike absorb rough terrain while pedalling, but still allowing a responsive forward motion at every crank movement, yet not so much as to overly stiffen the suspension.

TRUE SINGLE PIVOT SUSPENSION

Single pivot design provides excellent tracking, trail feedback and longevity of pivots. Suspension kinematics uses a linear leverage ratio to make the bike less sensitive to aggressive rider movement, making the handling more consistent for performance riding. Offers 130mm of travel.

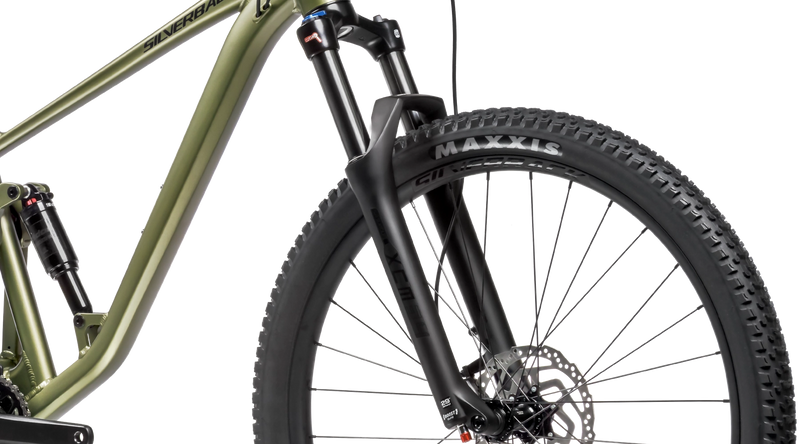

130mm SUSPENSION FORK

The Suntour XCM34 gives entry‑level riders a big‑fork feel thanks to its stiffer 34 mm stanchions, which deliver noticeably better steering control and front‑end stability than slimmer budget forks. It’s a solid, confidence‑boosting upgrade that handles rough terrain without the flex and vagueness typical of lower‑tier suspension.

1X DRIVETRAIN SPECIFIC DESIGN

Front derailleurs are dead. With that comes a wider main pivot bearing stance for increased stiffness.

LARGE TYRE CLEARANCE

Run bigger, grippier tyres that improve traction, comfort, and control, while ensuring the rear wheel still moves freely through its full suspension travel without rubbing or clogging.

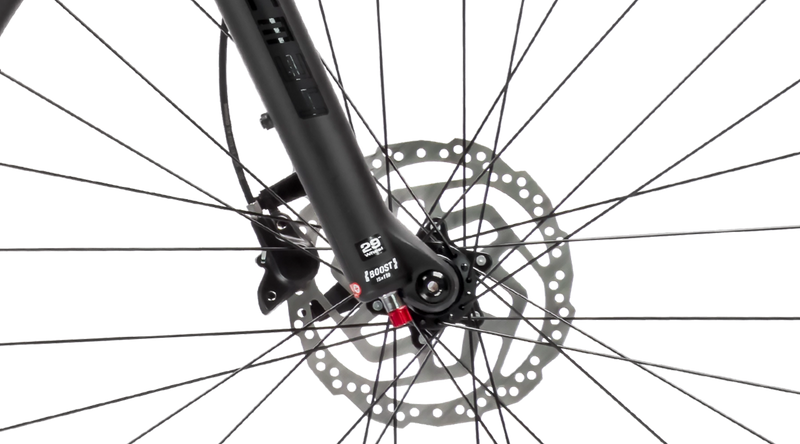

SPEED CONTROL

Shimano hydraulic disc brakes deliver controlled stopping power.

CABLE MANAGEMENT

Semi-internal cable routing helps keep both the overall look and cables clean, as well as easy to service.

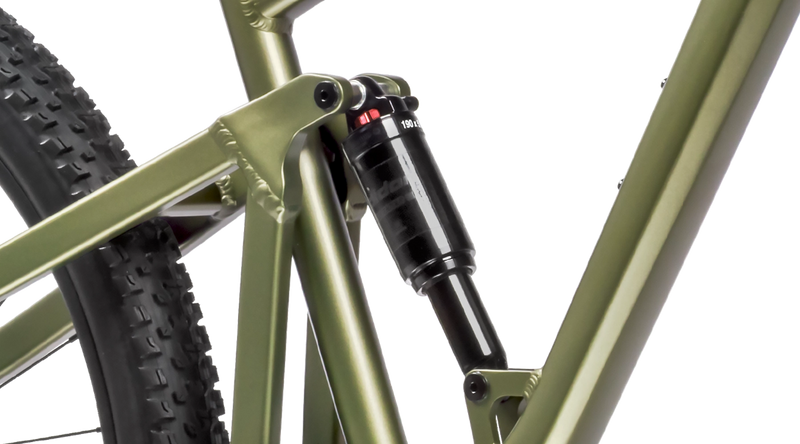

AIR REAR SHOCK

Suntour Raidon R is a lightweight, reliable air shock that’s easy to tune and delivers smooth, controlled performance.

DROPPER POST STANDARD

Frame designed with short seat tube to allow for long travel dropper post use and great standover clearance.

POP GEOMETRY

The geometry used helps maintain a balanced posture for both uphill traction and downhill control with a medium reach and balanced head tube angle.

MY25_SE_Series_Trail_10_Bottle_cage_mounts

BOTTLE MOUNTS

Easy to reach hydration without compromising suspension movement.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Alloy Trail Dual suspension Frame. True single pivot design, 130mm Rear Travel. BSA Bottom Bracket. Boost 148 SBC through axle dropouts.

Headset

Semi-Integrated Threadless Headset, ZS44/28.6 [[PIPE]] ZS56/39.8

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm P1.75

Hanger Type

HANGER 3

SUSPENSION

Fork

SR Suntour XCM34 DS LO-R Coil, 130mm Travel, Boost, Hydraulic Lockout & Low speed rebound adjust

Fork Travel

130mm

Rear shock

Suntour Raidon R, Custom Tuned, Hardware: 43x10 Top, 20x10mm Bottom, 190x51mm

Rear Suspension Travel

130mm

Shock Mounting

Top: Standard 43x10mm

Bottom: Standard, 20x10mm

Eye-to-Eye x Stroke

190x51mm

WHEELS

Wheelset

Silverback Custom Wheelset

Hubs

F: Shimano HB-TC500-15-B, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm
R: Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm

Rims

F: Silverback Trail, 32H, 30mm Internal width, Tubeless ready
R: Silverback Trail, 32H, 30mm Internal width, Tubeless ready

Tyres

F: Maxxis Rekon 29x2.4", Wire bead
R: Maxxis Rekon 29x2.4", Wire bead

Max Tyre Size

2.5"

DRIVETRAIN

Crankset

Alloy, 32T narrow-wide chainring, 170-175mm crank arms

Max Chainring Size

32T

Bottom Bracket & Type

BSA73

Shifter(s)

R: Shimano SL-U4000-9R CUES 9-Speed Right Shift Lever, Rapidfire Plus w/Optical Gear

Rear Derailleur

Shimano RD-U4000 CUES, top normal, direct attachment, Shadow Design, 9-Speed

Cassette

Shimano CS-LG300-9 CUES 9-Speed, 11-46T

Chain

Shimano CN-LG500 LG, 116 links, 9/10/11 Speed

BRAKES

Brakes

Shimano MT200 2-piston Hydraulic Disc, Resin Pads

Rotors

Shimano SM-RT10 Rotor, 180mm, Centre Lock

COCKPIT

Grips

Double Density, Single-sided Lock-On, 130mm

Handlebar

Alloy Handlebar, Dia: Ø31.8mm, 9° Back sweep, 20mm Rise, Width: 780mm

Stem

Alloy, Ø31.8mm, Extension: 45mm, Rise: 3°

Saddle

Silverback Trail

Seat Post

Silverback Dropper Post, Remote Lever, Ø30.9mm, S:100/M:125/L:125/XL:125mm Travel

Seatpost Clamp

SURFACE Alloy w/Steel Bolt

Pedals

Not Included

WEIGHT

Bike Weight

17 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

Does this bike come with a chainstay protector?

Yes, but an additional chainstay protector can be purchased on Speedlab.shop
How much travel does the fork on this bike have?

140 - 150mm travel, depending on fork included.
What is the weight limit on the SELSeries Trail?

110kg - combined weight of bike and rider (including all kit).
Can I put a front derailleur on SE:Series Trail?

No. The entire range is designed with wide range 1x drivetrains in mind. This allows for wider bearing stances and a stiffer frame
What bearings does this frame use?

Main pivot uses 2 pieces 6903 MAX type bearings (2 rubber seals). Upper shock mount uses 4 pieces 6900 MAX type bearings (2 rubber seals).
Can I put a longer fork on this frame?

No, it will void the warranty

Can I upgrade the length of my suspension on my bike?
The suspension length is normally determined by the frame design, it should not be changed.

ANDERE MODELLE DER SERIE

€2.205

SE:SERIES TRAIL 11

Dual Suspension | Trail | Alloy

140/140mm Travel
29" x 2.5" Wheels
1x11 Speed Shimano
16.6 kg

€1.349

SE:SERIES TRAIL 9

Dual Suspension | Trail | Alloy

130/130mm Travel
29" x 2.4" Wheels
1x9 Speed Shimano
17kg

€1.799

SE:SERIES TRAIL 10

Dual Suspension | Trail | Alloy

140/140mm Travel
29" x 2.4" Wheels
1x10 Speed Shimano
16.5 kg

Geometrie

GEOMETRY.

map	type(mm unless specified)	S (27.5")	S (29")	M (29")	L (29")	XL (29")
	Rider height(cm)	154-170	154-170	170-180	180-190	188-210
	Rider inseam(cm)	70-77	70-77	77-82	82-86	85-95
A	Seat tube c/t	390	390	420	435	460
B	Seat tube angle	76°	76°	76°	76°	76°
C	Head tube angle	67°	67°	67°	67°	67°
D	Top Tube	567	575	598	621	655
E	Reach	420	420	440	460	490
F	Chainstay length	445	456	456	456	456
G	bb height	337	339	339	339	339
H	head tube length	100	100	110	120	130
I	stack	589	625	634	644	653
J	standover	732	764	759	767	765
K	Wheelbase	1161	1178	1202	1226	1260
