SE:SERIES GR AL 11

€1.499,00

Sold Out

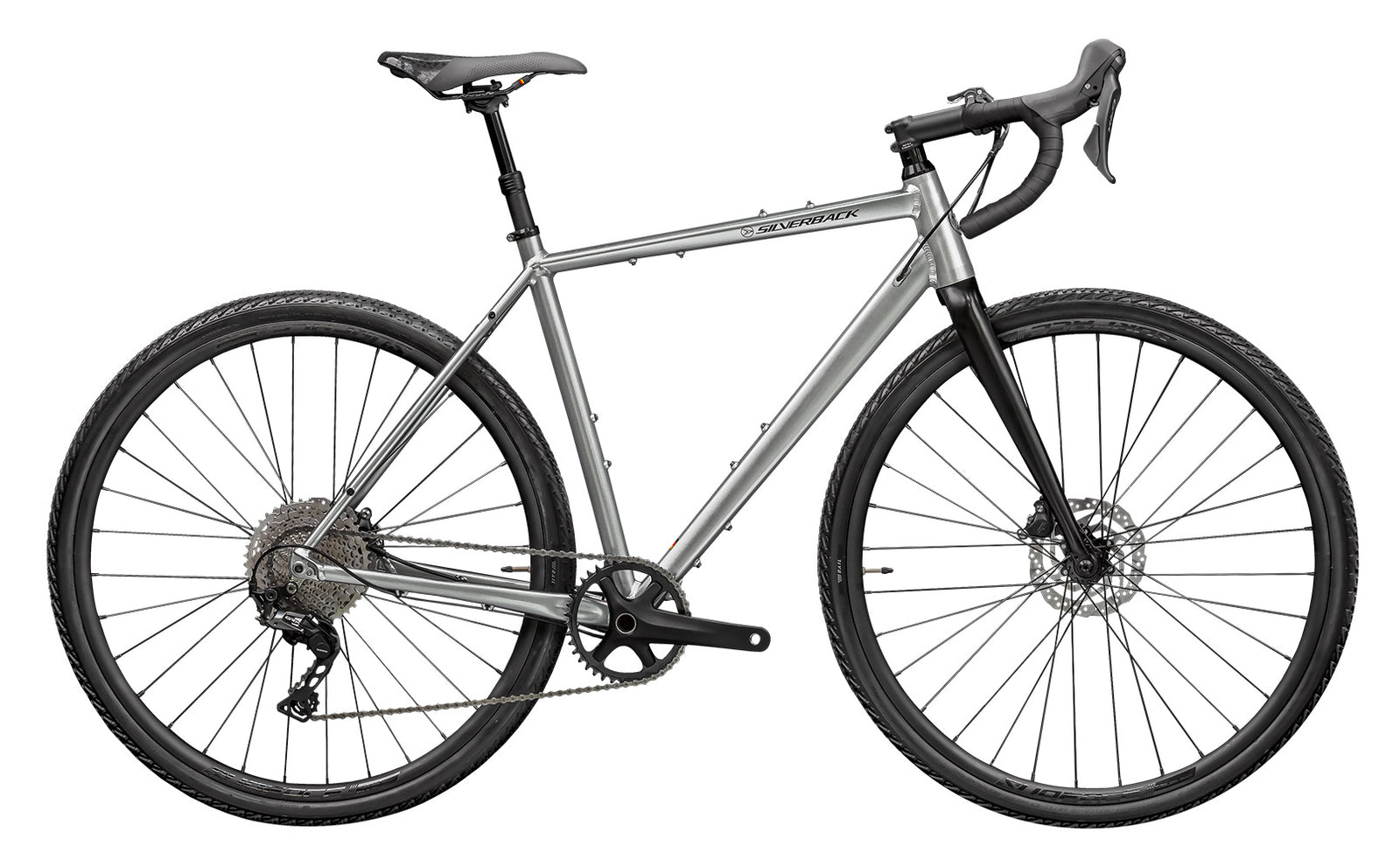

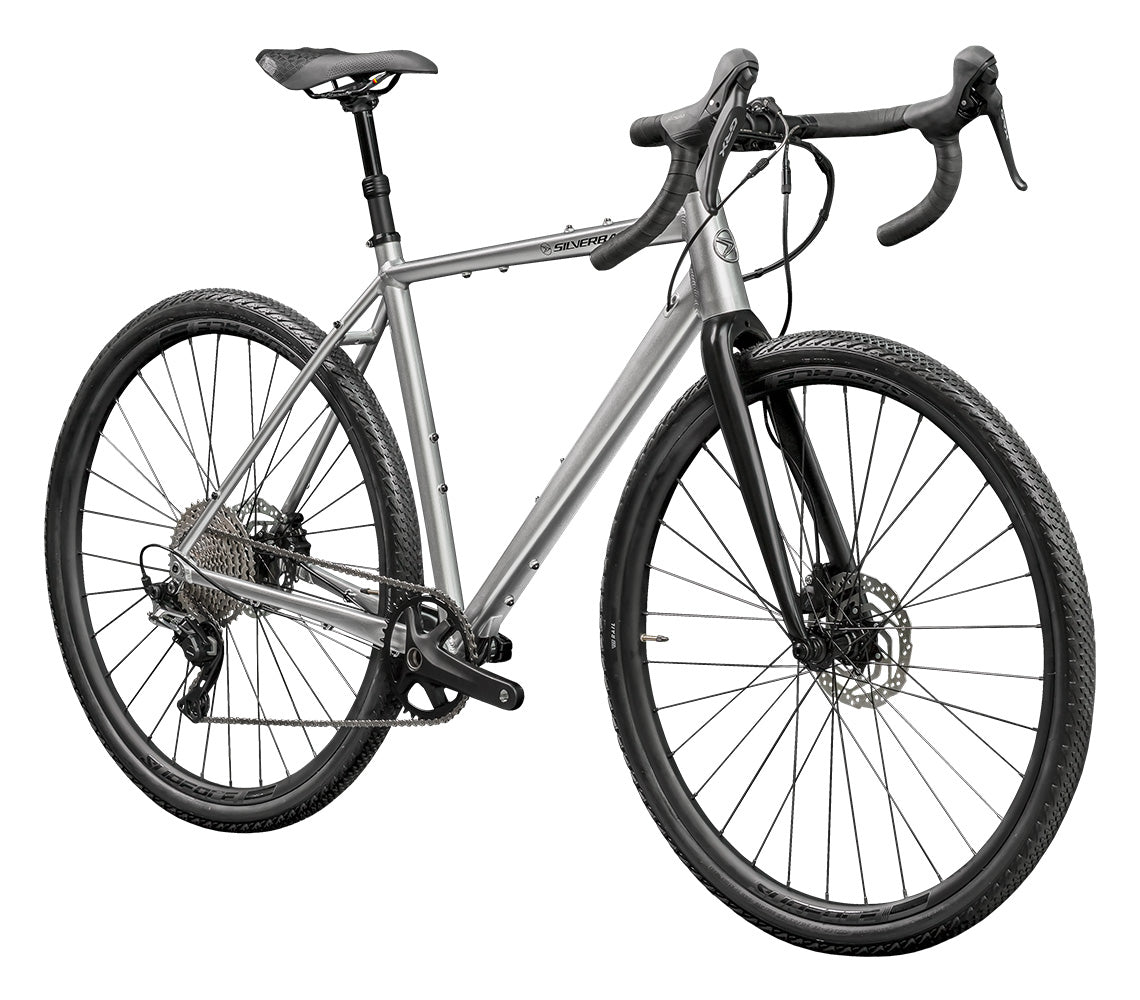

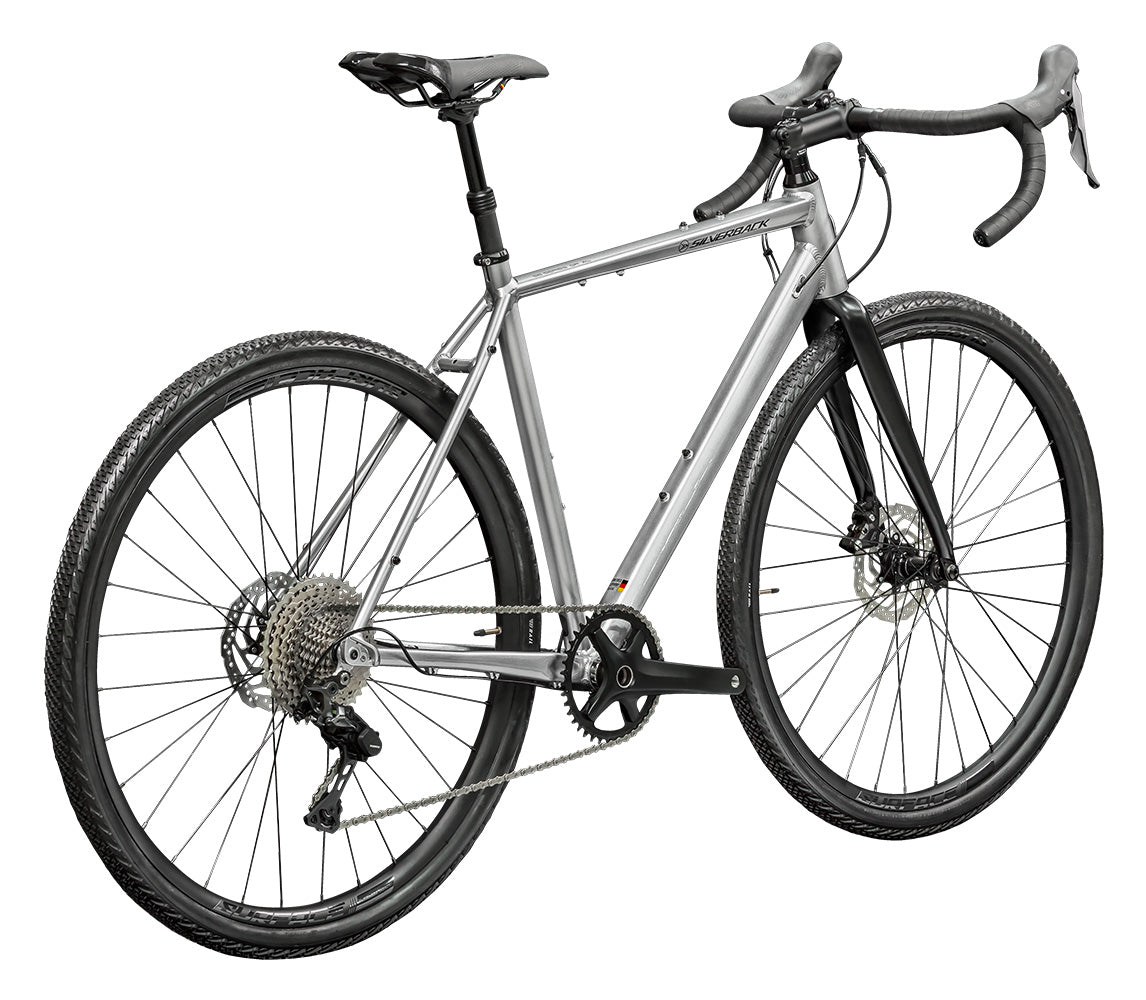

The SE:Series GR AL 11 has been designed from the ground up as a gravel bike, exceeding the broad demands put on the gravel category. The rigid aluminium fork delivers reliability and performance. Designed with current trends and future insight the SE:Series GR AL is an extremely versatile bike, capable of fitting up to 700x45C tyres or 650b road plus should you want the extra comfort. Shimano 11-speed GRX groupset, rack mounts, threaded BB, and Shimano hydraulic disc brakes create a bike that is practical and easy to service with basic tools.

Auf einen Blick

Alloy Gravel Frame, Tapered Headtube, 12x142mm thru-axle dropouts
Alloy Fork, 12mm thru-axle, Disc mount
Shimano GRX 1 x 11spd Rear Derailleur
Shimano GRX Hydraulic Disc Brakes
Surface dropper seatpost
Surface 700c alloy gravel wheels
CST 700 x 40c tyres
Weight: 12.2 kg

TECHNISCHE HIGHLIGHTS

ALLOY GRAVEL FRAME

SE:SERIES GR AL frame is manufactured from hydro formed, butted 6061 alloy tubing making for a very strong frame. For this kind of application - a gravel frame, a strong aluminium frame is a reliable choice. Hydro forming is a process to shape alloy tubing from the inside, using pressurized water and/or oil into a negative mold cavity resulting in stronger thin wall tubing.

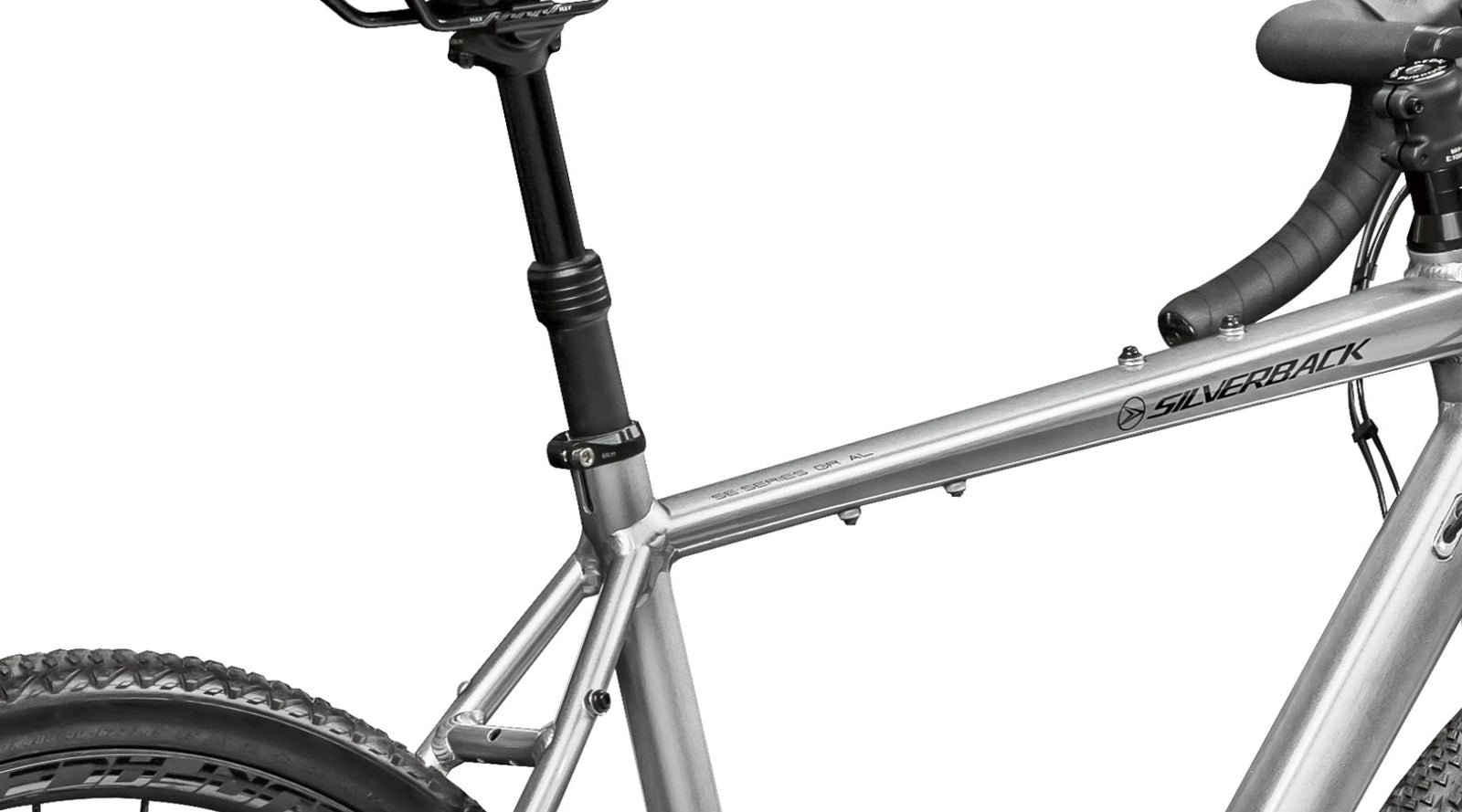

DROPPER POST INCLUDED

The SE:SERIES GR AL includes a dropper seatpost with 100mm of travel. The dropper post cable is routed internally through the frame, with a multi-position remote lever on the handlebars.

THRU AXLE DROPOUTS

Thru-axles effectively bolt the wheel to the frame or fork. By comparison, QR systems only slot in place, and compress the dropout to retain the wheel. The increased strength and stiffness of thru-axles can be attributed to both the increase in effective engagement area and the fixing mechanism to the dropout. The thru-axle system is significantly safer, with fewer points for potential failure.

DISC BRAKES

SE:SERIES GR AL features Shimano hydraulic disc brakes. Disc brakes offer all-weather performance, great modulation.

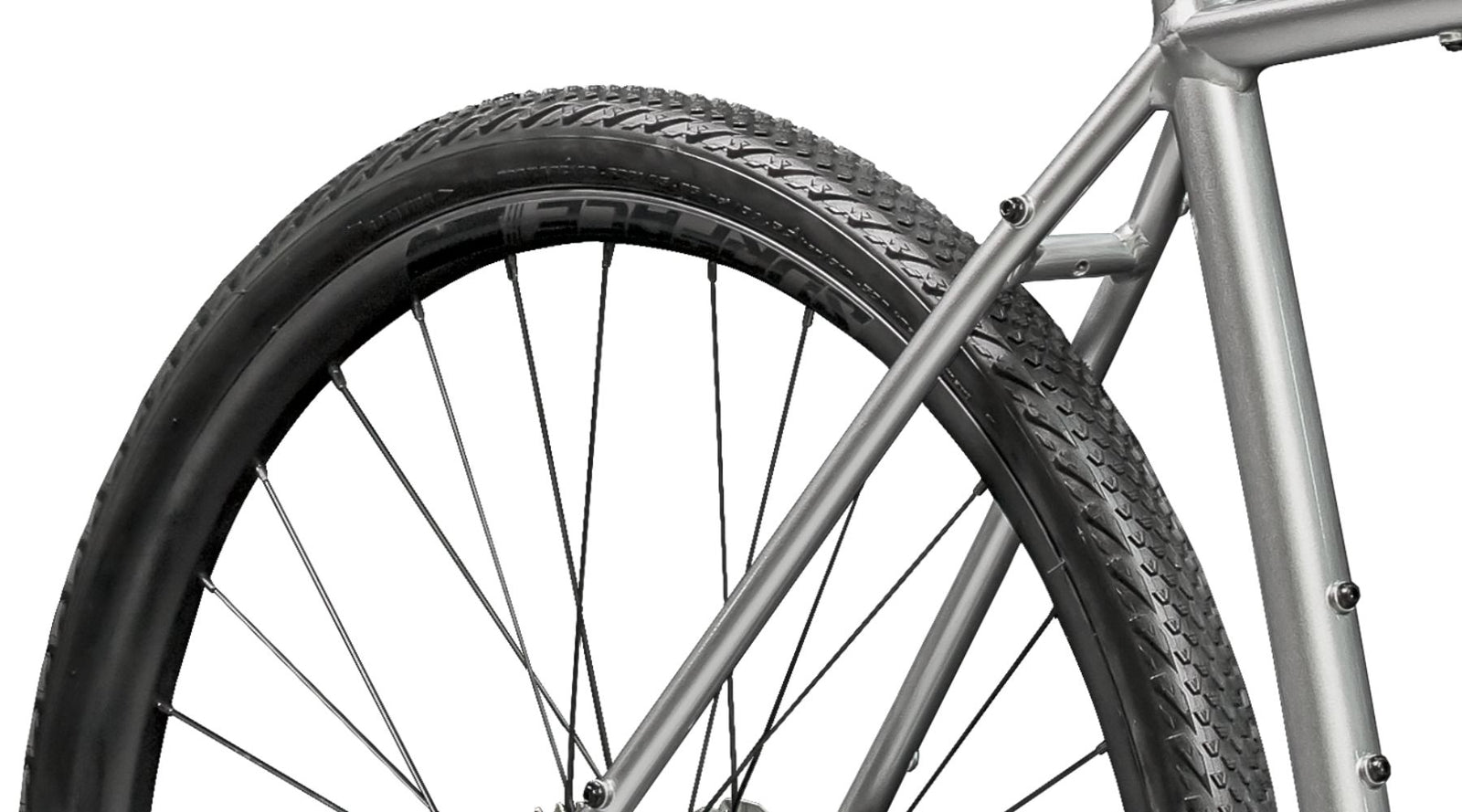

WIDE TYRE CLEARANCE

The frameset is compatible with both 700C large volume tyres and 650B tyres.It is designed to fit a maximum size 700 x 45C and 650B x 1.8” tyre. For long distance riding, over moderate to easy terrain; 700C tyres are recommended. While for shorter, demanding terrains, 650B tyres will be the best option.

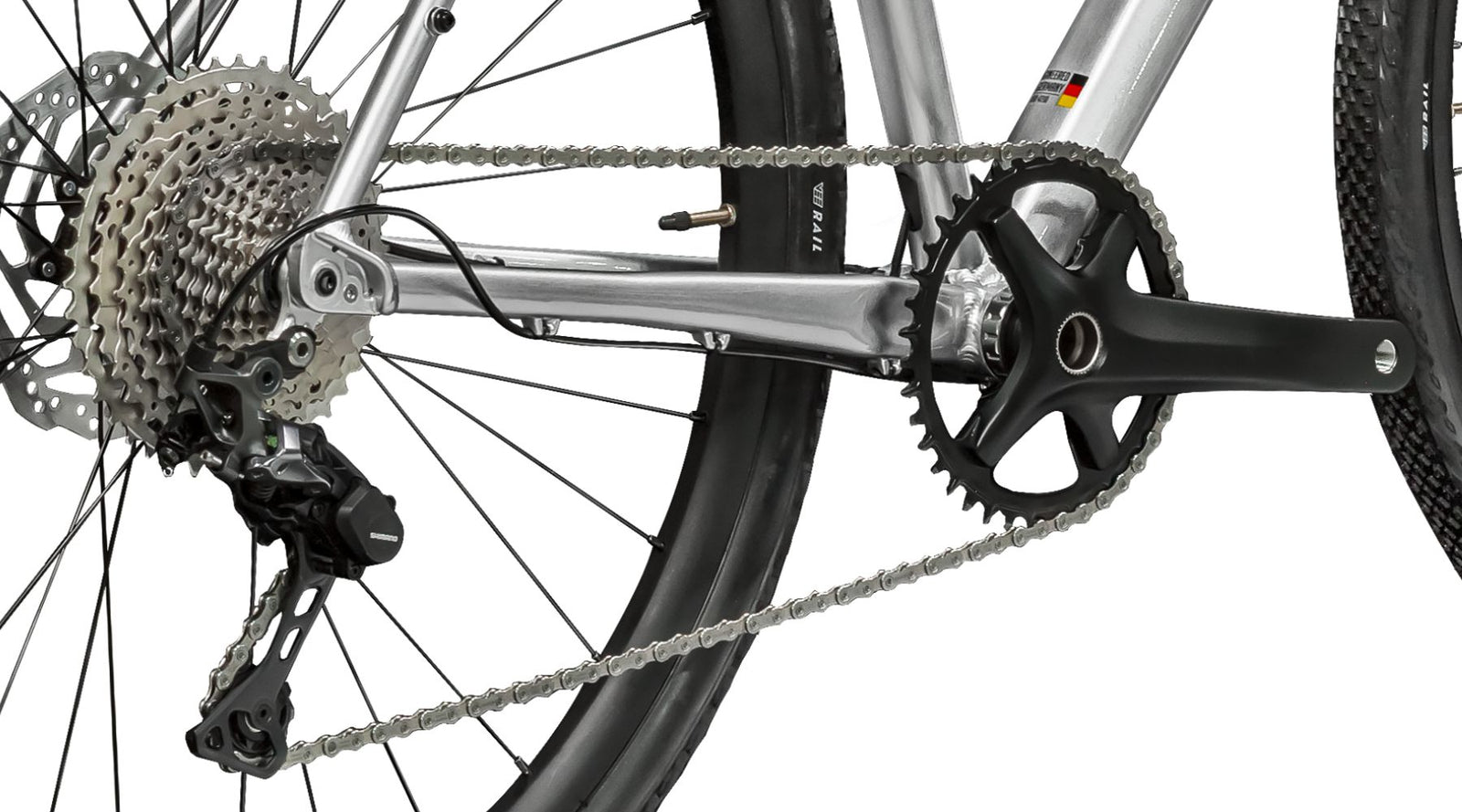

SHIMANO 11-SPEED GRX DRIVETRAIN

Efficient shifting, superior durability and the 11-42T cassette offers plenty of gears for almost any terrain.

FLARED HANDLEBARS

The flare on the drop allows for a more natural interface between hand and handlebar. The 16° flare increases clearance between the hoods and wrist, when riding in the drops, allowing for adequate clearance to navigate the bike through demanding terrain.

GRAVEL FOCUSED GEOMETRY

The wheelbase of the frameset is semi-short to retain a trail capable bike, with good weight distribution under load. A slack head angle makes for a terrain capable front end that will roll challenging obstructions. The steeper seat angle aids in ascending more efficiently, with better power transfer at variable gradient increase. The SE:SERIES GR AL is super capable and wants to be challenged.

CABLE MANAGEMENT

Internal routing keeps the cockpit neat and cables out of harm's way. Also full length housing internal cables have less chance s of dirt ingression, keeping maintenance down.

FENDER AND RACK COMPATIBLE

Includes mounting points for rear racks, allowing you to haul your gear when you commute/tour. (Rack sold separately)

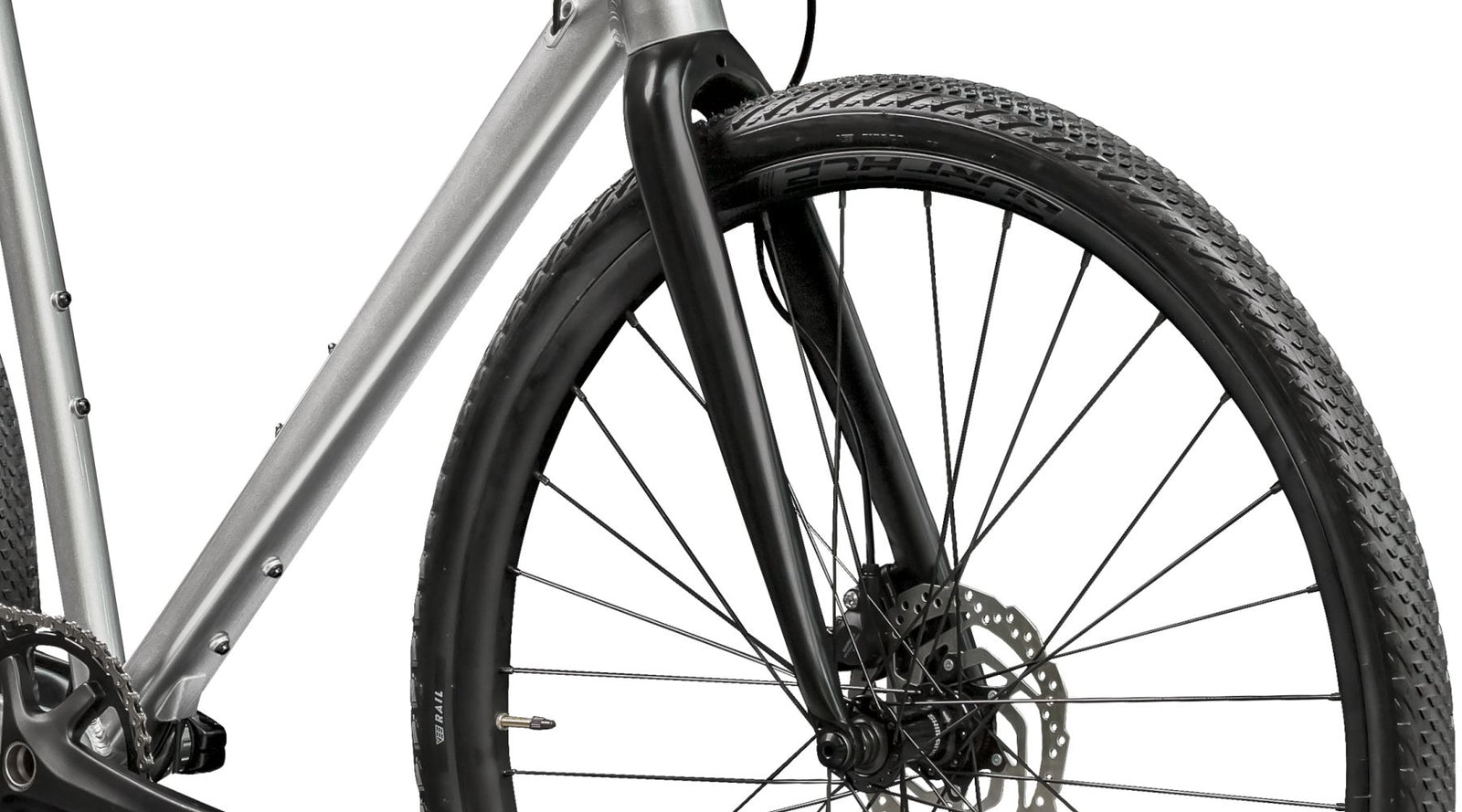

ALLOY FORK

The alloy fork has all-round performance and functionality.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Aluminium Gravel frameset, Custom Triple Butted Hydro-formed 6061 Frame, Flat-mount Disc Brake Mounts. Supports 700C and 650B Wheelsize, including Internal Routed Dropper Post Compatible.

Headset

Token A83-15 Headset, ZS44/28.6 ZS56/40

Frame Axle Spacing

142x12mm

Front Axle Specification

100x12mm, P1.5

Hanger Type

HANGER 37

FORK

Fork

Aluminium, 12mm thru-axle, Disc mount

WHEELS

Wheelset

SURFACE Alloy 700C

Hubs

F: Shimano HB-RS470, 32H, OLD: 12x100mm Thru-Axle
R: Shimano FH-RS470, 32H, OLD: 12x142mm Thru-Axle

Rims

SURFACE Alloy, 700 x 25mm (21mm internal width), 32H, Tubeless Ready

Tyres

CST C1870N, 700 x 40c, Wire Bead

Max Tyre Size

45C

DRIVETRAIN

Crankset

SURFACE Alloy, 11-speed, 40T narrow-wide chainring, 170 ~ 175 mm (XS ~ XL)

Max Chainring Size

40T

Bottom Bracket & Type

BSA 68mm

Shifter(s)

Shimano GRX RX600

Rear Derailleur

Shimano RD-RX812 GRX, 11-speed, Top Normal, Shadow Plus, Direct Attachment

Cassette

Shimano CS-M5100 Deore, 11-speed, 11-42T

Chain

Shimano CN-HG601-11, 116 Links

BRAKES

Brakes

SHIMANO BR-RX410 Hydraulic Disc

Rotors

Shimano RT10 160mm

COCKPIT

Grips

Surface Seude tape, Plug with Expander Bolt

Handlebar

Surface Alloy drop bar, Ø31.8mm, Drop: 124mm, Reach 75mm, Flare: 16°, Width: 380 ~ 440mm (XS ~ XL)

Stem

Surface Alloy, Barbore: Ø31.8mm, Rise: 7°, 80 ~ 110mm (XS ~ XL)

Saddle

Surface Gravel optimised, steel rails

Seat Post

Surface Alloy Dropper, Ø27.2mm, Multi-position remote lever, Travel: 100mm

Seatpost Clamp

Surface Alloy

Pedals

Not Included

WEIGHT

Bike Weight

12.2 kg

RIDER WEIGHT LIMIT

120 kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

What type of terrain is the SE:Series GR AL suitable for?

The SE:Series GR AL is best suited to paved-road and dirt-road use.
Can I fit a kickstand to my SE:Series GR AL?

Yes, the SE:Series GR AL has an 18mm kickstand mount. Compatible with the Speedkit Kickstand CL-KA98 on Speedlab.
Can I fit 27.5" wheels to the SE:Series GR AL?

Yes, the maximum clearance is 1.8".
What is the gear range for the rear derailleur?

The gear range is 11-13-15-17-19-21-24-28-32-37-42T.
What type of brakes does the SE:Series GR AL have?

The SE:Series GR AL has hydraulic disc brakes.
What is the maximum tyre clearance of the SE:Series GR AL?

The SE:Series GR AL has a maximum tyre clearance of 45C.

ANDERE MODELLE DER SERIE

€686

SE:SERIES 10

Hardtail | Trail | Alloy

120mm Travel
29" x 2.4" Wheels
1x10 Speed Shimano
16.5kg

€1.499

SE:SERIES GR AL 11

Gravel | Fitness | Alloy

Alloy Fork
700C x 40C Wheels
1x11 Speed Shimano
12.2kg

€1.999

SE:SERIES GR CF 11

Gravel | Performance | Full Carbon

Carbon Fork
700C x 40C Wheels
1x11 Speed SRAM
9.5kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type	XS	S	M	L	XL
	Rider height(cm)	143-156	152-164	164-172	170-178	178-188
	Rider inseam(cm)	65-70	69-74	74-78	77-81	81-85
a	Seat tube c/t	475	505	525	545	565
b	Seat tube angle	75°	74.5°	74°	73.5°	73°
c	Head tube angle	70°	70.5°	71°	71.5°	71.75°
d	Top Tube	512	525	540	554	569
e	Reach	375	380	385	390	395
f	Chainstay length	435	435	435	435	435
g	bb height	281	293	283	283	283
h	head tube length	105	125	145	165	185
i	stack	532	551	572	593	613
j	standover	458	504	502	525	545
k	Wheelbase	1023	1031	1038	1046	1054
