DAILY COMMUTER MEETS OFFROAD GETAWAY

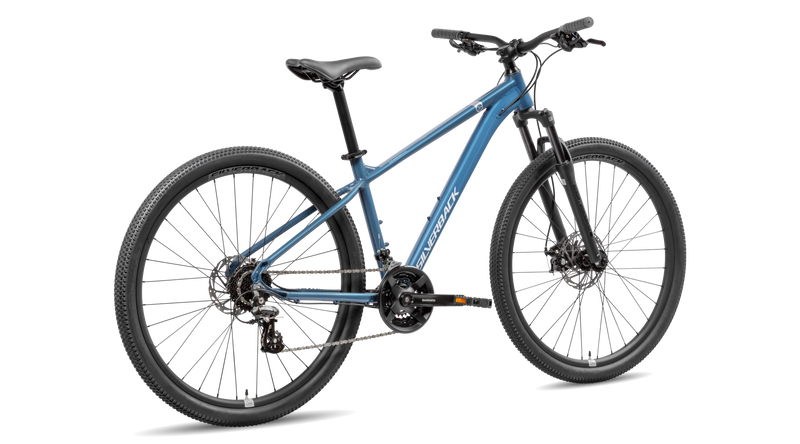

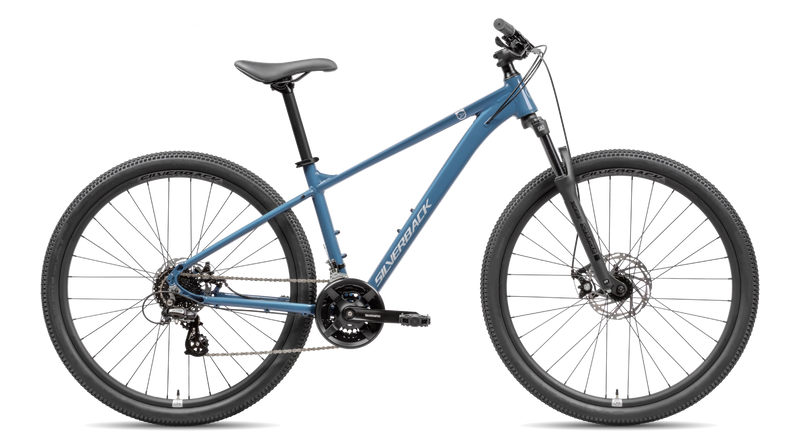

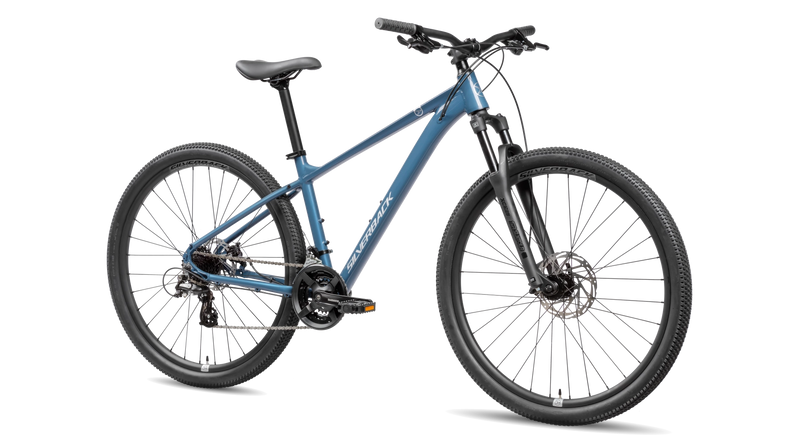

Hardtail sport riding for every day adventurers and commuters. Featuring a 8-Speed Shimano ESSA drivetrain and 100mm suspension fork, the SE:Series 8 is an off-road Sport-XC bike, ideal for weekend adventures. The included standard kickstand and rack mounts, make it equally comfortable and convenient for your daily commute.

Auf einen Blick

Hydro-formed 6061 alloy frame
Suntour XCE28 Fork, 28mm stanchions, 100mm travel
Shimano Altus 8-speed rear derailleur
Surface Tubeless Ready wheelset with Shimano hubs
CST 2.10" tyres
Tektro Mechanical Disc Brakes
Weight: 15.5 kg

TECHNISCHE HIGHLIGHTS

DAILY COMMUTER MEETS OFFROAD GETAWAY

Hardtail sport riding commuters and offroad getaways. Featuring a 8-Speed Shimano Journey/Altus drivetrain, 100mm suspension fork, and disc brakes, make the SE:Series 8 MD an off-road Sport-XC bike, ideal for weekend adventures. The included standard kickstand and rack mounts, make it equally comfortable and convenient for your daily commute.

SPORT OPTIMISED POP GEOMETRY

POP geometry engages bigger leg muscle groups for more effective climbing. The rider position on the SE:Series 8 improves traction, front wheel grip and bike control. This means that it also feels more natural, boosting confidence and skill development.

Disc Brakes

The SE:Series 8 MD comes equipped with cable-actuated disc brakes for stronger and more reliable stopping power than V-brakes.

Hydroformed alloy frame

Hydroformed tubing, T6 - 6061 Aluminium, semi-internal cable routing, dropper compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5" tyre clearance, rack and fender mounts.

3 x 7 SPEED Drivetrain

Ample gears for your commute! A chainring guard is also included on all 3x drivetrains to help prevent clothing getting caught.

Easy-route internal cable routing

SE:Series 8 MD features full internal routing. The brake line follows the seatstay, making this the shortest possible rear brake line route on the bike. Dropper post cable routing is included for future bike upgrades.

Internal Dropper post compatible

SE:Series 8 MD models have internal cable routing ready for a dropper post upgrade. (Dropper post sold separately)

High volume - 2.35" tyre compatibility

Tyre compatibility is up to 2.35" wide, offering noticeably better bump absorption and grip!

Waterbottle mounts

SE:Series 8 MD offers more waterbottle mount options. Sizes M-XL have capacity for 2 full sized bottles while size Small has 1. (Bottle cages sold separately)

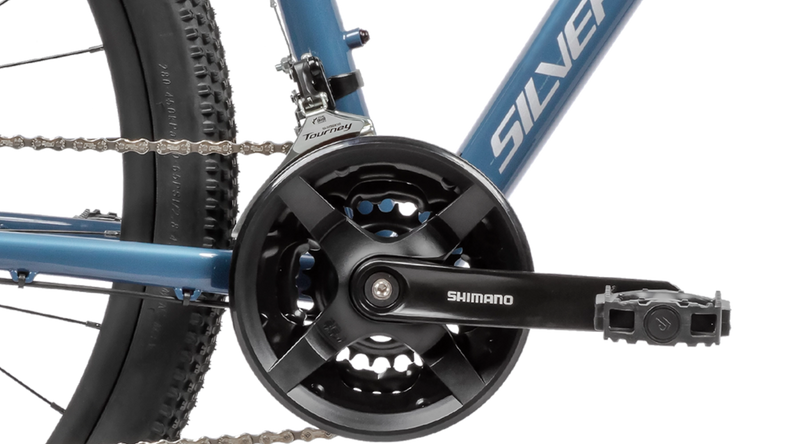

INTEGRATED CHAINRING GUARD

Keep clothes, shoelaces, and pant legs from getting caught in the drivetrain so everyday riding stays clean and hassle‑free.

WIDE TYRE CLEARANCE

Run bigger, more stable tyres that boost comfort, grip, and control across mixed terrain.

RACK MOUNTS INTEGRATED IN FRAME.

All SE:Series models include mounting points for rear racks, allowing you to haul your gear when you commute/tour. (Rack sold separately)

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Hydroformed tubing, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.35" tyre clearance, rack and fender mounts.

Headset

Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/39.8

Frame Axle Spacing

135x9mm

Axle Specification

Hanger Type

HANGER 22

SUSPENSION

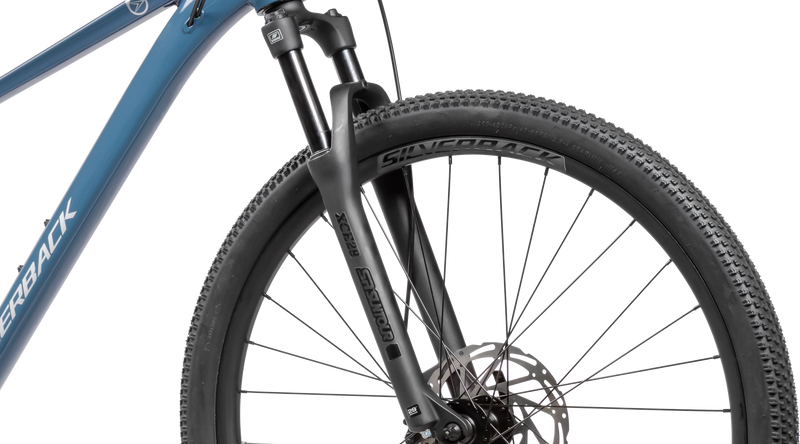

Fork

SR Suntour XCE28 Coil, 29" x 2.25", 28mm Stanchions, 100mm Travel

Fork Travel

100mm

WHEELS

Wheelset

Silverback Custom

Hubs

F: Joytech, Alloy, 32H, OLD: 100mm, 6-bolt disc, QR
R: Joytech, Alloy, 32H, OLD: 135mm, 6-bolt disc, QR, 8-11 Speed

Rims

F: Silverback Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready
R: Silverback Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready

Tyres

F: CST 1820, 29x2.10"; Wire Bead
R: CST 1820, 29x2.10"; Wire Bead

Max Tyre Size

2.35"

DRIVETRAIN

Crankset

Shimano FC-TY301, 175mm cranks, 42/34/24T chainrings with chainguard, 8-Speed

Max Chainring Size

42/34/24T

Bottom Bracket & Type

BSA73

Shifter(s)

L: Shimano SL-M315-L Altus Shift Lever, Rapidfire Plus, 3-Speed
R: Shimano SL-M315-8R Altus Shift Lever, Rapidfire Plus, 8-Speed

Front Derailleur

Shimano FD-TY300 Tourney, 3-Speed, Down pull, Ø34.9mm

Rear Derailleur

Shimano RD-M310-L Altus, 8-Speed, Direct Attachment

Cassette

Shimano CS-HG31, 11-32T, 8-Speed

Chain

PYC, 114 links, 8-speed

BRAKES

Brakes

Tektro MD-M280, Cable-actuated Disc, Resin Pads

Rotors

F: Tektro TR180, 180mm, 6-bolt
R: Tektro TR160, 160mm, 6-bolt

COCKPIT

Grips

Silverback Single Density

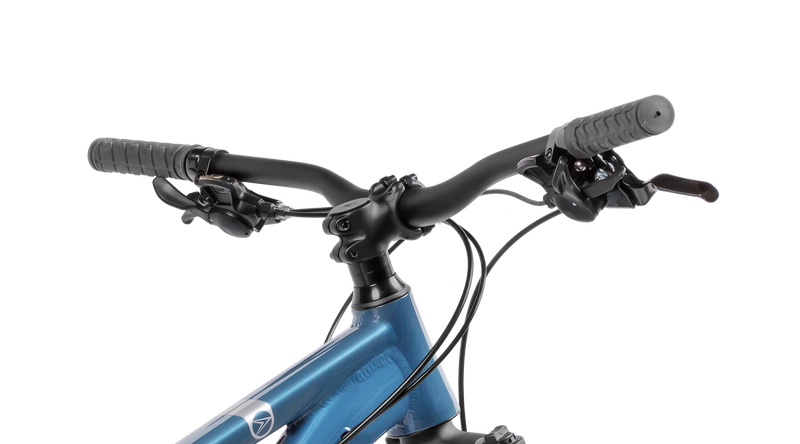

Handlebar

Silverback, Alloy, Ø31,8mm, 720~760mm, 9° Backsweep, 30mm Rise

Stem

Silverback, Alloy, Ø31.8mm, ±3° Rise, 45mm Extension

Saddle

Silverback

Seat Post

Silverback Alloy, Ø30.9mm

Seatpost Clamp

Alloy, Ø35mm, QR Clamp

Pedals

One Piece Alloy Pedal, Black

WEIGHT

Bike Weight

15.5 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

What hanger model fits the SE Series 8MD?

Hanger 22
Is the bike tubeless or tubeless ready or will it need to be fully converted?

This bike has tubeless ready rims, however, the tyres will need to be replaced with tubeless tyres
What is the longest dropper post I can fit on this bike?

Estimated max dropper travel per frame size: S: 125mm, M: 150mm, L: 170mm, XL: 170mm
Can I order this model as a 650B plus?

Yes, XS, S & M are available in 650B / 27.5"
Can I fit a longer fork onto this bike?

No, we dont recommend more than a 100mm travel fork.
Will the geometry change if I fit 650B plus wheels?

Yes, the BB height, stack & standover will be lower.

ANDERE MODELLE DER SERIE

€515

SE:SERIES 7 (NEW GEN)

Hardtail | Sport XC | Alloy

100mm Travel
26/27.5/29" Size-specific
3x7 Speed Shimano
16.5 kg

€519

SE:SERIES 8 MD (NEW GEN)

Hardtail | Sport XC | Alloy

100mm Travel
29"/27.5"
1x8 Speed Shimano
15.5kg

€749

SE:SERIES 9 (NEW GEN)

Hardtail | Sport XC | Alloy

100mm Travel
27.5/29" Size-Specific
1x9 Speed Shimano
16.3kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XS(27.5")	S(27.5")	M(27.5")
	Rider height(cm)	143-156	153-170	170-180
	Rider inseam(cm)	65-70	69-77	77-81
A	Seat tube c/t	350	380	420
B	Seat tube angle	74°	74°	74°
C	Head tube angle	68°	68°	68°
D	Top Tube	565	582	604
E	Reach	393	410	430
F	Chainstay length	445	445	445
G	bb height	325	325	325
H	head tube length	95	95	105
I	stack	598	598	607
J	standover	711	706	735
K	Wheelbase	1109	1126	1150

map	type(mm unless specified)	S(29")	M(29")	L(29")	XL(29")
	Rider height(cm)	153-170	170-180	178-190	188-210
	Rider inseam(cm)	69-77	77-81	80-86	85-95
A	Seat tube c/t	380	420	460	500
B	Seat tube angle	74°	74°	74°	74°
C	Head tube angle	67.5°	67.5°	67.5°	67.5°
D	Top Tube	585	607	630	658
E	Reach	410	430	450	475
F	Chainstay length	460	460	460	460
G	bb height	328	328	328	328
H	head tube length	95	105	115	125
I	stack	610	619	628	637
J	standover	716	745	774	802
K	Wheelbase	1144	1168	1192	1221
