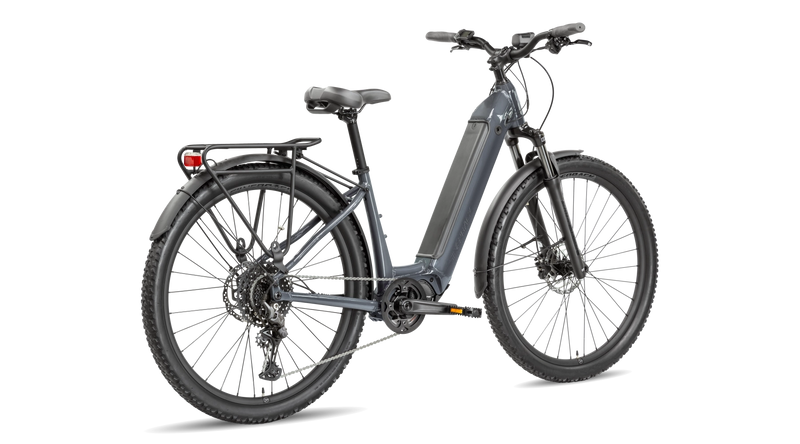

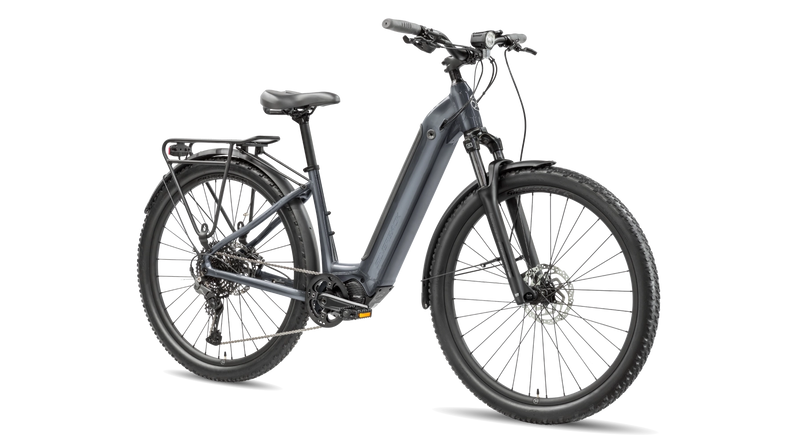

S-ELECTRO STEP-SERIES 10

€2.999,00

Add to cart

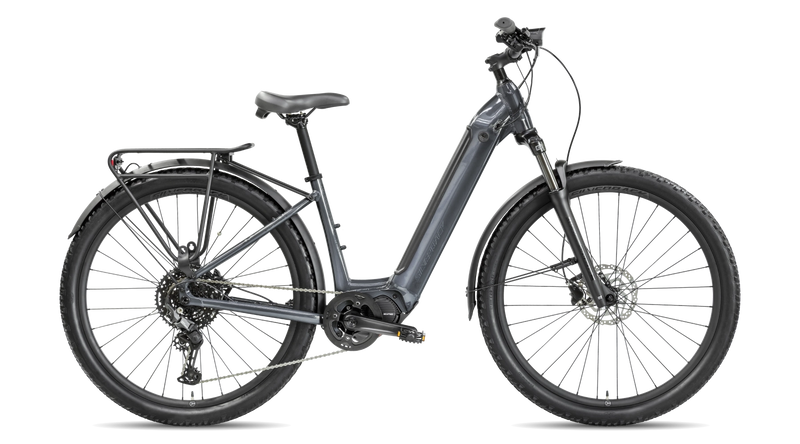

MODERN COMMUTER E-BIKE.

Built for smooth, capable everyday riding, this step‑through e‑bike combines the powerful Shimano EP6 motor with a long‑range 630Wh removable battery to make any route feel effortless. Large 29" wheels roll efficiently over city streets and rougher paths, supported by a front suspension fork that adds comfort and control. A Shimano handlebar‑mounted display and remote keep ride data and assist modes close at hand, while full‑coverage front and rear fenders handle wet commutes. Hydraulic disc brakes deliver reliable stopping power, and the 10‑speed Shimano CUES drivetrain ensures crisp, dependable shifting mile after mile.

Auf einen Blick

6061 Hydro-formed alloy step-thru hardtail e-bike frame
SR Suntour XCM32, 100mm, Coil suspension fork
Shimano EP6 250W mid-motor, 85Nm torque
630Wh internal removable battery
Shimano CUES 1 x 10-Speed drivetrain
Custom Silverback wheelset with Shimano hubs
CST 29 x 2.25" tyres
Silverback lightweight alloy components
Weight: 24.8 kg

TECHNISCHE HIGHLIGHTS

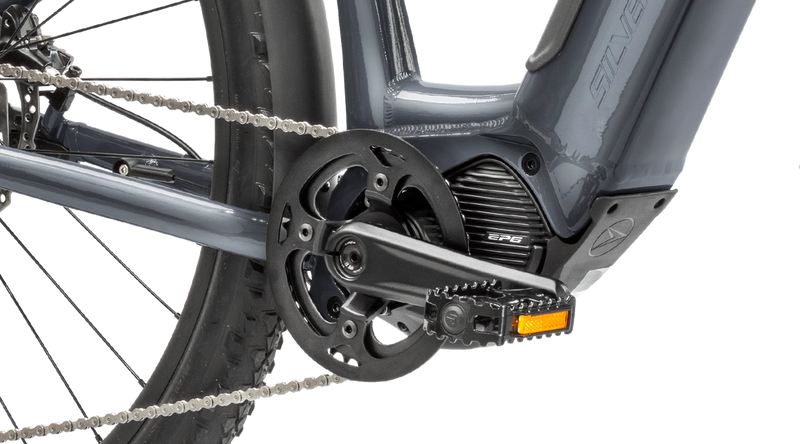

POWERFUL MID-MOTOR

Shimano EP6 mid-motor is ideal for a commuter bike because it delivers smooth, quiet power with 85 Nm torque and 250W nominal power including customizable assist for effortless daily rides.

HIGH VOLUME 630 Wh BATTERY

630Wh removable internal battery delivering up to 2.5 hours / up to 100 km range of pedal assistance. Lock up your bike worry free – the battery is key removable only.

38T CHAINRING & CHAIN GUARD

38T Narrow wide chain and single Chainguard and built to fit and facilitate pedaling at higher speeds. The Narrow/Wide chainrings help prevent chain drop.

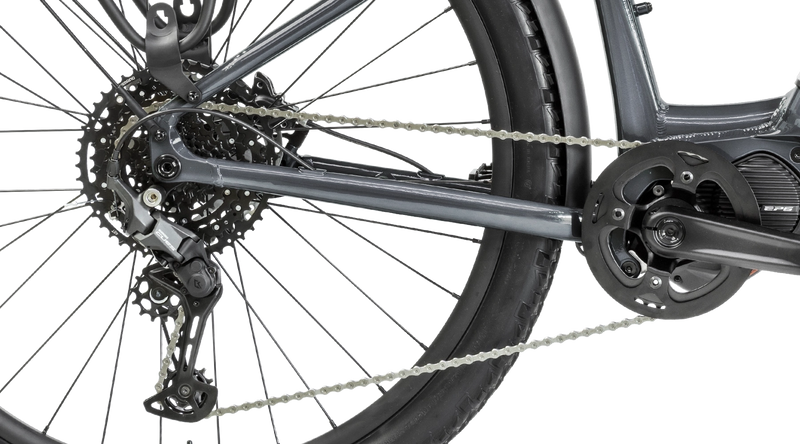

SHIMANO 10-SPEED DRIVETRAIN

Efficient shifting, superior durability and the 11-48T cassette offers plenty of gears for comfortable pedaling.

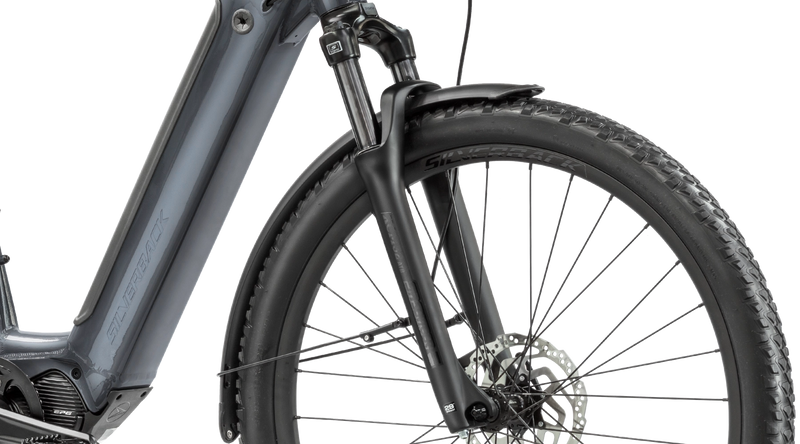

QUALITY SUSPENSION FORK

Featuring Suntour's XCM32 coil fork with 100mm of shock-absorption. Rated and tested strength and durability for E-bikes.

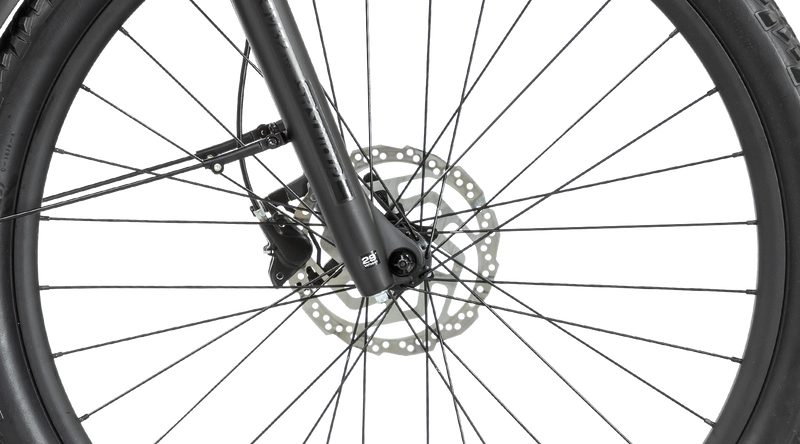

SAFETY FIRST

Powerful Shimano hydraulic disc brakes deliver superior stopping power in all conditions.

GEOMETRY

Ideal for commuting or touring. Step-thru frame design gives maximum clearance, making it great for both male and female riders.

LONG-TRAVEL DROPPER POSTS

The frame's waterbottle bosses are welded to the outer surface of the seat-tube, allowing the seatpost to slide deeper. More space for longer travel!

TUBELESS READY E-BIKE RIMS

The S-Electro Step Series includes tubeless ready rims, ready for future upgrades.

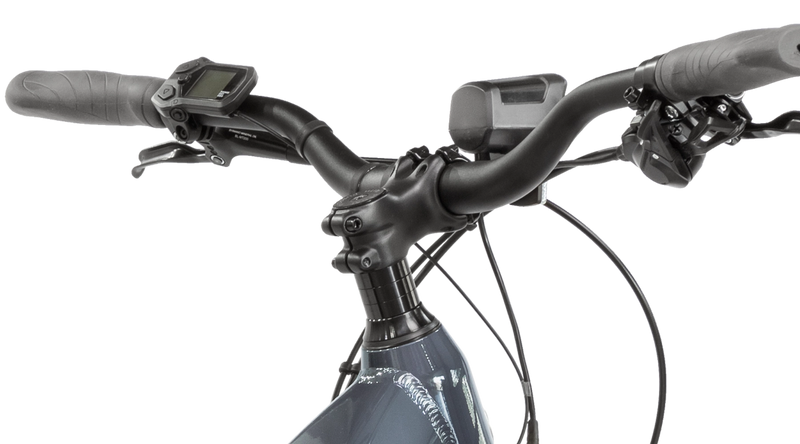

INFORMATIVE DISPLAY

Offering an informative display and remote control for intuitive operation as well as an ergonomic switch position.

E-BIKE RATED WHEEL SET

Strong and durable to better handle the power and weight of e-bikes. In addition, the E-MTB rated CST tyres are fast and smooth rolling for commuting.

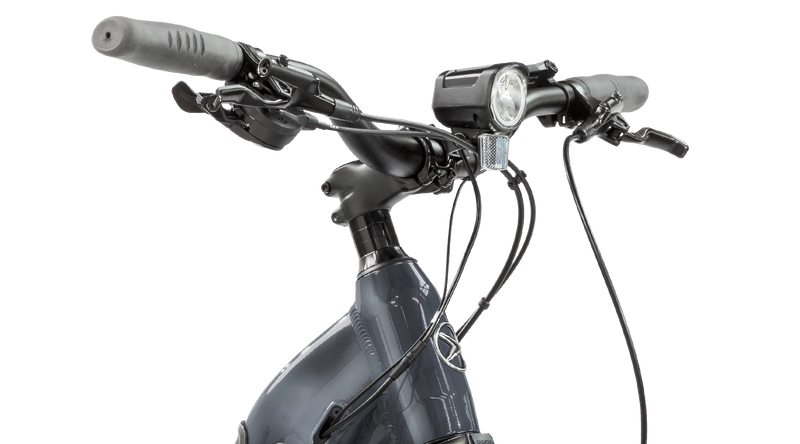

HEADLIGHT INCL.

A bright handlebar headlight boosts your visibility and keeps every ride safer, day or night.

ERGONOMIC SADDLE

S-Electro models offer an anatomically shaped saddle for more comfort.

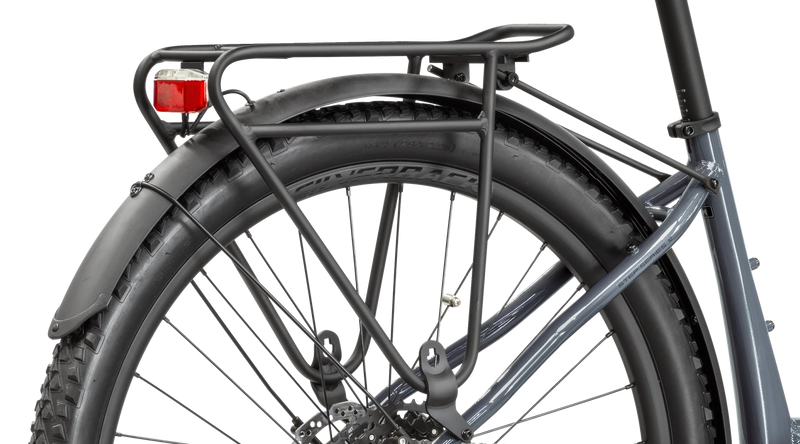

FENDERS AND RACKS INCL.

The S-Electro Step Series includes a rear rack & fenders, allowing you to haul your gear when you commute/tour.

KICK STAND MOUNT

Park your E-bike bike quickly and safely. (40mm dual bolt Kickstand included)

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

New Step-thru Frame, Updated Geometry and Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, Through Axle dropouts, 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 29" x 2.4" tyre clearance, removeable battery, rack and fender mounts

Headset

Semi-integrated threadless, ZS44/28.6, ZS56/39.8

Frame Axle Spacing

148 x 12mm

Front Axle Specification

100 x 9mm

Kickstand Mount

40mm Direct Mount

Hanger Type

Hanger 42

E-BIKE

Motor

Shimano DU-EP600, Mid-Position, 25km/h

Battery

Shimano BT-EN806-A, 630Wh In-Tube Removable Battery

Charger

Shimano EC-E8004-1 charger for EU/SINGAPORE/RUSSIA

Display

Shimano SC-EN500 STEPS Computer Display, 22.2mm clamp

Switch

Integrated with on-bar display

SUSPENSION

Fork

SR Suntour XCM32 ATB DS Coil, 1-1/8" tapered steerer, 29"x2.4" tyre clearance, 100mm Travel

Fork Travel

100mm

WHEELS

Wheelset

Silverback Custom Wheelset

Hubs

F: Shimano HB-QC300, Centre Lock Disc, 32H, QR: 133mm, OLD: 100mm
R: Shimano FH-TC500-HM-B, Centre Lock Disc, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm

Rims

F: Silverback 29" 25mm internal width, Symmetrical Alloy Rim, Tubeless Ready
R: Silverback 29" 25mm internal width, Symmetrical Alloy Rim, Tubeless Ready

Tyres

F: CST 1879 29x2.25" wire bead
R: CST 1879 29x2.25" wire bead

Max Tyre Size

2.35"

DRIVETRAIN

Crankset

Alloy, E-Bike Crank for Shimano EP6, 170mm, 38T Steel Chainring on Alloy spider with Single Chain Guard

Max Chainring Size

44T

Shifter(s)

R: Shimano SL-U6000-10R CUES 10-Speed, Rapidfire Plus

Rear Derailleur

Shimano RD-U6000 CUES, 10-Speed

Cassette

Shimano CS-LG300-10 CUES 10-Speed, 11-48T

Chain

Shimano CN-LG500 LG, 122 Links, 10-Speed

BRAKES

Brakes

F: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads
R: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads

Rotors

F: Shimano SM-RT10 180mm Rotor, with Lock Ring
R: Shimano SM-RT10 180mm Rotor, with Lock Ring

Max rotor size

180mm

COCKPIT

Grips

Double Density Grips, Black

Handlebar

Alloy, Dia: Ø31.8mm, 9° Backsweep, 50mm Rise, 720~740mm Width

Stem

Alloy, 60mm extension, Bar bore: Ø31.8mm, Rise 6°

Saddle

Silverback E-bike saddle

Seat Post

Alloy Ø30.9mm, 350-400mm length

Seatpost Clamp

Alloy Ø35mm QR Clamp

Pedals

One Piece Alloy Pedal, Black

Fenders

Matt Black Plastic fenders for Front and Rear

Rear Rack

Aluminium rack, 25kg weight limit

Kickstand

Surface, Alloy, 40mm direct-mount 2-bolt, adjustable foot

WEIGHT

Bike Weight

24.8 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Owner's Manuals

Technical Manuals & Setup Guides

Access the complete documentation for your bike:

General E-bike Operating Manual – Detailed technical specifications and care instructions. [Download]

Quick Start Setup Guide – Simple, step‑by‑step booklet to understand the essential controls. [Download]

FAQ.

Can I order an extra battery for my S-Electro Step Series?

Yes you can - get in touch and we can sort it out for you.
Can I chip my e-bike?

Most country laws prohibit the use of derestricting or chipping your e-bike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.
Can I fit a throttle to my e-Bike?

No.
Can I ride my e-bike without assist?

Yes - just pedal as you would any other bike.
Where can I find serial number of the S-Electro frame?

The frame serial number is located near the bottom bracket.
Can I customize my display to another language or change other settings?

Yes, there are instructions inside your e-bike manual.
Can I upgrade the length of my suspension on my bike?

The suspension length is normally determined by the frame design, it should not be changed.
What is the longest dropper post I can fit on this bike?

Max dropper travel per frame size: M: 150mm, L: 170mm
