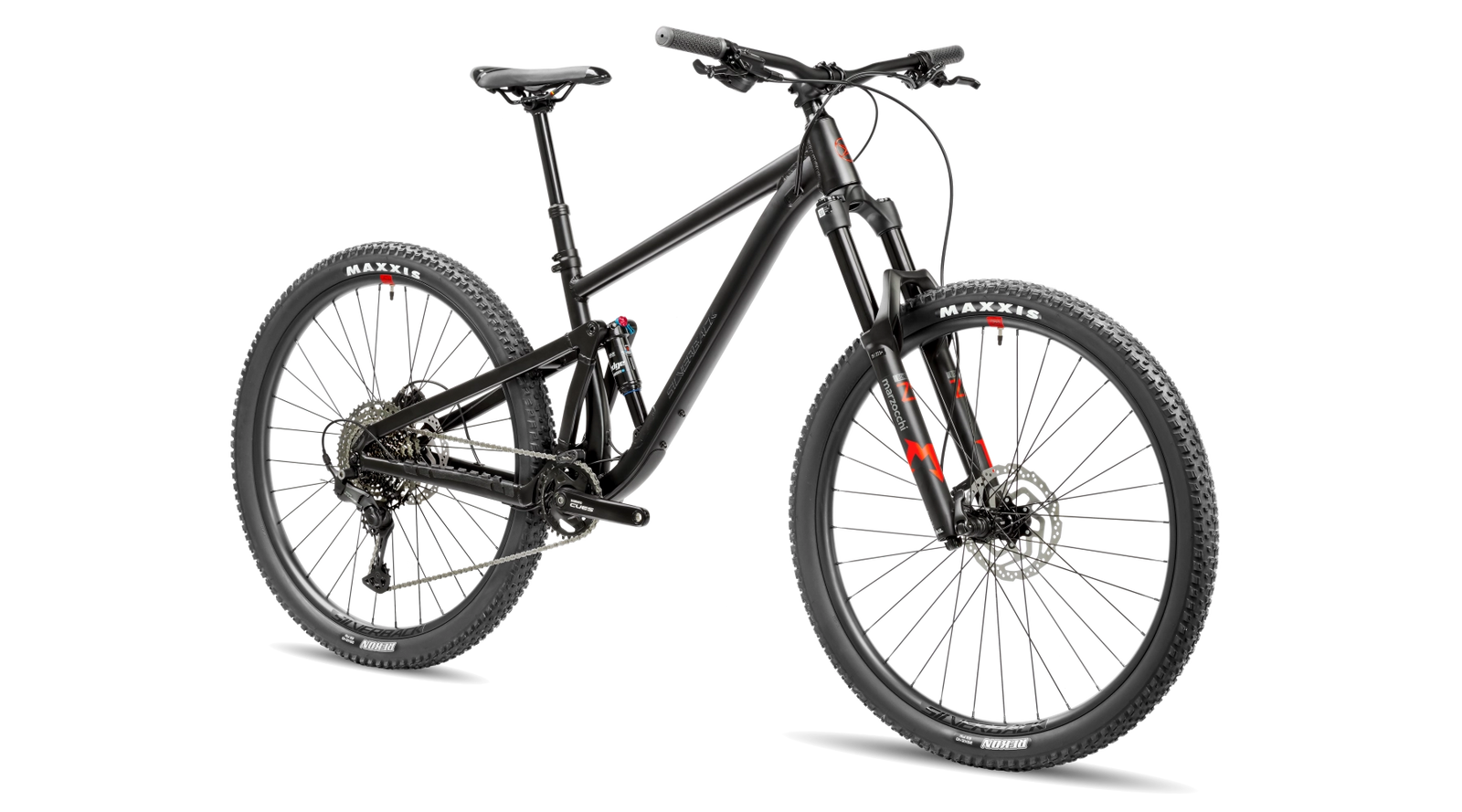

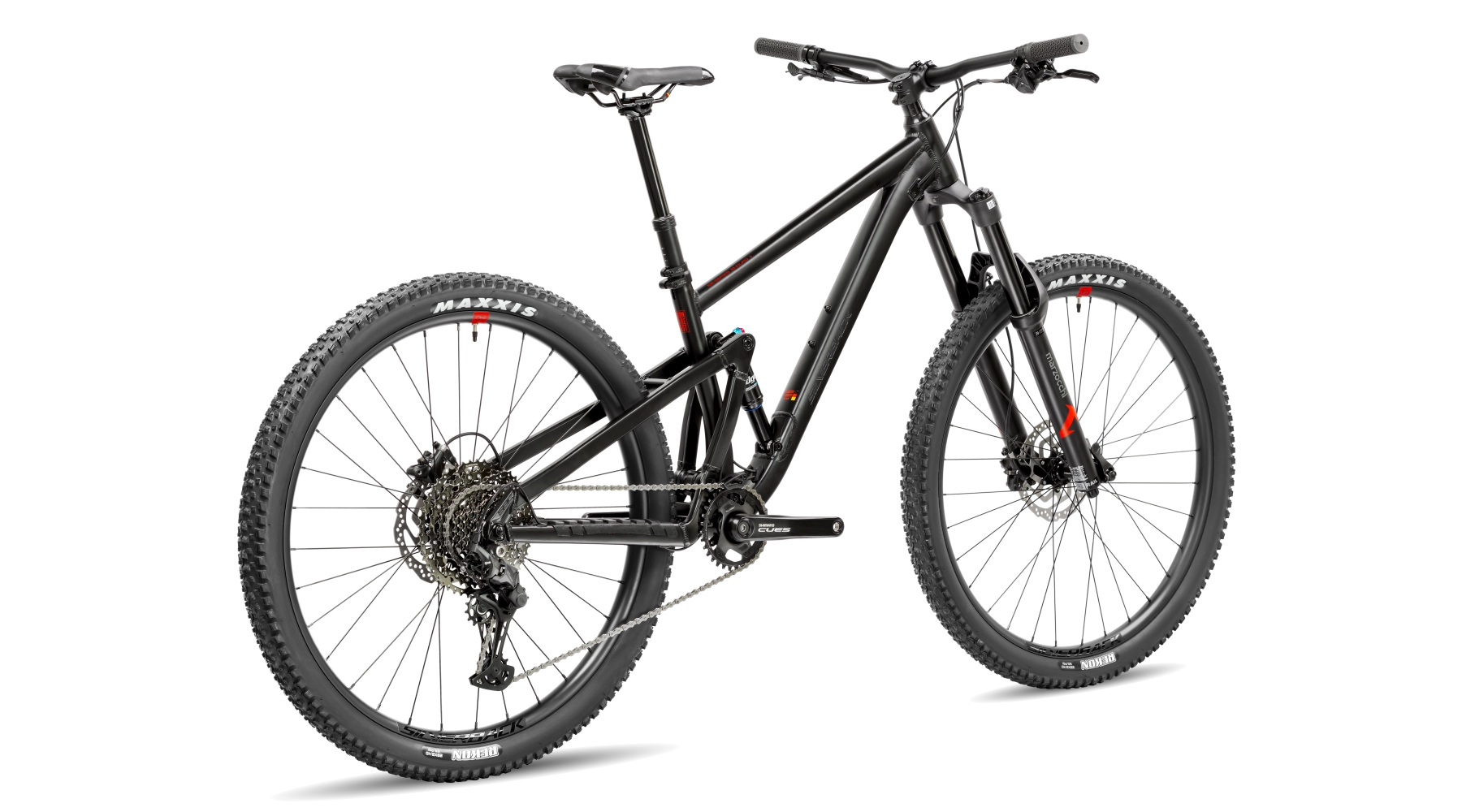

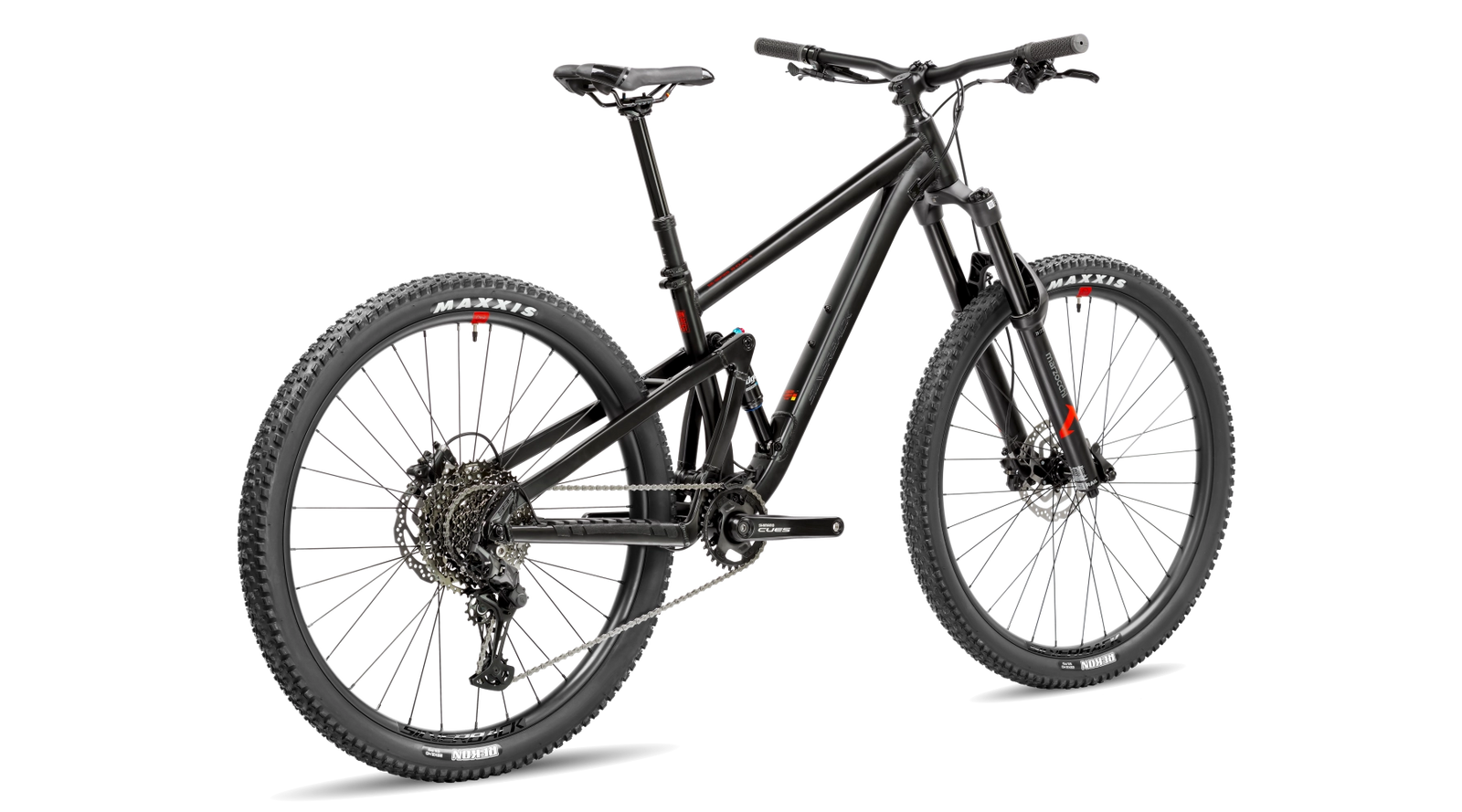

SE:SERIES ENDURO 11

Name: SE:SERIES ENDURO 11
Brand: Silverback
SKU: 0086544013003
Price: 2899.0 EUR
Availability: OutOfStock

€2.899

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.6 8 reviews

Size:

Color: STEALTH BLACK

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Supreme Bib Shorts - Cycle Kit - BornToBeFast - - - - Speedlab

B2BF Top Cap - Black

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-3

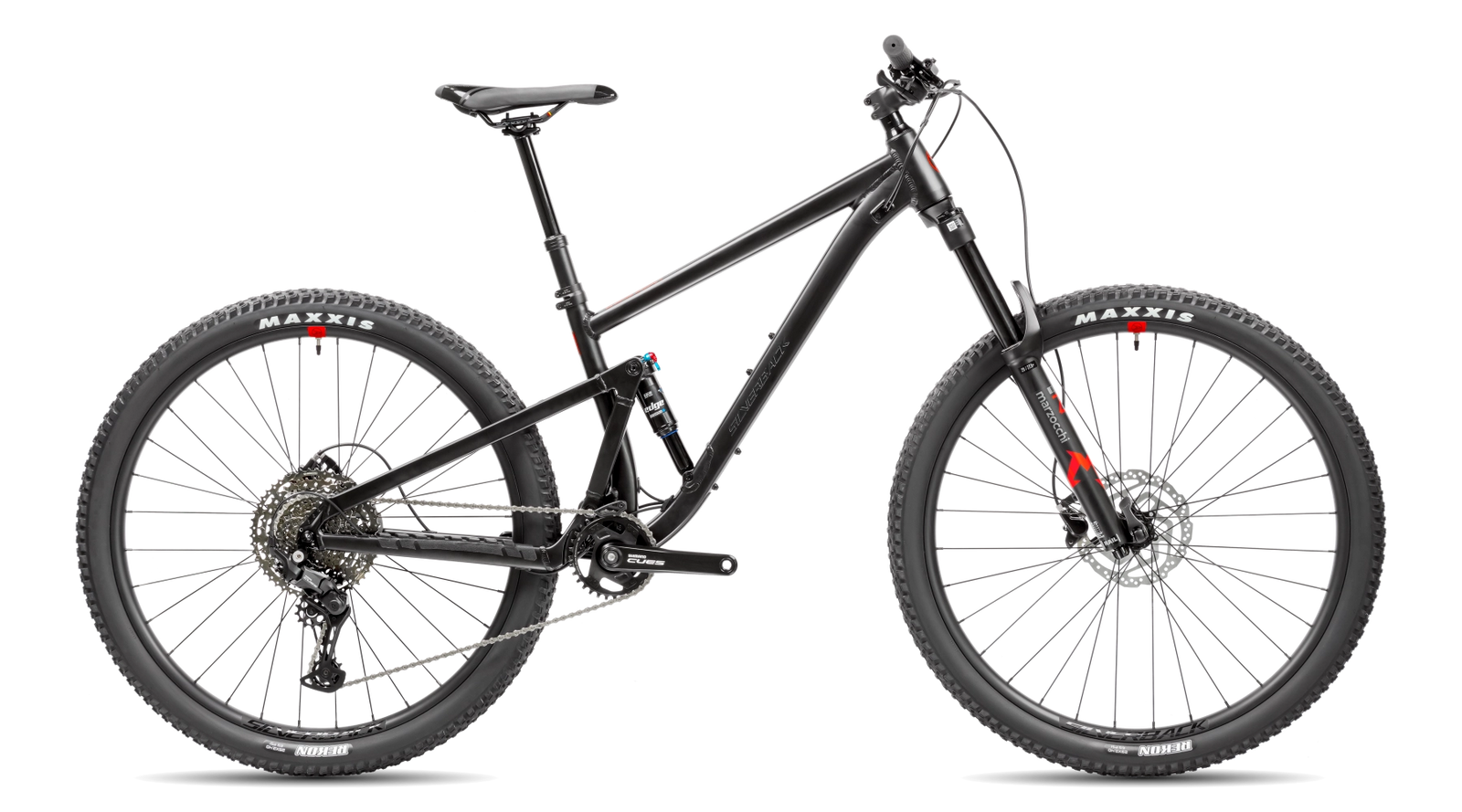

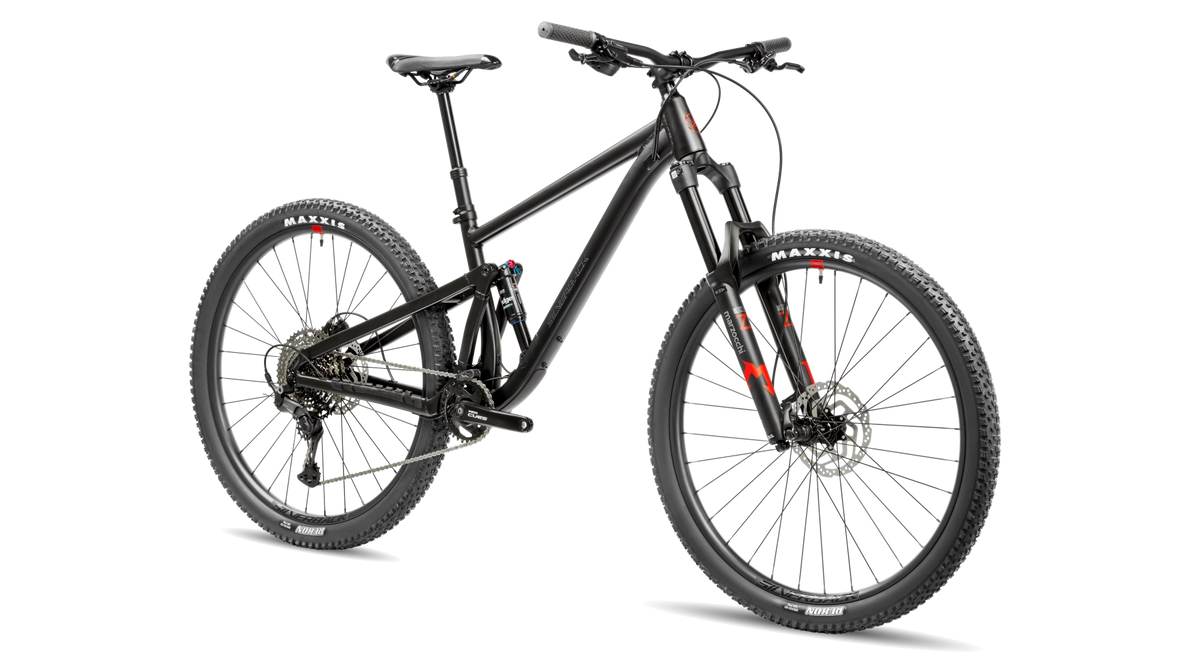

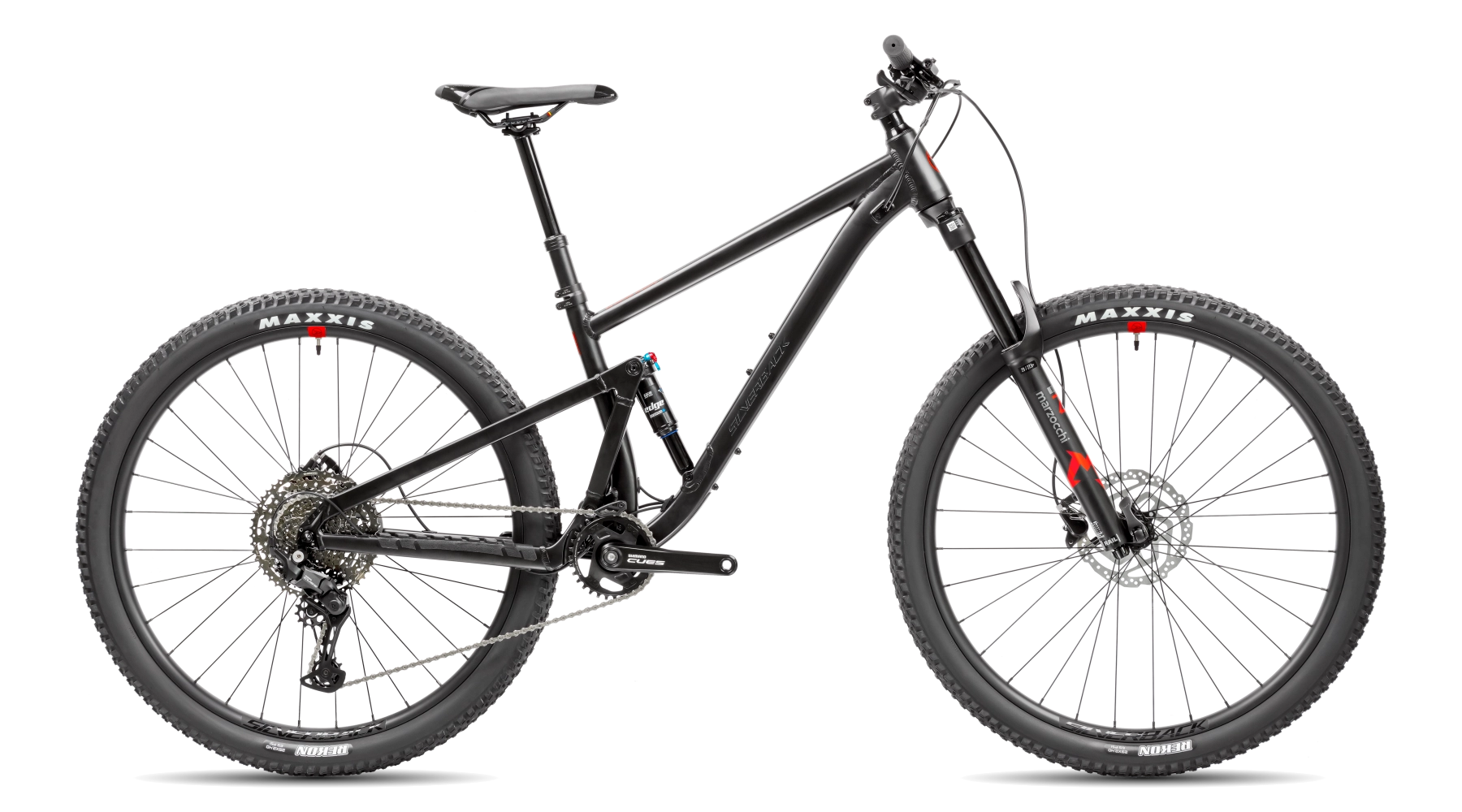

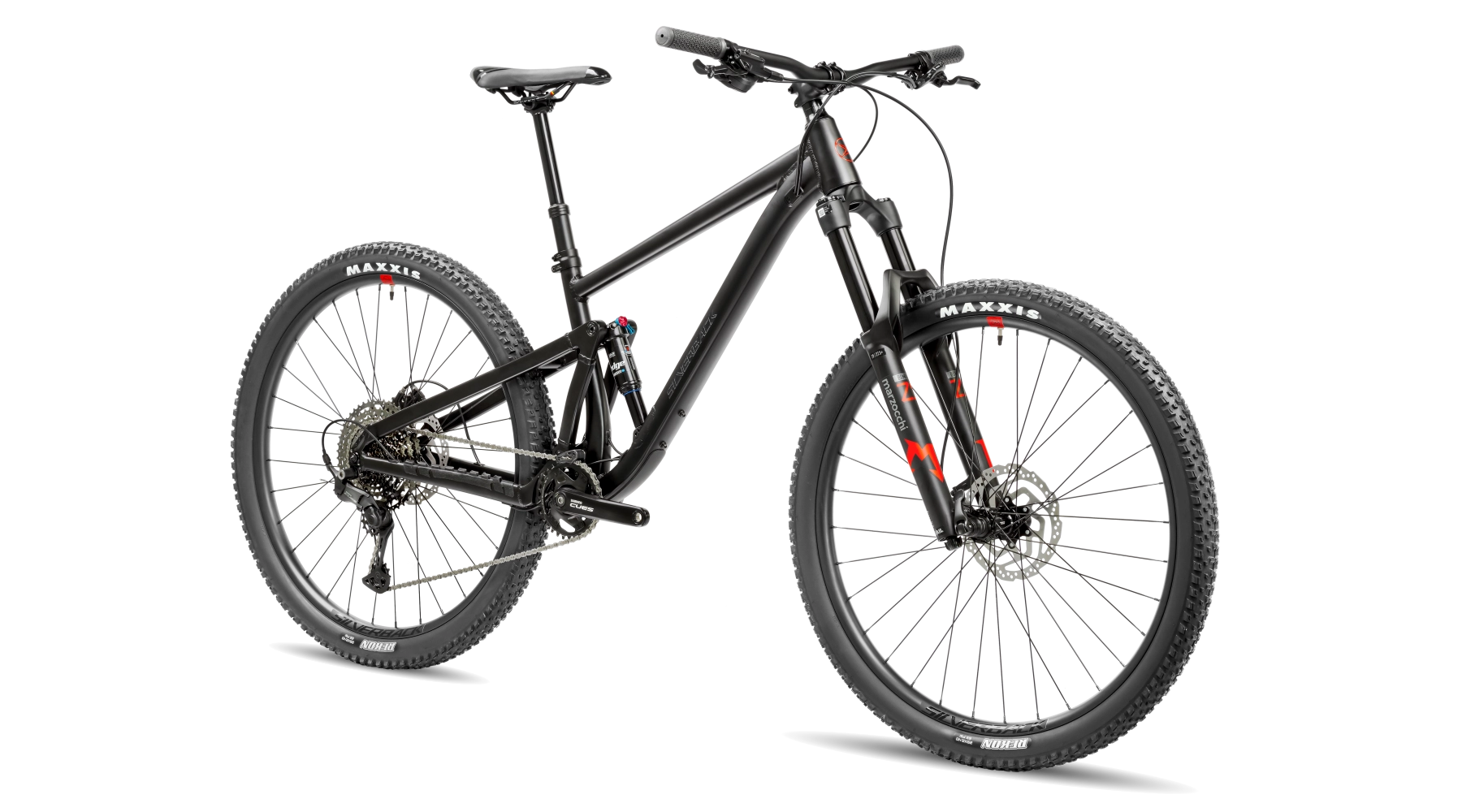

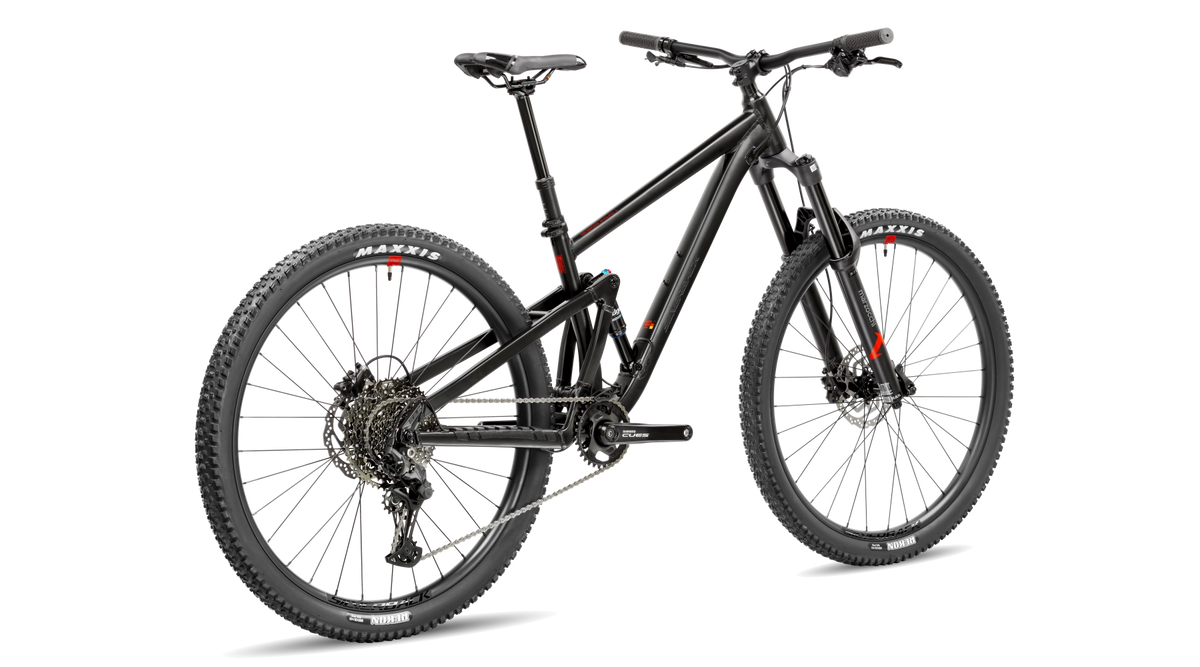

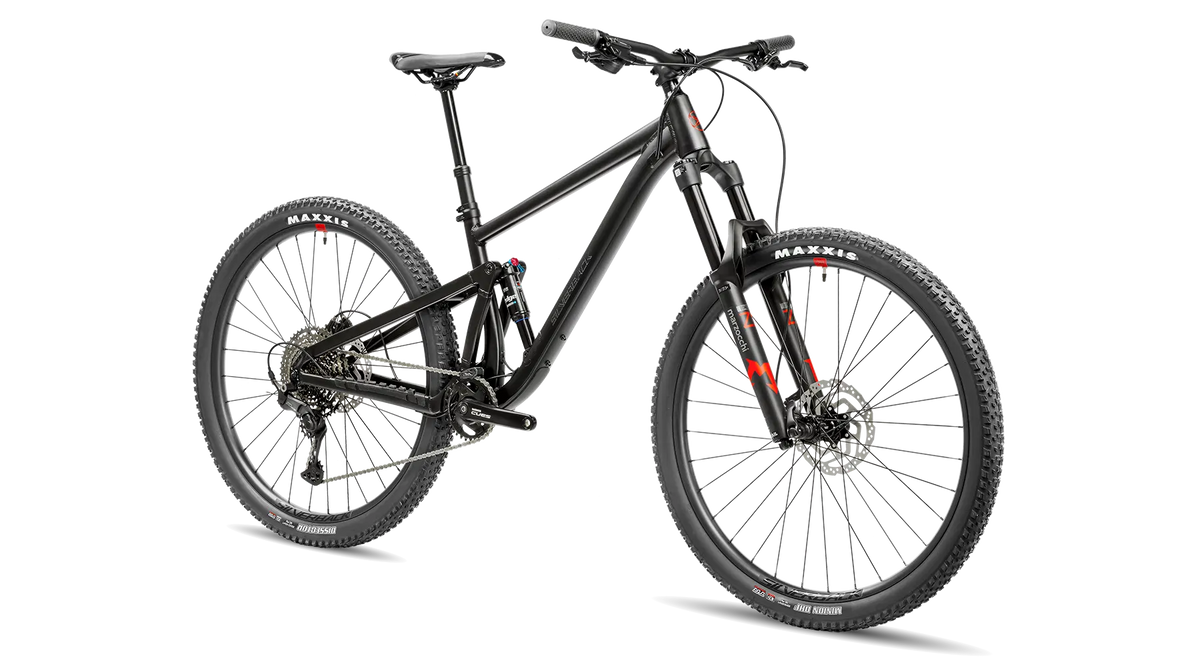

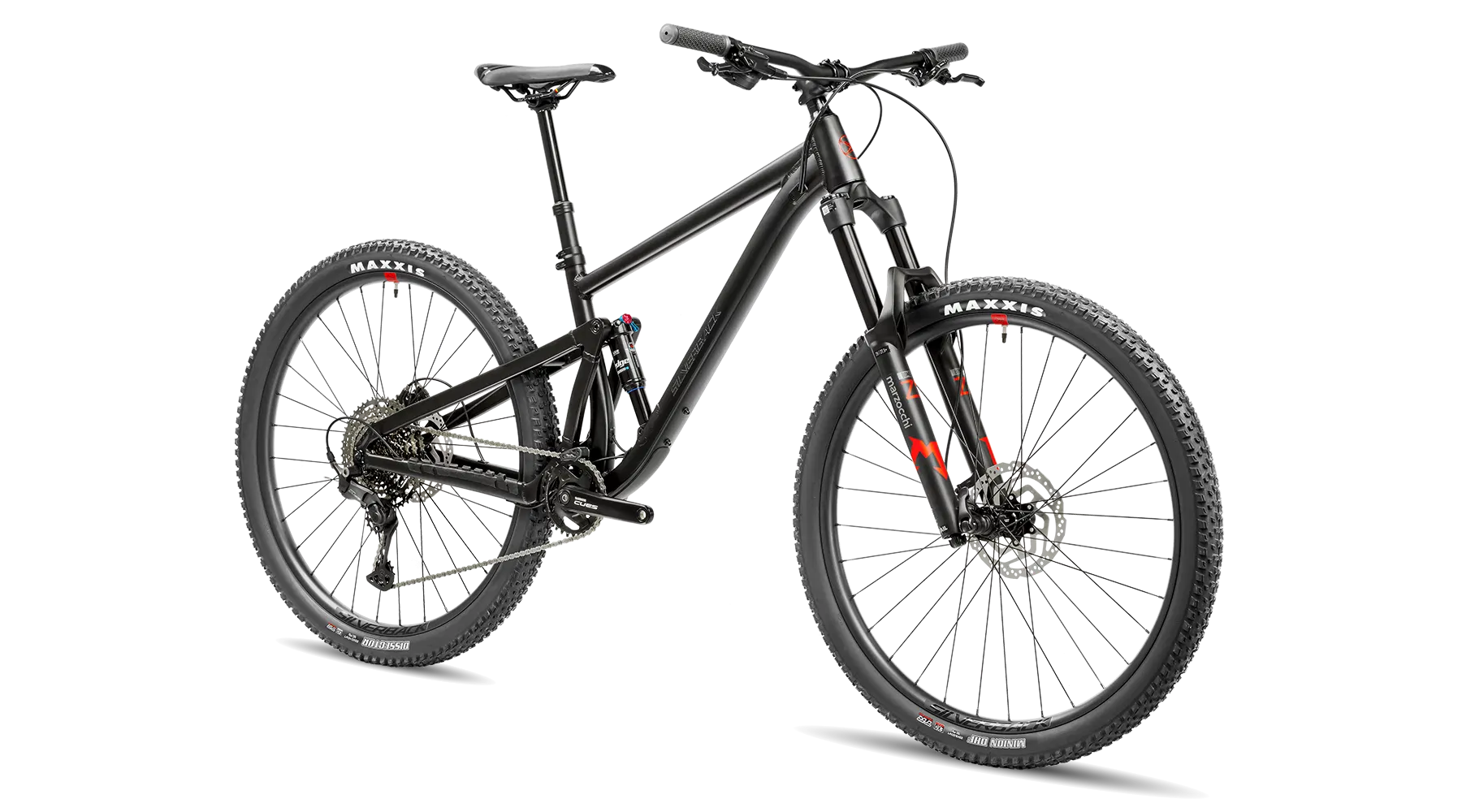

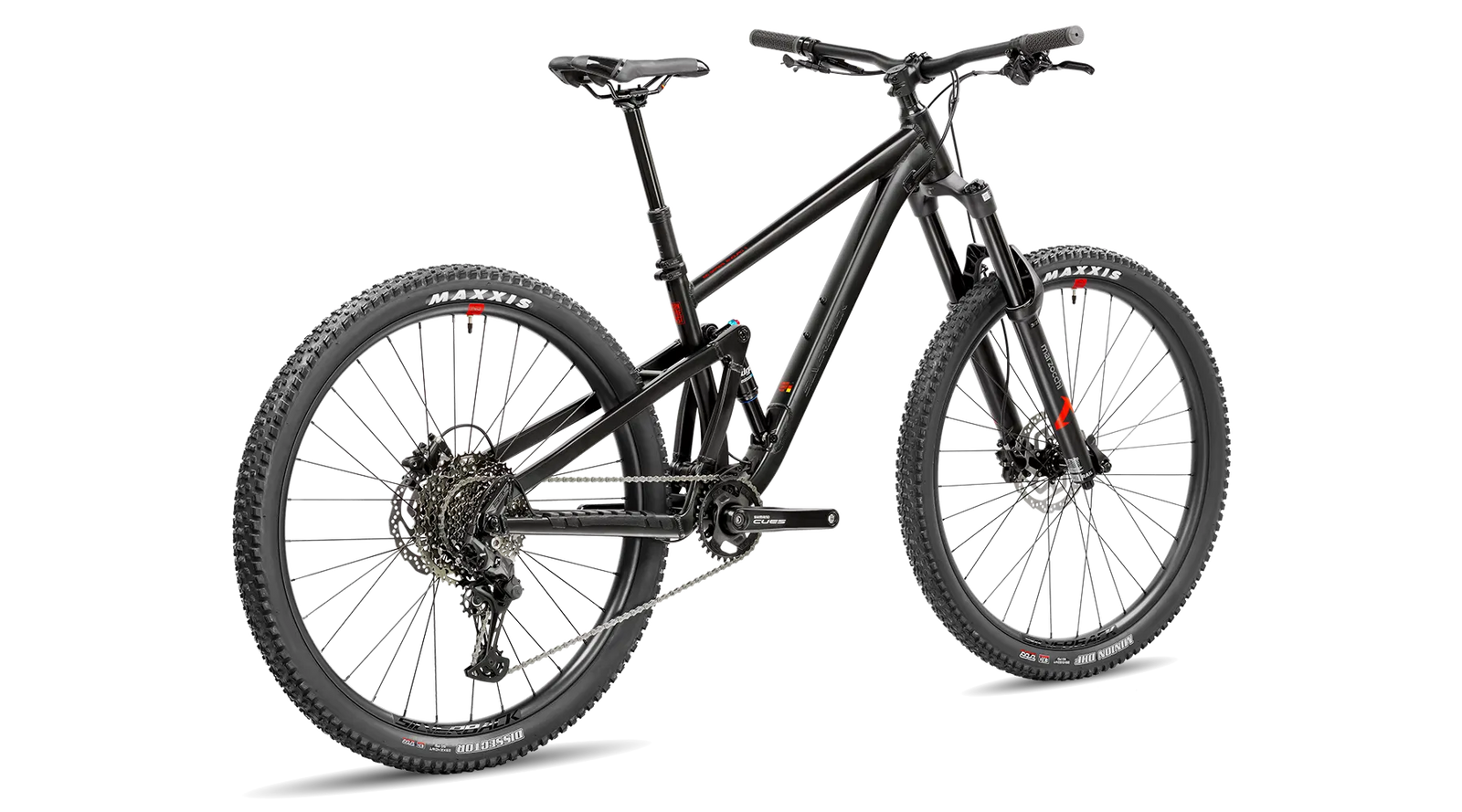

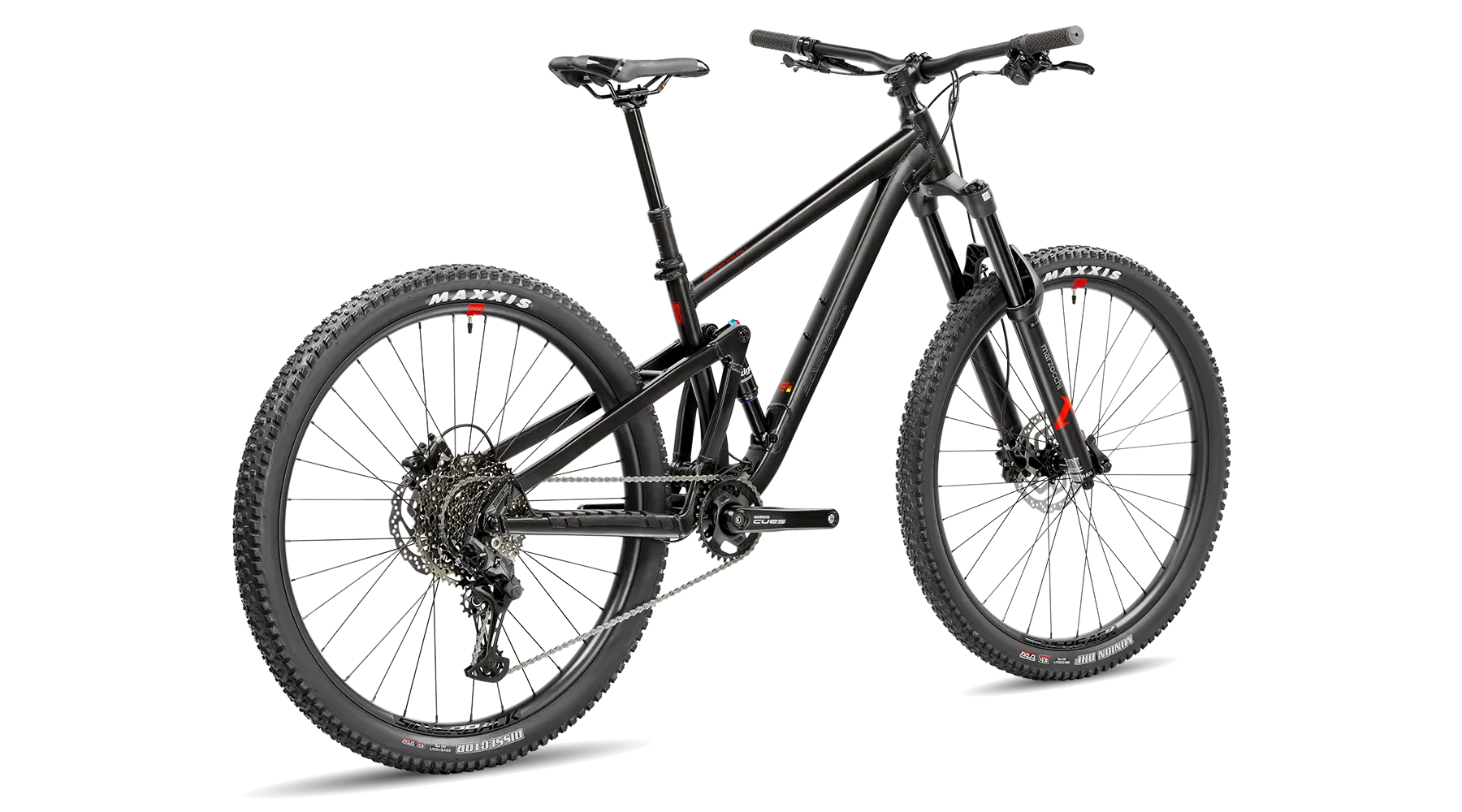

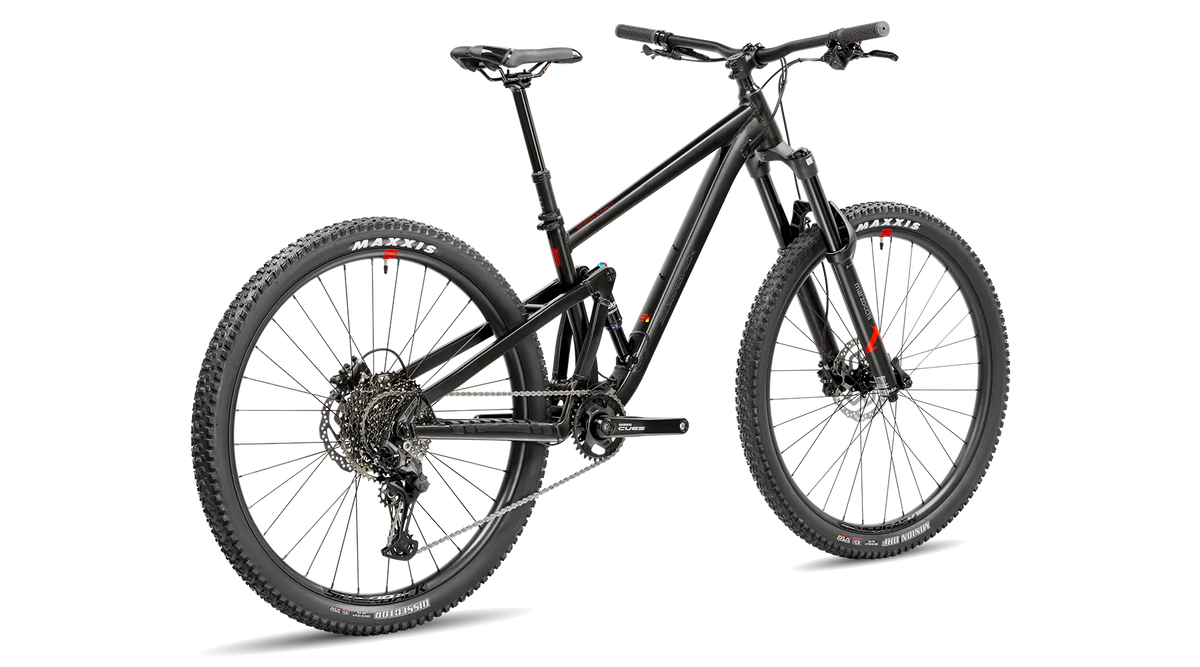

SE:SERIES ENDURO 11

€2.899,00

Sold Out

TRAIL/ENDURO DUAL SUSPENSION

SE:Series Enduro uses a balanced aluminium tubeset with a stiff rear triangle and more compliant front for confident handling and all‑day comfort. Its geometry delivers stable climbing traction and controlled descending, with a medium reach and well‑balanced head angle. A short seat tube supports long‑travel dropper posts and generous standover, and the frame carries two small bottles. The single‑pivot layout offers reliable tracking and durability, while the linear leverage ratio keeps suspension response consistent even under aggressive riding.

Auf einen Blick

Hydro-formed 6061 Alloy Frame. 150mm travel, Boost 148mm, tapered headtube.
Marzocchi Bomber Z1 fork, 160mm travel
SR Suntour EDGE TR Shock, Air Spring
Shimano CUES 11spd Rear Derailleur
Shimano Hydraulic disc brakes
Maxxis Rekon 29x2.4" Tubeless Ready Tyres
Silverback custom 29" wheelset, Tubeless Ready, 32H
Silverback Dropper Post
Weight: 16.9kg

TECHNISCHE HIGHLIGHTS

TRAIL/ENDURO DUAL SUSPENSION.

SE:Series Enduro's Aluminium frame tubeset encompasses a solid rear triangle with a more forgiving front triangle tubeset, giving excellent ride feel, control and all day enduro mountain biking. The geometry used helps maintain a balanced posture for both uphill traction and downhill speed control with a medium reach and balanced head tube angle. Frame designed with short seat tube to allow for long travel dropper post use and great standover clearance. Frame allows for two small water bottles to be carried on the frame, one inside the front triangle and one below the down tube. Single pivot design provides excellent tracking, trail feedback and longevity of pivots. Suspension kinematics uses a linear leverage ratio to make the bike less sensitive to aggressive rider movement, making the handling more consistent for performance riding.

TRUE SINGLE PIVOT SUSPENSION

Single pivot design provides excellent tracking, trail feedback and longevity of pivots. Suspension kinematics uses a linear leverage ratio to make the bike less sensitive to aggressive rider movement, making the handling more consistent for performance riding. Offers 150mm of travel.

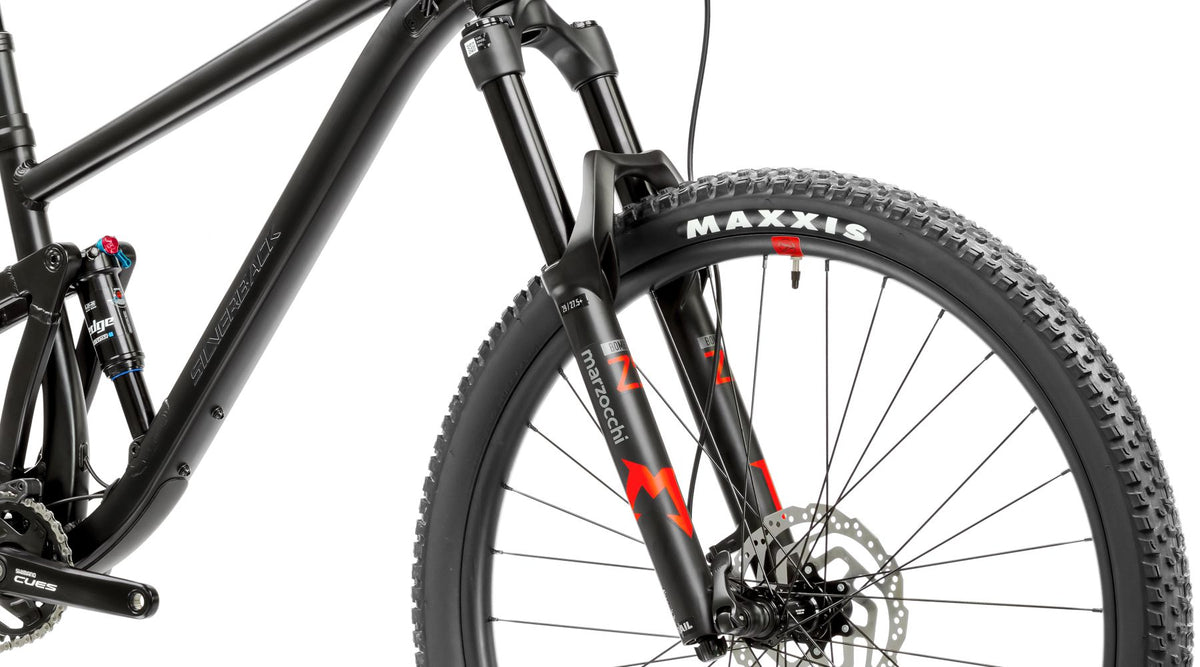

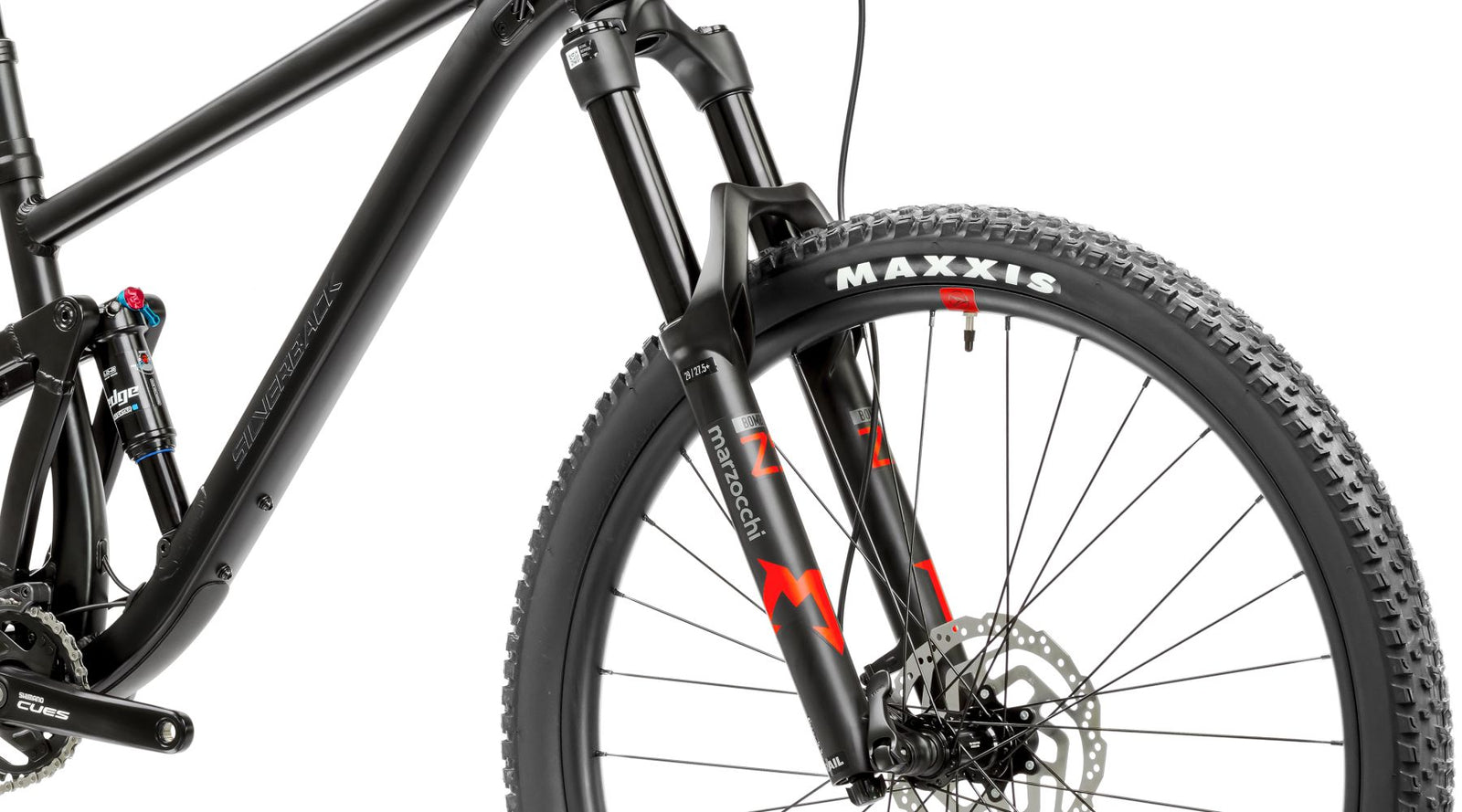

QUALITY SUSPENSION

Marzocchi Z1 fork, featuring 160mm travel, 36mm stanchions, Rail Damper, 44mm Rake and Boost thru-axle provides supple shock absorption.

SUSPENSION KINEMATICS

The linear leverage ratio ensures the long stroke shock gets to full travel on rough terrain and allows the rider to have consistent damping throughout the whole shock stroke. This linear feeling is more like a coil shock and allows the rider to tune their suspension more accurately for different course terrain as it responds very well to shock setup, helping to get the most speed on varying enduro tracks.

SUSPENSION ANTI-SQUAT

The medium anti-squat start helps the bike to have a responsive feel during the climbs and flat out technical singletrack racing. It then backs off in the mid-stroke area to help the bike absorb rough terrain while pedalling. This allows a responsive forward motion at every crank movement without overly stiffening the suspension, keeping one’s wheel glued to the ground for great traction.

POP GEOMETRY ADAPTED FOR TRAIL

Slacker head angles and longer wheelbases, along with other geometry and suspension tweaks allow for a bike that is more capable and forgiving on the downhills, without sacrificing uphill ability in the process. SE:Series Enduro has 150mm travel and has some geometry changes that empower your trail-shredding.

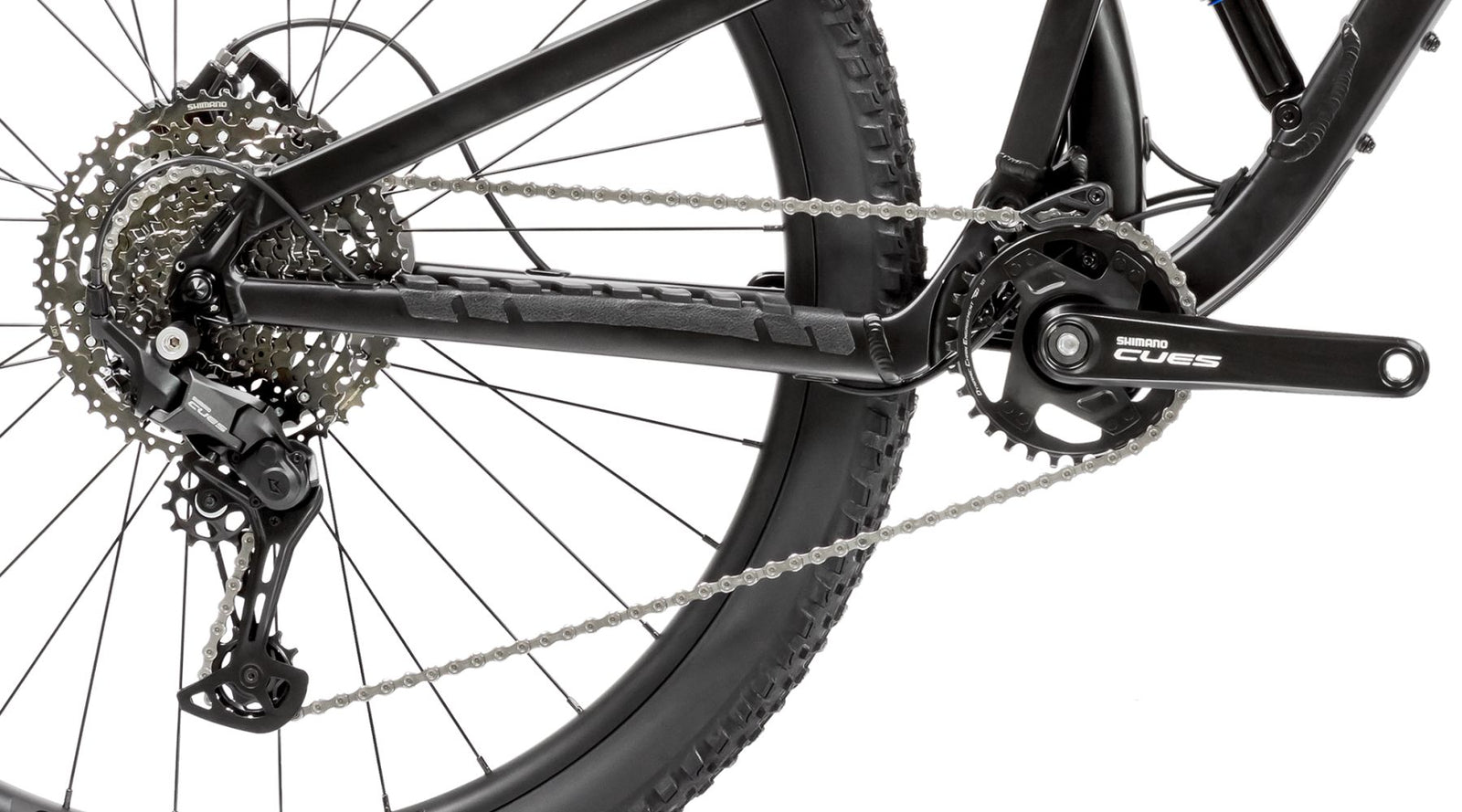

1X DRIVETRAIN SPECIFIC DESIGN

Front derailleurs are dead. With that comes a wider main pivot bearing stance for increased stiffness.

HYDRAULIC DISC BRAKES

Shimano hydraulic disc brakes offer strong and reliable speed control.

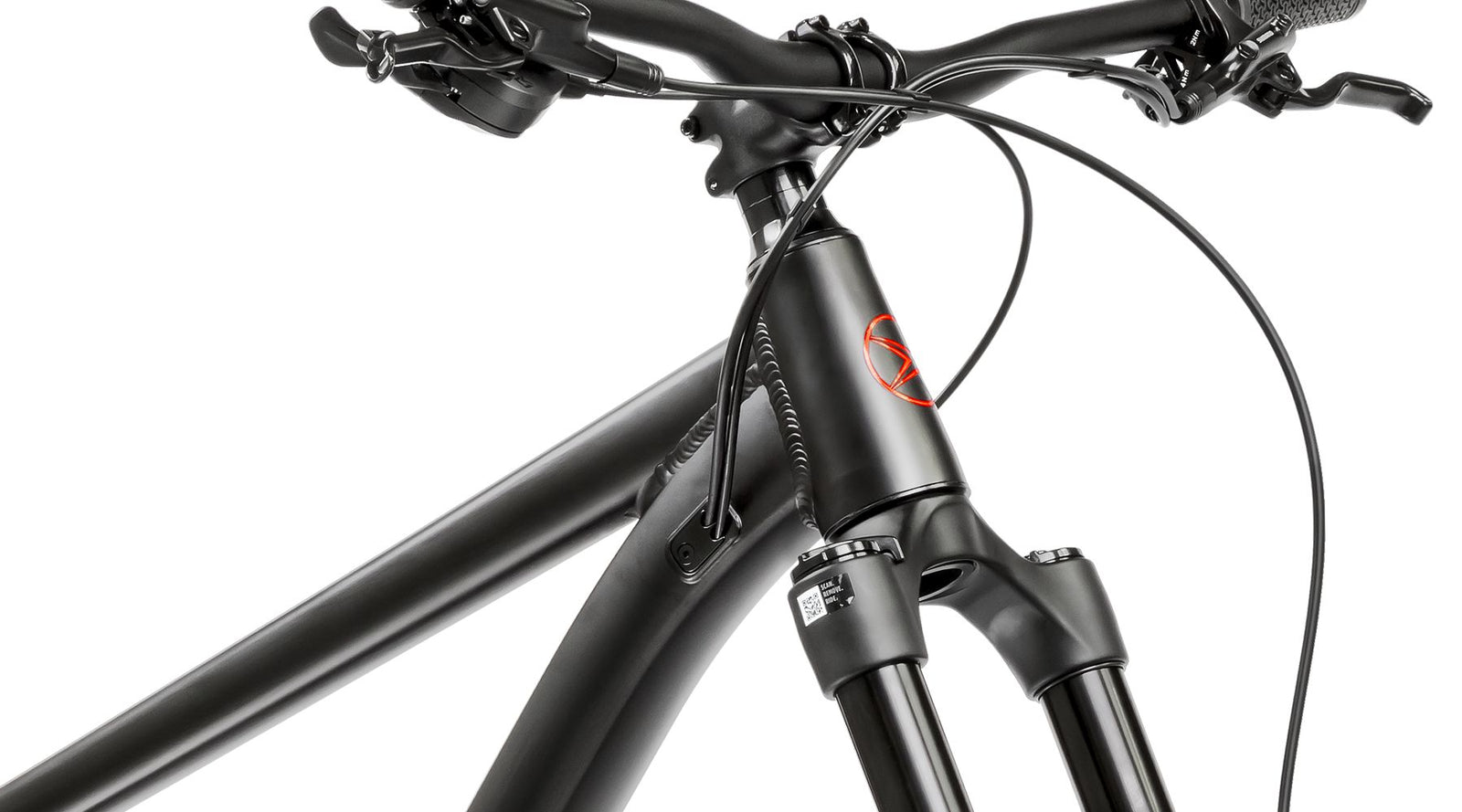

CABLE MANAGEMENT

Semi-internal cable routing helps keep both the overall look and cables clean.

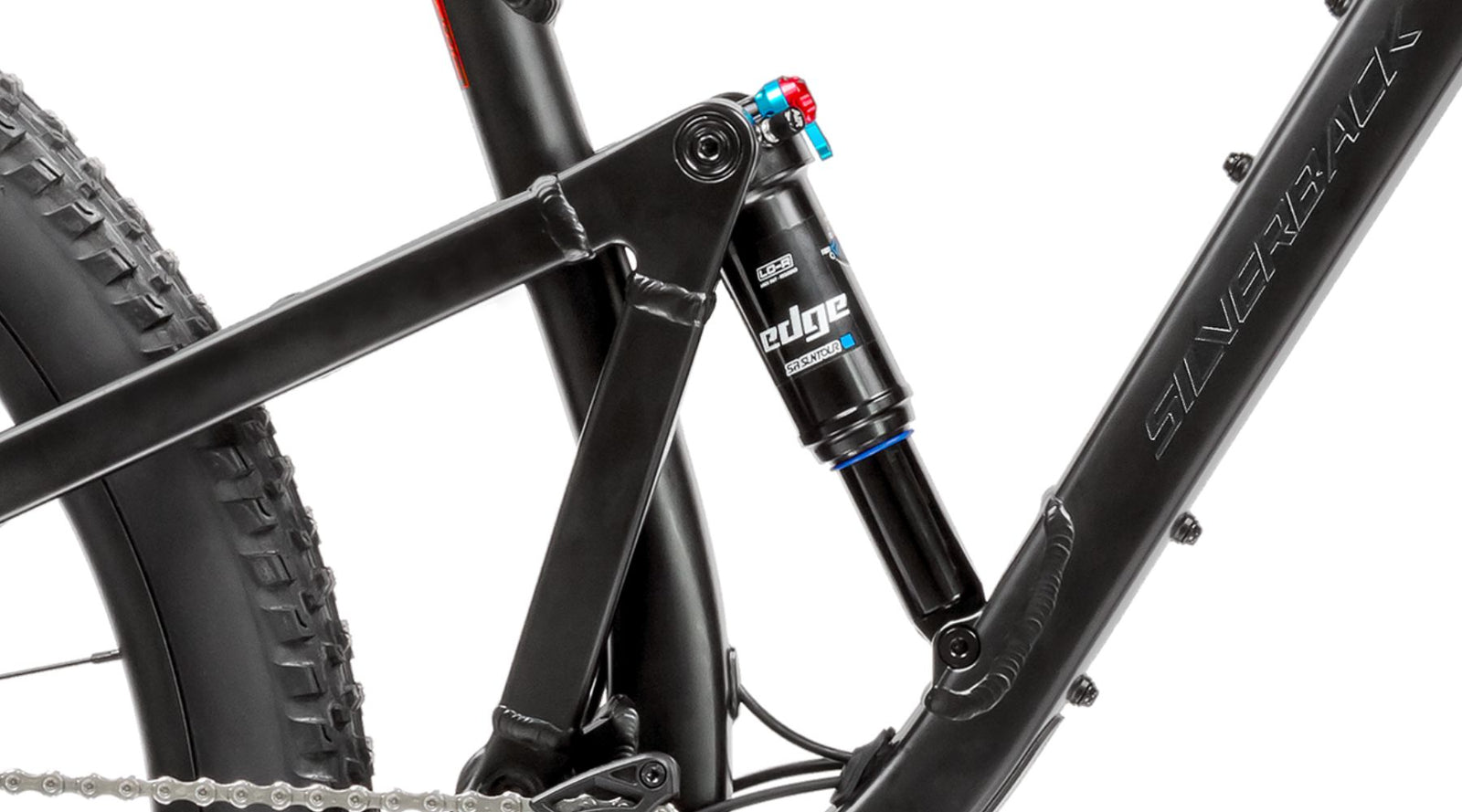

SHOCK MOUNT INTEGRATION

Lower shock mount integrated into down tube for excellent strength and helps lower the centre of gravity for performance handling. Long 55mm stroke shock helps maintain excellent dampening properties on long downhills.

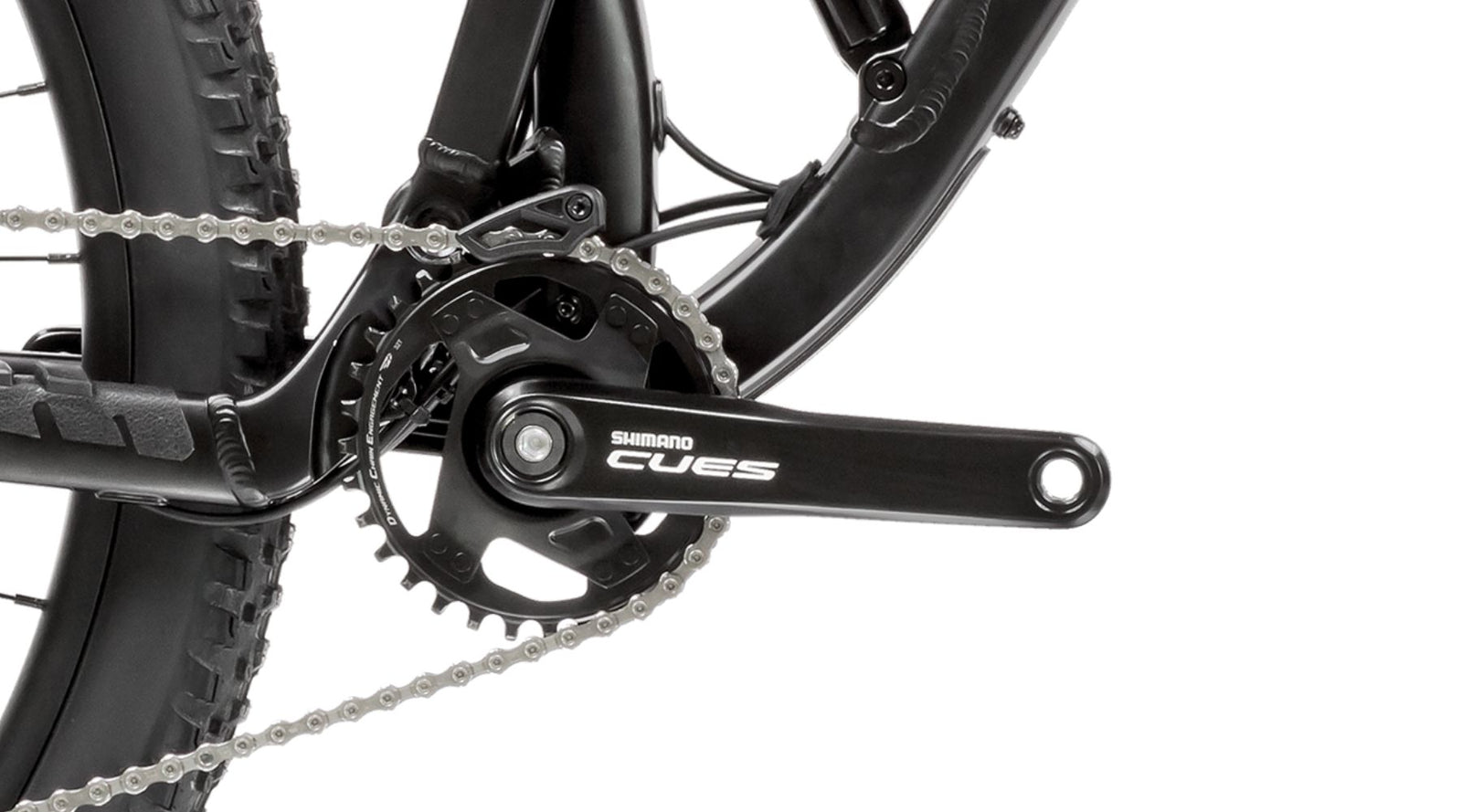

CHAIN RING GUIDE INCLUDED

Keeps the chain securely in place during bumpy rides, reducing frustration and mechanical stops. Fewer dropped chains means less need for trail-side fixes or parental intervention.

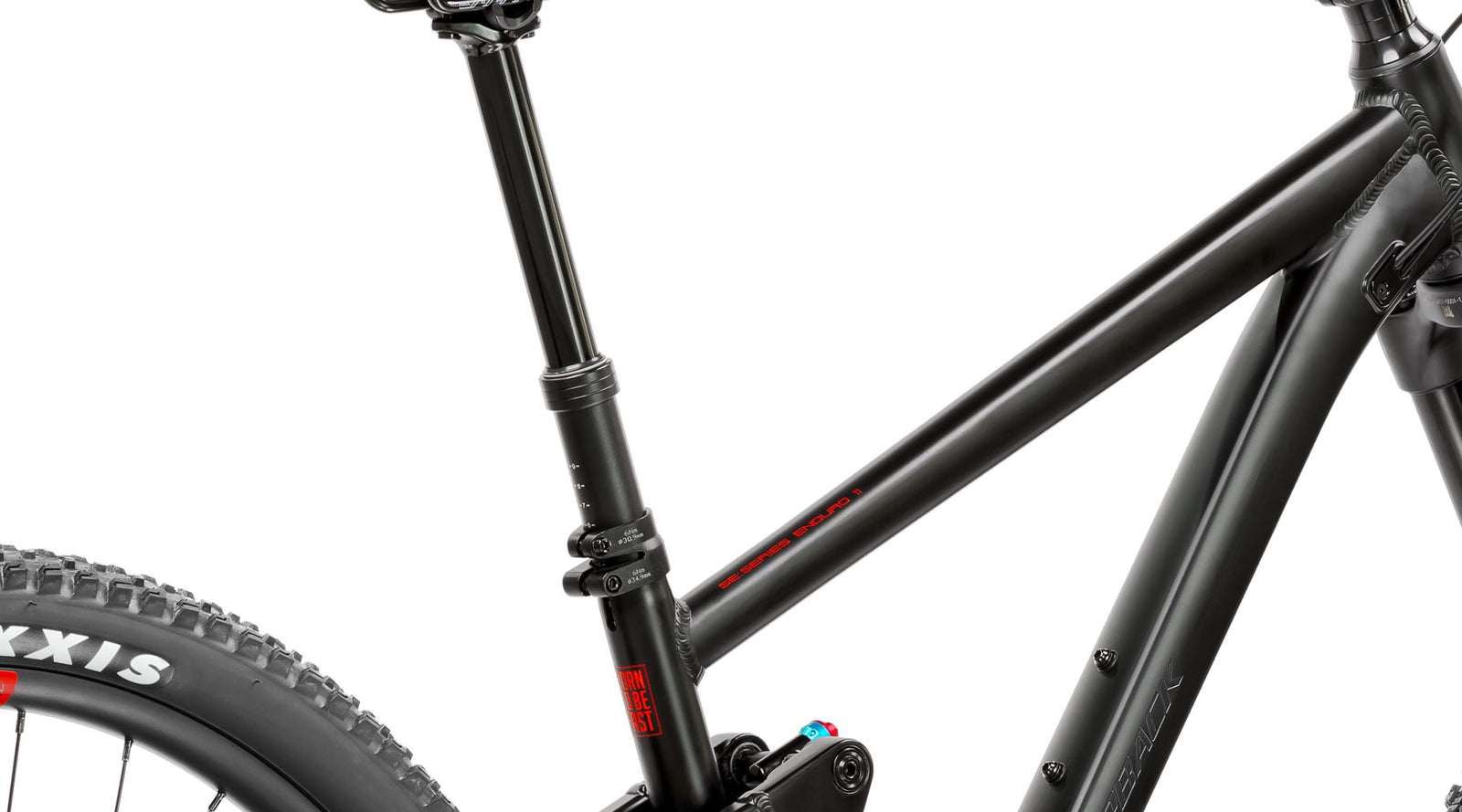

DROPPER POST STANDARD

Frame designed with short seat tube to allow for long travel dropper post use and great standover clearance.

2 BOTTLE MOUNTS

When it comes to water bottles, two is definitely better than one.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Alloy Trail/Enduro Frame. True single pivot design, 150mm Rear Travel. BSA Bottom Bracket. Boost 148mm

Headset

Steel Semi-Integrated, ZS44/28.6 ZS56/40

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm P1.75

Hanger Type

HANGER 3

SUSPENSION

Fork

Marzocchi Bomber Z1, 29in, 160mm travel, Rail Damper, 15x110mm Boost thru-axle, 1.5" Tapered steerer, 44mm Rake

Fork Travel

160mm

Rear shock

SR Suntour RS19 EDGE TR LOR, 185 X 55mm, Air

Rear Suspension Travel

150mm

Shock Mounting

Body: Trunnion, M10x54mm

Shaft: Standard, 8x30mm

Eye-to-Eye x Stroke

185x55mm

WHEELS

Wheelset

Silverback Custom Wheelset

Hubs

F: Shimano HB-TC500-15-B Front Hub, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm

R: Shimano FH-TC500-HM-B Freehub, Centre Lock, 11-Speed, 12mm Thru-Axle, 32H, OLD:148mm

Rims

F: Silverback Trail Alloy 29", Tubeless Ready, 30mm Internal Width

R: Silverback Trail Alloy 29", Tubeless Ready, 30mm Internal Width

Tyres

F: Maxxis Rekon 29x2.4WT, Wire Bead

R: Maxxis Rekon 29x2.4WT, Wire Bead

Max Tyre Size

2.5"

DRIVETRAIN

Crankset

Shimano CUES FC-U4000-1, 170mm crank length, 32T chainring, 11-speed

Max Chainring Size

32T

Bottom Bracket & Type

BSA73

Shifter(s)

R: Shimano CUES SL-U6000-11R, 11-speed Rapidfire

Rear Derailleur

Shimano CUES RD-U6000, 11-speed Shadow Plus Design

Cassette

Shimano CUES CS-LG400-11, 11-speed, 11-50T

Chain

Shimano CN-LG500, 118 Links, 11-speed

BRAKES

Brakes

Shimano MT200 Front Hydraulic, 180mm Post Mount, Resin Pads

Rotors

Shimano SM-RT10, 180mm Rotor, 6-Bolt

COCKPIT

Grips

Double Density Lock-On

Handlebar

Alloy, Dia: Ø31.8mm, 9° Back sweep, 20mm Rise

Stem

Alloy, Ø31.8mm, Rise: 3°

Saddle

Silverback Ergo, Steel Rails

Seat Post

Silverback Dropper, Ø30.9mm

Seatpost Clamp

Silverback Ø30.9mm Dual Security Clamp

Pedals

Not Included

WEIGHT

Bike Weight

16.9 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ

Does this bike come with a chainstay protector?

Yes, but an additional chainstay protector can be purchased on Speedlab.shop
How much travel does the fork on this bike have?

160mm travel
What is the weight limit on the SE:Series Enduro?

110kg - combined weight of bike and rider (including all kit).
Can I put a front derailleur of SE:Series Enduro?

No. The entire SE:Series Enduro range is designed with wide range 1x drivetrains in mind. This allows for wider bearing stances and a stiffer frame
What bearings does this frame use?

Main pivot uses 2 pieces 6903 MAX type bearings (2 rubber seals). Upper shock mount uses 4 pieces 6900 MAX type bearings (2 rubber seals).
Can I put a longer fork on this frame?

No, it will void the warranty
Can I upgrade the length of my suspension on my bike?

The suspension length is normally determined by the frame design, it should not be changed.

ANDERE MODELLE DER SERIE

€1.605

SE:SERIES TRAIL 11

Dual Suspension | Trail | Alloy

140/140mm Travel
29" x 2.5" Wheels
1x11 Speed Shimano
16.6 kg

€2.899

SE:SERIES ENDURO 11

Dual Suspension | Trail/Enduro | Alloy

160/150mm Travel
29" x 2.4" Wheels
1x11 Speed Shimano
16.9kg

€866

SE:SERIES 12

Hardtail | Trail | Alloy

120mm Travel
29" x 2.4" Wheels
1x12 Speed Shimano
16.3kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	154-170	170-180	180-190	188-210
	Rider inseam(cm)	70-77	77-82	82-86	85-95
A	Seat tube c/t	390	410	435	460
B	Seat tube angle	78°	78°	78°	78°
C	Head tube angle	64°	64°	64°	64°
D	Top Tube	571	586	601	622
E	Reach	440	455	475	495
F	Chainstay length	455	455	455	455
G	bb height	347	347	347	347
H	head tube length	110	110	120	130
I	stack	623	623	544	544
J	standover	747	741	743	748
K	Wheelbase	1230	1245	1269	1294
