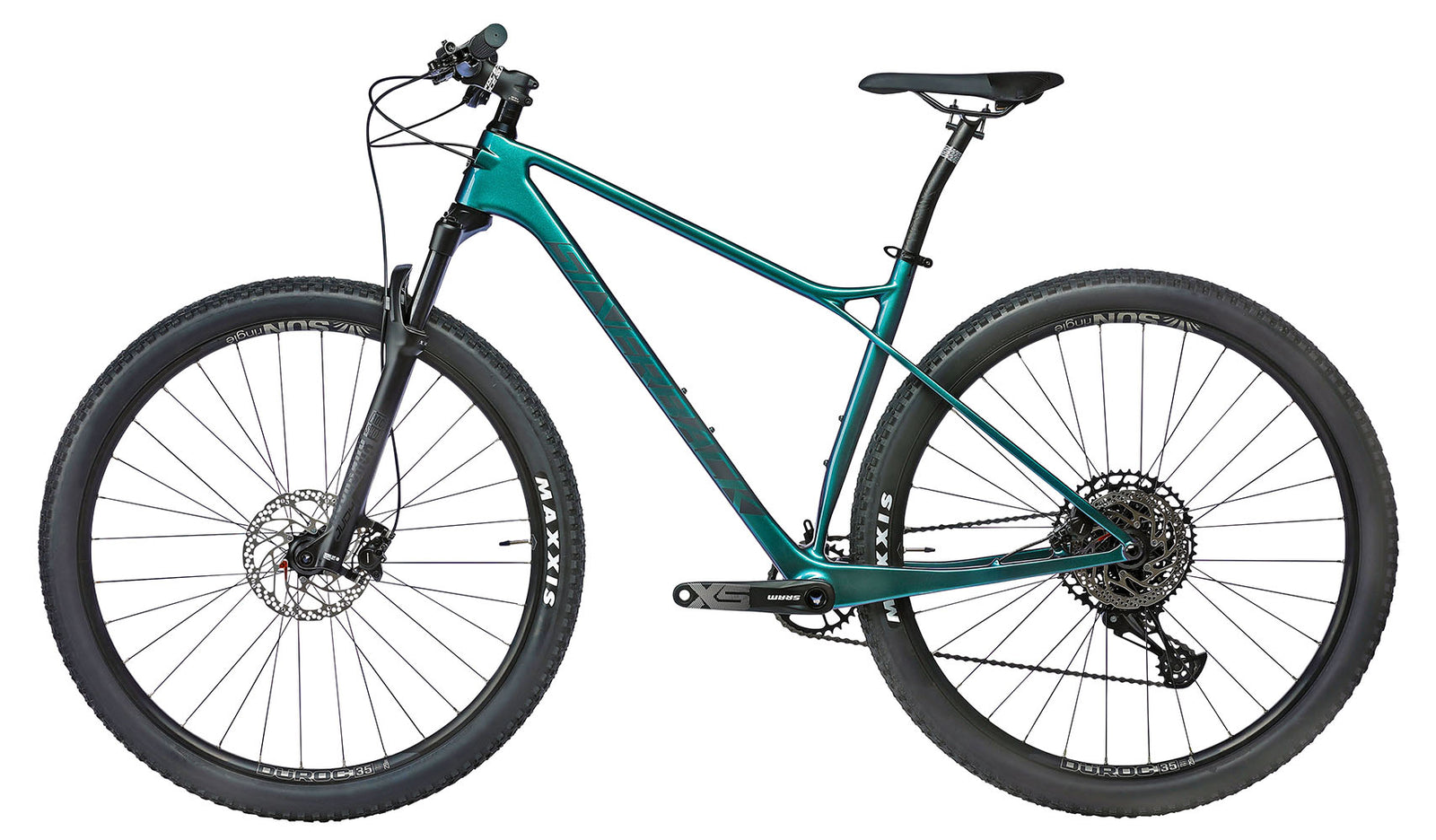

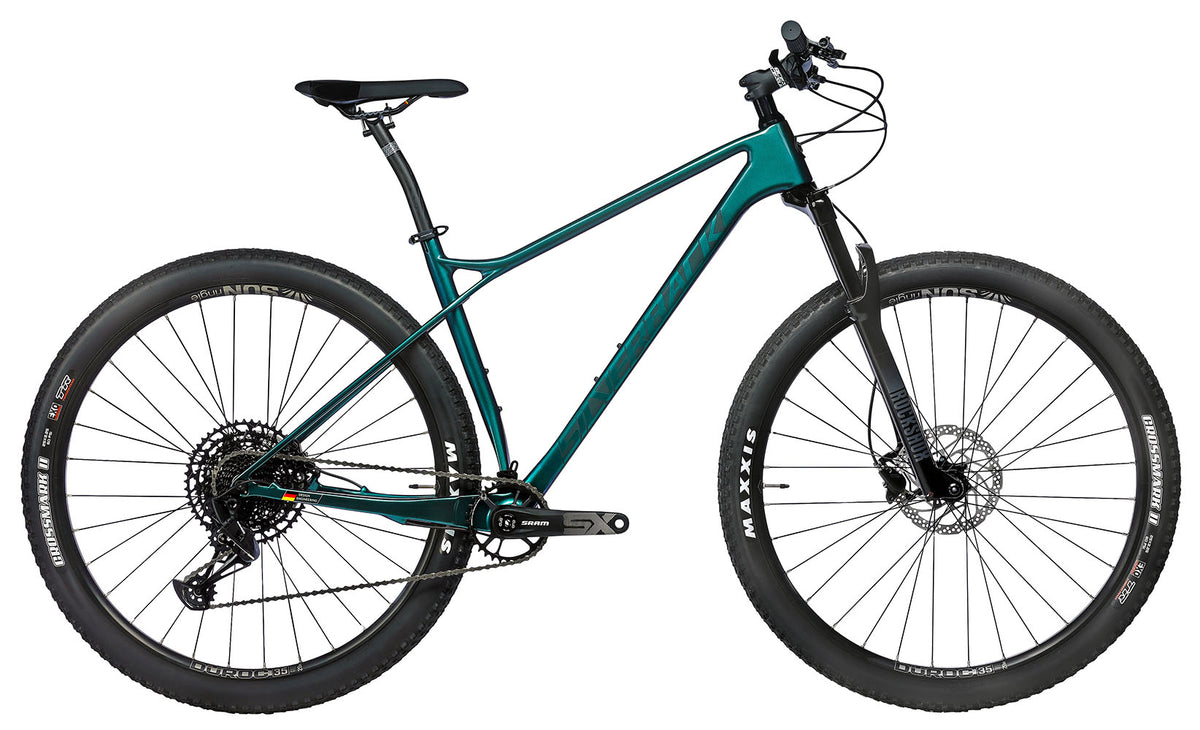

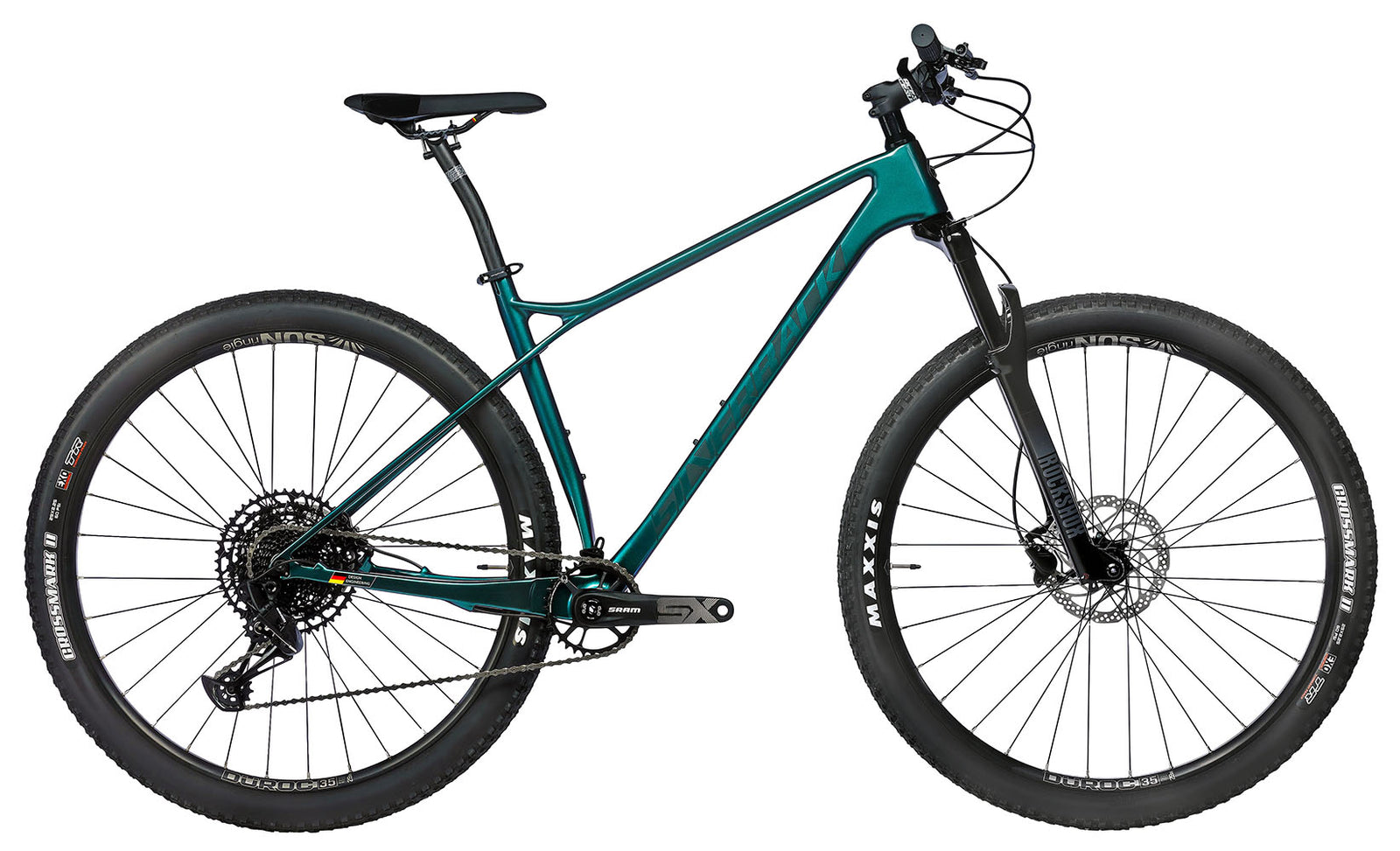

Superspeed CF SX

€1.899,00

Add to cart

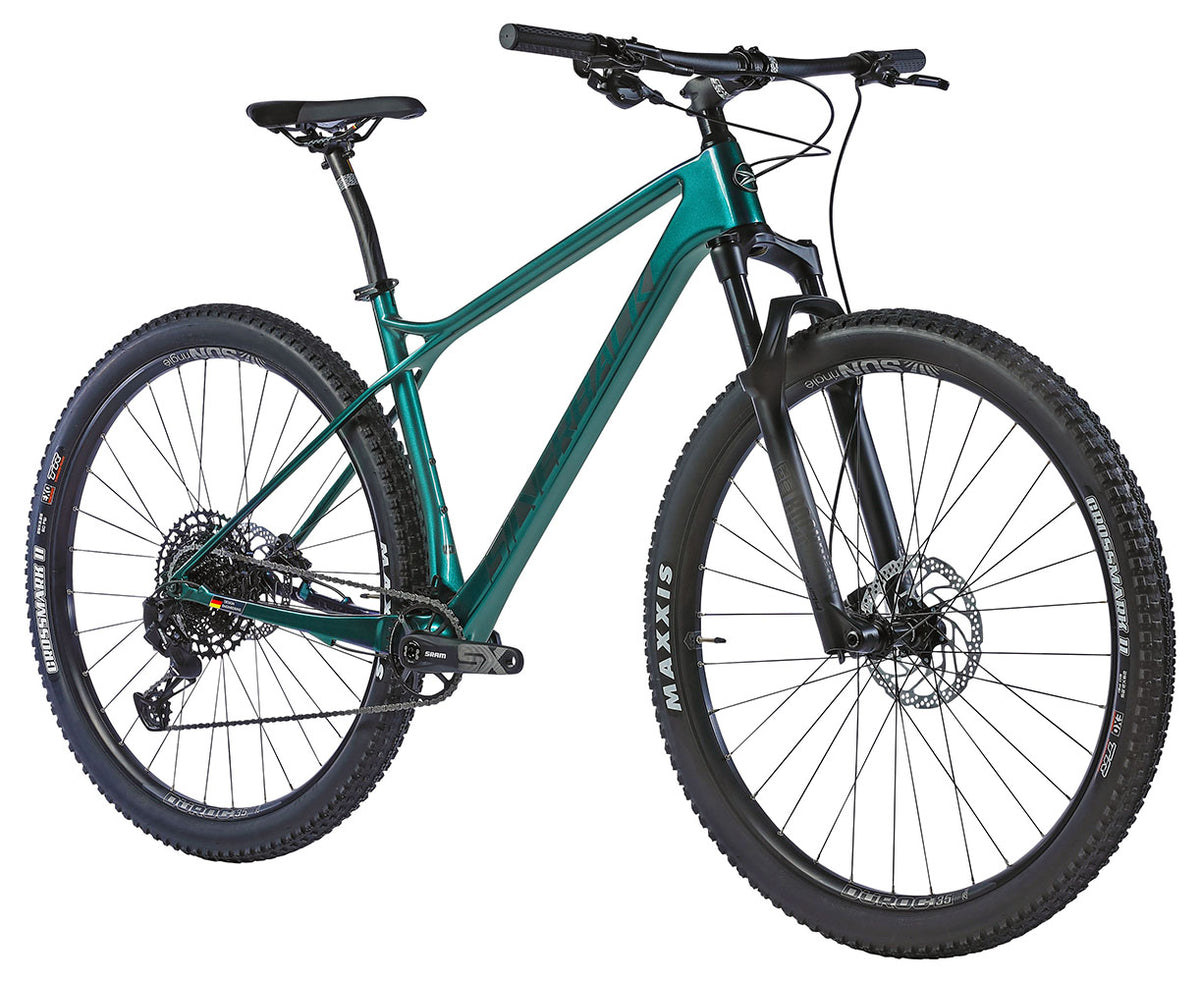

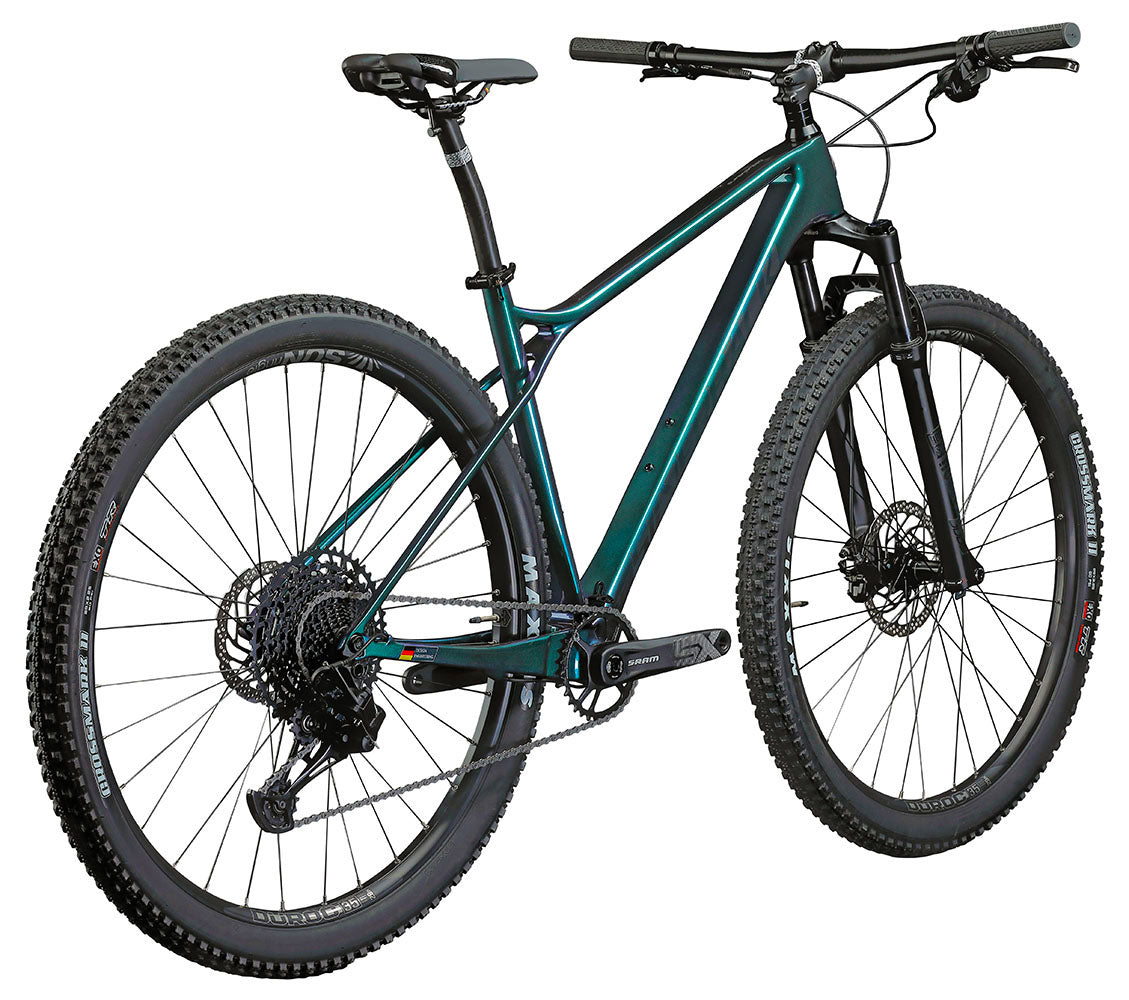

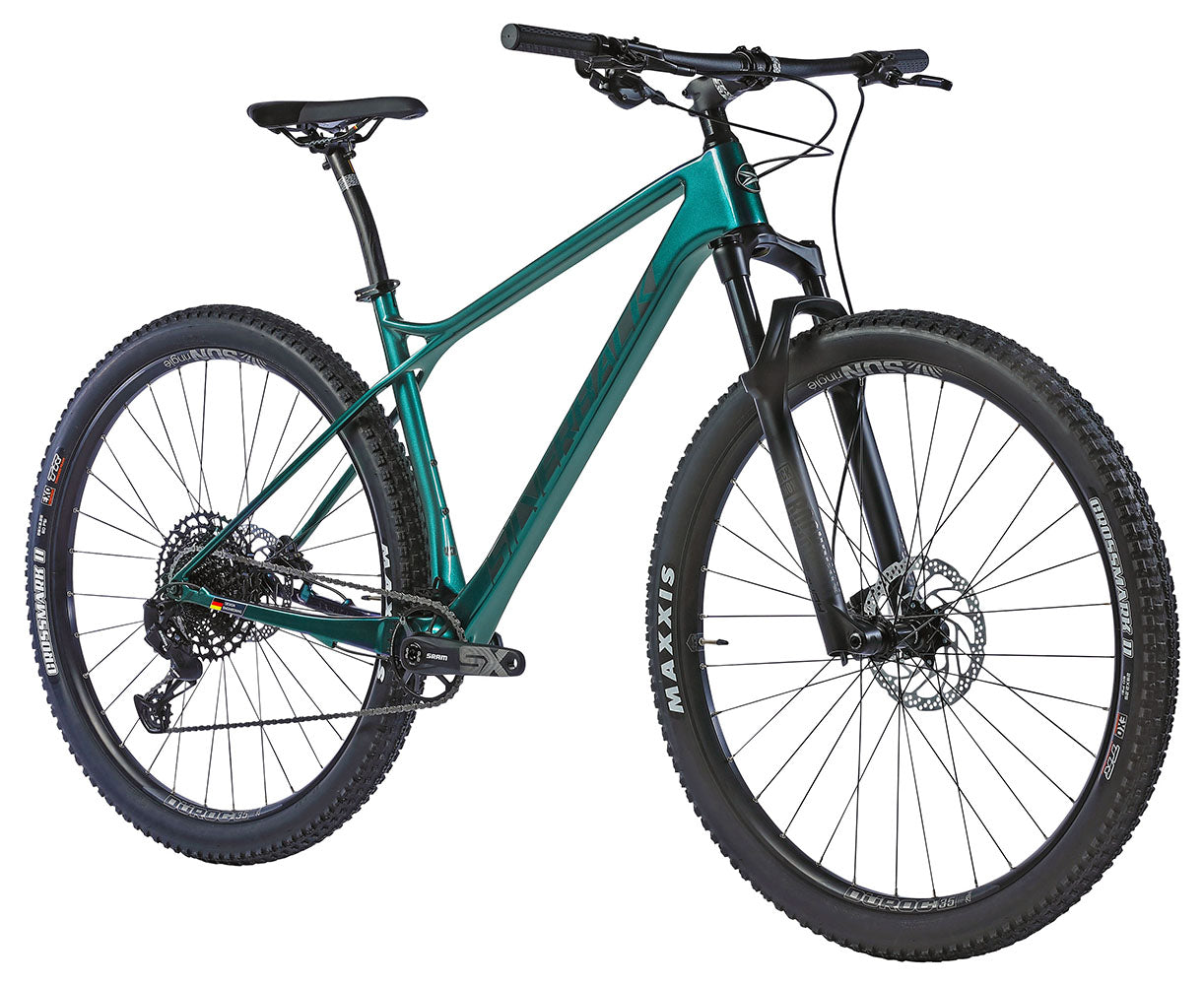

The Superspeed CF SX is part of our flagship race-ready 29er carbon performance hardtail range. Our Monoburst technology has the seat stays joining the top tube without connecting to the seat tube, helping to stream the bump forces into the top tube and allow the seat tube to flex a little for added traction and comfort. This frame is stiff and efficient but also offers vertical compliance in the chainstays, top tube, seat tube, and down tube to maintain good comfort levels for a marathon and cross country racing. Short chainstays are possible with the single ring only setup and create an agile and nimble race machine, ready for any course that comes its way. Top carbon materials combined with a careful layup process ensure each frame is performance ready and super light. A super light integrated chainguard ensures the chainstays on during the roughest trails encountered.

Auf einen Blick

SB Proprietary Advanced Dynamics Carbon 29" Hardtail
Rockshox Judy, 100mm
Sram SX
Sunringle Duroc 35
Maxxis Crossmark II 29x2.25" Tyres
Shimano 200 Hydraulic brakes
10.88kg

TECHNISCHE HIGHLIGHTS

superspeed-2-eagle-tech-highlight-1-speedlab

CUSTOM SEATSTAY

The seatstays are connected directly to the top tube, isolating the seat tube from some of the trail feedback. Pedalling efficiency is not adversely affected by the frame’s flex. The seatstay profile is vertically compliant while retaining horizontal stiffness.

CORRECT FLEXING

Chainstays, top tube front/back and seat tube flattened areas help create vertical flex in the frame, similar to a parallelogram, to increase comfort while decreasing rider fatigue, as well as helping the bike keep contact with the ground over rough terrain. The rectangular tube shapes are wide and flat, enhancing lateral stiffness all round, while giving the frame vertical compliance.

CARBON HINGE

The flattened off seattube allows for fore/aft seatpost flex, while the oversized downtube and chainstay junctions means the frame is stiff where it needs to be.

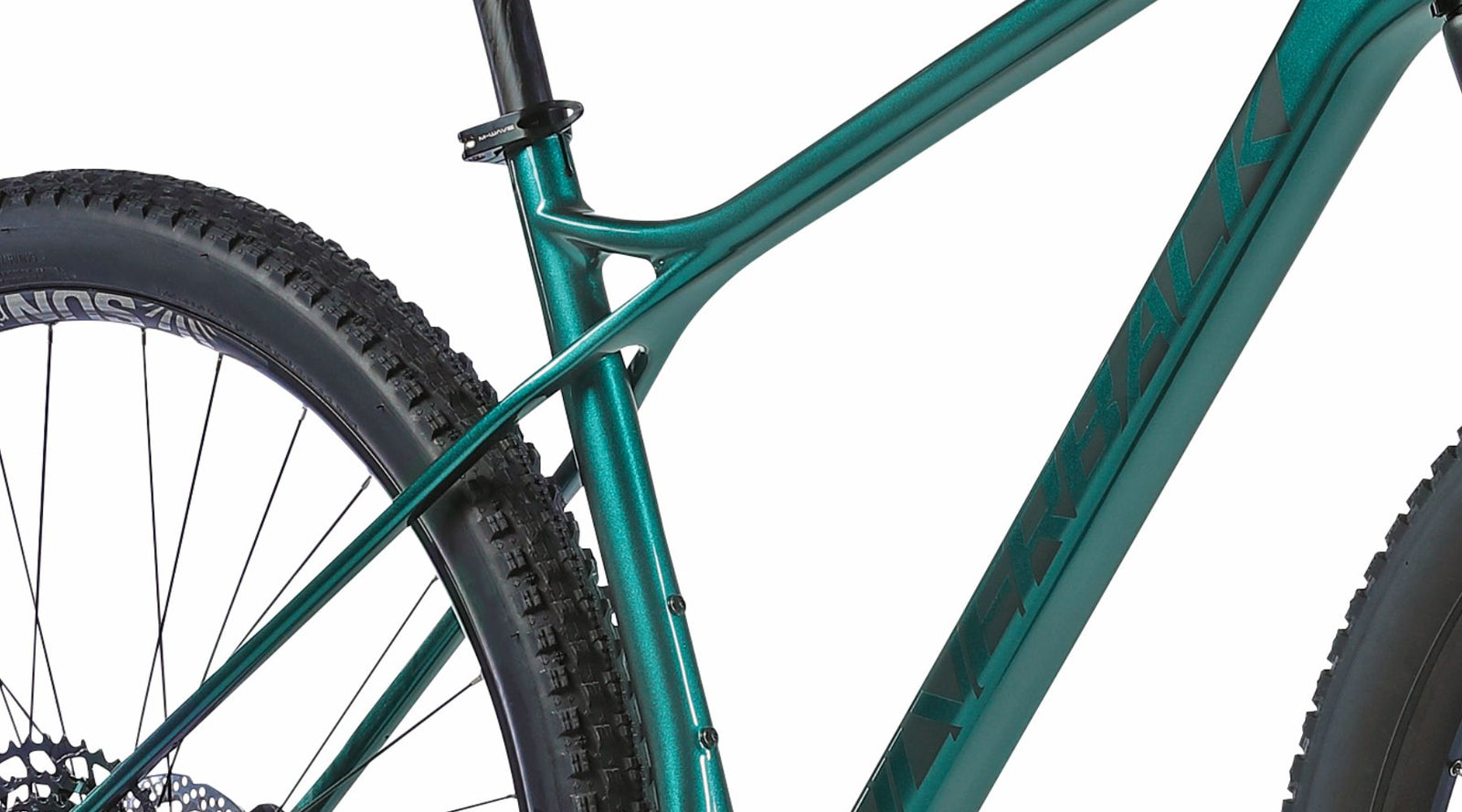

MONOBURST

Seatstays connecting directly to the top tube allows for independent seattube movement. This is experienced by the rider as bump absorption - similar to suspension. Longer carbon sheets can be used in manufacturing, meaning less material and reduced weight.

BOOST 148

Wider hub spacing creates stronger wheel builds by widening the bracing angle of the spokes. Chainstay length is also reduced with the implementation of BOOST 148 for a nimble ride feel.

CUSTOM CARBON LAYUP

The frame's carbon layup has been meticulously engineered to achieve the desired flex and stiffness characteristics that the Superspeed is designed for. Our Frame design uses tube shapes that flow into one another to limit excess carbon material layup by using fewer longer strips of carbon material instead of many smaller pieces overlayed around complicated shapes, which increases overall durability of the frame as well as keeping the frame light.

CUSTOM SEATSTAYS

Seatstays connect directly to the top tube, isolating the seattube from some of the trail bumps. Pedaling efficiency is not affecting adversely by the frame's flex.

superspeed-2-eagle-integrated-chainguide

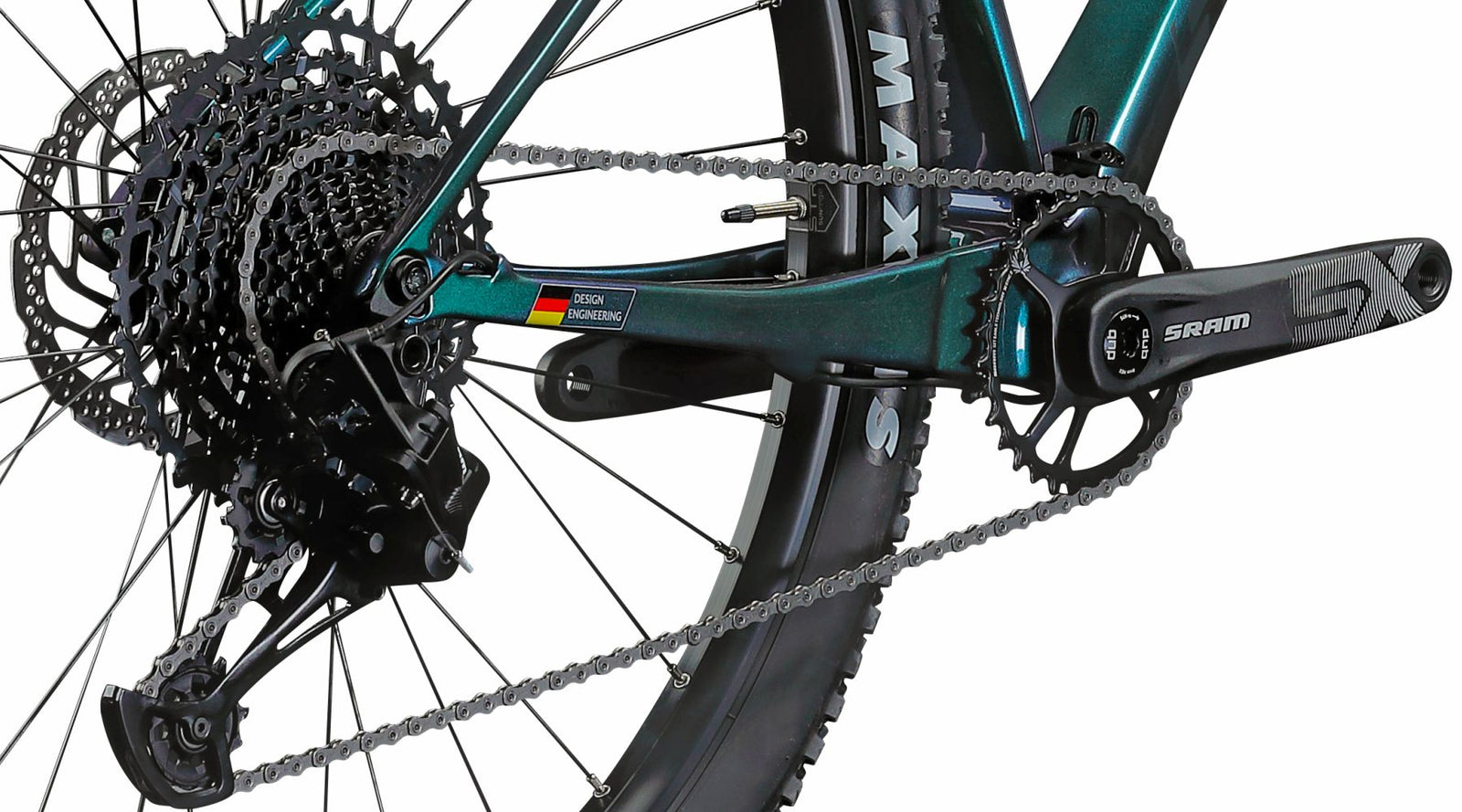

INTEGRATED CHAINGUIDE – 1X OPTIMISED

We have an integrated superlight chainguide and 28-40 tooth chainring compatibility. There is no front derailleur mount on this frame.

OPTIMIZED WEIGHT

Frame strengthening and weight saving technologies have brought Superspeed frame weight down to an incredible 1000g (SBC Layup, Medium) and 1150g (Carbon Layup, Medium), making this our lightest mountain bike frame ever. Boost 148 hub spacing allows for a stiffer wheel build, and for the chainstay length to be reduced to 422mm. The short chainstays give the bike a lively and agile nature, unbeatable through technical terrain.

RACE SIZING

22mm has been added to the seattube on all size meaning that you can run shorter seatposts or a smaller sized frame while retaining low standover.

SMART INTERNAL ROUTING

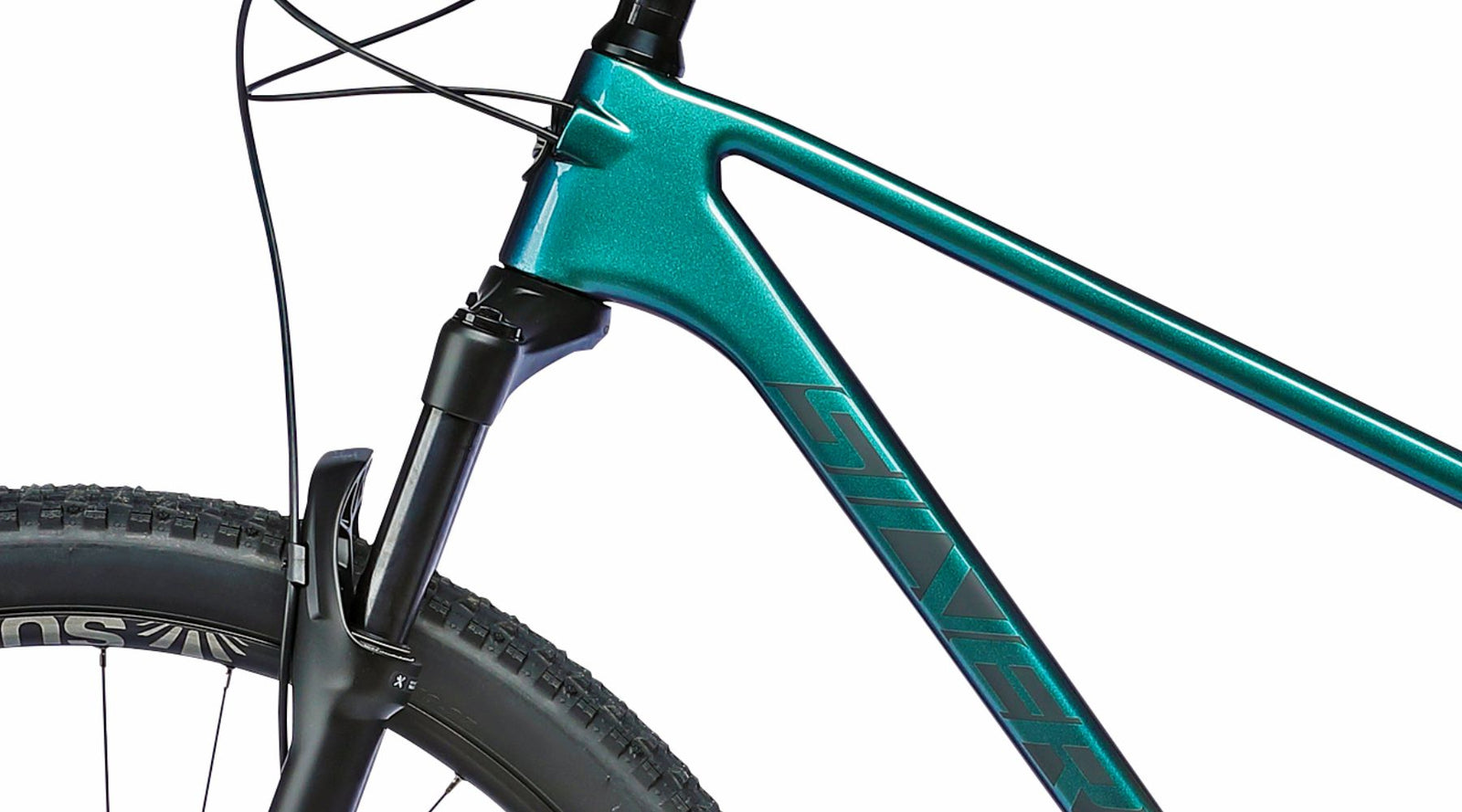

Cable routing is fully internal - internal tubes make threading hosing a breeze. All that is needed is to insert the housing at the marked headtube port and it will be guided to the relevant cable exit.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

SB Proprietary Advanced Dynamics Carbon 29" Hardtail, Tapered 1-1/8"-1.5" Headtube, Pressfit BB Shell, MonoBurst , 148 x 12mm Boost Thru Axle Integrated Dropouts System, Replaceable Alloy hanger, Internal Cable Management System, 1 x only Frame

Headset

IS42/28.6 IS52/40

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm P1.75

Hanger Type

HANGER 3

SUSPENSION

Fork

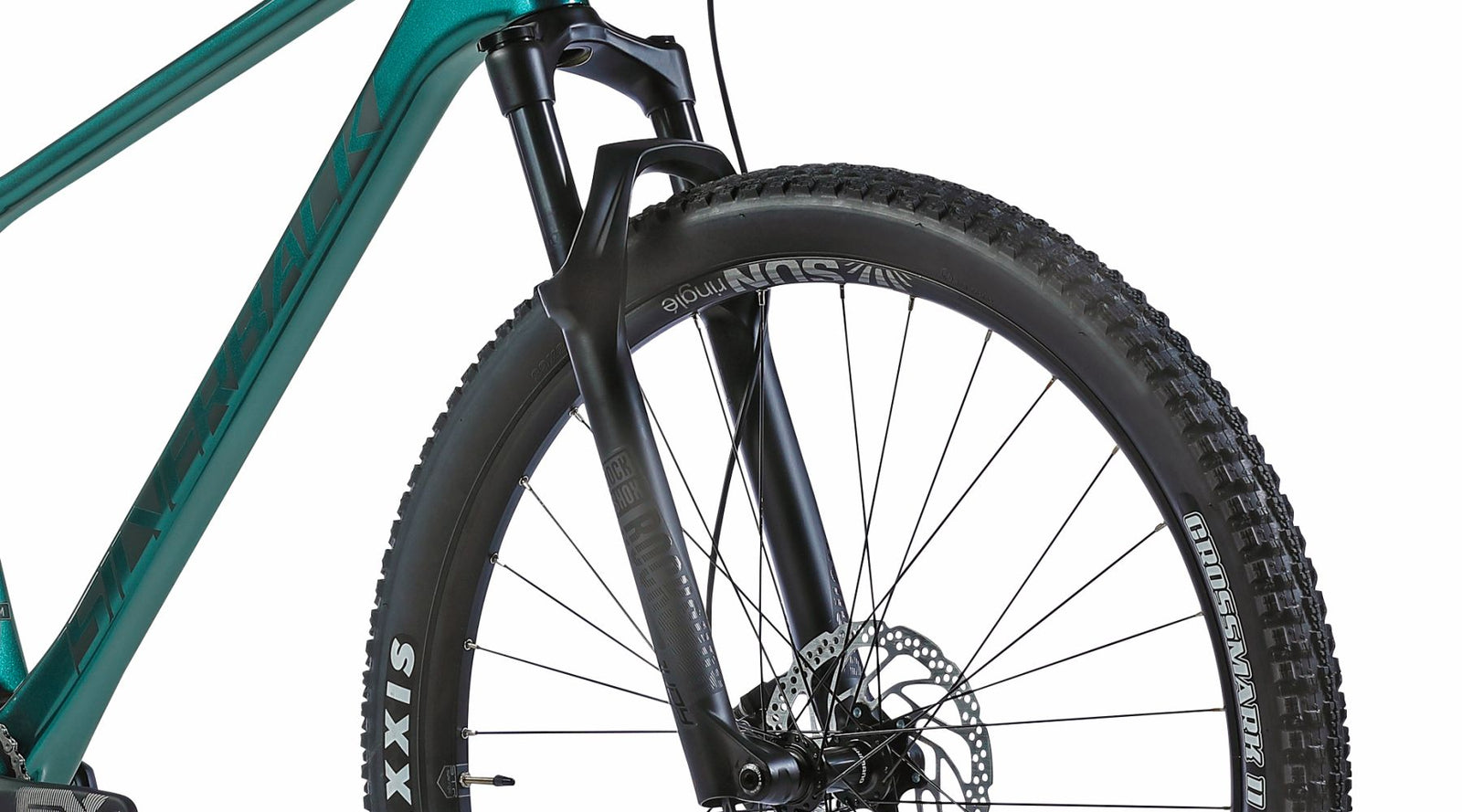

Rockshox Judy, Solo Air, MXL Stealth Boost. 100mm travel.

Fork Travel

100mm

WHEELS

Wheelset

SUNRingle Custom

Hubs

Shimano hubs

Rims

Sunringle Duroc 35 alloy

Tyres

Maxxis Crossmark II, 29" x 2.25" Tubeless Ready

Max Tyre Size

2.25"

DRIVETRAIN

Crankset

SRAM SX Eagle DUB, 32T

Max Chainring Size

36T

Bottom Bracket & Type

BB92

Shifter(s)

SRAM SX Eagle trigger

Rear Derailleur

SRAM SX Eagle 12spd

Cassette

SRAM SX Eagle 11-50t

Chain

12spd

BRAKES

Brakes

Shimano 200 Hydraulic Disc brakes

Rotors

160mm

COCKPIT

Grips

Surface

Handlebar

SBC Alloy 78 cm

Stem

lightweight alloy 60 mm

Saddle

SBC SRN-Ti rails

Seat Post

SBC alloy 27.2mm, Ti Bolts

Seatpost Clamp

Alloy

Pedals

WEIGHT

Bike Weight

11.77kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

Does this bike come with a chainstay protector?

Yes, but an aditional chainstay protector can be purchased on Speedlab.shop.
Can this bike take a dropper seatpost?

Yes
Does the monoburst technology require any maintenance?

No
Can I put a front derailleur of Superspeed?

No. The Superspeed was design with to use 1x drivetrains only, this has allowed for a stiffer frame
What is the Maximum tyre clearance on the rear triangle?

29 x 2,25"
Is Superspeed Di2 compatible?

Yes
Does the Superspeed frame support fenders?

No. In order to keep frame weight down, fender compatibility is not possible

ANDERE MODELLE DER SERIE

€899

SE:SERIES 12

Hardtail | Trail | Alloy

120mm Travel
29" x 2.4" Wheels
1x12 Speed Shimano
16.3kg

€1.899

SUPERSPEED CF SX

Hardtail | Cross Country | Carbon

100mm Travel
29" x 2.25" Wheels
1x12 Speed SRAM
11.77kg

€2.999

SILVERBACK CF SX

Dual Suspension | Cross Country | Carbon

100/100mm Travel
29" x 2.25" Wheels
1x12 Speed SRAM
12.5kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L
	Rider height(cm)	160-173	170-180	180-192
	Rider inseam(cm)	72-78	77-81	81-87
A	Seat tube c/t	422	472	522
B	Seat tube angle	73.4	73.4	73.4
C	Head tube angle	69.5	69.5	69.5
D	Top Tube	575	605	628
E	Reach	395	420	439
F	Chainstay length	422	422	422
G	bb height	309	309	309
H	head tube length	90	105	120
I	stack	606	620	634
J	standover	763	789	804
K	Wheelbase	1064	1095	1118

Fahrerbewertungen

5 stars: 6 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

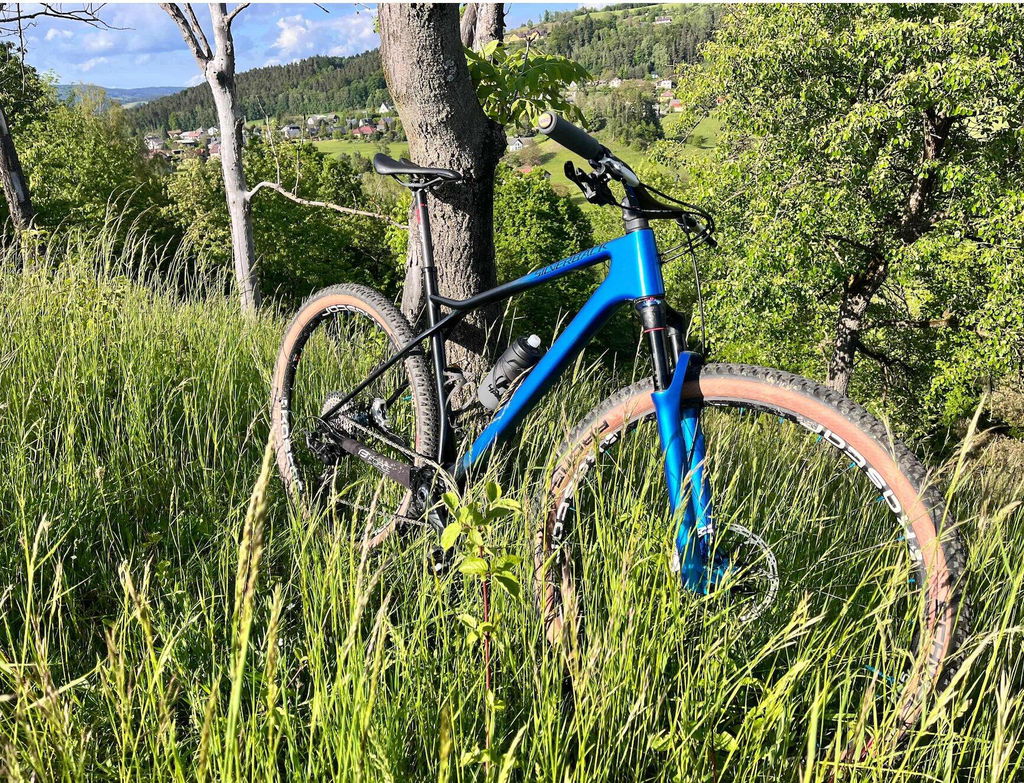

⭐⭐⭐⭐⭐ Brutale Beschleunigung und Top-Handling!Ich fahre das Silverback Superspeed jetzt seit einer Saison und bin restlos begeistert. Das Rad ist extrem leicht, sprintstark und setzt jedes Watt direkt in Vortrieb um. Die aggressive Geometrie ist perfekt für enge Singletrails. Für mich das ultimative XC-Hardtail!
