Spyke 26

Name: Spyke 26
Brand: Silverback
SKU: 6009700040389
Price: 499.0 EUR
Availability: OutOfStock
Rating: 4.80 (5 reviews)

€499

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.80 5 reviews

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

new lower price

Sam Kids/Toddlers Helmet - Helmet - Space - Matt Grey/Lime - - - Speedlab

Space Sam Boys Helmet, Matt Grey/Lime

Top Cap - Blue - Top caps - BornToBeFast - DodgerBlue - - - Speedlab

SKS Mountain Black Bottle - 500ml

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-5

Spyke 26

€499,00

Sold Out

BUILT TO BOOST THEIR RIDE.

Introducing the Spyke 26, a top-notch youth bike! Packed with premium features like Microshift 8-speed drivetrain, integrated kickstand mount, tapered headset, and progressive trail geometry. With adapted POP geometry from the Slade, it's a confident descender and a true BIC offering!

Auf einen Blick

Lightweight hydroformed 26" 6061 alloy frame
SR Suntour XCE DS 26 100mm suspension fork
Surface 1x crankset with 32t N/W ring
MICROshift 8 speed drivetrain
Sunrace 8spd 11-34t cassette
Cable disc brakes, 160mm rotors F&R
Surface Tubeless ready 26 alloy wheels
CST 26 x 2.35 tyres
Alloy control parts
QR wheels
Weight: 13.82kg

TECHNISCHE HIGHLIGHTS

HYDRO FORMED ALLOY FRAME

The Spyke 26 features a class leading frame. Trickle-down technology means that the new frame benefits from our leading platforms. The frame tubes are hydro-formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use - resulting in a lighter bike for young riders.

ADAPTED POP GEOMETRY

Silverback's Position of Power geometry. Geometry designed to engage bigger muscle groups in pedaling, producing more power output for the same amount of input. Longer frame places the rider forward, in a more balanced position, improving grip on the rear on climbs and on the front on descents. A longer wheelbase and slacker head angle means more control at speed. Geometry on the Splash is adapted to offer more comfort.

QUICK RELEASE WHEELS

Kids want to ride anywhere and everywhere. This means they want their bikes taken with on weekends away, or even when you head over to friends for coffee. By giving our kids bikes quick release wheels, we make sure that you can quickly and easily take the wheels off, to fit it in your car, or in a roof box. This also makes fixing punctures a breeze if they should happen.

Spyke26_Engineering_Tubeless_ready_wheels

SURFACE 26" TUBELESS READY WHEELS

Surface Wheels fitted to the Skid 26 are pre-taped at the factory and tubeless ready from the box. Easy to set up, just add sealant and inflate to seat. Spyke 26 rolls on 26" wheels. These offer better roll-over than 24" or 20" wheels. Also wider options for tyres available over the counter

MECHANICAL DISC BRAKES

Spyke 26 comes with mechanical disc brakes. Disc brakes offer dependable all-weather performance over rim brakes and the lever pull is light for young riders. Levers are reach adjustable for smaller hands.

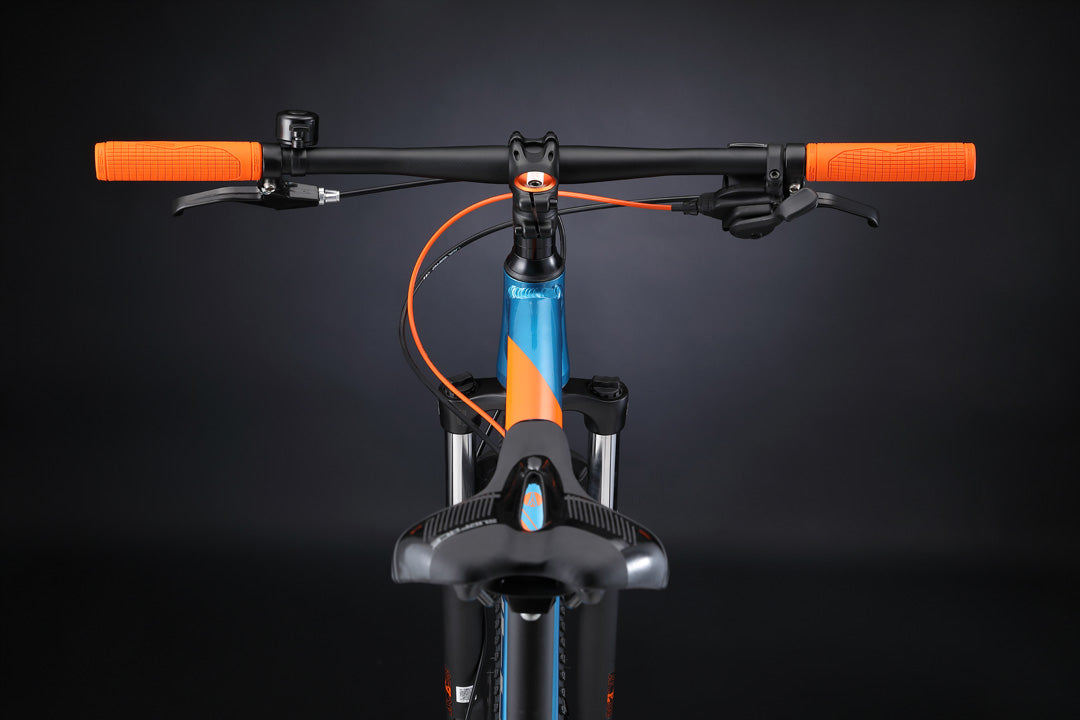

SIZE SPECIFIC CONTACT POINTS

Spyke 26 is finished with a kid's specific saddle, smaller, narrower bars, smaller diameter grips, reach adjustable bars, reach adjustable brakes and a shorter crankset with smaller pedals - all to suit smaller riders perfectly.

SUPER LOW STANDOVER

Spyke 26 frame has a very low standover, this means that it can be ridden by both girls and boys with more room for movement. This improves control and confidence over technical terrain.

1X GEARED DRIVETRAIN

Silverback fits 1x drivetrains to as many bikes as we can. 1x offers less maintenance, is more intuitive to use and offers a wider gear range than 3x groupsets. We spec a MICROshift 1x8 drivetrain and a 32t chainring on the Spyke 26 in favor of climbing, rather than flat terrain top speed. Everyone can benefit from easier climbing.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Hydro formed 26" 6061 Aluminium, Tapered Headtube, OLD 135mm

Headset

Steel Semi-Integrated

Frame Axle Spacing

135x9mm

Frame Specification

Hanger Type

HANGER 05

SUSPENSION

Fork

SR Suntour XCE28 DS 26 100mm Disc brake, Coil

Fork Travel

100mm

WHEELS

Wheelset

SURFACE Custom Wheelset

Hubs

F: Surface, 100x9mm QR, 6 Bolt, 32H
R: Surface, 135x9mm QR, 6 Bolt. 32H

Rims

F: 26" SURFACE Symmetrical Alloy Single Wall, 32H, Tubeless Compatible
R: 26" SURFACE Symmetrical Alloy Single Wall, 32H, Tubeless Compatible

Tyres

F: 26 x 2.35" CST 27TPI, Wire bead
R: 26 x 2.35" CST 27TPI, Wire bead

Max Tyre Size

2.30"

DRIVETRAIN

Crankset

3 Piece 152mm, 32T chainring, Black, BSA73mm

Max Chainring Size

32T

Bottom Bracket & Type

BSA73

Shifter(s)

R: Microshift TS39-8R - 8 speed

Rear Derailleur

Microshift RD-M36S 8 Speed

Cassette

Microshift 8spd, 11-34T

Chain

KMC 8 Speed

BRAKES

Brakes

F: Mechanical Disc brakes, 160mm rotors F & R, 6 Bolt
R: Mechanical Disc brakes, 160mm rotors F & R, 6 Bolt

Rotors

F: 160mm, 6-Bolt Rotor
R: 160mm, 6-Bolt Rotor

COCKPIT

Grips

SURFACE Push-on Grip

Handlebar

Alloy Handlebar, Width: 580mm, Dia: 31.8mm, Backsweep: 5°, Rise: 5mm

Stem

31.8mm, 60mm, Alloy

Saddle

SURFACE Ergo, Satin Cromo Rails

Seat Post

27.2mm x 300mm, Alloy Black

Seatpost Clamp

SURFACE QR Clamp

Pedals

One Piece Alloy Pedal

WEIGHT

Bike Weight

13.82kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

What is the weight limit on this bike?

75kg - combined weight of bike and rider (including all kit).
Can I fit V - Brakes to this bicycle?

No
Is this a unisex bicycle?

Yes
Can this bicycle fit a water bottle?

Yes, there are water bottle bosses underneath the Down Tube.
Can I swop the brakes around?

Yes, the brakes are mechanical which makes it easier to swop around.
Can I fit 27.5" wheels to this model?

No, the frame is designed to take 26" wheels only.
What is the maximum tyre size I can fit on my Skid 26"?

The maximum tyre size you can fit to the Skid 26" is 26 x 2.35" tyres.

ANDERE MODELLE DER SERIE

€499

SPYKE 26 (GEN4)

Hardtail | Youth Trail | Alloy

100mm Travel
26" x 2.35" Wheels
1x7 Speed Shimano
13.82kg

€499

SPYKE 26

Hardtail | Kids | Alloy

100mm Travel
26"
1x8 Speed Microshift
13.82kg

€486

SE:SERIES 8

Hardtail | Sport XC | Alloy

100mm Travel
29"/27.5"
1x8 Speed Shimano
15.5kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S
	Rider height(cm)	146-160
	Rider inseam(cm)	66-73
A	Seat tube c/t	330
B	Seat tube angle	74
C	Head tube angle	69
D	Top Tube	545
E	Reach	380
F	Chainstay length	435
G	bb height	320
H	head tube length	105
I	stack	576
J	standover	680
K	Wheelbase	1051
