Spyke 24 SE (Gen4) €599,00

AUSSTATTUNG GRÖSSE & GEOGRAPHIE VERGLEICHEN ANPASSEN DEMO VEREINBAREN

Spyke 24 SE (Gen4)

Name: Spyke 24 SE (Gen4)
Brand: Silverback
SKU: 0086544006739
Price: 599.0 EUR
Availability: OutOfStock
Rating: 4.50 (8 reviews)

€599

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.50 8 reviews

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Sally Girls Helmet - Helmet - Space - Matt Pink - - - Speedlab

Speedkit Tubeless Kit

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-5

Spyke 24 SE (Gen4)

€599,00

Sold Out

READY FOR REAL TRAILS

Built for young riders who are ready to push harder, this 24" trail bike delivers real mountain‑bike performance in a youth‑friendly package. A responsive suspension fork smooths out roots and rocks, giving growing riders the confidence to explore rougher terrain, while powerful hydraulic disc brakes provide consistent stopping control in any weather. The lightweight frame keeps handling sharp and easy to manage, and the fit is dialed for riders progressing in skill and speed. It’s the perfect step‑up bike for kids who want to ride farther, climb stronger, and discover what real trail riding feels like.

Auf einen Blick

Silverback 24" 6061 Aluminium, Low standover frame, 1-1/8" Headtube
Suntour XCT suspension fork with 50mm of travel
24" Alloy single wall rims, with steel spokes, 2.35" tyres
Shimano drivetrain
Tektro Hydraulic Disc brakes
Kick stand
Easy ride geometry
Size specific contact points
Weight:13.46kg

TECHNISCHE HIGHLIGHTS

BIG TYRES, SUSPENSION FORK, AND GREAT GEOMETRY.

The Spyke 24 SE is the perfect Youth mountain bike to get your kid riding trails in no time. This bike is suitable for riding trails, street, your local pump track or even to school and back. Featuring a Suntour 50mm suspension fork, 8-speed Shimano drivetrain, big tyres, alloy wheels, and disc brakes, the Spyke 24 SE boasts a low standover frame design with alloy components and Best In Class pedigree.

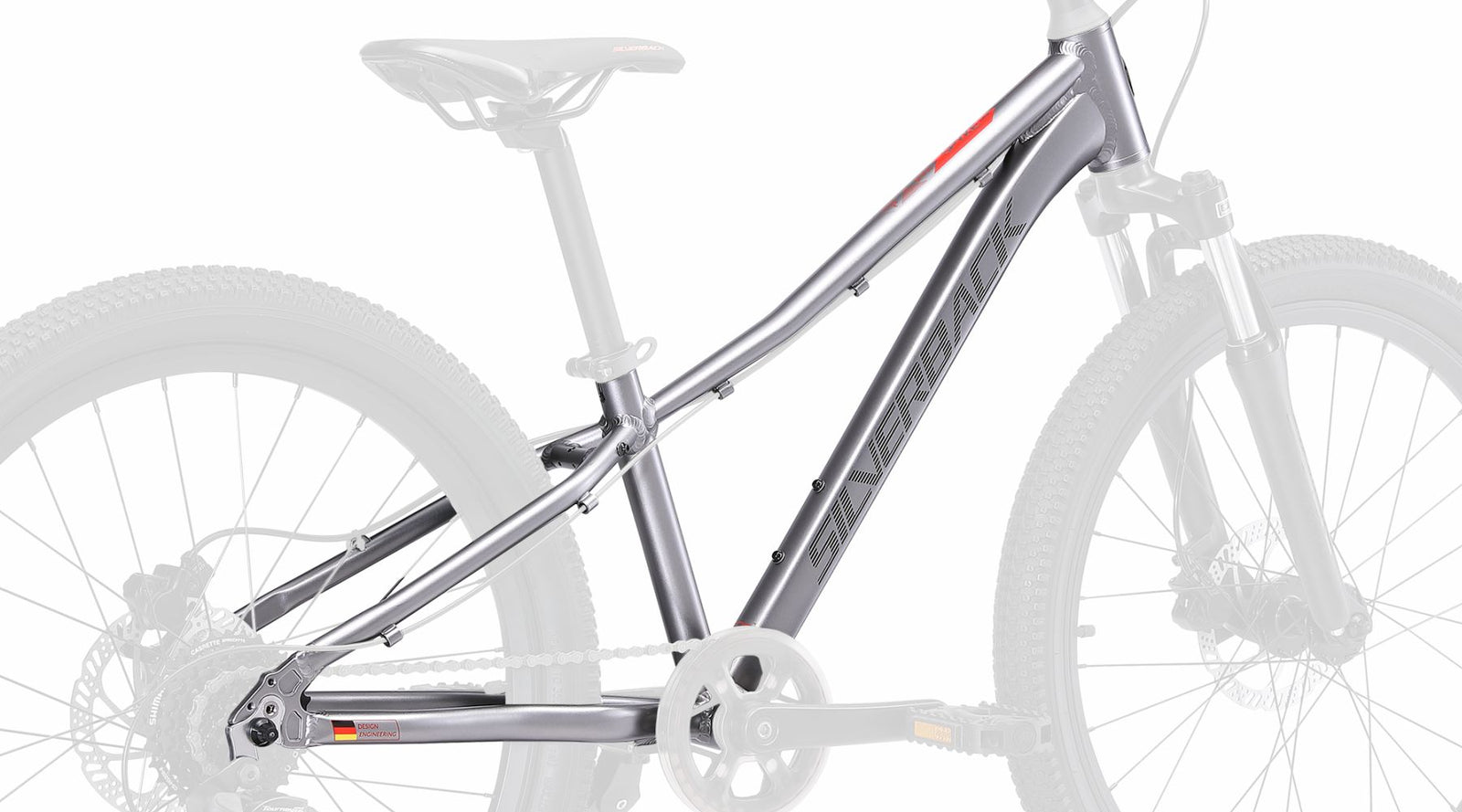

MECHANICALLY-FORMED 6061 ALLOY FRAME

Spyke 24 SE features a frame optimized for young riders. Trickle-down technology means that the new frame benefits from our leading platforms' design advances. The alloy frame tubes are mechanically formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use, resulting in a lighter weight frame and thus a lighter complete bike.

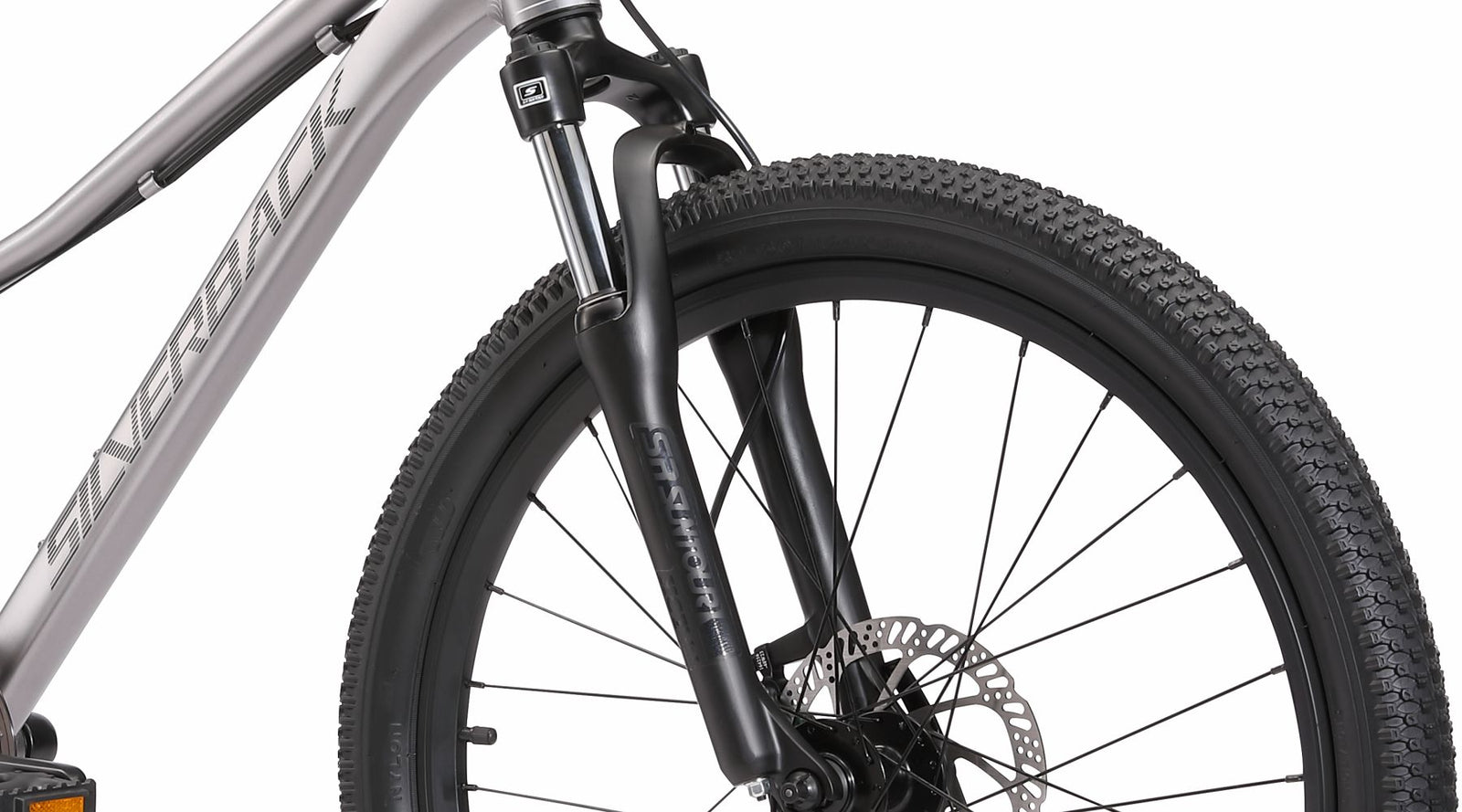

SUSPENSION FORK

The lightly sprung Suntour XCT 50mm Suspension fork is ample for smaller riders, smoothing out uneven terrain as well as improving grip adding loads to the fun factor on bumpy trails or jumps. Who doesn't like a suspension fork?!

SUPER LOW STANDOVER

Lower standover means that the Spyke can be ridden by both male and female riders with more room for movement. This improves control and confidence on technical sections.

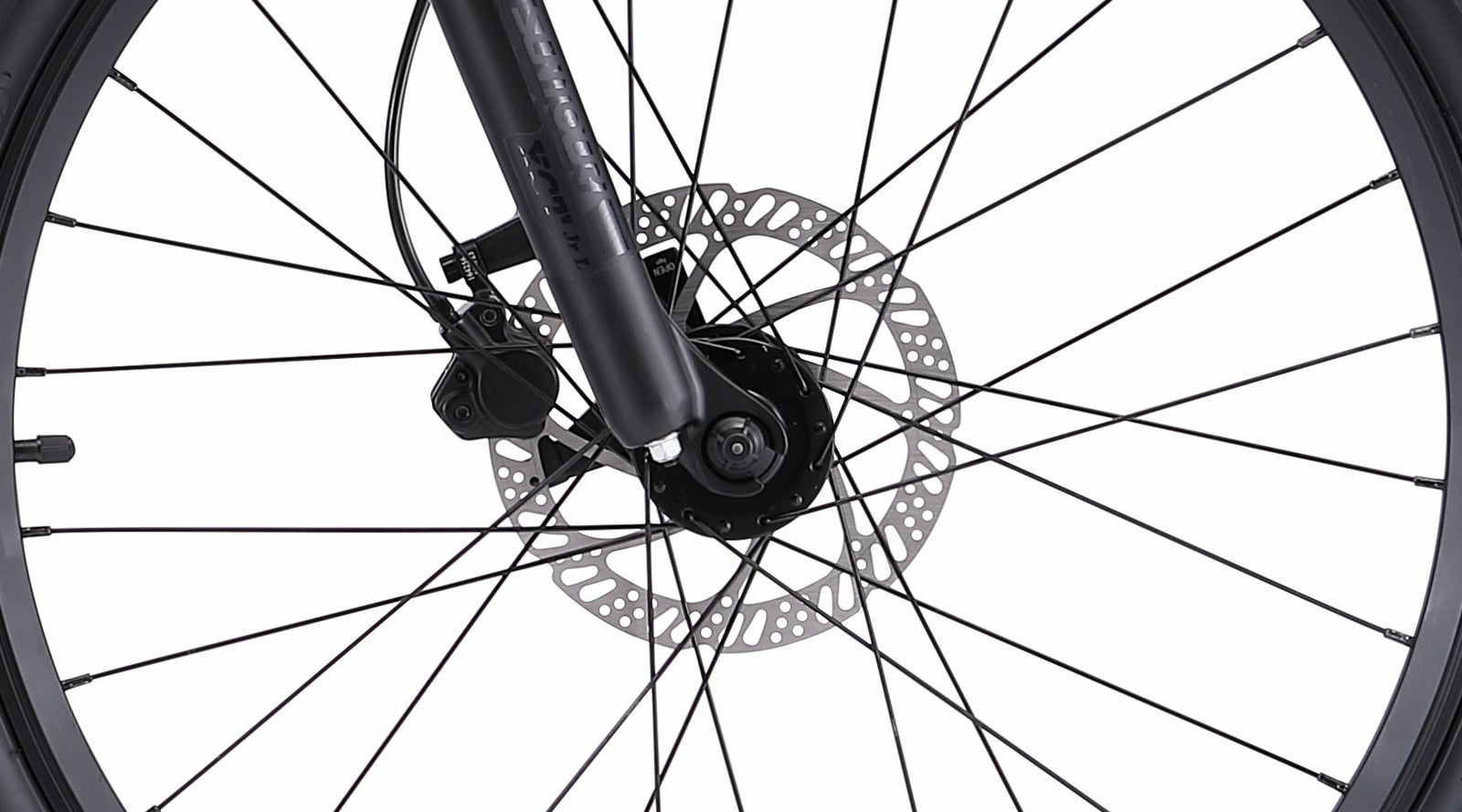

HYDRAULIC DISC BRAKES

Spyke 24 SE comes with hydraulic disc brakes. Disc brakes offer dependable all-weather performance over rim brakes and the lever pull is light for young riders. Levers are reach adjustable for smaller hands.

1X GEARED DRIVETRAIN

Spyke 24 SE features a Shimano Tourney 1x geared drivetrain. The single chainring up front with a trigger shifter makes the gears intuitive and easy to use and the gears gives young legs a bit of help on climbs.

EASY RIDE GEOMETRY

Geometry on our kids bicycles are designed to improve balance and comfort moving the rider in a more natural feeling position. With better balance and more comfort, confidence is improved. This makes for swift riding progression.

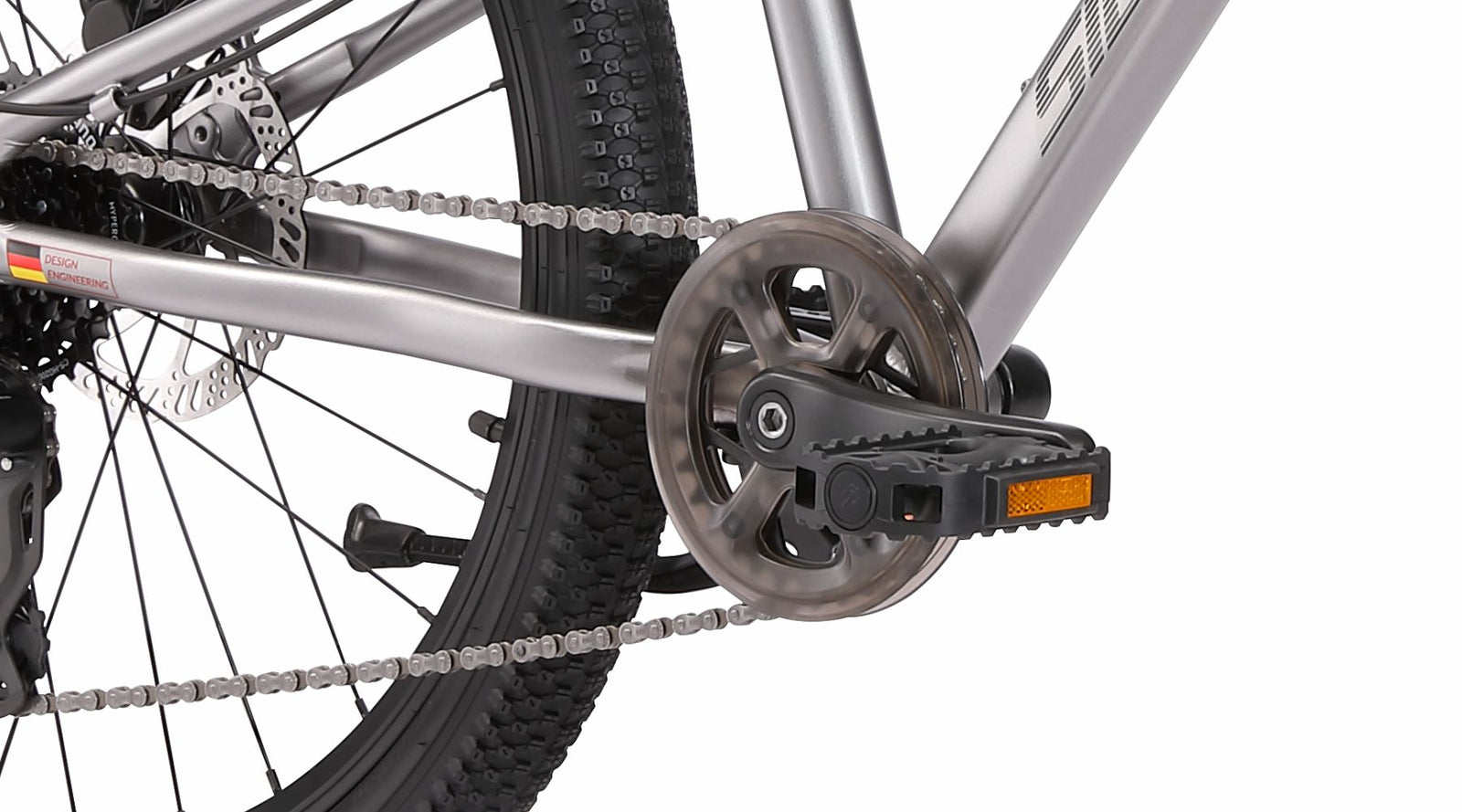

CHAINGUARD

The chainguard completely covers the front chainring. This keeps your kid clean and hands and feet from potential hazards.

FENDER MOUNTS

The frame features mounting points for fenders.

HIGHER VOLUME TYRES

Spyke SE is designed to easily fit higher volume 24" x 2.35" tyres with plenty of mud clearance. Bigger tyres can increase the contact area and thus ride comfort, control and grip

KICKSTAND MOUNT

There is an integrated kickstand mount. Spyke 24 SE comes fitted with a kickstand!

SPYKE SADDLE

The new Spyke saddle is manufactured to be durable suiting the paintjob on the Spyke and good looking, comfortable & to fit a junior rider's body.

MECHANICALLY-FORMED 6061 ALLOY FRAME

Spyke features a brand new frame for young riders. Trickle-down technology means that the new frame benefits from our leading platforms. The frame tubes are mechanically formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use. Spyke features a 1-1/8" headtube.

SIZE SPECIFIC CONTACT POINTS

Spyke is finished with a kid's specific saddle, smaller, narrower bars, smaller diameter grips, reach-adjustable brake and a shorter crankset with smaller pedals - all to suit smaller riders perfectly.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Hydro formed 24" 6061 Aluminium, 1-1/8" Headtube 135mm OLD QR Dropouts, disc brake mounts

Headset

1-1/8" Headset, Press in cups

Frame Axle Spacing

135x9mm

Axle Specification

Kickstand Type

Centre-mount kickstand for 24" wheels

Hanger Type

HANGER 05

SUSPENSION

Fork

Suntour SF20 XCT-JR DS Suspension fork, 50mm travel, Coil

Fork Travel

50mm

WHEELS

Wheelset

SURFACE Custom Wheelset

Hubs

F: Alloy, 28H, 100 x 9mm QR, 6-bolt Disc
R: Alloy, 28H, 135 x 9mm QR, 6-bolt Disc, 8/9/10-Speed

Rims

F: 24" Alloy Single Wall, 28H
R: 24" Alloy Single Wall, 28H

Tyres

F: 24 x 2.35" Wanda P1226
R: 24 x 2.35" Wanda P1226

Max Tyre Size

2.35"

DRIVETRAIN

Crankset

Surface Alloy, 140mm, 32T chainring

Max Chainring Size

32T

Bottom Bracket & Type

BSA68

Shifter(s)

R: Shimano Altus SL-M315, 8-speed

Rear Derailleur

Shimano Tourney RD-TX800 8-Speed

Cassette

Shimano CS-HG200, 8-speed, 12-32T

Chain

Shimano CN-HG40, 8-Speed

BRAKES

Brakes

F: Tektro J-285 Hydraulic Disc
R: Tektro J-285 Hydraulic Disc

Rotors

F: 160mm, 6-Bolt
R: 160mm, 6-Bolt

COCKPIT

Grips

125mm

Handlebar

Alloy, 580mm x 25.4, 10°, H: 15mm

Stem

Alloy, 25.4mm E: 60mm, H: 41mm, Sweep: 15°

Saddle

Silverback custom design, steel rail

Seat Post

Alloy, 27.2mm x 300mm

Seatpost Clamp

31.8mm, Alloy, QR

Pedals

9/16″ Ball, PP

WEIGHT

Bike Weight

13.66kg

RIDER WEIGHT LIMIT

75 kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

What is the weight limit on this bike?

75kg - combined weight of bike and rider (including all kit).
Can I fit V - Brakes to this bicycle?

No
Is this a unisex bicycle?

Yes
Can this bicycle fit a water bottle?

Yes, there are water bottle bosses underneath the Down Tube.
Can I swop the brakes around?

Yes, the brakes are mechanical which makes it easier to swop around.
Can I fit 26" wheels to this model?

No, the frame is designed to take 24" wheels only.
What is the maximum tyre size I can fit on my Spyke 24"?

The maximum tyre size you can fit to the Spyke 24" is 24 x 2.35" tyres.
Why does the bicycle only have one chain ring on the crank set?

A 1 x setup is easier to maintain and there are less components to replace if something breaks.

ANDERE MODELLE DER SERIE

€499

SPYKE 24D (GEN4)

Hardtail | Kids | Alloy

50mm Travel
24"
1x7 Speed Shimano
13.66kg

€599

SPYKE 24 SE (GEN4)

Hardtail | Kids | Alloy

50mm Travel
24"
1x8 Speed Shimano
13.66kg

€499

SPYKE 26 (GEN4)

Hardtail | Youth Trail | Alloy

100mm Travel
26" x 2.35" Wheels
1x7 Speed Shimano
13.82kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S
	Rider height(cm)	130-150
	Rider inseam(cm)	59-68
A	Seat tube c/t	290
B	Seat tube angle	72.5°
C	Head tube angle	69°
D	Top Tube	506
E	Reach	345
F	Chainstay length	415
G	bb height	260
H	head tube length	110
I	stack	511
J	standover	590
K	Wheelbase	986
