Spyke 24D (gen4) €499,00

AUSSTATTUNG GRÖSSE & GEOGRAPHIE VERGLEICHEN ANPASSEN DEMO VEREINBAREN

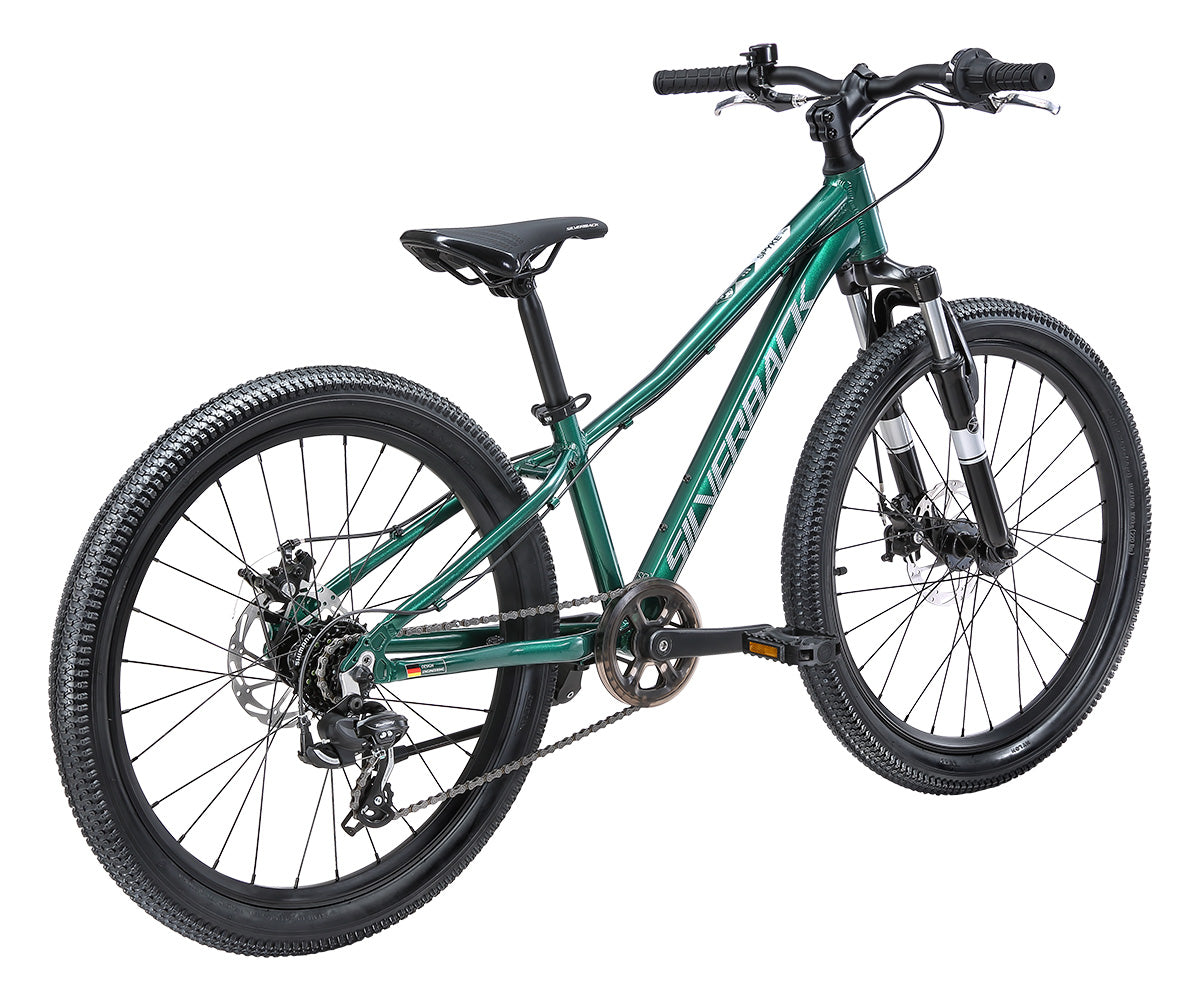

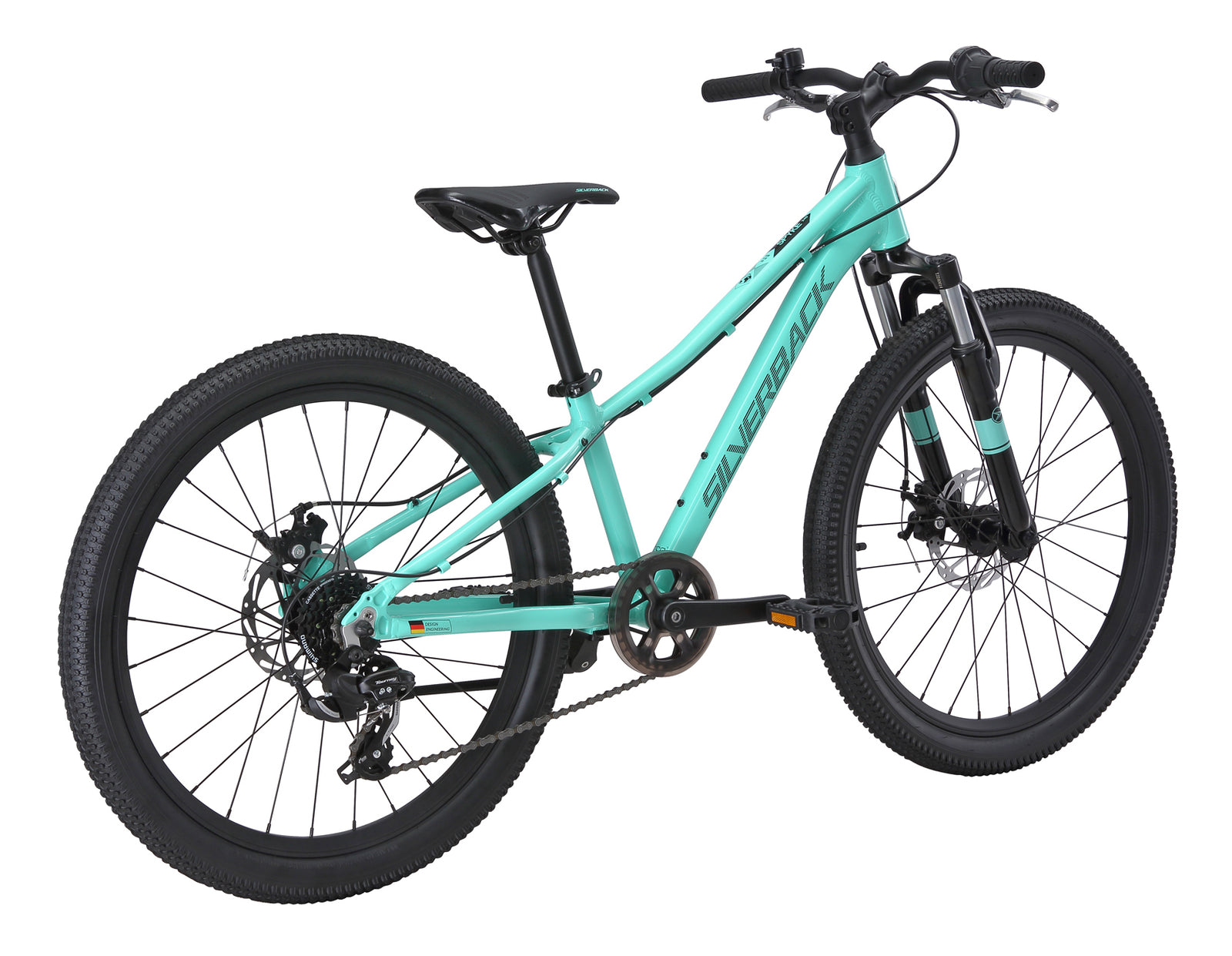

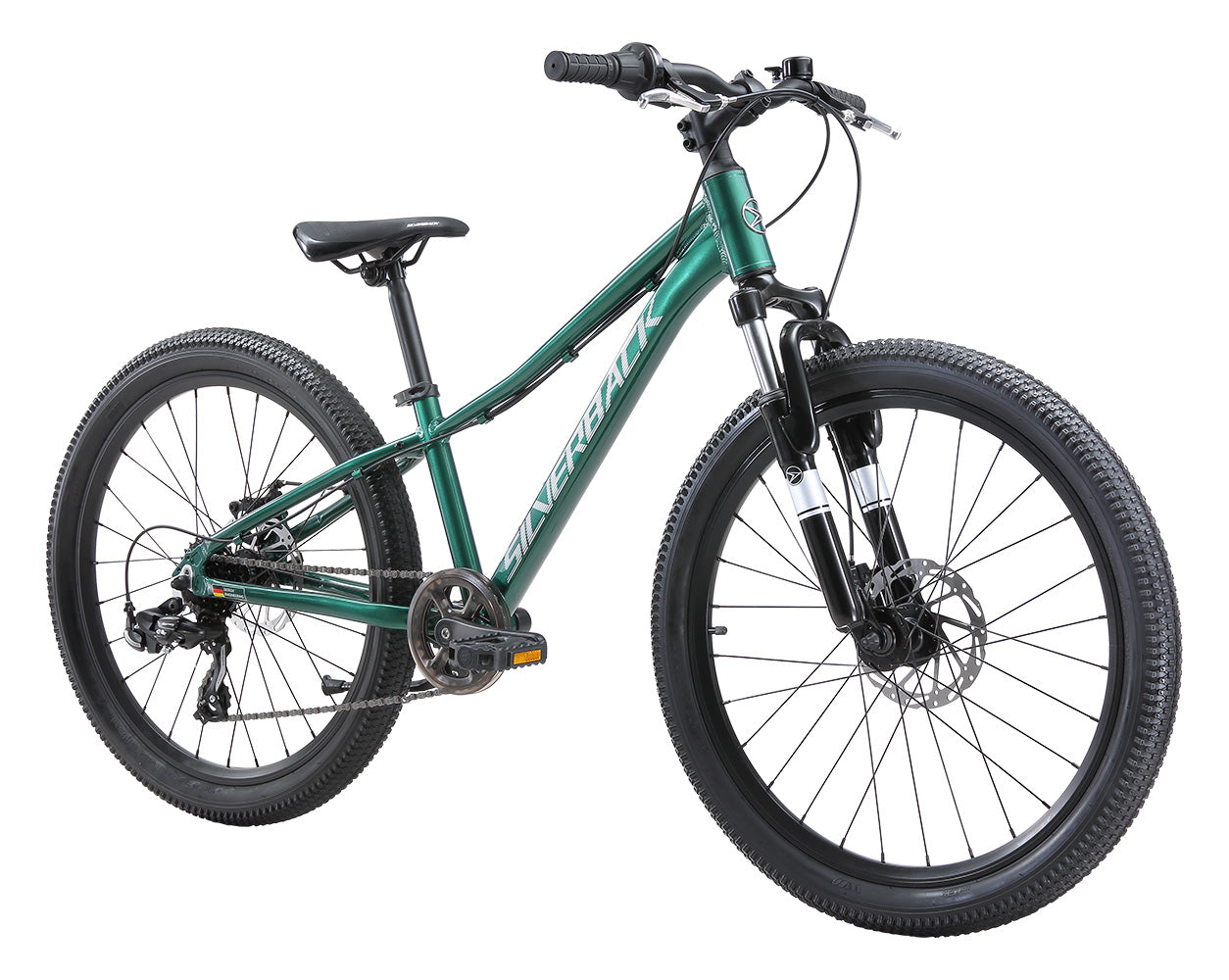

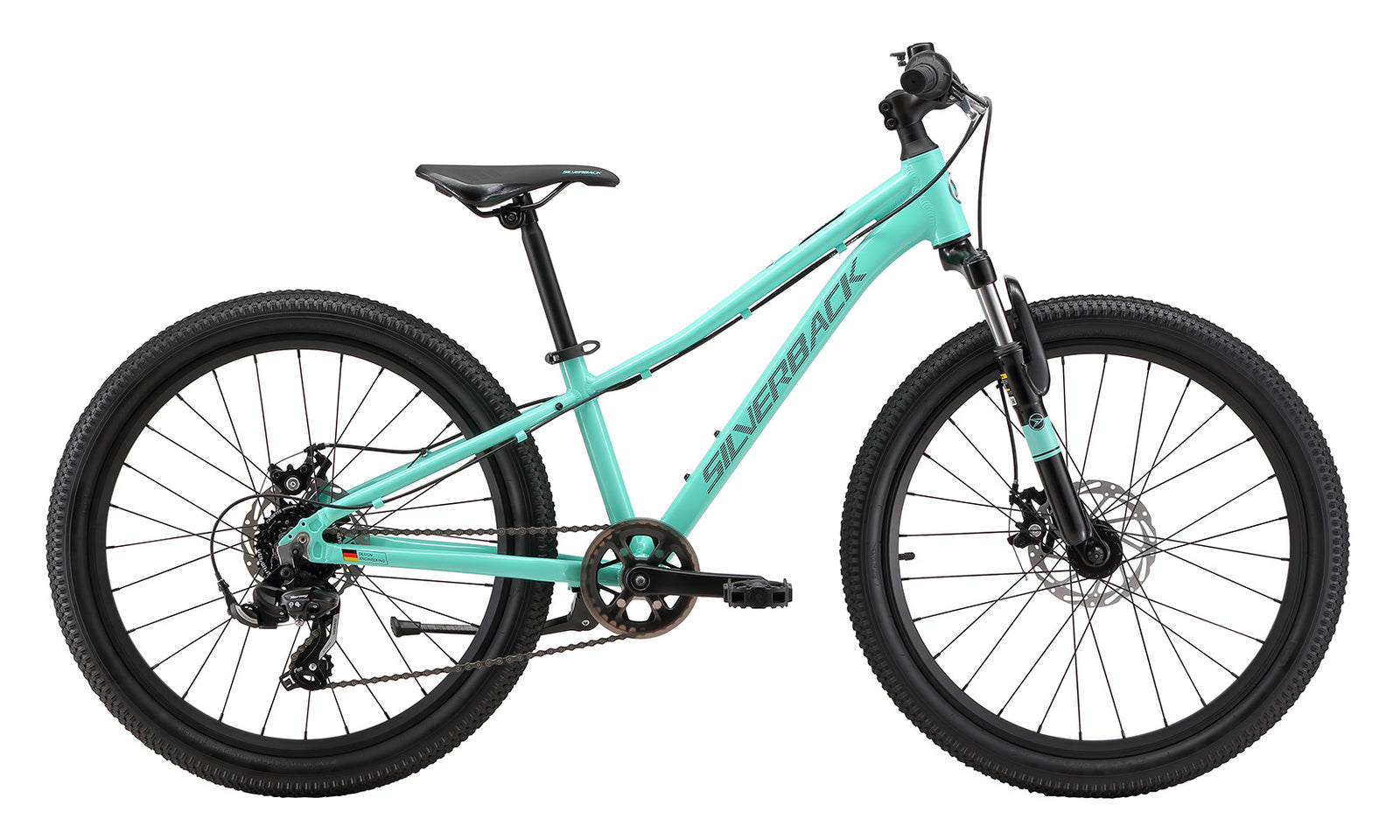

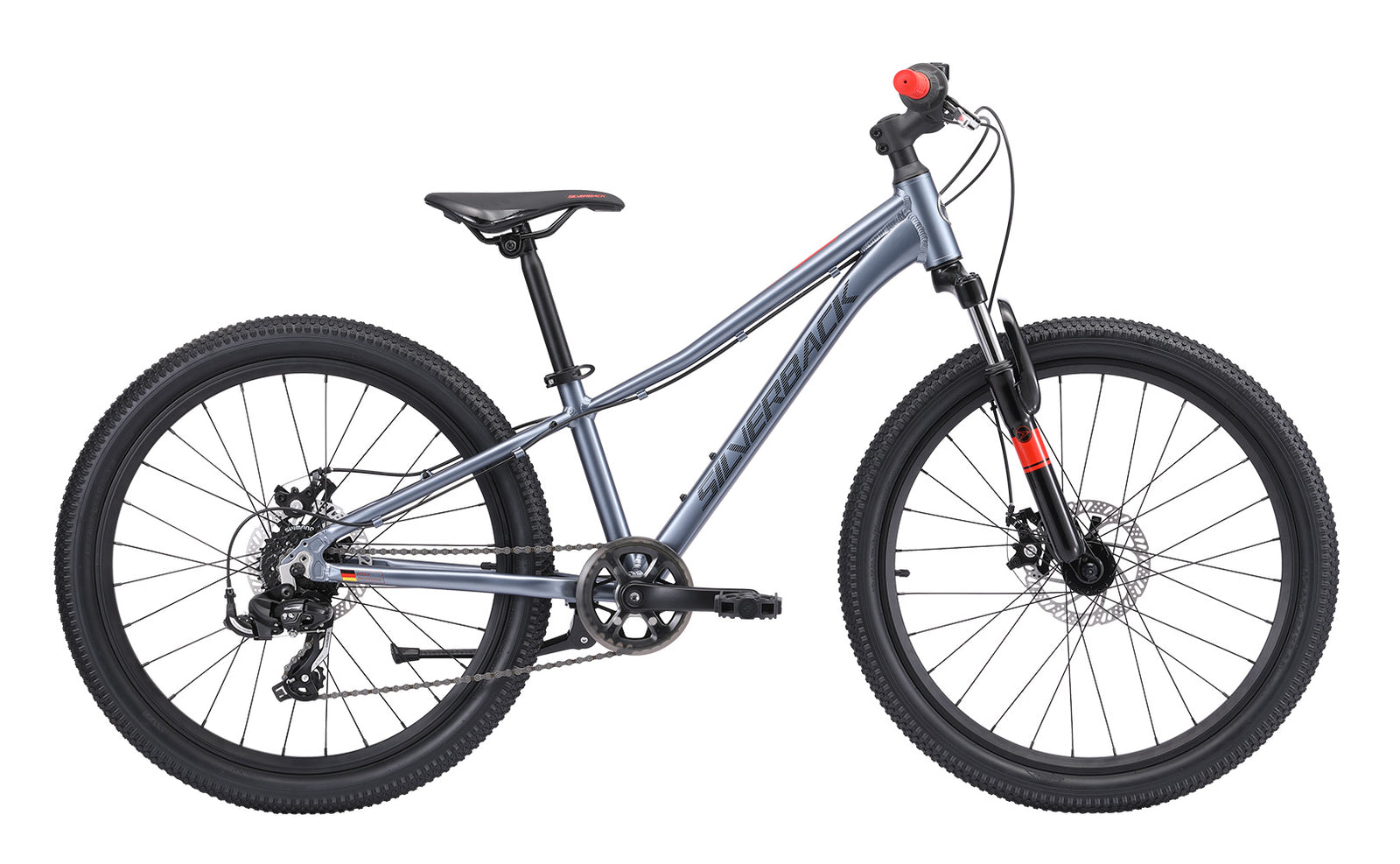

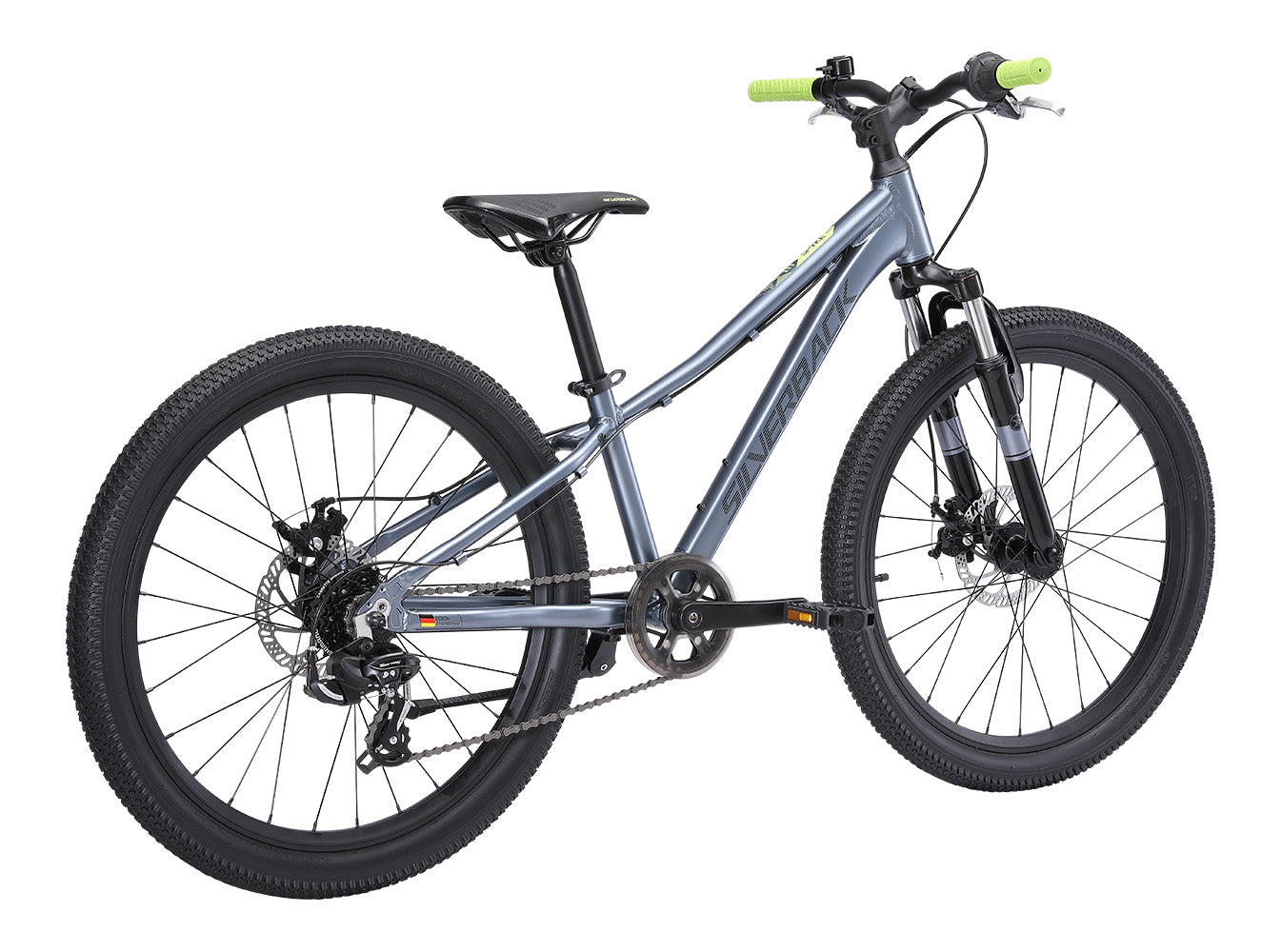

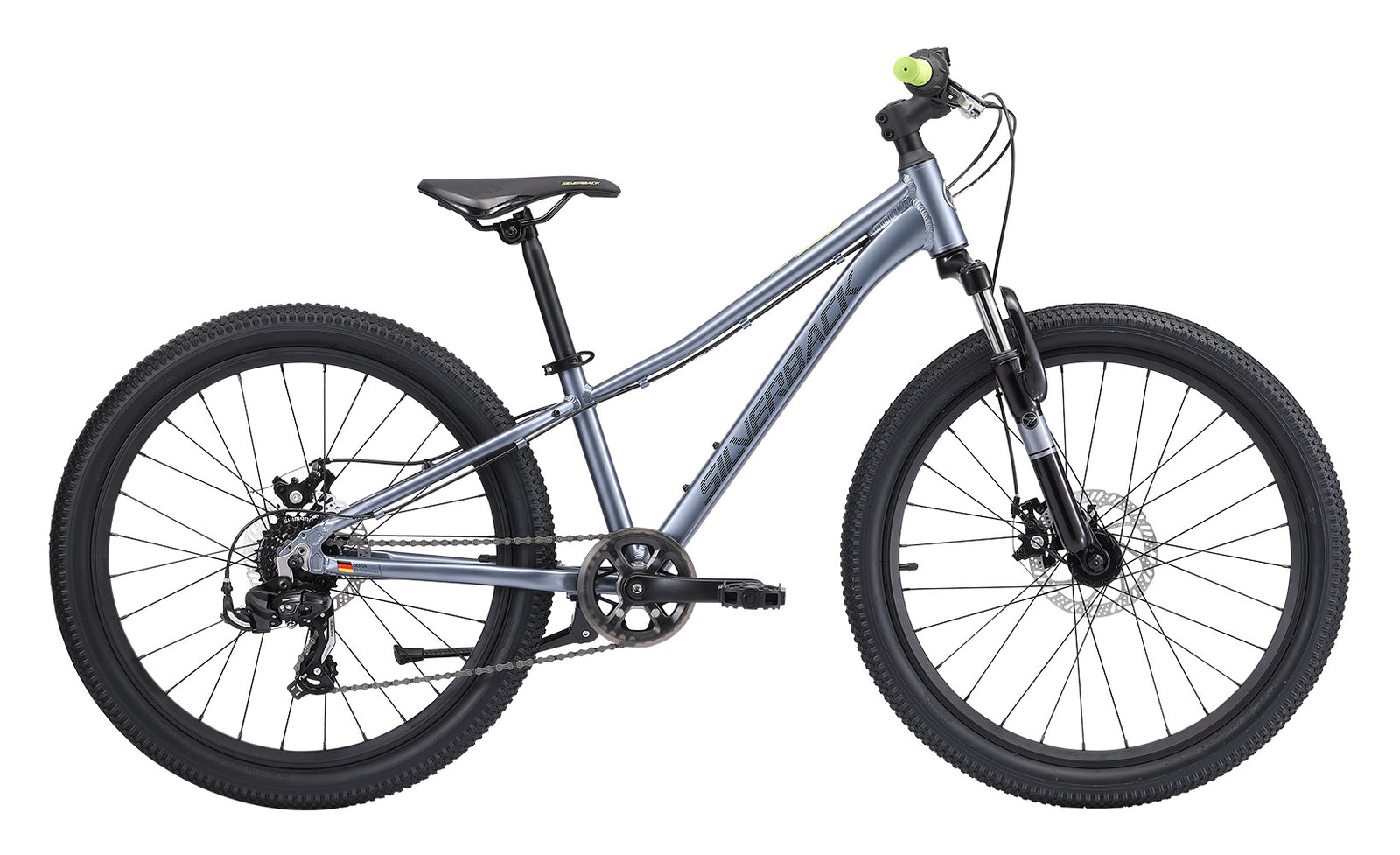

Spyke 24D (gen4)

Name: Spyke 24D (gen4)
Brand: Silverback
SKU: 0086544006715
Price: 499.0 EUR
Availability: OutOfStock
Rating: 4.78 (9 reviews)

€499

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.78 9 reviews

Size:

Color: Xenon Grey / Watermelon Red

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

new lower price

Sam Kids/Toddlers Helmet - Helmet - Space - Matt Grey/Lime - - - Speedlab

Space Sam Boys Helmet, Matt Grey/Lime

Top Cap - Blue - Top caps - BornToBeFast - DodgerBlue - - - Speedlab

Schwalbe Glueless Patches

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-5

Spyke 24D (gen4)

€499,00

Sold Out

BIG-BIKE CAPABILITIES

The Spyke 24D brings big‑bike capability to growing riders. With a Shimano 7‑speed drivetrain, tapered headset, integrated kickstand mount, and progressive trail geometry, it delivers real performance in a kid‑sized package. Inspired by our POP geometry from the Slade, the Spyke 24D is a confident, stable descender that handles like a true trail bike—built for young riders who are ready to push harder and ride further.

Auf einen Blick

Silverback 24" 6061 Aluminium, Low standover frame, 1-1/8" Headtube
Zoom steel suspension fork with 50mm of travel
Shimano drivetrain
24" Alloy single wall rims, with steel spokes, 2.35" tyres
Tektro Disc brakes
Kick stand
Easy ride geometry
Size specific contact points
Weight: 13.66kg

TECHNISCHE HIGHLIGHTS

MECHANICALLY-FORMED 6061 ALLOY FRAME

Spyke 24 features a frame optimized for young riders. Trickle-down technology means that the new frame benefits from our leading platforms. The frame tubes are mechanically formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use, resulting in a lighter weight frame and lighter complete bike.

SUSPENSION FORK

The lightly sprung Zoom 50mm Suspension fork is ample for smaller riders, smoothing out uneven terrain as well as improving grip adding loads to the fun factor on bumpy trails or jumps

EASY RIDE GEOMETRY

Geometry on our kids bicycles are designed to improve balance and comfort moving the rider in a more natural feeling position. With better balance and more comfort, confidence is improved. This makes for swift riding progression.

CHAINGUARD

The chainguard completely covers the chainring. This keeps your kid clean and hands and feet from potential hazards.

HIGHER VOLUME TYRES

Spyke is designed to easily fit higher volume 20" x 2.35" tyres with plenty of mud clearance. Bigger tyres can increase the contact area and thus ride comfort, control and grip

KICKSTAND

Spyke 24 is fitted with an integrated centre-mount kickstand

SPYKE SADDLE

The new Spyke saddle is manufactured to be durable, good looking, comfortable and to fit a junior rider's body.

MECHANICALLY-FORMED 6061 ALLOY FRAME

Spyke features a brand new frame for young riders. Trickle-down technology means that the new frame benefits from our leading platforms. The frame tubes are mechanically formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use. Spyke features a 1" headtube. Silverback decals are applied under the clear coat for durability.

SIZE SPECIFIC CONTACT POINTS

Spyke is finished with a kid's specific saddle, smaller, narrower bars, smaller diameter grips, reach-adjustable brake and a shorter crankset with smaller pedals - all to suit smaller riders perfectly.

SUPER LOW STANDOVER

Spyke 24 frame has a very low standover, this means that the Spyke can be ridden by both girls and boys with more room for movement. This improves control and confidence over technical terrain.

MECHANICAL DISC BRAKES

Spyke 24 comes with mechanical disc brakes. Disc brakes offer dependable all-weather performance over rim brakes and the lever pull is light for young riders. Levers are reach adjustable for smaller hands.

1X GEARED DRIVETRAIN

Spyke 24 features a 1x geared drivetrain. The single chainring up front makes the gears intuitive and easy to use and the gears gives young legs a bit of help on climbs.

RACK AND FENDER MOUNTS

The Spyke 24 frame features mounting points for fenders and racks.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Hydro formed 24" 6061 Aluminium, 1-1/8" Headtube 135mm OLD QR Dropouts, disc brake mounts

Headset

1-1/8" Headset, Press in cups

Frame Axle Spacing

135x9mm

Axle Specification

Kickstand Type

Centre-mount kickstand for 24" wheels

Hanger Type

HANGER 05

SUSPENSION

Fork

Zoom Steel Suspension fork, 50mm travel, Coil

Fork Travel

50mm

WHEELS

Wheelset

SURFACE Custom Wheelset

Hubs

F: Alloy, 28H, 100 x 9mm QR, 6-bolt
R: Alloy, 28H, 135 x 9mm QR, 6-bolt

Rims

F: 24" Alloy Single Wall, 28H
R: 24" Alloy Single Wall, 28H

Tyres

F: 24 x 2.35" Wanda P1226
R: 24 x 2.35" Wanda P1226

Max Tyre Size

2.35"

DRIVETRAIN

Crankset

Surface alloy, 140mm, 32T chainring

Max Chainring Size

32T

Bottom Bracket & Type

BSA68

Shifter(s)

R: Shimano Revoshift SL-RV400-7R, 7-speed Grip Shift

Rear Derailleur

Shimano Tourney RD-TY500, 7-Speed

Cassette

Shimano CS-HG200-7 12-28T, 7-speed

Chain

Shimano CN-HG40, 7-Speed

BRAKES

Brakes

F: Tektro MD-M280 Mechanical Disc
R: Tektro MD-M280 Mechanical Disc

Rotors

F: 160mm, 6-Bolt
R: 160mm, 6-Bolt

COCKPIT

Grips

110mm Long, Grip Shift

Handlebar

Alloy, 580mm, Ø25.4mm, Sweep: 10°, H:15mm

Stem

Alloy, Ø25.4mm, E:60mm, H:41mm Rise: 15°

Saddle

Spyke custom design, steel rail

Seat Post

27.2mm x 250mm, Alloy

Seatpost Clamp

31.8mm, Alloy, QR

Pedals

9/16″ Ball, PP

WEIGHT

Bike Weight

13.66kg

RIDER WEIGHT LIMIT

75 kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

What is the weight limit on this bike?

75kg
Can I fit V - Brakes to this bicycle?

No
Is this a unisex bicycle?

Yes
Can this bicycle fit a water bottle?

Yes, there are water bottle bosses underneath the Down Tube.
Can I swop the brakes around?

Yes, the brakes are mechanical which makes it easier to swop around.
Can I fit 26" wheels to this model?

No, the frame is designed to take 24" wheels only.
What is the maximum tyre size I can fit on my Spyke 24"?

The maximum tyre size you can fit to the Spyke 24" is 24 x 2.35" tyres.
Why does the bicycle only have one chain ring on the crank set?

A 1 x setup is easier to maintain and there are less components to replace if something breaks.

ANDERE MODELLE DER SERIE

€499

SPYKE 20 (GEN4)

Hardtail | Kids | Alloy

40mm Travel
20"
1x7 Speed Shimano
12.64kg

€499

SPYKE 24D (GEN4)

Hardtail | Kids | Alloy

50mm Travel
24"
1x7 Speed Shimano
13.66kg

€499

SPYKE 26 (GEN4)

Hardtail | Youth Trail | Alloy

100mm Travel
26" x 2.35" Wheels
1x7 Speed Shimano
13.82kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S
	Rider height(cm)	130-150
	Rider inseam(cm)	59-68
A	Seat tube c/t	290
B	Seat tube angle	72.5°
C	Head tube angle	69°
D	Top Tube	506
E	Reach	345
F	Chainstay length	415
G	bb height	260
H	head tube length	110
I	stack	511
J	standover	590
K	Wheelbase	986
