Spyke 20 (Gen4) €499,00

AUSSTATTUNG GRÖSSE & GEOGRAPHIE VERGLEICHEN ANPASSEN DEMO VEREINBAREN

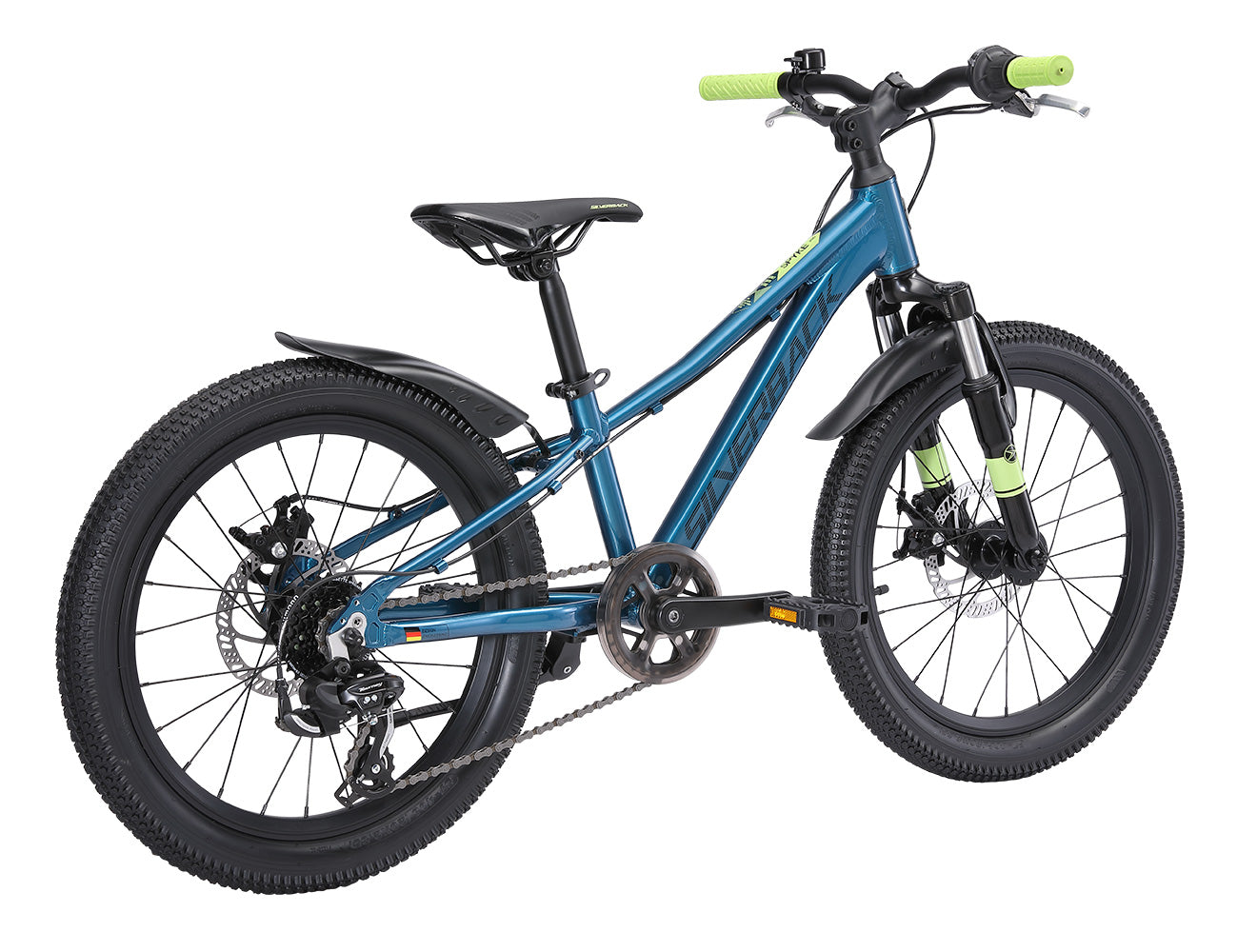

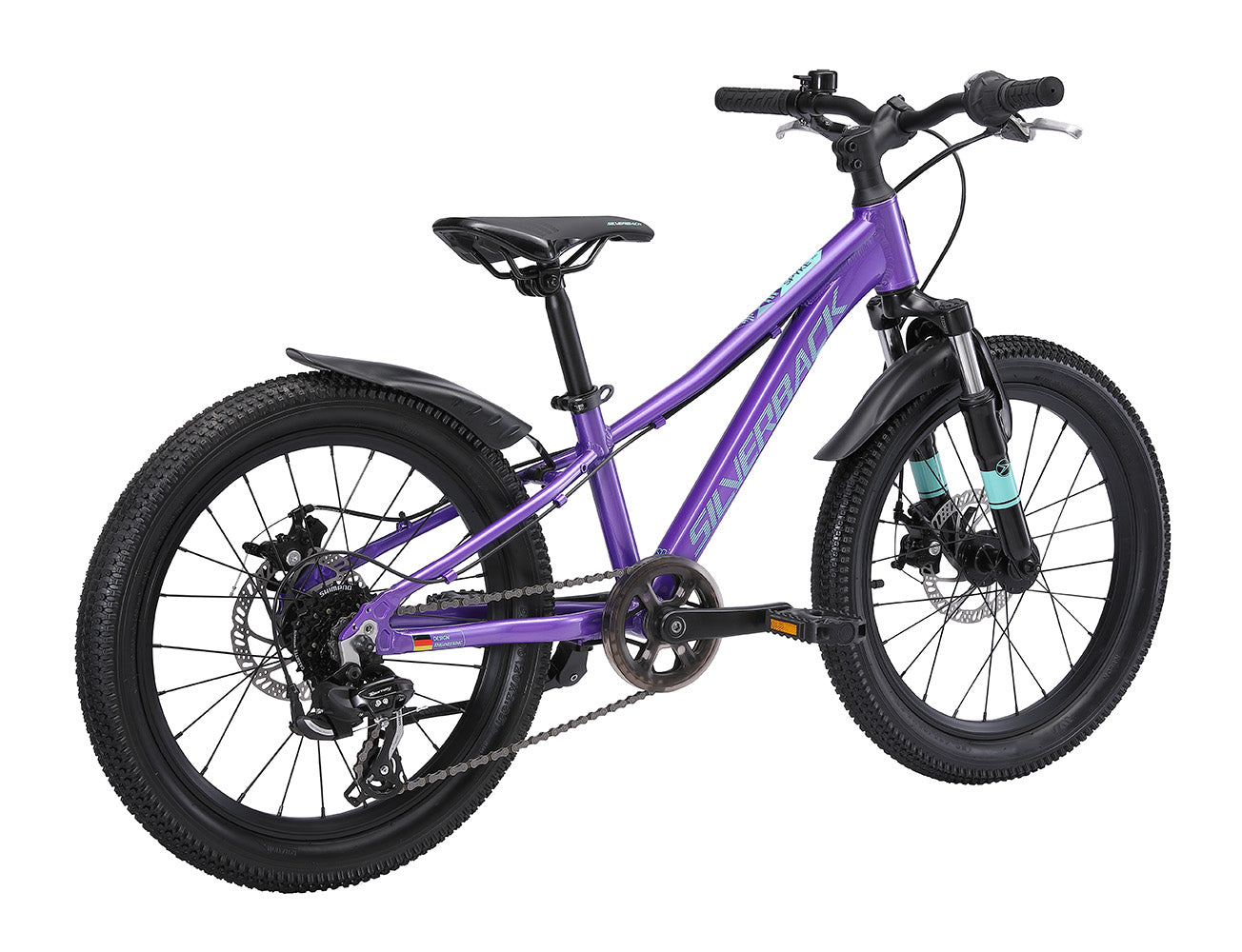

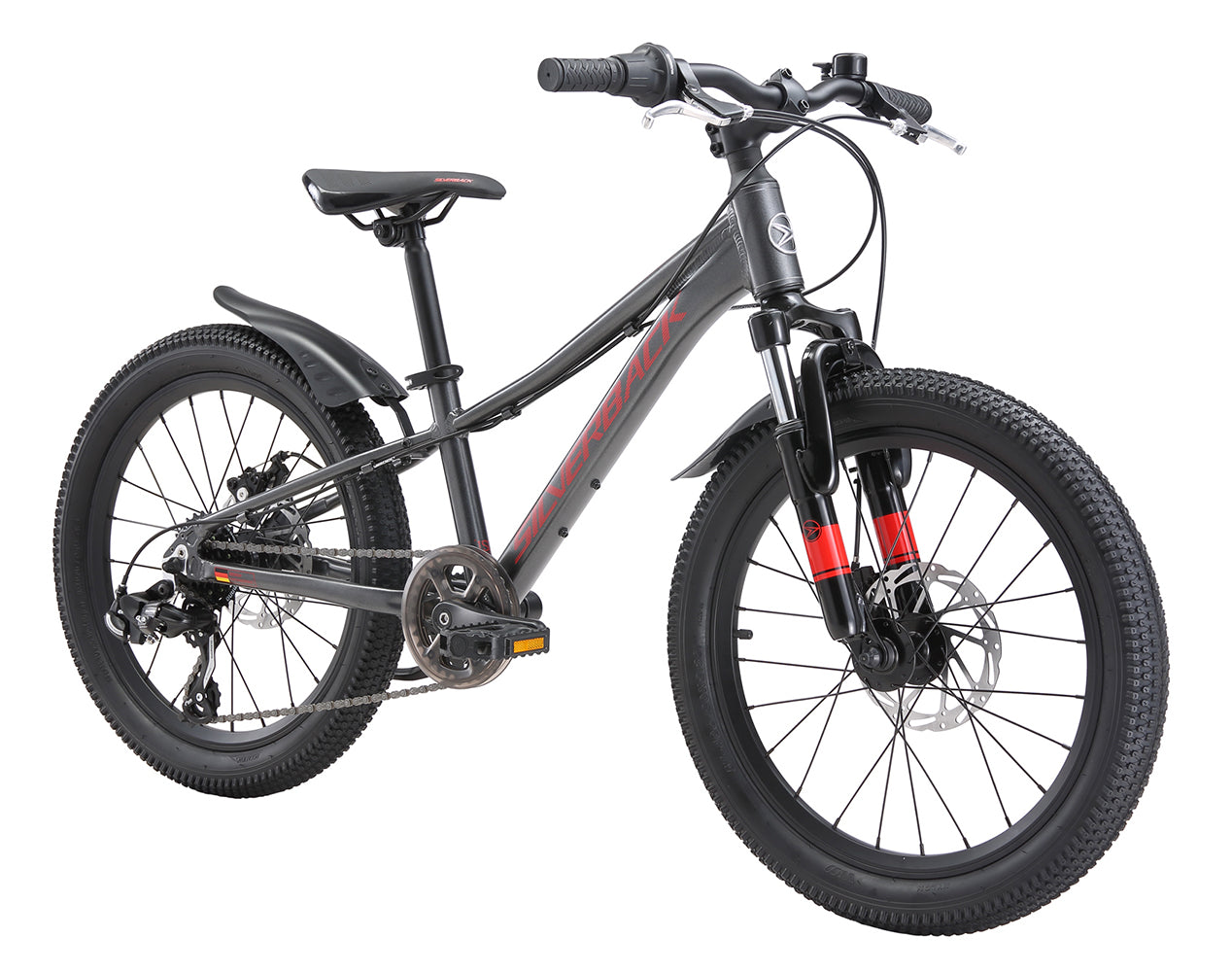

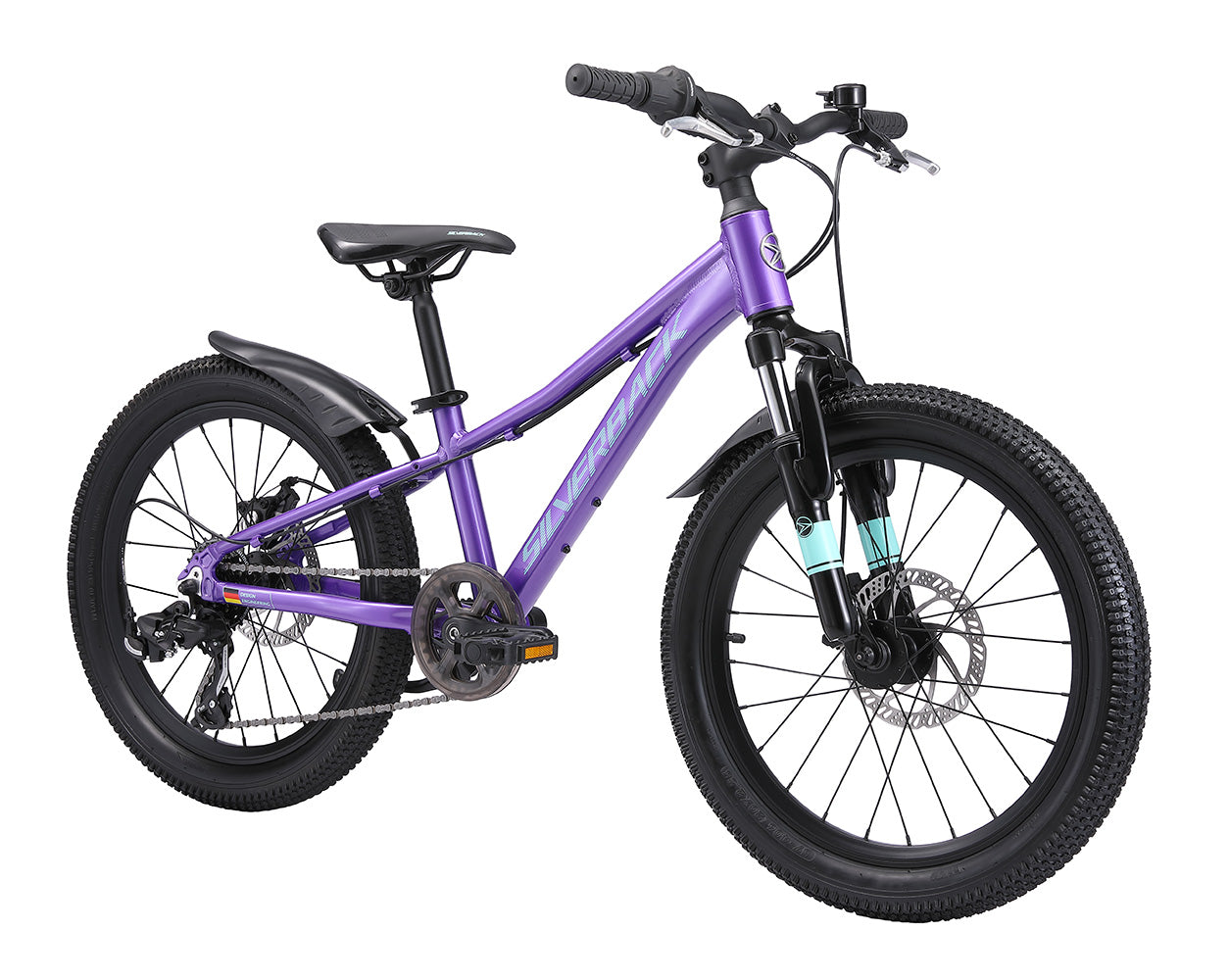

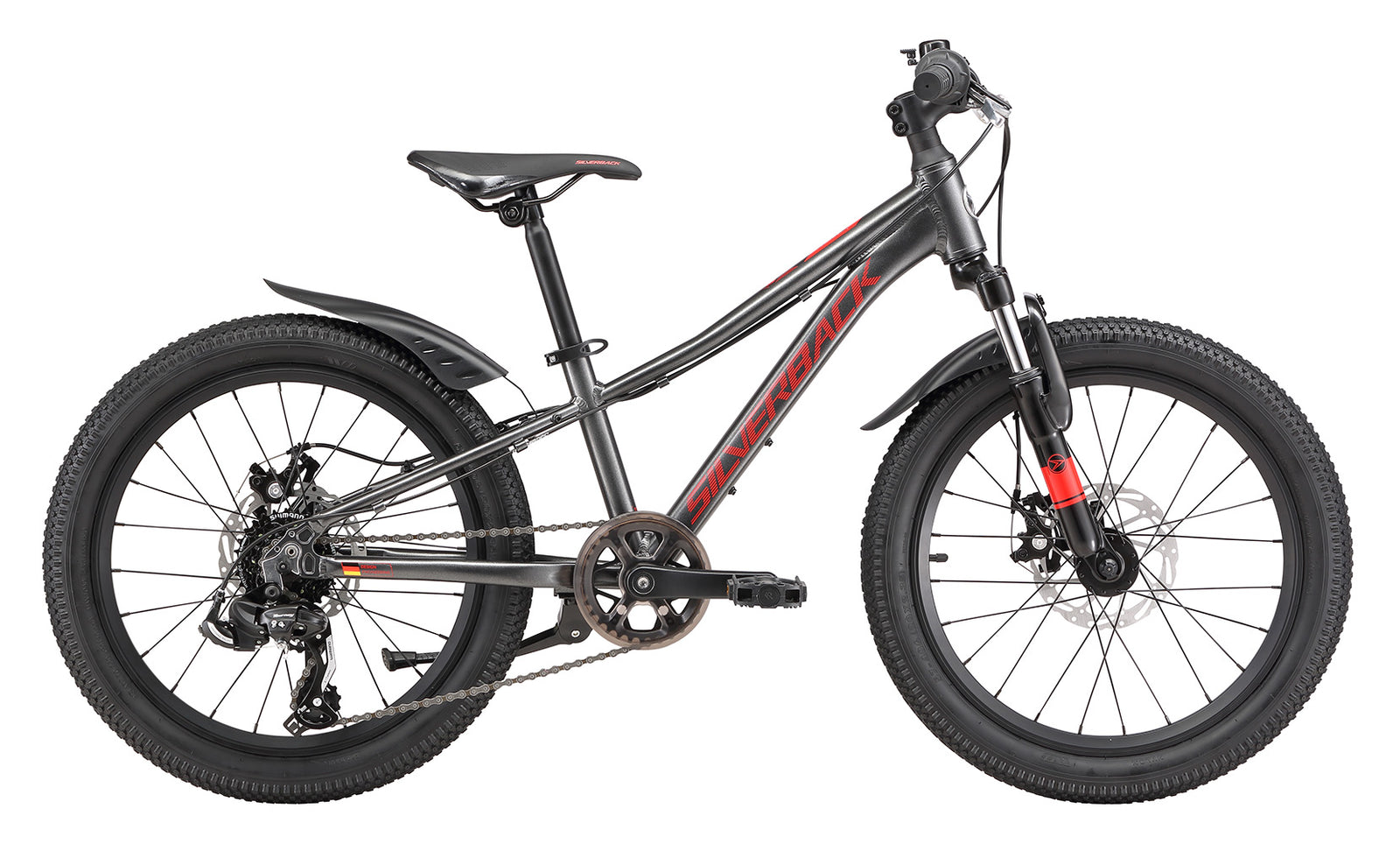

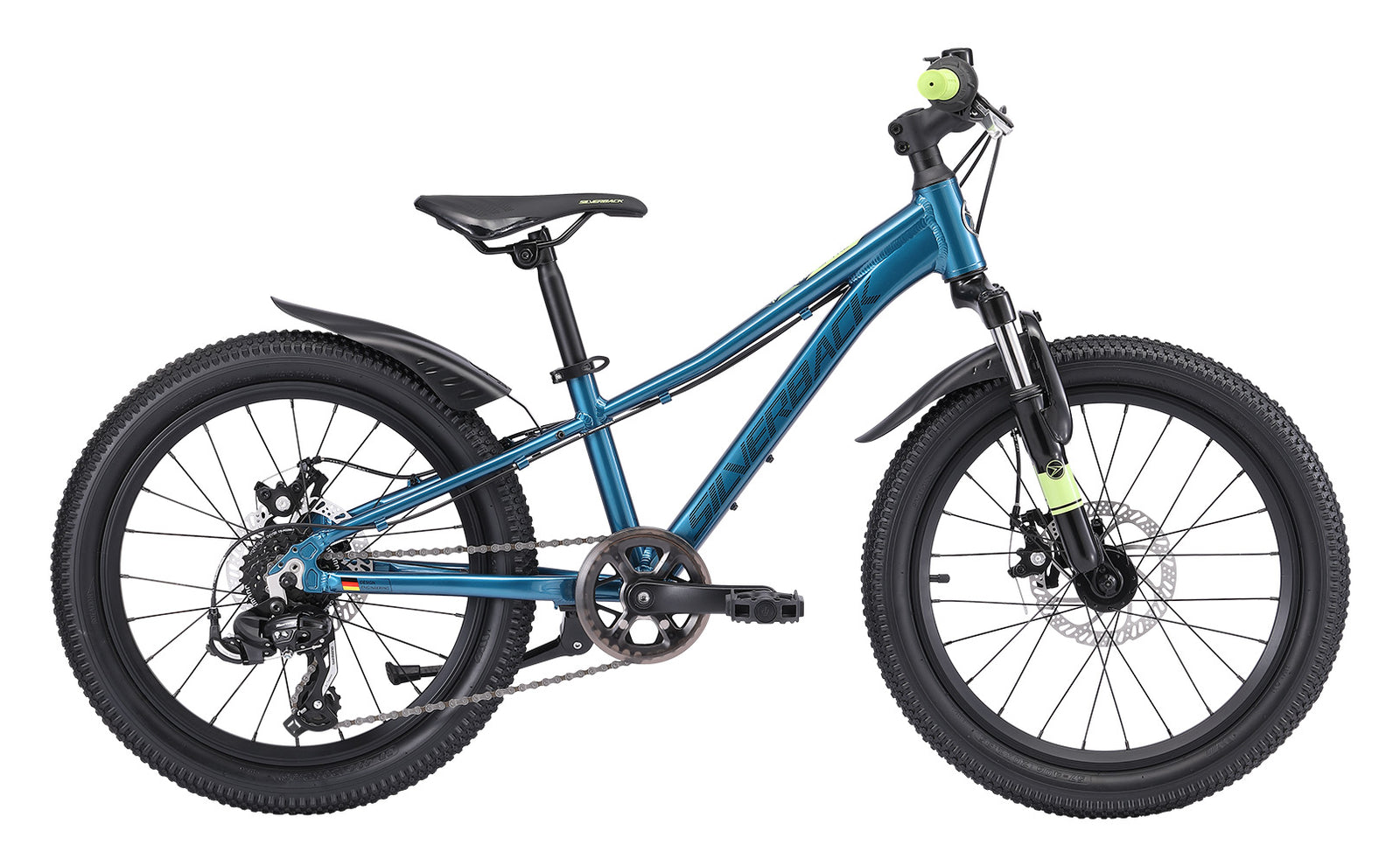

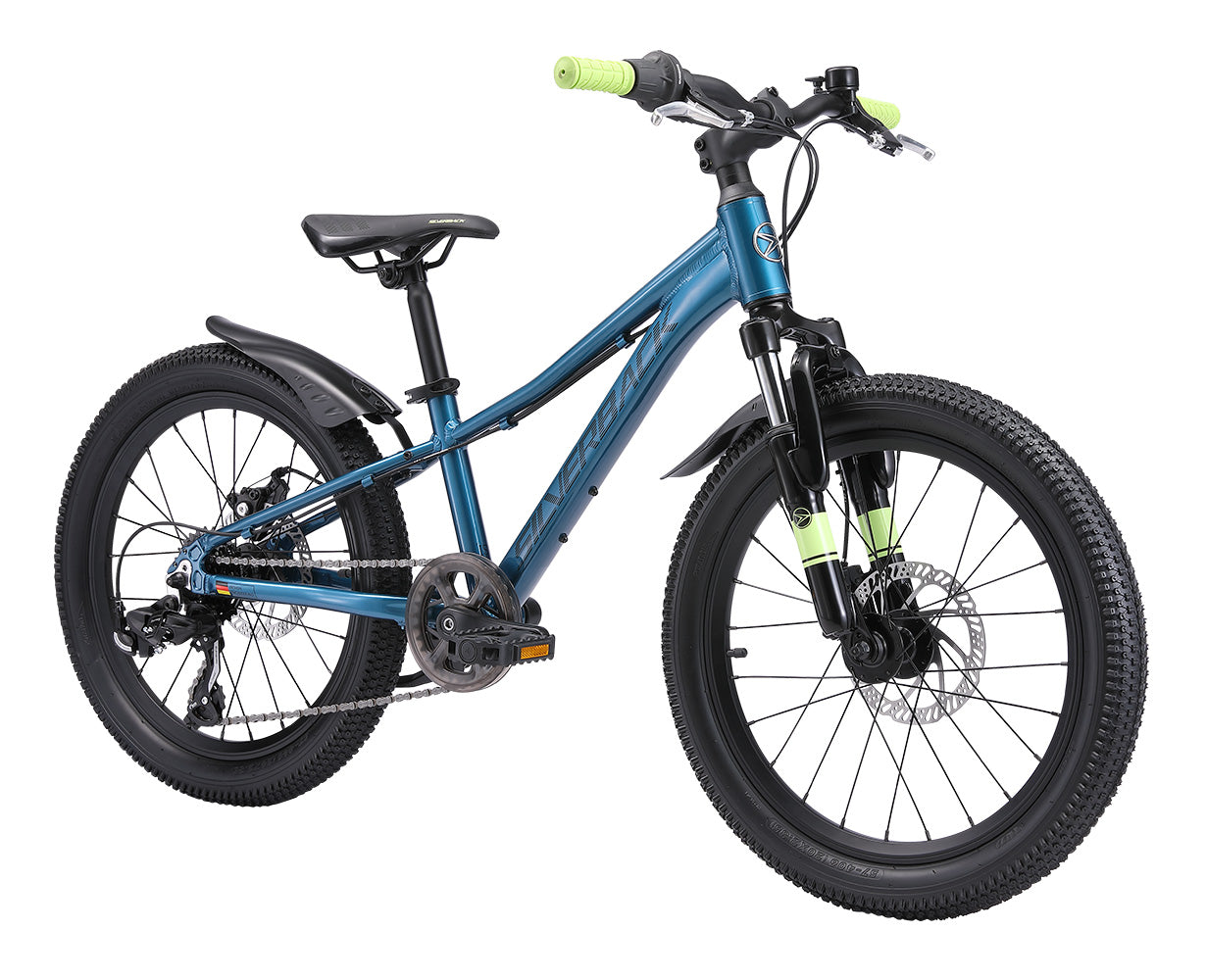

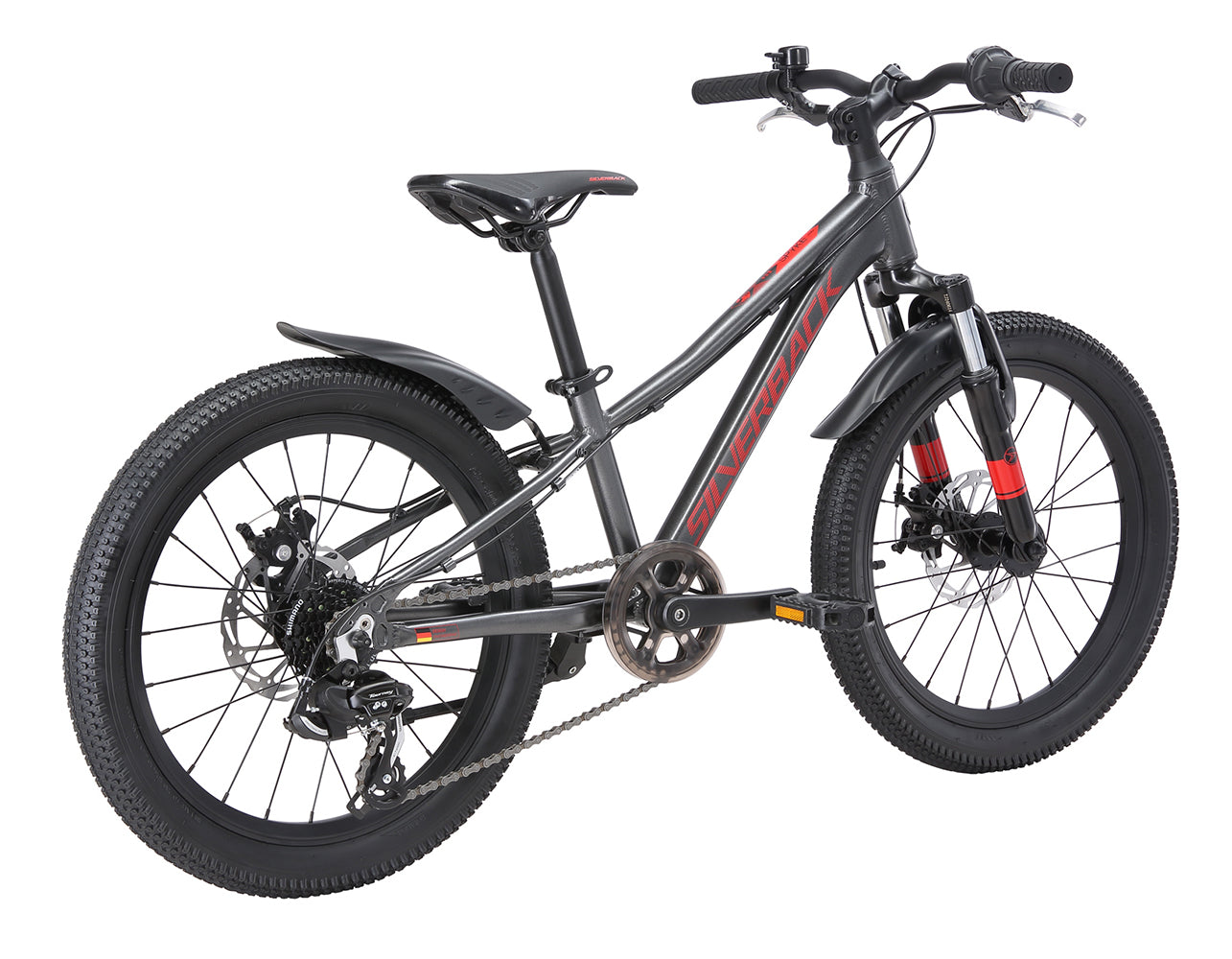

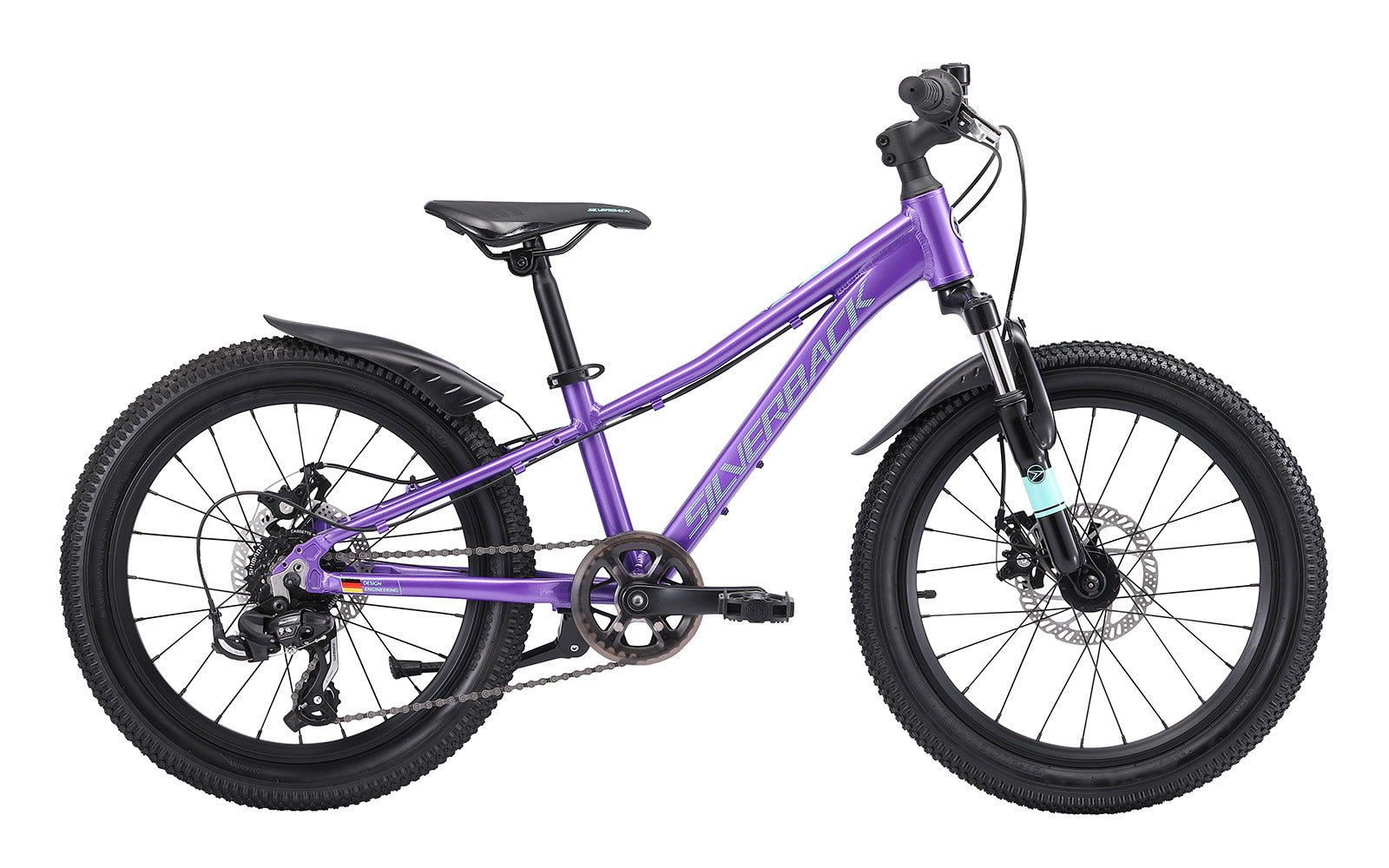

Spyke 20 (Gen4)

Name: Spyke 20 (Gen4)
Brand: Silverback
SKU: 0086544006692
Price: 499.0 EUR
Availability: OutOfStock

€499

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

No reviews

Size:

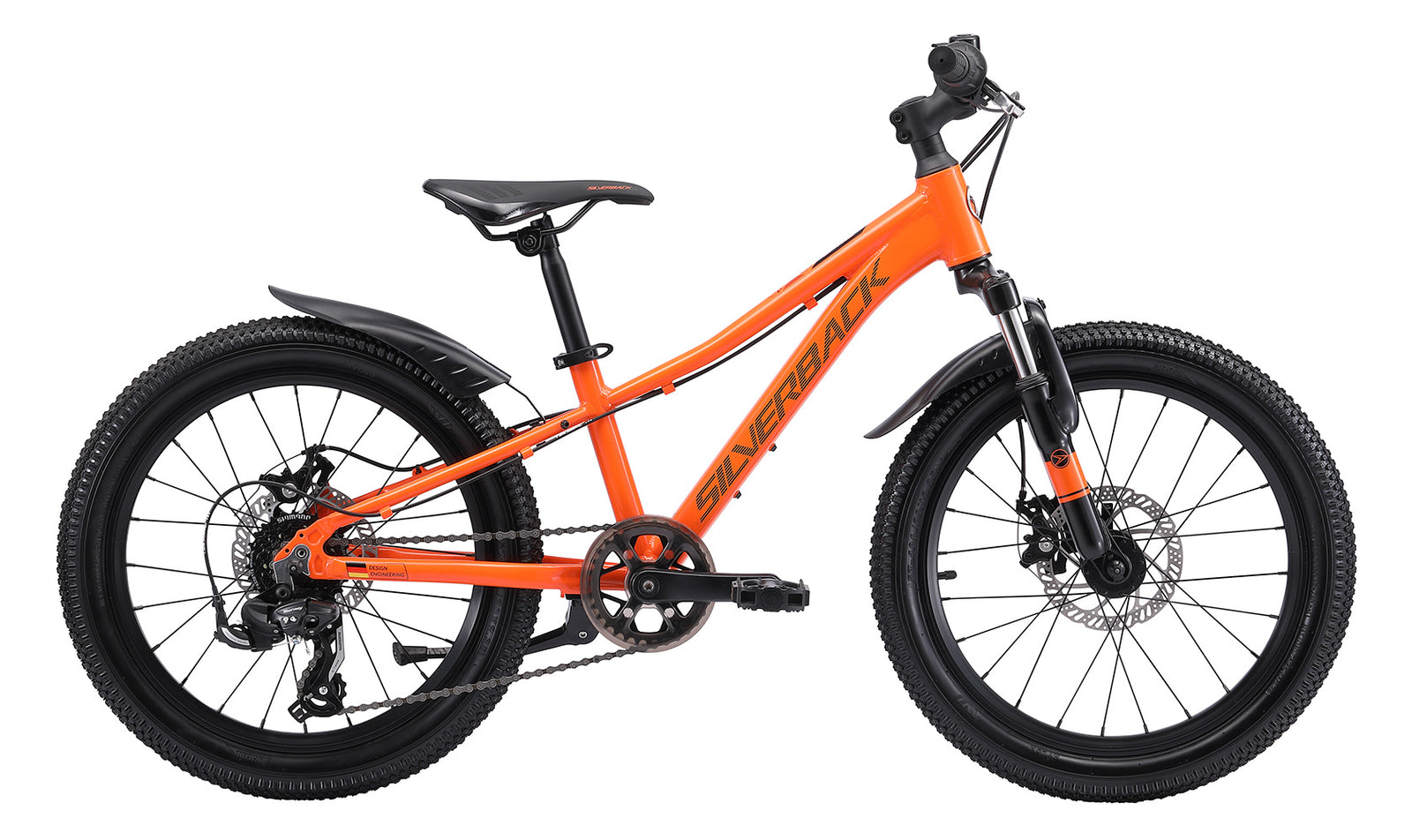

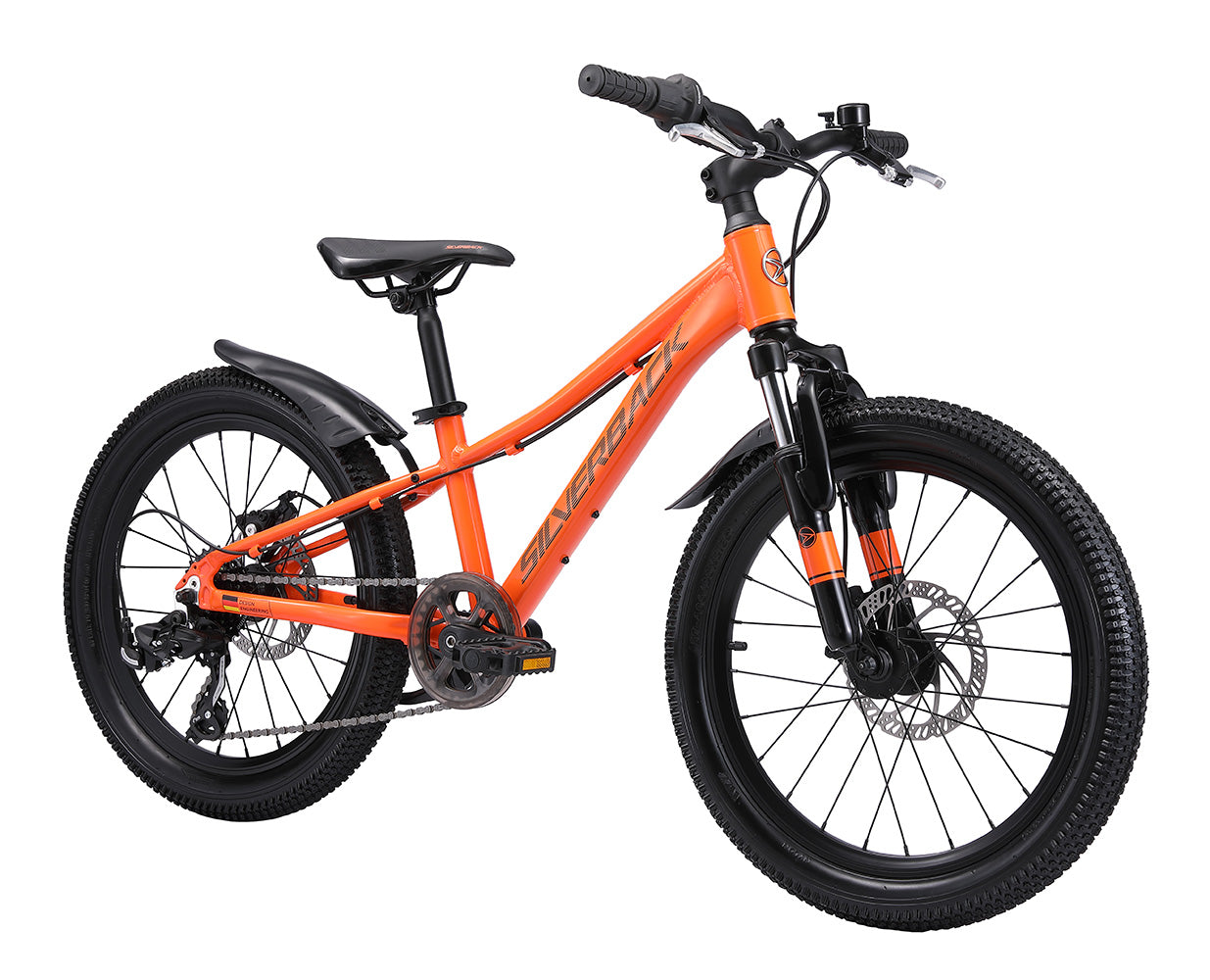

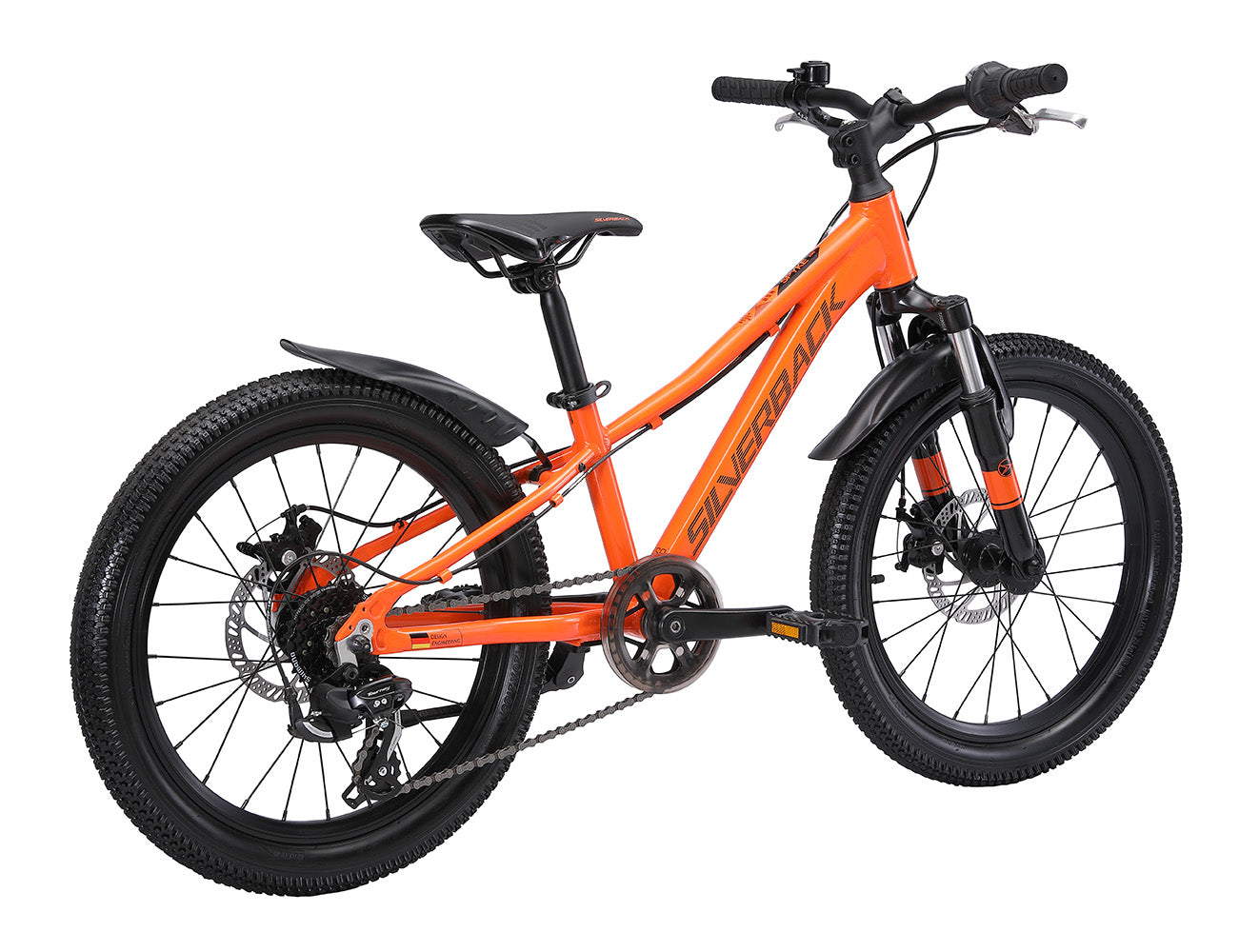

Color: Solar Orange

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Top Cap - Blue - Top caps - BornToBeFast - DodgerBlue - - - Speedlab

Born To Be Fast - Active Wear Shirt

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-5

Spyke 20 (Gen4)

€499,00

Sold Out

WHERE RIDING SKILLS BEGIN

This 20" kids’ MTB is built to help young riders level up with confidence. Its lightweight alloy frame keeps handling easy and intuitive, while the suspension fork smooths out bumps and gives new riders stability on uneven terrain. Reliable cable disc brakes deliver strong, predictable stopping power, and the Shimano 7‑speed drivetrain adds the gearing they need to tackle climbs and longer rides. Available in boys’ and girls’ colorways, it’s a durable, capable first real mountain bike—ready for school runs, park loops, and their earliest off‑road adventures.

Auf einen Blick

Silverback 20" 6061 Aluminium, Low standover frame, 1-1/8" Headtube
Zoom steel suspension fork with 40mm of travel
20" Alloy single wall rims, 20H with steel spokes, 2.35" tyres
Disc brakes
Kick stand
Easy ride geometry
Size specific contact points
Weight: 12.64 kg

TECHNISCHE HIGHLIGHTS

SUSPENSION FORK, 20" WHEELS AND GEARS. TRAIL READY!

Built for offroad! With a 40mm Zoom suspension fork, the Spyke 20 D is the perfect first mountain bike for your youngster. Featuring 2'35" knobbly mountain bike tyres and a Shimano 1 X 6 drivetrain, this bike is suitable for riding trails, street, your local pump track or even to school and back. Spyke features smaller contact points to suit smaller hands and shorter legs, and disc brakes brakes ensure reliable braking performance.

MECHANICALLY-FORMED 6061 ALLOY FRAME

Spyke 20 features a frame optimized for young riders. Trickle-down technology means that the new frame benefits from our leading platforms. The frame tubes are mechanically formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use, resulting in a lighter weight frame and lighter complete bike.

SUSPENSION FORK

The lightly sprung Zoom 40mm Suspension fork is ample for smaller riders, smoothing out uneven terrain as well as improving grip adding loads to the fun factor on bumpy trails or jumps

SUPER LOW STANDOVER

Lower standover means that the Spyke can be ridden by both male and female riders with more room for movement. This improves control and confidence on technical sections.

MECHANICAL DISC BRAKES

Spyke 20 comes with mechanical disc brakes. Disc brakes offer dependable all-weather performance over rim brakes and the lever pull is light for young riders. Levers are reach adjustable for smaller hands.

1X GEARED DRIVETRAIN

Spyke 20 features a 1x geared drivetrain. The single chainring up front makes the gears intuitive and easy to use and the gears gives young legs a bit of help on climbs.

EASY RIDE GEOMETRY

Geometry on our kids bicycles are designed to improve balance and comfort moving the rider in a more natural feeling position. With better balance and more comfort, confidence is improved. This makes for swift riding progression.

CHAINGUARD

The chainguard completely covers the chainring. This keeps your kid clean and hands and feet from potential hazards.

FENDER MOUNTS

The frame features mounting points for front and rear fenders.

HIGHER VOLUME TYRES

Spyke is designed to easily fit higher volume 20" x 2.35" tyres with plenty of mud clearance. Bigger tyres can increase the contact area and thus ride comfort, control and grip

KICKSTAND MOUNT

Spyke 20 is fitted with an integrated kickstand.

SPYKE SADDLE

The new Spyke saddle is manufactured to be durable, good looking, comfortable and to fit a junior rider's body

MECHANICALLY-FORMED 6061 ALLOY FRAME

Spyke features a brand new frame for young riders. Trickle-down technology means that the new frame benefits from our leading platforms. The frame tubes are mechanically formed into complex shapes to increase strength and stiffness, minimizing weight and excess material use. Spyke features a 1" headtube. Skid decals are applied under the clear coat for durability.

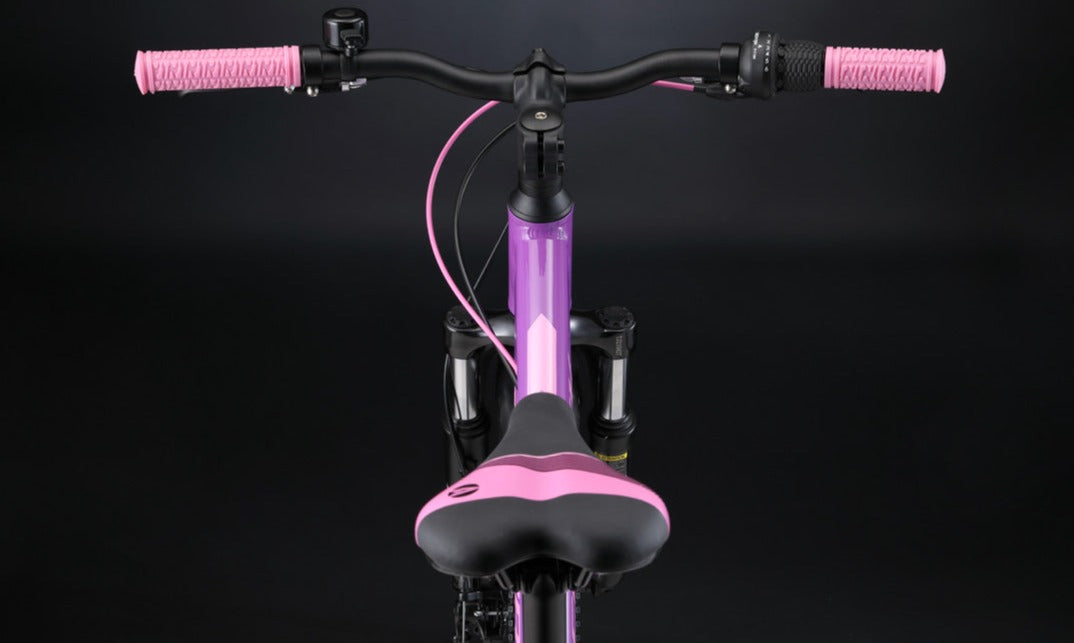

SIZE SPECIFIC CONTACT POINTS

Spyke is finished with a kid's specific saddle, smaller, narrower bars, smaller diameter grips, reach-adjustable brake and a shorter crankset with smaller pedals - all to suit smaller riders perfectly.

Detaillierte Spezifikationen

TECH HIGHLIGHTS

FRAMESET

Frame

New Spyke 20 Frame, Updated Geometry and formed tubing, 6061 Alloy, 1 - 1/8" HT, IS Disc Tabs

Headset

1-1/8" Headset, Press in cups

Frame Axle Spacing

130 X 9mm

Frame Specification

Kickstand Type

Centre-mount kickstand for 20" wheels

Hanger Type

HANGER 05

SUSPENSION

Fork

Zoom Steel suspension fork, 40mm travel, Coil

Fork Travel

40mm

WHEELS

Wheelset

SURFACE Custom Wheelset

Hubs

F: Alloy, 24H, 100 x 9mm, 6-bolt Disc, QR
R: Alloy, 24H, 135 x 9mm, 6-bolt Disc, QR

Rims

F: 20" Alloy Single Wall, 24H
R: 20" Alloy Single Wall, 24H

Tyres

F: 20 x 2.35" Wanda P1226
R: 20 x 2.35" Wanda P1226

Max Tyre Size

2.35"

DRIVETRAIN

Crankset

Alloy, 127mm, 32T chainring

Max Chainring Size

36T

Bottom Bracket & Type

BSA68

Shifter(s)

R: Shimano SL-RV300-7R, 7-speed

Rear Derailleur

Shimano Tourney RD-TY500, 7 Speed

Cassette

Shimano CS-HG200 12-28T, 7 speed

Chain

Shimano CN-HG40 for 7 Speed

BRAKES

Brakes

F: Tektro MD-M280 Mechanical Disc
R: Tektro MD-M280 Mechanical Disc

Rotors

F: 160mm, 6-bolt
R: 160mm, 6-bolt

COCKPIT

Grips

110mm Long, Grip Shift

Handlebar

Alloy, 580mm x 25.4, 10°, H:15mm

Stem

Alloy, 25.4mm E:60mm H:41mm 15°

Saddle

Spyke kids

Seat Post

Alloy, 27.2mm x 250mm

Seatpost Clamp

Alloy, 31.8mm, QR

Pedals

9/16″ Ball, PP

WEIGHT

Bike Weight

12.64 kg

RIDER WEIGHT LIMIT

75 kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

What is the weight limit on this bike?

75kg
Is this a unisex bicycle?

Yes
Can I remove the mudguards if I want to?

Yes
Can I swop the brakes around?

Yes, the brakes are mechanical which makes it easier to swop around.

ANDERE MODELLE DER SERIE

€329

SKID 20 (GEN4)

Hardtail | Kids | Alloy

20"
Single Speed
11.46kg

€499

SPYKE 20 (GEN4)

Hardtail | Kids | Alloy

40mm Travel
20"
1x7 Speed Shimano
12.64kg

€499

SPYKE 24D (GEN4)

Hardtail | Kids | Alloy

50mm Travel
24"
1x7 Speed Shimano
13.66kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S
	Rider height(cm)	114-132
	Rider inseam(cm)	52-60
A	Seat tube c/t	255
B	Seat tube angle	72.5°
C	Head tube angle	70°
D	Top Tube	444
E	Reach	305
F	Chainstay length	375
G	bb height	245
H	head tube length	100
I	stack	440
J	standover	508
K	Wheelbase	879
