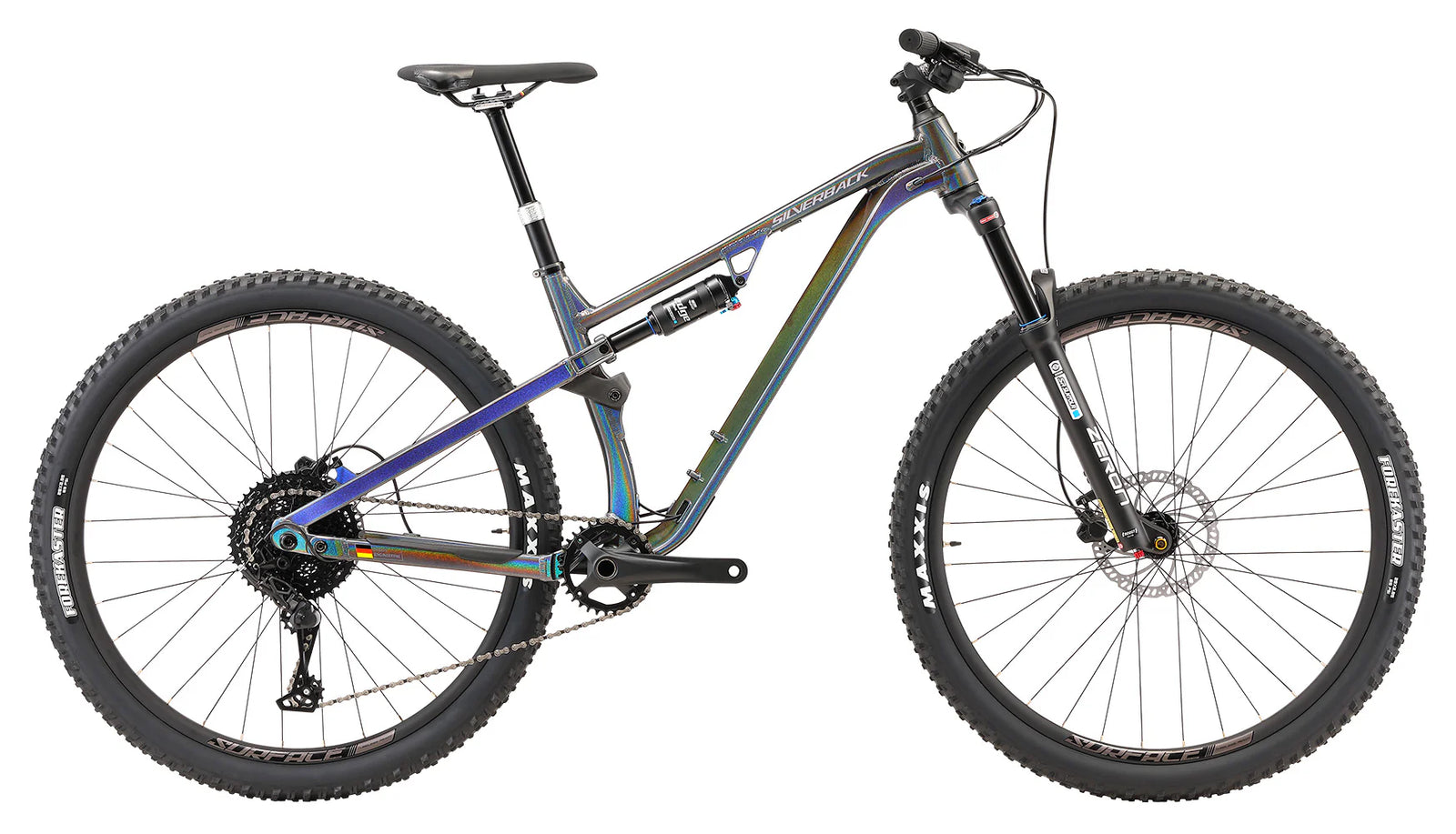

Silverback AL Elite MS

Name: Silverback AL Elite MS
Brand: Silverback
Price: 2099.0 EUR
Availability: OutOfStock
Rating: 5.00 (8 reviews)

€2.099

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

5.00 8 reviews

Size:

Color: Rainbow Pearl

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Aduro 2.1 velvet black - Helmet - side - ABUS - - - - Speedlab

ABUS Helmet Aduro 2.1 velvet black

B2BF Top Cap - Black

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-33-udh

Silverback AL Elite MS

€2.099,00

Sold Out

Silverback AL Elite MS is the mountain bike every recreational rider can enjoy. Silverback's POP geometry makes it a strong climber and a balanced confident descender.

Auf einen Blick

New asymmetric Hydro formed 6061 Alloy. 105mm travel, Carbon fiber rocker-link, Boost 148mm, tapered headtube.
SR Suntour Zeron 35 Air Fork, 130mm Travel, R-2CR Damper
SR Suntour RS21 Edge-Plus 2CR Shock, Air Spring
Microshift XLE Rear Derailleur, 11spd, Active Motion RD+ with clutch
Tektro Hydraulic disc brakes
Maxxis Forekaster Tyres, 29x2.35" Wire Bead
Surface Custom wheelset, Tubeless ready, 32H
Weight: 16.74 kg (Size Medium, no pedals)

TECHNISCHE HIGHLIGHTS

SUSPENSION KINEMATICS

The steady drop in leverage ratio helps the suspension to stay on top of the rough terrain by giving excellent mid-stroke support, the travel area most felt by the rider in technical riding. The ratio levels a little near the end, helping to get to full travel with the air spring shock.

SUSPENSION ANTI-SQUAT

The low anti-squat helps the suspension stay active over small to medium sized bumps, giving excellent traction up hills and through corners. Combined with the mid-stroke support, the supple suspension doesn’t give way too easily, but allows the rider to pedal through rough terrain while the suspension keeps working.

POP GEOMETRY ADAPTED FOR TRAIL

Position-Of-Power geometry designed to engage bigger muscle groups in pedaling, producing more power output for the same amount of input. Longer frames place the rider forward, in a more balanced position, improving grip on the rear on climbs and on the front for descents. A longer wheelbase and slacker head angle means more control at speed.

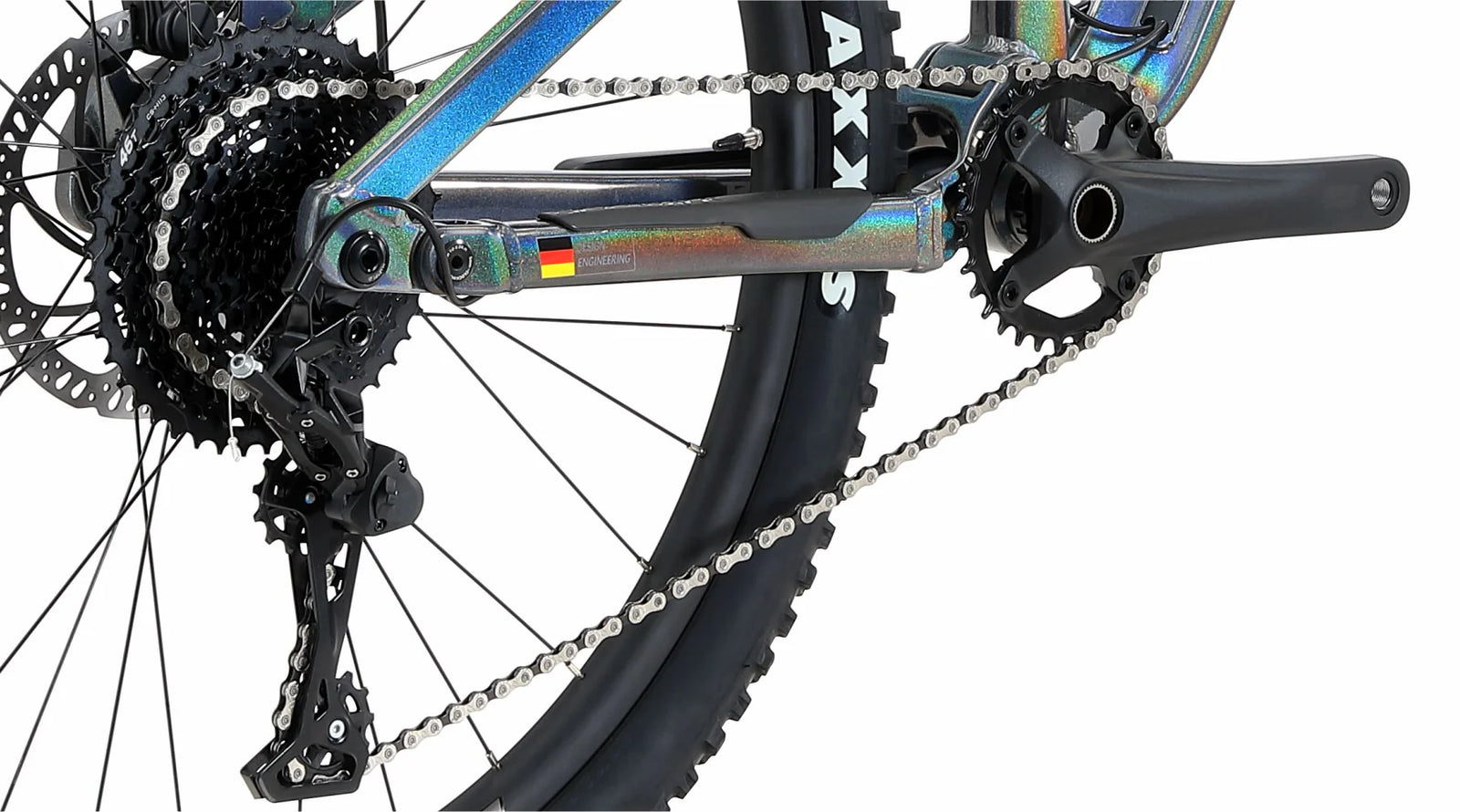

1X DRIVETRAIN SPECIFIC DESIGN

Front derailleurs are dead. With that comes a wider main pivot bearing stance for increased stiffness.

MY23_Silverback_AL_Comp-Asym_no_model_name

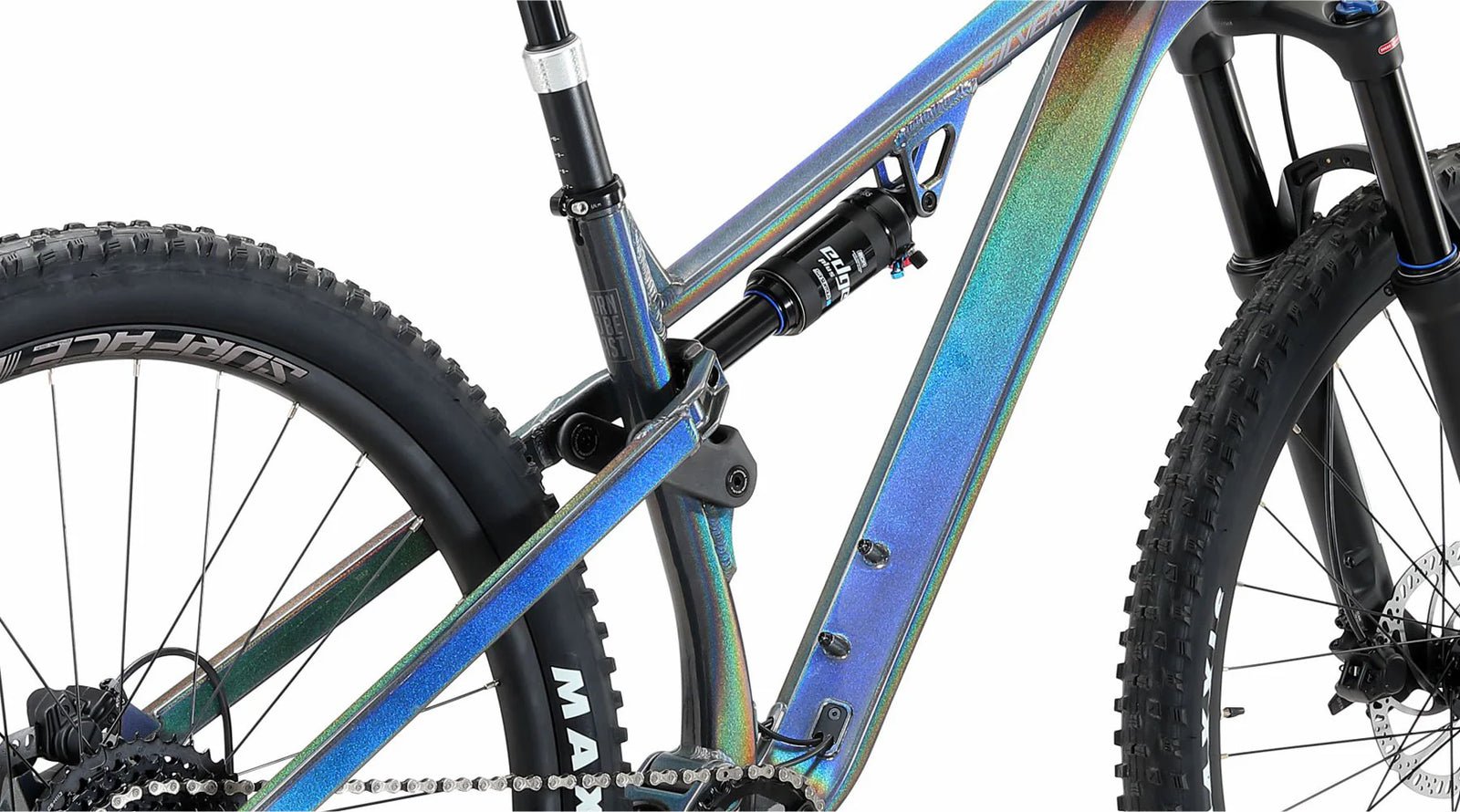

ASYMMETRIC FRAME

A frames’ drive side sees different loading, compared to the non-drive side. Power transfer through the drivetrain is consistent and ramp up gradually. By contrast, the brakes exert sudden and high load during deceleration. Silverback AL asymmetric design is tailored to distribute these variable forces according to its respective magnitude and intensity.

MY23_Silverback_AL_Comp-Burst_no_model_name

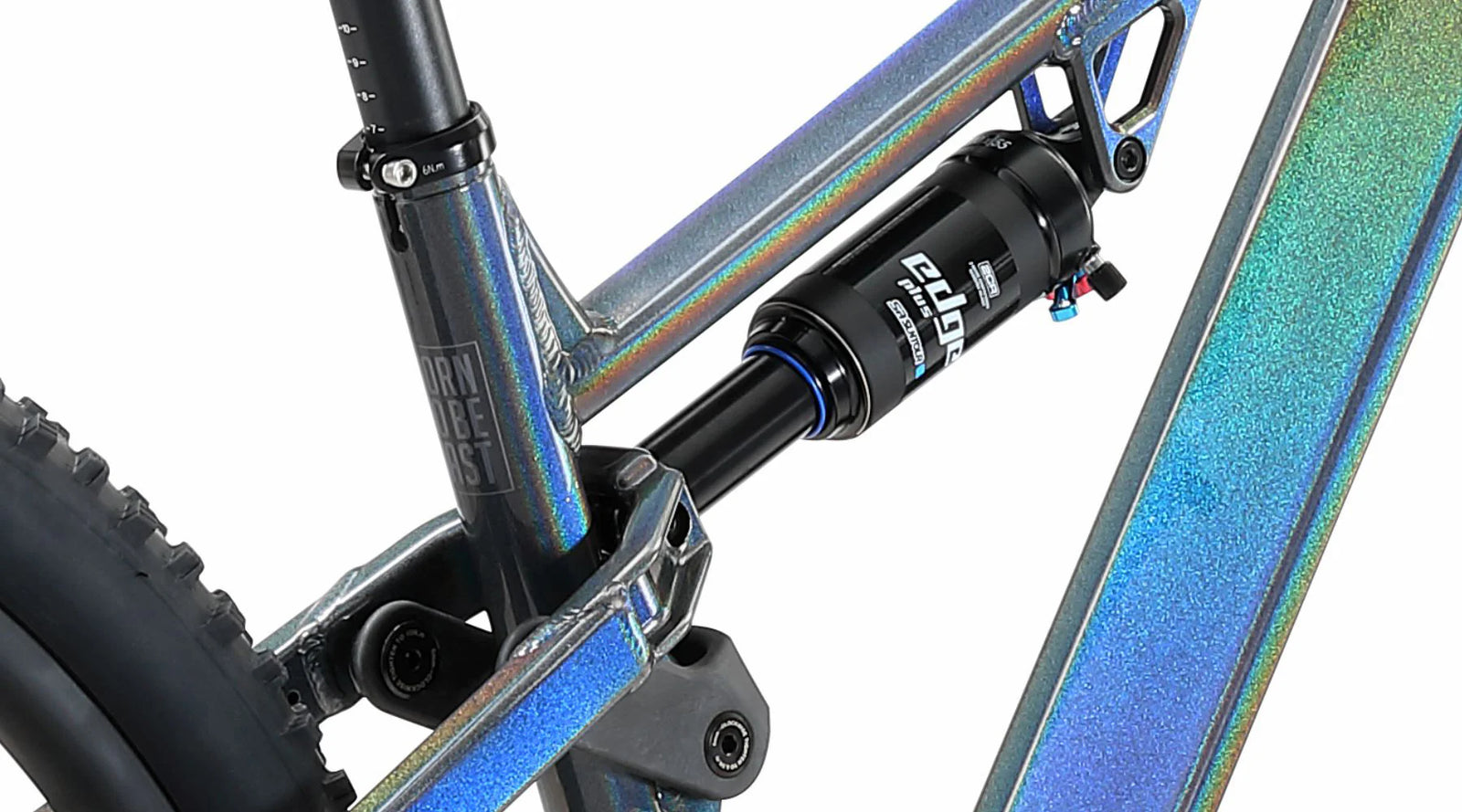

105mm 4-BAR SUSPENSION

Silverback AL uses a 4-bar style rear suspension which is very well known and has many benefits. Our platform uses in-line top tube shock layout: this helps to minimize friction of the shock travel as it is in line and therefore has better break-away feel, so more small bump sensitivity and less stress onto the shock seals as the forces are very inline to the shock direction.

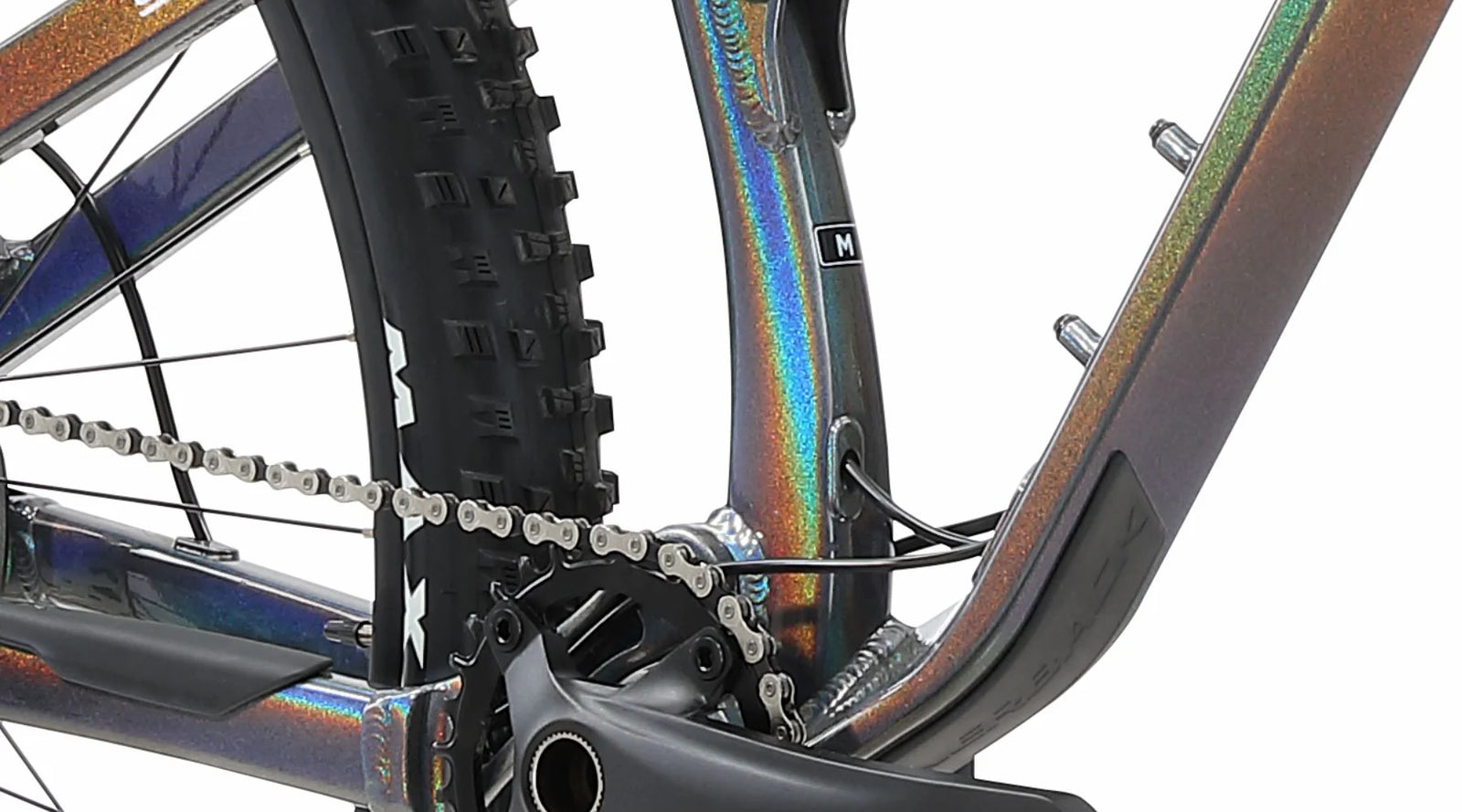

DROPPER POST READY

Dropper posts give the rider more options and freedom of movement and have become a standard in many disciplines of mountain biking. Silverback can accommodate much longer droppers with neat, pinch-free cable routing.

METRIC SHOCK

Metric shocks perform better and have optional bearing hardware for low friction rotation, supported on the rocker side.

INTERNAL CABLE ROUTING

All the looks of internal cable routing, but without the hassle. Cables run underneath a polyurethane sheath on the downtube, which hides the cables but can still be removed for ease of maintenance.

MY23_Silverback_AL_Comp-Linkage_no_model_name

CARBON FIBER ROCKER LINK

Our carbon rocker linkage is stiff and light, helping the rear triangle track straight and limit excess additional weight with its full injection moulded design.

MY23_Silverback_AL_Comp-Cage_mount_no_model_name

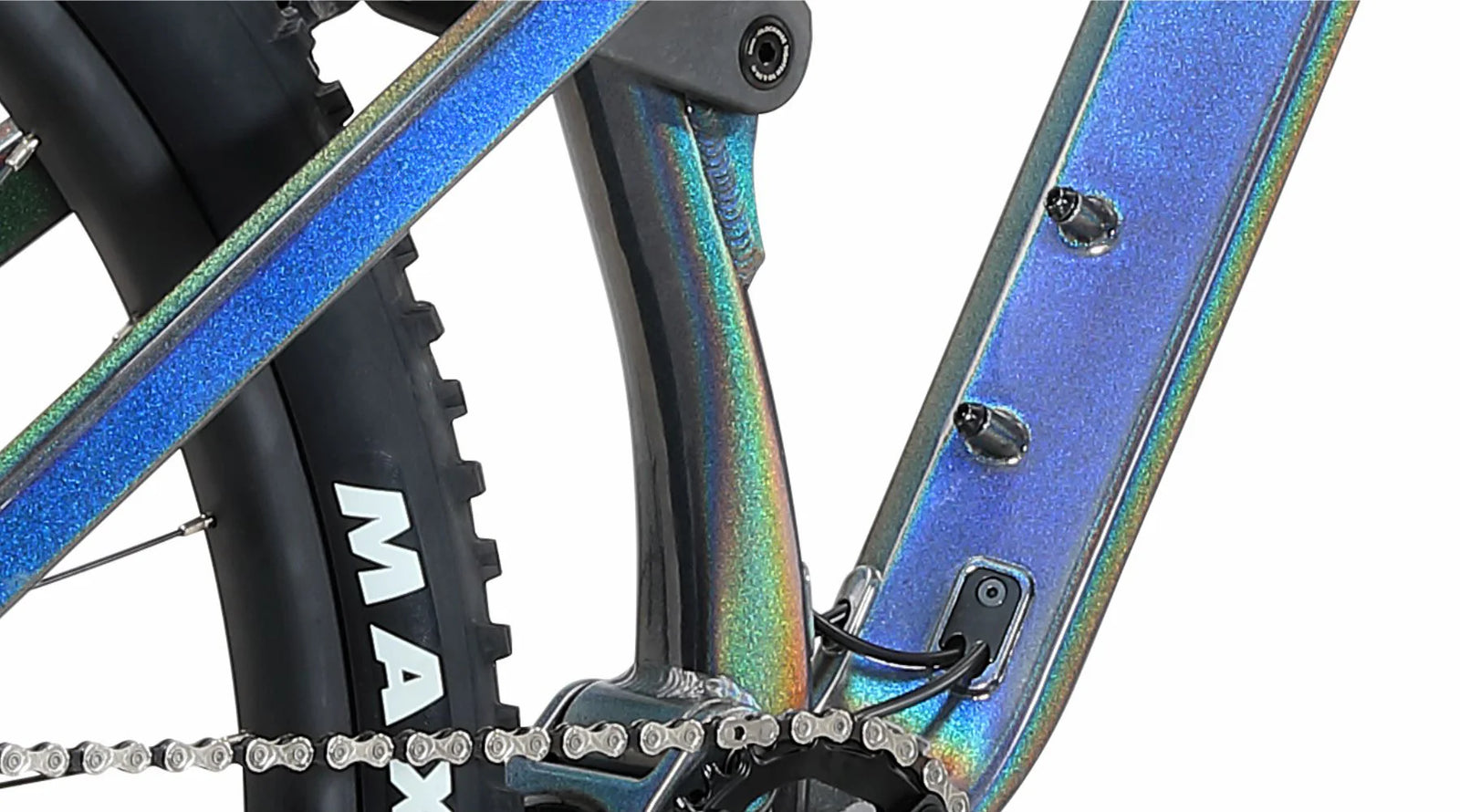

BOTTLE CAGE MOUNTS

Easy-access bottle mounts with plenty of space for larger capacity bottles.

ASYMMETRIC RIMS, TYRE CLEARANCE

Asymmetrical rims offer better stress triangulation/balance between both sides, improves durability.

All Silverback models offer 2.5" tyre clearance for larger volume tubeless ready tyres. This delivers uncompromised tyre choices, to match the terrain demands.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Aluminium XC/Trail frame based on the award-winning Silverback CF platform. The Silverback AL is designed around 130mm travel front & 105mm rear to provide a little extra comfort with almost no performance trade-off.

Headset

Steel Semi-Integrated ZS44/28.6 ZS56/40

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm P1.75

Hanger Type

HANGER 33

SUSPENSION

Fork

SR Suntour Zeron 35 Air, 15x110 mm Boost, R-2CR Damper, 130mm Travel

Fork Travel

130mm

Rear shock

SR Suntour RS21 EDGE-PLUS 2CR, Air Spring

Rear Suspension Travel

105mm

Shock Mounting

Body: Standard, 8x20mm
Shaft: Standard, 8x20mm

Eye-to-Eye x Stroke

210x55mm

WHEELS

Wheelset

SURFACE Custom

Hubs

F: 15x110mm, 6 Bolt, 32H
R: 12x142mm, 6 Bolt, 32H

Rims

F: SURFACE 29" Asymmetrical Alloy Rim, Tubeless Ready
R: SURFACE 29" Asymmetrical Alloy Rim, Tubeless Ready

Tyres

F: Maxxis Forekaster 29x2.35", Wire Bead
R: Maxxis Forekaster 29x2.35", Wire Bead

Max Tyre Size

2.5"

DRIVETRAIN

Crankset

Alloy Crankset, 32T, External BB

Max Chainring Size

34T

Bottom Bracket & Type

BSA 73mm

Shifter(s)

R: Microshift Xpress Plus, 11 speed

Rear Derailleur

Microshift XLE RD-M665L, 2x11spd, Active Motion RD+ with clutch

Cassette

Microshift Cassette, 11s, 11-46T, 11-13-15-18-21-24-28-32-36-40-46

Chain

KMC X11-1 11 Speed

BRAKES

Brakes

Tektro MD-M275 Hydraulic Disc

Rotors

F: Tektro 180mm, 6-Bolt
R: Tektro 180mm, 6-Bolt

COCKPIT

Grips

SURFACE Double Density Lock-On

Handlebar

SURFACE Alloy, Dia: 31.8mm, Back sweep: Rise: 20mm

Stem

SURFACE Alloy, 31.8mm, Rise: 6°

Saddle

SURFACE

Seat Post

SURFACE Dropper with Lever, 30.9mm

Seatpost Clamp

SURFACE Alloy w/Steel Bolt

Pedals

Not Included

WEIGHT

Bike Weight

16.74 kg (Size Medium, no pedals)

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

Bedienungsanleitungen

Technische Handbücher & Setup-Anleitungen

Greifen Sie auf die vollständige Dokumentation für Ihren Fahrrad zu:

Englisches Handbuch – [Download]
Deutsches Handbuch – [Download]

FAQ.

Does this bike come with a chainstay protector?

Yes, but an additional chainstay protector can be purchased on Speedlab.shop
How much travel does the fork on this bike have?

120mm travel
What is the weight limit on the Silverback AL?

120kg - combined weight of bike and rider (including all kit).
Can I put a front derailleur of Silverback AL?

No. The entire Silverback AL range is designed with wide range 1x drivetrains in mind. This allows for wider bearing stances and a stiffer frame
What bearings does this frame use?

Main pivot uses 2 x 6902-2RS MAX
Rocker pivot uses 2 x 6800-2RS MAX
Seatstay pivot uses 2 x 6800-2RS MAX
Chainstay pivot uses 2 x 6900-2RS MAX
Can I put a longer fork on this frame?

No, it will void the warranty
What maintenance do IGUS bushings require

Intermittent cleaning is the only maintenance IGUS bushings require. Ensure they are dry and clean of dust with a paper towel. Do not grease IGUS bushings since this will attract dust - IGUS bushings are self-lubricating and do not need to be greased.
Can I upgrade the length of my suspension on my bike?
The suspension length is normally determined by the frame design, it should not be changed.

ANDERE MODELLE DER SERIE

€1.349

SE:SERIES TRAIL 10

Dual Suspension | Trail | Alloy

140/140mm Travel
29" x 2.4" Wheels
1x10 Speed Shimano
16.5 kg

€2.099

SILVERBACK AL ELITE MS

Dual Suspension | Trail | Alloy

130/105mm Travel
29" x 2.35" Wheels
1x11 Speed Microshift
16.74kg

€2.999

SILVERBACK CF SX

Dual Suspension | Cross Country | Carbon

100/100mm Travel
29" x 2.25" Wheels
1x12 Speed SRAM
12.5kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	154-170	168-180	178-192	188-200
	Rider inseam(cm)	70-77	76-81	80-87	85-90
A	Seat tube c/t	390	420	450	480
B	Seat tube angle	75	75	75	75
C	Head tube angle	66	66	66	66
D	Top Tube	575	598	620	642
E	Reach	425	445	465	485
F	Chainstay length	435	435	435	435
G	bb height	340	340	340	340
H	head tube length	90	100	110	120
I	stack	602	611	621	630
J	standover	783	789	798	805
K	Wheelbase	1158	1182	1206	1230
