S-Electro-Metro

Name: S-Electro-Metro
Brand: S-Electro
SKU: 0086544002410
Price: 1999.0 EUR
Availability: InStock
Rating: 5.00 (3 reviews)

Hardtail | E-Commuting | Alloy | 700C x 47C Wheels | 22 kg

€1.999

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

5.00 3 reviews

Size:

Color: Platinum Grey

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

AXA folding lock Fold 85 / 100 85cm, Ø7mm, black

Spectrum Rear Light 2

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-25

S-Electro-Metro

€1.999,00

Add to cart

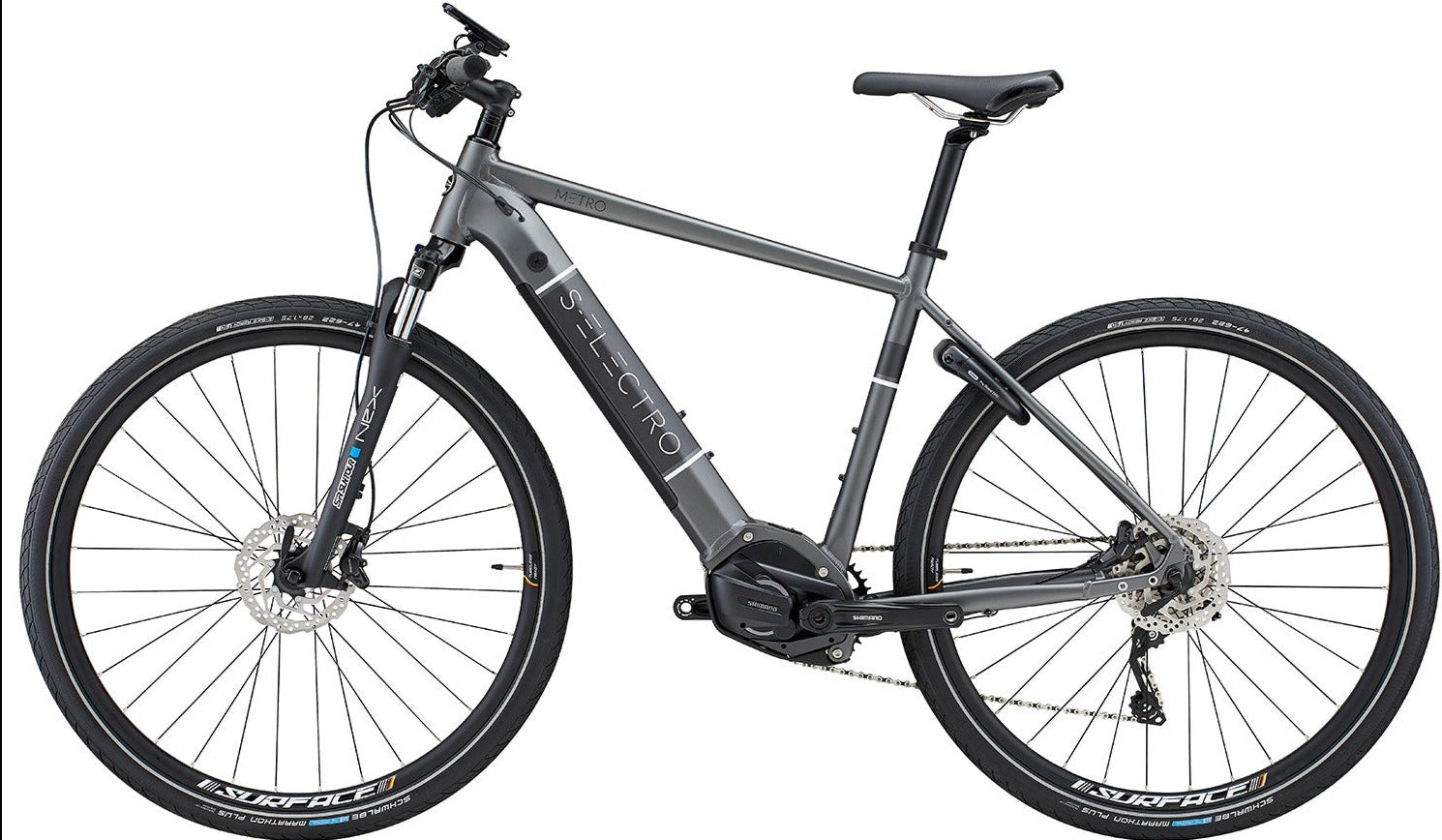

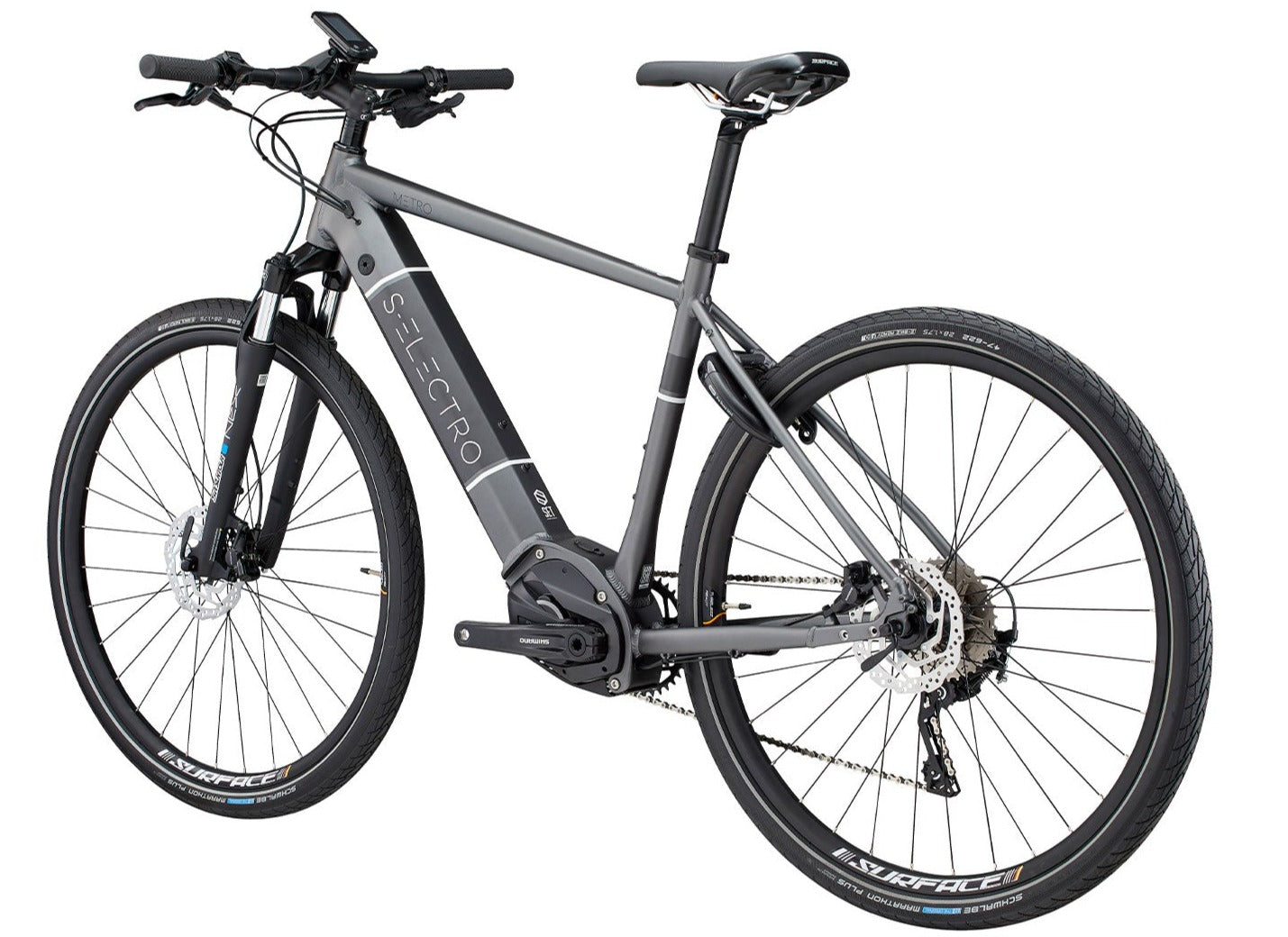

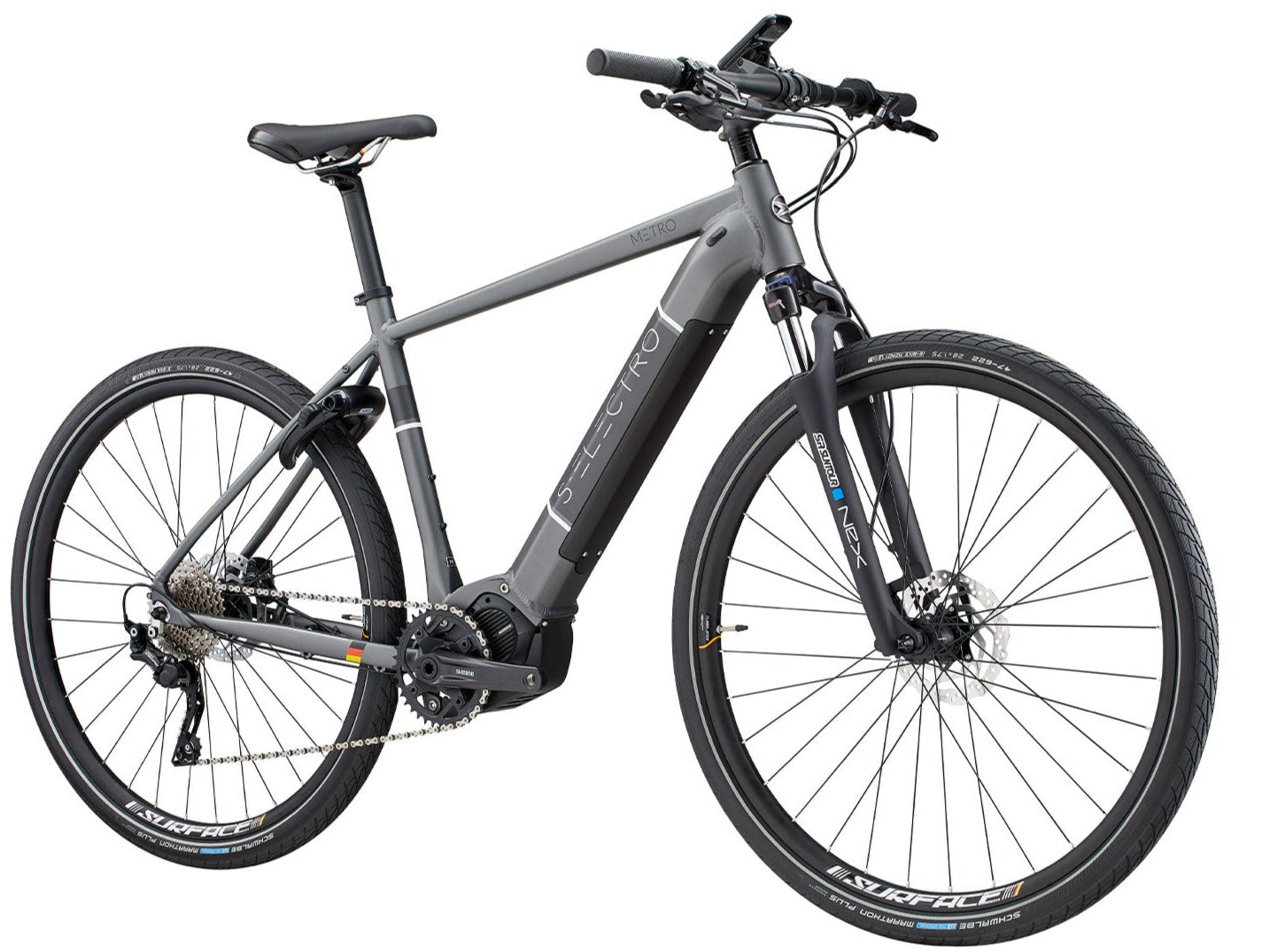

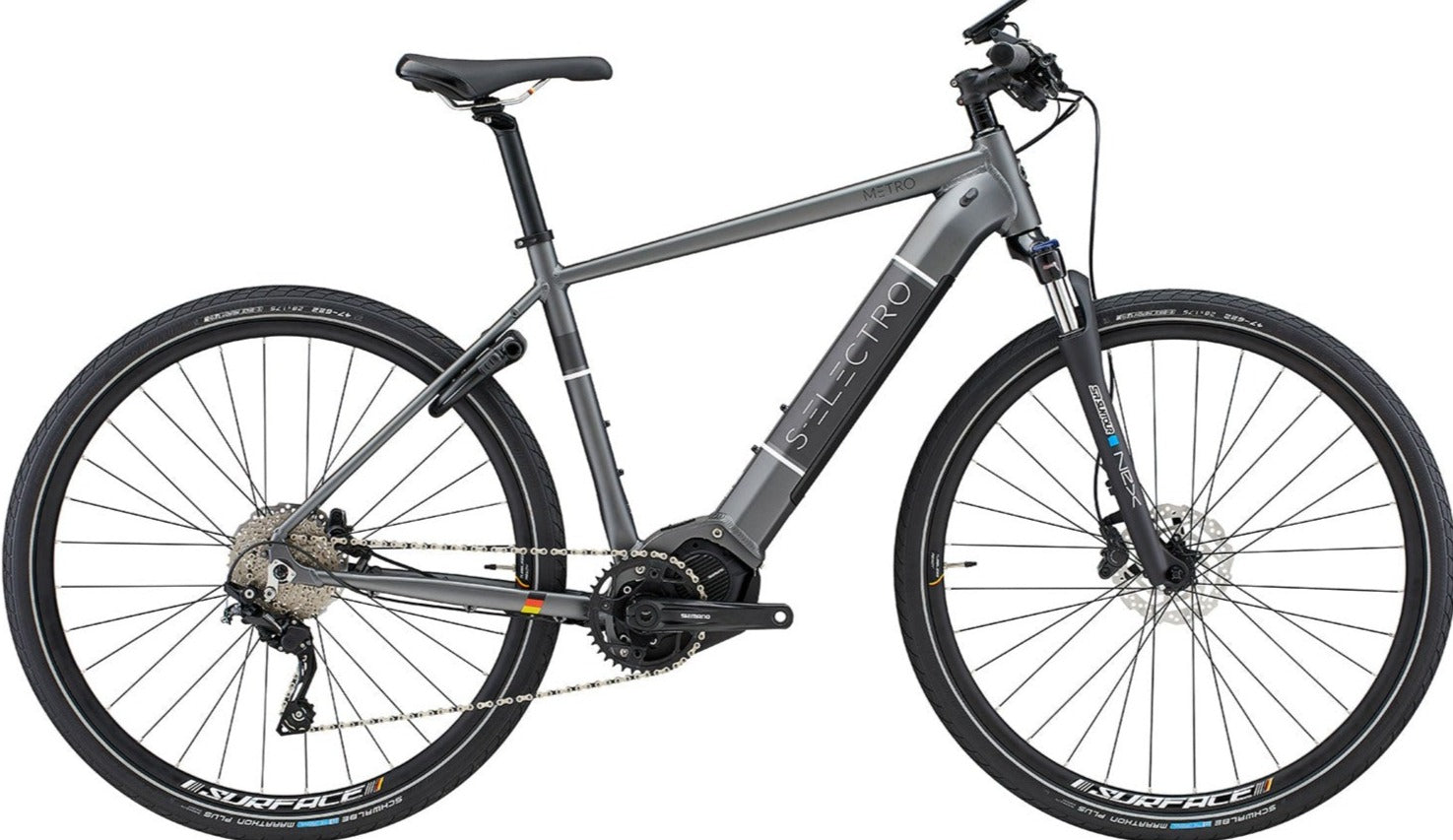

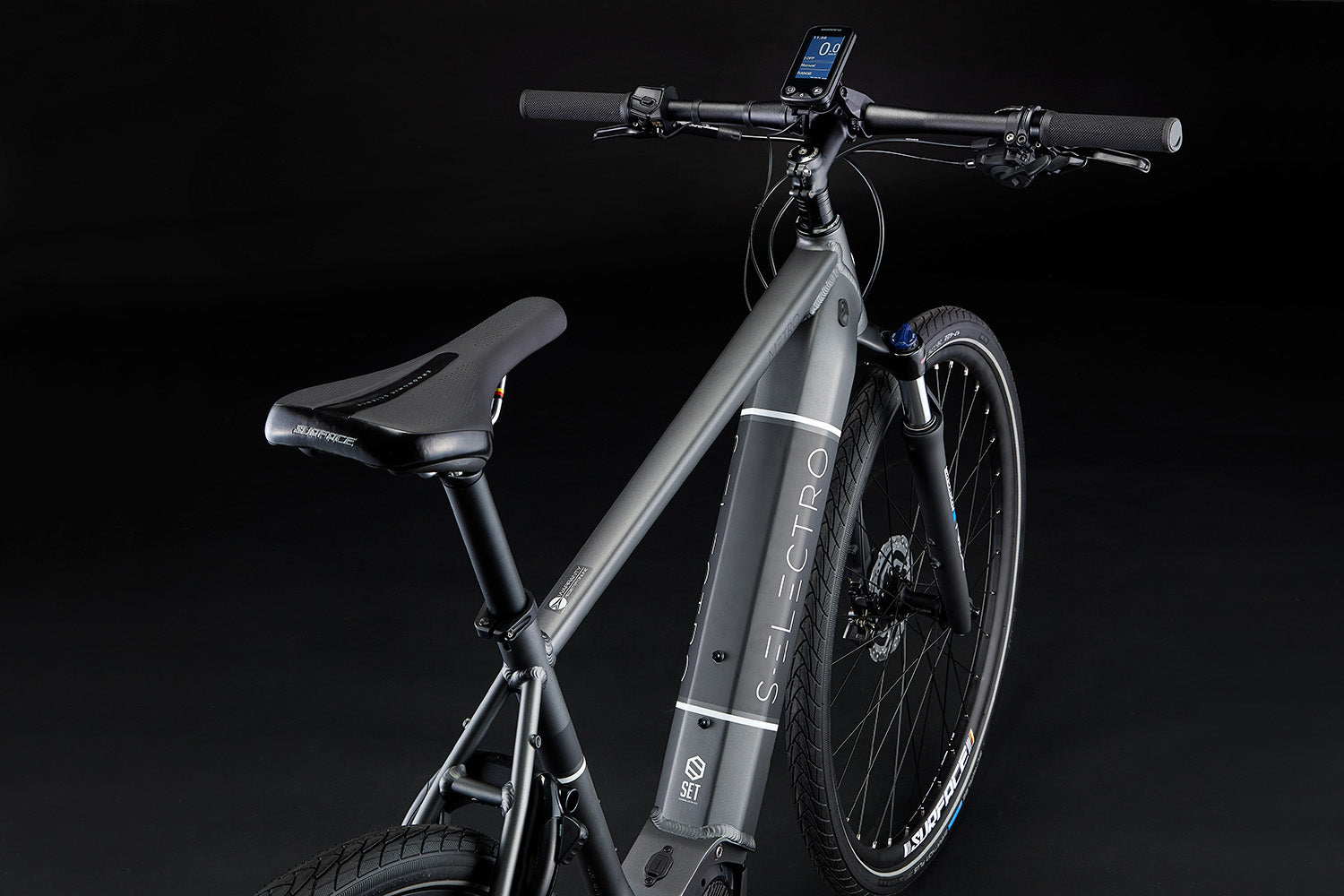

The S-Electro Metro is the ultimate electric assist commuter hybrid. The Metro is a minimalist take on a capable and practical commuter. Stripped of superfluous appendices, the Metro can be locked up outside your office or a shop, or taken on a train. A suspension fork adds comfort when you're navigating the urban jungle, and the Shimano E7000 motor has plenty of torque to tackle the hills.

Auf einen Blick

Alloy S-ELECTRO Metro integrated eBike frame,
SR Suntour NEX HLO DS 700, 63mm, Hydraulic Lockout
Shimano E7000 motor
Shimano 504Wh battery
Shimano Deore 10 speed rear derailleur
SURFACE 29" Symmetrical Alloy Rim, Tubeless Ready rims
Schwalbe Marathon Plus 28x1.75 tyres
Shimano Deore BL-T6000 hydraulic disc brakes, 160mm rotors
Alloy control parts

TECHNISCHE HIGHLIGHTS

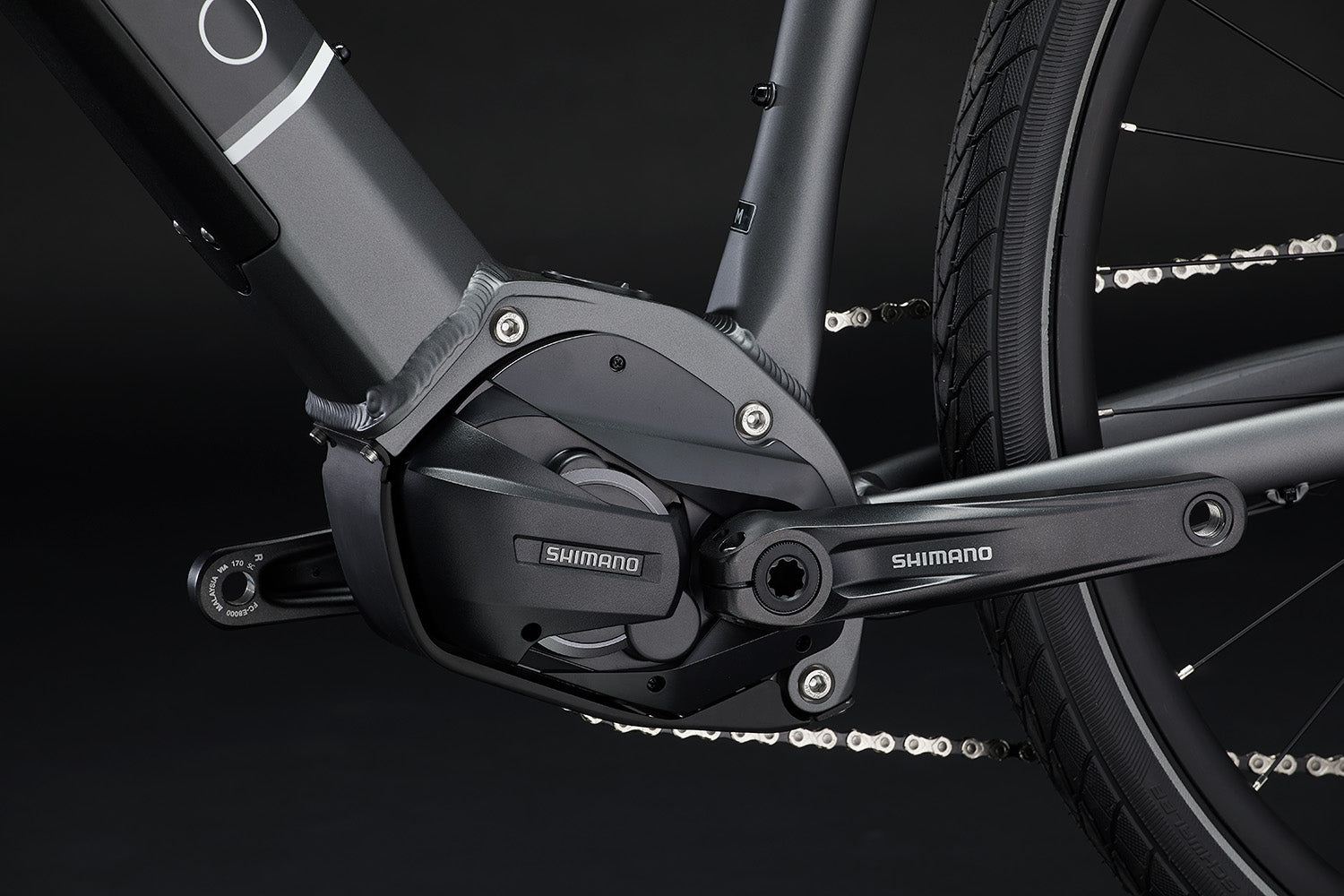

SHIMANO ELECTRIC DRIVE SYSTEM

S-Electro Metro is designed around the Shimano Steps E7000 electric assist motor and is powered by a sizable 504Wh internal battery. The Steps motor has plenty of range 30 - 100km depending on your level of assist and terrain, and recharges to 80% in 3 hours.

FRAME DESIGN

Metro features a S-Electro engineered hydroformed alloy frame. The battery and all cables are internal, and the motor mount is neatly integrated. Hydroforming is a process where thinwall alloy tubing gets molded into complex shapes by internal pressurized water and or oil - this creates stronger tubing resulting in lighter, stronger frames.

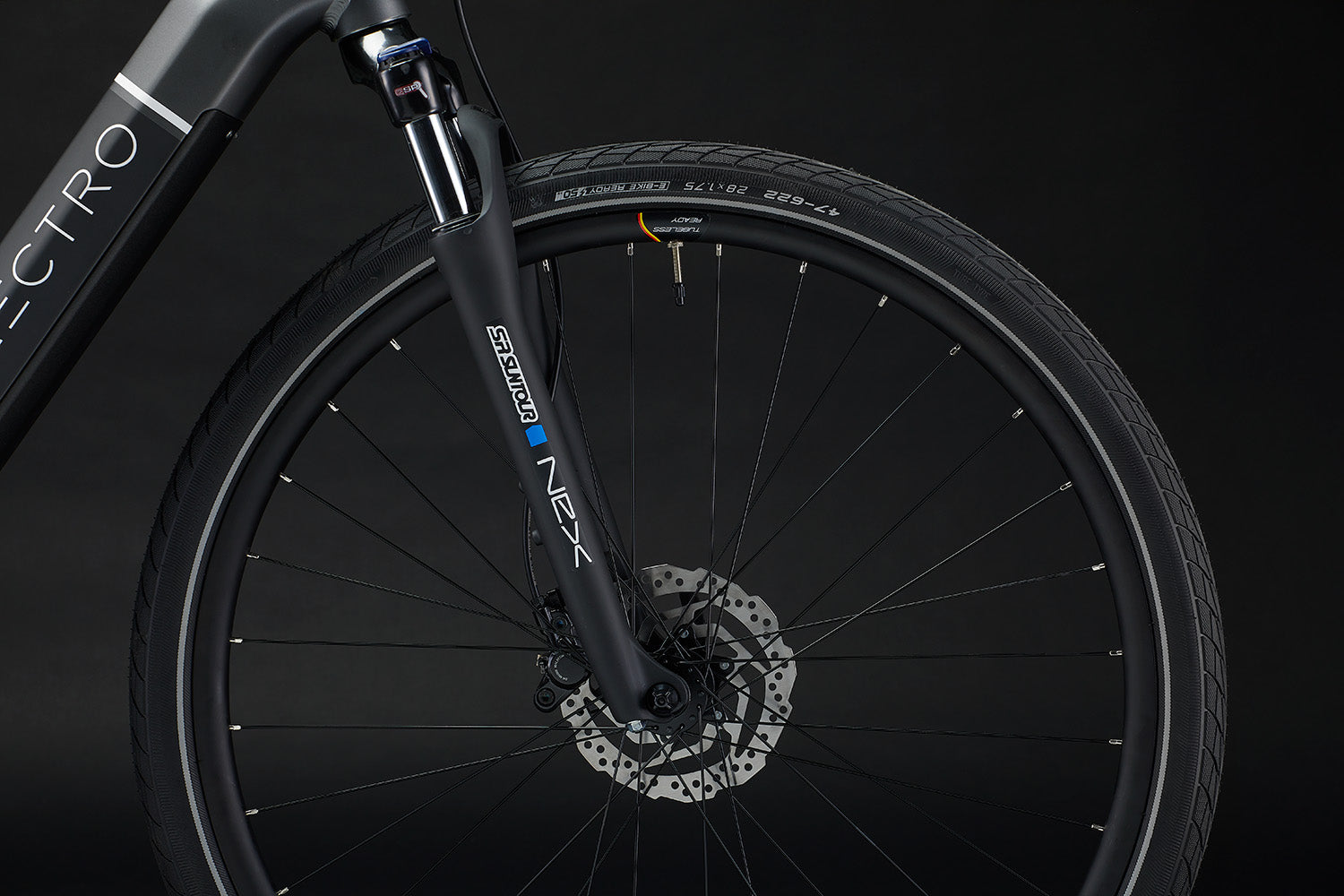

SUSPENSION FORK

Metro is fitted with an SR Suntour NEX HLO DS 700, 63mm suspension fork with Hydraulic Lockout. This is a lightweight suspension fork that adds comfort to your daily commute.

COMPONENT CHOICES

Reliability and durability for commuting bikes are essential. For that reason, S-Electro Metro has been fitted with a Shimano 10 speed drivetrain. This simplistic Deore drivetrain needs less maintenance than an 11 or 12 speed drivetrain and is known for quality shifting.

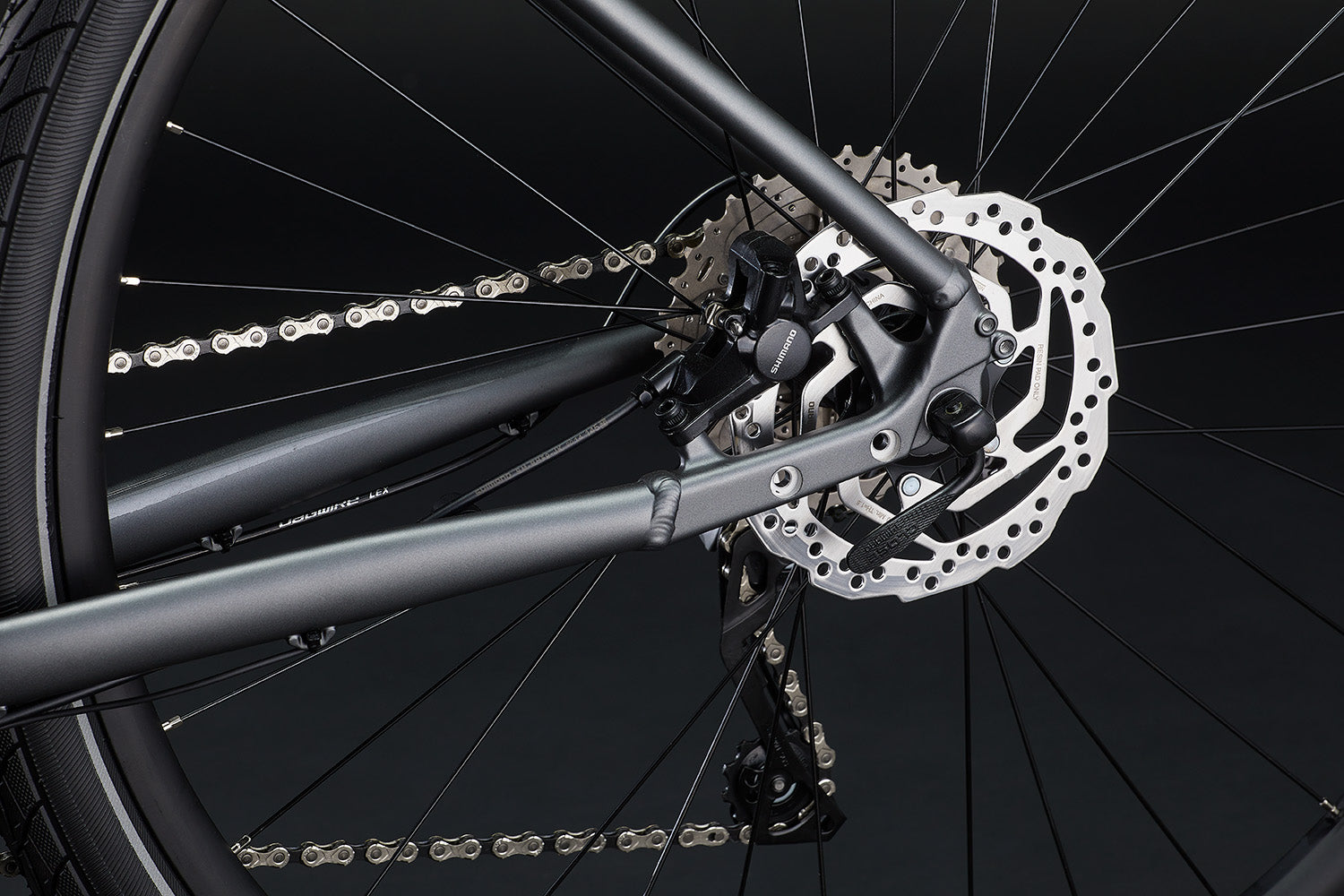

HYDRAULIC DISC BRAKES

Shimano Deore BL T6000 hydraulic disc brakes takes care of quick stopping in traffic. Good modulation and solid braking performance are at the heart of Shimano brakes.

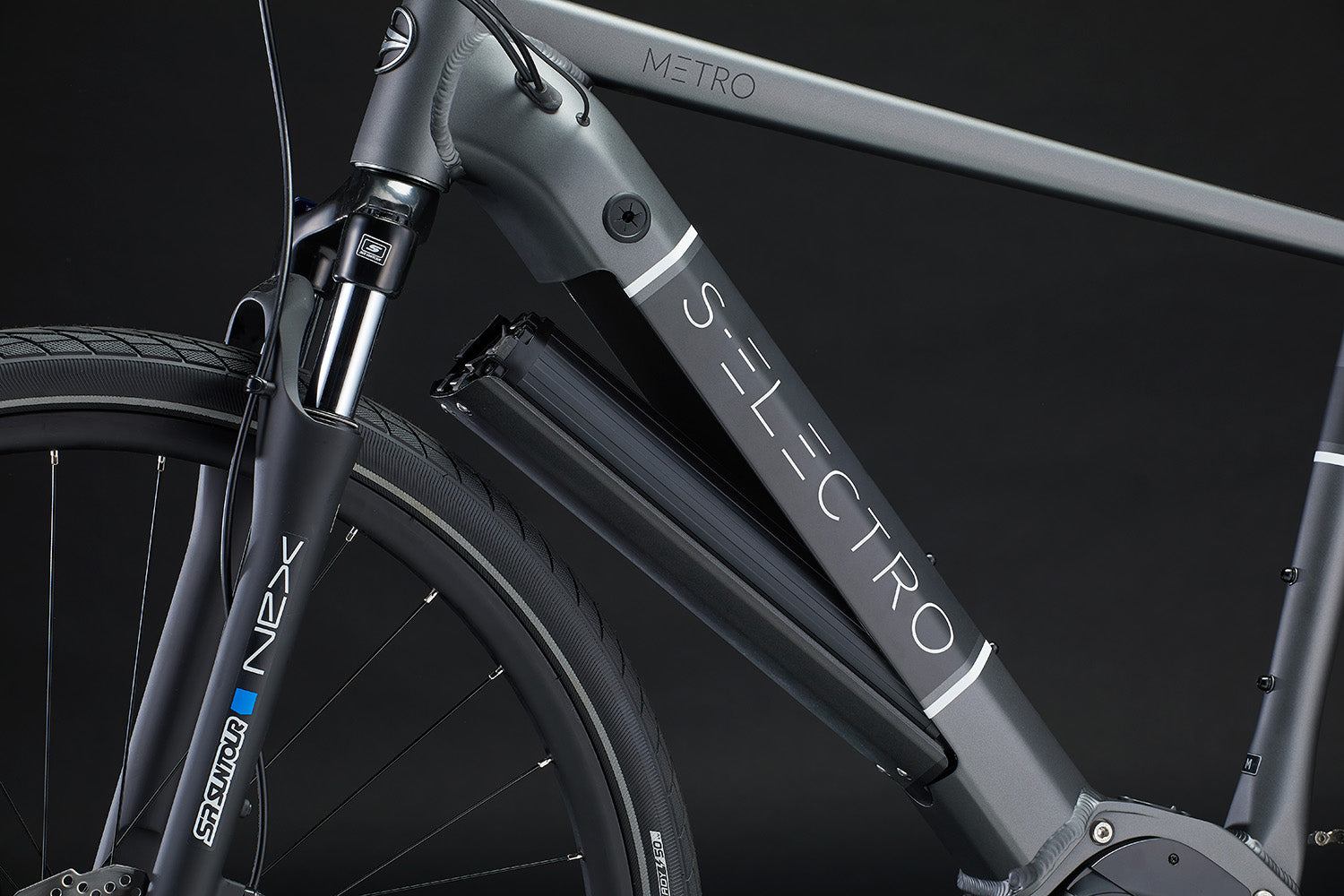

INTERNAL REMOVABLE BATTERY

The internal battery located in the downtube is locked for safety, but also removable to replace, or to charge off the bike.

selectro-metro-engineering-note-rack-pannier

RACK AND FENDER MOUNTS

Purebred commuter, the Metro has rack and fender mounts and when you order on Speedlab, you can have the fenders pre-installed.

700C WHEELS

The Surface symmetrical alloy wheels and Schwalbe Marathon Plus tyres with SmartGuard used on the Metro are chosen for low rolling resistance, decent on-road grip and also durability when used in urban environments.

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Double Butted Hydroformed 6061 alloy Frame with Internal Battery.

Headset

FSA NO.42/ACB-1-A

Frame Axle Spacing

135x9mm

Axle Specification

Hanger Type

HANGER 25

E-BIKE

Motor

Shimano E7000

Battery

Shimano E8035 504Wh Battery

Charger

Shimano EC-E6002

Display

Shimano E6100

Switch

Shimano SW-E6010.

SUSPENSION

Fork

SR Suntour NEX HLO DS 700, 63mm, Hydraulic Lockout

Fork Travel

63mm

WHEELS

Wheelset

SURFACE 700 C Custom

Hubs

Front: Shimano TX505 100x9mm, Centrelock,
Rear: Shimano TX505-8 135x9mm, Centerlock

Rims

SURFACE 700 C" Symmetrical Alloy Rim, Tubeless Ready

Tyres

Schwalbe Marathon Plus 28x1.75, SmartGuard, E-50

Max Tyre Size

47C or 2.0"

DRIVETRAIN

Crankset

Shimano E6100 Crankarm

Max Chainring Size

38 T

Shifter(s)

Shimano Deore 10-Speed

Rear Derailleur

Shimano DEORE 10-Speed Rear Derailleur DA 36T

Cassette

Shimano HG-50-10 10 Speed 11-36t

Chain

KMC X10 10 Speed

BRAKES

Brakes

Shimano DEORE BL-T6000, Rotors: Shimano RT10 180/160mm

Rotors

F: Shimano RT10 180mm

R: Shimano RT10 160mm

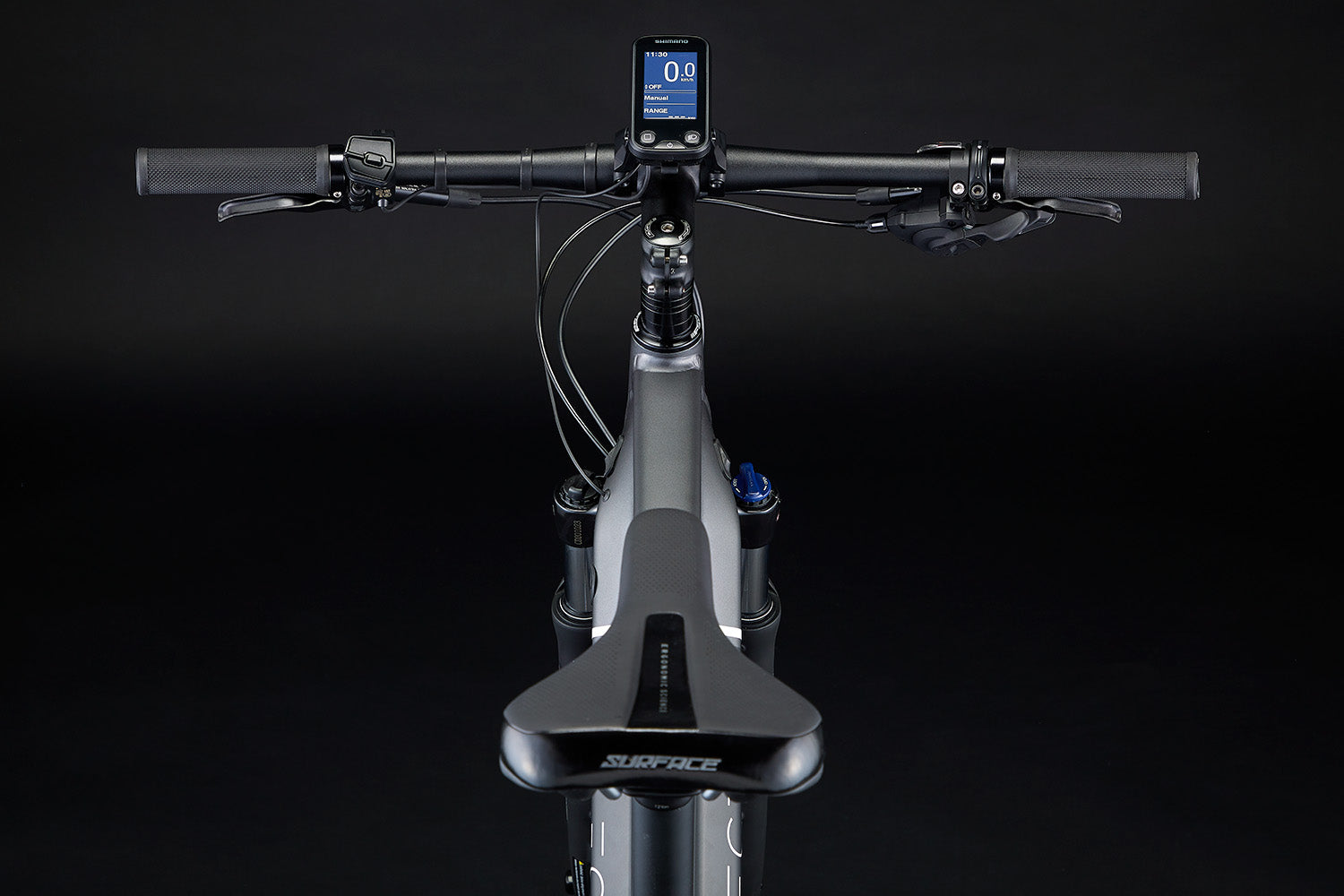

COCKPIT

Grips

SBC Lockon

Handlebar

SURFACE Alloy, Dia:31.8mm,

Stem

SURFACE Alloy Stem, 31.8mm

Saddle

Surface, double density with rubber base.

Seat Post

SURFACE Alloy, Dia:30.9mm

Seatpost Clamp

Alloy QR Clamp

Pedals

Not included

WEIGHT

Bike Weight

22 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

EXTRAS

Lock

Integrated rear wheel lock solution

FAQ.

Can I upgrade the battery to a 730Wh unit in my S-Electro Metro?

No you can not fit a 730Wh battery in the frame. The 504Wh unit will give you plenty of range for commuting.
Can I put drop handlebars on the Metro?

You can, but your brakes and shifters will not be a straight fit. Consider this before buying drop handlebars.
Can I fit a suspension seatpost?

Yes you can. They are available on the Speedlab shop.
I know Shimano gears, but not their electric motors. Are they good?

Yes, without a doubt. Shimano makes some of the best and most advanced electric motors on the eBicycle market today.
Can I fit a kickstand to the S-Electro Metro frame?

Yes, the S-Electro Metro is compatible with 40mm kickstands. Check out the Speedlab Kickstand CL-KA100.
How many assistance modes doe the S-Electro Metro have?

The S-Electro Metro has 3 assistance modes.
Can I tune my S-Electro Metro to increase the power-assist speed limit?

Due to strict regulations governing e-bikes, it is neither allowed nor recommended to alter the speed.
Where can I find the E-bike manual?
Click HERE to view.
Where can I find serial number of the E bike?
By all S-electro Diamond Trail, S-electro Diamond Stepdown, S-electro Diamond fat, S-electro Diamond Comp models please tell that the serial number of the frame is located under the black cover, one needs to unscrew 2 screws in order to take it down to see the frame number. For the S-electro Stepdown, S-electro Comp SL, S-electro Elite AL 2 (630Wh) models the frame number is located on the side of the side of the frame around the motor.
Can I customize my Shimano display to another language or change other settings?
Yes, you need to download E TUBE app and configure the settings. SEE HERE

ANDERE MODELLE DER SERIE

€1.499

SE:SERIES GR AL 11

Gravel | Fitness | Alloy

Alloy Fork
700C x 40C Wheels
1x11 Speed Shimano
12.2kg

€1.999

S-ELECTRO-METRO

Hardtail | E-Commuting | Alloy

700C x 47C Wheels
1x10 Speed Shimano
E7000 Shimano Motor
60Nm Torque
504Wh Battery
22 kg

€4.999

S-ELECTRO SUPERFAST (RAINBOW PEARL)

Road | E road | Carbon

700C x 35C Wheels
1x11 Speed Shimano
FSA Hub Motor
42Nm Torque
250Wh Battery
12.7kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XS	S	M	L	XL
	Rider height(cm)	150-160	160-170	170-178	176-185	185-195
	Rider inseam(cm)	68-72	72-77	77-81	80-84	84-88
A	Seat tube c/t	400	450	500	550	575
B	Seat tube angle	73	73	73	73	73
C	Head tube angle	69	69.5	70	70.5	70.5
D	Top Tube	576	593	617	638	657
E	Reach	395	410	430	445	455
F	Chainstay length	465	465	465	465	465
G	bb height	308	308	308	308	308
H	head tube length	115	120	130	150	180
I	stack	592	599	611	632	660
J	standover	739	766	797	833	857
K	Wheelbase	1106	1118	1137	1153	1173
