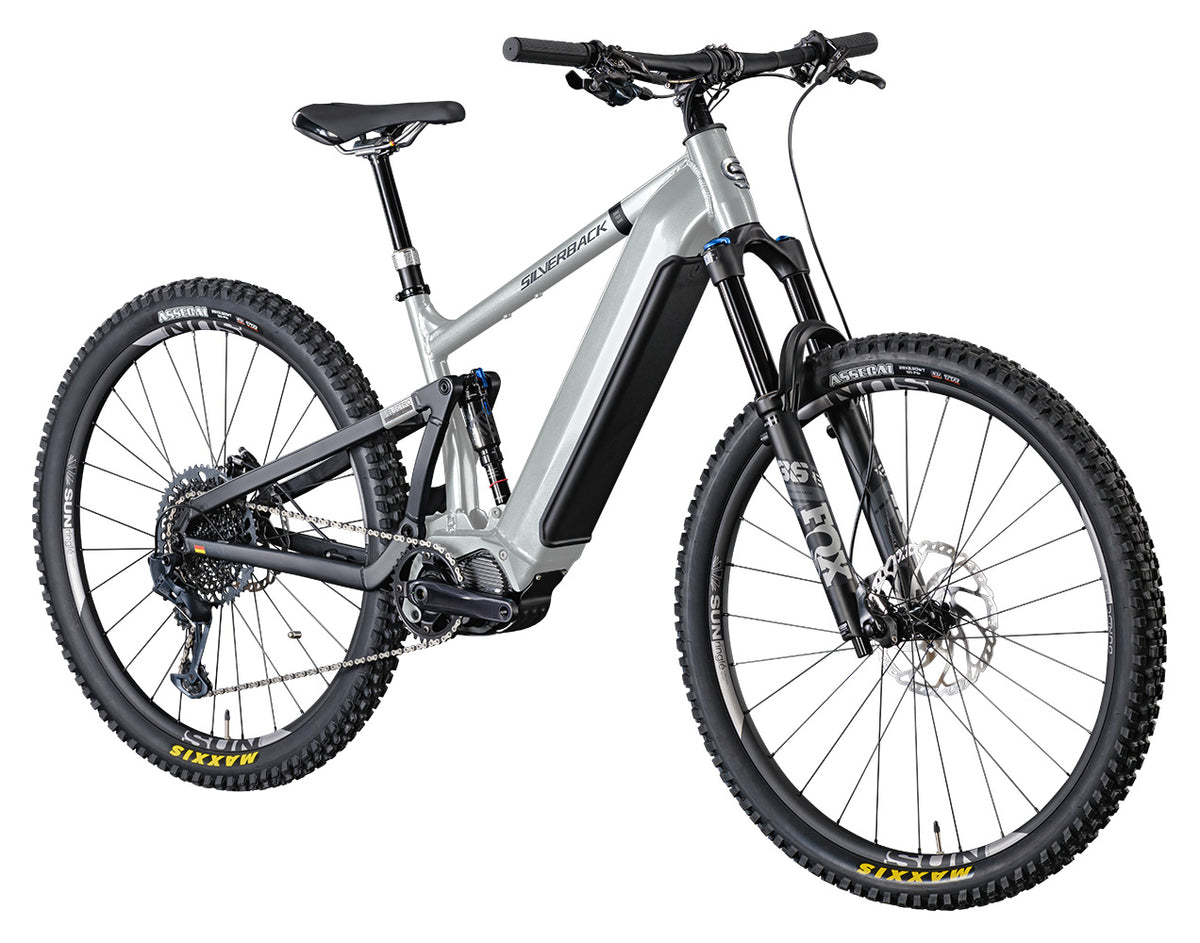

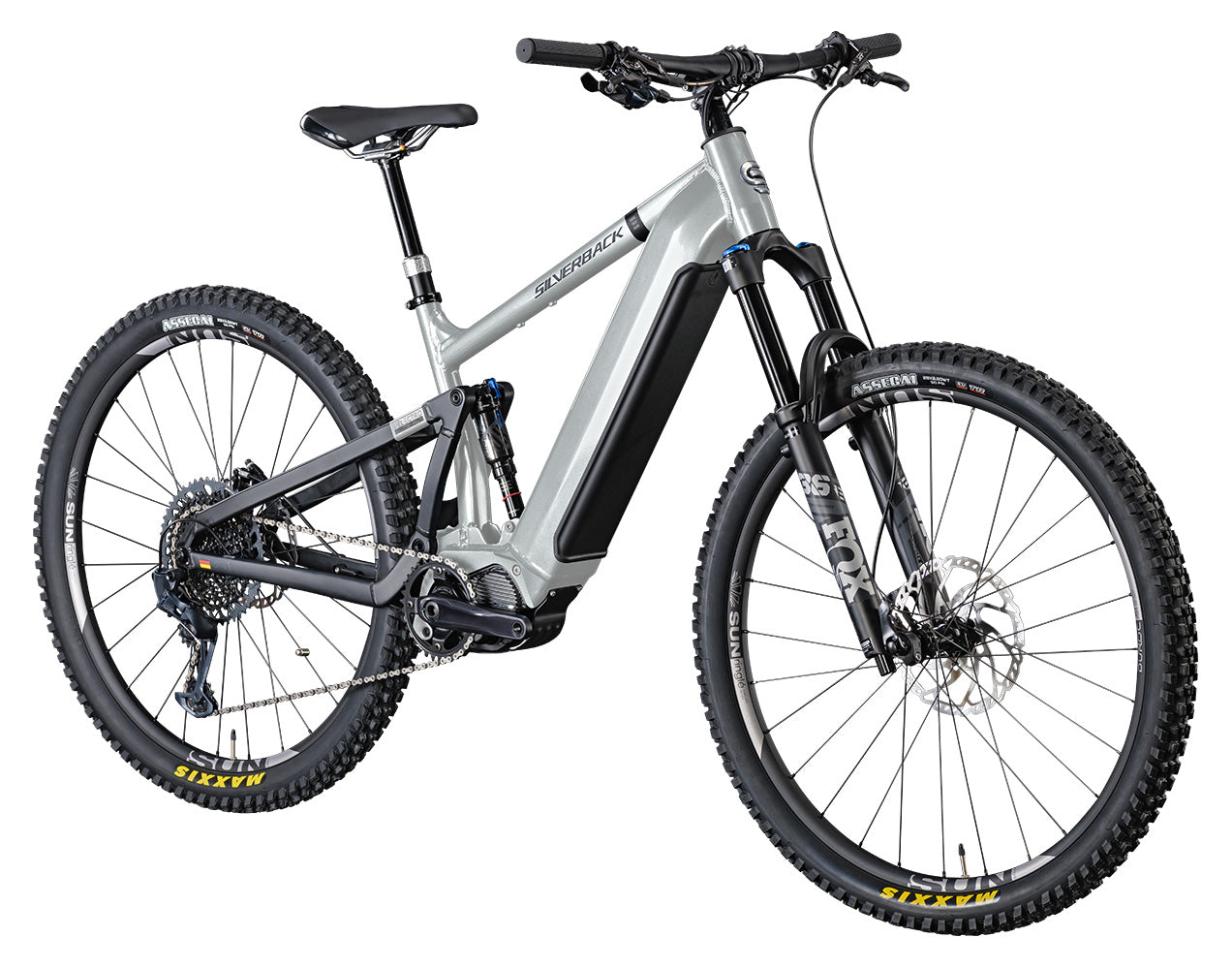

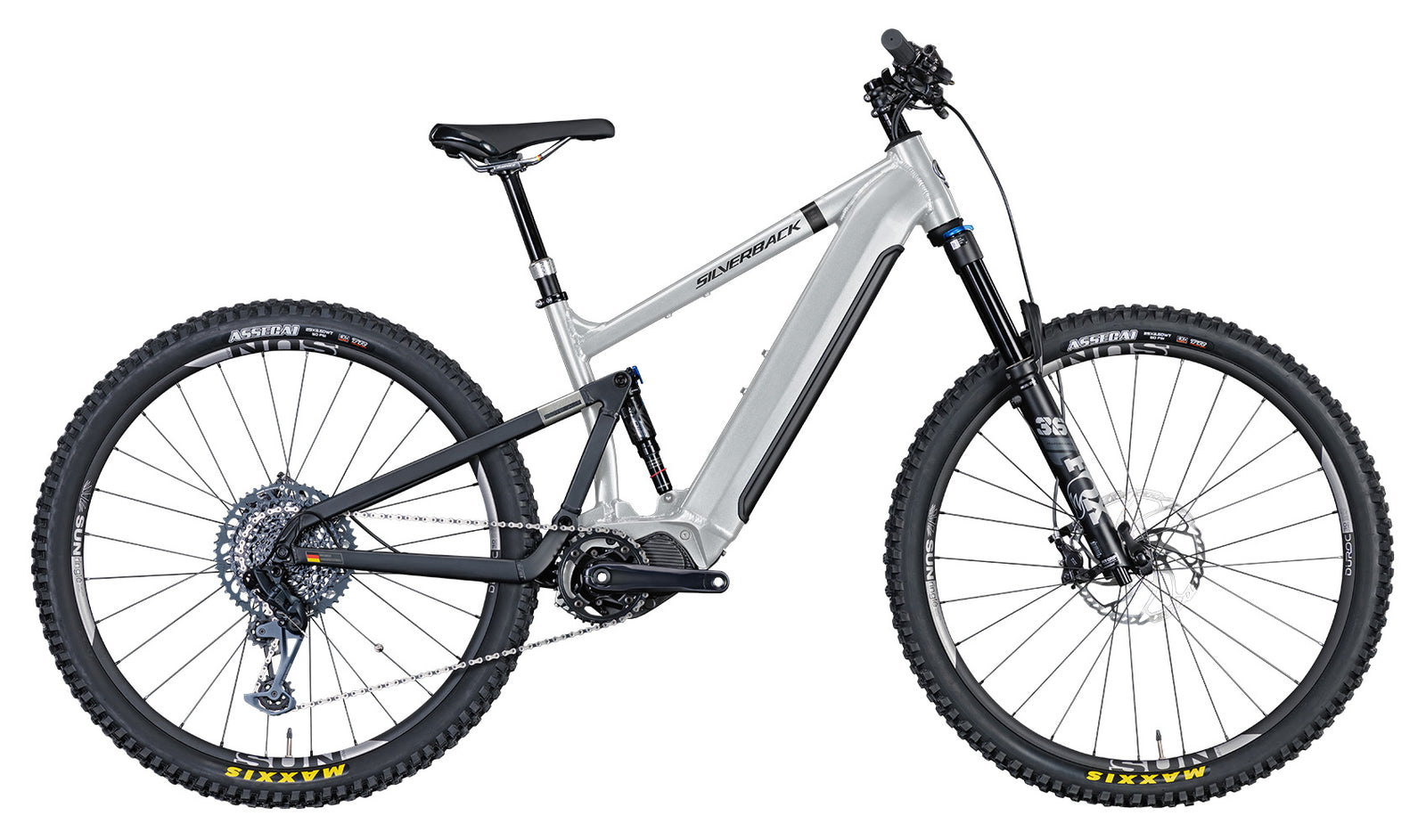

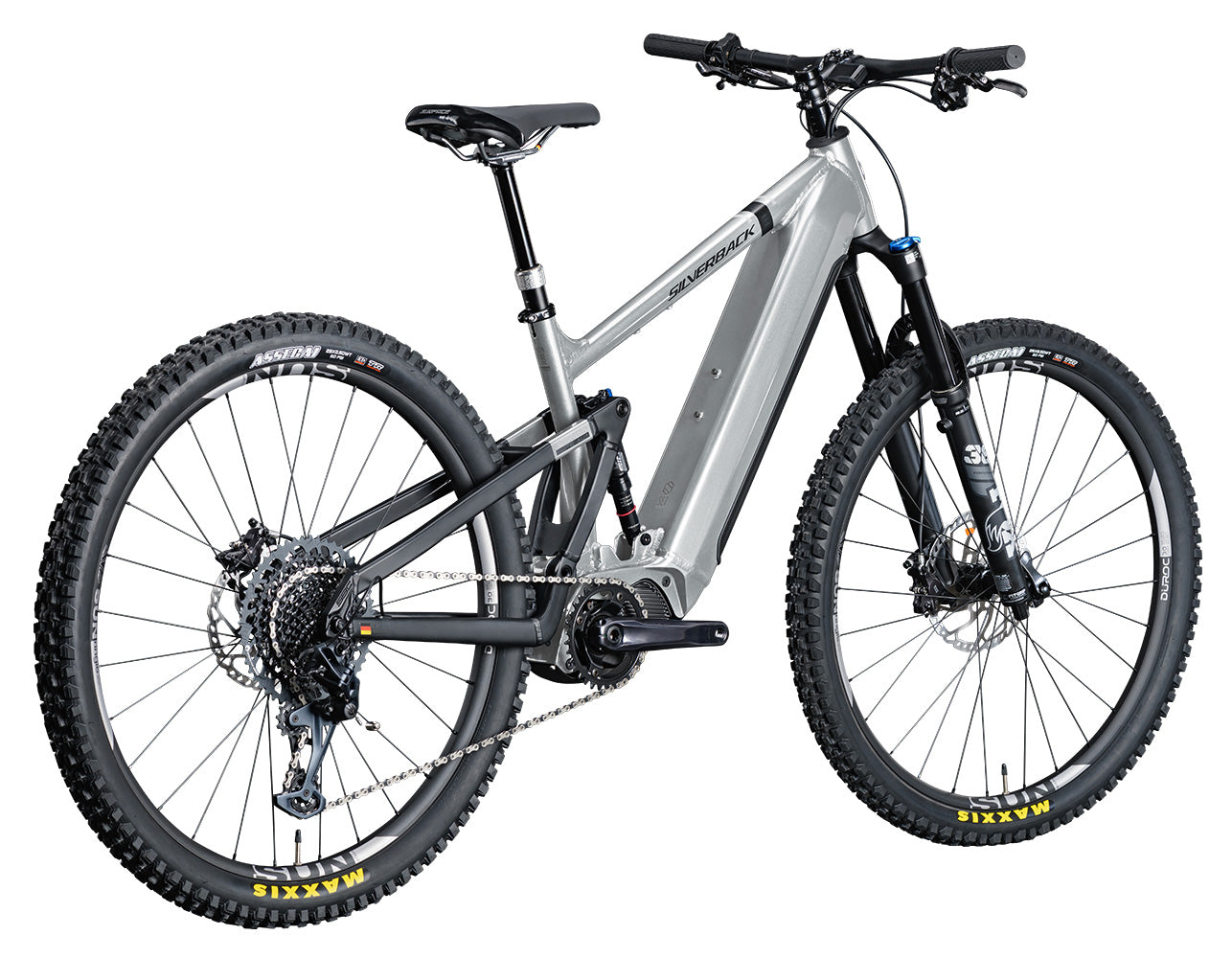

S-Electro Elite AL 1

Name: S-Electro Elite AL 1
Brand: S-Electro
SKU: 0086544000096
Price: 3999.0 EUR
Availability: InStock
Rating: 4.67 (6 reviews)

€3.999

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.67 6 reviews

Size:

Color: Rainbow Silver

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Space Spectra - LED MTB Helmet (Matte Black)

Supreme Bib Shorts - Cycle Kit - BornToBeFast - - - - Speedlab

SKS Explorer Click 1800

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-3

S-Electro Elite AL 1

€3.999,00

Add to cart

Die Geometrie des S-Electro Elite AL ist eng an die unseres neuen Slider Enduro-Bikes angelehnt. Die POP-Geometrie von Silverback, gepaart mit einer modifizierten Horst-Link-Federungsanordnung, schafft ein äußerst leistungsfähiges, endurotaugliches 29“-E-Bike mit langem Federweg, das auch mit 27,5“-Laufrädern kompatibel ist. Der Rahmen aus Alulegierung ist leicht und zeichnet sich durch eine vollständig interne Kabelführung aus. Ein Metric-Hinterraddämpfer mit seitlicher Aufnahme ist speziell auf die Federung des S-Electro Elite AL abgestimmt, um im Klettermodus eine effiziente Mechanik für Anstiege zu bieten und das Bike im offenen Modus in einen renntauglichen Abfahrtsperformer zu verwandeln. Die Shimano-Tretunterstützung erleichtert es, den Gipfelpunkt einer Strecke zu erreichen, sodass man seine Energie für die Abfahrten aufsparen kann. Eine vor Energie strotzende Maschine mit Power ohne Ende.

Auf einen Blick

Alloy, Dual-Suspension, integrated eBike frame
Fox Float 36 Performance, 150mm, 44mm offset
Rockshox Deluxe Select+ R/T Debonair Trunnion rear shock
Shimano EP8 motor
Darfon 720Wh high-capacity battery
SRAM GX 12 speed groupset
SUNringle wheels with 32mm Internal Rims
Maxxis Assegai 29x2.5''/Minion DHF, 29x2.60WT
Surface dropper post
Surface alloy components

TECHNISCHE HIGHLIGHTS

TRAIL/ENDURO E-BIKE.

The Elite AL e-Bike allows for rider to tackle steeper and more technical terrain with assisted power, and helps the rider stay comfortable with 29” wheels and long travel suspension to absorb the terrain. Single pivot one-piece solid rear triangle for precise suspension movement and increased lateral stiffness is ideal for electric power assisted full suspension bikes to tackle heavy terrain with an aggressive riding style.

ELECTRIC DRIVE SYSTEM

A powerful Shimano EP8 electric motor paired with a large 36V, 720Wh internal battery makes mole hills of mountains. The battery charges to 80% in 3 hours, and the Elite AL has a range from 30 - 100km depending on the assist levels and terrain you are riding.

SUSPENSION KINEMATICS

The linear leverage ratio ensures the long stroke shock gets to full travel on rough terrain and allows the rider to have consistent damping throughout the whole shock stroke. The linear ratio allows for a consistent feeling and when combined with the assisted motor power, it helps to give the rider a solid platform to ride with no matter the bump size.

SUSPENSION ANTI-SQUAT

The high anti-squat figure helps to keep the bike articulate in its movements under assisted power and with soft suspension settings for all day comfort. The bike responds well to any crank movement in any gear combination and allows rider to use large front chainring without losing this responsiveness.

GEOMETRY

Geometry on the S-Electro Elite AL is designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. The frame also has a low stand over, making it great for both male and female riders.

HYDROFORMED DOUBLE BUTTED INTEGRATED ALLOY FRAME

Featuring a double butted hydroformed fully alloy frame with integrated motor mount and internal battery. The frame can have thinner walls, complex shapes that makes it stronger and lighter.

SUNRINGLÉ DÜROC 35 WHEELSET

They’re robust and lightweight for fast, rugged trail riding. Rims are 35mm wide (31mm inner).

SRC hubs feature cartridge bearings, flange diameters for optimized for balanced spoke tension, and an oversized rear axle for increased durability.

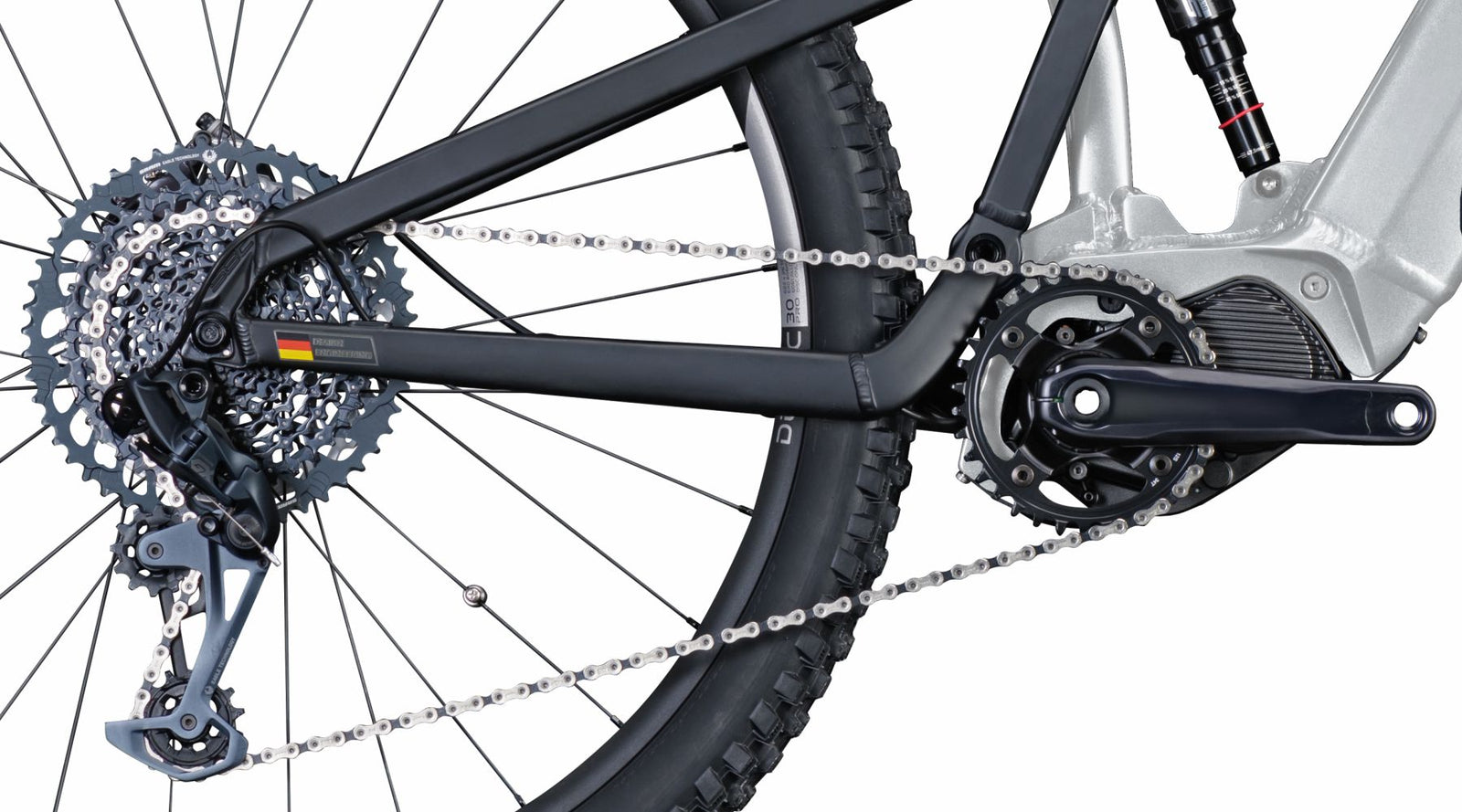

SHIMANO 11 & 12 SPEED DRIVETRAINS

Efficient shifting, superior durability and plenty of gears for almost any terrain.

SHIMANO CHAIN RETAINER

Helps ensure chain stability and avoid chain drop through rough sections of trail.

QUALITY SUSPENSION FORKS

Offering 150 - 160mm of shock-absorption - enough to handle the unique rigors of enduro and E-MTB riders alike.

CUSTOM TUNED SHOCKS

Custom tuned to deliver maximum performance. 145mm of rear wheel travel.

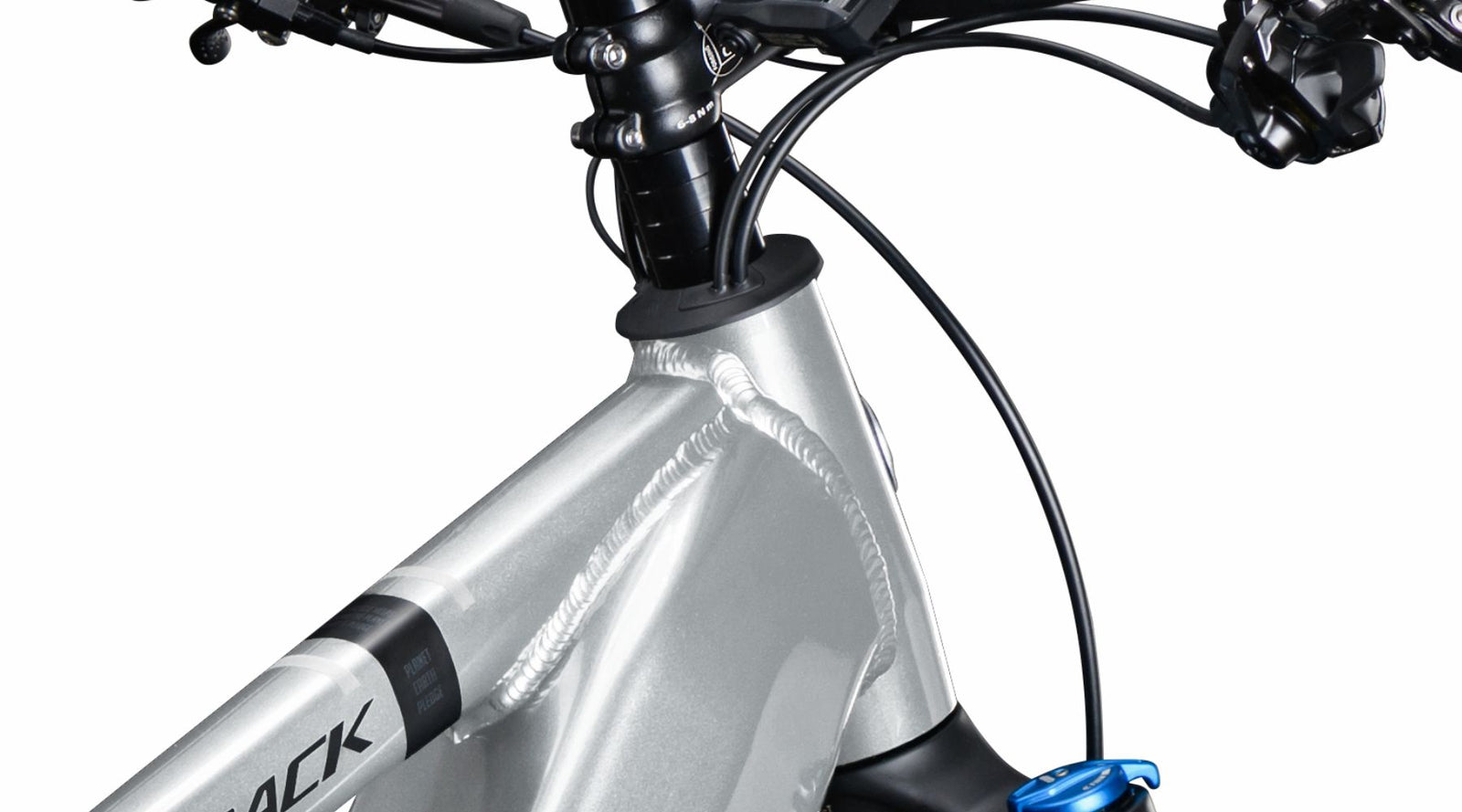

INTERNAL CABLE ROUTING

Cables route directly through the headset, keeping your cockpit area clear and tidy.

OPTIMISED CHAINSTAY LENGTH

Shorter chainstay means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

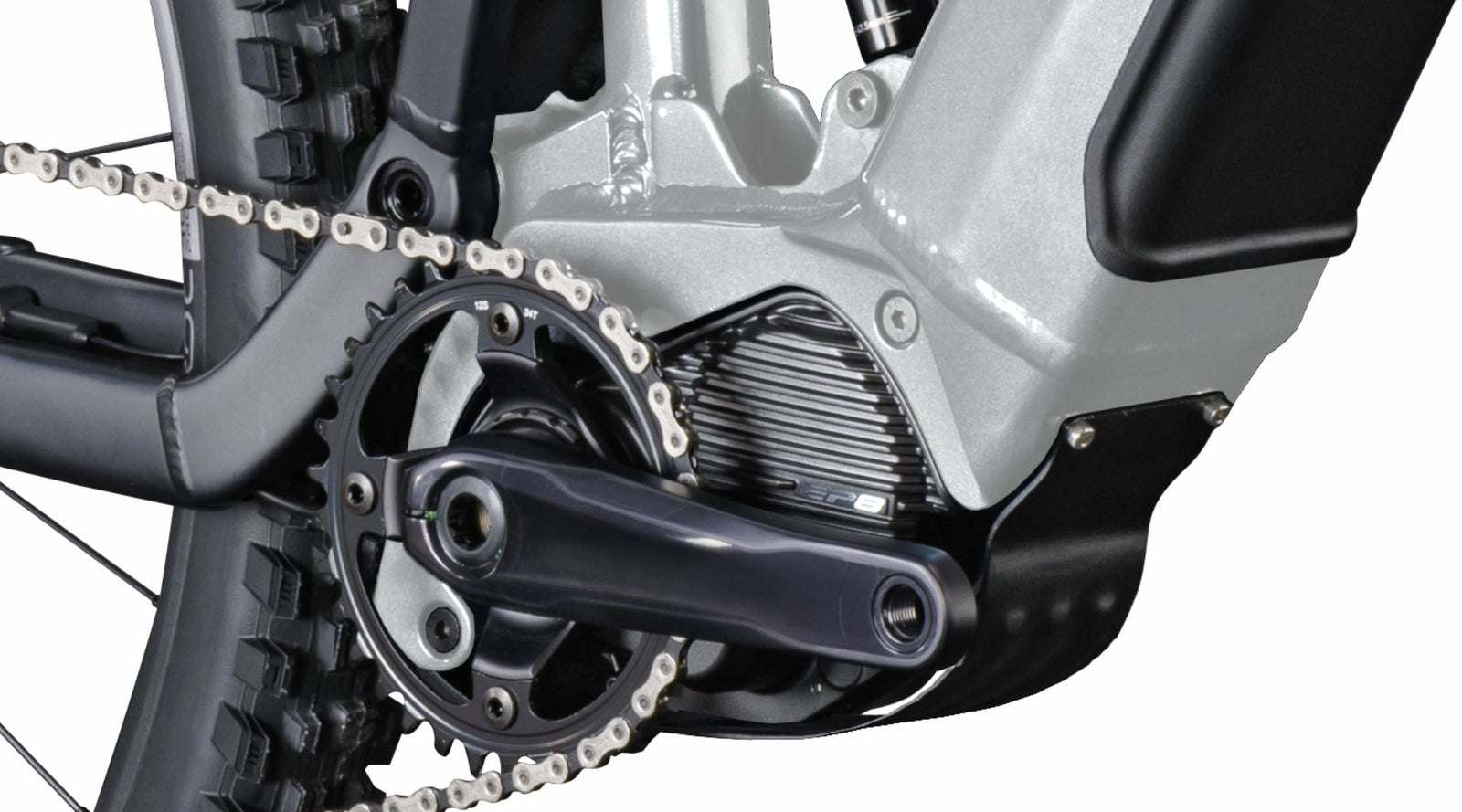

POWERFUL SHIMANO MOTOR

Shimano Steps EP-8 with 85 Nm mid-drive motor. High torque and smooth torque support. Magnesium body reduces weight.

HIGH VOLUME 720 Wh BATTERY

Large 720Wh internal battery delivering 2.8 - 4.8 hours / 72 - 120 km range of pedal assistance. The battery charges to 80% in 3 hours.

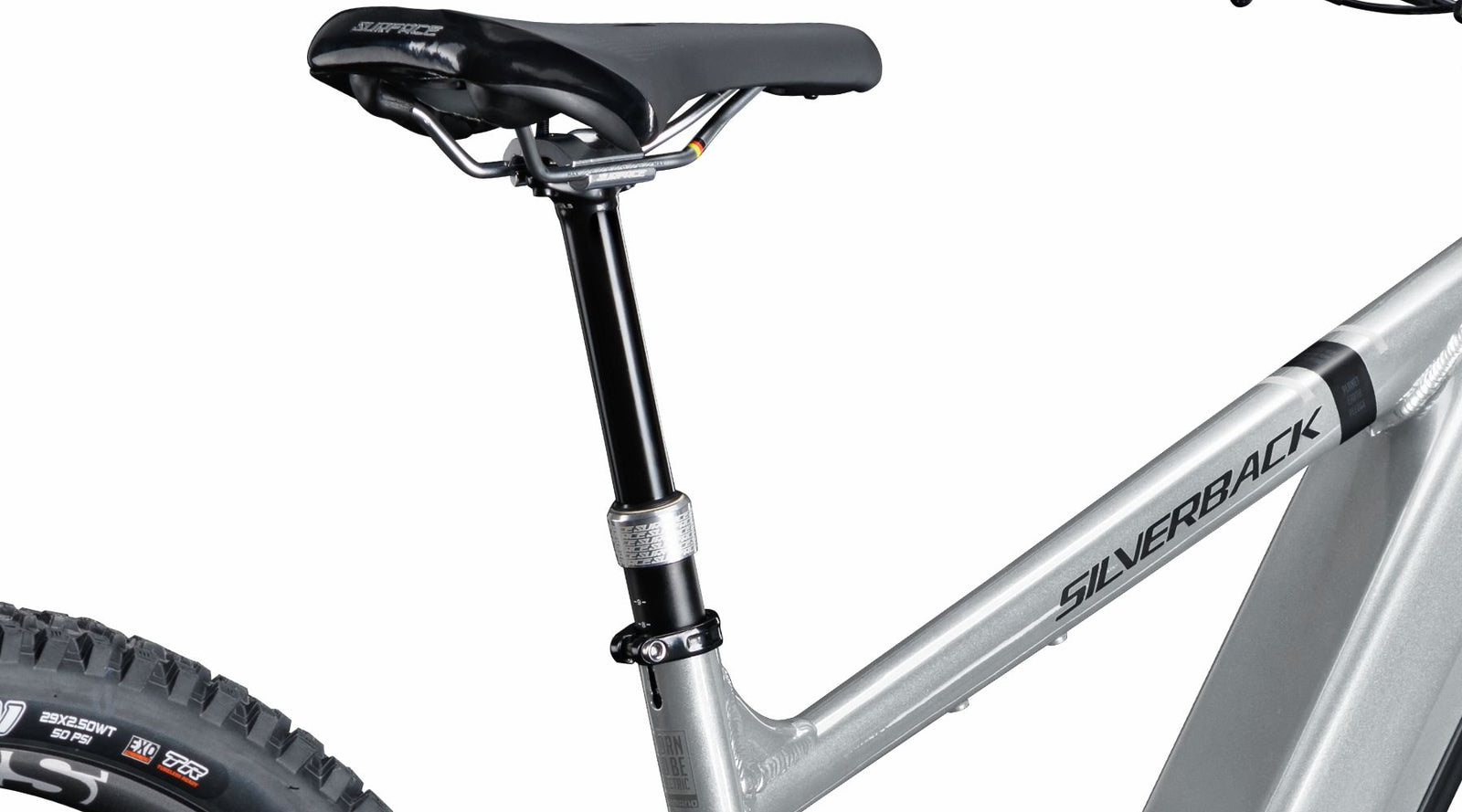

LONG DROPPER POSTS

The bike is internal routed dropper post compatible and simple to set up. 125 - 170mm travel depending on frame size.

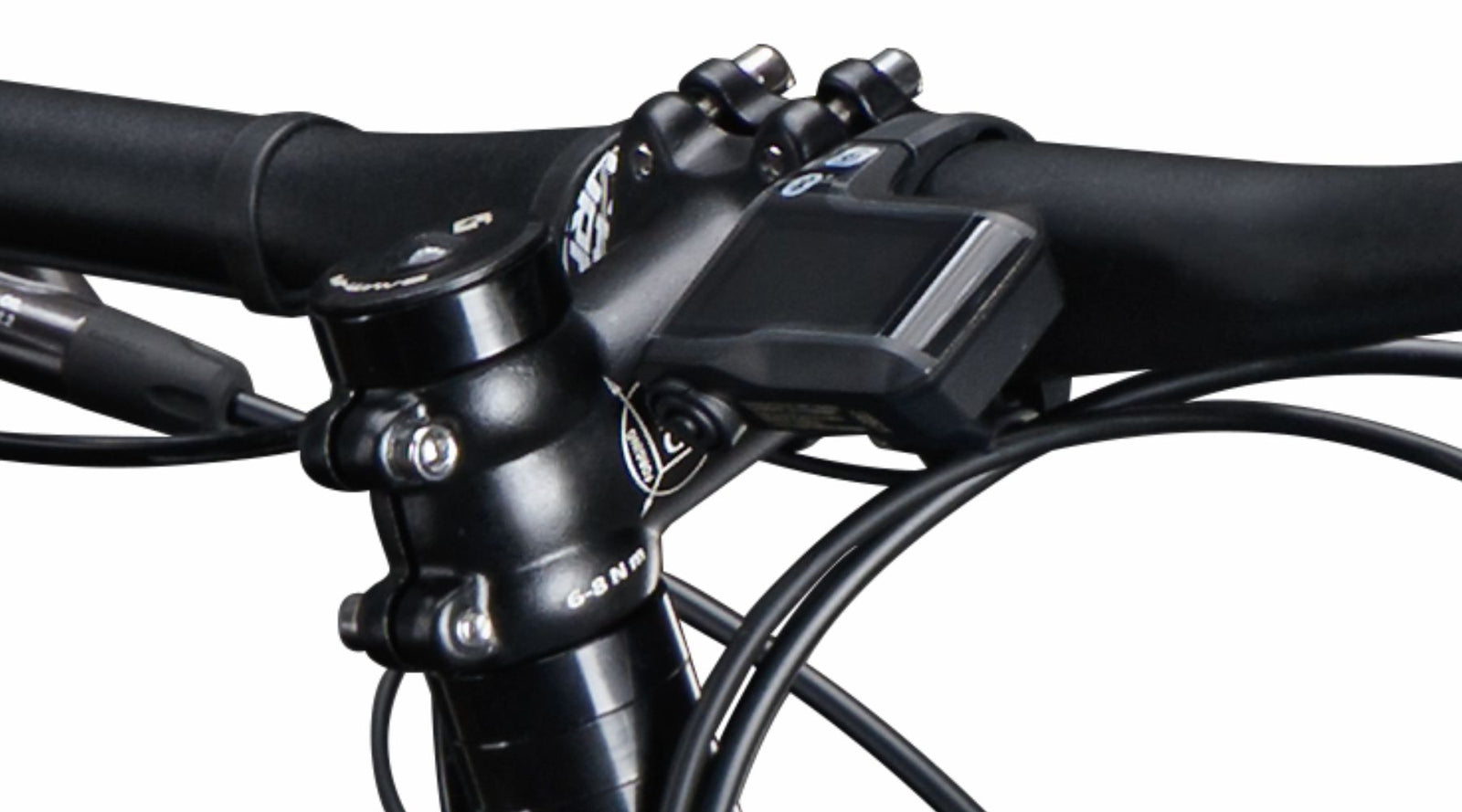

INFORMATIVE DISPLAY

Shimano SC-EM800 informative display for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.

ADJUSTABLE STACK

Extra spacers on the fork steerer offers an upright relaxed riding position, reducing back and shoulder pressure for more comfort.

OVERSIZED COCKPIT PARTS

S-Electro Elite AL models use oversized cockpit parts such as wider handelbar, stem and seat post diameter, which offer more leverage and finer control.

SPECIALLY DEVELOPED E-BIKE ERGONOMIC SADDLE

S-Electro Elite AL features a specially developed E-MTB saddle which is purposely suitable for use on electric bicycles in terms of function, ergonomics and durability.

KICK STAND MOUNT

Park your E-bike bike quickly, safely and prevent annoying scratches.

BATTERY CHARGING PORT

Compact, semi-integrated design for charging convenience.

BATTERY CHARGER ADAPTER

This is particularly useful for charging your e-bike during the cold winter months or if you are unable to store your bike indoors. Suitable for battery chargers from the Darfon series, so you can charge the battery off the bike. (Sold separately)

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Alloy Dual Suspension with Shimano EP8 motor and Darfon 720Wh internal battery. Trail/Enduro frame with 150mm front and 145mm single-pivot rear travel. Designed to be light, nimble and easy to maintain.

Headset

TOKEN TK1556SP (IS52/28.6 l IS52/40)

Frame front Axle Spacing

110x15 mm

Rear Axle Specification

178x12mm P1.75

Hanger Type

Hanger 03

E-BIKE

Motor

Shimano EP8 Drive Unit, 25km/h, 85N.m Torque

Battery

Li-Ion, 720Wh, 36V, 20Ah, 3.8Kg Weight

Charger

Darfon Smart Plus, 100-240V, 4A, EU use

Display

Shimano EM800 Cycle Computer

Switch

Shimano EM800, Left

SUSPENSION

Fork

Fox Performance 36 Float, GRIP, 150mm, 44mm Offset, Air

Fork Travel

150mm

Rear Shock

Rockshox Deluxe Select+ R/T Debonair Trunnion

Rear Travel

145mm

Shock Mounting

Body: Trunnion, M10x54mm

Shaft: Standard, 8x30mm

Eye-to-Eye x Stroke

185x55mm

WHEELS

Wheelset

SUNringlé Custom Wheelset

Hubs

F: Shimano Deore MT410, 110x15mm, 6 Bolt
R: Shimano Deore MT410, 148x12mm, 6 Bolt

Rims

F: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width
R: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width

Tyres

F: Maxxis Minion DHF, 29x2.60WT, EXO TR, Dual
R: Maxxis Assegai, 29x2.50WT, EXO+ TR, 3C MaxxTerra

Max Tyre Size

Front: 2.6"

Rear: 2.5"

DRIVETRAIN

Crankset

Shimano FC-EM600

Max Chainring Size

38T

Shifter(s)

R: SRAM GX Eagle Lunar

Rear Derailleur

SRAM GX Eagle Lunar

Cassette

SRAM GX Eagle 10-52T

Chain

SRAM GX EAGLE, Power Lock 12 Speed

BRAKES

Brakes

F: Shimano Deore MT410

R: Shimano Deore MT410

Rotors

F: Shimano SLX RT70, 203mm

R: Shimano SLX RT70, 180mm

COCKPIT

Grips

Double Density Lock-On Grips

Handlebar

SURFACE Trail 35mm Handlebar, Backsweep 6°, Rise 12mm

Stem

SURFACE Trail Stem, Ø35mm, Rise 7°

Saddle

SURFACE

Seat Post

SURFACE Dropper Post with Lever, 30.9mm

Seatpost Clamp

SURFACE Alloy

WEIGHT

Bike Weight

24 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

How do I adjust travel on my Elite Al?

It's better to ask your LBS to adjust the travel internally in your shock.
Can I fit a 180mm triple clamp on my AL?

You can fit a single crown 180mm fork, but we have not tested with a triple crown - and in the event of a crash the fork will make contact with the frame, and may cause structural weakness. We would recommend against it.
What's the difference between pedal assist and throttle bike?

Exactly that - the one you as rider have to pedal to have the motor engage and assist. For throttle, you the rider don't have to do any physical input other than actuate the throttle.
Can I fit plus tyres on the AL?

Yes, 2.8" - but only on 275 rims.
Where can I find the E-bike manual?
Click HERE to view.

Where can I find serial number of the E bike?
For the S-electro Stepdown, S-electro Comp SL, S-electro Elite AL 2 (630Wh) models the frame number is located on the side of the side of the frame around the motor.
Can I customize my Shimano display to another language or change other settings?
Yes, you need to download E TUBE app and configure the settings. SEE HERE
Can I upgrade the length of my suspension on my bike?
The suspension length is normally determined by the frame design, it should not be changed.

ANDERE MODELLE DER SERIE

€3.999

S-ELECTRO ELITE AL 2 (NEW GEN)

Dual Suspension | E-Enduro | Alloy

150/145mm Travel
29" x 2.5" Wheels
1x12 Speed Shimano
EP-6 Shimano Motor
85Nm Torque
630Wh Battery
25.8 kg

€3.999

S-ELECTRO ELITE AL 1

Dual Suspension | E-Enduro | Alloy

150/145mm
29" x 2.5" Wheels
1x12 Speed SRAM
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
24 kg

€6.999

S-ELECTRO PRO CF 1

Dual Suspension | E-Enduro | Carbon

150/145mm Travel
29" x 2.5" Wheels
1x12 Speed SRAM AXS
EP-801 Shimano Motor
85Nm Torque
720Wh Battery
from 20.9kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	160-173	170-180	180-190	190-200
	Rider inseam(cm)	73-79	77-82	82-86	86-91
A	Seat tube c/t	390	420	450	480
B	Seat tube angle	76.5	76.5	76.5	76.5
C	Head tube angle	64.5	64.5	64.5	64.5
D	Top Tube	521	548	583	612
E	Reach	430	450	478	500
F	Chainstay length	467	467	467	467
G	bb height	347	347	347	347
H	head tube length	120	125	135	135
I	stack	626	631	640	640
J	standover	805	825	847	866
K	Wheelbase	1229	1251	1283	1305
