150/145mm Travel
29" x 2.5" Wheels
1x12 Speed SRAM AXS
EP-801 Shimano Motor
85Nm Torque
720Wh Battery
from 20.9kg
Frame
Aluminium E - MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. Battery integrated inside frame.The geometry is designed for trail riding. This frame has tyre clearance for 29 x 2.6" tyres.

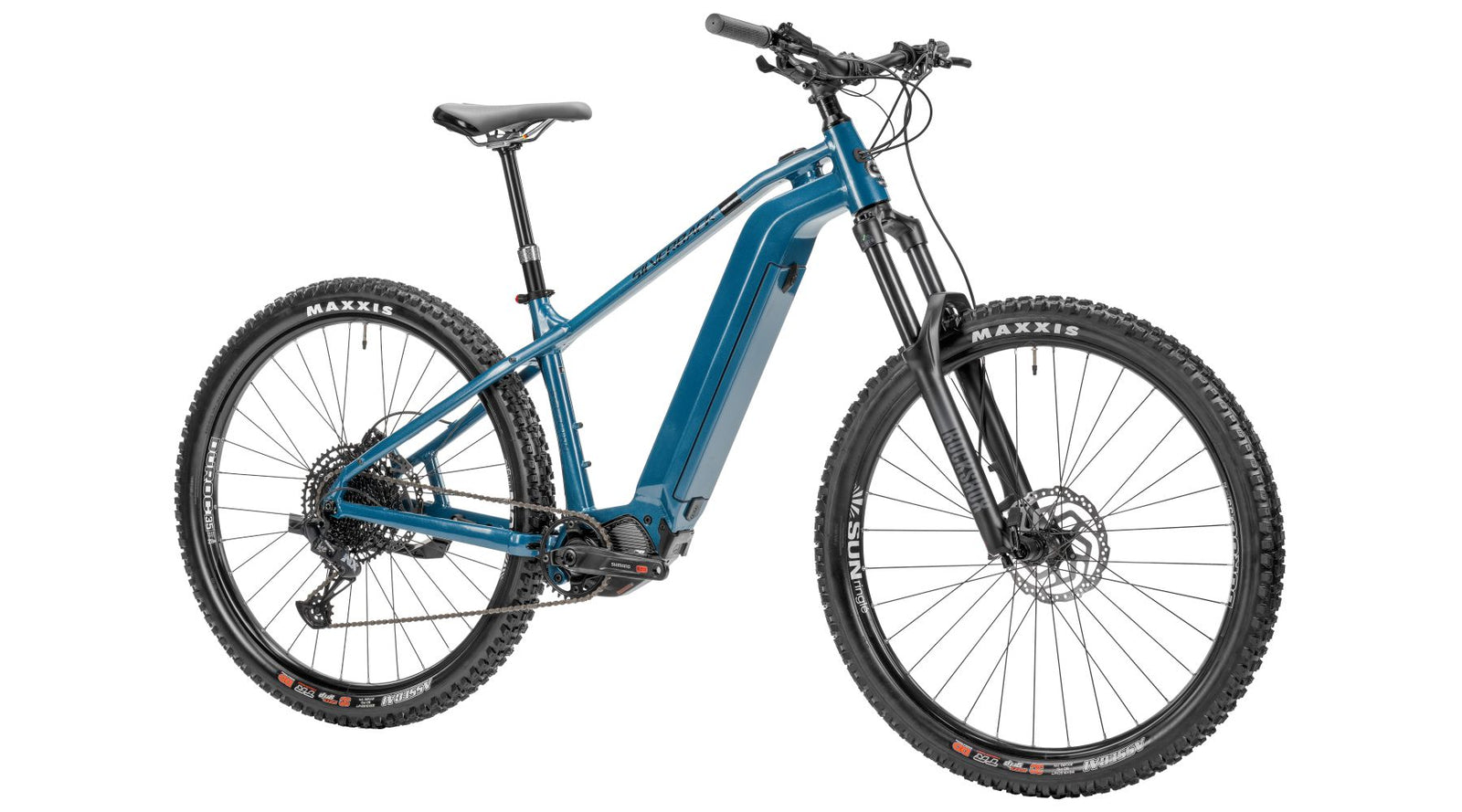

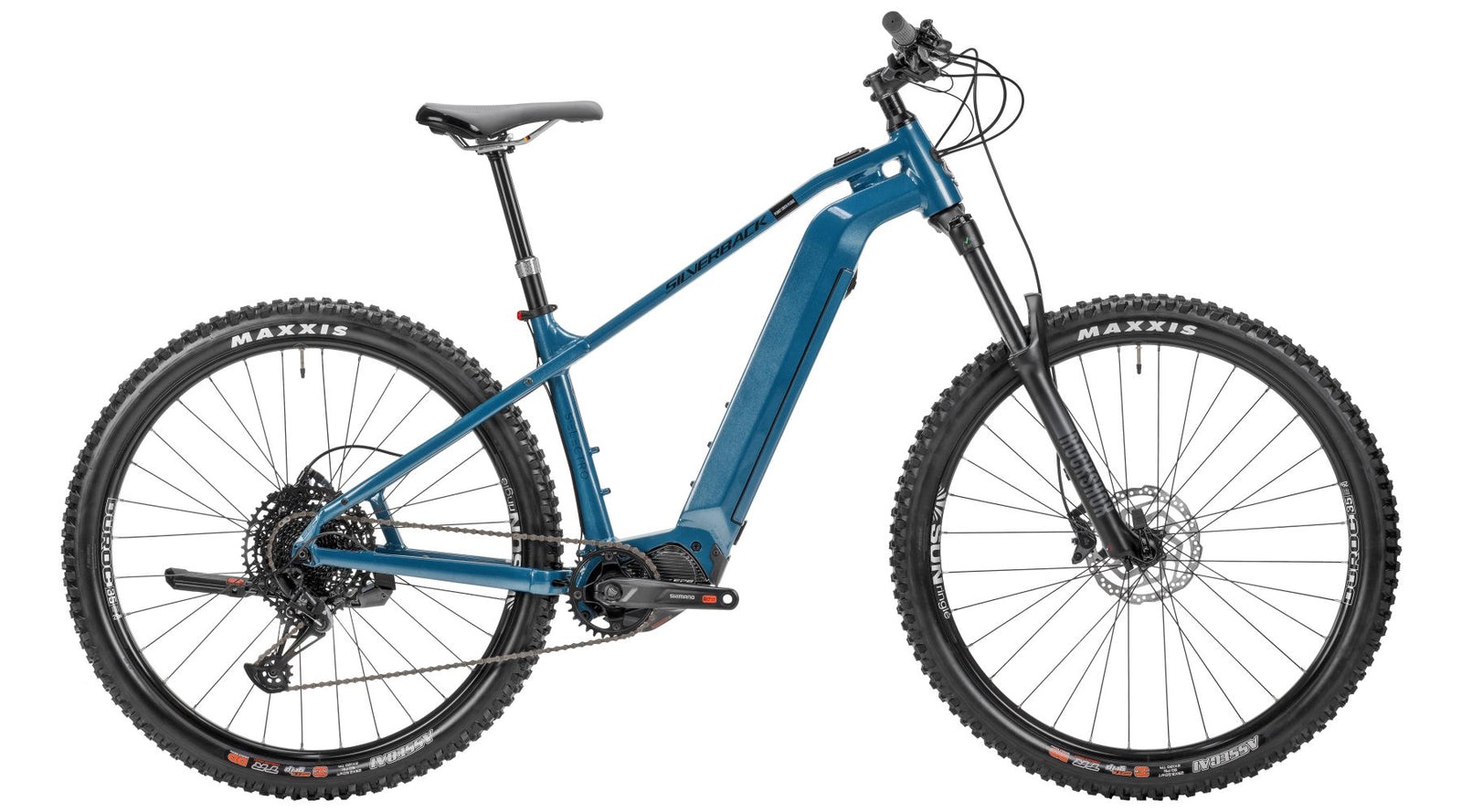

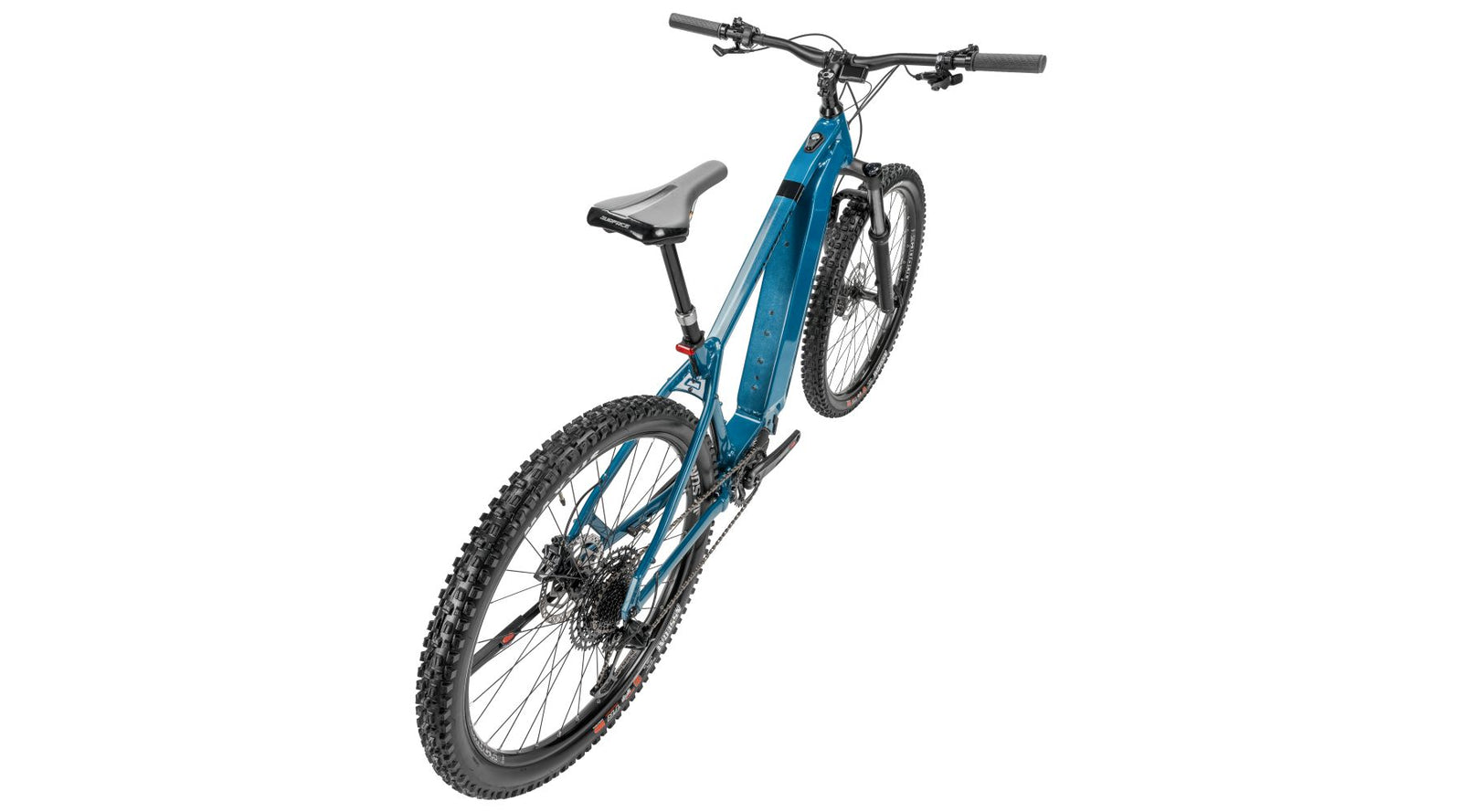

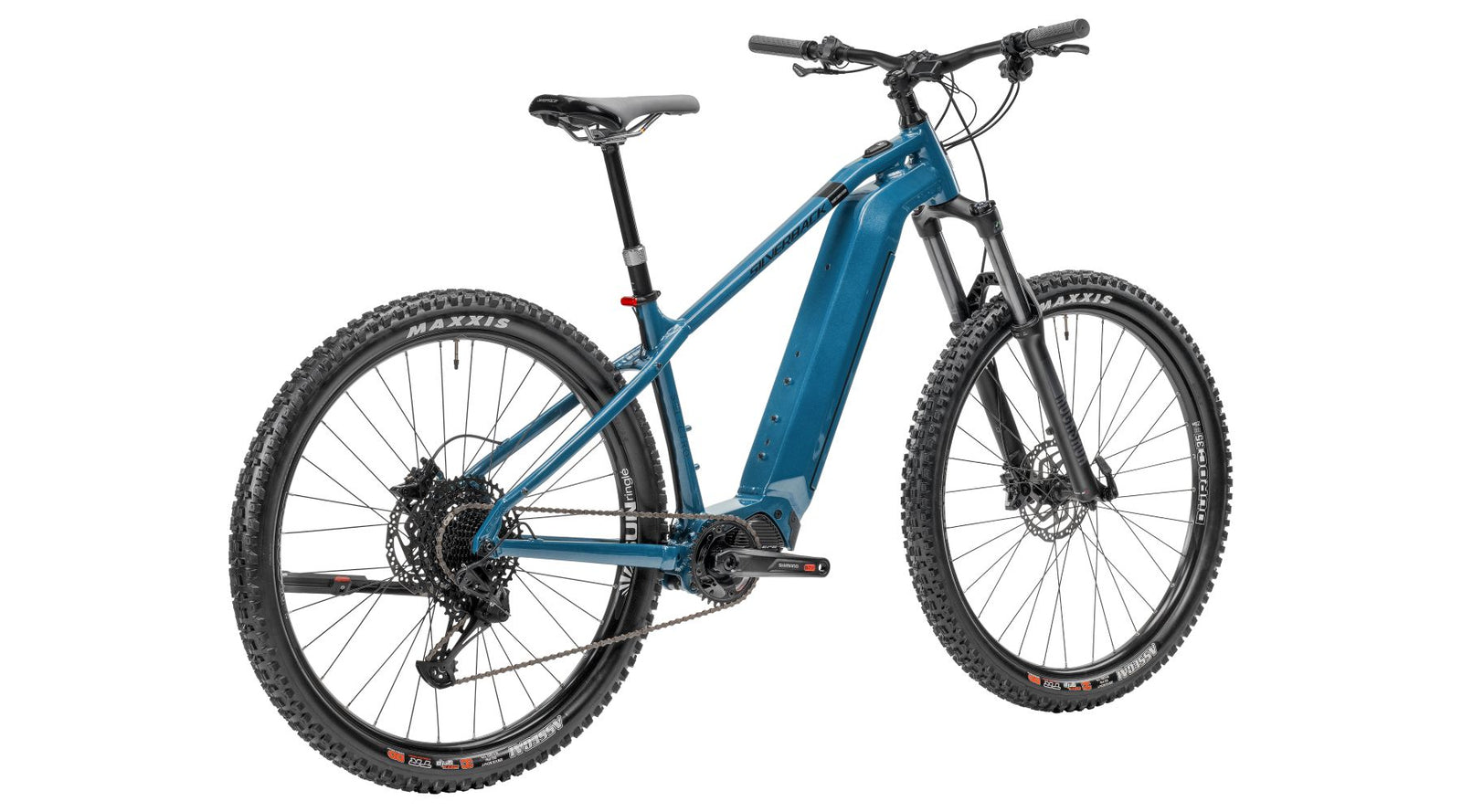

S-Electro Diamond Trail
€3.499,00
S-Electro Diamond Trail
Hardtail
|
E Trail
|
Alloy
|
29" x 2.5" Wheels
|
1x12 Speed
|
140mm Travel
|
21.5kg
€3.499
Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.
ABHOLUNG IM GESCHÄFT
Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818
VERSAND NACH HAUSE
EINFACHE MONTAGE
S-Electro Diamond Trail is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Diamond Trail unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.
Auf einen Blick
- 6061 Hydro-formed diamond e-bike frame,
- RockShox 35 Gold RL Debon Air 29" 140mm fork
- Shimano EP8 motor
- Darfon 720Wh high-capacity battery
- SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width wheels
- Maxxis Assegai 29x2.5'' Tubeless tyres
- Shimano Deore 11sp rear derailleur
- Surface lightweight alloy components
- USB charging port
TECHNISCHE HIGHLIGHTS
RIDE VAST DISTANCES ASSISTED, WITHOUT THE NEED FOR RECHARGE ON THE WAY.
S-Electro Diamond Trail is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Diamond Trail unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.

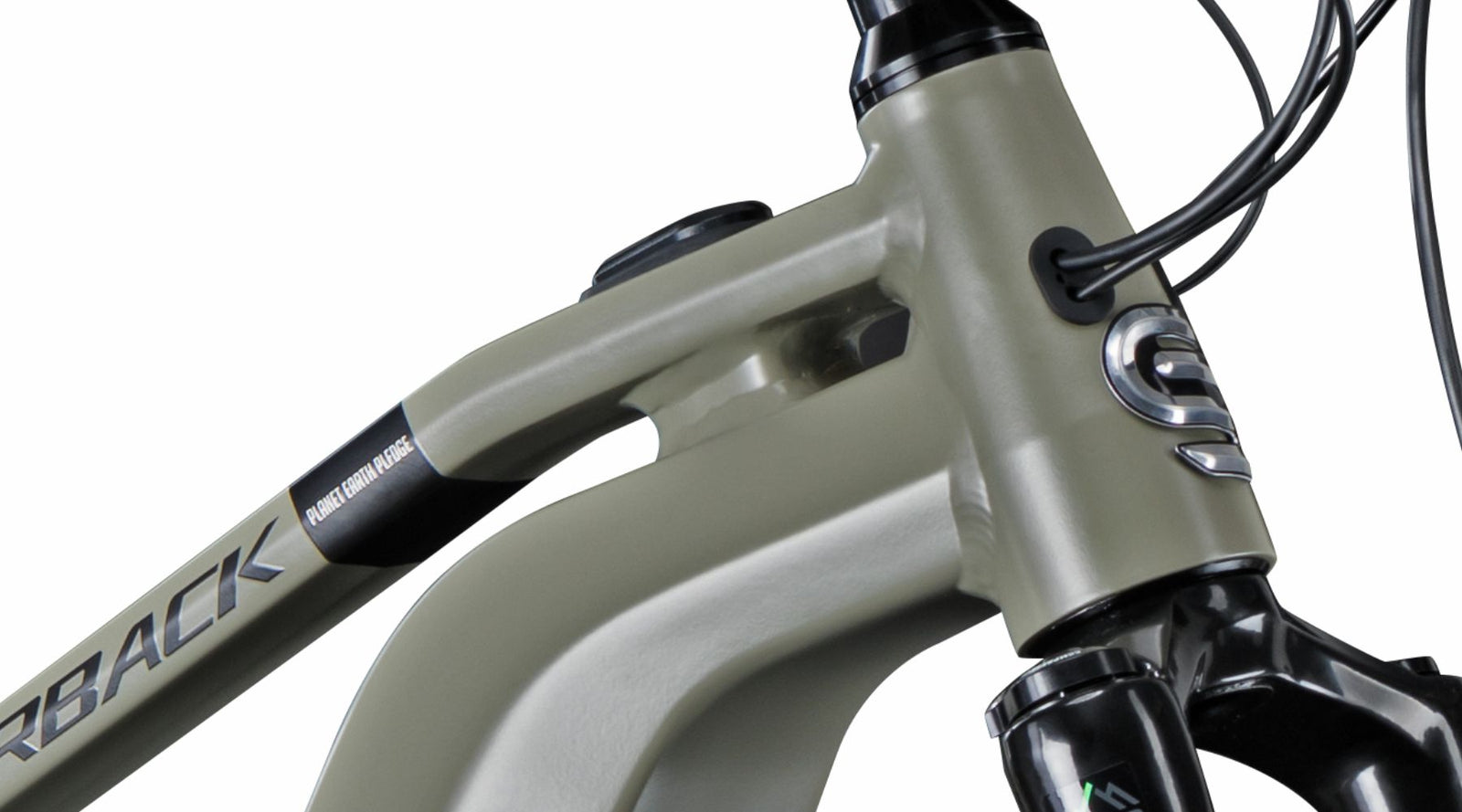

HYDROFORMED DOUBLE BUTTED INTEGRATED ALLOY FRAME
S-Electro Diamond features a double butted hydroformed alloy frame with integrated motor mount and internal battery. Hydroforming is the process of forcing tubing into a negative mould with internal pressurized oil and or water. The frame can have thinner walls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing.
DRIVE SYSTEM, POWER AND DISPLAY.
S-Electro Diamond is designed around a Shimano Steps EP8 motor. This motor is paired to a high capacity 720Wh internal battery giving the Step an unrivalled range of pedal assistance. The Shimano LCD display is intuitive and easy to use, also indicating battery levels and shows all info needed for the electric system.

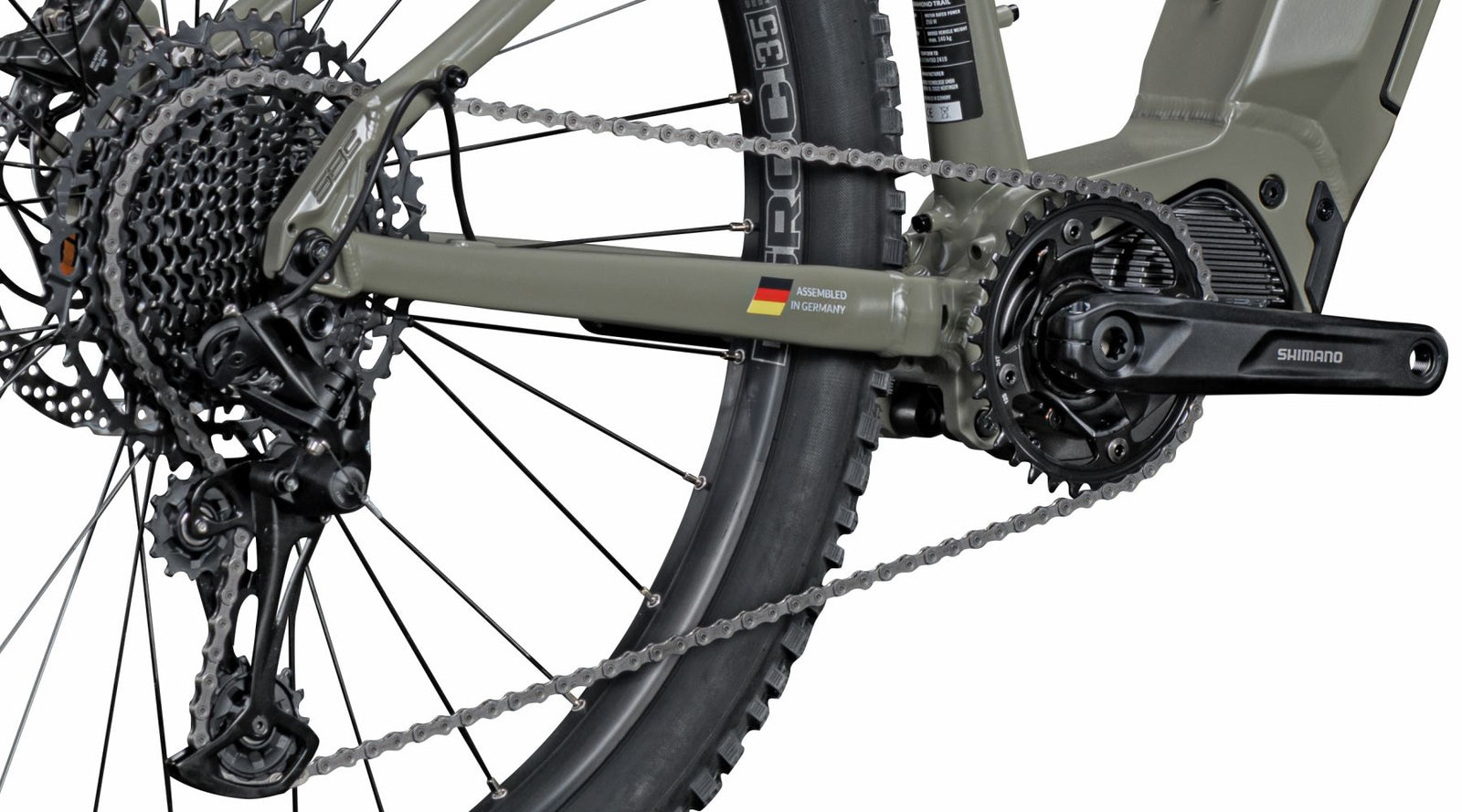

SHIMANO 11 & 12 SPEED DRIVETRAINS
Efficient shifting, superior durability and plenty of gears for almost any terrain.
Possible integration of lighting system.
SAFETY FIRST
Durable hydraulic disc brakes deliver superior stopping power in all conditions.
Possible integration of lighting system.

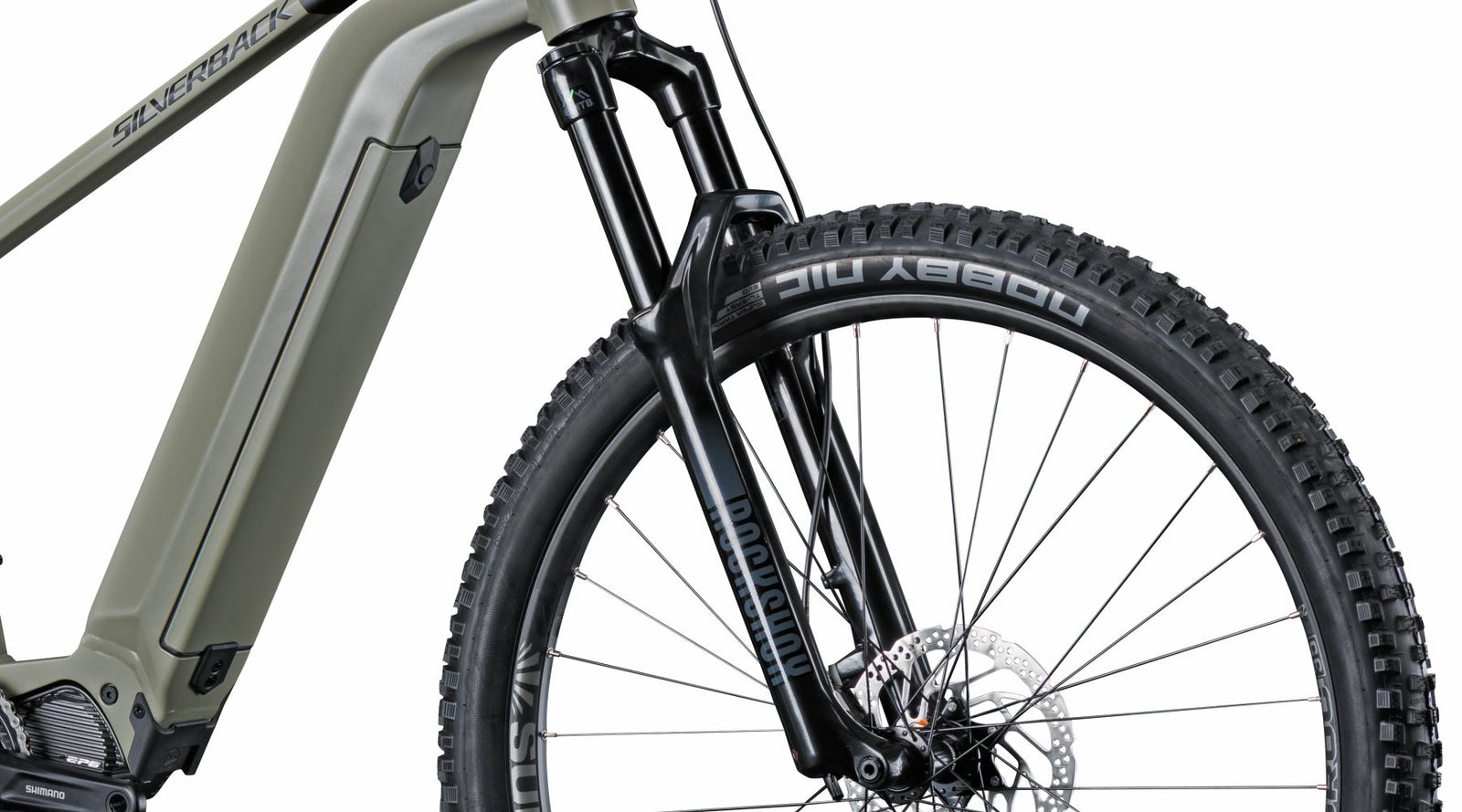

QUALITY SUSPENSION FORKS
Offering 140mm of shock-absorption.
GEOMETRY
Designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This is ideal for commuting or touring, whilst maintaining capability to take on more demanding terrain. Low stand over, making it great for both male and female riders.
OPTIMISED CHAINSTAY LENGTH BETWEEN AGILITY AND LARGE VOLUME TYRE
Shorter chainstay means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

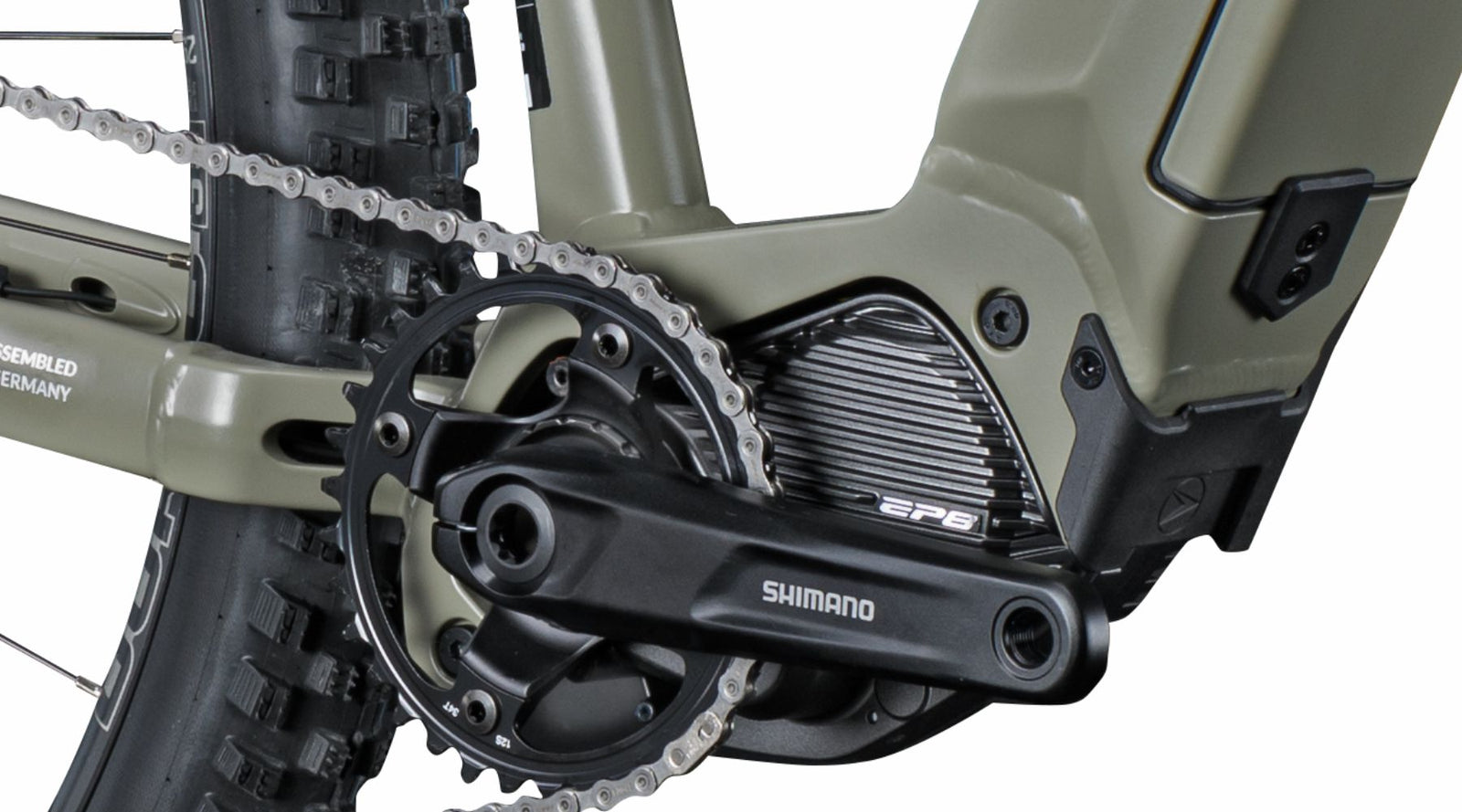

POWERFUL SHIMANO MOTOR
S-Electro Diamond is designed around a Shimano Steps EP8, 85 Nm mid-drive motor. Shimano’s EP8 motor offers excellent all-round performance which is perfect for E-MTB riding. With its smooth torque support, the ride feel is simply incredible.
HIGH VOLUME 720 Wh BATTERY
Large 720Wh internal battery delivering 2.8 - 4.8 hours / 72 - 120 km range of pedal assistance. The battery charges to 80% in 3 hours. Lock up your bike worry free – the battery is key removable only. Charging is easy on or off the bike – turn the key, pop it out, and plug in the charger delivered with your bike.
DROPPER POST
The bike is internal routed dropper post compatible and simple to set up. Dropper posts increase riding clearance on technical sections. It could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome.
LONG-TRAVEL DROPPER POSTS
The Diamond frame waterbottle bosses are welded to the outer surface of the seat-tube, allowing the seatpost to slide deeper. More space for longer travel!

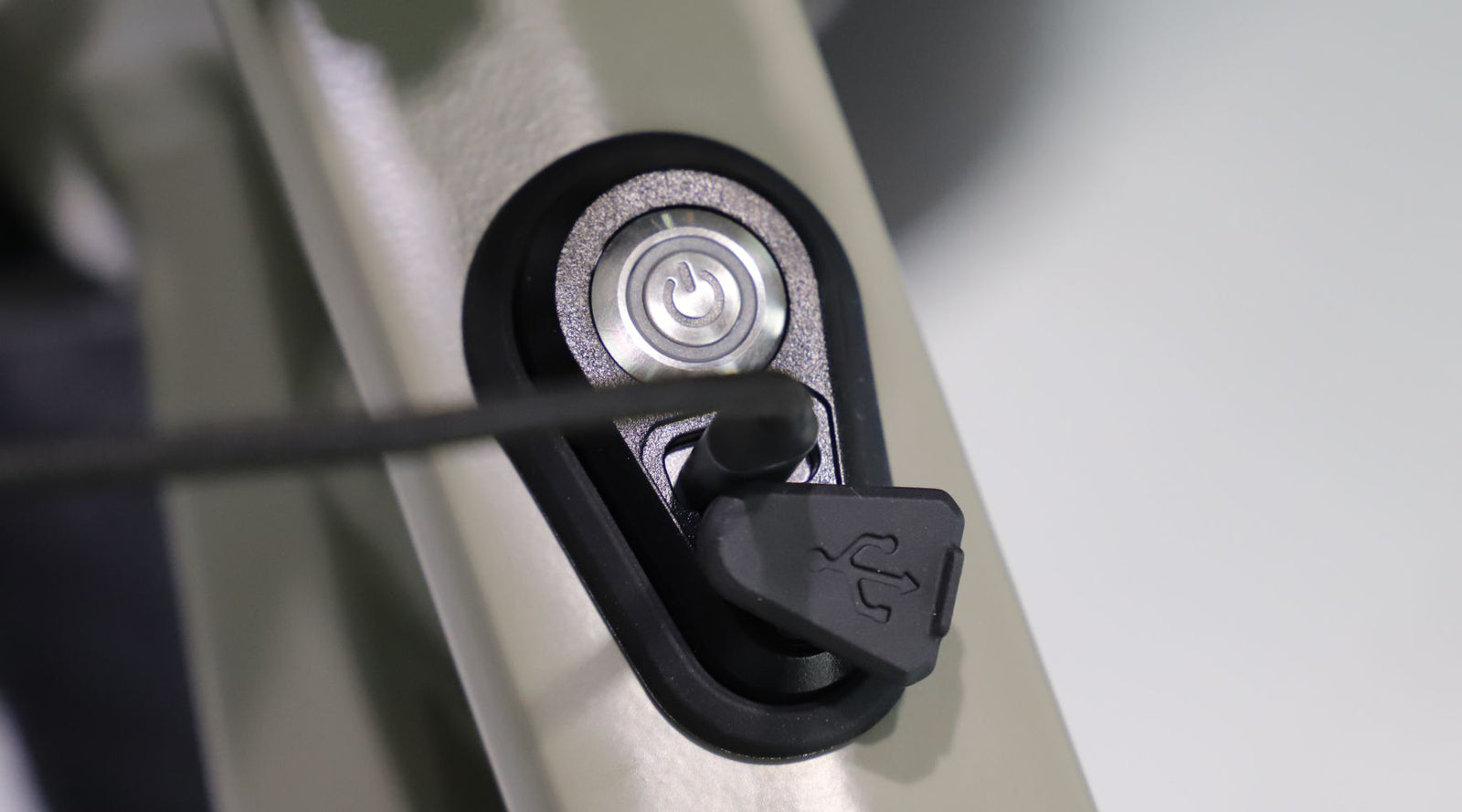

LED START BUTTON AND USB-C CHARGING PORT
The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour. USB-C charging for your smartphone.
INFORMATIVE DISPLAY
Depending on S-Electro Diamond Model, it offers a very informative display for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.
ADJUSTABLE STACK
Extra spacers on the fork steerer offers an upright relaxed riding position, reducing back and shoulder pressure for more comfort.
OVERSIZED COCKPIT PARTS
S-Electro Diamond models use oversized cockpit parts such as wider handelbar, stem and seat post diameter, which offer more leverage and finer control. A wider handelbar opens your chest and bring your weight forward, giving more traction on the front wheel.
SPECIALLY DEVELOPED E-BIKE ERGONOMIC SADDLE
S-Electro Diamond models offer a specially developed E-MTB saddle which is purposely suitable for use on electric bicycles in terms of function, ergonomics and durability.
FENDER AND RACK COMPATIBLE
All S-Electro Diamond frames feature mounts for a fenders and rear rack with built-in pannier mounts. Please follow the structural weight limits when adding cargo.
KICK STAND MOUNT
Park your E-bike bike quickly, safely and prevent annoying scratches. (Kickstand sold separately)
CHARGING PORT
S-Electro Diamond charging port features a compact, semi-integrated design for charging the frame-integrated 720Wh battery.
BATTERY CHARGER ADAPTER
This is particularly useful for charging your e-bike during the cold winter months or if you are unable to store your bike indoors. Suitable for battery chargers from the Darfon series, so you can charge the battery off the bike. (Sold separately)
Detaillierte Spezifikationen
SPECIFICATIONS.
FRAMESET
Headset
Token TK035A-15 Sealed Bearing
Frame Axle Spacing
148x12mm, P.1.75
Front Axle Specification
110x15 mm
Hanger Type
Hanger 03
E-BIKE
Motor
Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque
Battery
Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight
Charger
Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use
Display
Shimano SW-E7000, Left
Switch
Shimano SW-EM7000, Left
SUSPENSION
Fork
RockShox 35 Gold RL Debon Air 29" - 140mm - 44mm Offset
Fork Travel
140mm
WHEELS
Wheelset
SUNringlé Custom
Hubs
F: Shimano 15x110mm, 6 Bolt
R: Shimano, 148x12mm, 6-Bolt
Rims
F: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width
R: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width
Tyres
F: Maxxis Assegai, 29x2.50WT, EXO+ TR, 3C MaxxTerra
R: Maxxis Assegai, 29x2.50WT, EXO+ TR, 3C MaxxTerra
Max Tyre Size
2.6"
DRIVETRAIN
Crankset
Shimano FC-EM600
Max Chainring Size
38T
Shifter(s)
R: Shimano SL-M5100-R Deore, 11 Speed Rapidfire Plus
Rear Derailleur
Shimano RD-M5100 Deore, 11 Speed
Cassette
Shimano CS-M5100 Deore, 11 Speed 11-51T
Chain
KMC X11-1 11 Speed
BRAKES
Brakes
F: Shimano MT410, Resin Pads
R: Shimano MT410, Resin Pads
Rotors
F: Shimano SM-RT10 180mm, 6-Bolt
R: Shimano SM-RT10 180mm, 6-Bolt
COCKPIT
Grips
SBC Lockon Grip
Handlebar
SURFACE alloy Trail 35mm Handlebar, Backsweep 6°, Rise 12mm
Stem
SURFACE Trail alloy Stem
Saddle
SURFACE E-bike Ergo
Seat Post
SURFACE Dropper, 30.9mm
Seatpost Clamp
SURFACE Alloy
WEIGHT
Bike Weight
21.5kg (M size, no pedals)
RIDER WEIGHT LIMIT
120kg - combined weight of bike and rider (including all kit).
FAQ.
-
Can I order an extra battery for my S-Electro?
Yes you can - get in touch and we can sort it out for you.
-
Can I chip my ebike?
Most country laws prohibit the use of derestricting or chipping your ebike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.
-
Can I fit a throttle to my Diamond E Bike?
We don't sell throttles. You would have to check with your local authorities on their policies on pedal assist vs unassisted ebikes. Contact us directly for warranty information should you want to add a throttle. In most cases you warranty will be void if not installed by an accredited dealer.
-
Can I ride my ebike without assist?
Yes - just pedal as you would any other bike.
Where can I find the E-bike manual?
Click HERE to view.
Where can I find serial number of the E bike?
The serial number of the frame is located under the black cover, you will need to unscrew 2 screws in order to take it down to see the frame number.
Can I customize my Shimano display to another language or change other settings?
Yes, you need to download E TUBE app and configure the settings. SEE HERE
ANDERE MODELLE DER SERIE
€3.299
S-ELECTRO STEP-SERIES 120
Hardtail | E Sport | Alloy
- 100mm Travel
- 27.5" x 2.35" Wheels
- 1x10 Speed Shimano
- Ananda Mid-Motor
- 120Nm Torque
- 705Wh Battery
- 30.7 kg
€3.499
S-ELECTRO DIAMOND TRAIL
Hardtail | E Trail | Alloy
- 140mm Travel
- 29" x 2.5" Wheels
- 1x11 Speed Shimano
- EP-8 Shimano Motor
- 85Nm Torque
- 720Wh Battery
- 21.5kg
€3.999
S-ELECTRO ELITE AL 1
Dual Suspension | E-Enduro | Alloy
- 150/145mm
- 29" x 2.5" Wheels
- 1x12 Speed SRAM
- EP-8 Shimano Motor
- 85Nm Torque
- 720Wh Battery
- 24 kg
Geometrie
FIND YOUR FIT.
Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.
GEOMETRY.
| map | type(mm unless specified) | S | M | L | XL |
|---|---|---|---|---|---|
| Rider height(cm) | 154-170 | 170-180 | 178-190 | 185-210 | |
| Rider inseam(cm) | 70-77 | 77-82 | 81-86 | 84-95 | |
| A | Seat tube c/t | 390 | 430 | 460 | 490 |
| B | Seat tube angle | 76 | 76 | 76 | 76 |
| C | Head tube angle | 65.5 | 65.5 | 65.5 | 65.5 |
| D | Top Tube | 592 | 612 | 639 | 664 |
| E | Reach | 425 | 445 | 470 | 495 |
| F | Chainstay length | 455 | 455 | 455 | 455 |
| G | bb height | 314.5 | 314.5 | 314.5 | 314.5 |
| H | head tube length | 135 | 135 | 145 | 145 |
| I | stack | 668.8 | 668.8 | 678 | 678 |
| J | standover | 830.4 | 829.9 | 834.1 | 823 |
| K | Wheelbase | 1207 | 1227 | 1256 | 1281 |
