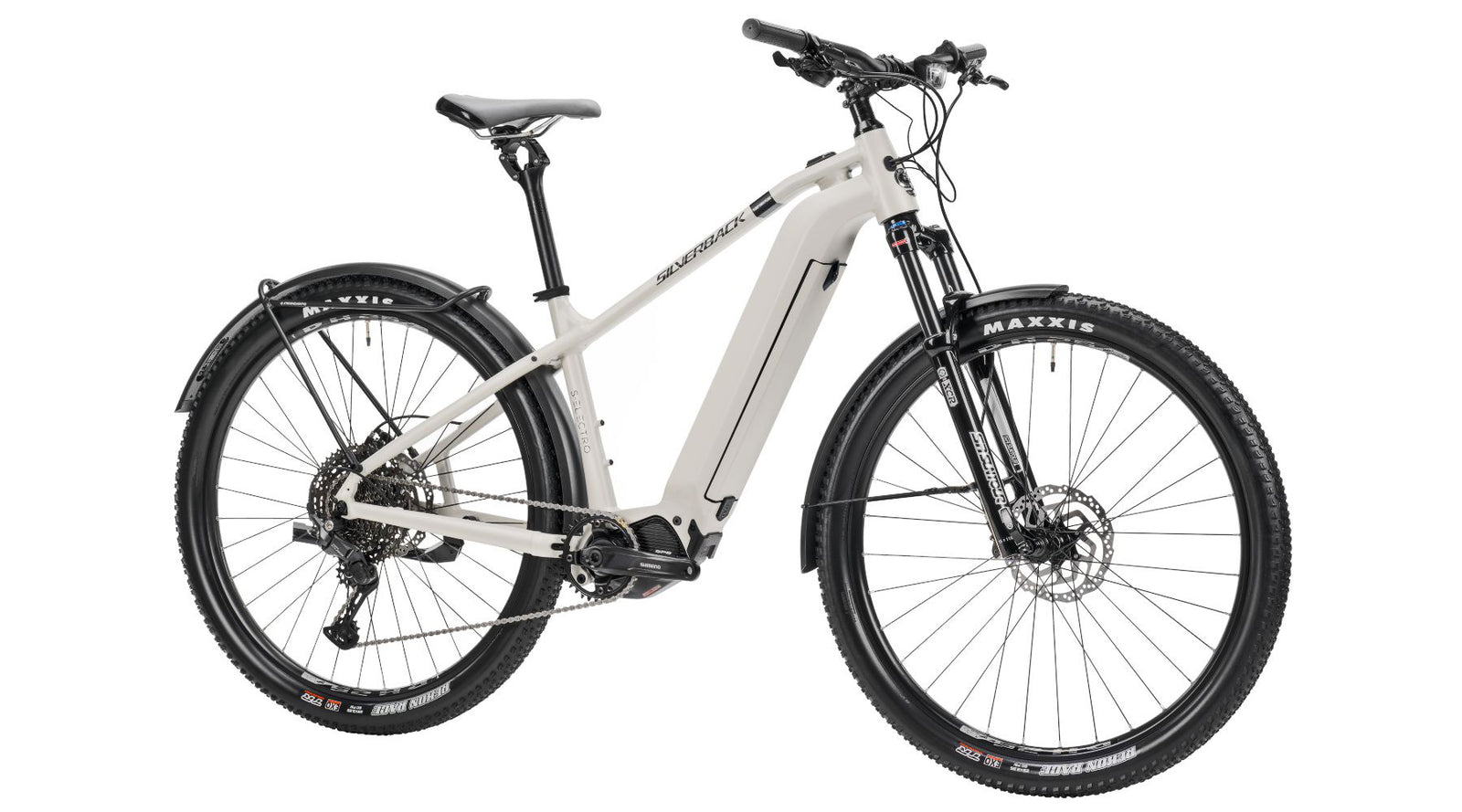

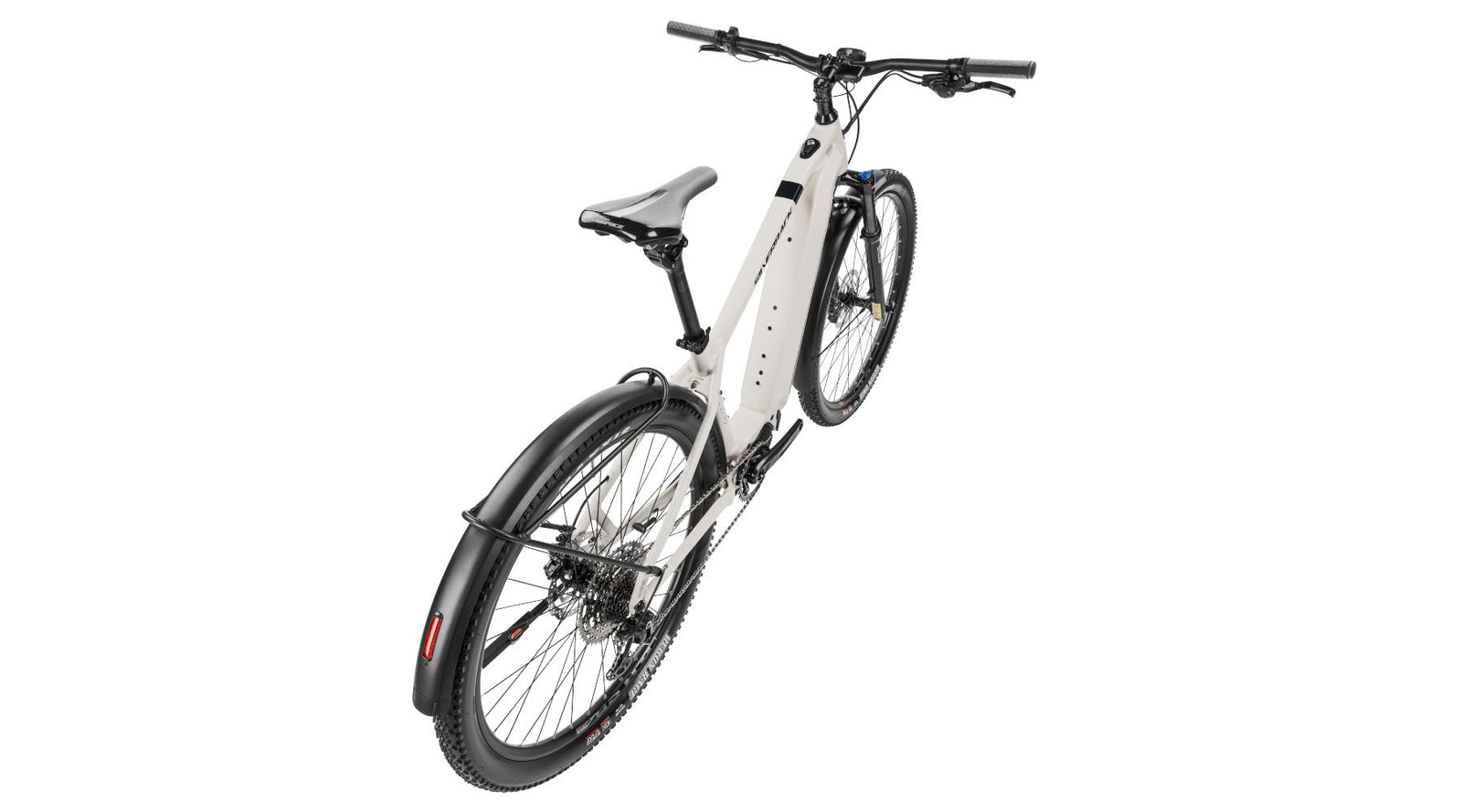

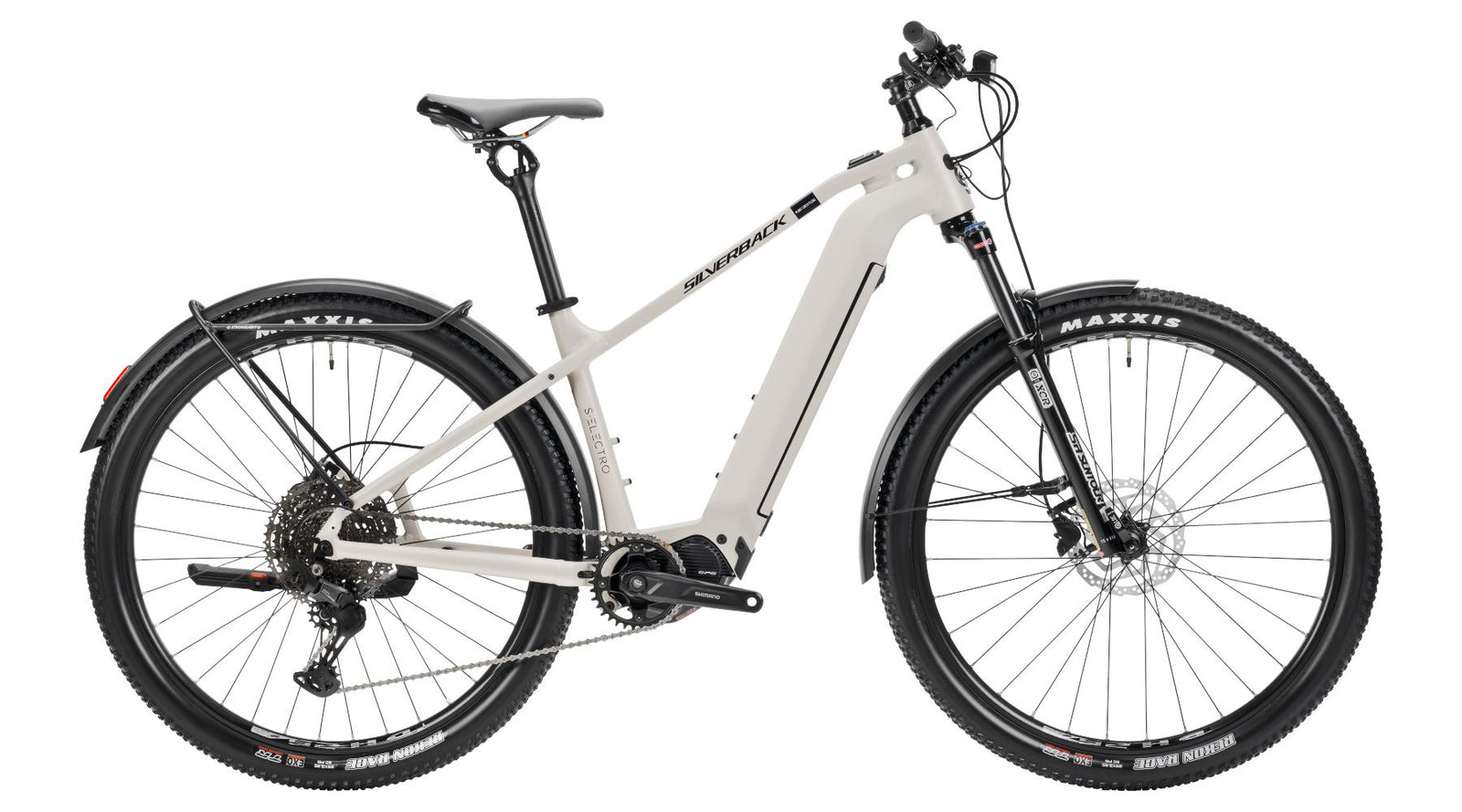

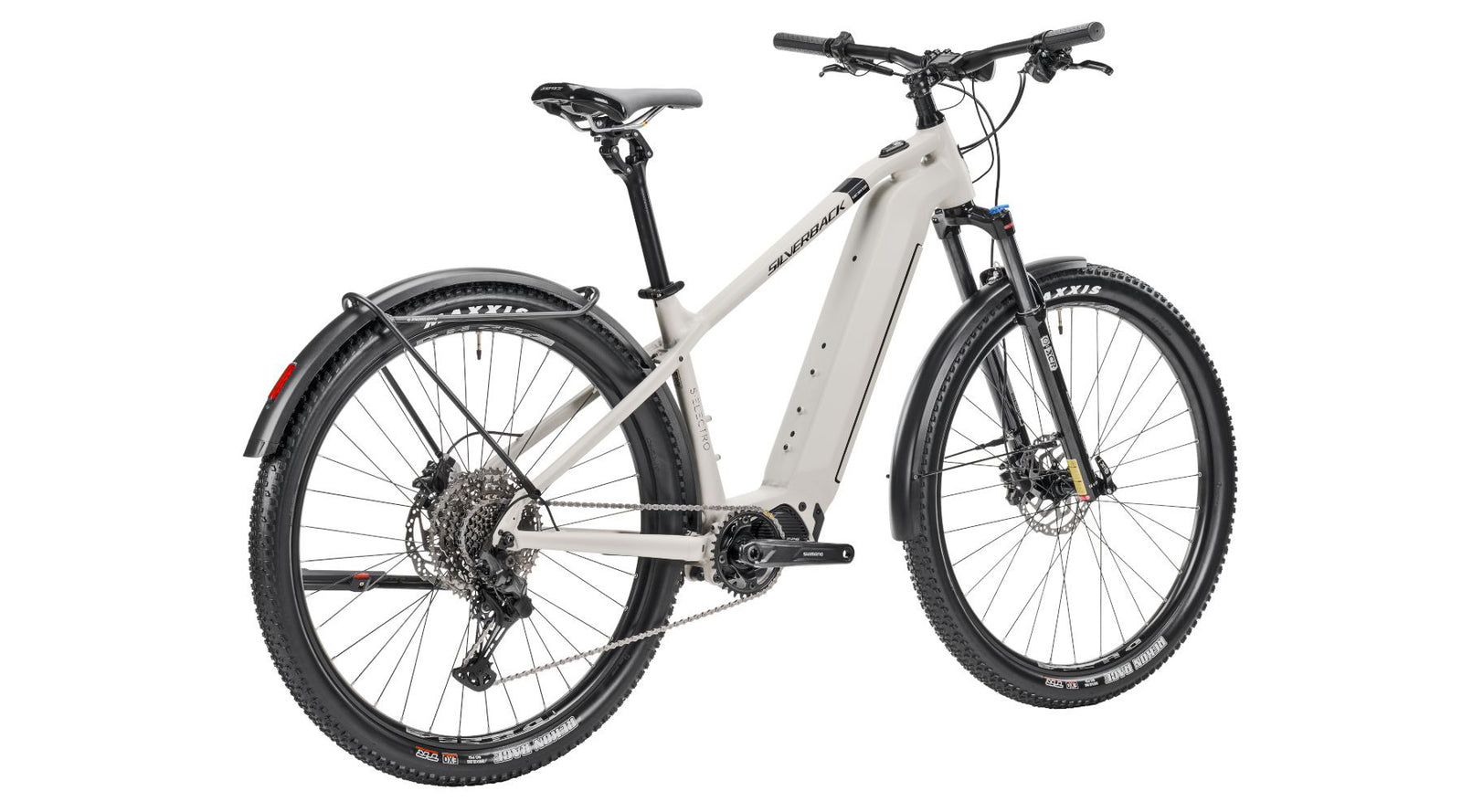

S-Electro Diamond Comp

Name: S-Electro Diamond Comp
Brand: S-Electro
SKU: 0086544002298
Price: 3499.0 EUR
Availability: InStock
Rating: 4.78 (9 reviews)

€3.499

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

4.78 9 reviews

Size:

Color: Graphite Grey Metallic

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Garmin Varia RTL516 Radar Tail Light

Space Spectra - LED MTB Helmet (Matte Grey)

new lower price

Tubeless Kit - Tubeless Kits - Speedkit - - - - Speedlab

Speedkit Tubeless Kit

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-3

S-Electro Diamond Comp

€3.499,00

Add to cart

S-Electro Diamond is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Diamond unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.

Auf einen Blick

6061 Hydro-formed alloy diamond e-bike frame
Rockshox Recon Silver, 120mm, Solo-Air suspension fork
Shimano EP8 motor
Darfon 720Wh high capacity battery
SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width wheels
Maxxis Forekaster 29x2.35", 120TPi, EXO, Tubeless tyres
Sram NX 12 Speed rear derailleur
Surface alloy lightweight components

TECHNISCHE HIGHLIGHTS

RIDE VAST DISTANCES ASSISTED, WITHOUT THE NEED FOR RECHARGE ON THE WAY.

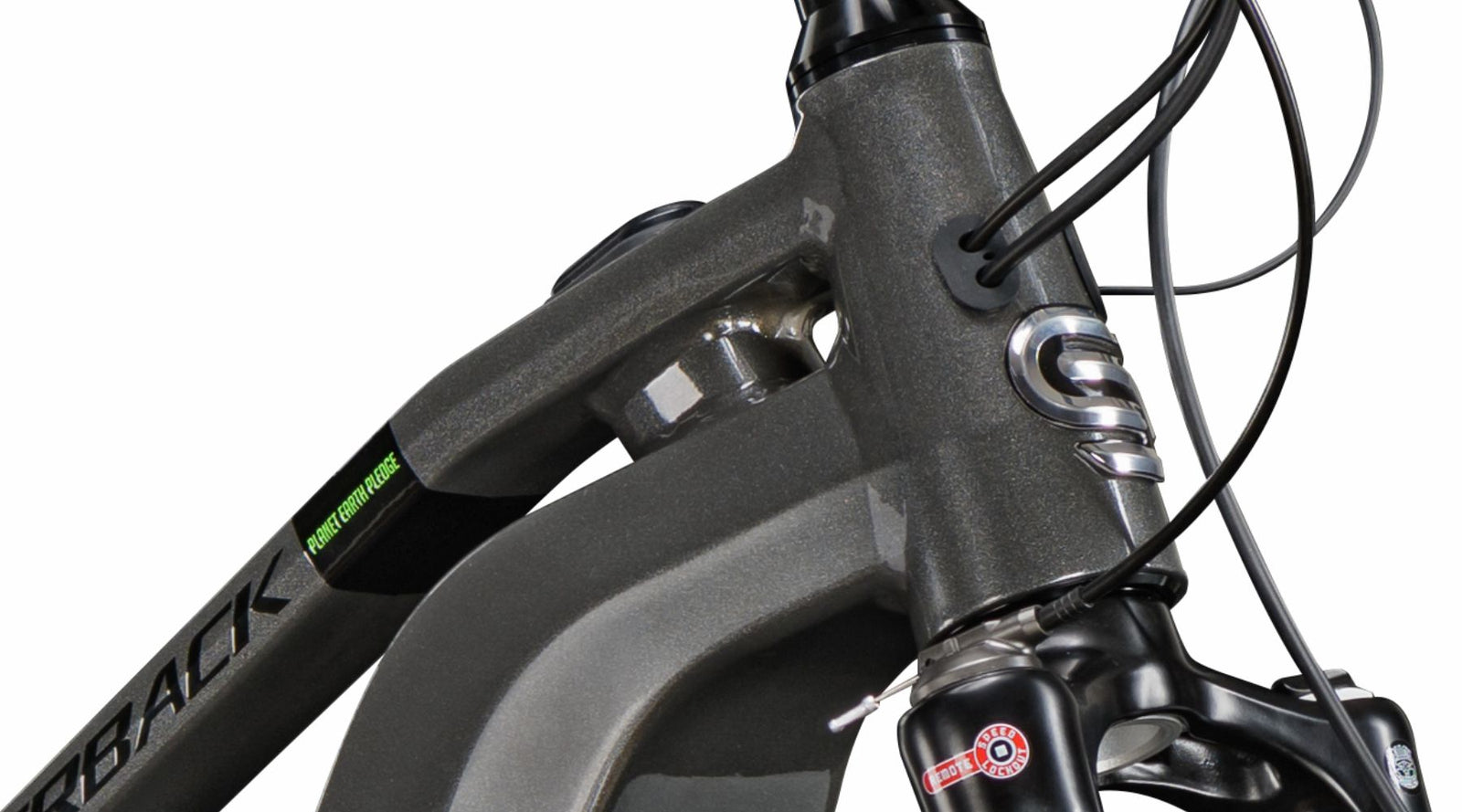

HYDROFORMED DOUBLE BUTTED INTEGRATED ALLOY FRAME

S-Electro Diamond features a double butted hydroformed alloy frame with integrated motor mount and internal battery. Hydroforming is the process of forcing tubing into a negative mould with internal pressurized oil and or water. The frame can have thinner walls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing.

DRIVE SYSTEM, POWER AND DISPLAY.

S-Electro Diamond is designed around a Shimano Steps EP8 motor. This motor is paired to a high capacity 720Wh internal battery giving the Step an unrivalled range of pedal assistance. The Shimano LCD display is intuitive and easy to use, also indicating battery levels and shows all info needed for the electric system.

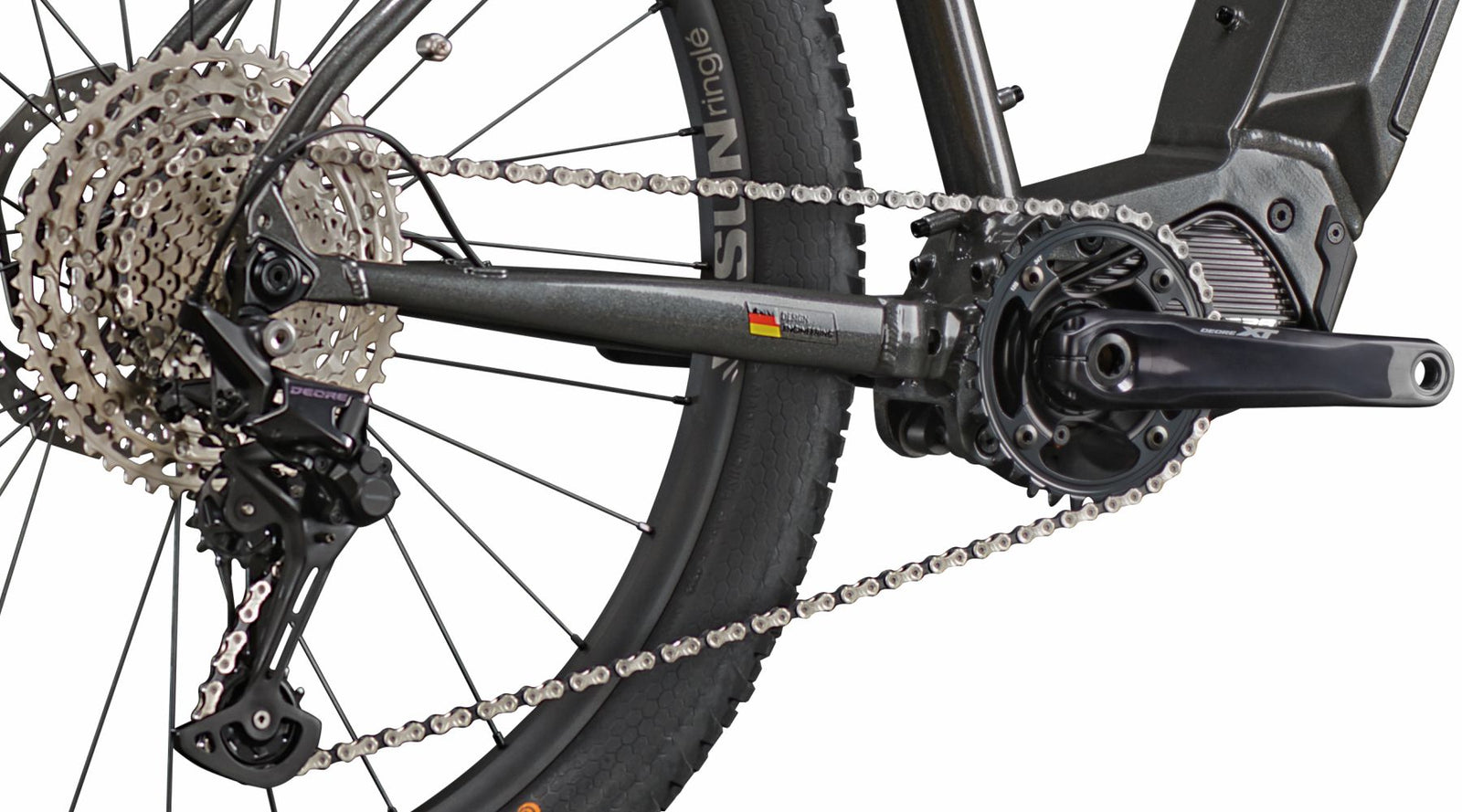

SHIMANO 11 & 12 SPEED DRIVETRAINS

Efficient shifting, superior durability and plenty of gears for almost any terrain.

Possible integration of lighting system.

SAFETY FIRST

Durable hydraulic disc brakes deliver superior stopping power in all conditions.

Possible integration of lighting system.

QUALITY SUSPENSION FORKS

Offering 140mm of shock-absorption.

GEOMETRY

Designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This is ideal for commuting or touring, whilst maintaining capability to take on more demanding terrain. Low stand over, making it great for both male and female riders.

OPTIMISED CHAINSTAY LENGTH BETWEEN AGILITY AND LARGE VOLUME TYRE

Shorter chainstay means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

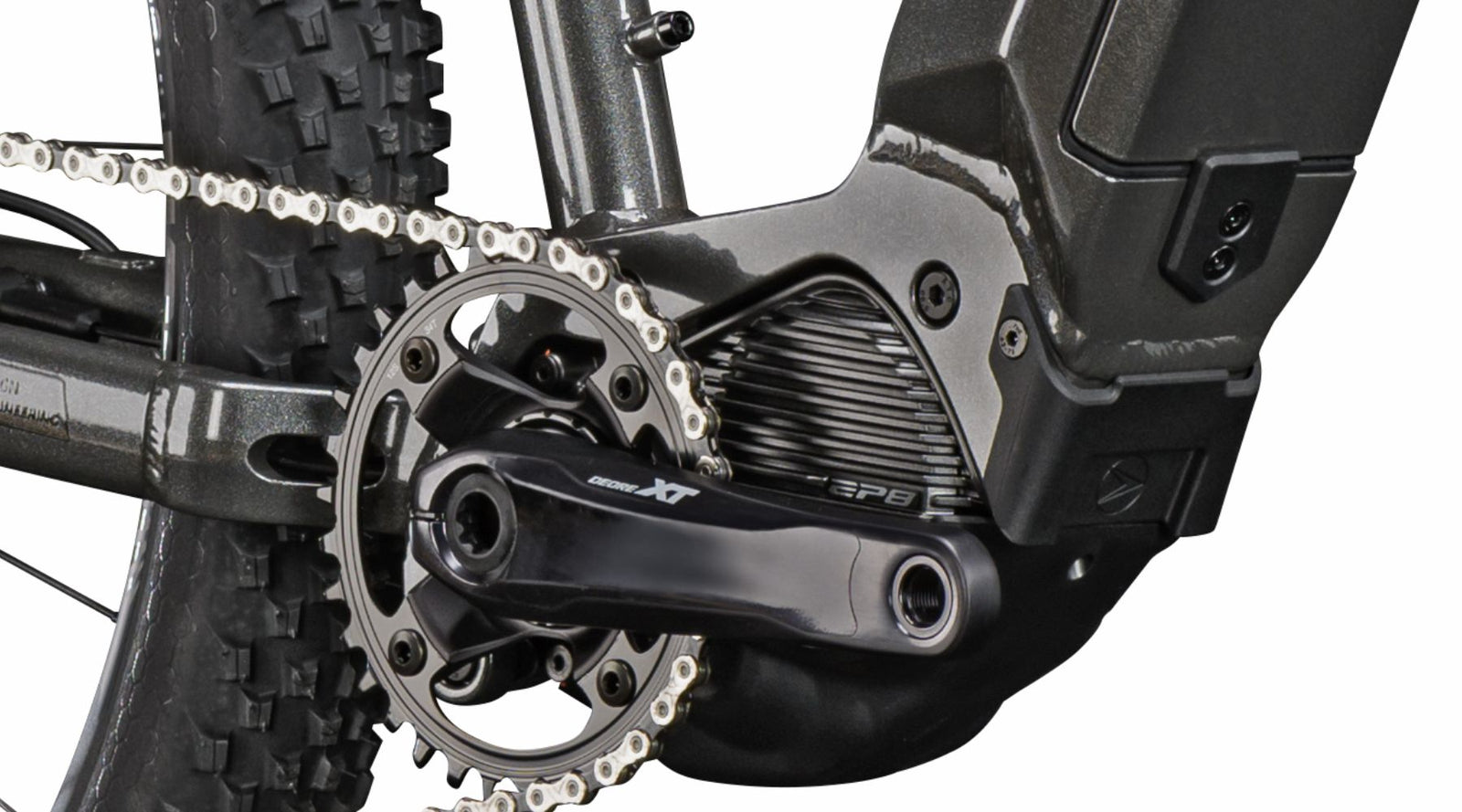

POWERFUL SHIMANO MOTOR

S-Electro Diamond is designed around a Shimano Steps EP8, 85 Nm mid-drive motor. Shimano’s EP8 motor offers excellent all-round performance which is perfect for E-MTB riding. With its smooth torque support, the ride feel is simply incredible.

HIGH VOLUME 720 Wh BATTERY

Large 720Wh internal battery delivering 2.8 - 4.8 hours / 72 - 120 km range of pedal assistance. The battery charges to 80% in 3 hours. Lock up your bike worry free – the battery is key removable only. Charging is easy on or off the bike – turn the key, pop it out, and plug in the charger delivered with your bike.

DROPPER POST

The bike is internal routed dropper post compatible and simple to set up. Dropper posts increase riding clearance on technical sections. It could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome.

LONG-TRAVEL DROPPER POSTS

The Diamond frame waterbottle bosses are welded to the outer surface of the seat-tube, allowing the seatpost to slide deeper. More space for longer travel!

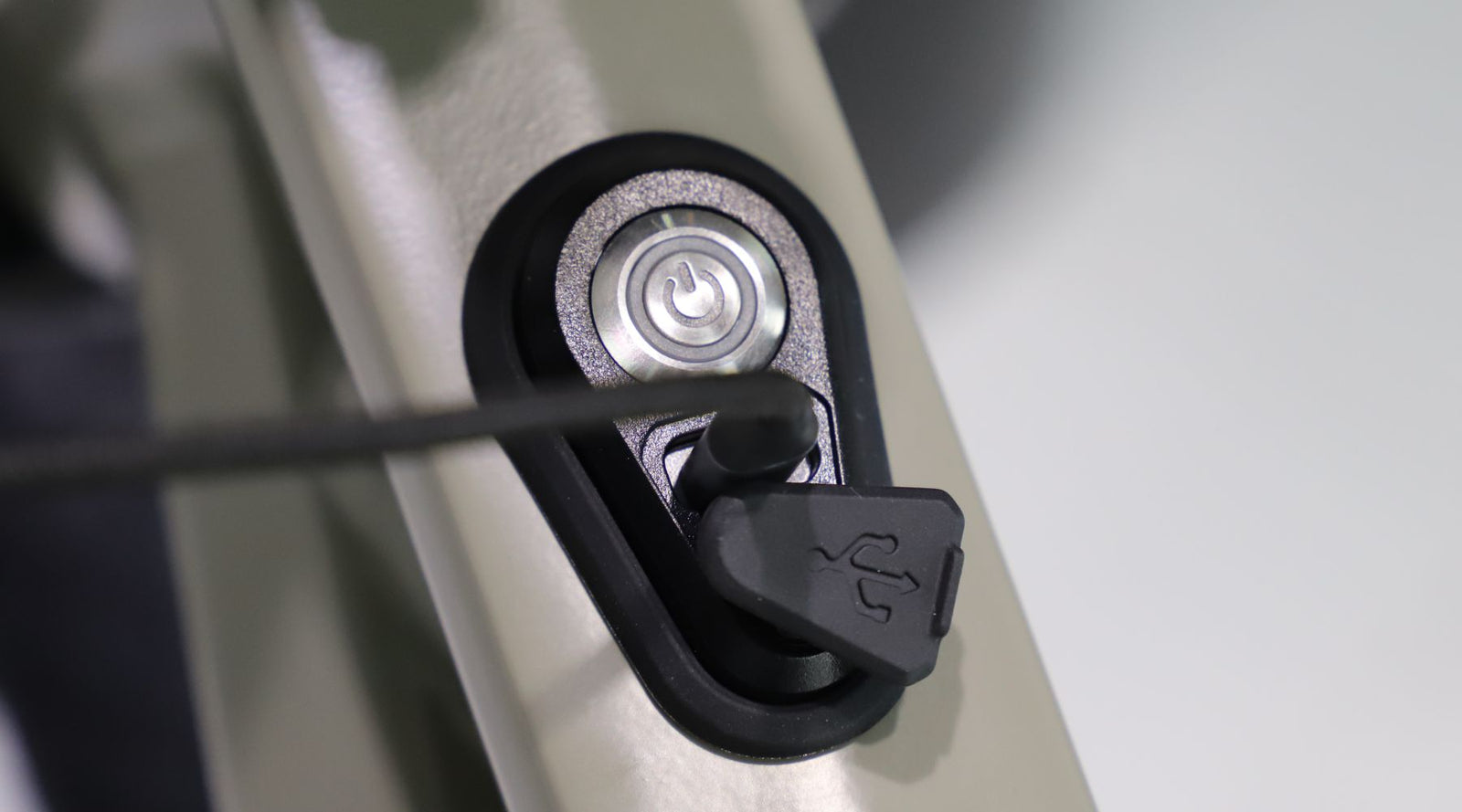

LED START BUTTON AND USB-C CHARGING PORT

The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour. USB-C charging for your smartphone.

INFORMATIVE DISPLAY

Depending on S-Electro Diamond Model, it offers a very informative display for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.

ADJUSTABLE STACK

Extra spacers on the fork steerer offers an upright relaxed riding position, reducing back and shoulder pressure for more comfort.

OVERSIZED COCKPIT PARTS

S-Electro Diamond models use oversized cockpit parts such as wider handelbar, stem and seat post diameter, which offer more leverage and finer control. A wider handelbar opens your chest and bring your weight forward, giving more traction on the front wheel.

SPECIALLY DEVELOPED E-BIKE ERGONOMIC SADDLE

S-Electro Diamond models offer a specially developed E-MTB saddle which is purposely suitable for use on electric bicycles in terms of function, ergonomics and durability.

FENDER AND RACK COMPATIBLE

All S-Electro Diamond frames feature mounts for a fenders and rear rack with built-in pannier mounts. Please follow the structural weight limits when adding cargo.

KICK STAND MOUNT

Park your E-bike bike quickly, safely and prevent annoying scratches. (Kickstand sold separately)

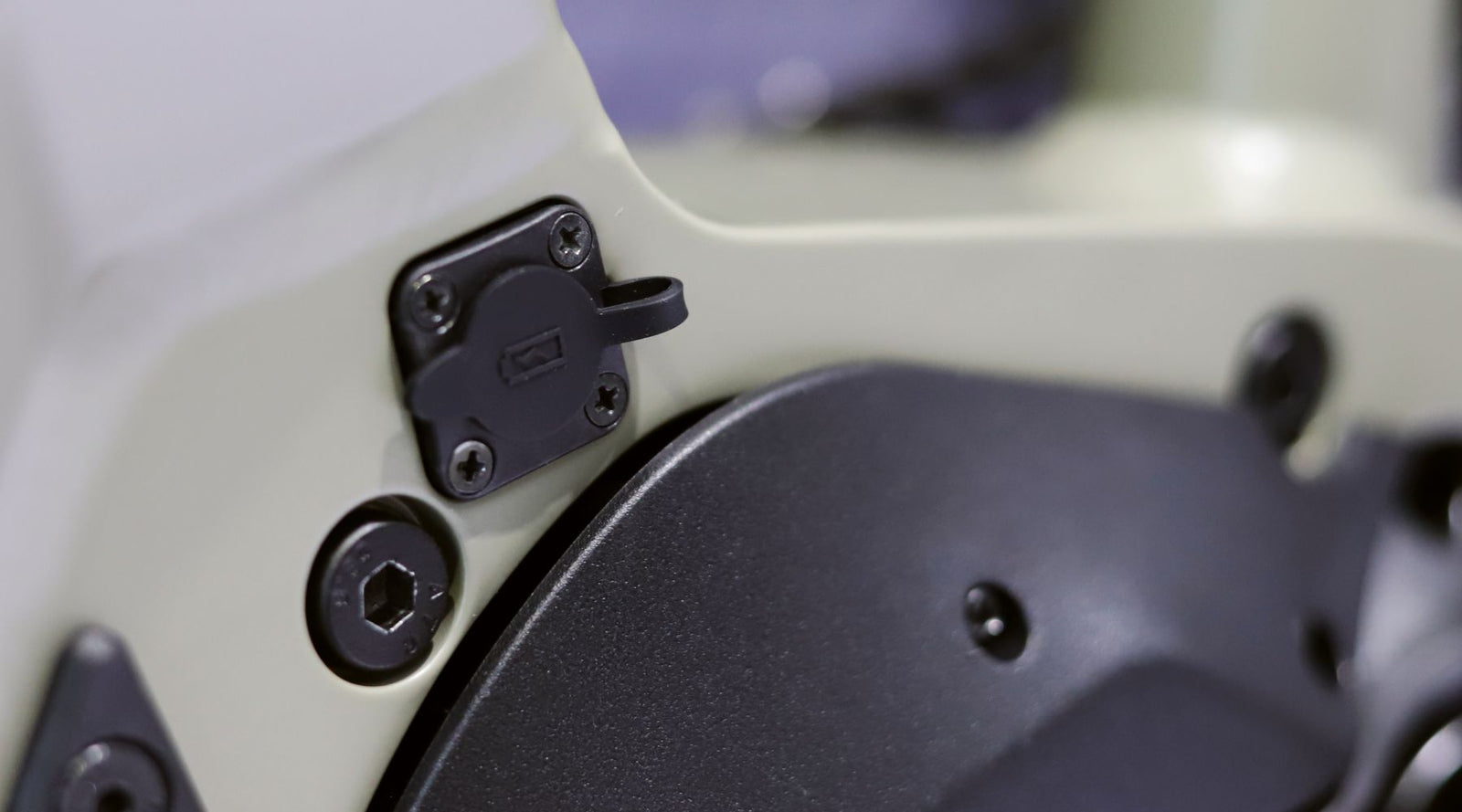

CHARGING PORT

S-Electro Diamond charging port features a compact, semi-integrated design for charging the frame-integrated 720Wh battery.

BATTERY CHARGER ADAPTER

This is particularly useful for charging your e-bike during the cold winter months or if you are unable to store your bike indoors. Suitable for battery chargers from the Darfon series, so you can charge the battery off the bike. (Sold separately)

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Aluminium E - MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. The geometry is designed for an all day easy trail ride or a commute to your preferred destination. This frame has tyre clearance for 29 x 2,6" tyres. Sizes range from S - XL

Headset

Token TK035A-15 Sealed Bearing

Frame Axle Spacing

148x12mm, P.1.75

Fork Axle Specification

110x15 mm

Hanger Type

Hanger 03

E-BIKE

Motor

Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque

Battery

Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight

Charger

Darfon Smart Plus, 100-240V, 4A, EU use

Display

Shimano SC-7000, 31.8mm

Switch

Shimano SW-EM7000, Left

SUSPENSION

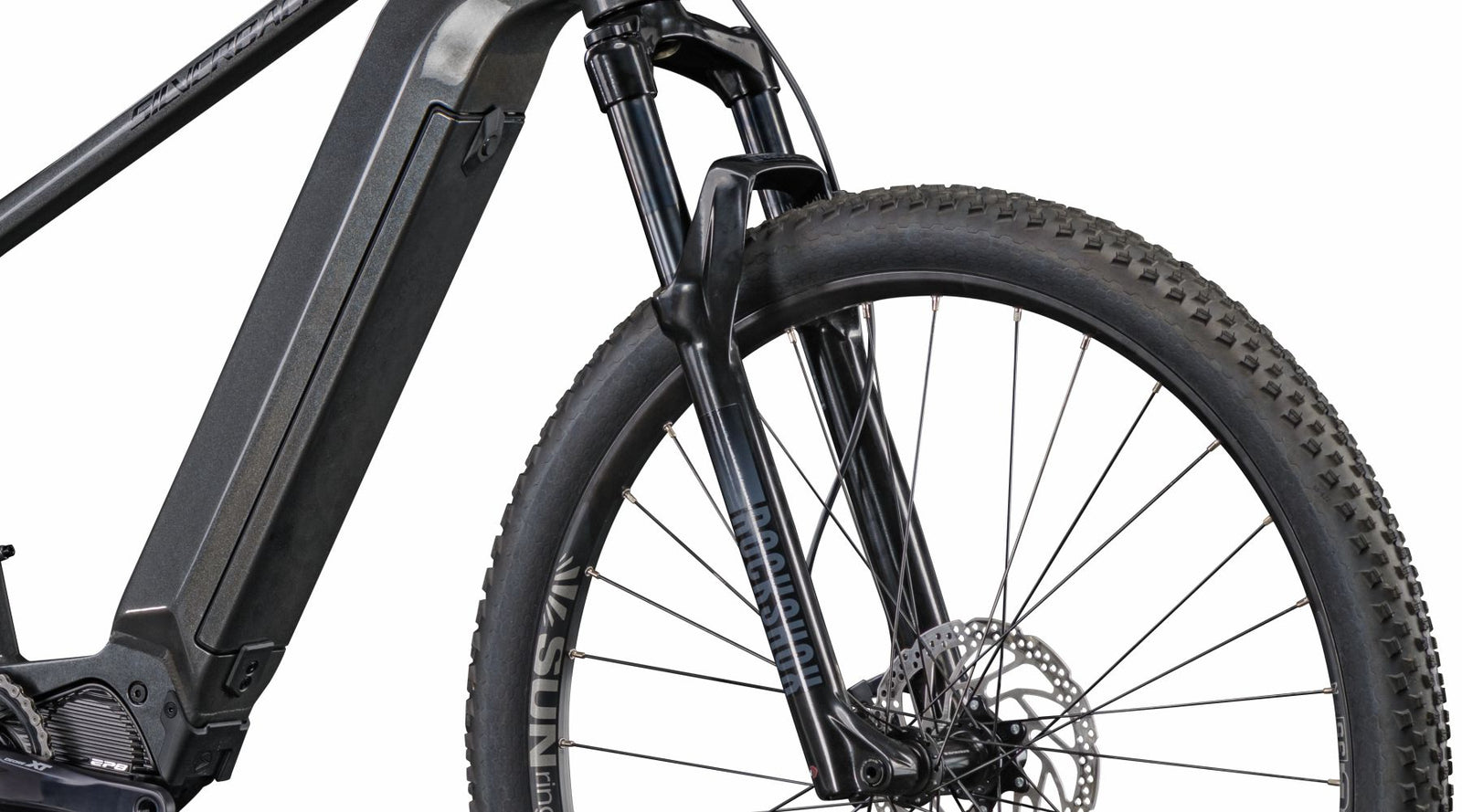

Fork

RockShox Recon Silver 120 mm Crown Adjust 29", 15X110mm, Solo Air 120mm

Fork Travel

120mm

WHEELS

Wheelset

SUNringlé Custom Wheelset

Hubs

F: Shimano HB-MT410-B Front Hub, 32H, 15mm Thru-Axle, 110mm OLD
R: Shimano FH-MT400-B Freehub, 32H, 12mm Thur-Axle, Center Lock 148mm OLD

Rims

F: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width
R: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width

Tyres

F: Maxxis Forekaster 29x2.35", 120TPi, EXO, Tubeless
R: Maxxis Forekaster 29x2.35", 120TPi, EXO, Tubeless

Max Tyre Size

2.6"

DRIVETRAIN

Crankset

Shimano FC-EM600

Max Chainring Size

38T

Shifter(s)

R: Sram SX Eagle Shifter

Rear Derailleur

Sram NX Eagle, 50T Max

Cassette

Sram SX Eagle, 11-50T

Chain

Sram SX Eagle, 12 Speed

BRAKES

Brakes

F: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads
R: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads

Rotors

F: Shimano SM-RT10 180mm

R: Shimano SM-RT10 180mm

COCKPIT

Grips

SBC Lockon Grip

Handlebar

SURFACE Alloy, Dia:31.8mm, Backsweep:9°, Rise 5mm

Stem

SURFACE alloy High-Rise

Saddle

SURFACE E-bike saddle

Seat Post

SURFACE 30,9 lightweight Alloy

Seatpost Clamp

SURFACE Alloy

WEIGHT

Bike Weight

21.5kg (M size, no pedals)

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

Can I order an extra battery for my S-Electro?

Yes you can - get in touch and we can sort it out for you.
Can I chip my ebike?

Most country laws prohibit the use of derestricting or chipping your ebike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.
Can I fit a throttle to my Diamond E Bike?

We don't sell throttles. You would have to check with your local authorities on their policies on pedal assist vs unassisted ebikes. Contact us directly for warranty information should you want to add a throttle. In most cases you warranty will be void if not installed by an accredited dealer.
Can I ride my ebike without assist?

Yes - just pedal as you would any other bike.
Where can I find the E-bike manual?
Click HERE to view.
Where can I find serial number of the E bike?
The serial number of the frame is located under the black cover, you will need to unscrew 2 screws in order to take it down to see the frame number.
Can I customize my Shimano display to another language or change other settings?
Yes, you need to download E TUBE app and configure the settings. SEE HERE
Can I upgrade the length of my suspension on my bike?
The suspension length is normally determined by the frame design, it should not be changed.

ANDERE MODELLE DER SERIE

€3.499

S-ELECTRO DIAMOND STEP 1

Hardtail | Alloy

120mm Fork
29" x 2.35" Wheels
1x11 Speed Shimano
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
21.5kg

€3.499

S-ELECTRO DIAMOND COMP

Hardtail | E Adventure | Alloy

120mm Fork
29" x 2.35" Wheels
1x12 Speed SRAM
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
21.5kg

€3.499

S-ELECTRO DIAMOND TRAIL

Hardtail | E Trail | Alloy

140mm Travel
29" x 2.5" Wheels
1x11 Speed Shimano
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
21.5kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L	XL
	Rider height(cm)	154-170	170-180	178-190	185-210
	Rider inseam(cm)	70-77	77-82	81-86	84-95
A	Seat tube c/t	390	430	465	500
B	Seat tube angle	74	74	74	74
C	Head tube angle	68	68	68	68
D	Top Tube	599	609	630	661.5
E	Reach	410	420	440	470
F	Chainstay length	460	460	460	460
G	bb height	319.5	319.5	319.5	319.5
H	head tube length	135	135	140	145
I	stack	658.4	658.4	663	668
J	standover	803.8	837.6	801	825
K	Wheelbase	1163	1173	1185	1227
