SE:Series 7 L

Name: SE:Series 7 L
Brand: Silverback
SKU: 0086544013584
Price: 358.0 EUR
Availability: OutOfStock

€358

Preis inkl. MwSt. exkl. lokaler Einfuhrsteuern und Versandkosten.

No reviews

Size:

Wheel Size:

Color: Satin Mystic Teal

ABHOLUNG IM GESCHÄFT

Besuchen Sie unseren Hauptsitz-Shop
Ohmstrasse 18 72622
NuertingenDeutschland
+49 7022 9 777 818

VERSAND NACH HAUSE

EINFACHE MONTAGE

Schließe deine Fahrt ab:

Joeblow sport digital - Pumps - cycling - bike - TOPEAK - - - - Speedlab

Topeak Joeblow sport digital

14-TÄGIGES RÜCKGABERECHT

2 JAHRE GARANTIE

BEDIENUNGSANLEITUNG

hanger-22

SE:Series 7 L

€358,00

Sold Out

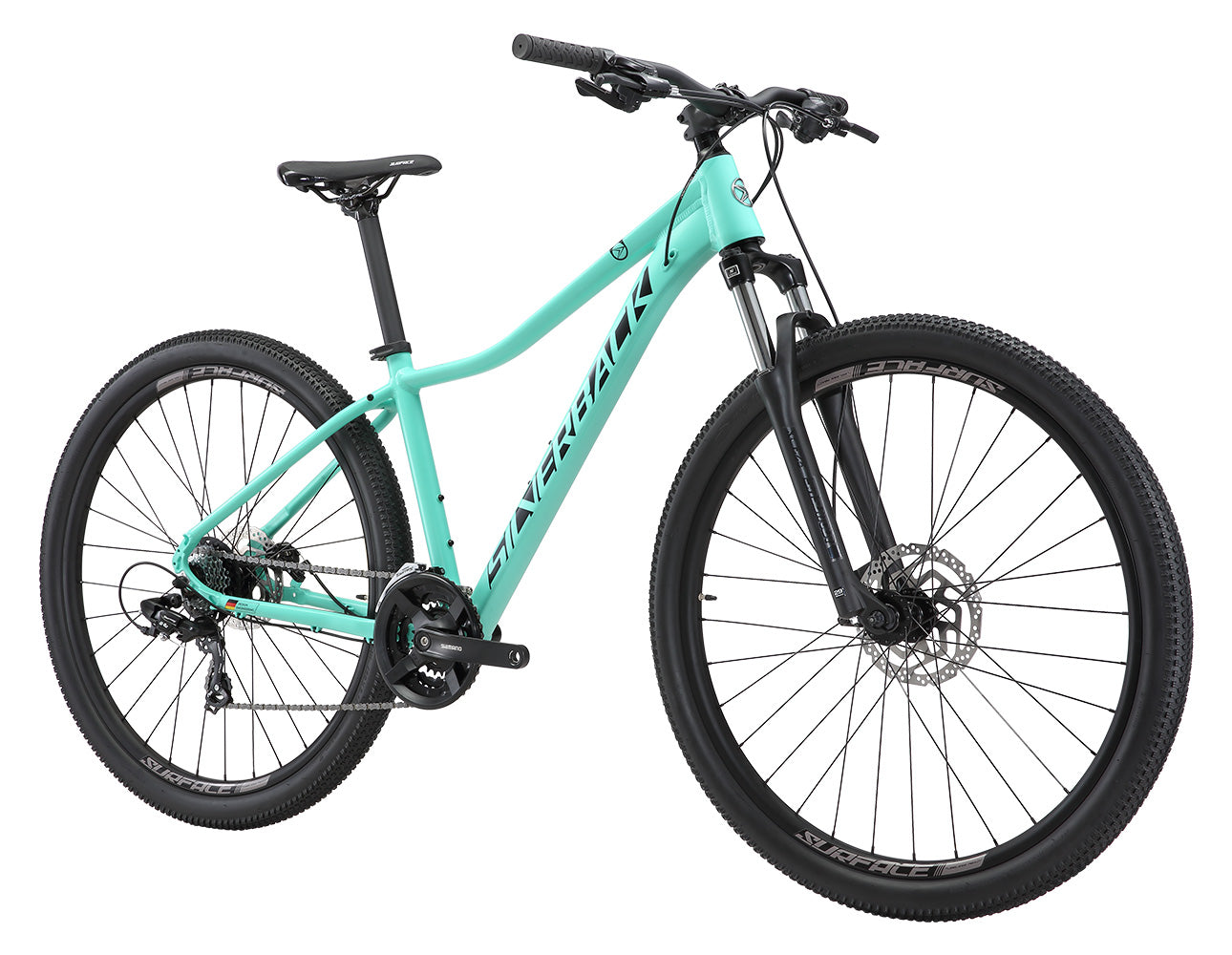

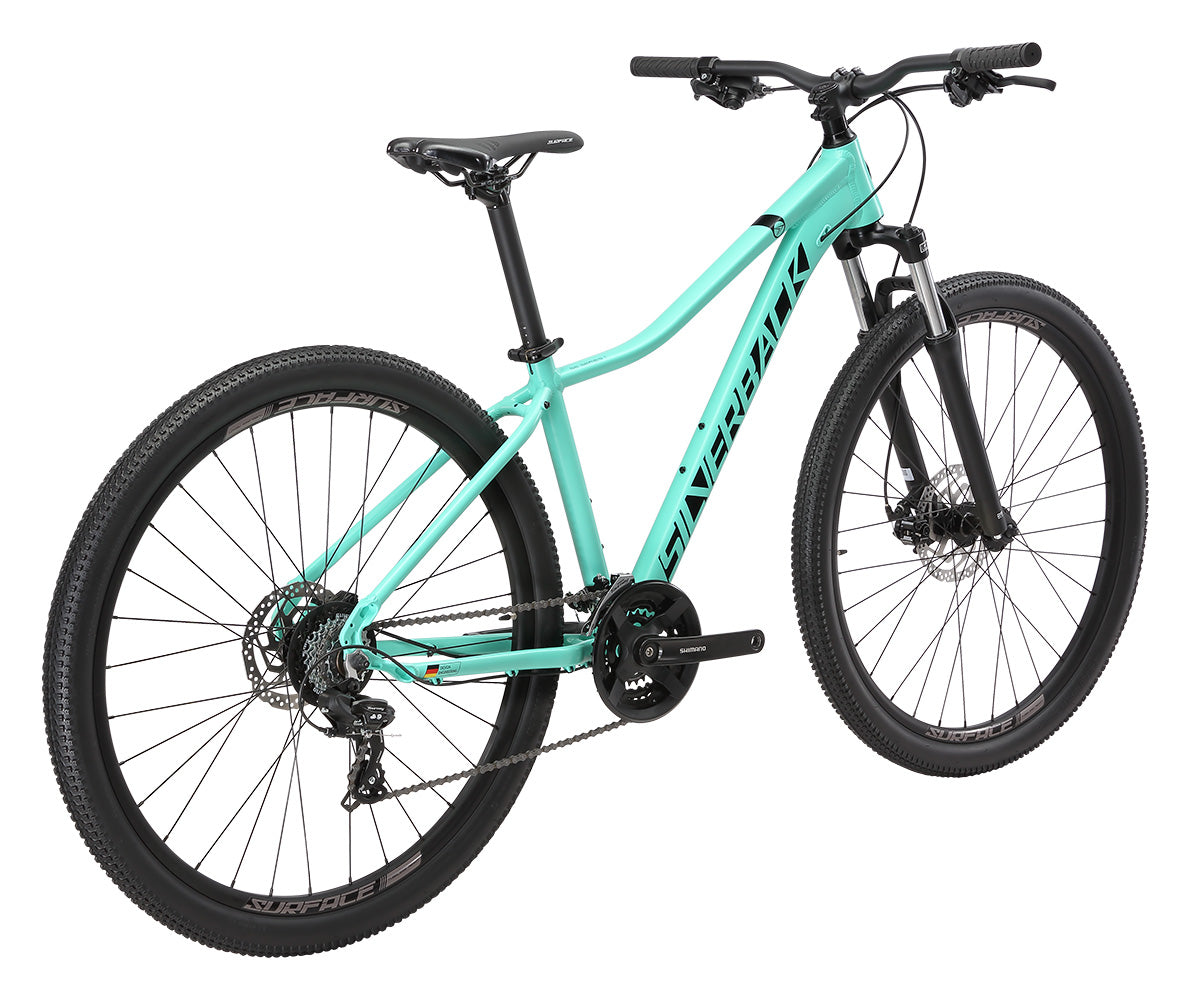

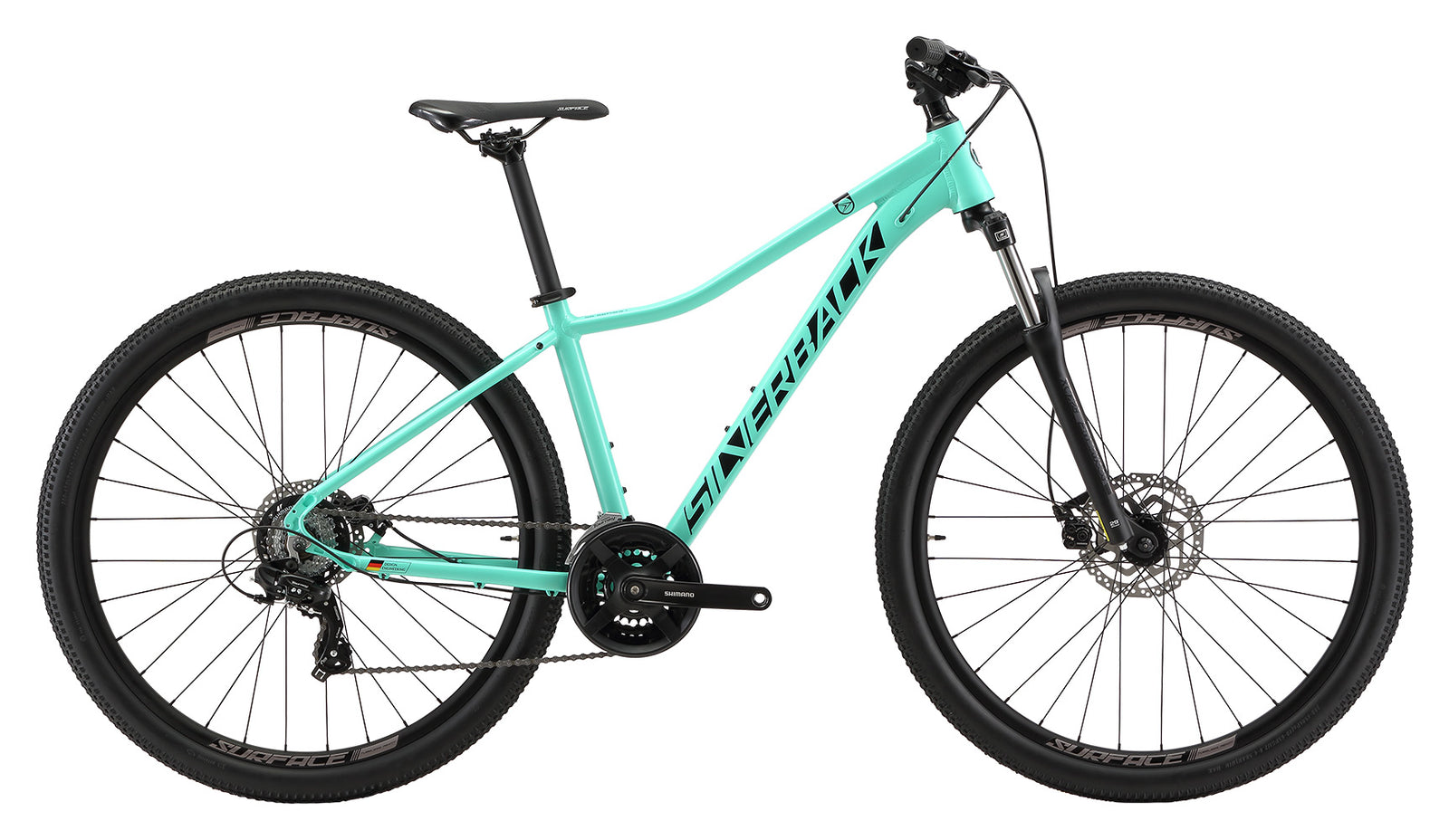

Women's-specific aluminium hardtail mountain bike for outdoor exercise and every day commuters. The 3 x 7-Speed Shimano Tourney drivetrain lets you cruise over any terrain. The 100mm suspension fork adds some obstacle cushioning, while the disc brakes deliver reliable stopping power in wet and dry. The included standard kickstand and rack mounts, add convenience for your daily commute.

Auf einen Blick

Hydro-formed 6061 alloy frame
Suntour XCE28 Suspension Fork, 100mm travel
Shimano Tourney 3x7-speed derailleurs
Surface Tubeless Ready wheelset
CST 29x2.10" tyres
Shimano Cable-Disc Brakes
Weight: 16 kg

TECHNISCHE HIGHLIGHTS

SE:SERIES 7 - LADIES OUTDOOR EXERCISE & DAILY COMMUTER

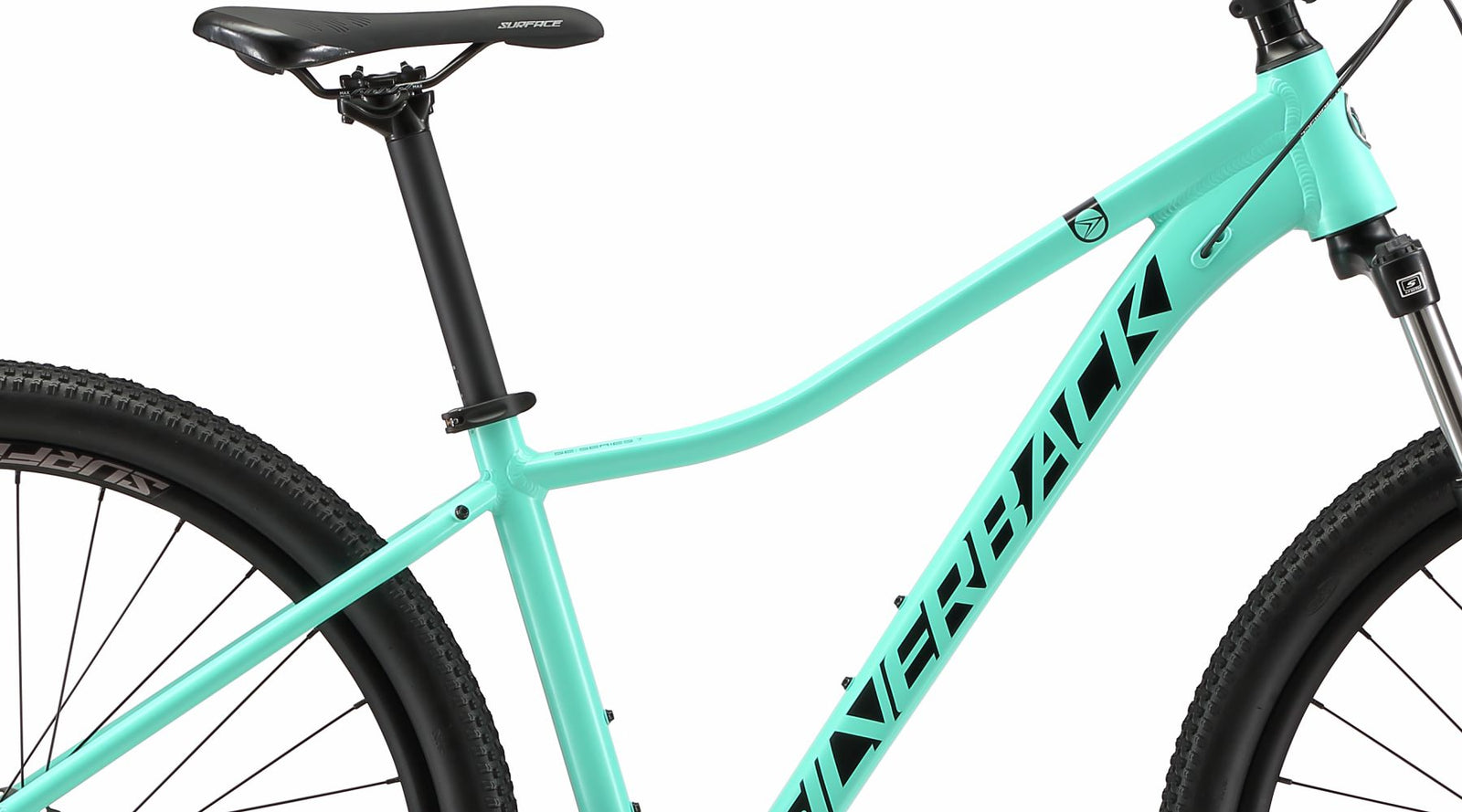

LADIES-SPECIFIC POP GEOMETRY

Ladies bicycle geometry & sizing to better suit women's anatomy and body proportions - Shorter reach, improved standover, narrower handlebars, thinner grips, shorter stem and a women's specific saddle.

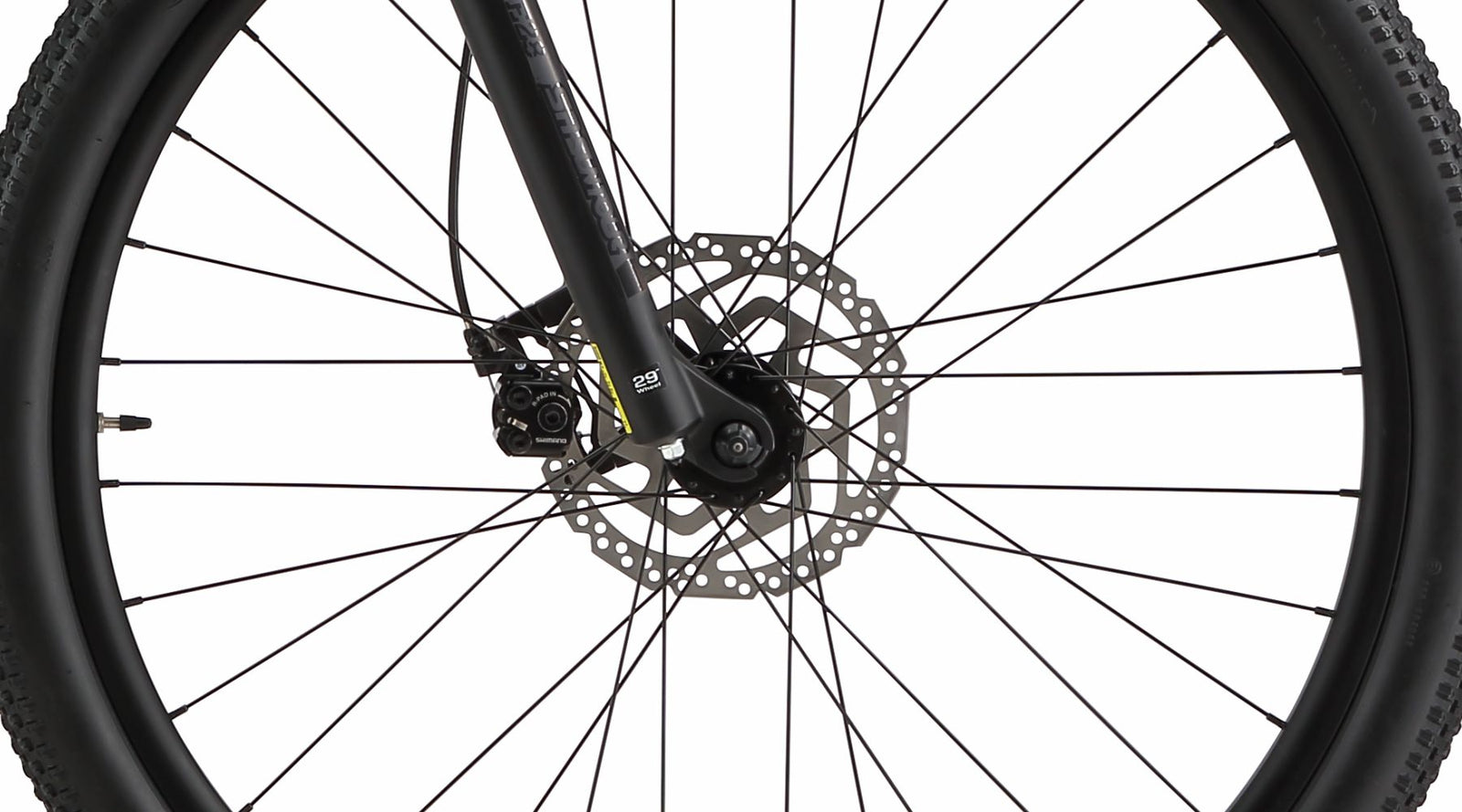

Mechanical Disc Brakes

The SE:Series 7 comes equipped with mechanical disc brakes for strong and reliable stopping power.

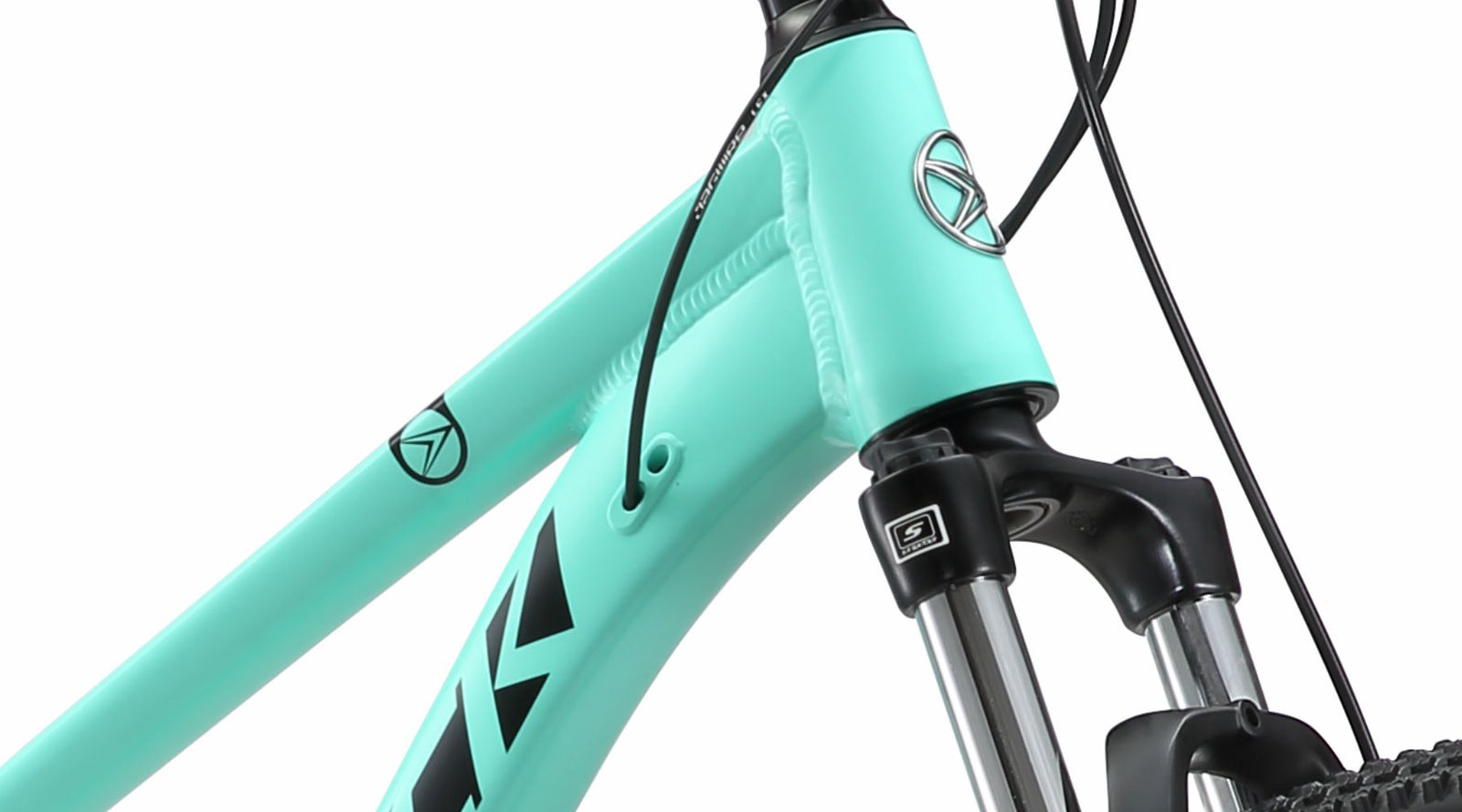

Hydroformed alloy frame

Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.25" tyre clearance, rack and fender mounts.

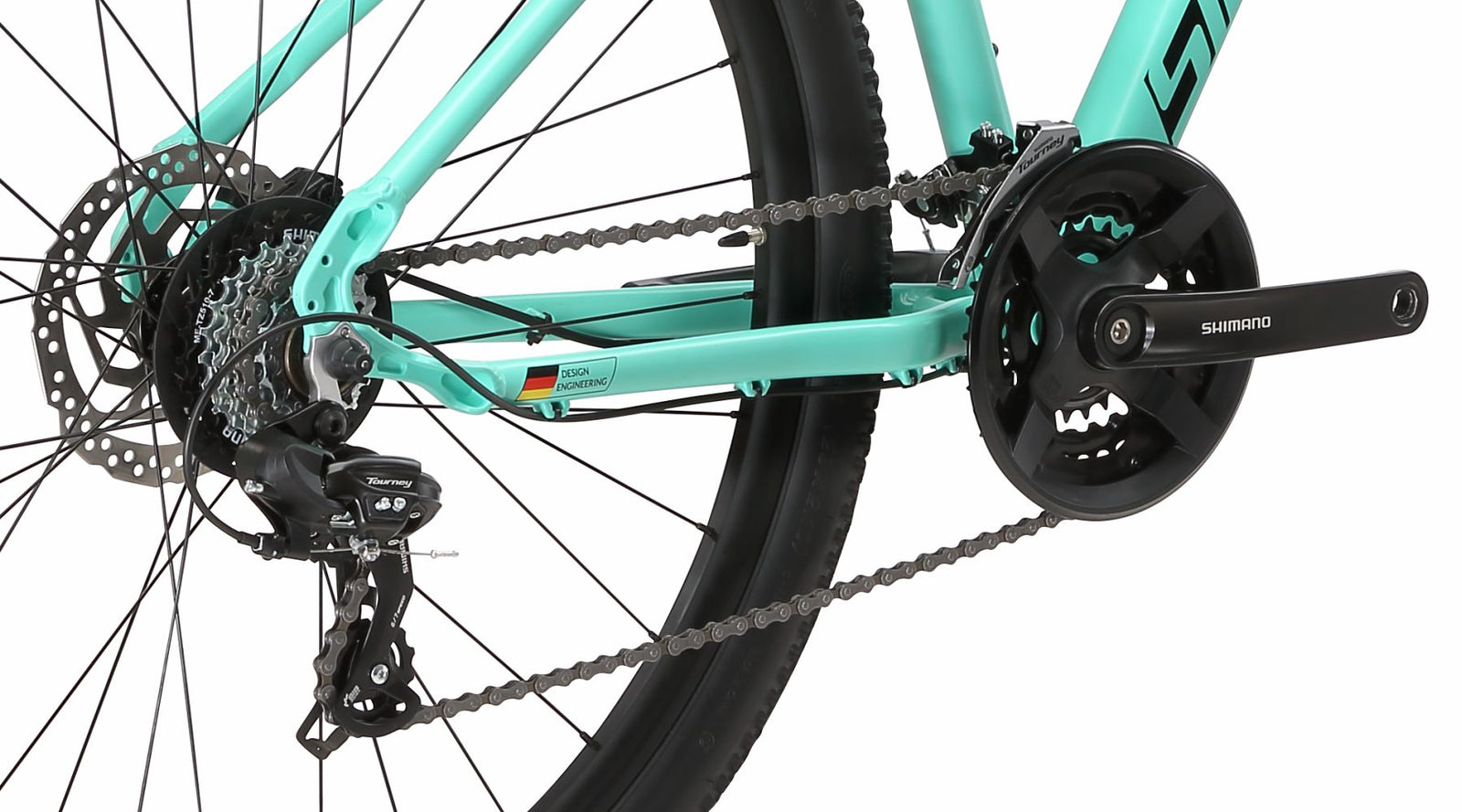

3 x 7 Drivetrain

Ample gears for your commute! A chainring guard is also included on all 3x drivetrains to help prevent clothing getting caught.

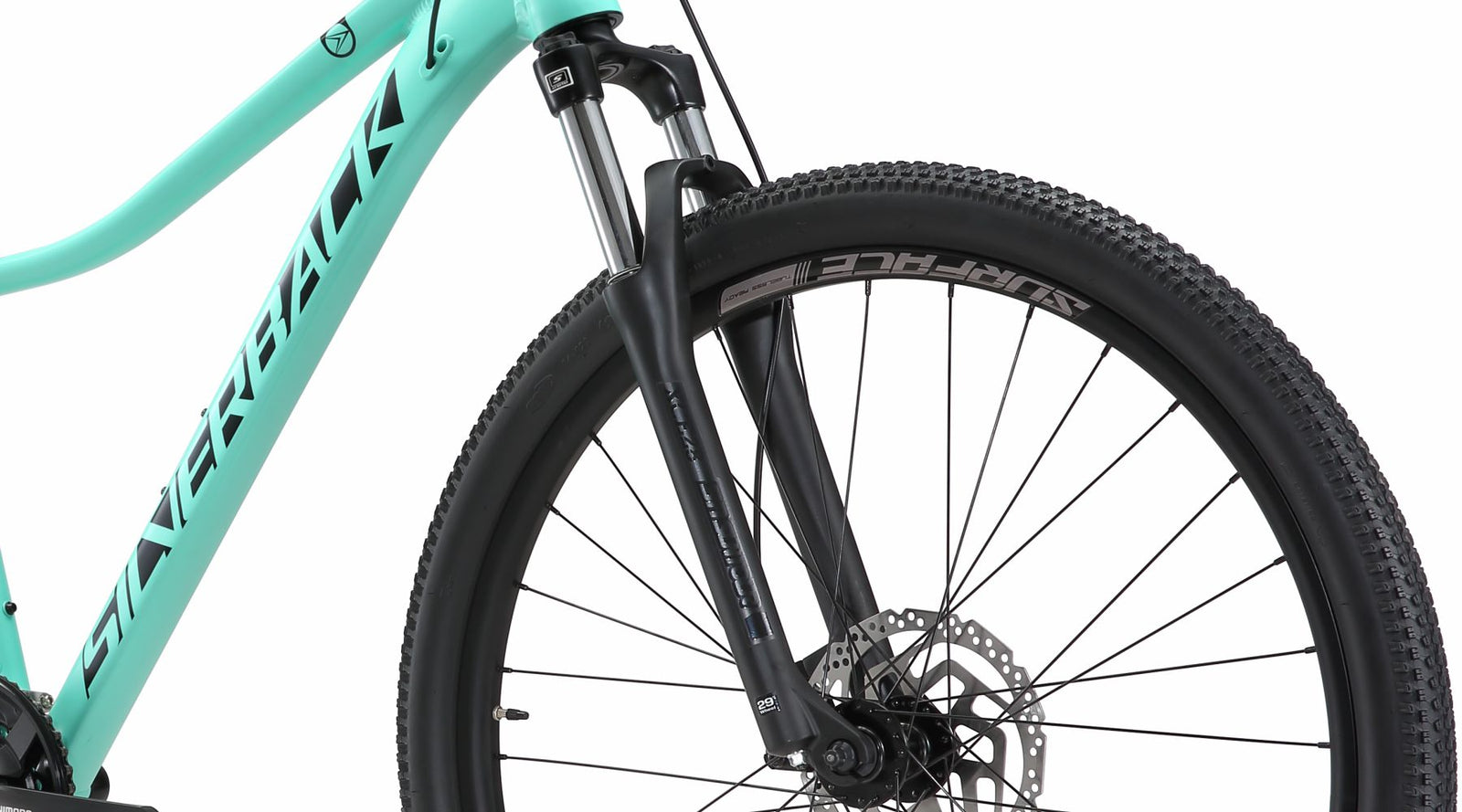

Quality Suspension Fork

The SE:Series 7 is fitted with purpose chosen 100mm suspension fork - Suntour XCE28 Coil fork with Tapered Steerer. A suspension fork improves comfort and traction on a hardtail mountain bike.

SURFACE ALLOY CONTROL PARTS

All SE:Series bicycles are fitted with Surface quality alloy control parts. This means less weight, more durability and function, and worry free ownership. Ergonomic Grips & Saddle improve comfort by relieving pressure from sensitive areas.

TUBELESS READY, WIDER RIMS & TIRES

Surface Alloy Wheels are pre-taped and tubeless ready from the box. Easy to set up tubeless, just add sealant and inflate to seat.

Waterbottle mounts

SE:Series 7 offers more waterbottle mount options. Sizes M-XL have capacity for 2 bottles. (Bottle cages sold separately)

SURFACE CHAIN GUARD

Improves chain stability, helps to prevent chain drop as well as preventing clothing snags.

TYRE CLEARANCE

Designed to easily fit higher volume up to 2.1” tires with plenty of mud clearance. Bigger tires can increase contact area and thus ride comfort, control and grip.

RACK MOUNTS INTEGRATED IN FRAME.

All SE:Series models include mounting points for rear racks, allowing you to haul your gear when you commute/tour. (Rack sold separately)

Detaillierte Spezifikationen

SPECIFICATIONS.

FRAMESET

Frame

Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, external cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.25" tyre clearance, rack and fender mounts

Headset

Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/30

Frame Axle Spacing

135x9mm

Axle Specification

Hanger Type

HANGER 22

SUSPENSION

Fork

SR Suntour XCE28 Coil, 29"x2.1", 100m Travel, Preload Adjuster

Fork Travel

100mm

WHEELS

Wheelset

SURFACE Custom

Hubs

F: Joytech Alloy, 32H, 100mm OLD, 115mm QR, 6-bolt Disc
R: Joytech Alloy, 32H, 135mm OLD, 170mm QR, 6-bolt Disc, 7-Speed

Rims

F: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready
R: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready

Tyres

F: CST 1820, 29x2.10"; Wire Bead
R: CST 1820, 29x2.10"; Wire Bead

Max Tyre Size

2.25"

DRIVETRAIN

Crankset

Shimano Tourney FC-TY301, 42x34x24T, 7-Speed

Max Chainring Size

42x34x24T

Bottom Bracket & Type

BSA73

Shifter(s)

L: Shimano ST-EF41-L Shift/Brake Lever, 3-Speed
R: Shimano ST-EF41-7R Shift/Brake Lever, 7-Speed

Front Derailleur

Shimano Tourney FD-TY600-L6, Top-Swing, 3-Speed

Rear Derailleur

Shimano Tourney RD-TY300, 6/7-Speed

Cassette

Shimano MF-TZ510-7 Freewheel, 7-Speed, 14-28T

Chain

KMC Z7

BRAKES

Brakes

Shimano BR-M375 Mechanical/Cable Disc, Resin Pads

Rotors

F: Shimano SM-RT26 Rotor, 180mm
R: Shimano SM-RT26 Rotor, 160mm

COCKPIT

Grips

Surface Single Density, 120mm

Handlebar

Surface, Alloy, Ø31.8mm, 700~740mm, 9° Backsweep, 30mm Rise

Stem

Surface, Alloy, Ø31.8mm, ±3° Rise, 45mm Extension

Saddle

Surface

Seat Post

Surface Alloy, Ø30.9mm

Seatpost Clamp

Alloy, Ø34.9mm, QR Clamp

Pedals

One Piece PP, Black

WEIGHT

Bike Weight

16 Kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

What hanger model fits the SE Series 7 L?

Hanger 22
Is the bike tubeless or tubeless ready or will it need to be fully converted?

This bike has tubeless ready rims, however, the tyres will need to be replaced with tubeless tyres
What is the longest dropper post I can fit on this bike?

Estimated max dropper travel per frame size: S: 125mm, M: 150mm, L: 170mm, XL: 170mm
Can I order this model as a 650B plus?

Yes, XS, S & M are available in 650B / 27.5"
Can I fit a longer fork onto this bike?

No, we dont recommend more than a 100mm travel fork.
Will the geometry change if I fit 650B plus wheels?

Yes, the BB height, stack & standover will be lower.

ANDERE MODELLE DER SERIE

€289

SE:SERIES 275V

Hardtail | Sport XC | Alloy

100mm Travel
27.5" x 2.1" Wheels
3x7 Speed Shimano
16.3kg

€358

SE:SERIES 7 L

Hardtail | Sport XC | Alloy

100mm Travel
27.5/29" Size-Specific
3x7 Speed Shimano
16kg

€486

SE:SERIES 8 L

Hardtail | Sport XC | Alloy

100mm Travel
29"/27.5"
1x8 Speed Shimano
15.5kg

Geometrie

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	XS(27.5")	S(27.5")	M(27.5")
	Rider height(cm)	134-146	146-158	158-170
	Rider inseam(cm)	61-66	66-71	71-77
A	Seat tube c/t	340	370	410
B	Seat tube angle	74°	74°	74°
C	Head tube angle	68°	68°	68°
D	Top Tube	551	574	597
E	Reach	385	405	425
F	Chainstay length	445	445	445
G	bb height	305	305	305
H	head tube length	95	105	115
I	stack	580	589	599
J	standover	654	671	700
K	Wheelbase	1089	1113	1137

map	type(mm unless specified)	S(29")	M(29")	L(29")
	Rider height(cm)	146-158	158-170	170-182
	Rider inseam(cm)	66-71	71-77	77-82
A	Seat tube c/t	380	415	455
B	Seat tube angle	74°	74°	74°
C	Head tube angle	68°	68°	68°
D	Top Tube	583	601	617
E	Reach	405	420	435
F	Chainstay length	460	460	460
G	bb height	319	319	319
H	head tube length	105	115	120
I	stack	610	630	634
J	standover	700	725	753
K	Wheelbase	1137	1156	1173
