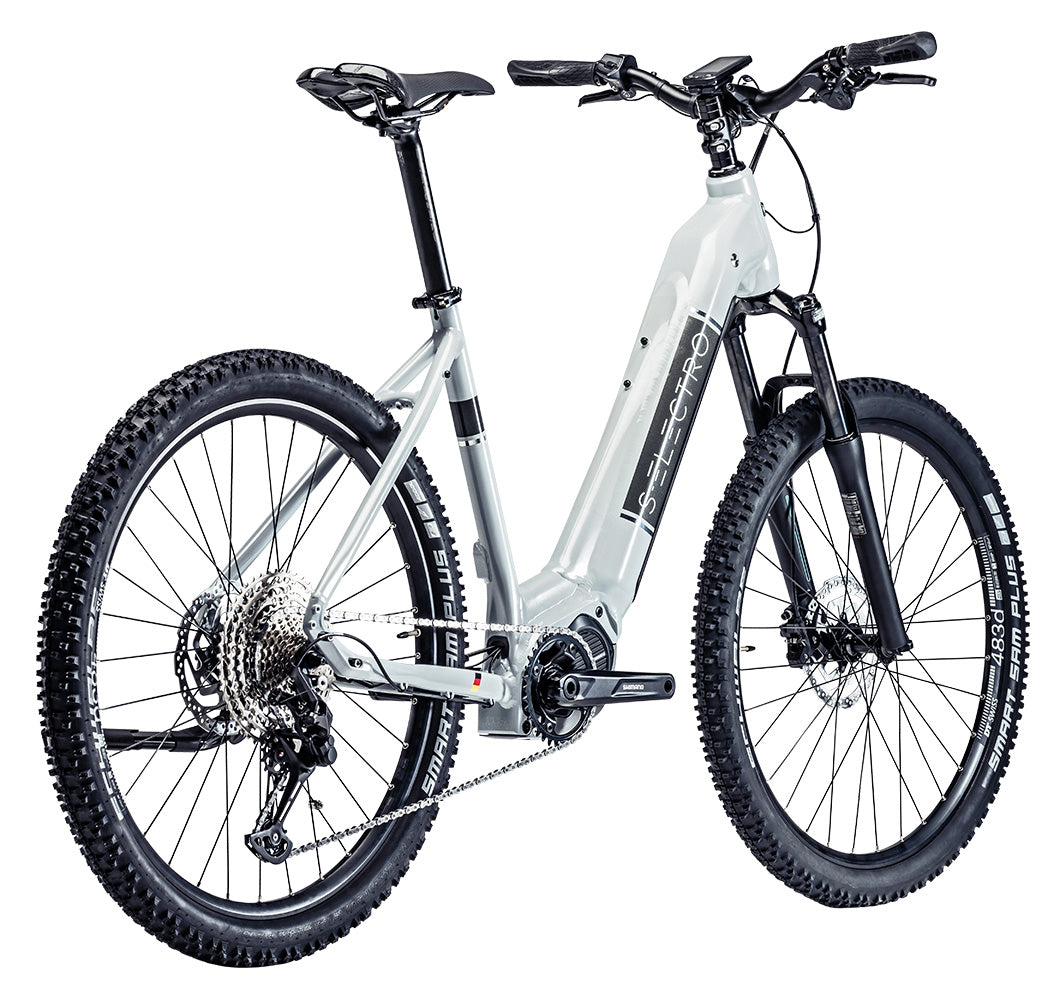

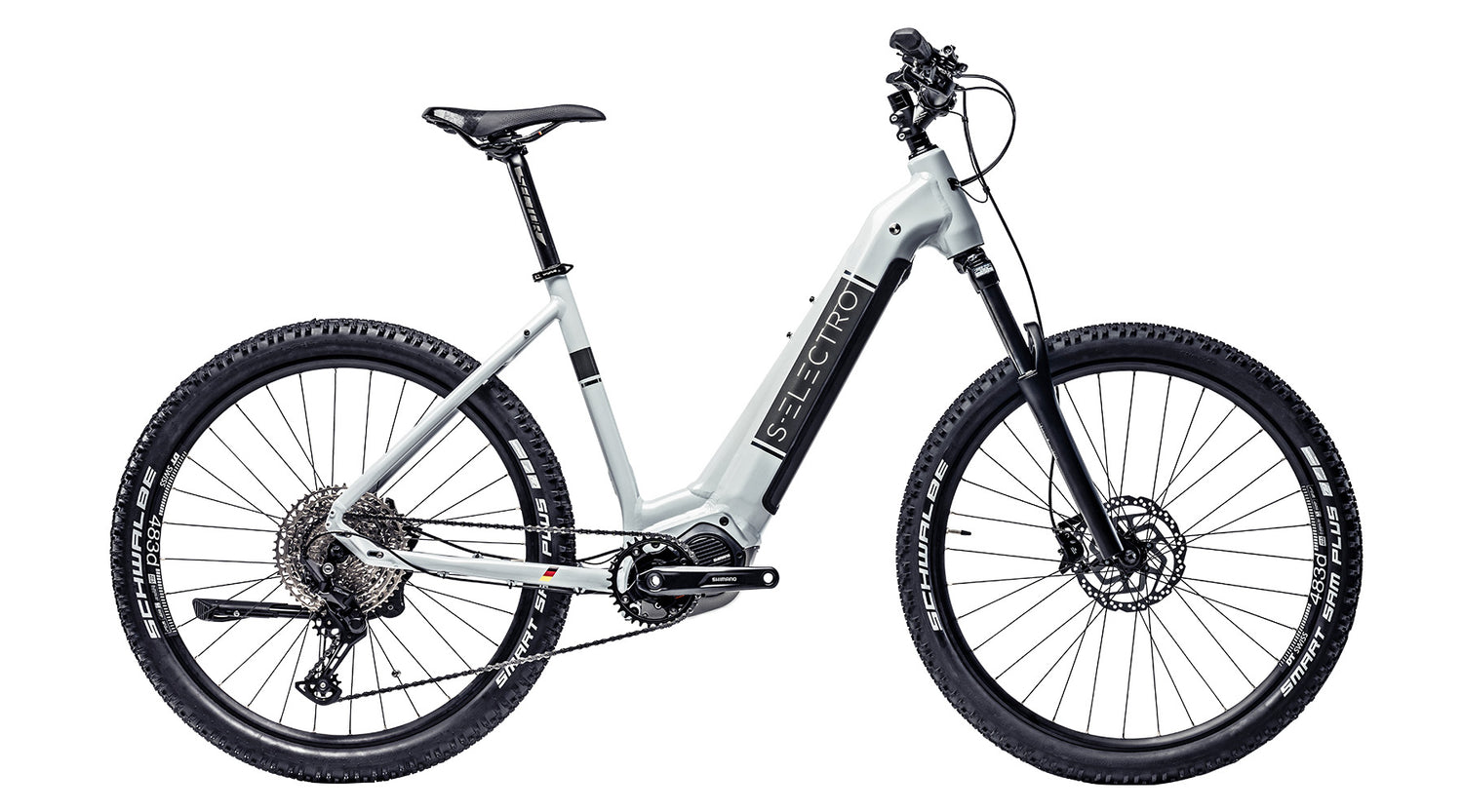

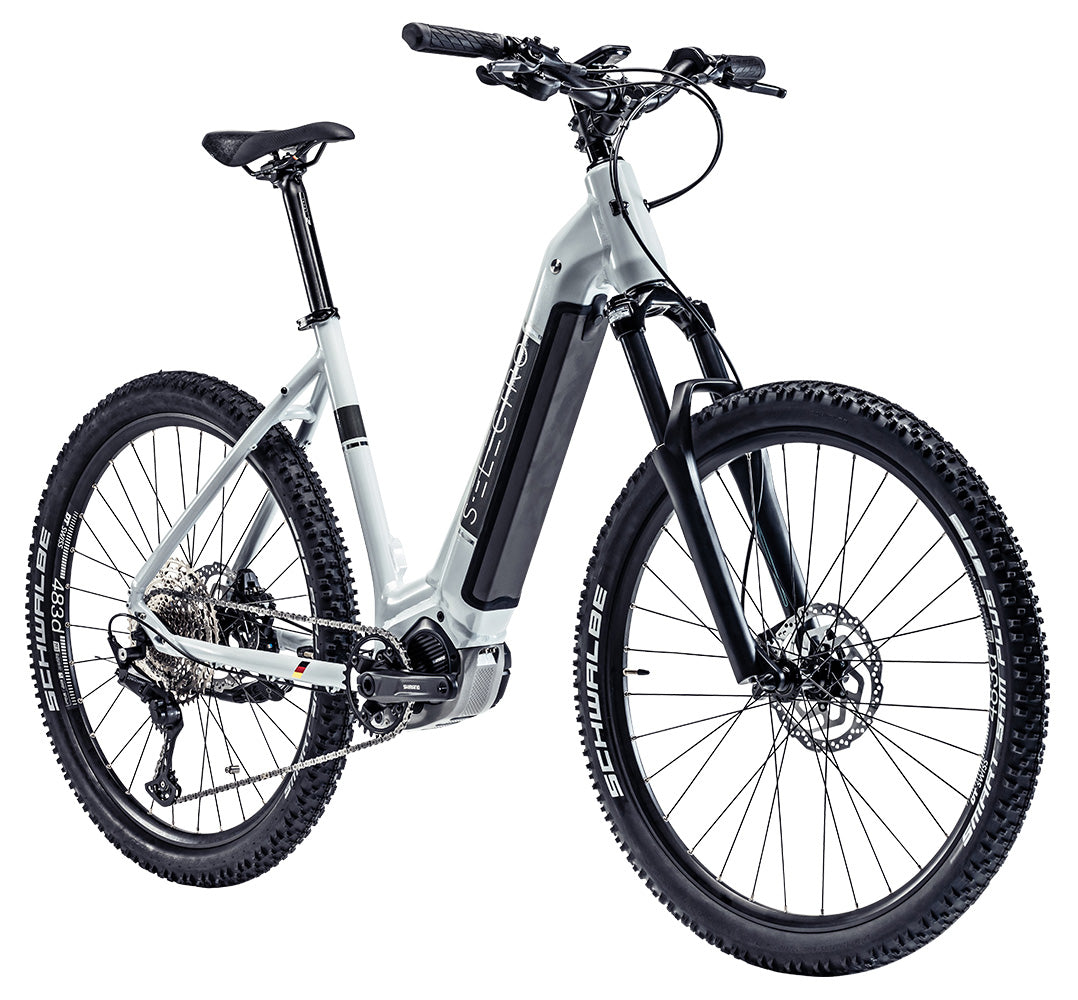

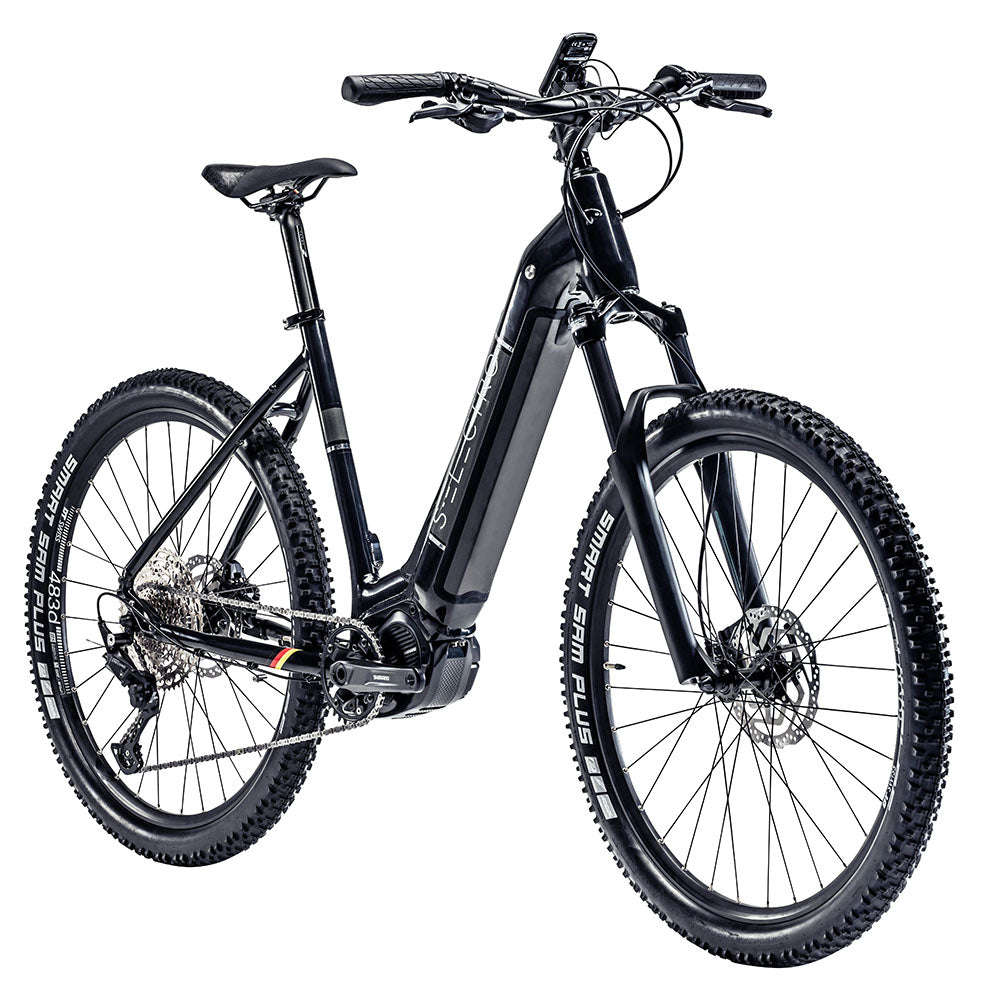

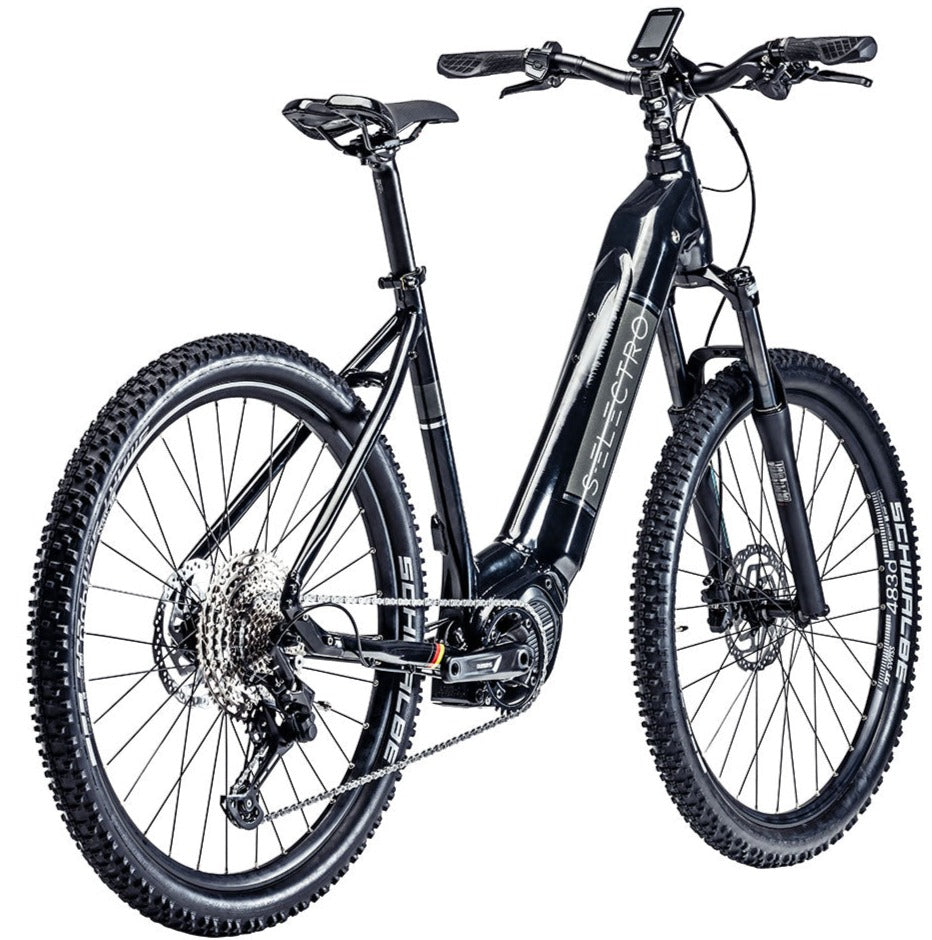

    S-Electro Stepdown (Charcoal)
    Hardtail | E Adventure | Alloy | 27.5" | 120mm Fork
    €3.499,00

    Price incl. VAT excl. Local Import Taxes & Shipping Costs.

    Size
      files/silver-Teal.png

      KEY FEATURES

      • 6061 Alloy S-Electro Stepdown integrated eBike frame
      • Rockshox Recon Silver 120mm, DebonAir, Boost suspension fork
      • Maxxis Forekaster 29 x 2.35" tyres EXO TR
      • Stepdown low standover frame
      • Shimano E7000 motor
      • Darfon 630Wh high capacity battery
      • Shimano Deore M5100 11spd rear derailleur
      • Surface alloy components
      • Shimano MT200 hydraulic disc brakes, 180mm rotors
      • OVERVIEW
      • WHY IT'S BEST
      • SPECIFICATIONS
      • GEOMETRY & SIZING
      • REVIEW & FAQ
      • DOWNLOAD PDF
      • Power suit commuting without breaking a sweat.

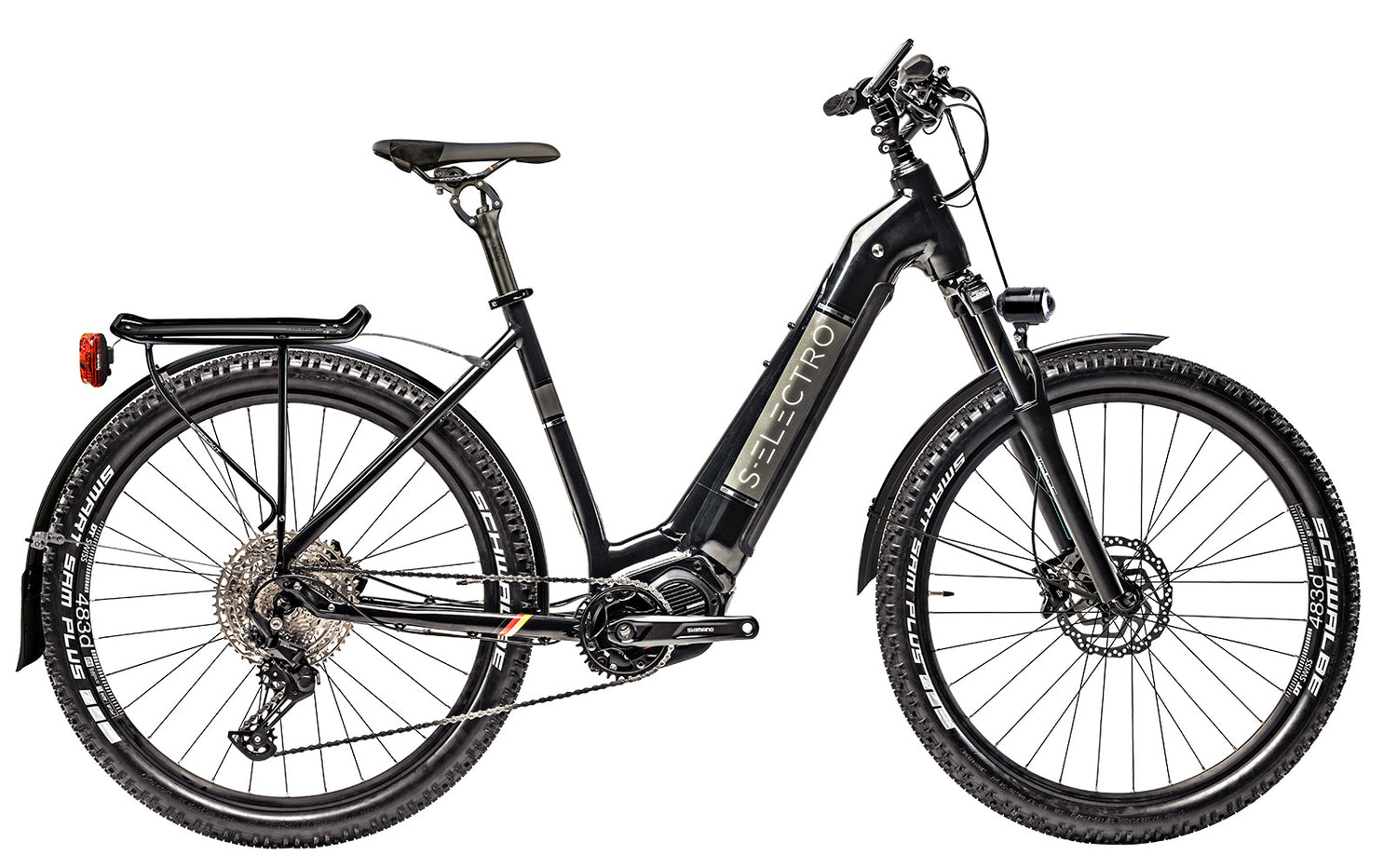

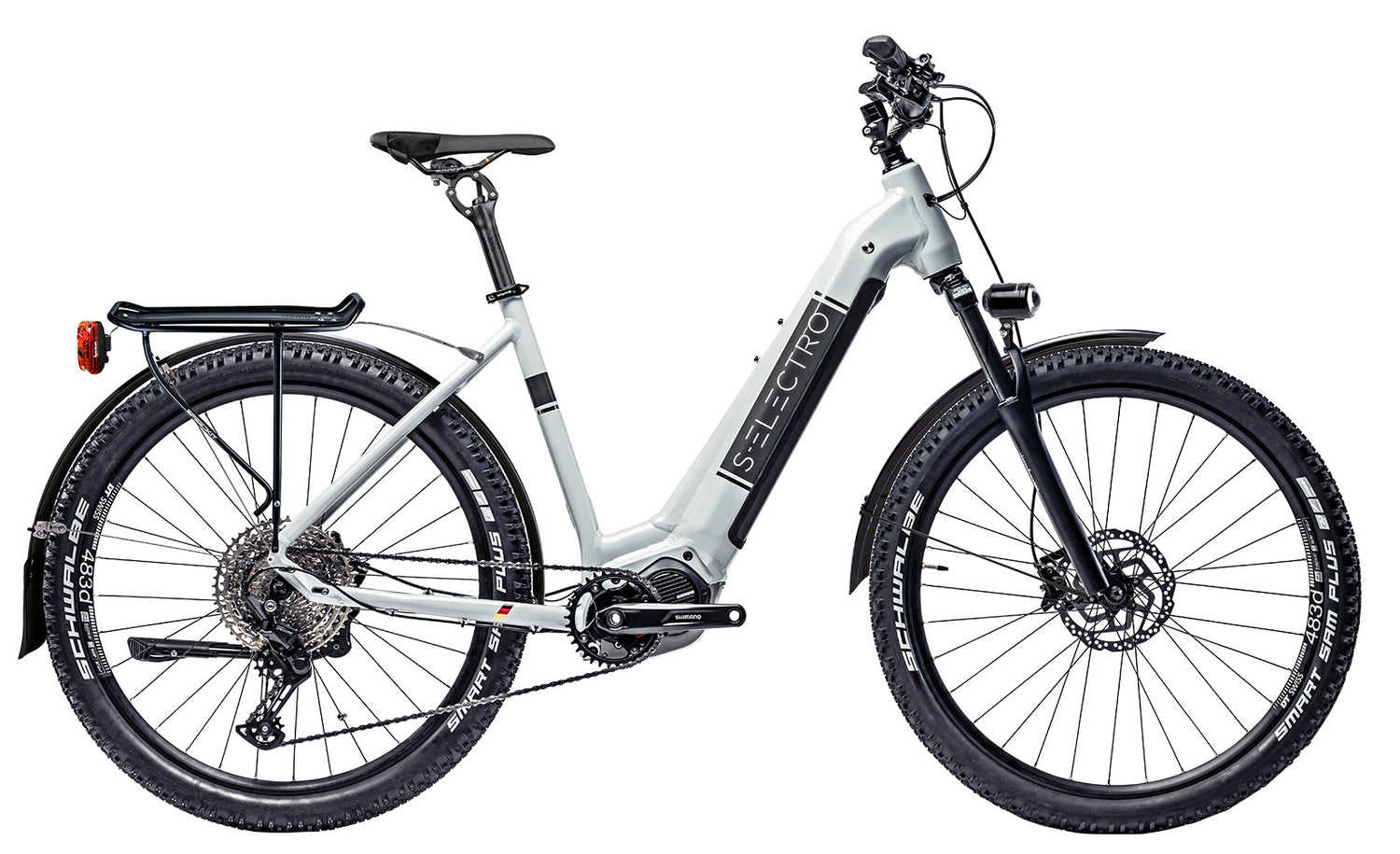

        The S-Electro Stepdown is a commute-ready electric assisted sport bicycle. Head to the office, coffee shop or into nature over the weekend. With the pedal assisted Stepdown and fast rolling 29" x 2.3" tyres, you'll get there quickly and without breaking a sweat. Accessorize with panniers and fenders, and you can commute or even tour all year round with the Stepdown. The super low standover frame of the S-Electro Stepdown means that even if you are wearing a suit, or skirt, its easier to mount. A suspension fork provides plenty of comfort and a powerful Shimano Steps motor and super high capacity 630Wh battery completes the very capable, very fun S-Electro Stepdown. Hit the streets today!
        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-stepdown-tech-highlight-1-speedlab.jpg?v=1597817183

        Hydro formed step down frame

        S-Electro Stepdown features a double butted hydro-formed full suspension alloy frame with integrated motor mount and internal battery. The step in the frame is designed for improved clearance during use - easier mounting as well as a more comfortable bike to use in traffic. Hydro forming means that the frame can have thinner sidewalls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing. Hydro forming is the process of forcing tubing into a negative mold with internal pressurised oil and or water, resulting in stronger - lighter tubes. The combination of oversize downtube and hydro forming, makes for a very strong frame.

        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-stepdown-tech-highlight-2-speedlab.jpg?v=1597817183

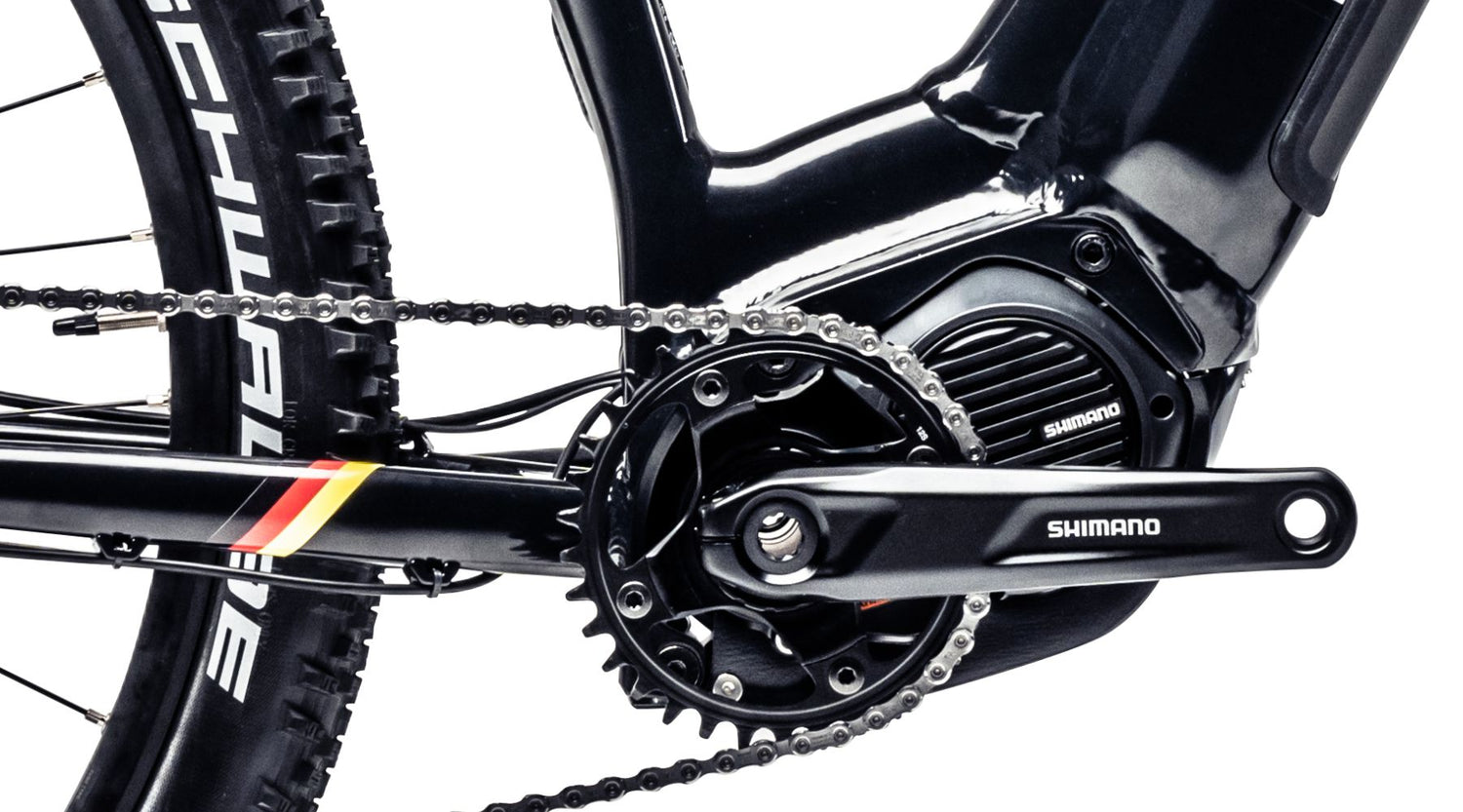

        Drive system, power and display.

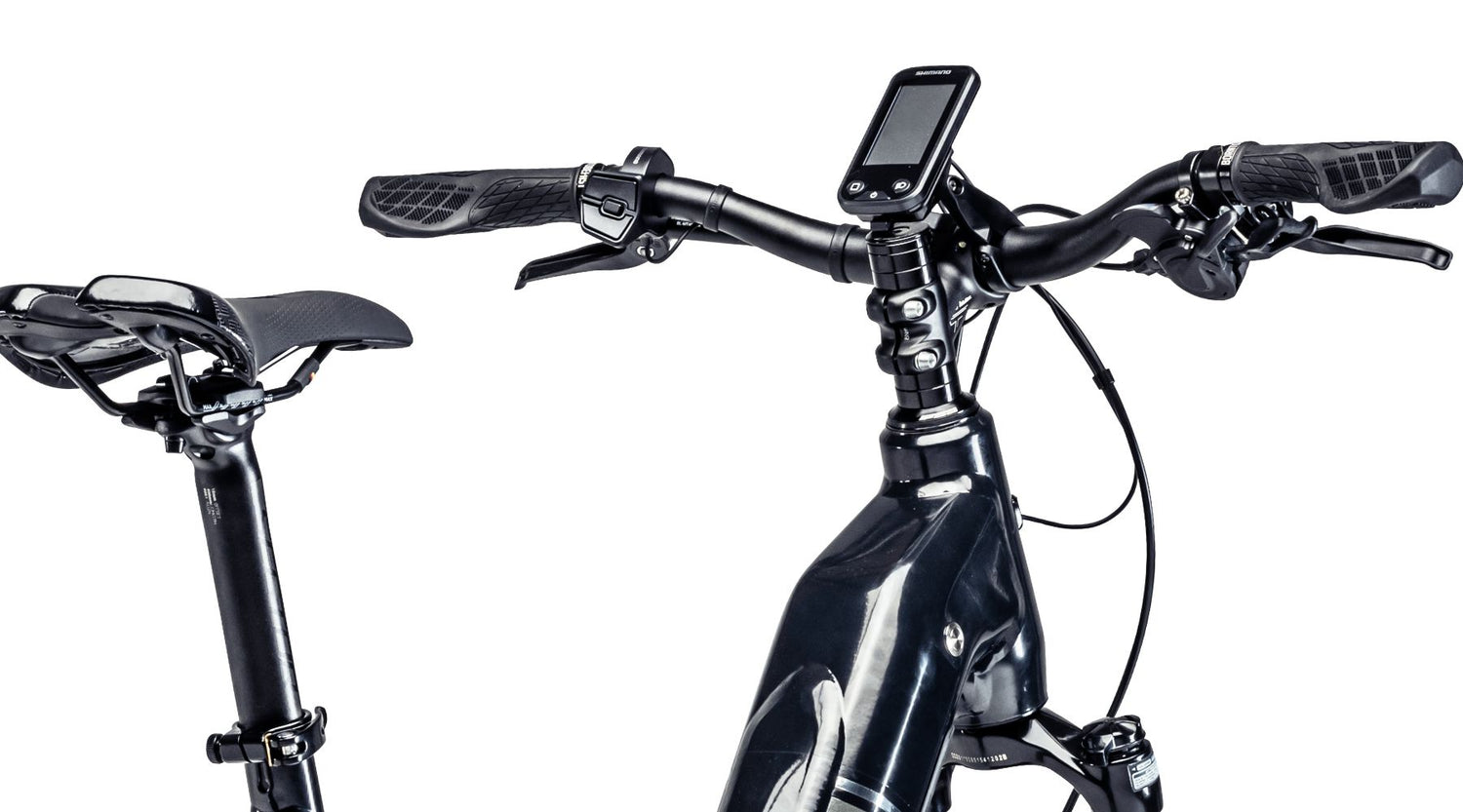

        S-Electro Stepdown is designed around a Shimano Steps E8000 motor. This motor is paired to a high capacity 630Wh internal battery giving the Stepdown an unrivalled range of pedal assistance. The Shimano Steps LCD display is intuitive and easy to use, also indicating battery levels and shows all info needed for the electric system.

      • WHY IT’S BEST.

        1. Electric assisted bikes can help people get into or back into riding and also great for injury recovering riders. Get there without breaking a sweat.
        2. Massive battery means massive assist range.
        3. The Stepdown frame makes commuting in work attire a pleasure - hop on easily in your power suit or even that summer dress that you love.
        4. Removable battery makes charging easier - whether you have an outlet close by or not.
        5. Geometry is comfort orientated, but also makes for confident handling in traffic.
        6. The suspension fork is easy to set up and a great quality fork that does an excellent job at smoothing out bumpy terrain.

        ENGINEERING NOTES.

        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-stepdown-engineering-note-frame.png?v=1597817228

        STEPDOWN FRAME

        The S-Electro Stepdown's most noticable feature is the lack of a top tube. This design feature is to improve stand over clearance and make swinging a leg over the bike easier, also perfect for people wearing suits or skirts.

        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-stepdown-engineering-note-fork.png?v=1597817228

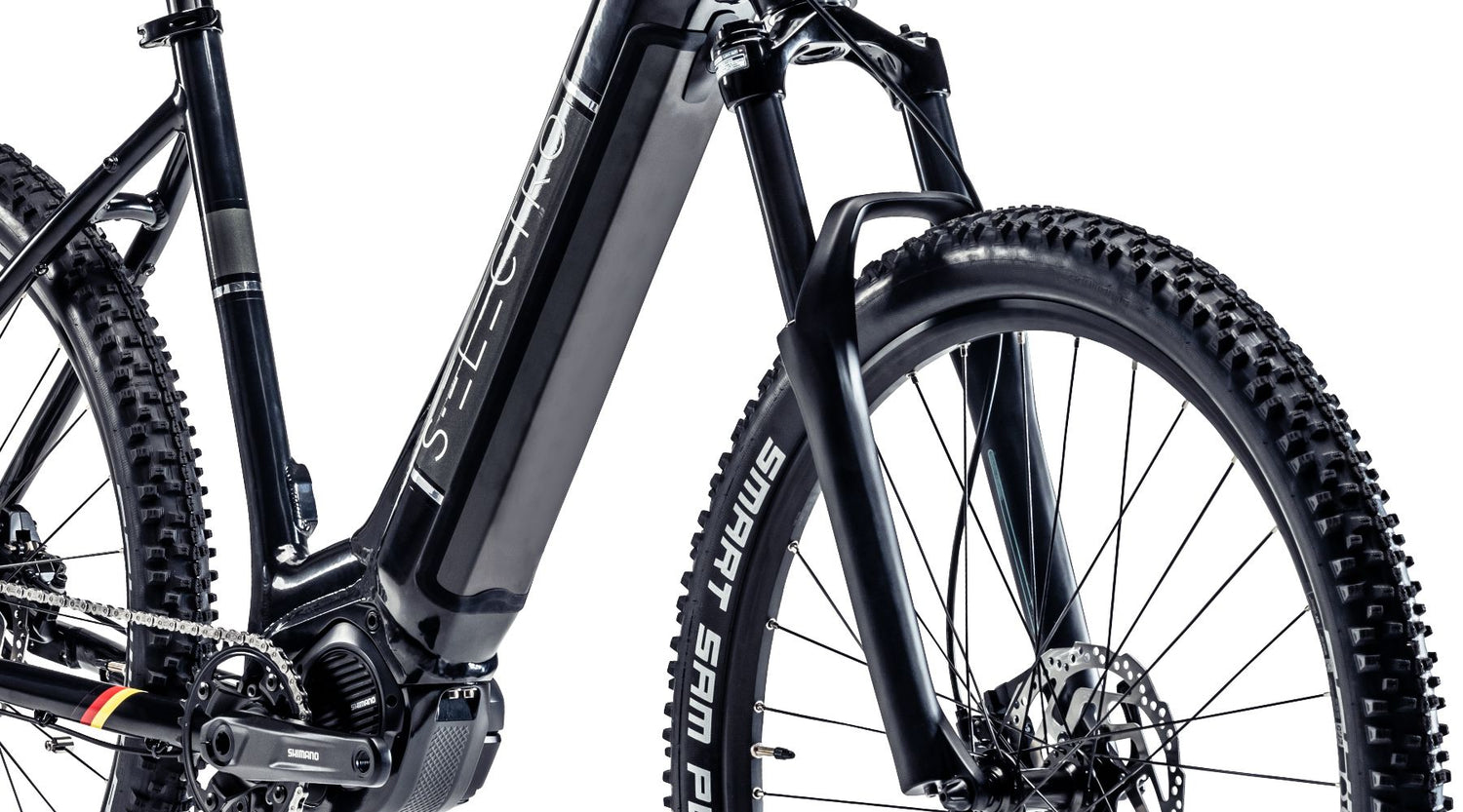

        ROCKSHOX RECON GOLD RL SUSPENSION FORK

        A Rockshox Recon Gold RL 120mm suspension fork offers great damping and smooth movement with very little break away stiction. The Recon Gold is light, easy to set up for specific rider requirements and the benchmark in this class.

        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-stepdown-engineering-note-geometry.png?v=1597817228

        GEOMETRY

        Geometry on the step down has been designed with focus first and foremost on comfort, and secondly on pedaling efficiency. Getting there quickly is only fun if you can be comfortable doing it.

        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-stepdown-engineering-note-components.png?v=1597817227

        COMPONENT CHOICES

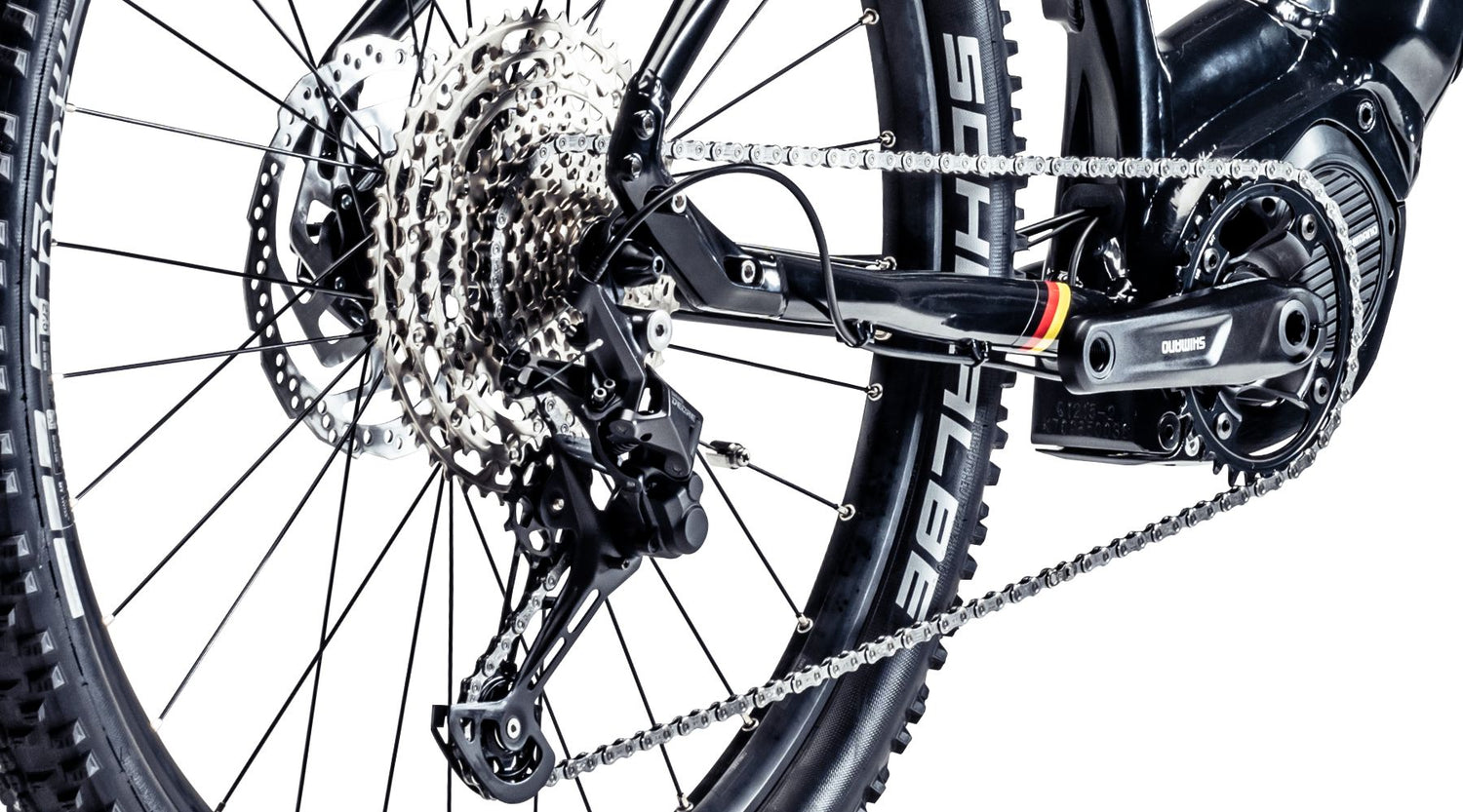

        S-Electro Stepdown is fitted with purpose chosen commute orientated components. This means that more than giving you the most possible bike for your money, the Stepdown will also offer full system synergy - where the whole discipline of commuting is considered, and the result is even better than the sum of the parts. A 34t front chainring, and Deore 11 speed rear derailleur is matched to a 11-51t wide range cassette, offering excellent climbing and top speeds.

        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-stepdown-engineering-note-wheels.png?v=1597817228

        TUBELESS READY SURFACE WHEELS

        Surface wheels are strong and lightweight, and is tubeless ready from the box. Factory pre taped rims mean that you only have to add sealant and valves along with tubeless tyres and you're good to go.

        https://cdn.shopify.com/s/files/1/0082/4128/3143/files/selectro-stepdown-engineering-note-brakes.png?v=1597817228

        HYDRAULIC DISC BRAKES

        The Stepdown features Shimano MT200 hydraulic disc brakes for all weather performance.

      • SPECIFICATIONS.

        FRAMESET

        Frame

        6061 Alloy S-ELECTRO Step-Down integrated eBike frame.

        Headset

        Token TK035A-15 Sealed Bearing

        Frame Axle Spacing

        135x9mm

        Axle Specification

        QR

        Hanger Type

        HANGER 30

        E-BIKE

        Motor

        Shimano E7000

        Battery

        Darfon 630Wh

        Charger

        Shimano E6010

        Display

        Shimano E7000 Screen Display

        Switch

        Shimano EM800

        SUSPENSION

        Fork

        Suntour SF19 Raidon 32, Boost

        Fork Travel

        120mm

        WHEELS

        Wheelset

        SUNringlé

        Hubs

        Front Hub: Shimano MT410, Boost, Rear Hub: Shimano MT400-B, Boost

        Rims

        SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width

        Tyres

        Maxxis Crossmark 29 x 2.25’’

        Max Tyre Size

        2.0"

        DRIVETRAIN

        Crankset

        Shimano M600 Crankarm

        Max Chainring Size

        38T

        Shifter(s)

        Shimano Deore M5100 11sp

        Rear Derailleur

        Shimano Deore M5100 11sp

        Cassette

        Shimano Deore 11sp 11-51t

        Chain

        Shimano HG601 11sp

        BRAKES

        Brakes

        Shimano MT200, Resin Pads

        Rotors

        Shimano RT10 180mm

        COCKPIT

        Grips

        SBC Lockon Grip

        Handlebar

        Surface Alloy, Dia:31.8mm, Backsweep: 9°, Rise: 5mm

        Stem

        Surface High-Rise; Length: 60mm

        Saddle

        Surface Ergo Women's Specific, Black Steel Rails

        Seat Post

        Surface Aluminium, 31.6mm

        Seatpost Clamp

        Surface Alloy

        Pedals

        Not included

        WEIGHT

        Bike Weight


        RIDER WEIGHT LIMIT

        120kg - combined weight of bike and rider (including all kit).

        Disclaimer: Due to Covid-related scheduling and component availability challenges, bike specifications are subject to change without notice. Specifications may not be exactly what is shown in the photo.

      • FIND YOUR FIT

        Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

        GEOMETRY.

        map type(mm unless specified) M
        Rider height(cm) 170-178
        Rider inseam(cm) 77-81
        A Seat tube c/t 500
        B Seat tube angle 73
        C Head tube angle 69
        D Top Tube 620
        E Reach 420
        F Chainstay length 475
        G bb height 300
        H head tube length 160
        I stack 551
        J standover 430
        K Wheelbase 1160
      • Customer Reviews

        Based on 4 reviews Write a review
        • FAQ

        • Can I use the Stepdown on trails?

          The Stepdown is primarily designed for urban environments. Pathways and light trails are fine, but don’t hit jumps, drops or technical sections.

        • Can I modify my electric motor for more speed?

          No. We do not recommend modifying your motor. Any modifications will void your warranty, promote premature component wear and could compromise structural integrity of your frame.

        • Can I fit bigger wheels on my Stepdown?

          If you want to fit bigger tyres, we suggest dropping the rim size to 27.5 wheels. Then you can fit a selection of bigger tyres for more comfort and grip.

        • Can I ride the Stepdown as a classic non assist pedal bicycle?

          Yes, you can, you will notice the extra weight associated with the electric drive system, but other than that, you can pedal and ride the bike as normal.
